Page 233 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-14 Front Hood EXTERIOR BODY PANELS 4) Remove the front fender. <Ref. to EB-15, RE- MOVAL, Front Fender.> 5) Remove the bolts of front hood hinge. 5. FRONT HOOD STRIKER Refer to the front hoo

Page 234 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-15 Front Fender EXTERIOR BODY PANELS 3. Front Fender A: REMOVAL 1) Disconnect the ground cable from battery. 2) Remove the side sill guarnish. <Ref. to EI-32, REMOVAL, Side Garnish.> 3) Remo

Page 235 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-16 Front Door EXTERIOR BODY PANELS 4. Front Door A: REMOVAL 1) Disconnect the ground cable from battery. 2) Remove the front door trim. <Ref. to EI-35, RE- MOVAL, Door Trim.> 3) Remove the outer

Page 236 of 2453

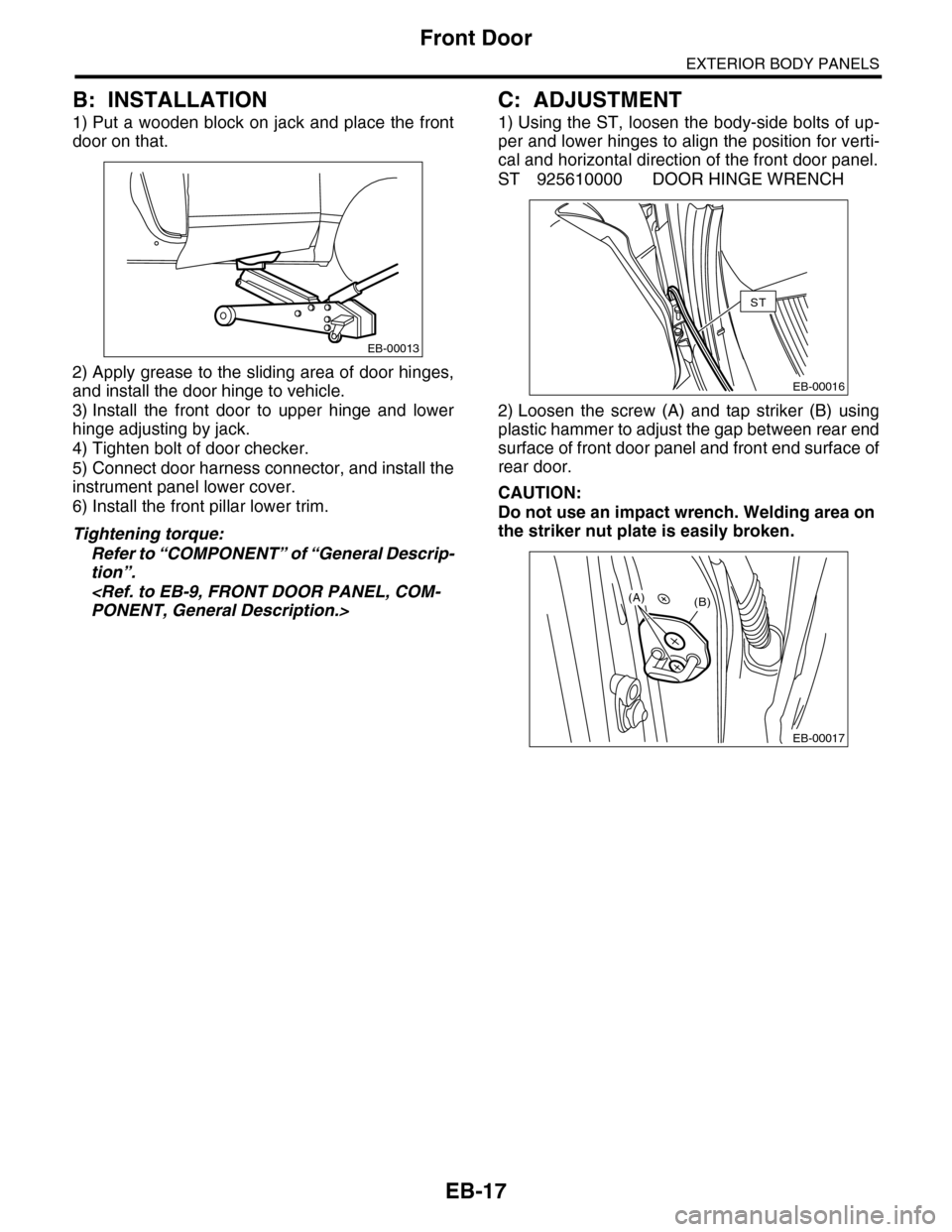

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-17 Front Door EXTERIOR BODY PANELS B: INSTALLATION 1) Put a wooden block on jack and place the front door on that. 2) Apply grease to the sliding area of door hinges, and install the door hinge to

Page 237 of 2453

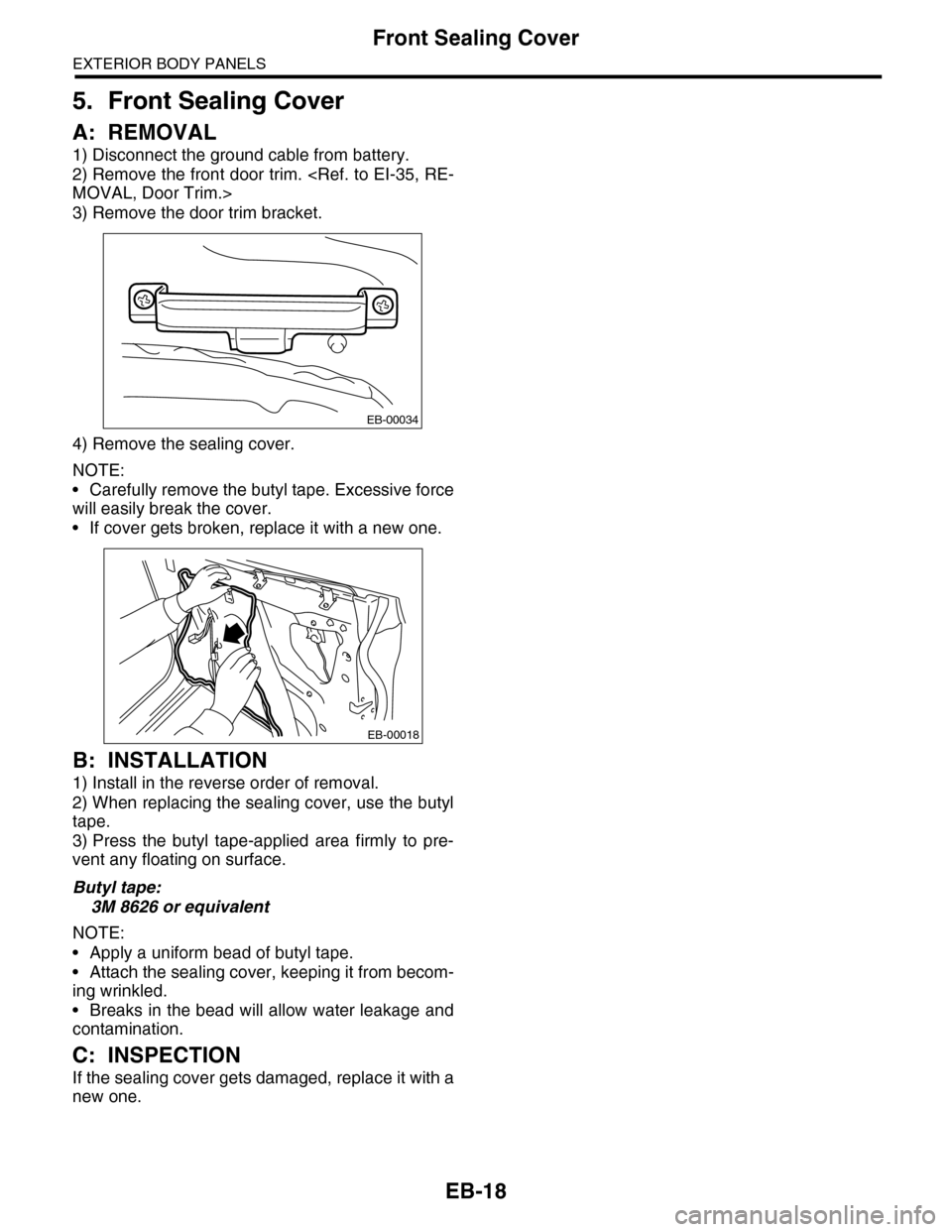

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-18 Front Sealing Cover EXTERIOR BODY PANELS 5. Front Sealing Cover A: REMOVAL 1) Disconnect the ground cable from battery. 2) Remove the front door trim. <Ref. to EI-35, RE- MOVAL, Door Trim.> 3) R

Page 238 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-19 Rear Door EXTERIOR BODY PANELS 6. Rear Door A: REMOVAL 1) Disconnect the ground cable from battery. 2) Remove the rear door trim. <Ref. to EI-35, RE- MOVAL, Door Trim.> 3) Remove the rear

Page 239 of 2453

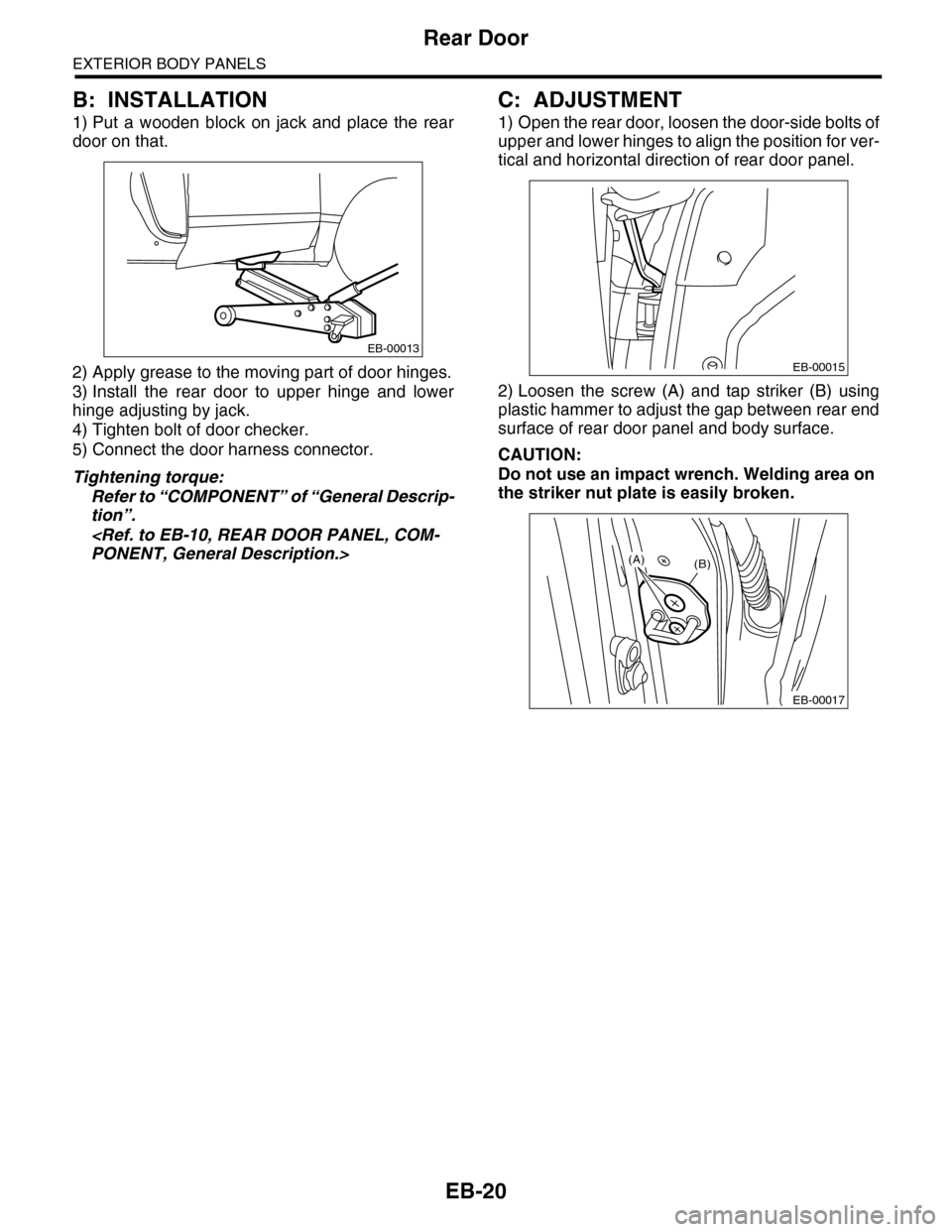

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-20 Rear Door EXTERIOR BODY PANELS B: INSTALLATION 1) Put a wooden block on jack and place the rear door on that. 2) Apply grease to the moving part of door hinges. 3) Install the rear d

Page 240 of 2453

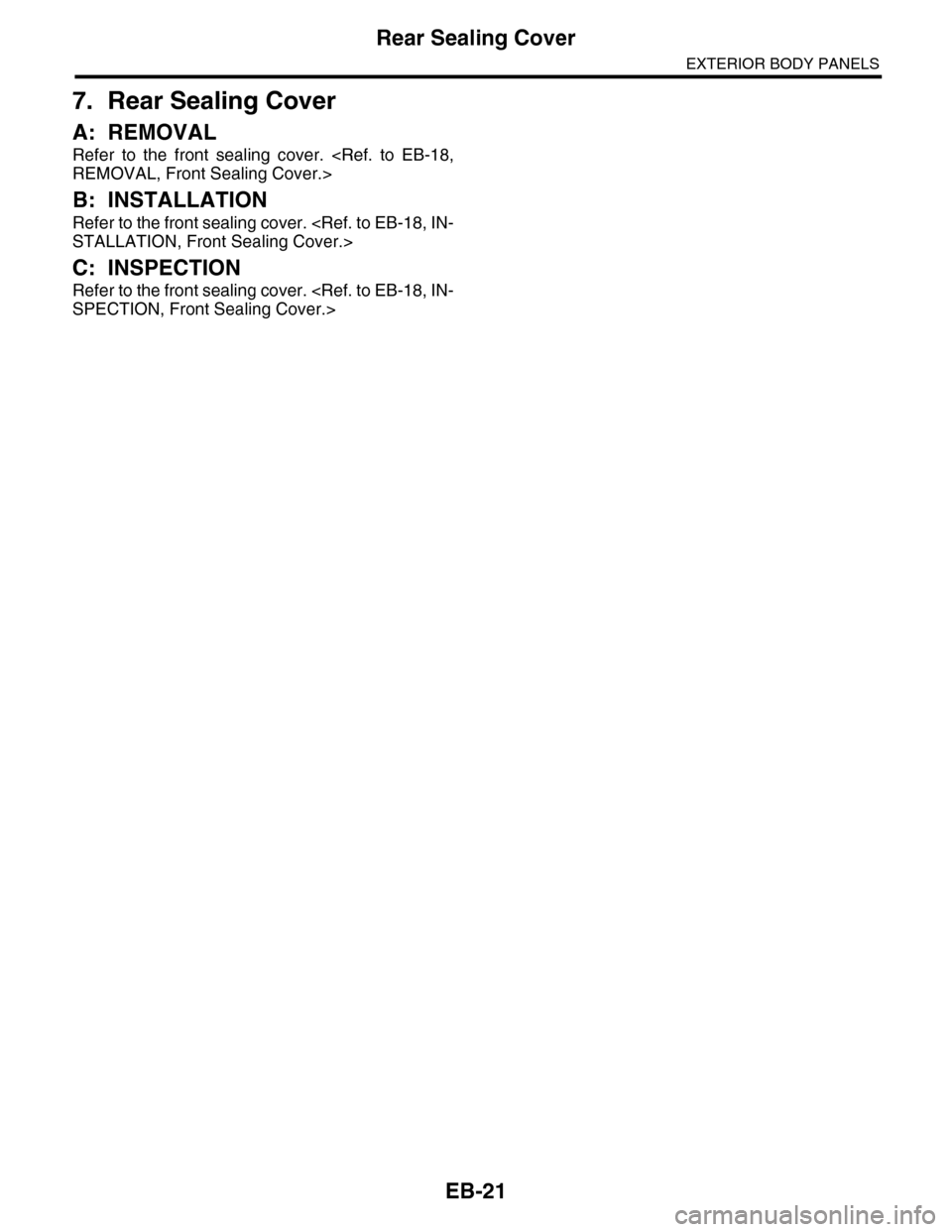

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-21 Rear Sealing Cover EXTERIOR BODY PANELS 7. Rear Sealing Cover A: REMOVAL Refer to the front sealing cover. <Ref. to EB-18, REMOVAL, Front Sealing Cover.> B: INSTALLATION Refer to the fro
