SUBARU TRIBECA 2009 1.G Service Workshop Manual SL-4
General Description
SECURITY AND LOCKS

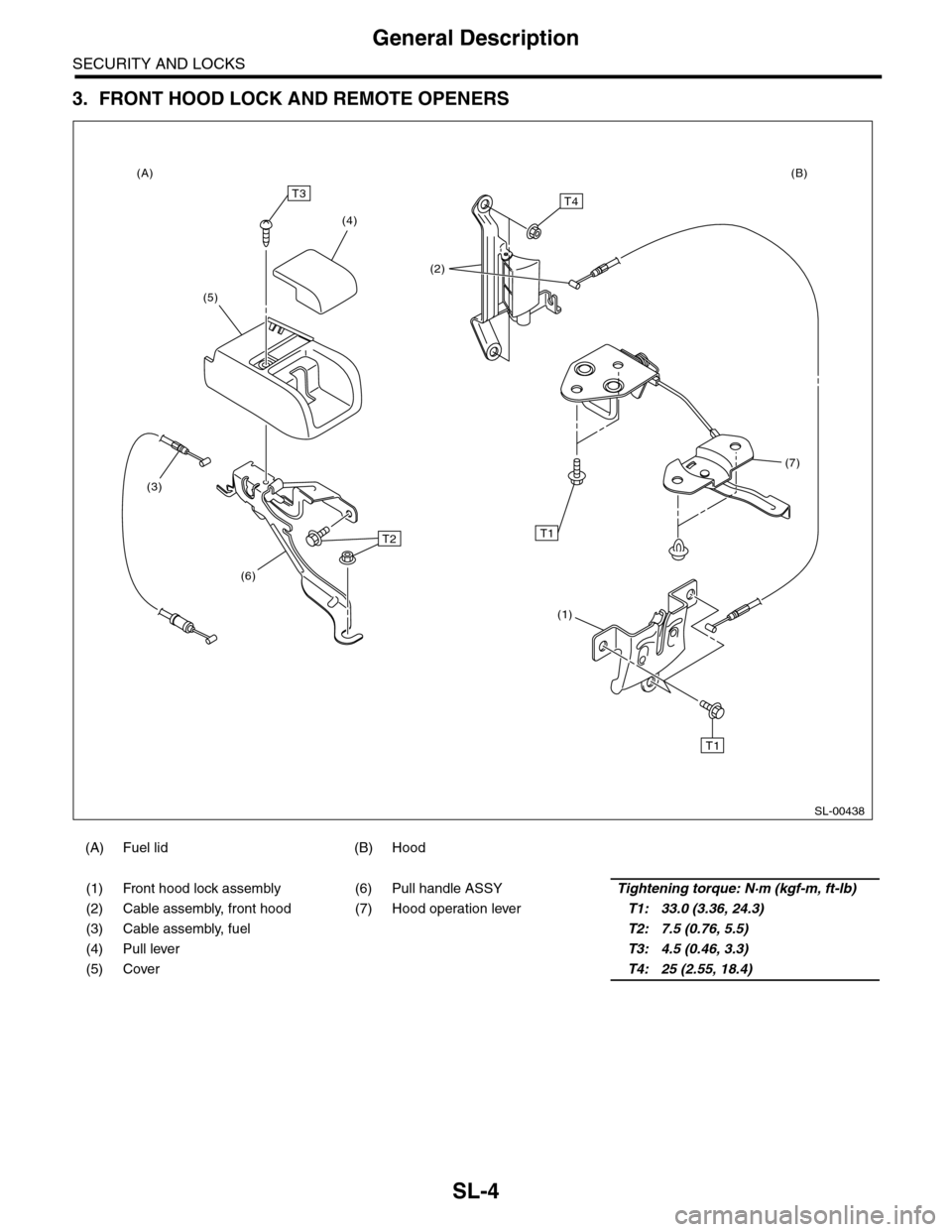

3. FRONT HOOD LOCK AND REMOTE OPENERS
(A) Fuel lid (B) Hood

(1) Front hood lock assembly (6) Pull handle ASSYTightening torque: N·m (kgf-m, ft-lb

Page 634 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SL-5
General Description
SECURITY AND LOCKS
4. IMMOBILIZER SYSTEM
(1) Antenna (3) Body integrated unit (4) Transponder
(2) Security indicator light (LED bulb)
SL-00439
(2)
(4)
(1)(3)

Page 635 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SL-6
General Description
SECURITY AND LOCKS
5. KEYLESS ENTRY SYSTEM
B: CAUTION
•Before disassembling or reassembling parts, al-
ways disconnect the battery ground cable from bat-
tery. When repairin

Page 636 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SL-7
General Description
SECURITY AND LOCKS
C: PREPARATION TOOL
1. SPECIAL TOOL
2. GENERAL TOOL
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
925580000 PULLER Used for removing trim clip
TOOL NAME REMA

Page 637 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SL-8
Door Lock Control System
SECURITY AND LOCKS
2. Door Lock Control System
A: WIRING DIAGRAM
1. DOOR LOCK CONTROL
<Ref. to WI-140, WIRING DIAGRAM, Keyless Entry System.>
B: INSPECTION
1. SYMPTOM CHA

Page 638 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SL-9
Door Lock Control System
SECURITY AND LOCKS
4. CHECK DOOR LOCK SWITCH.
Step Check Yes No
1CHECK DOOR LOCK SWITCH.
Check the input from door lock switch to body
integrated unit using Subaru Selec

SL-9
Door Lock Control System
SECURITY AND LOCKS
4. CHECK DOOR LOCK SWITCH.
Step Check Yes No
1CHECK DOOR LOCK SWITCH.
Check the input from door lock switch to body
integrated unit using Subaru Select Monitor.
1) Connect the Subaru Select Monitor to data
link connector.
2) Turn the ignition switch to ON.
3) Select {Integ. unit} from main menu.
4) Select the {Current Data Display & Save}.
5) Check the input to body integrated unit by
operating the door lock switch.
Is the normal input signal dis-
played when the door lock
switch is moved to LOCK/
UNLOCK?
The door lock
switch is OK.
Go to step 2.
2CHECK DOOR LOCK SWITCH CIRCUIT.
1) Disconnect the harness connector of body
integrated unit.
2) Measure the resistance between the har-
ness connector terminal and chassis ground
when moving the door lock switch to LOCK.
Connector & terminal
(i84) No. 15 — Chassis ground:
Is the resistance less than 10
Ω?
Go to step 3.Go to step 4.
3CHECK DOOR LOCK SWITCH CIRCUIT.
Measure the resistance between the harness
connector terminal and chassis ground when
the door lock switch is moved to UNLOCK.
Connector & terminal
(i84) No. 29 — Chassis ground:
Is the resistance less than 10
Ω?
The door lock
switch is OK.
Go to step 4.
4CHECK DOOR LOCK SWITCH.
1) Disconnect the door lock switch harness
connector.
2) Measure the resistance between the door
lock switch terminals when moving the door
lock switch to LOCK.
Connector & terminal
Driver’s side:
(D7) No. 5 — No. 9:
Passenger’s side:
(D125) No. 2 — No. 5:
Is the resistance less than 1
Ω?
Go to step 5.Replace the door
lock switch.
5CHECK DOOR LOCK SWITCH.
Measure the resistance between the door lock
switch terminals when moving the door lock
switch to UNLOCK.
Connector & terminal
Driver’s side:
(D7) No. 5 — No. 8:
Passenger’s side:
(D125) No. 4 — No. 5:
Is the resistance less than 1
Ω?
Go to step 6.Replace the door
lock switch.
6HARNESS INSPECTION.
Measure the resistance between door lock
switch harness connector terminal and chassis
ground.
Connector & terminal
Driver’s side:
(D7) No. 5 — Chassis ground:
Passenger’s side:
(D125) No.5 — Chassis ground:
Is the resistance less than 1
Ω?
Replace the door
lock switch.
Repair the open
circuit or chassis
short circuit of the
harness.

Page 639 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SL-10
Door Lock Control System
SECURITY AND LOCKS
5. CHECK DOOR LOCK ACTUATOR & CIRCUIT
Step Check Yes No
1CHECK OUTPUT SIGNAL.
Measure the voltage between the harness con-
nector terminal and chassis

Page 640 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SL-11
Keyless Entry System
SECURITY AND LOCKS
3. Keyless Entry System
A: WIRING DIAGRAM
1. KEYLESS ENTRY
<Ref. to WI-140, WIRING DIAGRAM, Keyless Entry System.>
B: ELECTRICAL SPECIFICATION
1. KEYLESS
