2009 SUBARU TRIBECA Service Workshop Manual

fuel cap release language refrigerant type boot fold seats engine oil

Load previous 8 pages

Page 2281 of 2453

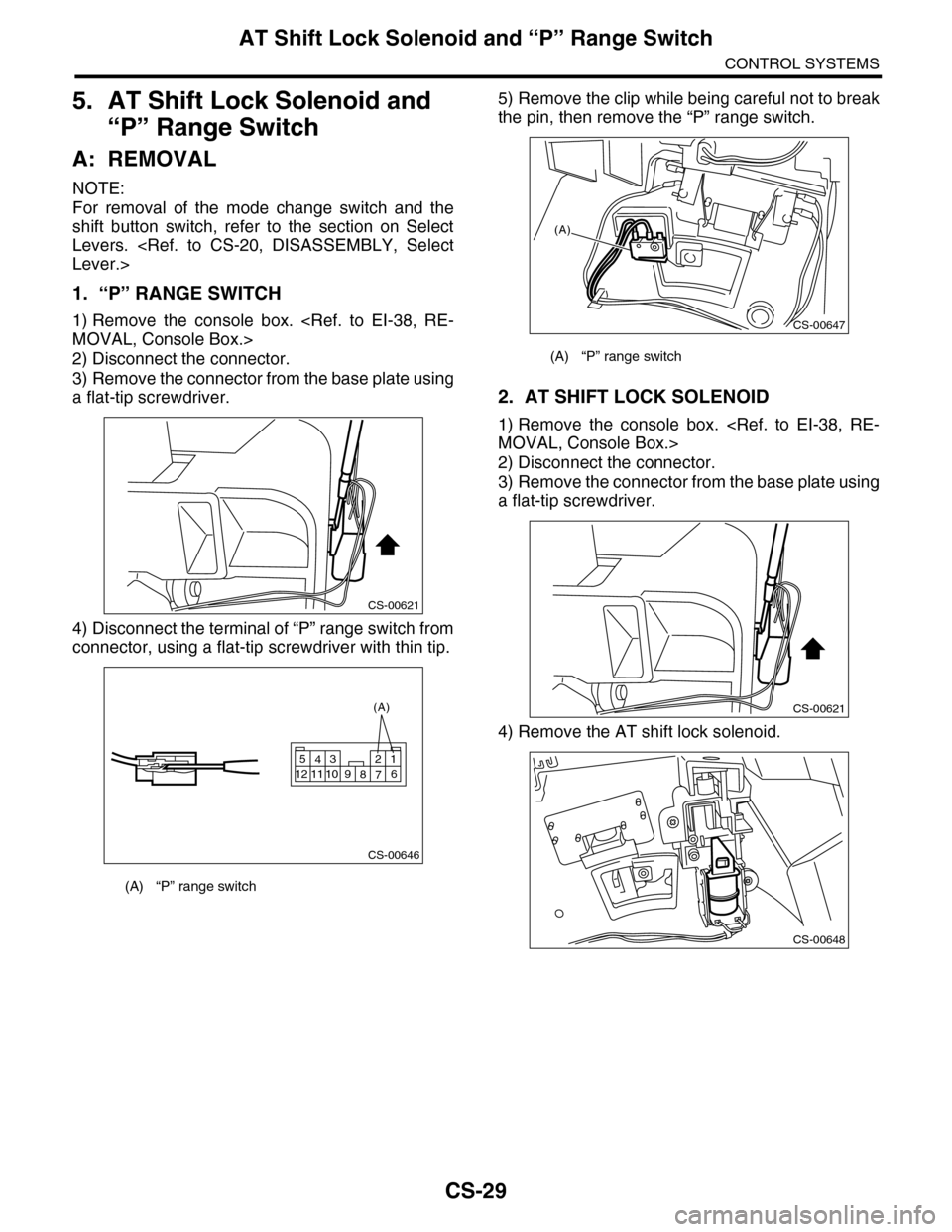

SUBARU TRIBECA 2009 1.G Service Workshop Manual CS-29
AT Shift Lock Solenoid and “P” Range Switch
CONTROL SYSTEMS
5. AT Shift Lock Solenoid and
“P” Range Switch
A: REMOVAL
NOTE:
For removal of the mode change switch and the
shift

Page 2282 of 2453

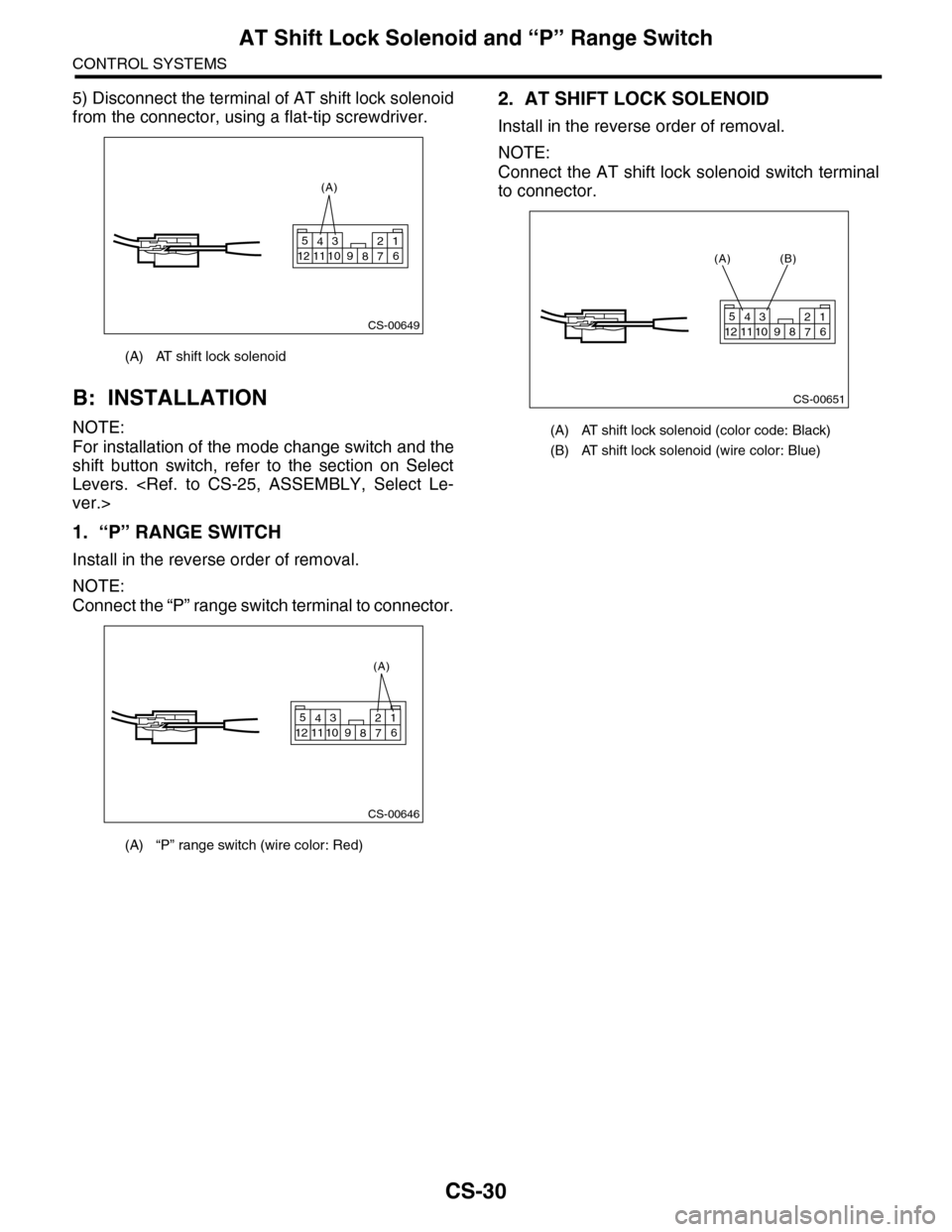

SUBARU TRIBECA 2009 1.G Service Workshop Manual CS-30
AT Shift Lock Solenoid and “P” Range Switch
CONTROL SYSTEMS
5) Disconnect the terminal of AT shift lock solenoid
from the connector, using a flat-tip screwdriver.
B: INSTALLATION
NOTE:
For i

Page 2283 of 2453

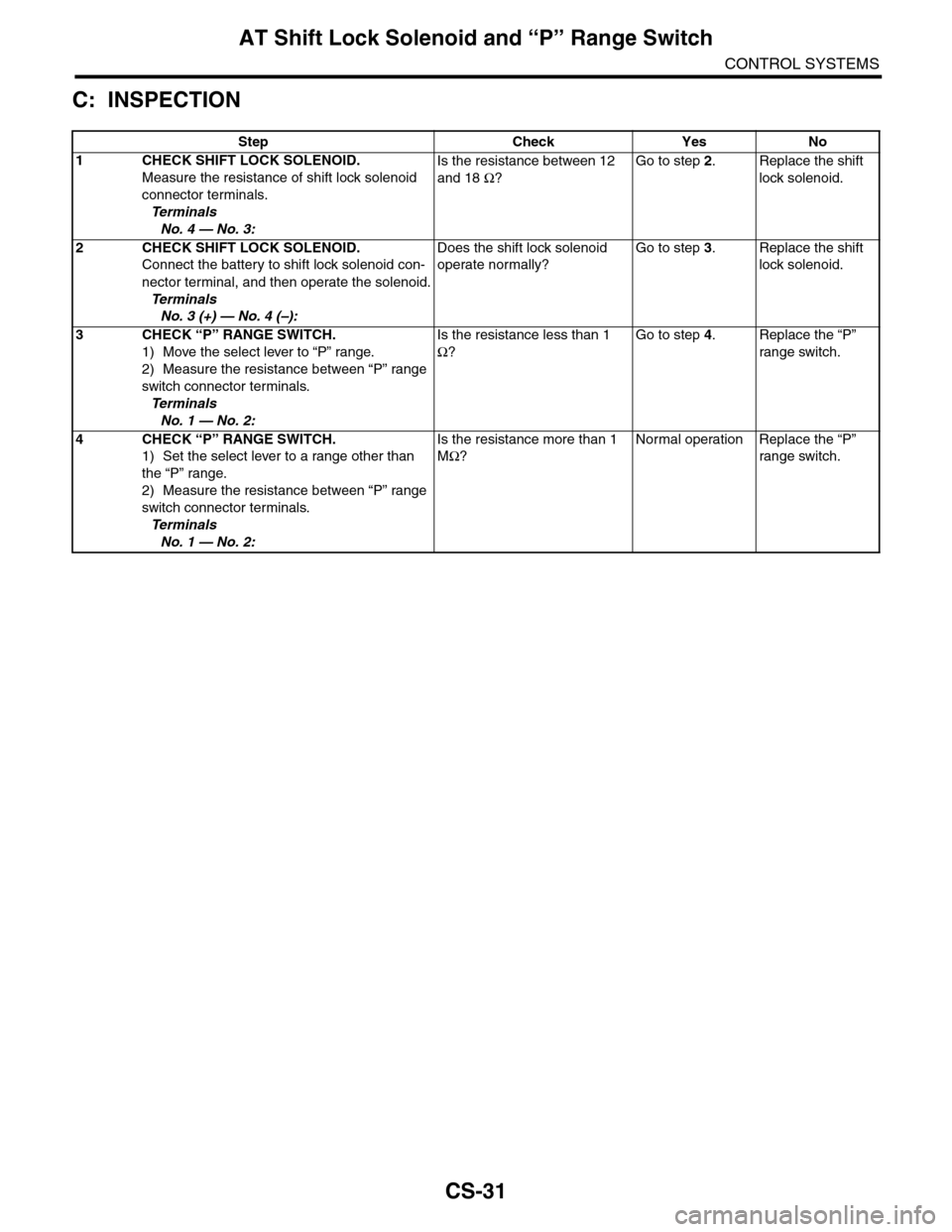

SUBARU TRIBECA 2009 1.G Service Workshop Manual CS-31
AT Shift Lock Solenoid and “P” Range Switch
CONTROL SYSTEMS
C: INSPECTION
Step Check Yes No
1CHECK SHIFT LOCK SOLENOID.
Measure the resistance of shift lock solenoid
connector terminals.
Te

Page 2284 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual CS-32
Body Integrated Unit
CONTROL SYSTEMS
6. Body Integrated Unit
A: NOTE
Refer to “Body Integrated Unit” for removal and in-
stallation procedure. <Ref. to SL-52, Body Integrat-
ed Unit.>

Page 2285 of 2453

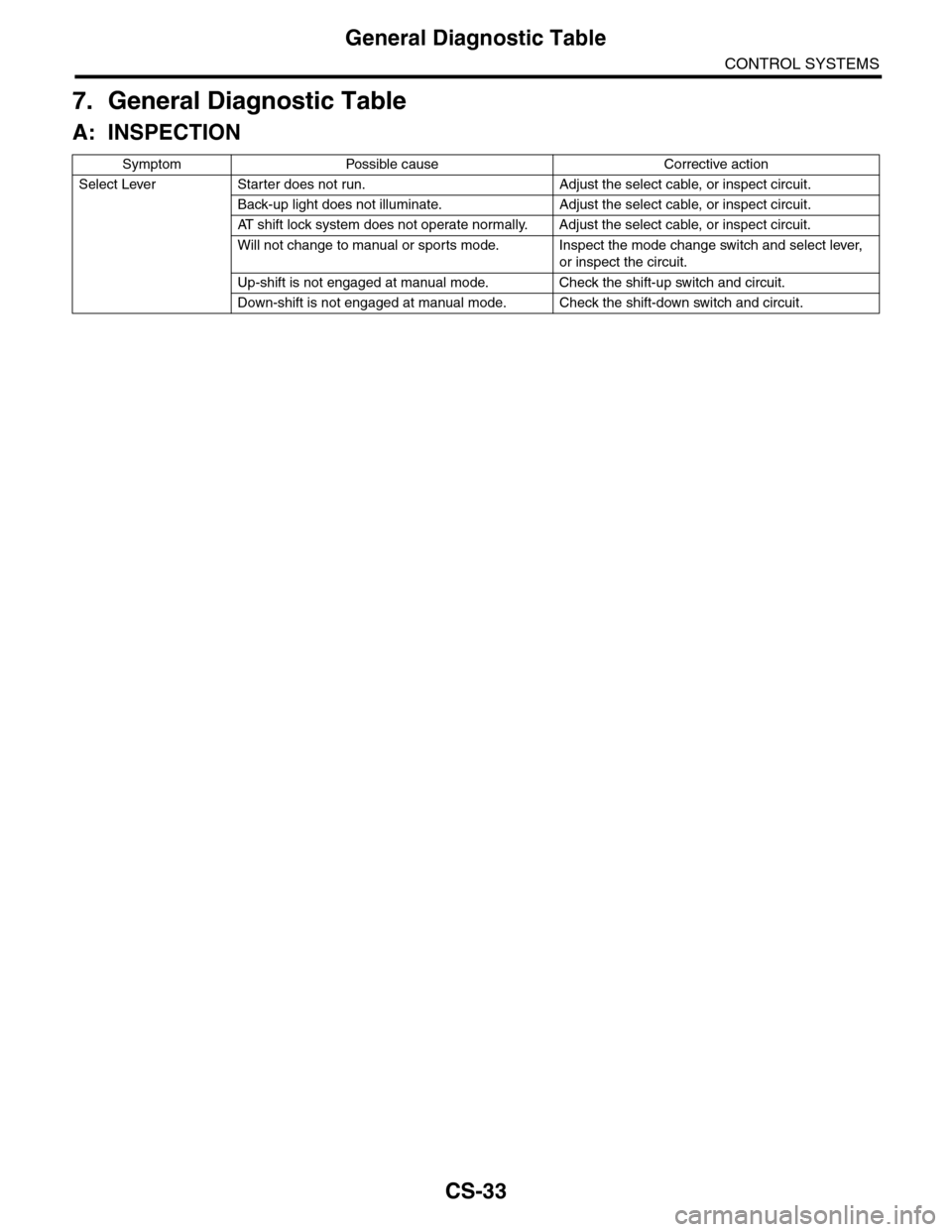

SUBARU TRIBECA 2009 1.G Service Workshop Manual CS-33
General Diagnostic Table
CONTROL SYSTEMS
7. General Diagnostic Table
A: INSPECTION
Symptom Possible cause Corrective action
Select Lever Starter does not run. Adjust the select cable, or inspect

Page 2286 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual CS-34
General Diagnostic Table
CONTROL SYSTEMS

Page 2287 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual WI-3
Basic Diagnostic Procedure
WIRING SYSTEM
1. Basic Diagnostic Procedure
A: BASIC PROCEDURES
1. GENERAL DESCRIPTION
The most important purpose of diagnostics is to
quickly determine which

WI-3
Basic Diagnostic Procedure
WIRING SYSTEM
1. Basic Diagnostic Procedure
A: BASIC PROCEDURES
1. GENERAL DESCRIPTION
The most important purpose of diagnostics is to
quickly determine which part is malfunctioning, to
save time and labor.
2. IDENTIFICATION OF TROUBLE SYMP-
TOM
Determine what the problem is based on the symp-
tom.
3. PROBABLE CAUSE OF TROUBLE
Look at the wiring diagram and check the system’s
circuit. Then check the switch, relay, fuse, ground,
etc.
4. LOCATION AND REPAIR OF TROUBLE
1) Using the diagnostics, narrow down the causes.
2) If necessary, use a voltmeter, ohmmeter, etc.
3) Before replacing certain component parts
(switch, relay, etc.), check the power supply,
ground, for open wiring harness, poor connectors,
etc. If no problem is encountered, check the com-
ponent parts.
5. SYSTEM OPERATION CHECK
After repairing, ensure that the system operates
properly.
B: BASIC INSPECTION
1. VOLTAGE MEASUREMENT
1) Using a voltmeter, connect the negative lead to a
good ground point or negative battery terminal and
the positive lead to the connector or component ter-
minal.
2) Contact the positive lead of the voltmeter on
connector (A). The voltmeter will indicate a voltage.
3) Shift the positive lead to connector (B). The volt-
meter will indicate no voltage.
4) With the test set-up held as it is, turn the switch
ON. The voltmeter will indicate a voltage and, at the
same time, the light will come on.
5) The circuit is in good order. If a problem such as
a light failing to illuminate occurs, use the proce-
dures outlined above to track down the malfunc-
tion.
2. CIRCUIT CONTINUITY CHECKS
1) Disconnect the battery terminal or connector so
there is no voltage between the check points.
Contact the two leads of an ohmmeter to each of
the check points.
If the circuit has diodes, reverse the two leads and
check again.
2) Use an ohmmeter to check for diode continuity.
When contacting the negative lead to the diode
positive side and the positive lead to the negative
side, there should be continuity.
When contacting the two leads in reverse, there
should be no continuity.
3) The symbol“ — ” indicates that continuity
exists between two points or terminals. For exam-
ple, when a switch position is at “3”, continuity ex-
ists among terminals 1, 3 and 6, as shown in the
table below.
WI-02739
To powerFUSEsupplySwitchLight
V
(A)(B)
WI-02740
Continuity No continuity

Page 2288 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual WI-4
Basic Diagnostic Procedure
WIRING SYSTEM
3. HOW TO DETERMINE AN OPEN CIR-
CUIT
1) WITH VOLTMETER:
An open circuit is determined by measuring the
voltage between respective connectors and g
