Page 201 of 2453
ET-15
Front Speaker
ENTERTAINMENT
10.Front Speaker
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the front door trim.
MOVAL, Door Trim.>
3) Remove the front speaker mounting screws.
4) Disconnect the harness connector and remove
the front speaker.
B: INSTALLATION
Install in the reverse order of removal.
ET-00175
Page 202 of 2453
ET-17
Rear Speaker
ENTERTAINMENT
12.Rear Speaker
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the rear door trim.
MOVAL, Door Trim.>
3) Remove the rear speaker mounting screws.
4) Disconnect the harness connector and remove
the rear speaker.
B: INSTALLATION
Install in the reverse order of removal.
ET-00178
Page 203 of 2453
ET-18
Woofer
ENTERTAINMENT
13.Woofer
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the quarter trim.
MOVAL, Rear Quarter Trim.>
3) Remove the woofer bracket mounting screws.
4) Disconnect the harness connector and detach
the woofers.
B: INSTALLATION
Install in the reverse order of removal.
ET-00179
Page 204 of 2453

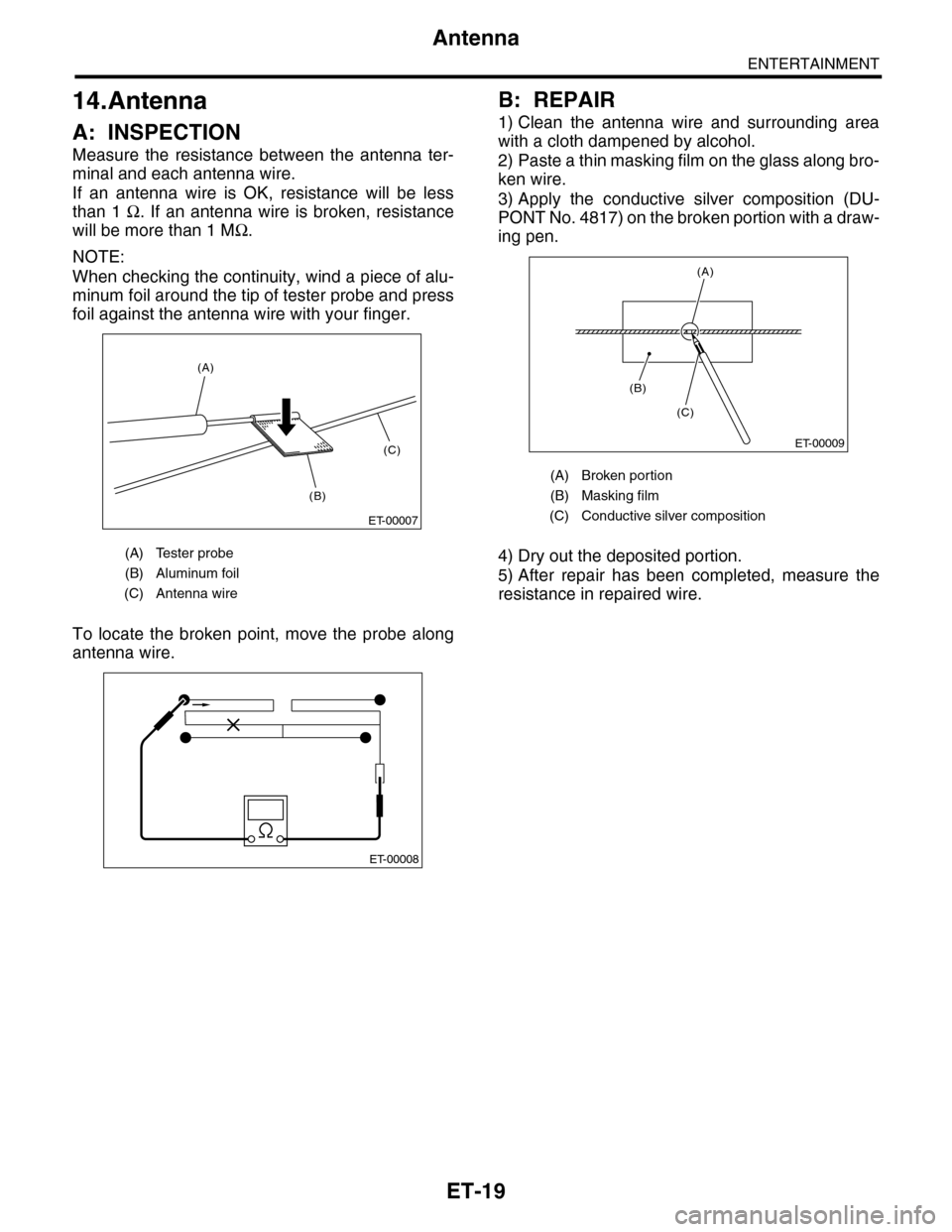

ET-19
Antenna
ENTERTAINMENT
14.Antenna
A: INSPECTION
Measure the resistance between the antenna ter-
minal and each antenna wire.
If an antenna wire is OK, resistance will be less
than 1 Ω. If an antenna wire is broken, resistance
will be more than 1 MΩ.
NOTE:
When checking the continuity, wind a piece of alu-
minum foil around the tip of tester probe and press
foil against the antenna wire with your finger.
To locate the broken point, move the probe along
antenna wire.
B: REPAIR
1) Clean the antenna wire and surrounding area
with a cloth dampened by alcohol.
2) Paste a thin masking film on the glass along bro-
ken wire.
3) Apply the conductive silver composition (DU-
PONT No. 4817) on the broken portion with a draw-
ing pen.
4) Dry out the deposited portion.
5) After repair has been completed, measure the
resistance in repaired wire.
(A) Tester probe
(B) Aluminum foil
(C) Antenna wire
ET-00007
(B)
(C)
(A)
ET-00008
(A) Broken portion
(B) Masking film
(C) Conductive silver composition
ET-00009
(B)
(C)
(A)
Page 205 of 2453
ET-20
Antenna Amplifier
ENTERTAINMENT
15.Antenna Amplifier
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the rear gate trim.
MOVAL, Rear Gate Trim.>
3) Disconnect the harness connectors and termi-
nals.
4) Remove the screws and detach the antenna am-
plifier.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
Measure the resistance of antenna amplifier.
Te r m i n a l N o . S t a n d a r d
(1) and amplifier body 10 kΩ or more
(2)-b and Amplifier body 10 kΩ or more
(3)-a and Amplifier body 10 kΩ or more
ET-00180
ET-00181
(2),(3)
(1)
(3)-a
(2)-b
Page 206 of 2453
ET-21
Noise Surpressor
ENTERTAINMENT
16.Noise Surpressor
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the rear gate trim.
MOVAL, Rear Gate Trim.>
3) Disconnect harness connector from noise sup-
pressor.
4) Remove the screws and detach the noise sup-
pressor.
B: INSTALLATION
Install in the reverse order of removal.
ET-00182
Page 207 of 2453
ET-22
Navigation Display
ENTERTAINMENT
17.Navigation Display
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the upper grille.
MOVAL, Air Vent Grille.>
3) Remove the warning box.
4) Remove the screws and then remove the navi-
gation display.
B: INSTALLATION
Install in the reverse order of removal.
ET-00183
ET-00184
Page 208 of 2453
ET-23
Navigation Body
ENTERTAINMENT
18.Navigation Body
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the driver’s seat.
MOVAL, Front Seat.>
3) Remove the cover attachment bolts, and remove
the cover.
4) Disconnect the connector.
5) Remove the bolts and then remove the naviga-
tion unit.
B: INSTALLATION
Install in the reverse order of removal.
ET-00195
ET-00185
