Page 313 of 2453

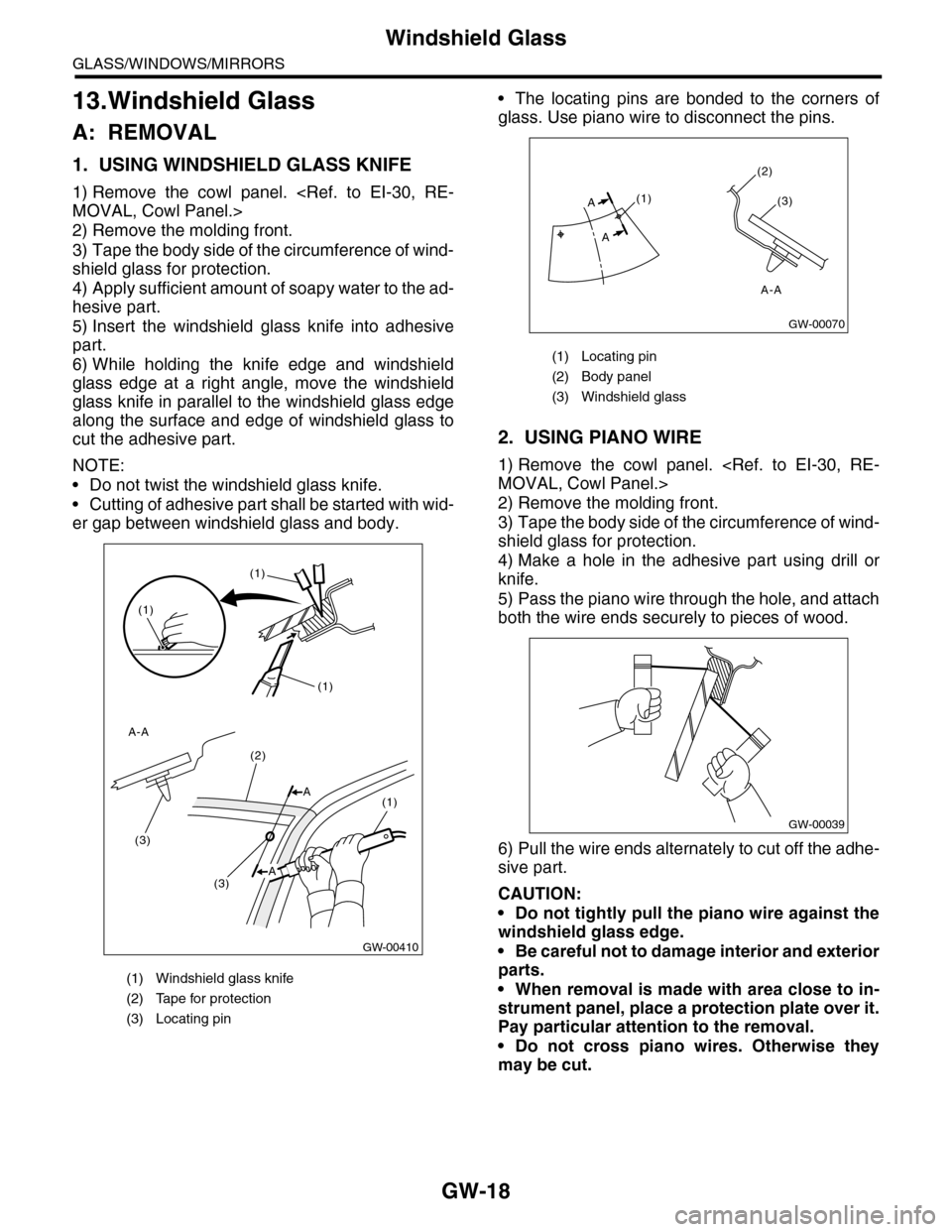

GW-18
Windshield Glass
GLASS/WINDOWS/MIRRORS
13.Windshield Glass
A: REMOVAL
1. USING WINDSHIELD GLASS KNIFE
1) Remove the cowl panel.
MOVAL, Cowl Panel.>
2) Remove the molding front.
3) Tape the body side of the circumference of wind-
shield glass for protection.
4) Apply sufficient amount of soapy water to the ad-
hesive part.
5) Insert the windshield glass knife into adhesive
part.
6) While holding the knife edge and windshield
glass edge at a right angle, move the windshield
glass knife in parallel to the windshield glass edge
along the surface and edge of windshield glass to
cut the adhesive part.
NOTE:
•Do not twist the windshield glass knife.
•Cutting of adhesive part shall be started with wid-
er gap between windshield glass and body.
•The locating pins are bonded to the corners of
glass. Use piano wire to disconnect the pins.
2. USING PIANO WIRE
1) Remove the cowl panel.
MOVAL, Cowl Panel.>
2) Remove the molding front.
3) Tape the body side of the circumference of wind-
shield glass for protection.
4) Make a hole in the adhesive part using drill or
knife.
5) Pass the piano wire through the hole, and attach
both the wire ends securely to pieces of wood.
6) Pull the wire ends alternately to cut off the adhe-
sive part.
CAUTION:
•Do not tightly pull the piano wire against the
windshield glass edge.
•Be careful not to damage interior and exterior
parts.
•When removal is made with area close to in-
strument panel, place a protection plate over it.
Pay particular attention to the removal.
•Do not cross piano wires. Otherwise they
may be cut.
(1) Windshield glass knife
(2) Tape for protection
(3) Locating pin
GW-00410
(1)
(1)
(1)
(3)
(3)
(2)
(1)A
A-A
A
(1) Locating pin
(2) Body panel
(3) Windshield glass
(1)
(2)
(3)
A
A
GW-00070
A-A
GW-00039
Page 314 of 2453

GW-19
Windshield Glass
GLASS/WINDOWS/MIRRORS
B: INSTALLATION
1) Clean the external circumference of windshield
glass with alcohol or white gasoline.
2) Remove the adhesive layer on the body using
cutter knife to obtain smooth face of 2 mm (0.08 in)
thick.
CAUTION:
Be careful not to damage the body and paint
surface.
3) Clean the body with alcohol or white gasoline to
eliminate cutting powder, dust and dirt completely
from body.
4) Install the dam rubber.
5) Fit the mark (B) on molding to the notch (A) of
glass side, and install the molding to entire perime-
ter of glass.
6) Apply two types of primers to the adhesive layer
of glass using sponge.
Glass primer:
Dow Automotive
ESSEX U-401, U-402
7) Apply the primer to the adhesive layer of body.
Painted surface primer:
Dow Automotive
ESSEX U-413
NOTE:
•Primer once attached to the painted surface of
the body and internal trim is hard to wipe off. Mask
the circumference of such area.
•Let primer dry for about ten minutes before in-
stalling the glass.
•Do not touch the surface coated with primer.
8) Cut off the cartridge nozzle tip as shown and set
it in sealant gun.
(1) Adhesive
(2) 2 mm (0.08 in)
(3) Dam rubber
(4) Glass
(4)
(2)
(1)(3)
GW-00071
GW-00316
(A)
(B)
(1) Application of primer
(2) Glass side
(3) Body side
(1) 10 mm (0.39 in)
(2) 9 mm (0.35 in)
(3)(2)
(1)
GW-00073
GW-00494
(1)(2)
(2)
60
Page 315 of 2453

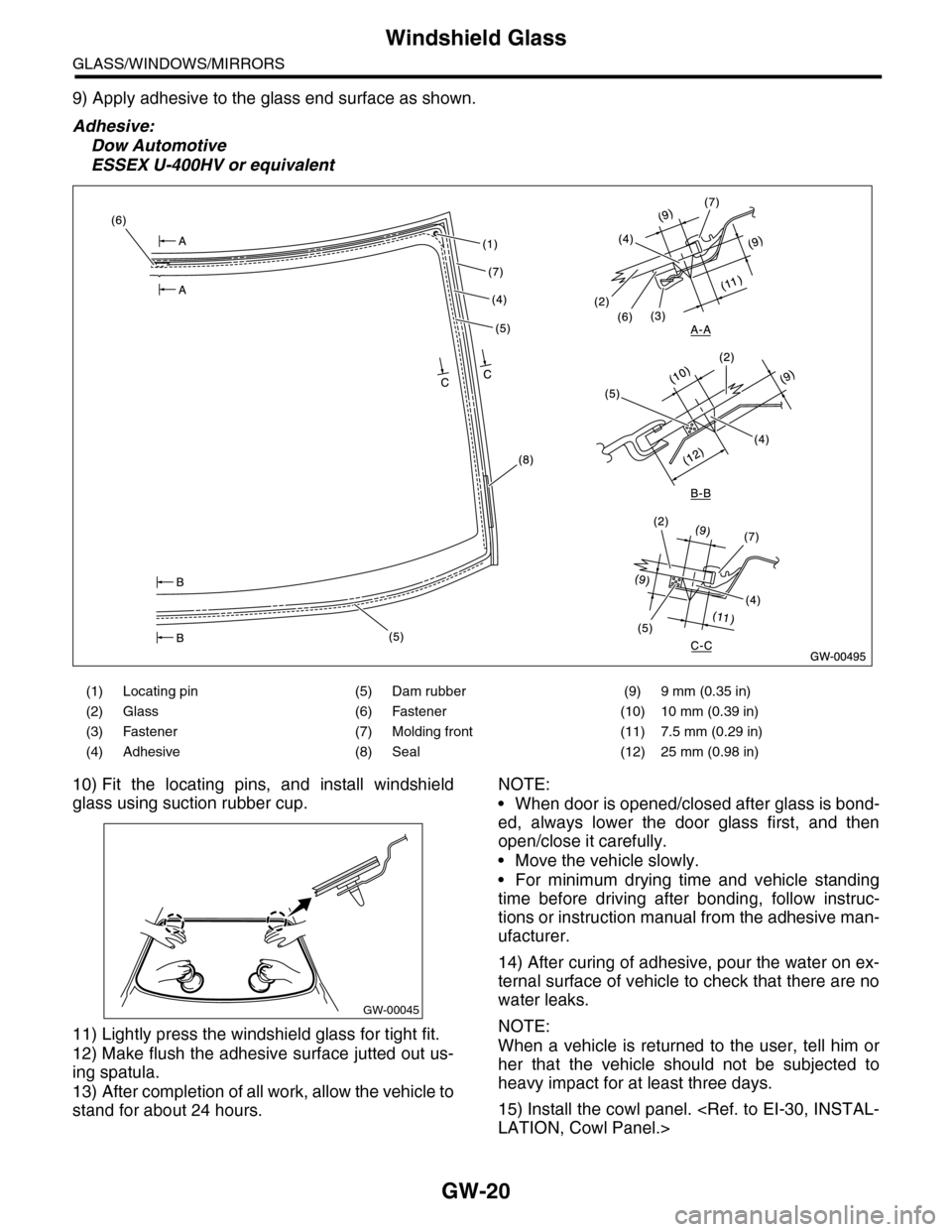

GW-20
Windshield Glass
GLASS/WINDOWS/MIRRORS
9) Apply adhesive to the glass end surface as shown.
Adhesive:
Dow Automotive
ESSEX U-400HV or equivalent
10) Fit the locating pins, and install windshield
glass using suction rubber cup.
11) Lightly press the windshield glass for tight fit.
12) Make flush the adhesive surface jutted out us-
ing spatula.
13) After completion of all work, allow the vehicle to
stand for about 24 hours.
NOTE:
•When door is opened/closed after glass is bond-
ed, always lower the door glass first, and then
open/close it carefully.
•Move the vehicle slowly.
•For minimum drying time and vehicle standing
time before driving after bonding, follow instruc-
tions or instruction manual from the adhesive man-
ufacturer.
14) After curing of adhesive, pour the water on ex-
ternal surface of vehicle to check that there are no
water leaks.
NOTE:
When a vehicle is returned to the user, tell him or
her that the vehicle should not be subjected to
heavy impact for at least three days.
15) Install the cowl panel.
LATION, Cowl Panel.>
(1) Locating pin (5) Dam rubber (9) 9 mm (0.35 in)
(2) Glass (6) Fastener (10) 10 mm (0.39 in)
(3) Fastener (7) Molding front (11) 7.5 mm (0.29 in)
(4) Adhesive (8) Seal (12) 25 mm (0.98 in)
GW-00045
Page 316 of 2453

GW-21
Front Quarter Glass
GLASS/WINDOWS/MIRRORS
14.Front Quarter Glass
A: REMOVAL
Remove the front quarter glass in the same proce-
dure as for windshield glass.
MOVAL, Windshield Glass.>
B: INSTALLATION
1) Cut out the nozzle head and apply adhesive to
the glass end surface as shown.
2) Install the glass in the same procedure as for
windshield glass.
TION, Windshield Glass.>
3) After completion of all work, allow the vehicle to
stand for about 24 hours.
NOTE:
•When door is opened/closed after glass is bond-
ed, always lower the door glass first, and then
open/close it carefully.
•Move the vehicle slowly.
•For minimum drying time and vehicle standing
time before driving after bonding, follow instruc-
tions or instruction manual from the adhesive man-
ufacturer.
4) After curing of adhesive, pour the water on exter-
nal surface of vehicle to check that there are no wa-
ter leaks.
NOTE:
When a vehicle is returned to the user, tell him or
her that the vehicle should not be subjected to
heavy impact for at least three days.
(1) Locating pin
(2) Fastener
(3) Encap molding
(4) Adhesive
GW-00496(4)
(1)
(3)
(2)AB
C
C
B
A
(1) Encap molding
(2) Adhesive
(3) 8 mm (0.31 in)
(4) 9 mm (0.35 in)
(5) 2 mm (0.07 in)
(6) 10 mm (0.39 in)
(7) 4.5 mm (0.17 in)
(8) 11 mm (0.43 in)
GW-00497
(1)
(3)
(7)
(4)
(5)
(3)
(6)
(4)
(5)
(3)
(8)
(4)(5)
(2)
(1)(1)
(2)
(2)
A-A
C-CB-B
(6)(3)
(5)
(4)
60
Page 317 of 2453
GW-22
Rear Gate Glass
GLASS/WINDOWS/MIRRORS
15.Rear Gate Glass
A: REMOVAL
1) Remove the rear wiper motor.
REMOVAL, Rear Wiper Motor.>
2) Disconnect the electrical connectors from rear
defogger terminal.
3) Remove the glass in the same procedure as for
windshield glass.
Windshield Glass.>
B: INSTALLATION
1) Mount the fastener on the body.
2) Install the dam rubber.
3) Cut off the cartridge nozzle tip as shown and set
it in sealant gun.
4) Apply adhesive in the same procedure as for
windshield glass.
TION, Windshield Glass.>
5) Insert the glass clip pin into rear gate hole, push
on the area around the clip pin to secure it, and
then push lightly all around the area to seal it.
(1) Glass
(2) Spacer
(3) Adhesive
(4) Fastener
(5) 4 mm (0.15 in)
(6) 8 mm (0.31 in)
(7) 10 mm (0.39 in)
(8) 5.5 mm (0.22 in)
Page 318 of 2453
GW-23
Rear Gate Glass
GLASS/WINDOWS/MIRRORS
6) About one hour after installation, conduct a leak test.
7) After completion of all work, allow the vehicle to
stand for about 24 hours.
NOTE:
•When door is opened/closed after glass is bond-
ed, always lower the door glass first, and then
open/close it carefully.
•Move the vehicle slowly.
•For minimum drying time and vehicle standing
time before driving after bonding, follow instruc-
tions or instruction manual from the adhesive man-
ufacturer.
•When a vehicle is returned to the user, tell him or
her that the vehicle should not be subjected to
heavy impact for at least three days.
8) Connect the rear defogger terminals.
9) Install the rear wiper.
LATION, Rear Wiper Motor.>
(1) Glass (4) Adhesive (6) Spacer
(2) Glass clip pin (5) Dam rubber (7) Marks for applying the primer
(3) Fastener
Page 319 of 2453
GW-24
Rear Window Defogger System
GLASS/WINDOWS/MIRRORS
16.Rear Window Defogger System
A: WIRING DIAGRAM
B: INSPECTION
NOTE:
Rear window defogger system can be customized on the Subaru Select Monitor.
Symptom Repair order
Rear window defogger does not operate.
1. Fuse (M/B No. 10) (F/B No. 22)
2. Rear defogger relay
3. Defogger switch
4. Rear defogger condenser
5. Defogger wire
6. Wiring harness
7. Body integrated unit
System name Initial setting Customize setting
Rear window defogger timer OFF after 15 min.Repeat 15 min. operation and
2 min. stop.
Page 320 of 2453

GW-25
Rear Window Defogger
GLASS/WINDOWS/MIRRORS
17.Rear Window Defogger
A: INSPECTION
1. CHECK WITH SUBARU SELECT MONITOR
CAUTION:
Check that the rear window defogger timer is in initial setting or customize setting before performing
inspection.
2. HEAT WIRE INSPECTION
CAUTION:
Use a dry and soft cloth when wiping dirt off the
glass. Move the cloth along the heat wire to
avoid damaging it.
1) Turn the ignition switch to ON.
2) Turn the defogger switch to ON.
3) Wrap the tips of tester probe with aluminum foil
to avoid damage to heat wire.
4) Measure the voltage at heat wire center with DC
voltmeter.
Standard voltage:
Approx. 6 V
NOTE:
•If the measured value is 12 volts, heat wire is
open between heat wire center and positive (+) ter-
minal of tester probe.
•If it is 0 V, the circuit is open between heat wire
center and ground.
Step Check Yes No
1CHECK INPUT SIGNAL TO THE BODY INTE-
GRATED UNIT.
Check the input signal when the rear window
defogger switch is operated using Subaru
Select Monitor.
1) Connect the Subaru Select Monitor to data
link connector.
2) Turn the ignition switch to ON.
3) Select {Integ. unit} from the «main menu».
4) Select the {Current Data Display & Save}.
5) Check the input signal when the rear win-
dow defogger switch is set to ON.
After rear defogger switch is
set to ON, does it turn to OFF
in 15 minutes? Or does it
repeat 15 minutes operation
and 2 minutes stop?
END. Replace the body
integrated unit.
REMOVAL, Body
Integrated Unit.>
(1) Tester probe
(2) Aluminum foil
(3) Heat wire
(4) Press
GW-00076
(2)
(3)
(4)
(1)
(1) Center of heat wire
Vo l t a g e C r i t e r i a
Approx. 6 V Normal
Approx. 12 V or 0 V Open
GW-00077
(1)
