SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-9 General Description AIRBAG SYSTEM (DIAGNOSTICS) •TEST HARNESS D ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299AG060 TEST HARNESS D Used when measuring voltage and resistance of the f

Page 34 of 2453

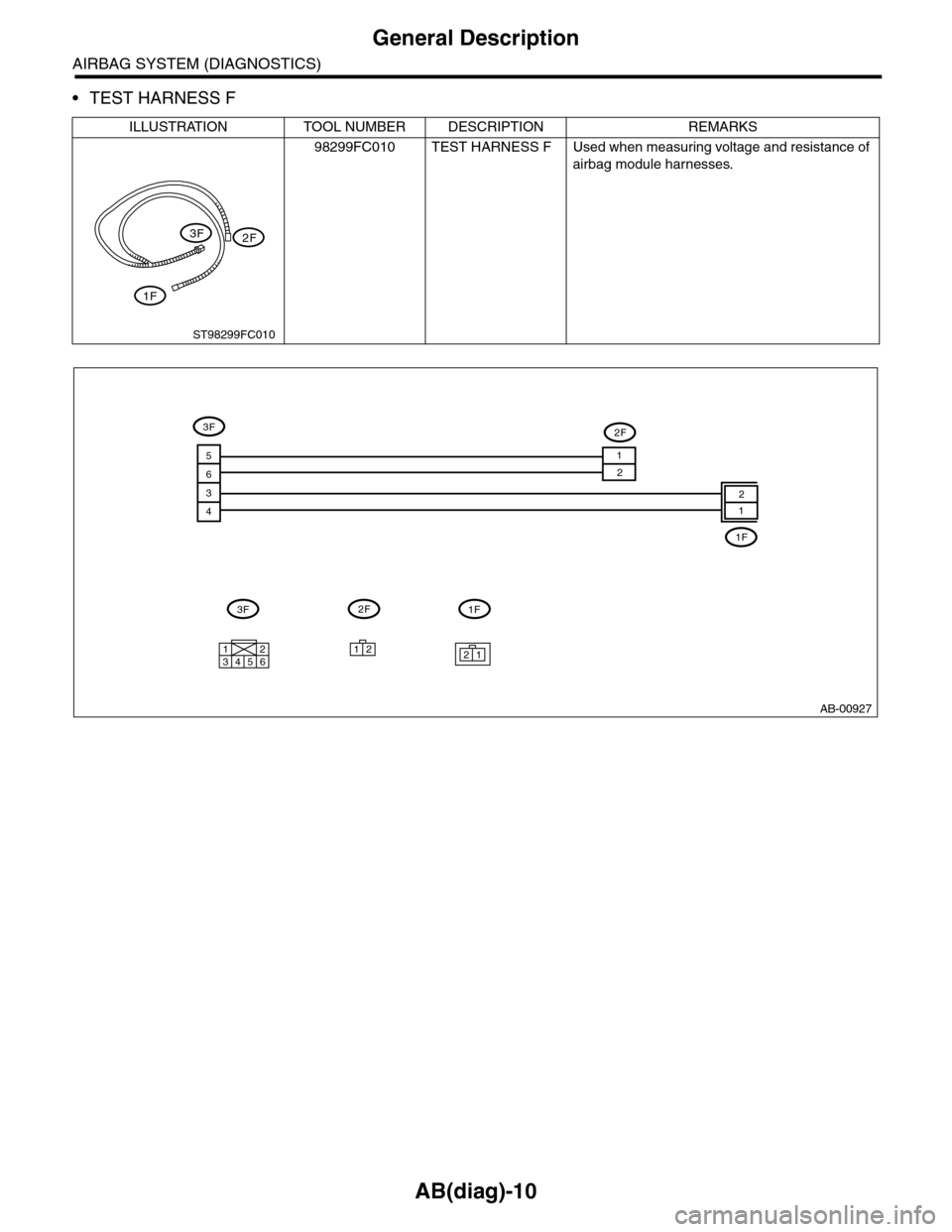

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-10 General Description AIRBAG SYSTEM (DIAGNOSTICS) •TEST HARNESS F ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299FC010 TEST HARNESS F Used when measuring voltage and resistance of airb

Page 35 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-11 General Description AIRBAG SYSTEM (DIAGNOSTICS) •TEST HARNESS H ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299FA030 TEST HARNESS H Used when measuring voltage and resistance of fron

Page 36 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-12 General Description AIRBAG SYSTEM (DIAGNOSTICS) •TEST HARNESS N ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299SA000 TEST HARNESS N Used when measuring voltage and resistance of driv

Page 37 of 2453

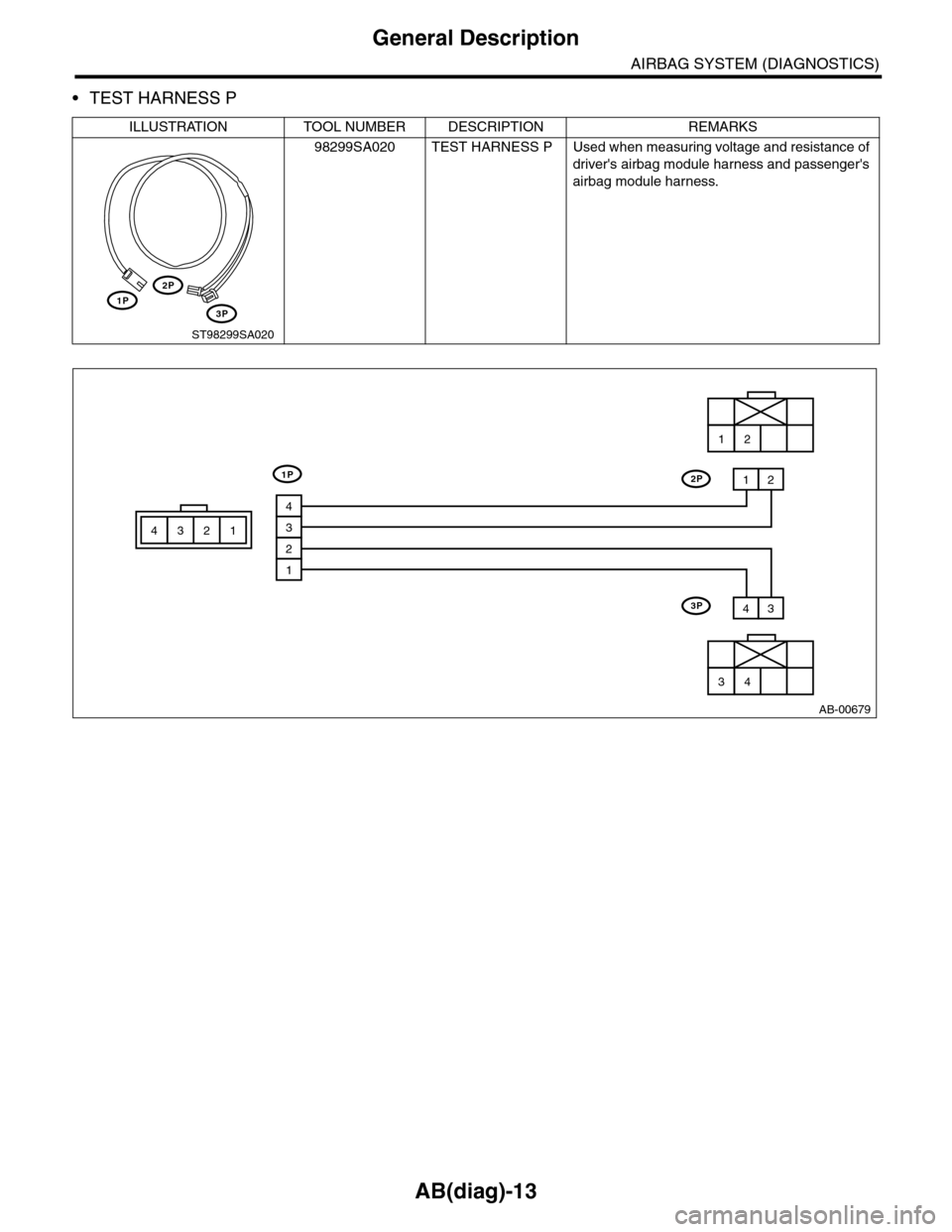

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-13 General Description AIRBAG SYSTEM (DIAGNOSTICS) •TEST HARNESS P ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299SA020 TEST HARNESS P Used when measuring voltage and resistance of driv

Page 38 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-14 General Description AIRBAG SYSTEM (DIAGNOSTICS) •TEST HARNESS Q ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299SA040 TEST HARNESS Q Used when measuring voltage and resistance of driv

Page 39 of 2453

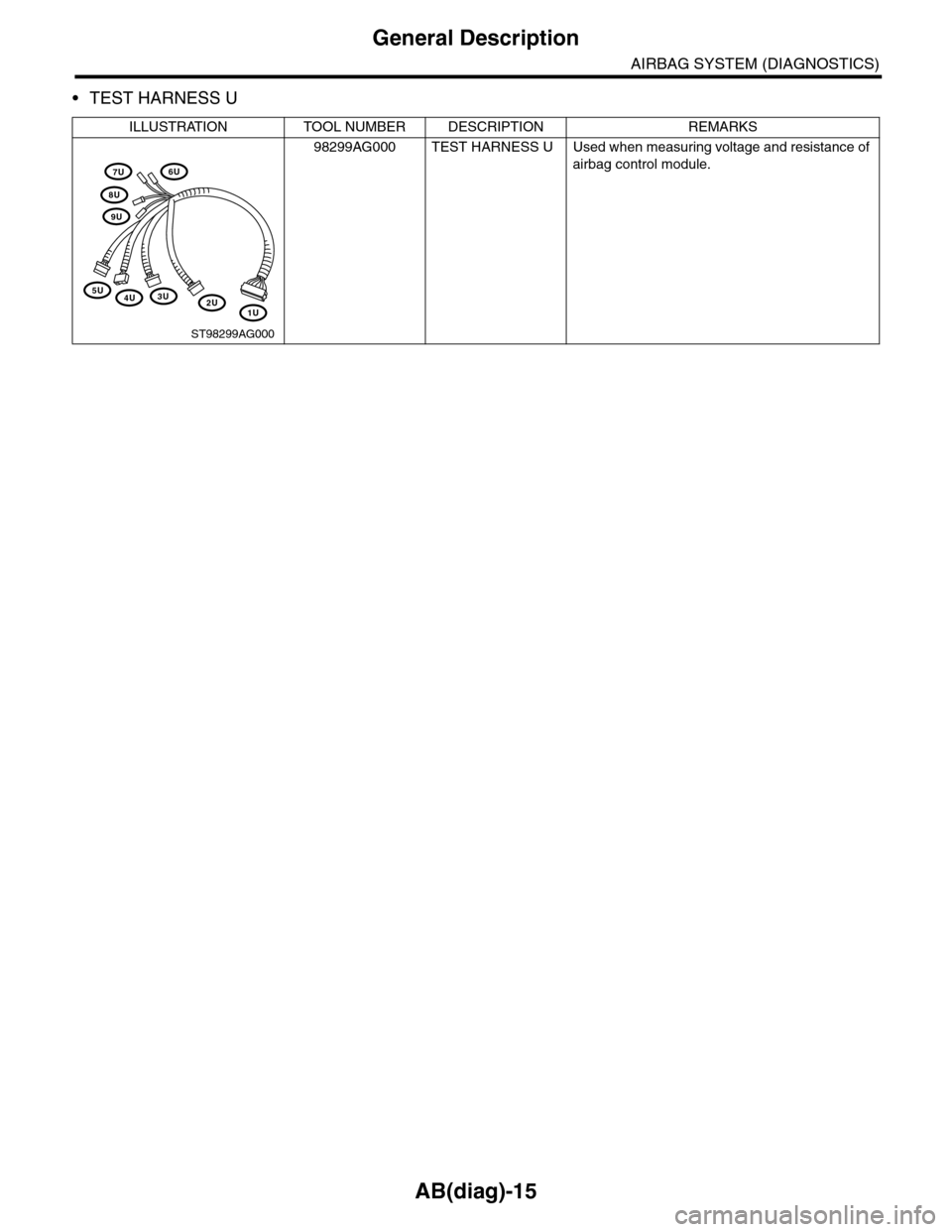

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-15 General Description AIRBAG SYSTEM (DIAGNOSTICS) •TEST HARNESS U ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299AG000 TEST HARNESS U Used when measuring voltage and resistance of airb

Page 40 of 2453

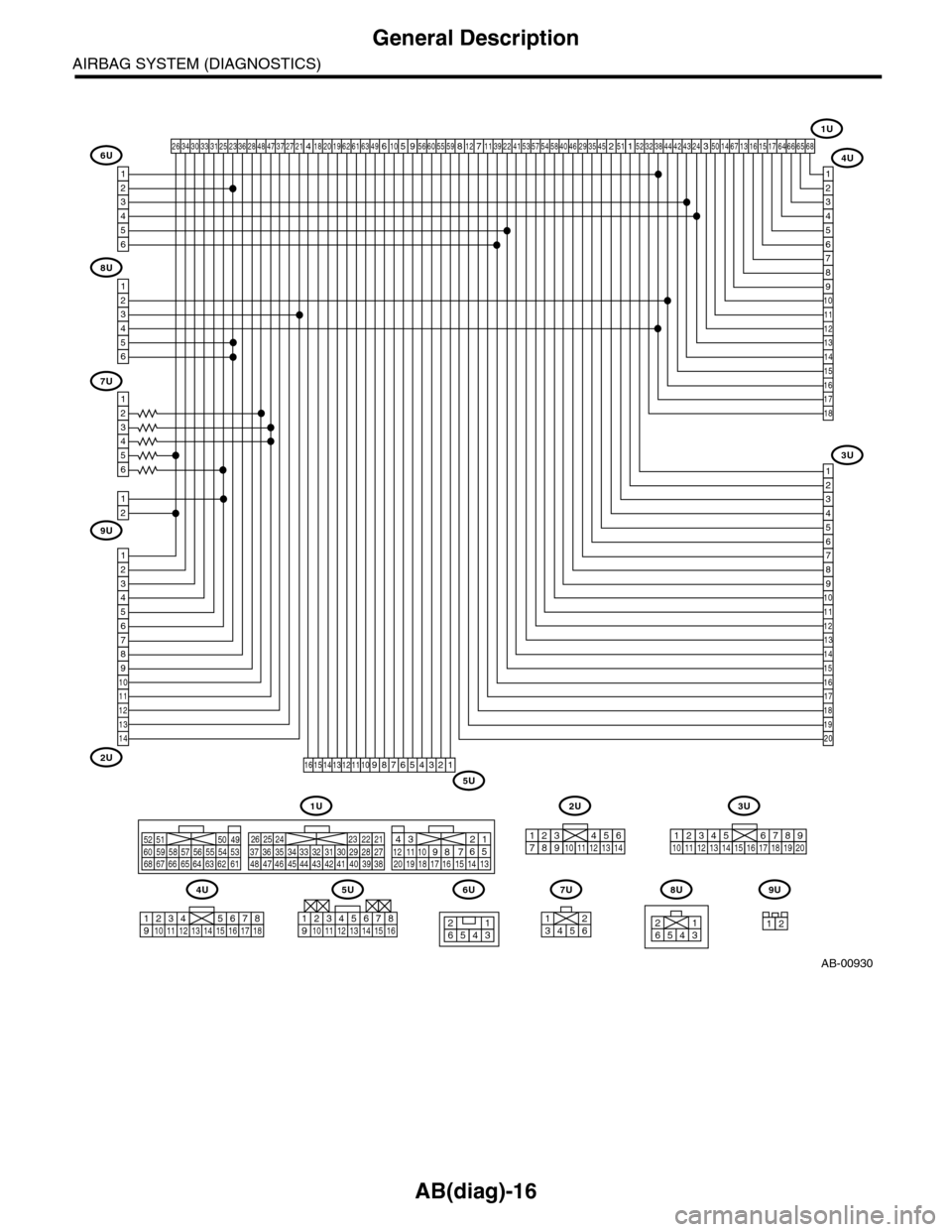

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-16 General Description AIRBAG SYSTEM (DIAGNOSTICS) AB-00930 12345678910111213142345 67891112 13 14 17 18 19 2011015161234567891011121314151617181920 212223242526272829303132333435363738394041
