SUBARU TRIBECA 2009 1.G Service Workshop Manual SE-7
Front Seat
SEATS
2. Front Seat
A: REMOVAL
CAUTION:
The airbag system is fitted with a backup power
source. After disconnecting the battery ground
cable, the airbag may deploy if you do not wait

SE-7
Front Seat
SEATS
2. Front Seat
A: REMOVAL
CAUTION:
The airbag system is fitted with a backup power
source. After disconnecting the battery ground
cable, the airbag may deploy if you do not wait
for 20 seconds before starting the service of
airbag system.
1. DRIVER’S SEAT
1) Remove the headrest.
2) Tilt the backrest forward, and move the seat for-
ward.
3) Remove the rear leg cover, and remove the two
bolts at the rear side of slide rail.
4) Move the seat backward, remove the front leg
cover, and then remove the 2 bolts at the front side
of the slide rail.
5) Disconnect the ground cable from battery, and
wait for more than 20 seconds before starting work.
6) Disconnect the connector under the seat.
•Seat belt buckle switch connector
•Seat position sensor connector
•Side airbag connector
•Seat heater connector
•Power seat connector
7) Remove the seat from vehicle.
2. PASSENGER’S SEAT
CAUTION:
Refer to “CAUTION” of “General Description”
before starting the work. TION, General Description.>
1) Remove the headrest.
2) Tilt the backrest forward, and move the seat for-
ward.
3) Remove the rear leg cover, and remove the bolt
at the rear side of the slide rail.
4) Move the seat backward, remove the front leg
cover, and then remove the bolt at the front side of
the slide rail.
5) Disconnect the ground cable from battery, and
wait for more than 20 seconds before starting work.
6) Disconnect all the connectors of connector hold-
er in the backside of seat cushion.
•Harness connector of occupant detection control
module
•Side airbag connector
•Power seat connector
•Seat heater connector
7) Remove the seat belt anchor cover.
NOTE:
Tilt the seat back all the way to provide workspace.
8) Remove the seat from vehicle.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Tighten the slide rail installing bolt gradually in sev-
eral steps to the specified torque in the order as
shown in the figure.
CAUTION:
After installing the driver’s seat, use the Subaru
Select Monitor to confirm that the seat position
sensor LH is operating properly. ag)-32, DISPLAY OF STATUS INFORMATION,
OPERATION, Subaru Select Monitor.>
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”. Description.>
C: DISASSEMBLY
1. DRIVER’S SEAT
1) Remove the seat from vehicle. DRIVER’S SEAT, REMOVAL, Front Seat.>
2) Remove the clip (A) and straps (B) on the back
of seat cushion.
3) Disconnect the following connectors from the
backside of seat cushion.
•Side airbag
•Seat position sensor
•Seat heater
•Power seat
•Seat belt
SE-00479
(1)
(3)
(4)
(2)
(B)(A)
SE-00643

Page 618 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SE-8
Front Seat
SEATS

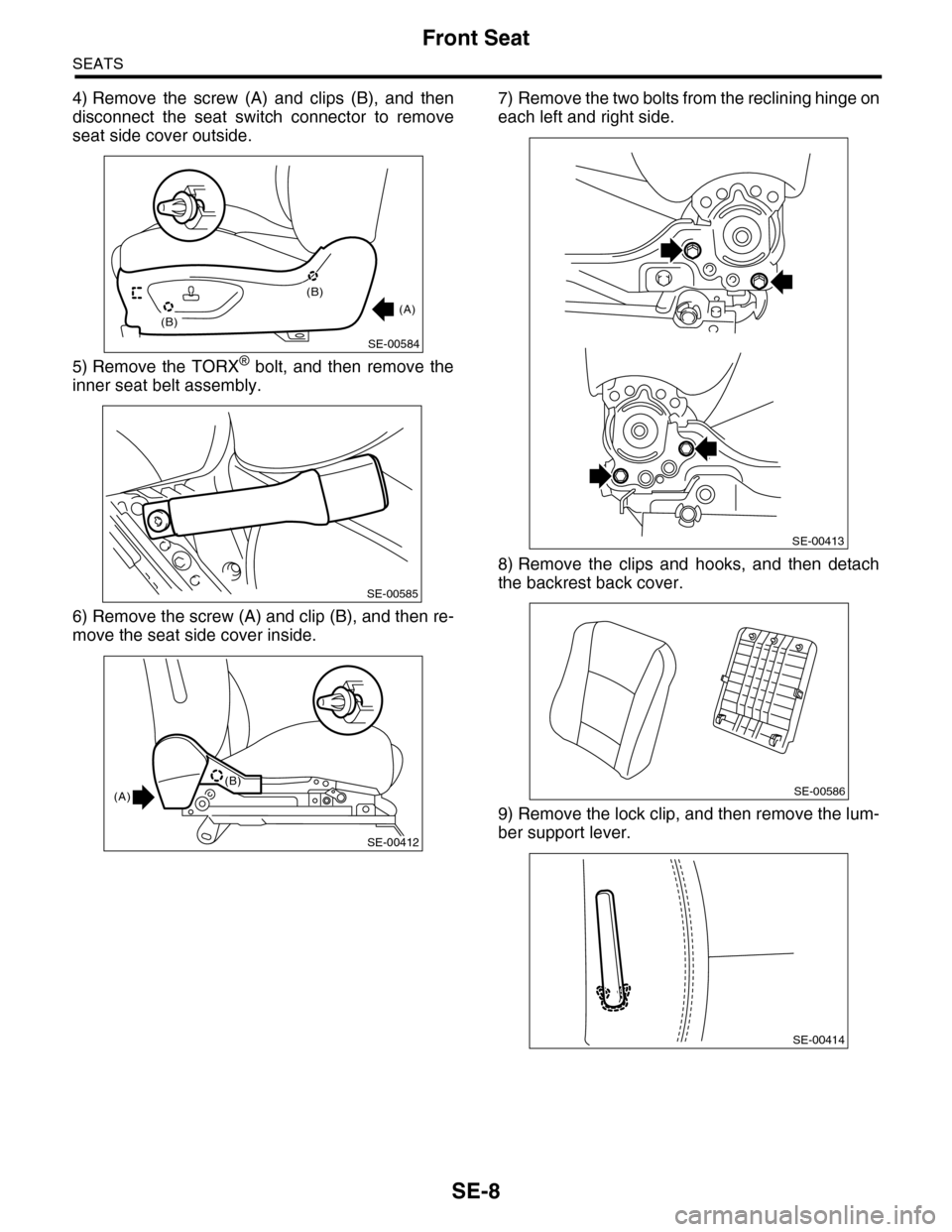

4) Remove the screw (A) and clips (B), and then
disconnect the seat switch connector to remove
seat side cover outside.
5) Remove the TORX® bolt, and then remove

Page 619 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SE-9
Front Seat
SEATS
10) Remove the hooks and hog rings at the rear
side of backrest.
11) Remove the headrest lock bushing.
NOTE:
Push outside to remove it from the inside of seat.
12) Remove

Page 620 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SE-10
Front Seat
SEATS
19) Remove the hooks (A), and then remove the
seat cushion from seat cushion frame.
20) Remove the hog rings (A), and then remove the
seat cushion cover from seat cushion

SE-10
Front Seat
SEATS
19) Remove the hooks (A), and then remove the
seat cushion from seat cushion frame.
20) Remove the hog rings (A), and then remove the
seat cushion cover from seat cushion pad.
21) Remove the hooks and hog rings at the bottom
of headrest, and then remove the headrest cover
from headrest.
2. PASSENGER’S SEAT
CAUTION:
•If the seat cushion cover is removed or re-
placed, make sure to perform passenger detec-
tion system adjustment after installing the seat
to the vehicle. CALIBRATION (REZEROING), OPERATION,
Subaru Select Monitor.>
Failure to do so may cause improper activation
of passenger’s airbag.
•The passenger detection system (passenger
seat only) control unit, passenger detection
sensor, seat cushion pad and seat cushion
frame are considered as a single seat cushion
pad and frame assembly. Never remove the
passenger detection control unit or the pres-
sure sensor from the seat cushion frame.
•If the seat cushion cover is removed, make
sure to replace the wire on the seat cushion
side with a new wire.
1) Remove the seat from vehicle. PASSENGER’S SEAT, REMOVAL, Front Seat.>
2) Refer to the disassembly procedures for the driv-
er’s seat.
NOTE:
The back side of the seat cushion is affixed by a
hook (A) and hog ring (B).
D: ASSEMBLY
CAUTION:
When the backrest cover is not installed se-
curely, the side airbag module may not be de-
ployed properly, therefore keep strictly to the
following procedure.
•Be careful not to stain or damage the back-
rest cover during assembly.
•The back rest cover of the side airbag module
are to be tightened and fixed together with the
attachment nuts for the side airbag module as-
sembly.
•Always use new hog rings.
•Secure the hog ring using hog ring pliers.
•Install the hog rings to the specified points
securely and make sure that no wrinkle or twist-
ing on backrest cover.
1. DRIVER’S SEAT
NOTE:
•When installing the inner seat belt assembly, fol-
low the procedure described in the seat belt sec-
tion. ASSEMBLY, INSTALLATION, Front Seat Belt.>
•Install the backrest assembly and seat cushion
assembly in the following procedure.
SE-00391
(A)
(A)
SE-00591: (A)
SE-00342
(A)
(A)
SE-00642: (B)

Page 621 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SE-11
Front Seat
SEATS
1) Temporarily tighten the four reclining hinge
bolts.
2) Place the backrest in the most upright position.
3) Tighten the reclining hinge bolts in the order of
(1)

SE-11
Front Seat
SEATS
1) Temporarily tighten the four reclining hinge
bolts.
2) Place the backrest in the most upright position.
3) Tighten the reclining hinge bolts in the order of
(1) through (4), in two or three steps by gradually in-
creasing the torque until they reach the specified
torque.
4) Assemble in the reverse order of disassembly.
2. PASSENGER’S SEAT
CAUTION:
Make sure to adhere to the following rules when
assembling the passenger seat. Improper work
procedures can cause the passenger detection
system to not operate properly.
•If the seat cushion cover is removed or re-
placed, make sure to perform passenger detec-
tion system adjustment after installing the seat
to the vehicle. CALIBRATION (REZEROING), OPERATION,
Subaru Select Monitor.>
Failure to do so may cause improper activation
of passenger’s airbag.
•The passenger detection system (passenger
seat only) control unit, passenger detection
sensor, seat cushion pad and seat cushion
frame are considered as a single seat cushion
pad and frame assembly. Never remove the
passenger detection control unit or the pres-
sure sensor from the seat cushion frame.
•If the seat cushion cover is removed, make
sure to replace the wire on the seat cushion
side with a new wire.
•Make sure to install the hog rings/clips to the
specified locations. Do not reuse hog rings.
Assemble in the reverse order of disassembly.
1) Assemble the seat cushion in the reverse order
of disassembly.
2) Assemble the backrest in the reverse order of
disassembly.
3) When assembling the backrest assembly to the
seat cushion assembly, fill up the gap in the front
side of slide rail LH and in the rear side of slide rail
RH using cloth etc.
4) Temporarily tighten the reclining hinge bolts in
the order of (1) through (4), to an extent that the
seat back assembly is not locked.
5) Hold the seat cushion assembly securely, and
tighten the reclining hinge bolts in the order de-
scribed above until they reach the specified torque.
CAUTION:
Do not touch the backrest assembly when tight-
ening the reclining hinge bolts.
6) Assemble each harness, inner belt assembly
and each cover in the reverse order of removal.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”. Description.>
E: INSPECTION
Check that no tear or fray on the backrest cover
and seat cushion cover.
CAUTION:
If there are tears or looseness in the back rest
cover or seat cushion covers, do not attempt to
repair. Replace with a new cover. Repairing the
cover may cause improper operation of the side
airbag or the passenger detection system.
(A) Vehicle inside
(B) Vehicle outside
(A)
(B)
(2)
(4)
(3)
(1)
SE-00514
(A) Vehicle inside
(B) Vehicle outside
SE-00537
(A)
(B)
(2)
(4)
(3)
(1)
SE-00538

Page 622 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SE-12
Second-row Seats
SEATS
3. Second-row Seats
A: REMOVAL
1. LH&CTR SEAT
1) Tilt the backrest forward, and move the seat for-
ward.
2) Remove the slide rail cover at the seat rear side,
and remove t

Page 623 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SE-13
Second-row Seats
SEATS
6) Remove the backrest back cover.
7) Remove the stopper.
8) Remove the hog rings (A) and hooks at the rear
face of the backrest.
9) Remove the two screws securing the hol

Page 624 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SE-14
Second-row Seats
SEATS
15) Remove the seat cushion from the slide rail as-
sembly.
16) Remove the seat cushion hog rings (A), and
then remove the seat cushion cover from seat
cushi
