SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-17 General Description AIRBAG SYSTEM (DIAGNOSTICS) •TEST HARNESS V ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299AG010 TEST HARNESS V Used when measuring voltage and resistance of side

Page 42 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-18 General Description AIRBAG SYSTEM (DIAGNOSTICS) •TEST HARNESS Y ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 28299AG040 TEST HARNESS Y Used for diagnosing a failure of the seat belt buc

Page 43 of 2453

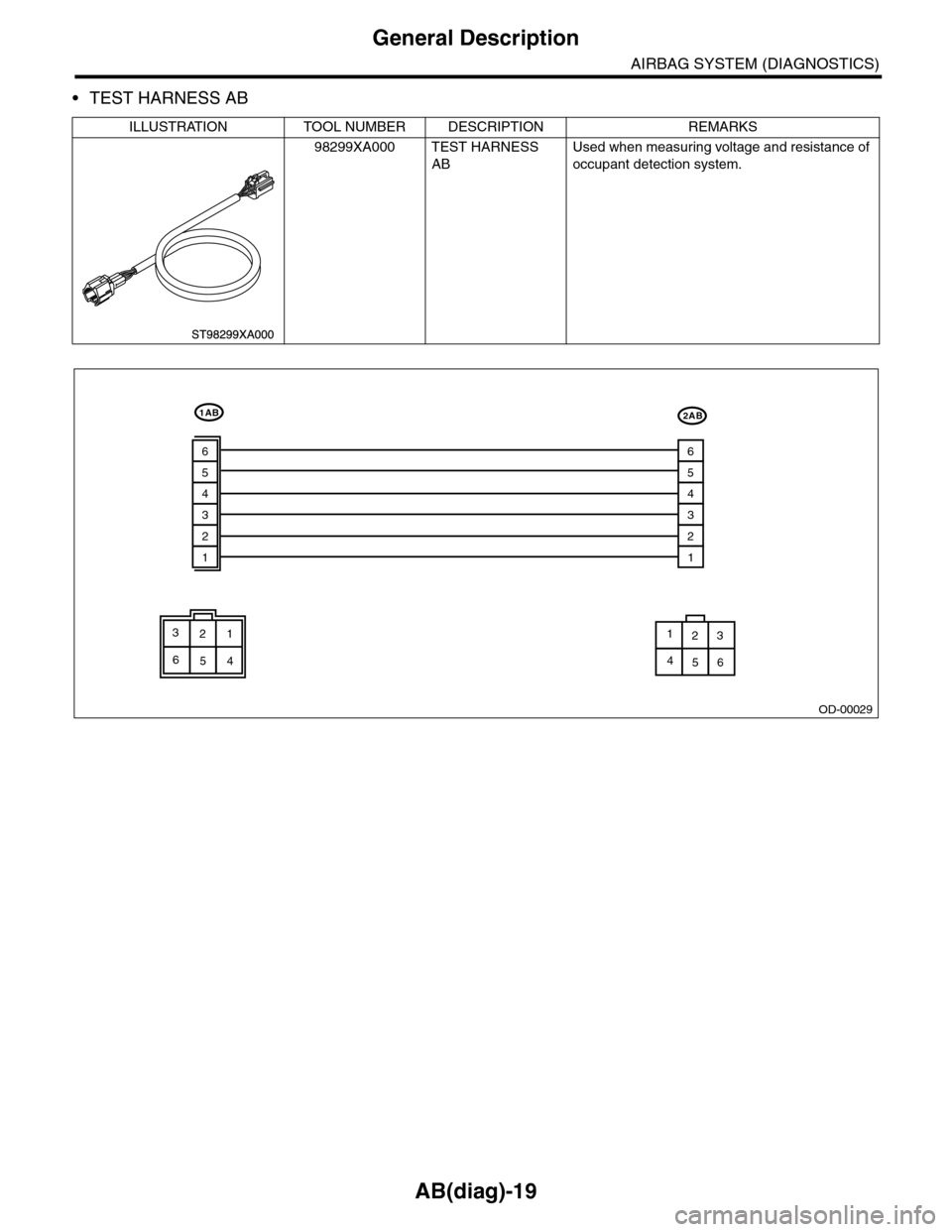

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-19 General Description AIRBAG SYSTEM (DIAGNOSTICS) •TEST HARNESS AB ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299XA000 TEST HARNESS AB Used when measuring voltage and resistance of o

Page 44 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-20 General Description AIRBAG SYSTEM (DIAGNOSTICS) •TEST HARNESS AC ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299XA010 TEST HARNESS AC Used for diagnosing a failure of the seat belt t

Page 45 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-21 General Description AIRBAG SYSTEM (DIAGNOSTICS) •TEST HARNESS AD ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299XA020 TEST HARNESS AD Used when measuring voltage and resistance of s

Page 46 of 2453

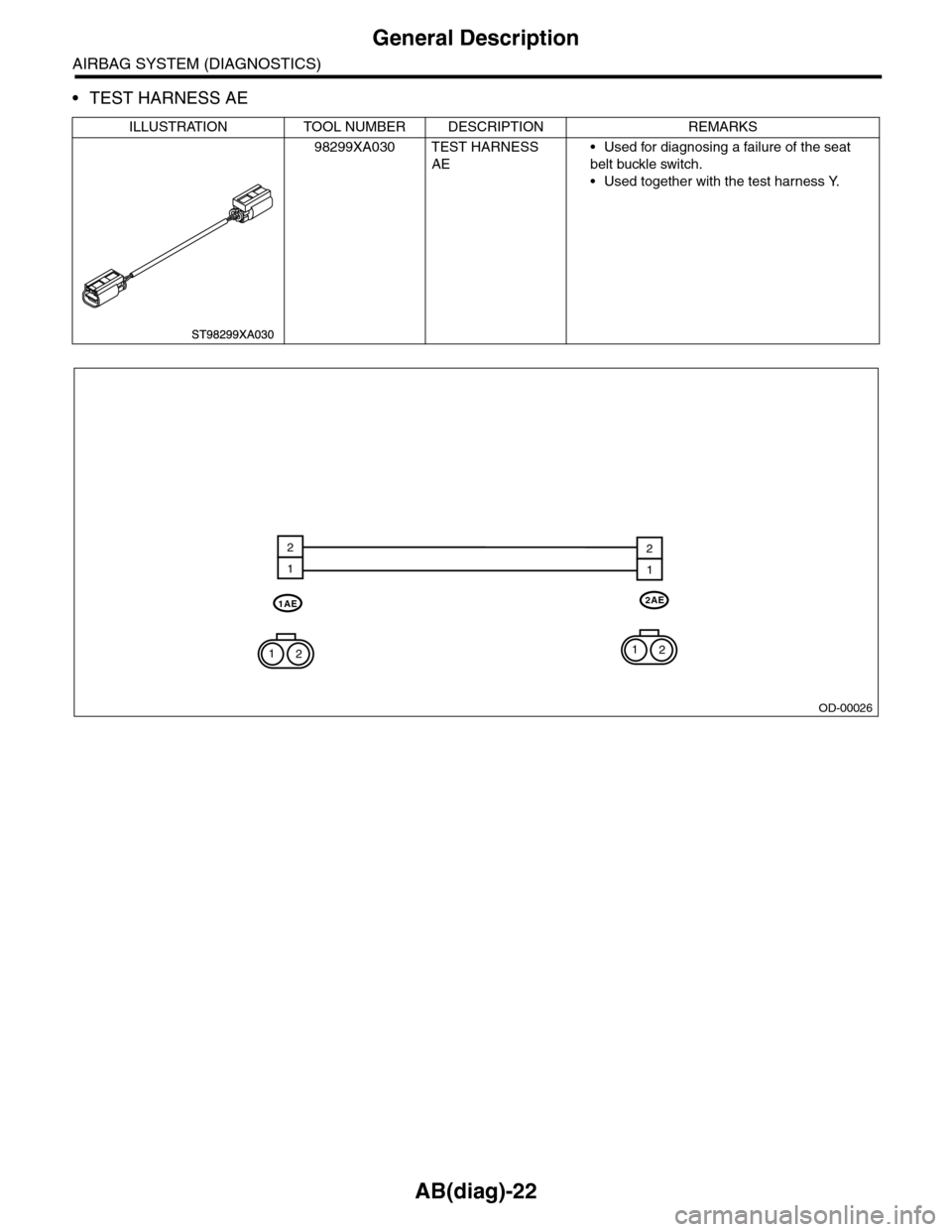

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-22 General Description AIRBAG SYSTEM (DIAGNOSTICS) •TEST HARNESS AE ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299XA030 TEST HARNESS AE •Used for diagnosing a failure of the seat be

Page 47 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-23 General Description AIRBAG SYSTEM (DIAGNOSTICS) •AIRBAG RESISTOR 2. GENERAL TOOL ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 98299PA040 AIRBAG RESISTOR Used in replacement of airbag mod

Page 48 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-24 Electrical Component Location AIRBAG SYSTEM (DIAGNOSTICS) 4. Electrical Component Location A: LOCATION (1) Front sub sensor (RH) (9) Side airbag sensor (RH) (17) Curtain airbag inflator (R
