Page 689 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SR-5 Glass Lid SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) 3. Glass Lid A: REMOVAL 1) Completely close the glass lid, and then open the sunshade. 2) Remove the cover (A), and then remove the

Page 690 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SR-6 Glass Lid SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) D: FORCED DRIVE If glass lid dose not operate or is not supplied with power, move the glass lid using the hexagon wrench *. *: L shape uni

Page 691 of 2453

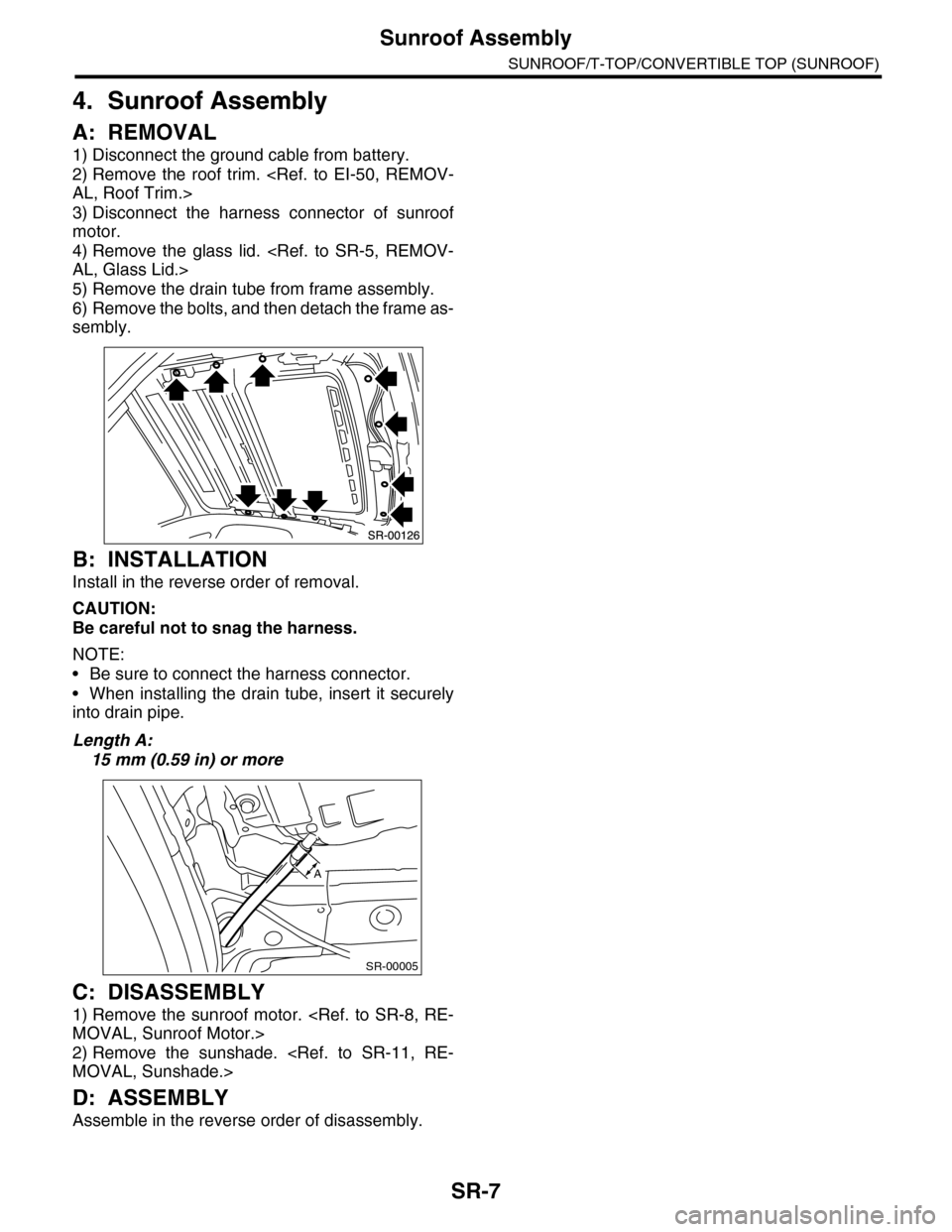

SUBARU TRIBECA 2009 1.G Service Workshop Manual SR-7 Sunroof Assembly SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) 4. Sunroof Assembly A: REMOVAL 1) Disconnect the ground cable from battery. 2) Remove the roof trim. <Ref. to EI-50, REMOV- AL, Roo

Page 692 of 2453

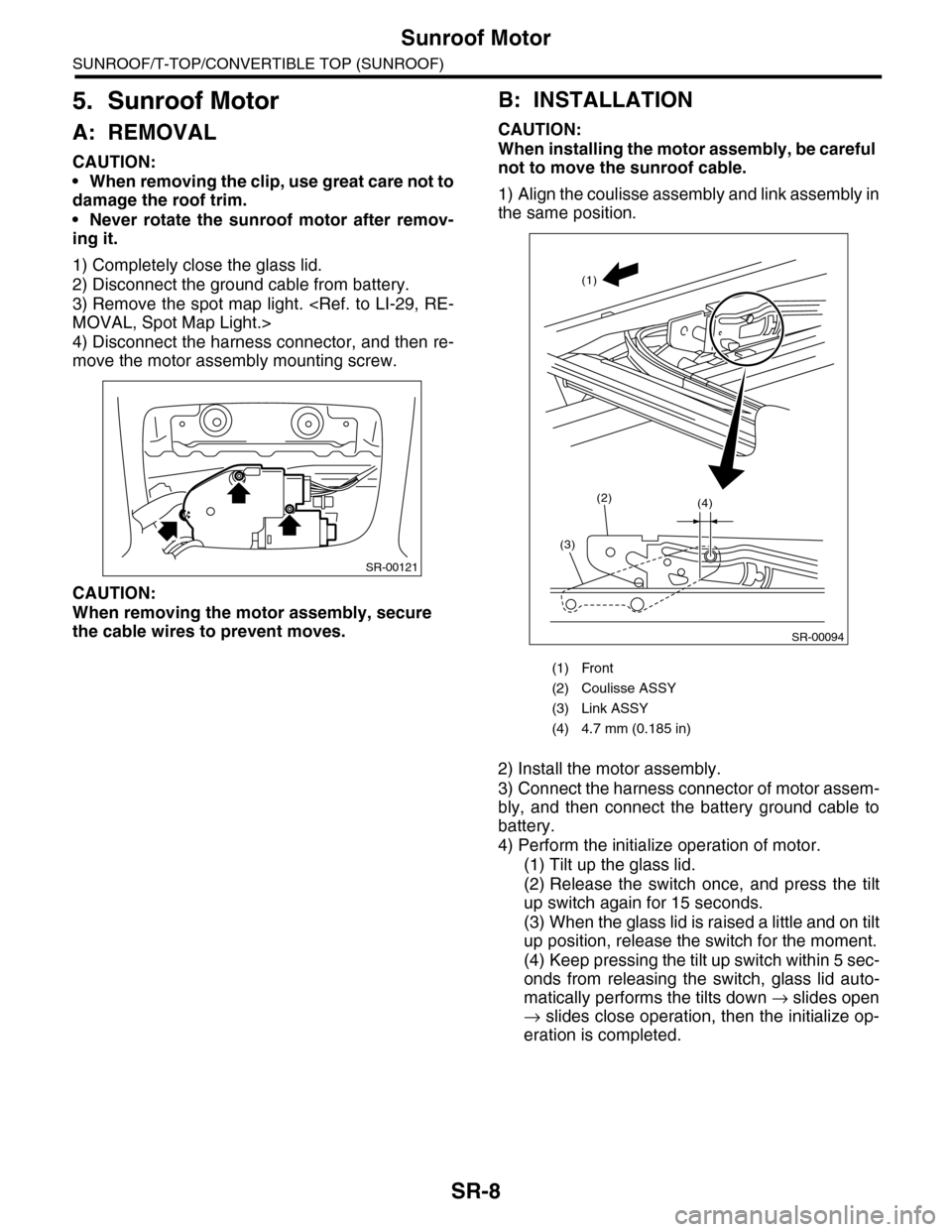

SUBARU TRIBECA 2009 1.G Service Workshop Manual SR-8 Sunroof Motor SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) 5. Sunroof Motor A: REMOVAL CAUTION: •When removing the clip, use great care not to damage the roof trim. •Never rotate the sunroof motor

Page 693 of 2453

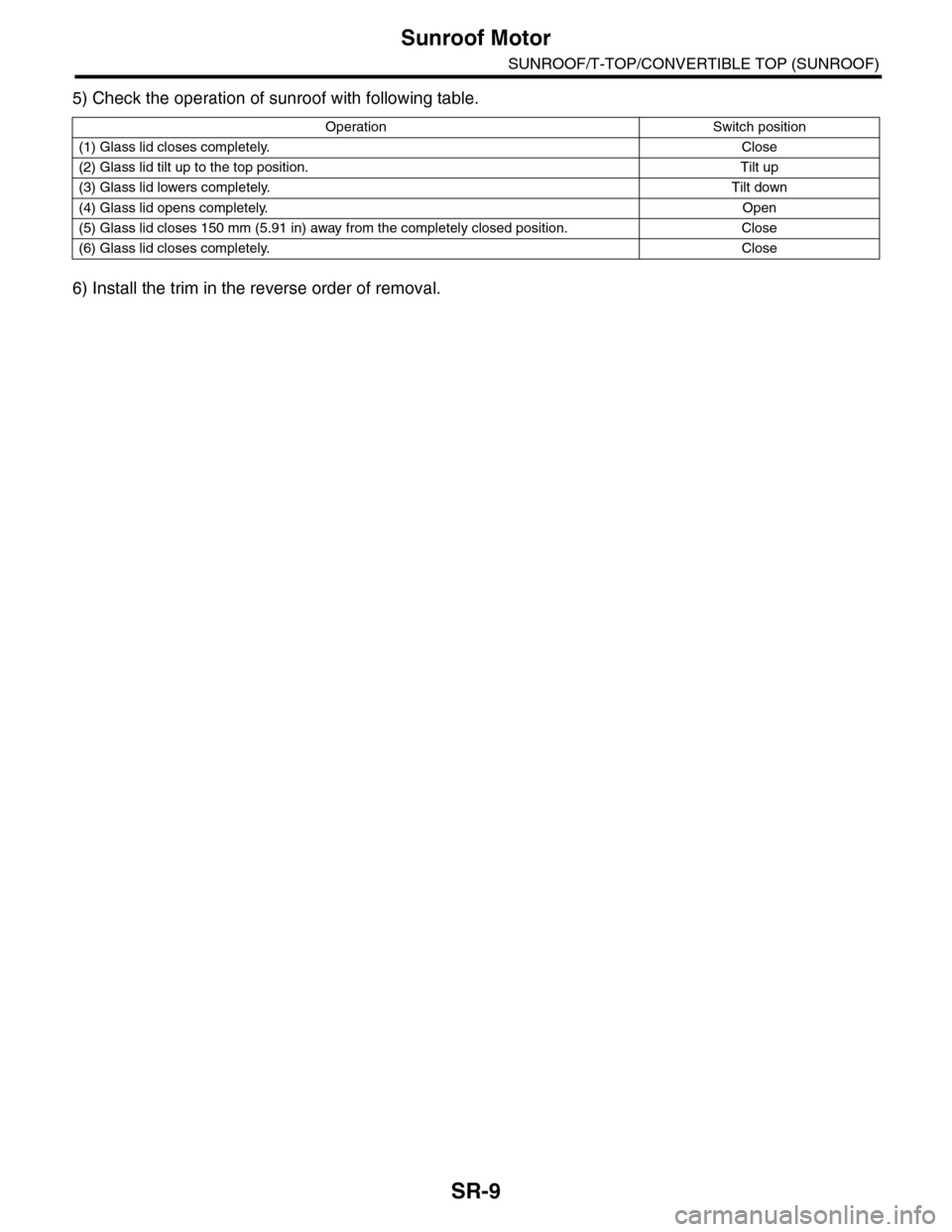

SUBARU TRIBECA 2009 1.G Service Workshop Manual SR-9 Sunroof Motor SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) 5) Check the operation of sunroof with following table. 6) Install the trim in the reverse order of removal. Operation Switch position (1) Gl

Page 694 of 2453

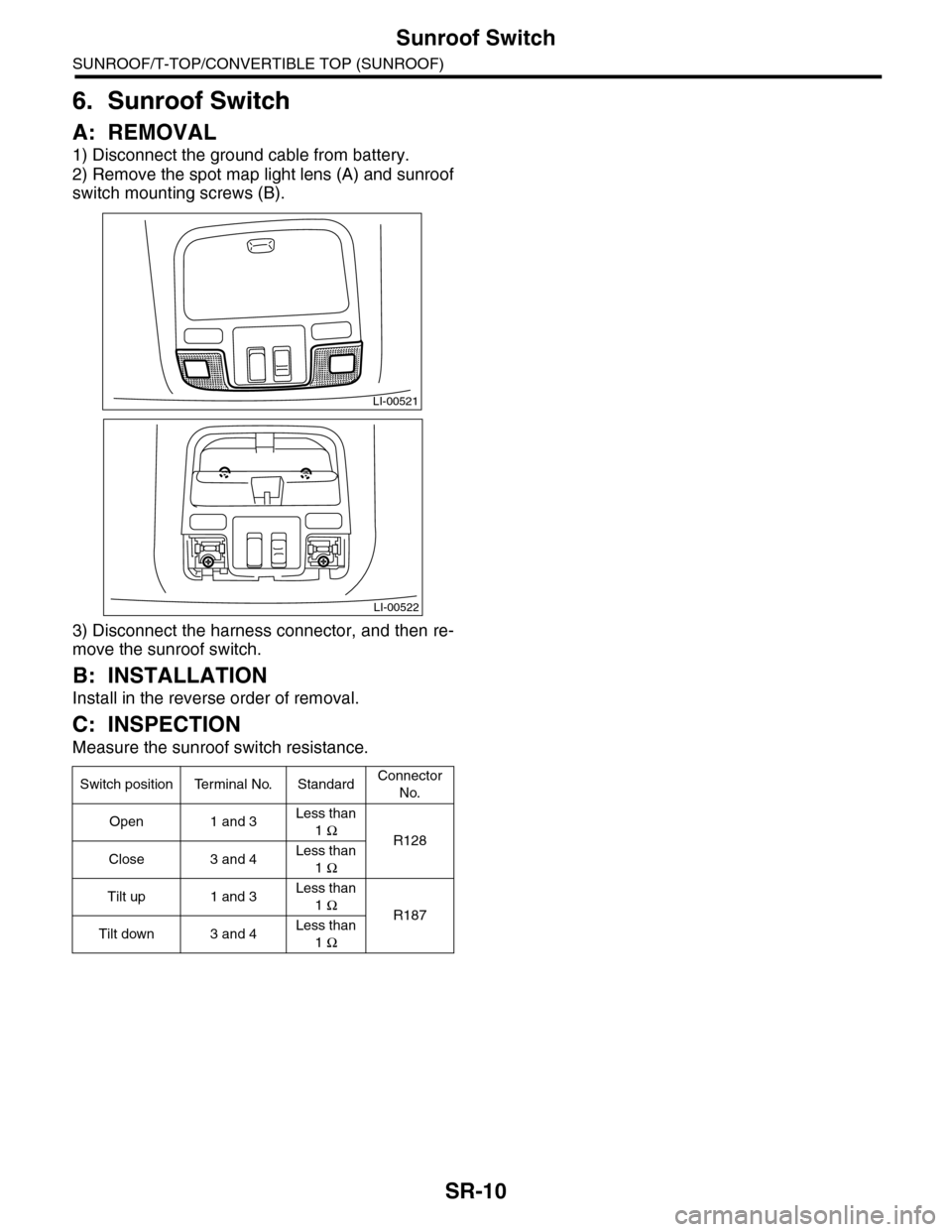

SUBARU TRIBECA 2009 1.G Service Workshop Manual SR-10 Sunroof Switch SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) 6. Sunroof Switch A: REMOVAL 1) Disconnect the ground cable from battery. 2) Remove the spot map light lens (A) and sunroof switch mounting

Page 695 of 2453

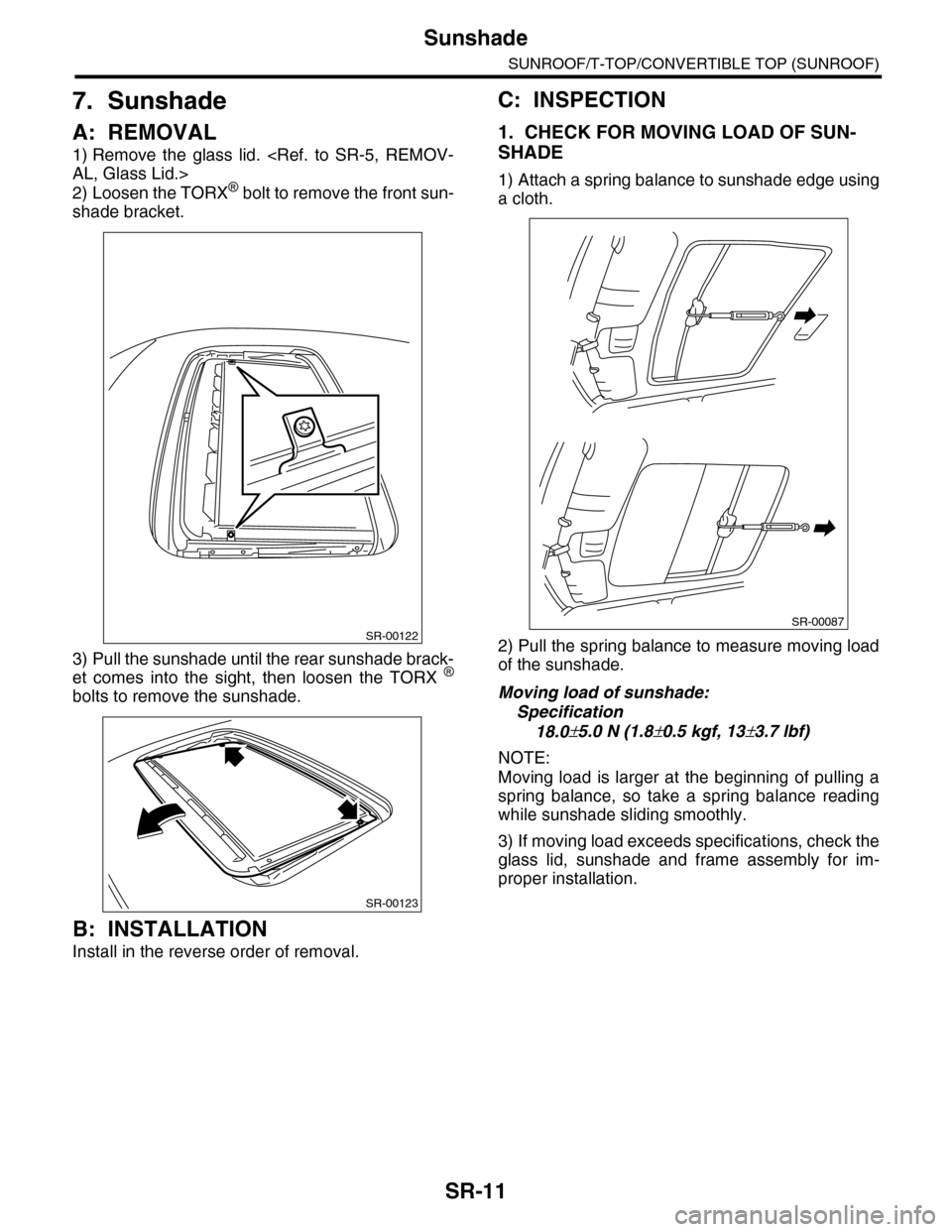

SUBARU TRIBECA 2009 1.G Service Workshop Manual SR-11 Sunshade SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) 7. Sunshade A: REMOVAL 1) Remove the glass lid. <Ref. to SR-5, REMOV- AL, Glass Lid.> 2) Loosen the TORX® bolt to remove the front sun- s

Page 696 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SR-12 Sunshade SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)
