2007 KIA CARNIVAL Workshop Manual

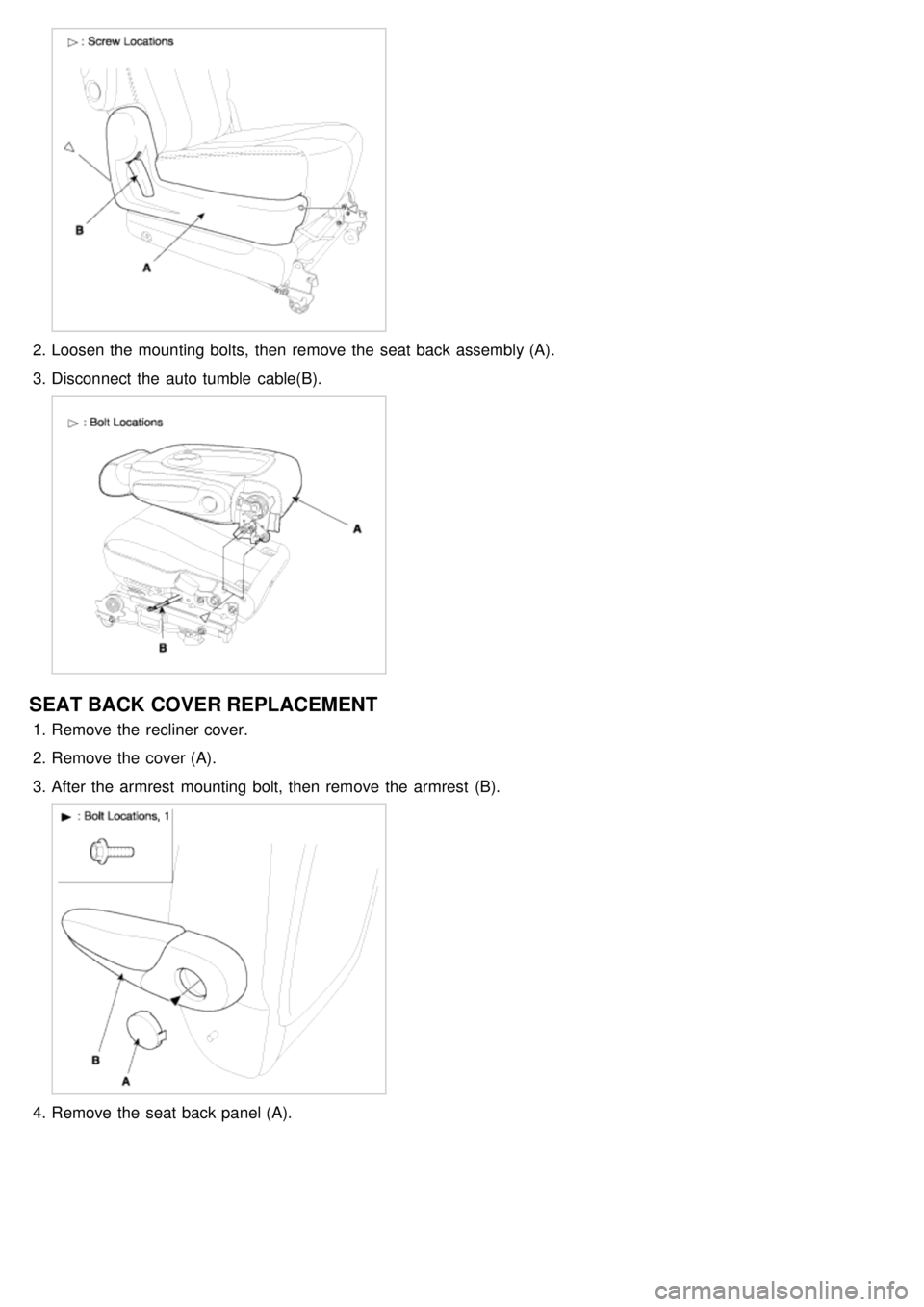

2.Loosen the mounting bolts, then remove the seat back assembly (A).
3. Disconnect the auto tumble cable(B).
SEAT BACK COVER REPLACEMENT
1.Remove the recliner cover.
2. Remove the cover (A).
3. After the armrest mounting bolt, then remove the armrest (B).
4.Remove the seat back panel (A).

5.Remove the hog- ring clips (A).
6.Remove the headrest and headrest guide.
7. After removing the hog- ring clips (A) on the front of seat back remove the seat back cover (B).
8.Installation is the reverse of removal.
a.To prevent wrinkles, make sure the material is stretched evenly over the cover (A) before securing the
hogring clips (B)
b. Replace the hogring clips with new ones using special tool (C).

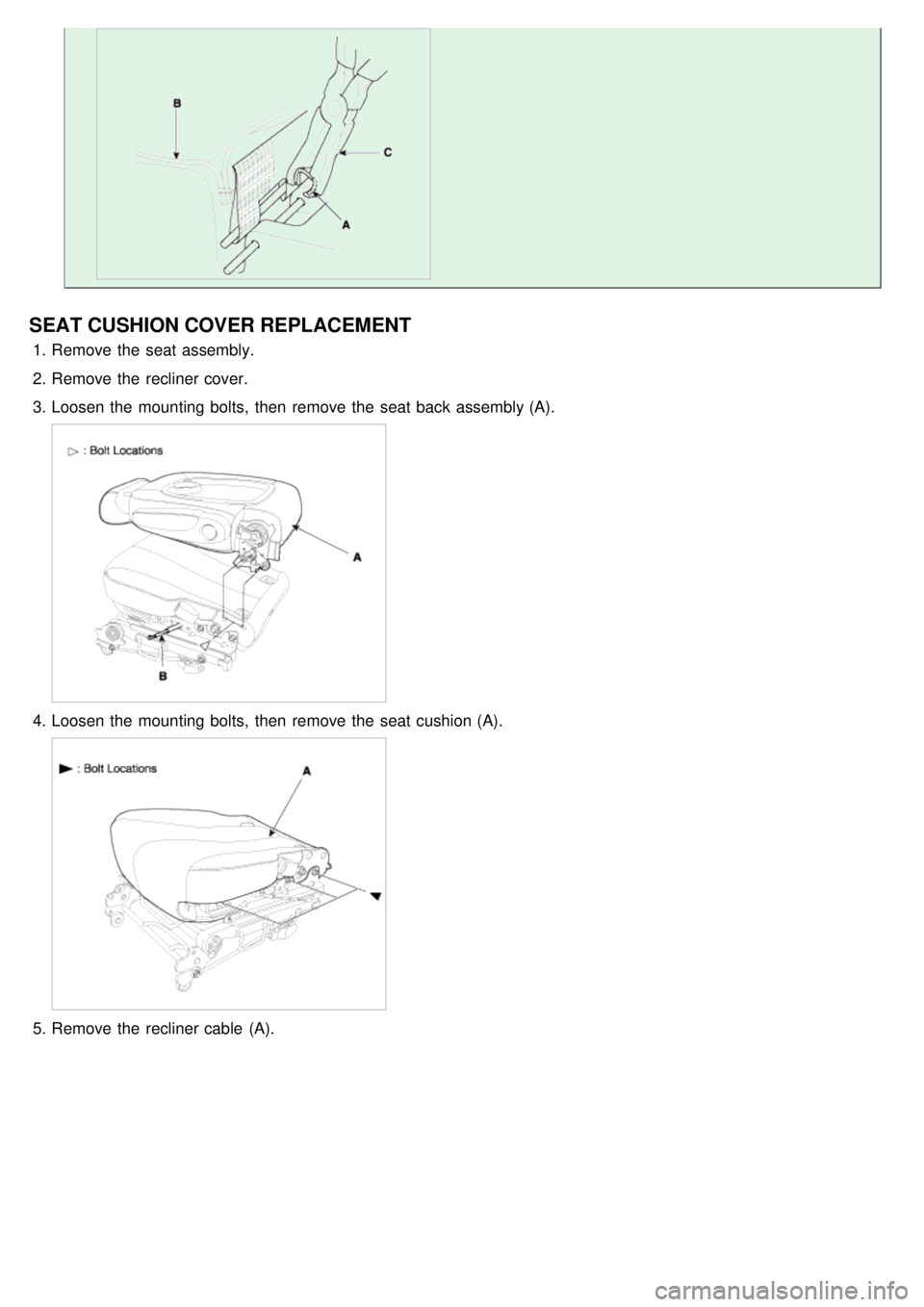

SEAT CUSHION COVER REPLACEMENT
1.Remove the seat assembly.
2. Remove the recliner cover.
3. Loosen the mounting bolts, then remove the seat back assembly (A).
4.Loosen the mounting bolts, then remove the seat cushion (A).
5.Remove the recliner cable (A).

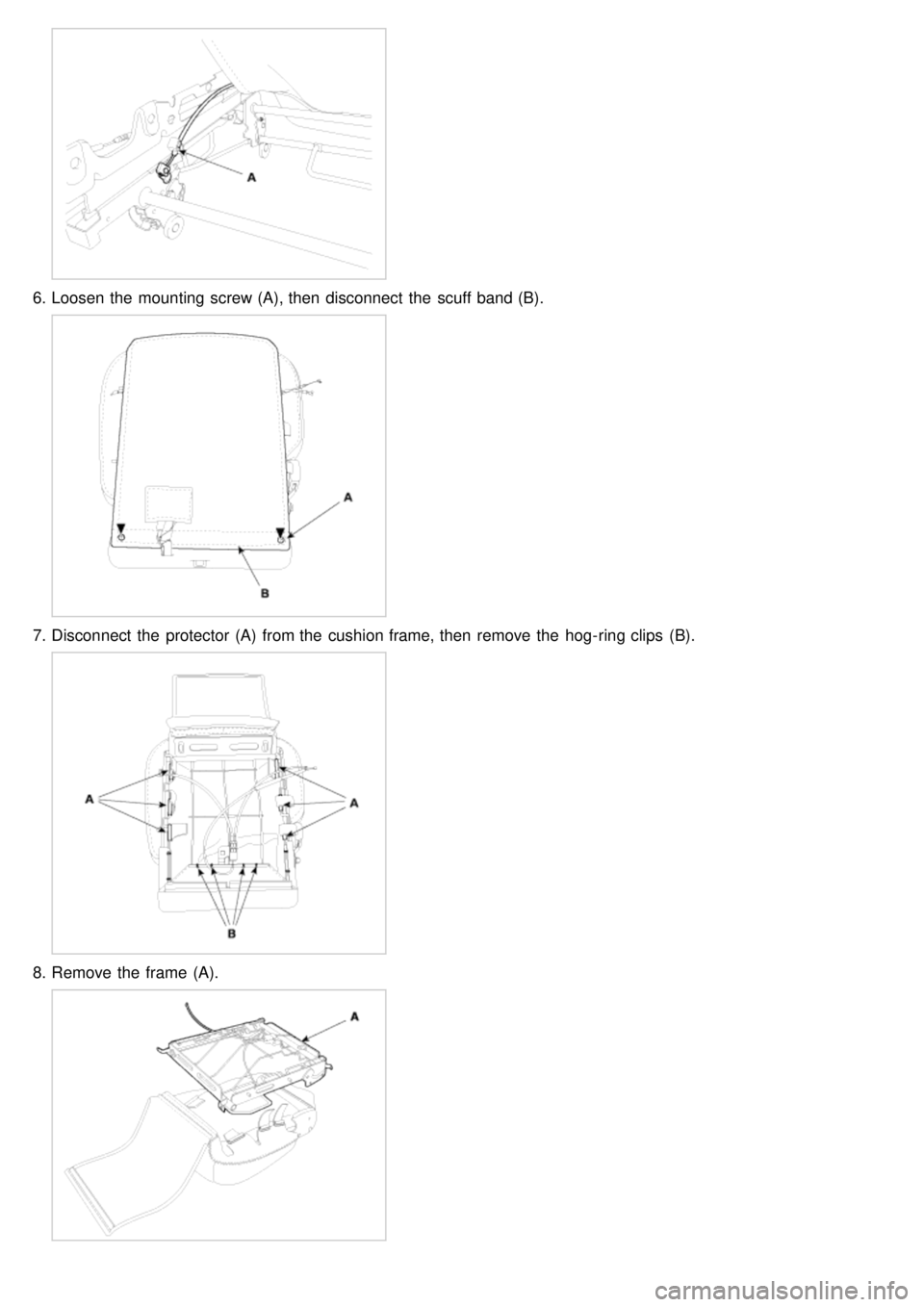

6.Loosen the mounting screw (A), then disconnect the scuff band (B).
7.Disconnect the protector (A) from the cushion frame, then remove the hog- ring clips (B).
8.Remove the frame (A).

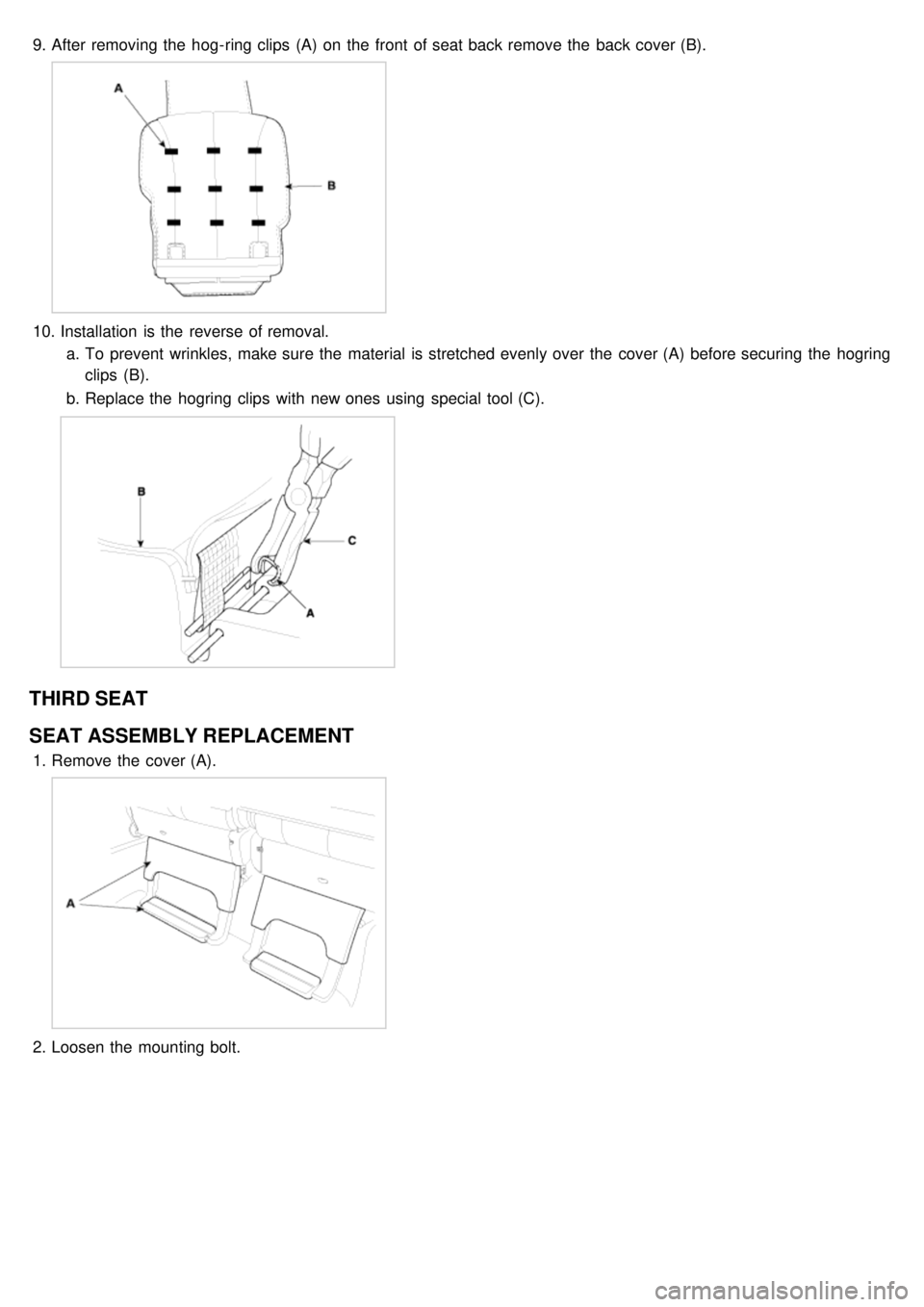

9.After removing the hog- ring clips (A) on the front of seat back remove the back cover (B).
10. Installation is the reverse of removal.
a. To prevent wrinkles, make sure the material is stretched evenly over the cover (A) before securing the hogring
clips (B).
b. Replace the hogring clips with new ones using special tool (C).
THIRD SEAT
SEAT ASSEMBLY REPLACEMENT
1.Remove the cover (A).
2.Loosen the mounting bolt.

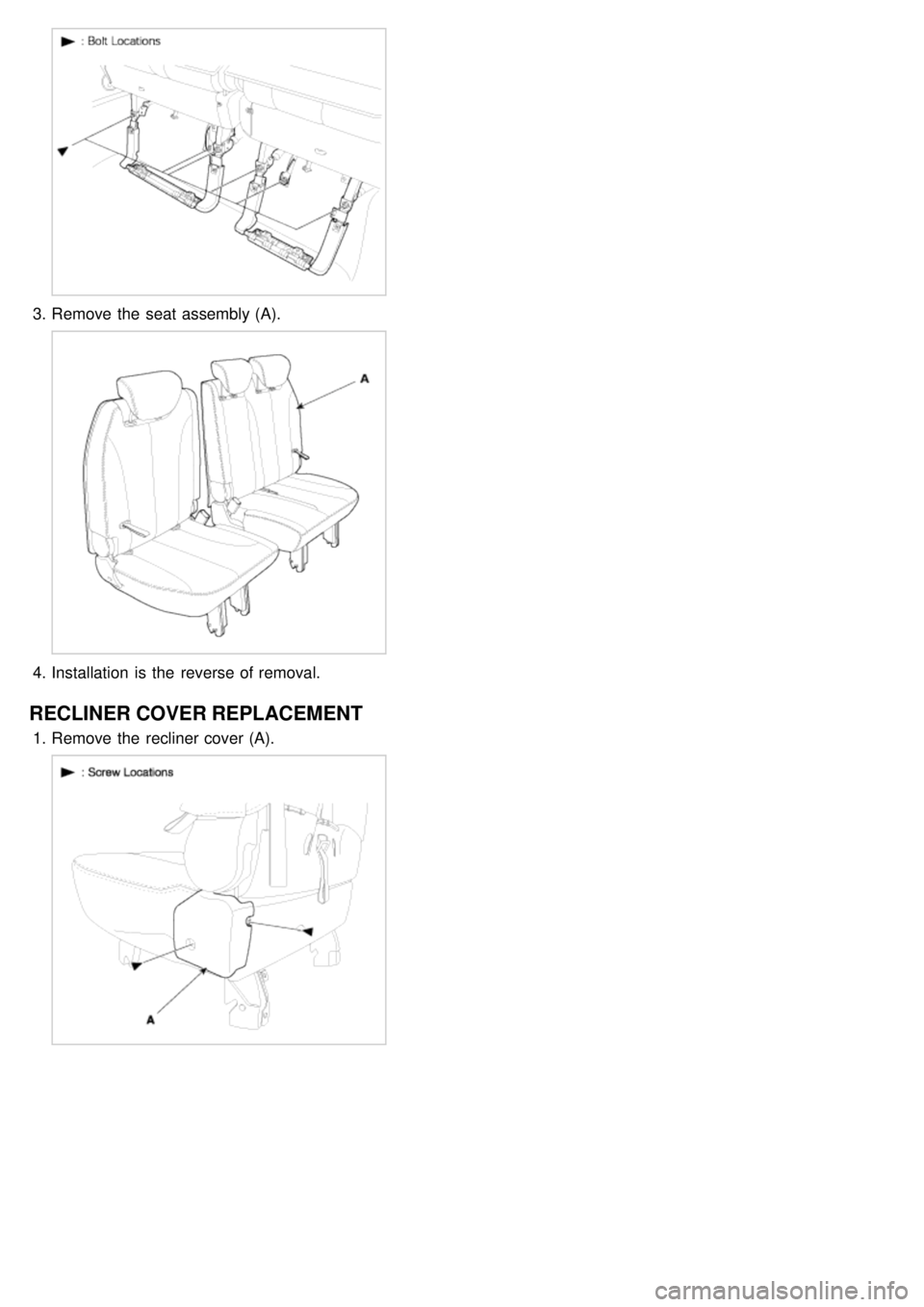

3.Remove the seat assembly (A).
4.Installation is the reverse of removal.

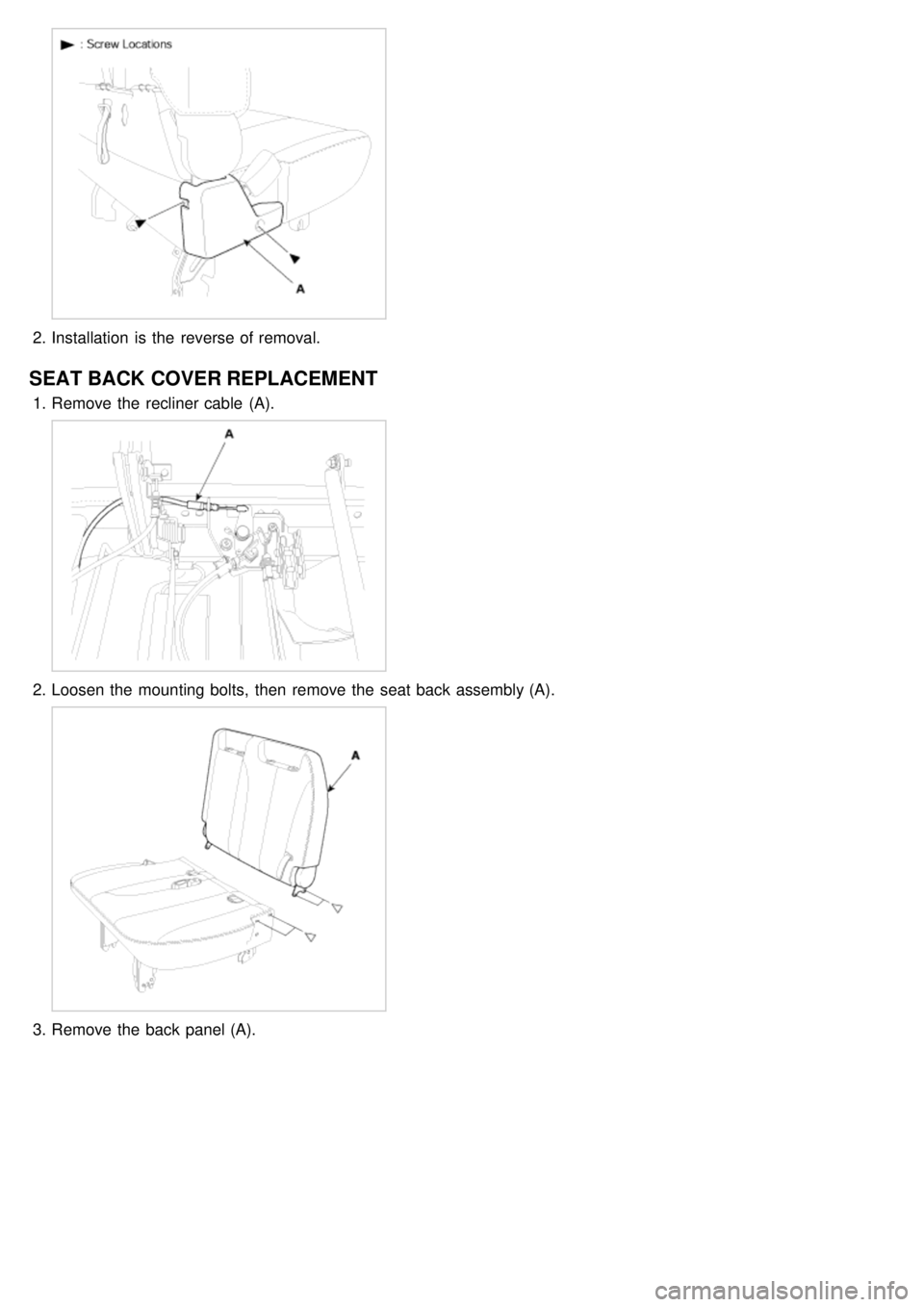

RECLINER COVER REPLACEMENT
1.Remove the recliner cover (A).

2.Installation is the reverse of removal.
SEAT BACK COVER REPLACEMENT
1.Remove the recliner cable (A).
2.Loosen the mounting bolts, then remove the seat back assembly (A).
3.Remove the back panel (A).

4.Remove the hogring clips (A).
5.Remove the headrest guide (A).
6.Remove the frame (A).
