2007 KIA CARNIVAL Workshop Manual

BRAKES
The gear changing mechanism utilizes two multi- disc brakes.
LOW&REVERSE BRAKE AND SECOND BRAKE
The low&reverse brake(A) operates in 1st and reverse gears, when the vehicle is parked, and during manual
operation. It locks the low&reverse annulus gear and overdrive planetary carrier to the case.
The second(C) brake(B) operates in 2nd and 4th gears and locks the reverse sun gear(D) to the case.
The components comprising the low&reverse brake and second brake are as illustrated below.
As shown, the discs and plates of the two brakes are arranged on either side of the rear cushion plate(E), which is
itself secured to the case(F) by a snap ring.
OWC
To improve the shift feeling from 1st to 2nd gear, OWC was adopted on the low&reverse brake annulus gear. Instead
of hydraulic fixing by Low&reverse brake at the 1st gear, this mechanical fixing device was used. This structure is not
a new concept, because this OWC already has been installed on the previous models.
ACCUMULATORS
NumberFunction Name Color
1 Low&Reverse Brake None
2 Underdrive Clutch Yellow
3 Second Brake Blue
4 Overdrive Clutch None

Objective
* Energy (hydraulic pressure) storage
* Impact and pulsation damping when solenoid valves operating
* Operation as spring element
* Smooth shifting by preventing sudden operation of clutches and brakes
TRANSFER DRIVE GEAR
With the transfer drive gear, increased tooth height and a higher contact ratio have reduced gear noise.
Also, the bearing that supports the drive gear is a preloaded type that eliminates rattle, and the rigidity of the gear
mounting has been increased by bolting the bearing directly onto the case.
OUTPUT SHAFT/TRANSFER DRIVEN GEAR
As shown in the illustration below, the transfer driven gear is press- fitted onto the output shaft, and the output shaft is
secured by a locking nut and supported by bearings.
The locking nut has a left- handed thread, and a hexagonal hole in the other end of the shaft enables the shaft to be
held in position for locking nut removal.

MANUAL CONTROL SYSTEM
MANUAL CONTROL LEVER
The manual control lever is fitted to the top of the valve body and is linked to the parking roller rod and manual control
valve pin.
A detent mechanism is provided to improve the gear shift feeling during manual selection.
PARKING MECHANISM
When the manual control lever is moved to the parking position, the parking roller rod moves along the parking roller
support and pushes up the parking sprag.
As a result, the parking sprag meshes with the transfer driven gear (parking gear), thereby locking the output shaft. To
minimize the operating force required, a roller is fitted to the end of the rod.
POWER TRAIN
P POSITION
Hydraulic pressure is applied to the LR brake and the RED brake, so power is not transmitted from the input shaft to
the UD clutch or OD clutch, and the output shaft is locked by the park brake pawl interlocking the park gear.
N POSITION
Hydraulic pressure is applied to the LR brake(A) and the RED brake, so power is not transmitted from the input shaft
to the UD clutch or OD clutch.

1st GEAR POWER FLOW
Hydraulic pressure is applied to the UD clutch(B) the LR brake(A) and the one way clutch(OWC), then the UD clutch
transmits driving force from the input shaft to the UD sun gear, and the LR brake locks the LR annulus gear to the
case.The UD sun gear of the planetary gear drives the output pinion gear, and the LR brake locks the annulus gear,
and the output pinion drives the output carriers, and the output carrier drives the transfer drive gear, and the transfer
drive gear drives the transfer driven gear of the output shaft, and power is transmitted to the differential gear through
the differential drive gear.
2nd GEAR POWER FLOW
Hydraulic pressure is applied to the UD clutch(A) the 2nd brake(B) and the one way clutch(OWC), then the UD clutch
transmits driving force from the input shaft to the UD sun gear, and the 2nd brake locks the reverse sun gear to the
case.The UD sun gear of the planetary gear drives the output pinion gear and the LR annulus gear, and the LR
annulus gear drives the OD planetary carriers, and OD planetary carriers drives OD pinion gear, and the OD pinion
gear drives the output carriers, and the output carrier drives the transfer drive gear, and the transfer drive gear drives
the transfer driven gear of the output shaft, and power is transmitted to the differential gear through the differential
drive gear.

3rd GEAR POWER FLOW
Hydraulic pressure is applied to the UD clutch(A) and the OD clutch(B), then the UD clutch transmits driving force from
the input shaft to the UD sun gear, and the OD clutch transmits driving force from the input shaft to the overdrive
planetary carrier and low&reverse annulus gear.The UD sun gear of the planetary gear drives the output pinion gear
and the LR annulus gear, and the LR annulus gear drives the OD pinion gear through the OD planetary carrier, and
the OD pinion gear drives the reverse sun gear and the output carrier.The OD clutch drives the OD carrier, and the
OD carrier drives the OD pinion gear, and the OD pinion gear drives the reverse sun gear and the output carrier, and
the output carrier drives the transfer drive gear, and the transfer drive gear drives the transfer driven gear of the
output shaft, and power is transmitted to the differential gear through the differential drive gear.
4th GEAR POWER FLOW
Hydraulic pressure is applied to the OD clutch(A) and the 2nd brake(B), then the OD clutch transmits driving force
from the input shaft to the OD planetary carrier and LR annulus gear, and the 2nd brake locks the reverse sun gear to
the case.The OD clutch drives the OD carrier, and the OD carrier drives the OD pinion gear and the LR annulus gear,
and the OD pinion gear drives the output carrier, and the output carrier drives the transfer drive gear, and the transfer
drive gear drives the transfer driven gear of the output shaft, and power is transmitted to the differential gear through
the differential drive gear.

Reverse GEAR POWER FLOW
Hydraulic pressure is applied to the reverse clutch(A) and the LR brake(B), then the reverse clutch transmits driving
force from the input shaft to the reverse sun gear, and the LR brake locks the LR annulus gear and OD planetary
carrier to the case.The reverse clutch drives the reverse sun gear, and the reverse sun gear drives the output carrier
through the OD pinion gear, and the output carrier drives the transfer drive gear, and the transfer drive gear drives the
transfer driven gear of the output shaft, and power is transmitted to the differential gear through the differential drive
gear.

2007 > 2.7L V6 GASOLINE >
TROUBLESHOOTING
DIAGNOSIS FLOW

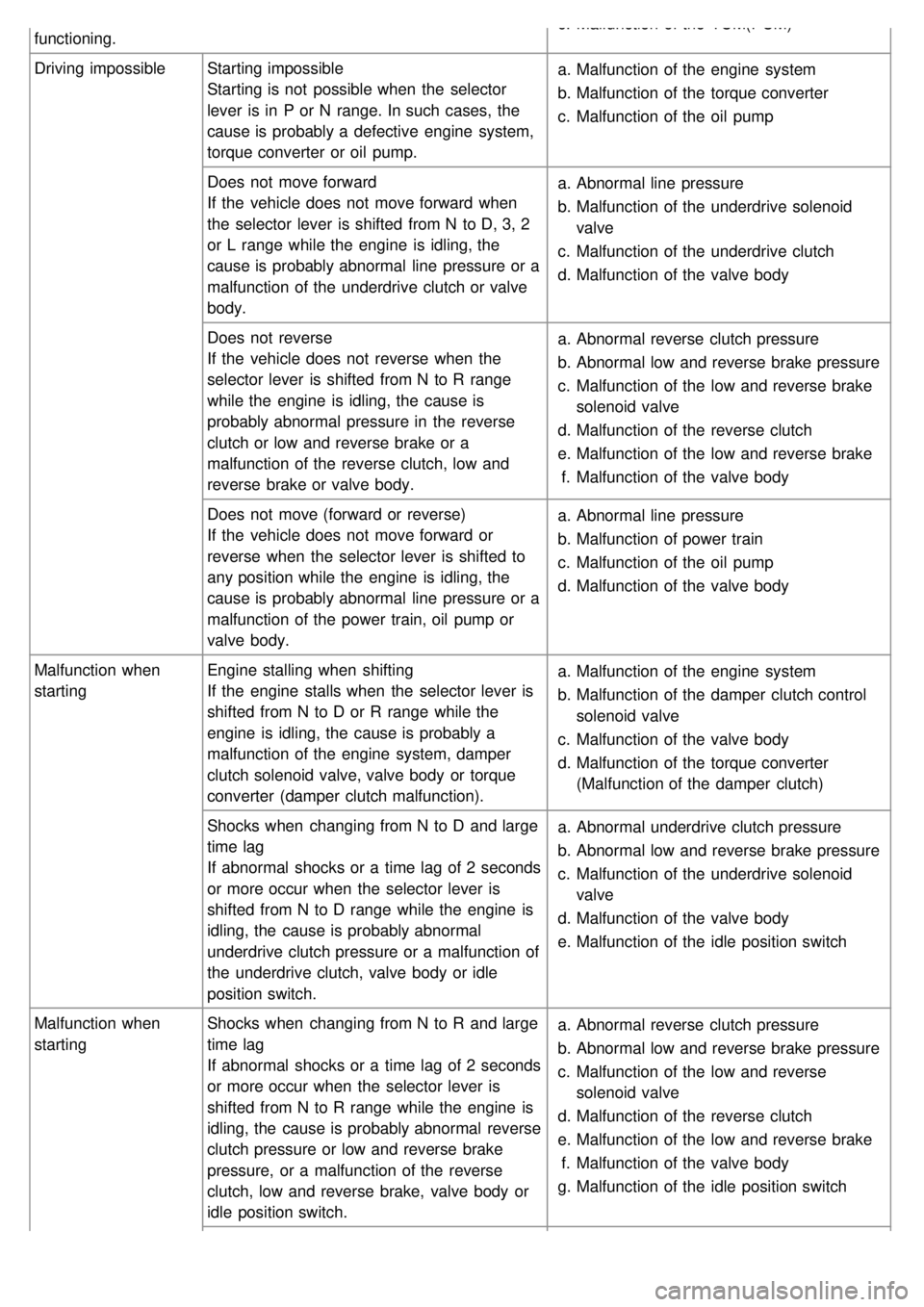

INSPECTION CHART FOR TROUBLE SYMPTOMS
Trouble symptom Probable cause
Communication with HI- SCAN is not possible
If communication with the HI- SCAN is not possible, the cause is
probably a defective diagnosis line or the TCM(PCM) is not
functioning. a.
Malfunction diagnosis line
b. Malfunction of connector
c. Malfunction of the TCM(PCM)

functioning.c.
Malfunction of the TCM(PCM)
Driving impossible Starting impossible
Starting is not possible when the selector
lever is in P or N range. In such cases, the
cause is probably a defective engine system,
torque converter or oil pump. a.
Malfunction of the engine system
b. Malfunction of the torque converter
c. Malfunction of the oil pump
Does not move forward
If the vehicle does not move forward when
the selector lever is shifted from N to D, 3, 2
or L range while the engine is idling, the
cause is probably abnormal line pressure or a
malfunction of the underdrive clutch or valve
body. a.
Abnormal line pressure
b. Malfunction of the underdrive solenoid
valve
c. Malfunction of the underdrive clutch
d. Malfunction of the valve body
Does not reverse
If the vehicle does not reverse when the
selector lever is shifted from N to R range
while the engine is idling, the cause is
probably abnormal pressure in the reverse
clutch or low and reverse brake or a
malfunction of the reverse clutch, low and
reverse brake or valve body. a.
Abnormal reverse clutch pressure
b. Abnormal low and reverse brake pressure
c. Malfunction of the low and reverse brake
solenoid valve
d. Malfunction of the reverse clutch
e. Malfunction of the low and reverse brake
f. Malfunction of the valve body
Does not move (forward or reverse)
If the vehicle does not move forward or
reverse when the selector lever is shifted to
any position while the engine is idling, the
cause is probably abnormal line pressure or a
malfunction of the power train, oil pump or
valve body. a.
Abnormal line pressure
b. Malfunction of power train
c. Malfunction of the oil pump
d. Malfunction of the valve body
Malfunction when
starting Engine stalling when shifting
If the engine stalls when the selector lever is
shifted from N to D or R range while the
engine is idling, the cause is probably a
malfunction of the engine system, damper
clutch solenoid valve, valve body or torque
converter (damper clutch malfunction). a.
Malfunction of the engine system
b. Malfunction of the damper clutch control
solenoid valve
c. Malfunction of the valve body
d. Malfunction of the torque converter
(Malfunction of the damper clutch)
Shocks when changing from N to D and large
time lag
If abnormal shocks or a time lag of 2 seconds
or more occur when the selector lever is
shifted from N to D range while the engine is
idling, the cause is probably abnormal
underdrive clutch pressure or a malfunction of
the underdrive clutch, valve body or idle
position switch. a.
Abnormal underdrive clutch pressure
b. Abnormal low and reverse brake pressure
c. Malfunction of the underdrive solenoid
valve
d. Malfunction of the valve body
e. Malfunction of the idle position switch
Malfunction when
starting Shocks when changing from N to R and large
time lag
If abnormal shocks or a time lag of 2 seconds
or more occur when the selector lever is
shifted from N to R range while the engine is
idling, the cause is probably abnormal reverse
clutch pressure or low and reverse brake
pressure, or a malfunction of the reverse
clutch, low and reverse brake, valve body or
idle position switch. a.
Abnormal reverse clutch pressure
b. Abnormal low and reverse brake pressure
c. Malfunction of the low and reverse
solenoid valve
d. Malfunction of the reverse clutch
e. Malfunction of the low and reverse brake
f. Malfunction of the valve body
g. Malfunction of the idle position switch
