2007 KIA CARNIVAL Workshop Manual

a.Put on gloves to protect your hands.
b. When prying with a flat- tipped screwdriver, wrap it with protective tape to prevent damage.
c. Take care not to bend or scratch the trim and panels.

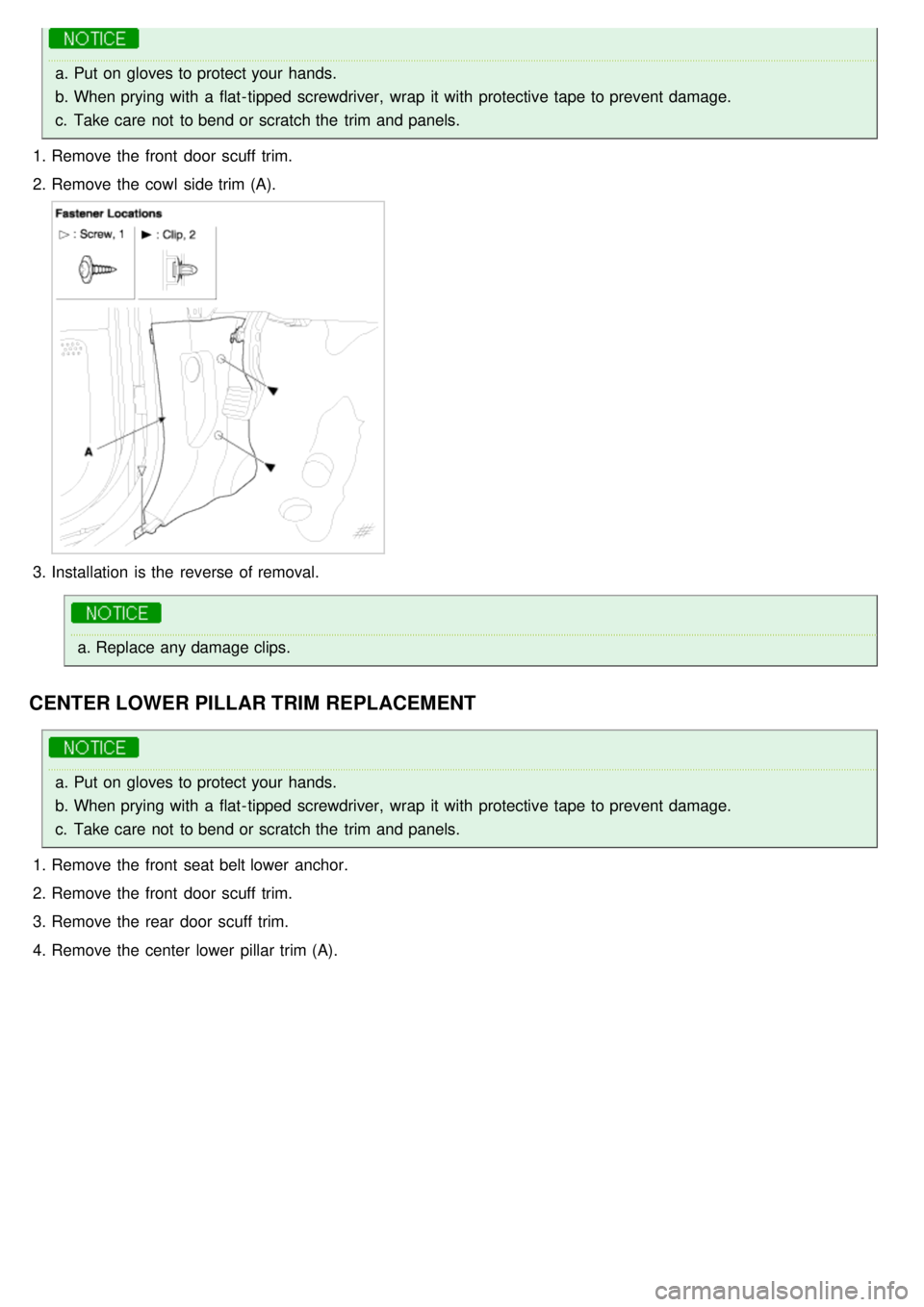

1. Remove the front door scuff trim.
2. Remove the cowl side trim (A).
3.Installation is the reverse of removal.
a.Replace any damage clips.
CENTER LOWER PILLAR TRIM REPLACEMENT
a.Put on gloves to protect your hands.
b. When prying with a flat- tipped screwdriver, wrap it with protective tape to prevent damage.
c. Take care not to bend or scratch the trim and panels.
1. Remove the front seat belt lower anchor.
2. Remove the front door scuff trim.
3. Remove the rear door scuff trim.
4. Remove the center lower pillar trim (A).

5.Installation is the reverse of removal.
a.Replace any damage clips.

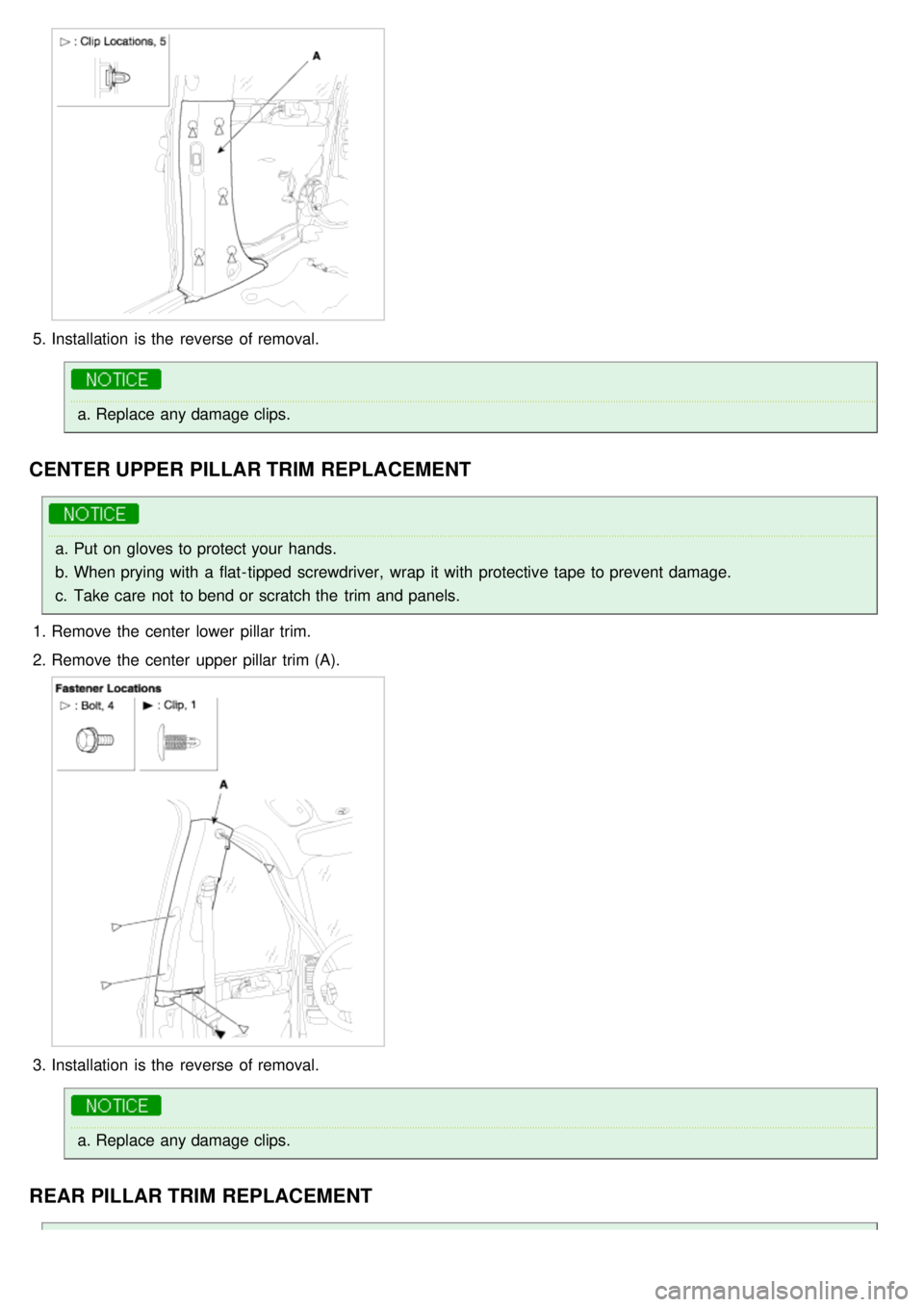

CENTER UPPER PILLAR TRIM REPLACEMENT
a.Put on gloves to protect your hands.
b. When prying with a flat- tipped screwdriver, wrap it with protective tape to prevent damage.
c. Take care not to bend or scratch the trim and panels.
1. Remove the center lower pillar trim.
2. Remove the center upper pillar trim (A).
3.Installation is the reverse of removal.
a.Replace any damage clips.

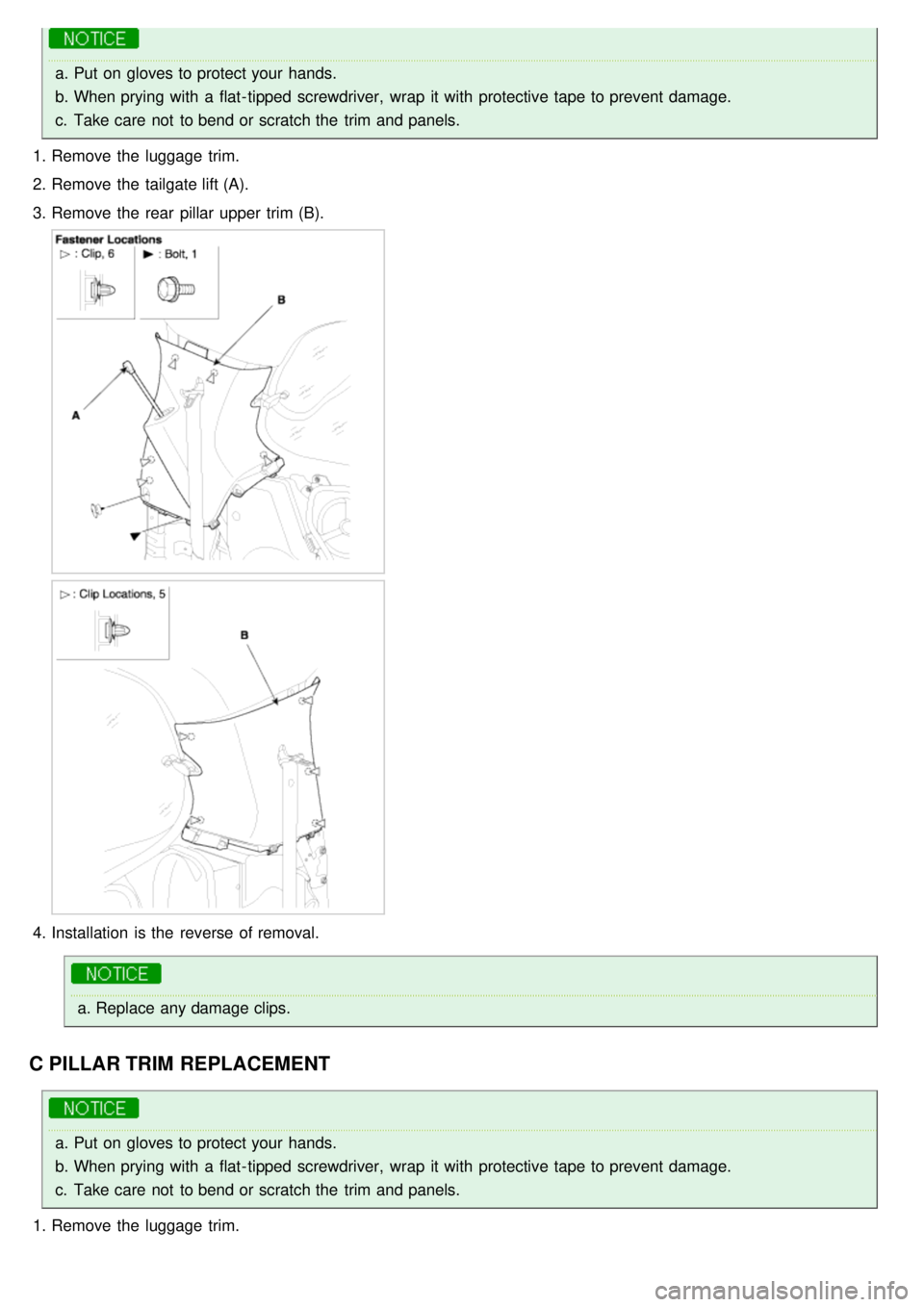

REAR PILLAR TRIM REPLACEMENT

a.Put on gloves to protect your hands.
b. When prying with a flat- tipped screwdriver, wrap it with protective tape to prevent damage.
c. Take care not to bend or scratch the trim and panels.
1. Remove the luggage trim.
2. Remove the tailgate lift (A).
3. Remove the rear pillar upper trim (B).
4.Installation is the reverse of removal.
a.Replace any damage clips.

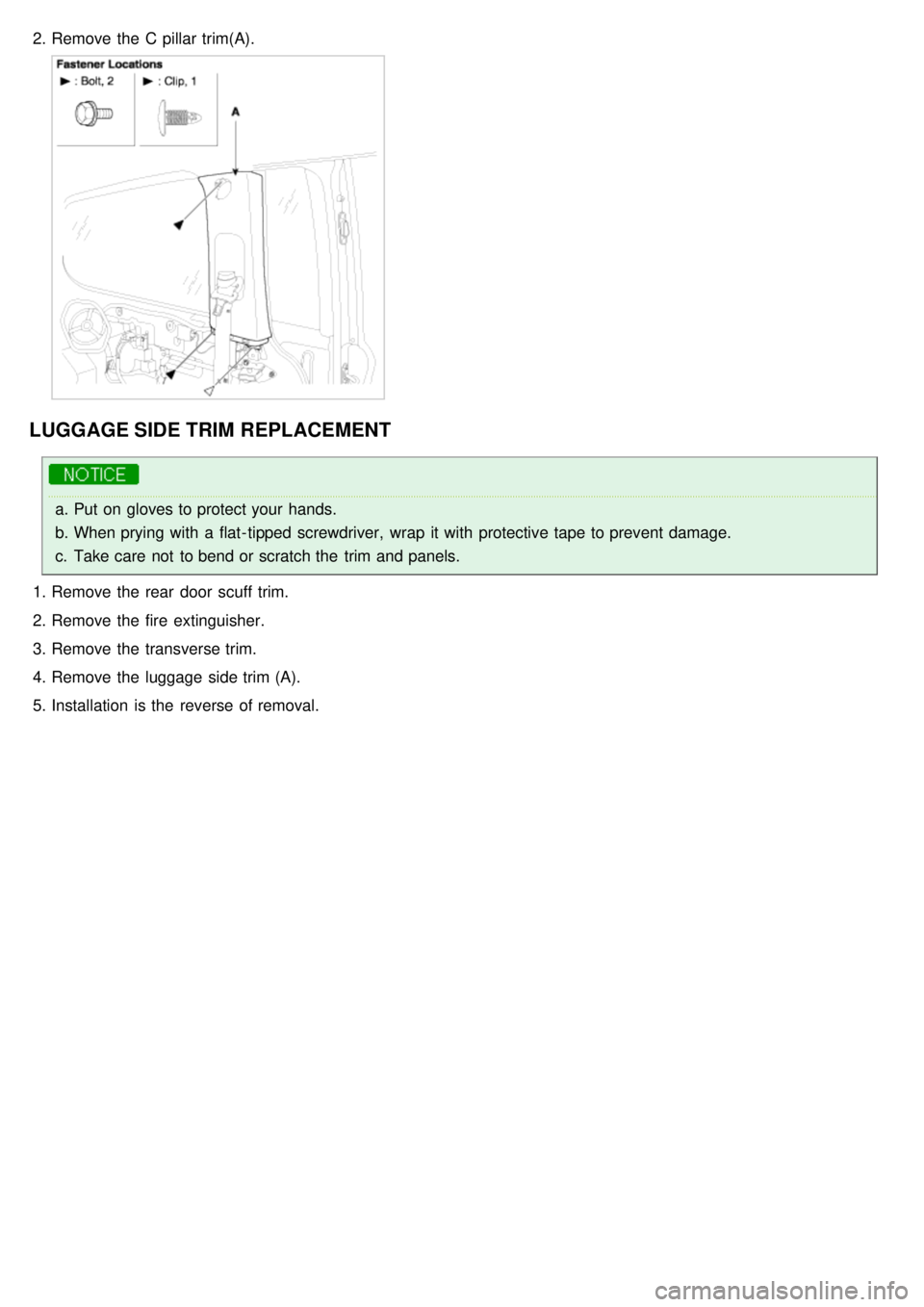

C PILLAR TRIM REPLACEMENT
a.Put on gloves to protect your hands.
b. When prying with a flat- tipped screwdriver, wrap it with protective tape to prevent damage.
c. Take care not to bend or scratch the trim and panels.
1. Remove the luggage trim.

2.Remove the C pillar trim(A).

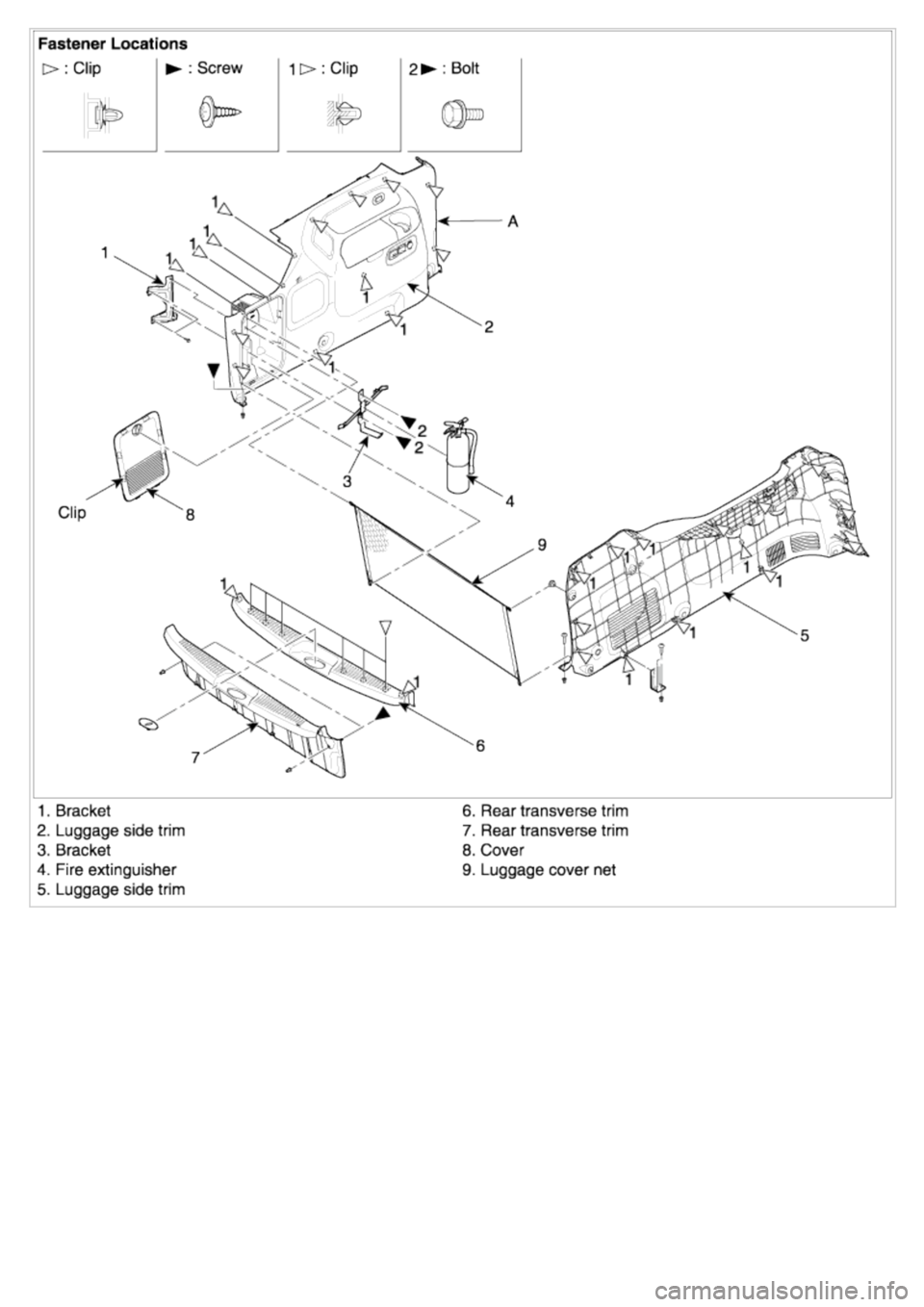

LUGGAGE SIDE TRIM REPLACEMENT
a.Put on gloves to protect your hands.
b. When prying with a flat- tipped screwdriver, wrap it with protective tape to prevent damage.
c. Take care not to bend or scratch the trim and panels.
1. Remove the rear door scuff trim.
2. Remove the fire extinguisher.
3. Remove the transverse trim.
4. Remove the luggage side trim (A).
5. Installation is the reverse of removal.

Windshield Glass

2007 > 2.7L V6 GASOLINE >

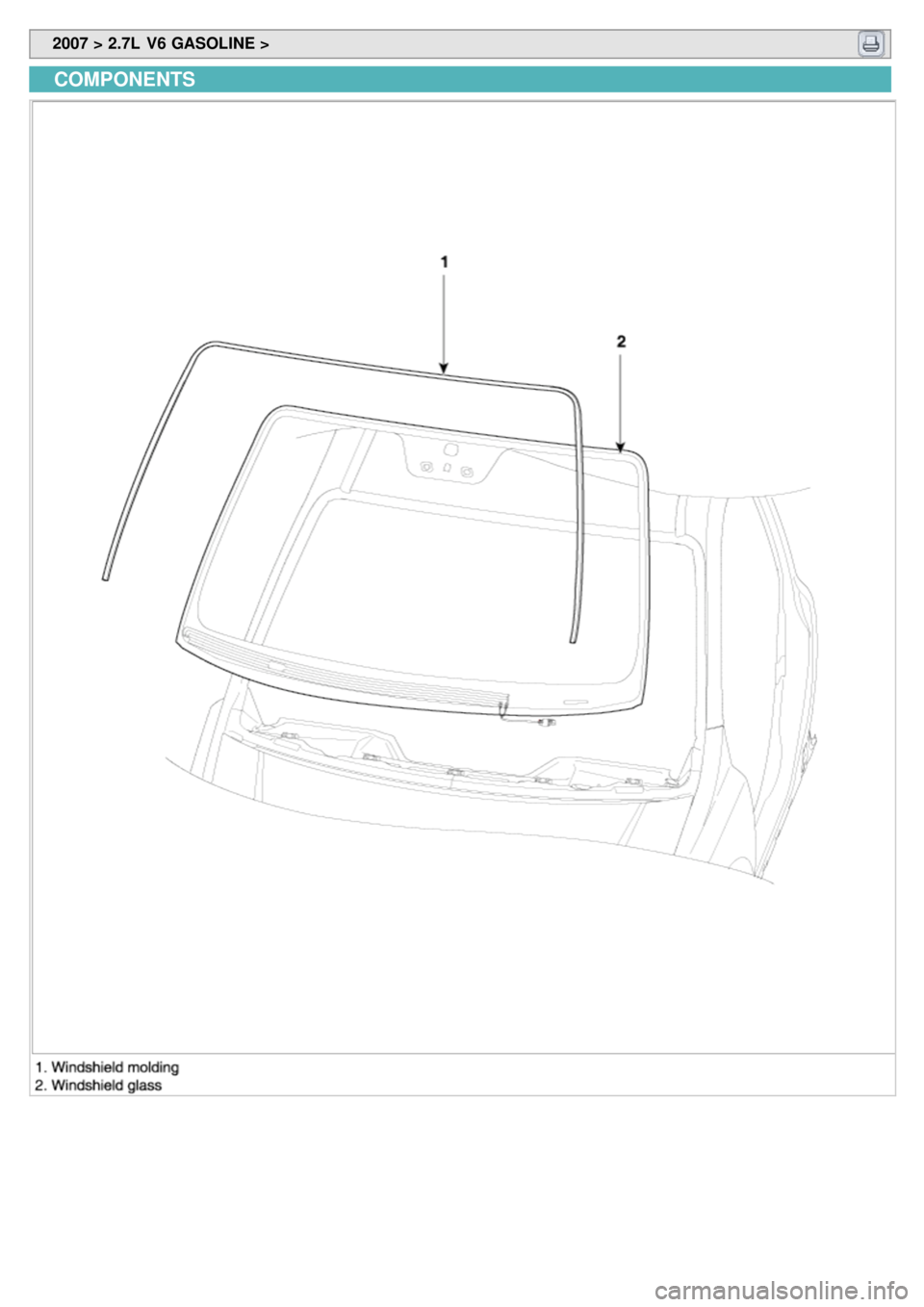

COMPONENTS

2007 > 2.7L V6 GASOLINE >

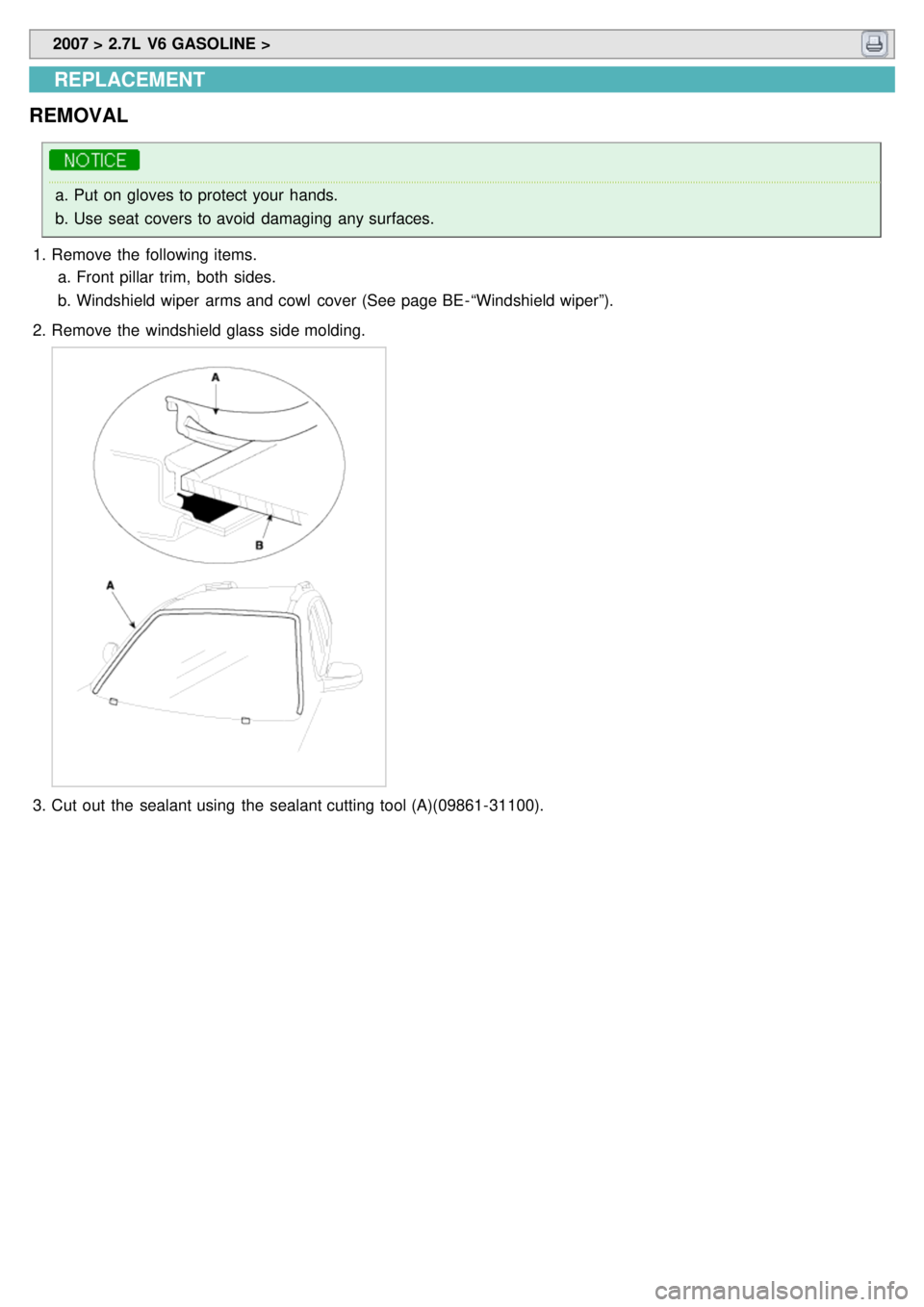

REPLACEMENT
REMOVAL
a. Put on gloves to protect your hands.
b. Use seat covers to avoid damaging any surfaces.
1. Remove the following items.
a. Front pillar trim, both sides.
b. Windshield wiper arms and cowl cover (See page BE - “Windshield wiper”).
2. Remove the windshield glass side molding.
3.Cut out the sealant using the sealant cutting tool (A)(09861- 31100).
