Page 601 of 1575
7.Remove the split pin and lower arm bolts and nut (A).
Tightening torque Nm (kgf- m, lb - ft):
90 ~ 120 (9.0 ~ 12.0, 65 ~ 87)
8.Disconnect the stabilizer link (B) from the strut assembly (A) by loosening nut.
Tightening torque Nm (kgf.m, lb - ft):
100 ~ 120 (10.0 ~ 12.0, 72 ~ 87)
9.Repeat on the other side.
10. Remove the front and rear roll stopper bolts and nuts (A, B).
Page 602 of 1575
11.Remove the sub- frame by loosening the bolts and nuts.
12.Remove the rear roll stopper (A) from the sub- frame.
13.Disconnect the pressure tube (A) and return (B) from the valve body housing.
Tightening torque Nm (kgf.m, lb - ft):
12 ~ 18 (1.2 ~ 1.8, 9 ~ 13)
Page 603 of 1575
14.Remove the power steering gear box (A) from the sub- frame by loosening the mounting bolts.
Tightening torque Nm (kgf.m, lb - ft):
60 ~ 80 (6.0 ~ 8.0, 43~58)
INSTALLATION
Be sure to connect between a tube and a hose as shown in the illustration.
1.Installation is the reverse of removal.
2. After installation, bleed the power steering system. (Refer to the air bleeding in ST group)
3. Adjust the wheel alignment. (Refer to SS group)
DISASSEMBLY
1.Remove the tie rod end (B) from the tie rod (A).
Page 604 of 1575
2.Remove the dust cover (B) from the ball joint (A).
3.Remove the bellows band (A).
4.Remove the bellows clip (A).
5.Pull the bellows out toward the tie rod.
Page 605 of 1575
Check for rust on the rack when the bellows are replaced.
6. Remove the feed tube(A) from the rack housing.
7.While moving the rack slowly, drain the fluid from the rack housing.
8. Unstake the tab washer (A) which fixes the tie rod (B) and rack (C) with a chisel.
9.Remove the tie rod (B) from the rack (A).
Remove the tie rod (B) from the rack (A), taking care not to twist the rack.
10. Remove the yoke plug locking nut (A).
Page 606 of 1575
11.Remove the yoke plug (B) with a 14mm socket (A).
12.Remove the lock nut (D), yoke plug (C), rack support spring (B) and rack support yoke (A) from the gear box.
13.When the end of the circlip comes out of the notchedhole of the housing rack cylinder, turn the rack stopper (A)
clockwise and remove the circlip.
Be careful not to damage the rack.
Page 607 of 1575
14.When the end of the circlip comes out of the notched hole (A) of the housing rack cylinder, turn the rack stopper
(B) counterclockwise and remove the circlip.
Be careful not to damage the rack.
15.Remove the rack bushing and rack from the rack housing.
16. Remove the O - ring(A) from the rack bushing (B).
17.Remove the oil seal (B) from the rack bushing (A).

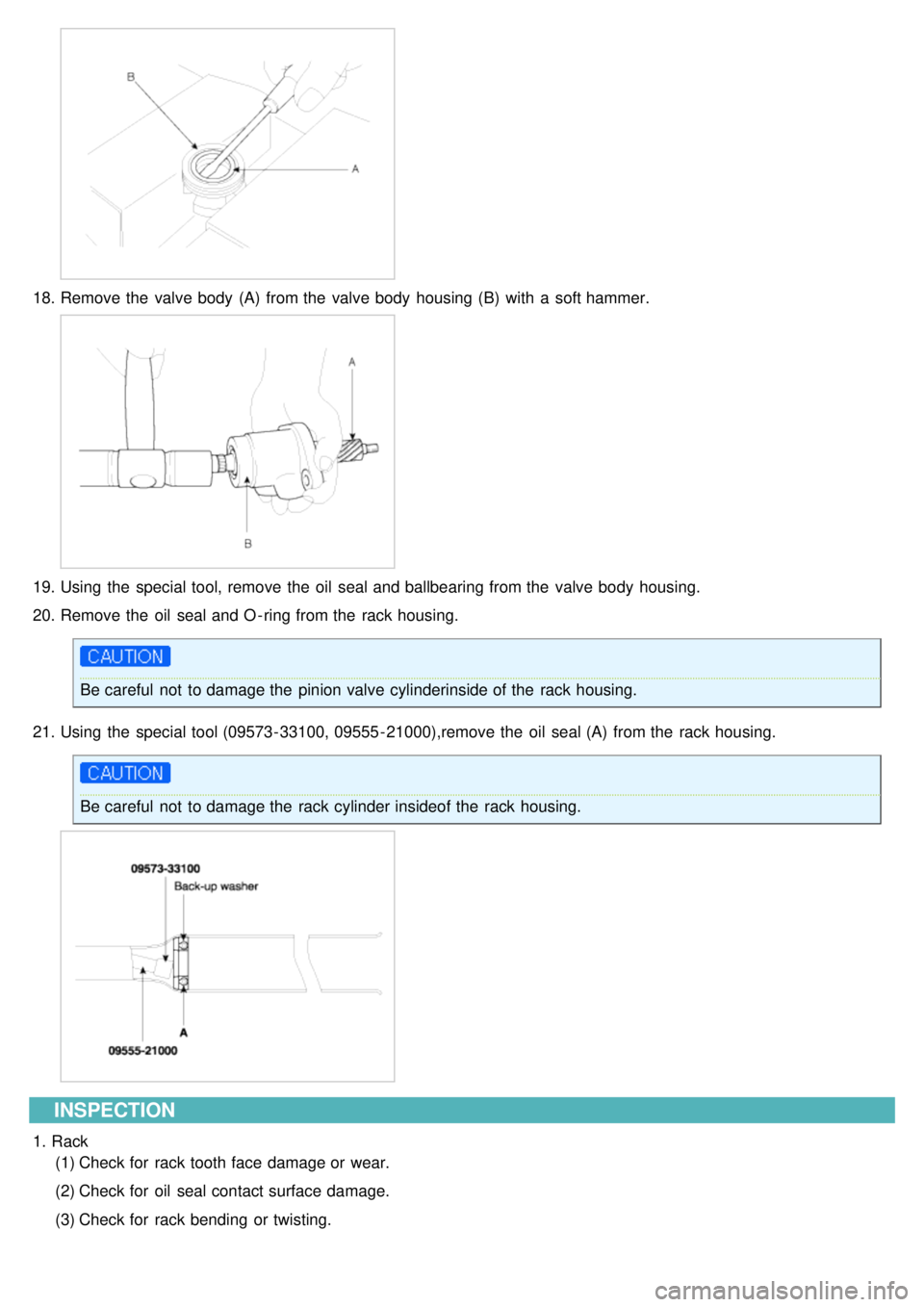

Page 608 of 1575
18.Remove the valve body (A) from the valve body housing (B) with a soft hammer.
19.Using the special tool, remove the oil seal and ballbearing from the valve body housing.
20. Remove the oil seal and O - ring from the rack housing.
Be careful not to damage the pinion valve cylinderinside of the rack housing.
21. Using the special tool (09573- 33100, 09555 - 21000),remove the oil seal (A) from the rack housing.
Be careful not to damage the rack cylinder insideof the rack housing.
INSPECTION
1.Rack
(1) Check for rack tooth face damage or wear.
(2) Check for oil seal contact surface damage.
(3) Check for rack bending or twisting.
