2007 KIA CARNIVAL Workshop Manual

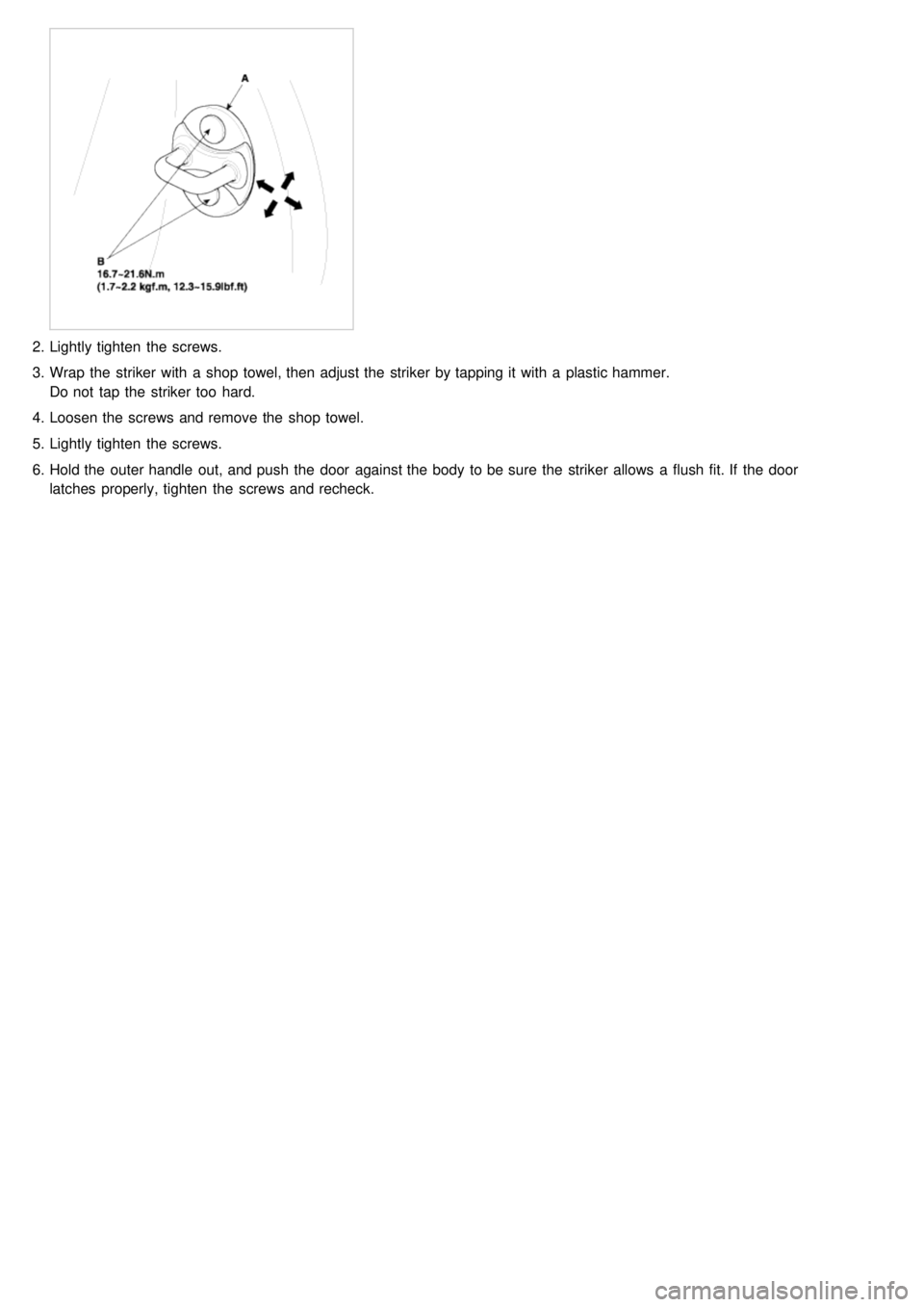

2.Lightly tighten the screws.
3. Wrap the striker with a shop towel, then adjust the striker by tapping it with a plastic hammer.
Do not tap the striker too hard.
4. Loosen the screws and remove the shop towel.
5. Lightly tighten the screws.
6. Hold the outer handle out, and push the door against the body to be sure the striker allows a flush fit. If the door
latches properly, tighten the screws and recheck.

Rear Door

2007 > 2.7L V6 GASOLINE >

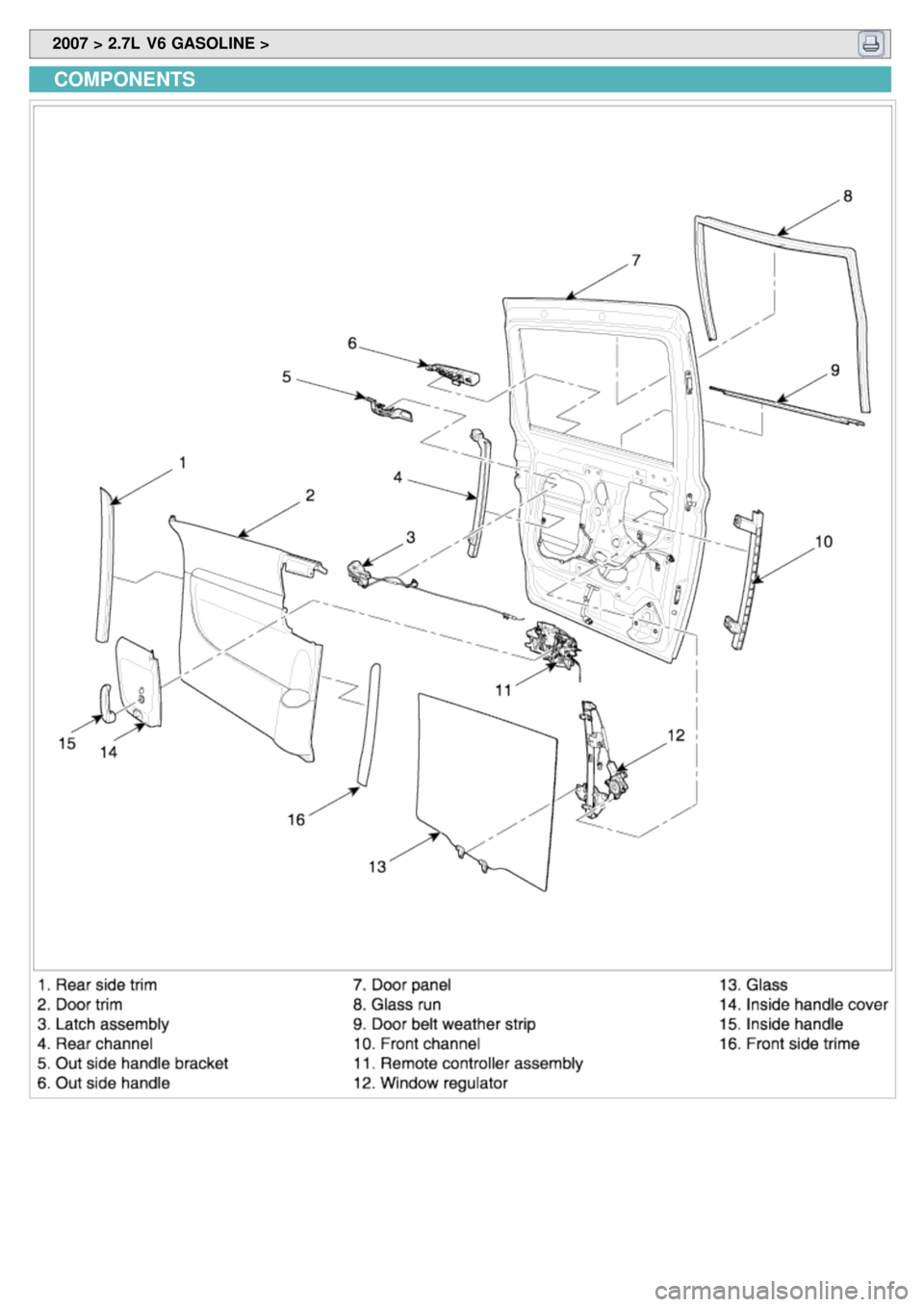

COMPONENTS

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
REAR DOOR TRIM REPLACEMENT
a. Take care not to scratch the door trim and other parts.
b. Put on gloves to protect your hands.
1. Remove the front side trim(A) and rear side trim.
2.Disconnect the clip (A), remove the inside handle (B).
3.Loosen the inside handle cover (A) mounting screws, remove the inside handle cover.
4.Loosen the trim (A) mounting screws, remove the trim.

5.Installation is the reverse of removal.

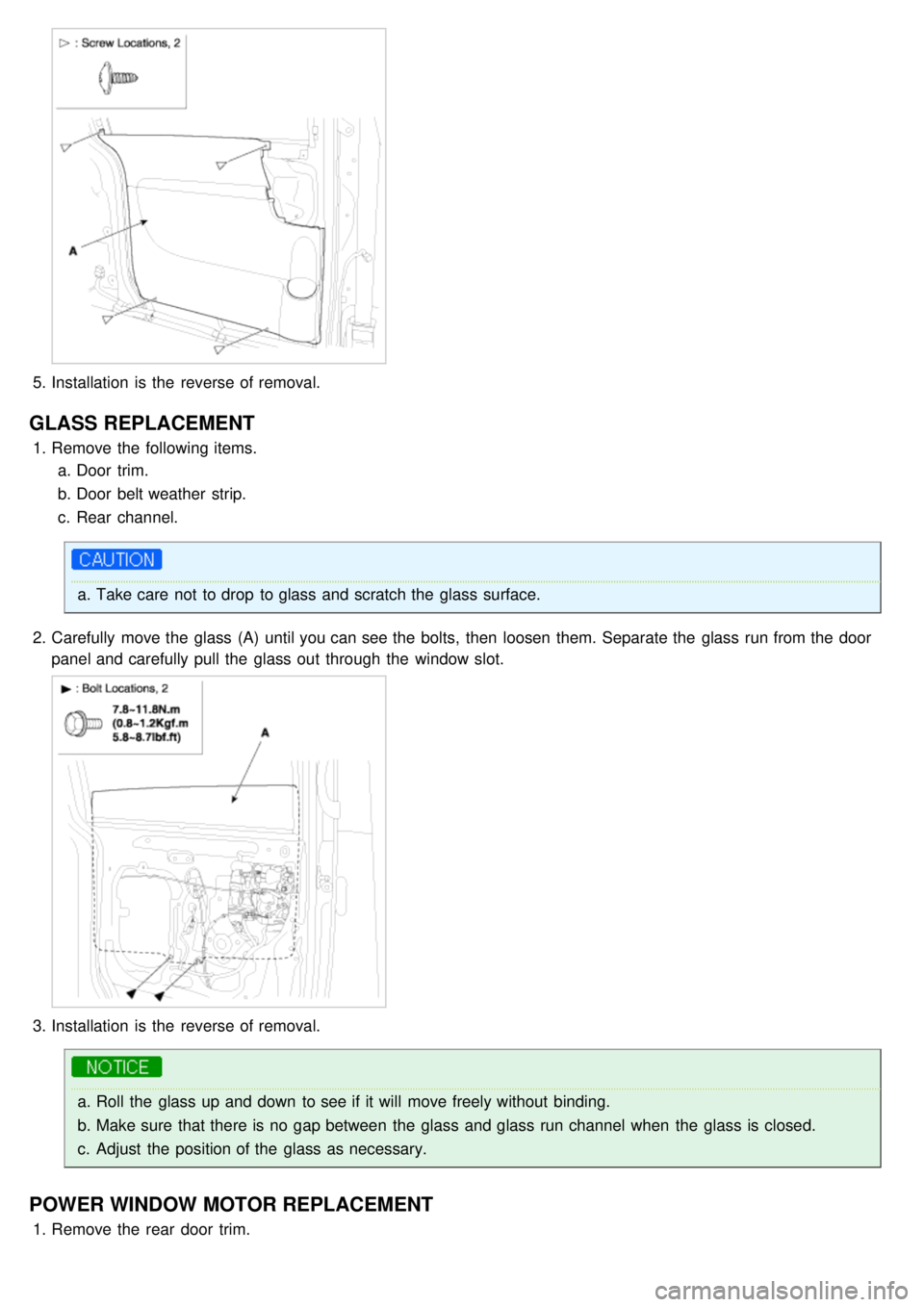

GLASS REPLACEMENT
1.Remove the following items.
a. Door trim.
b. Door belt weather strip.
c. Rear channel.
a.Take care not to drop to glass and scratch the glass surface.
2. Carefully move the glass (A) until you can see the bolts, then loosen them. Separate the glass run from the door
panel and carefully pull the glass out through the window slot.
3.Installation is the reverse of removal.
a.Roll the glass up and down to see if it will move freely without binding.
b. Make sure that there is no gap between the glass and glass run channel when the glass is closed.
c. Adjust the position of the glass as necessary.
POWER WINDOW MOTOR REPLACEMENT
1.Remove the rear door trim.

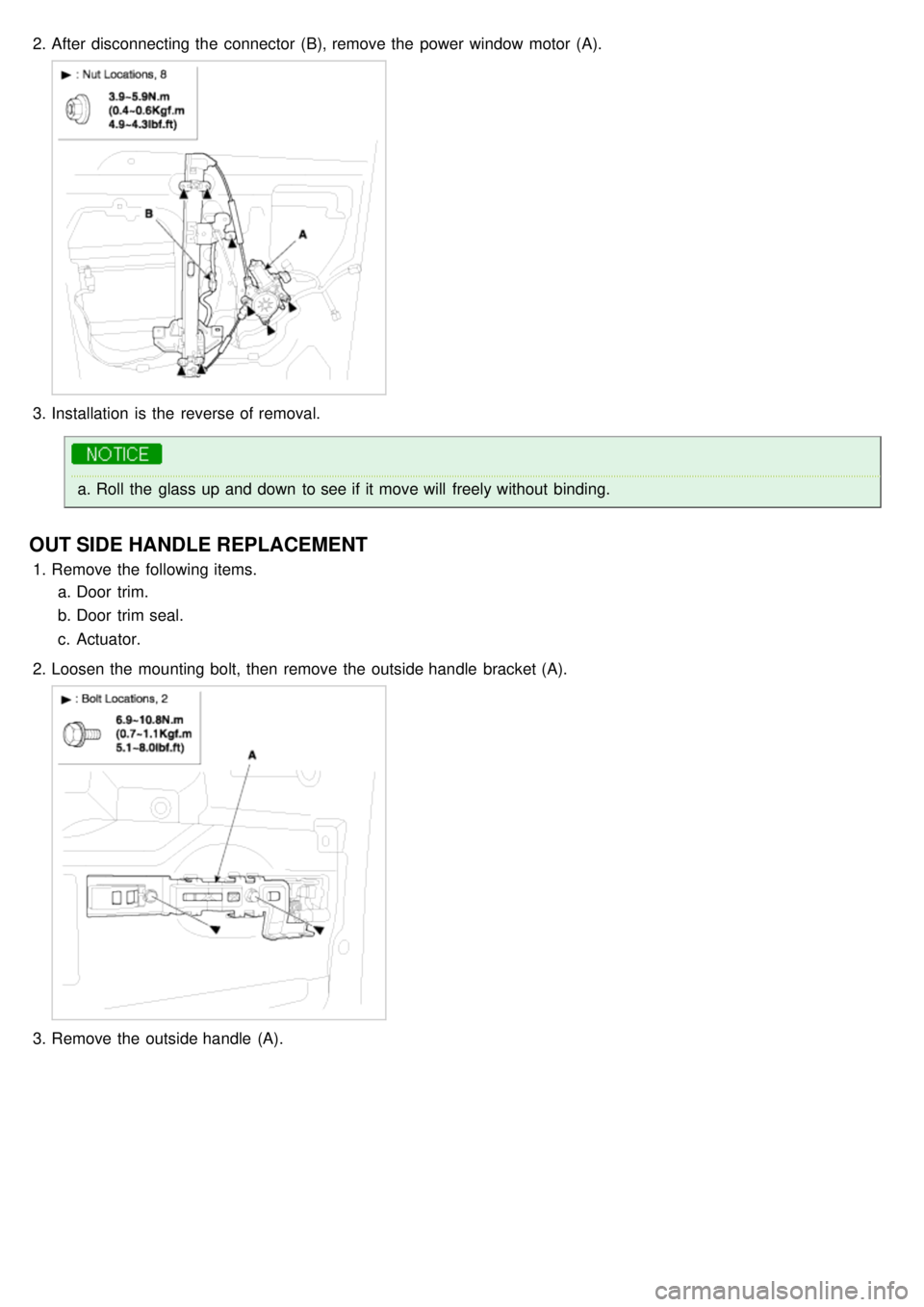

2.After disconnecting the connector (B), remove the power window motor (A).
3.Installation is the reverse of removal.
a.Roll the glass up and down to see if it move will freely without binding.
OUT SIDE HANDLE REPLACEMENT
1.Remove the following items.
a. Door trim.
b. Door trim seal.
c. Actuator.
2. Loosen the mounting bolt, then remove the outside handle bracket (A).
3.Remove the outside handle (A).

4.Installation is the reverse of removal.
a.Make sure the door locks and opens properly.

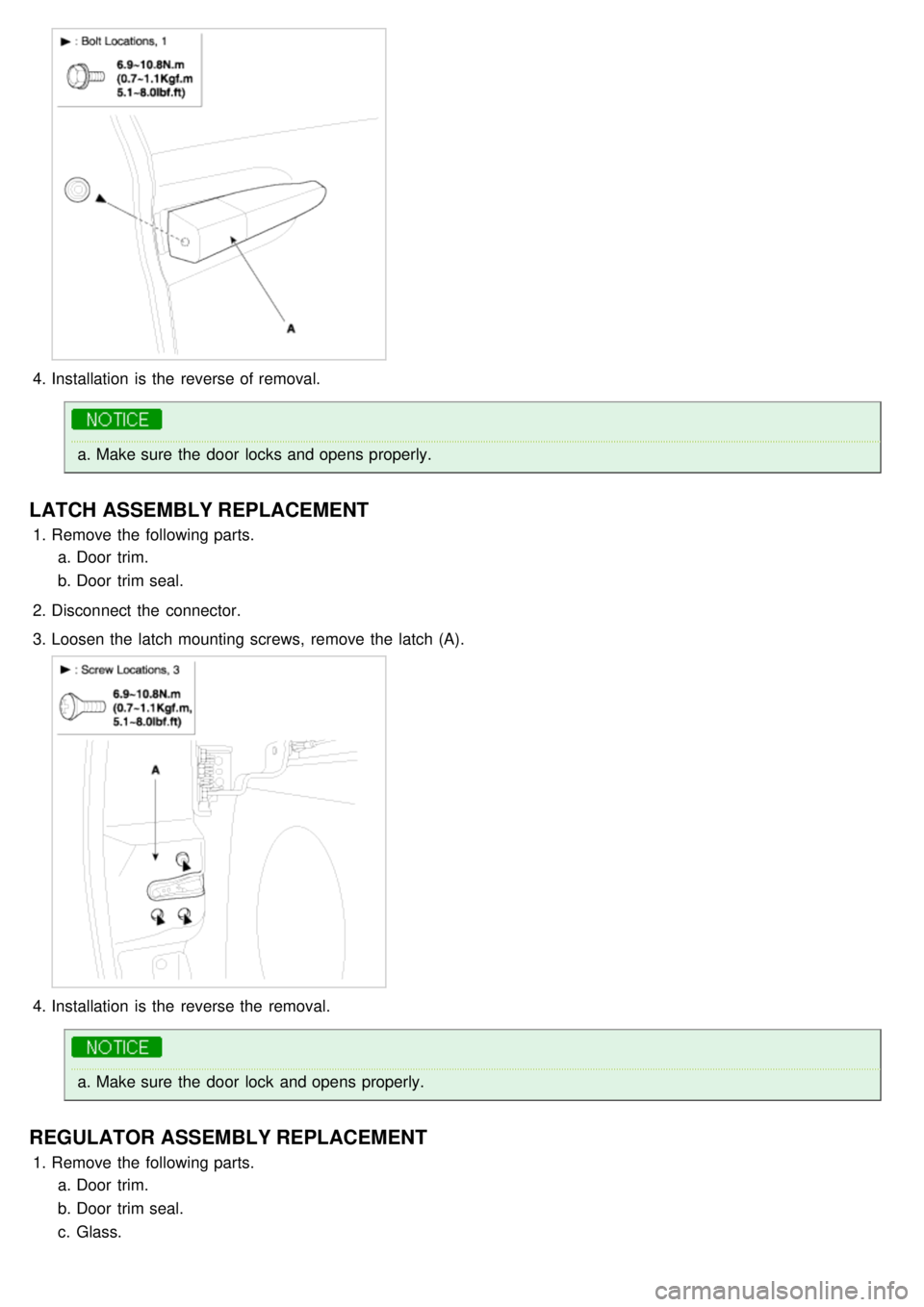

LATCH ASSEMBLY REPLACEMENT
1.Remove the following parts.
a. Door trim.
b. Door trim seal.
2. Disconnect the connector.
3. Loosen the latch mounting screws, remove the latch (A).
4.Installation is the reverse the removal.
a.Make sure the door lock and opens properly.
REGULATOR ASSEMBLY REPLACEMENT
1.Remove the following parts.
a. Door trim.
b. Door trim seal.
c. Glass.

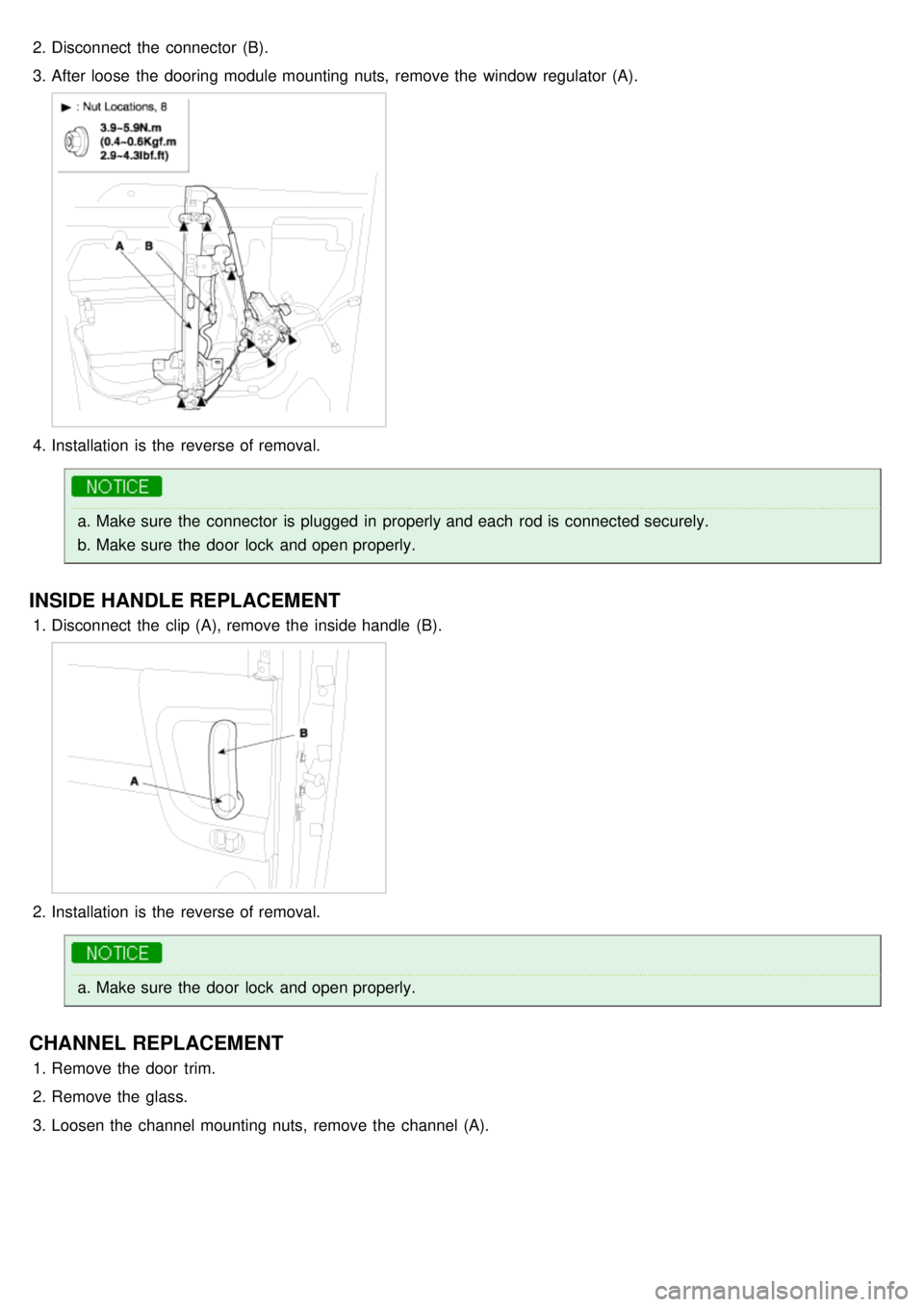

2.Disconnect the connector (B).
3. After loose the dooring module mounting nuts, remove the window regulator (A).
4.Installation is the reverse of removal.
a.Make sure the connector is plugged in properly and each rod is connected securely.
b. Make sure the door lock and open properly.
INSIDE HANDLE REPLACEMENT
1.Disconnect the clip (A), remove the inside handle (B).
2.Installation is the reverse of removal.
a.Make sure the door lock and open properly.
CHANNEL REPLACEMENT
1.Remove the door trim.
2. Remove the glass.
3. Loosen the channel mounting nuts, remove the channel (A).
