2007 KIA CARNIVAL Workshop Manual

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Remove the negative ( - ) battery terminal.
2. Remove the front door trim panel in the car. (Refer to the Body group - front door)
3. Remove the switch (A) mounting screws (3EA) after disconnecting the 16pin switch connector.
4.Remove the connector from the front door trim panel.
5. Installation is the reverse of removal.

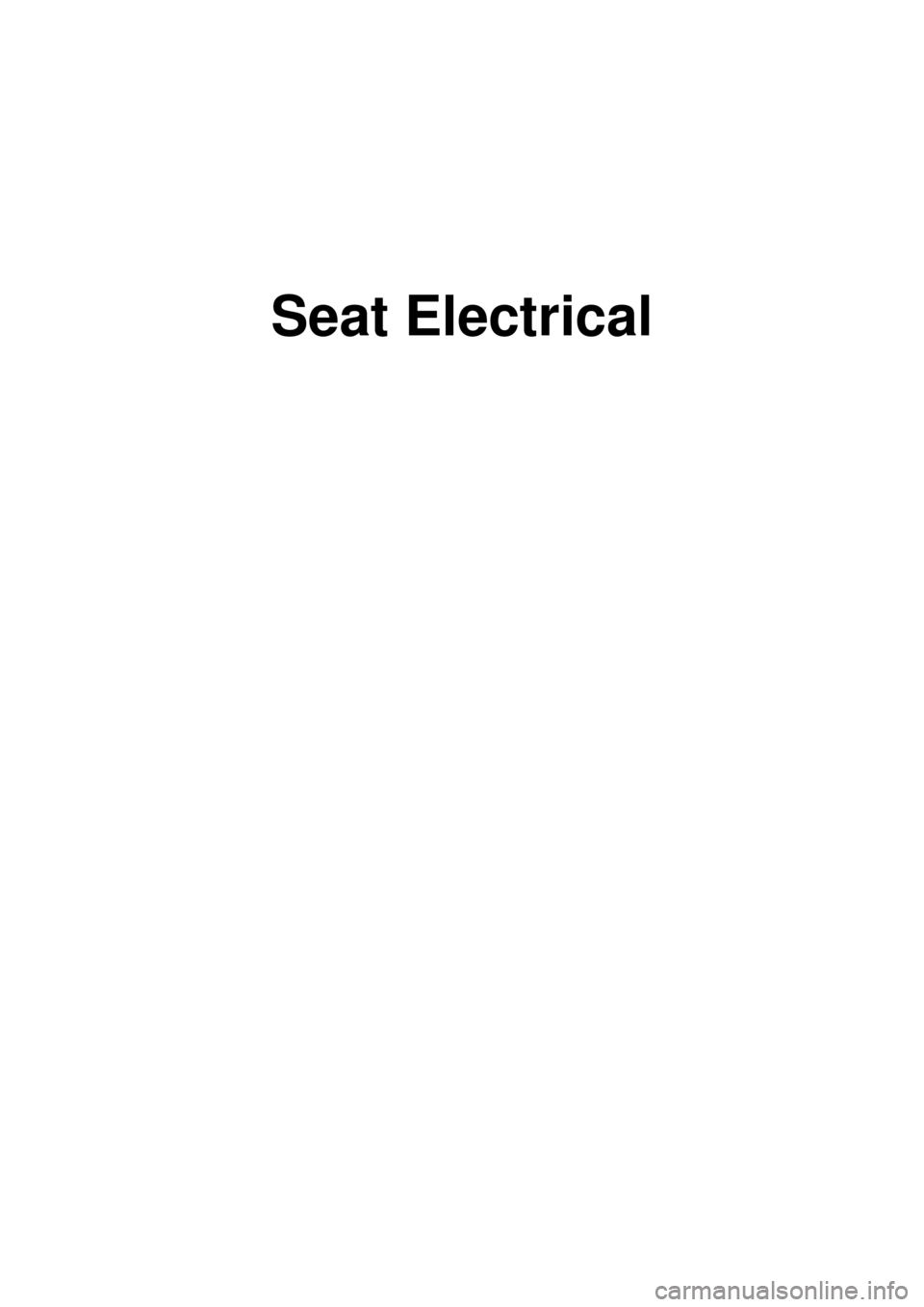

Seat Electrical

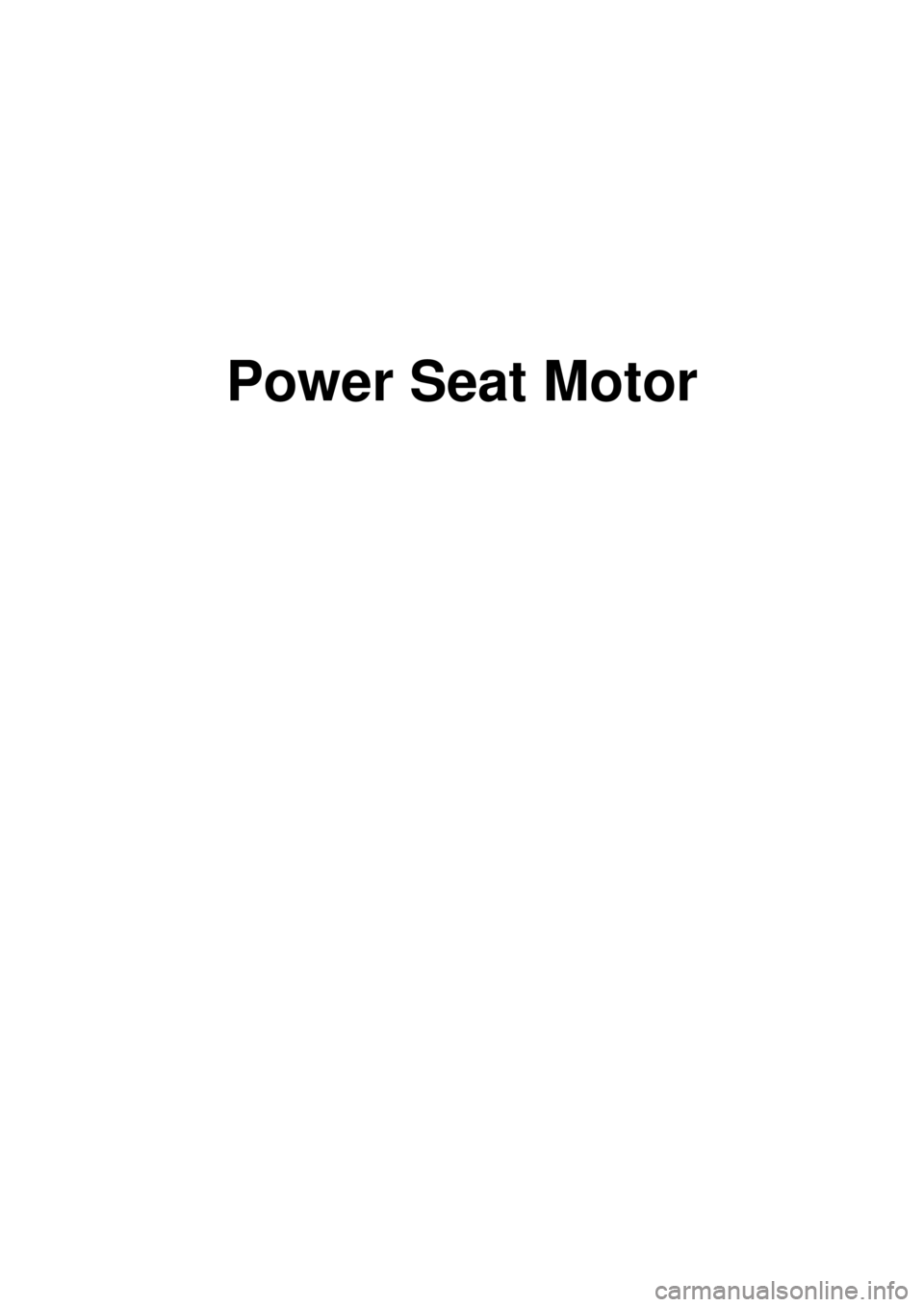

Power Seat Motor

2007 > 2.7L V6 GASOLINE >

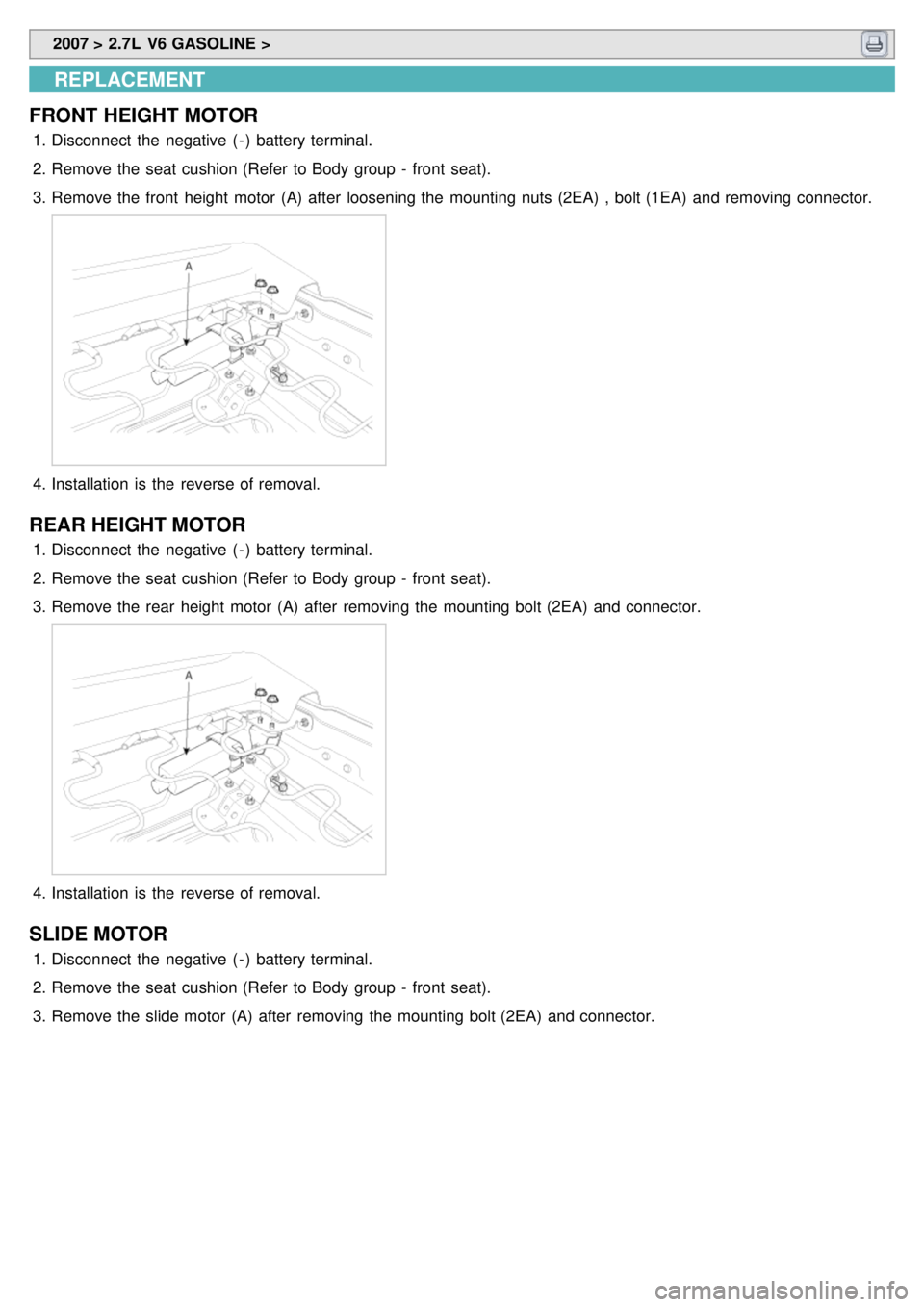

REPLACEMENT
FRONT HEIGHT MOTOR
1. Disconnect the negative ( - ) battery terminal.
2. Remove the seat cushion (Refer to Body group - front seat).
3. Remove the front height motor (A) after loosening the mounting nuts (2EA) , bolt (1EA) and removing connector.
4.Installation is the reverse of removal.
REAR HEIGHT MOTOR
1.Disconnect the negative ( - ) battery terminal.
2. Remove the seat cushion (Refer to Body group - front seat).
3. Remove the rear height motor (A) after removing the mounting bolt (2EA) and connector.
4.Installation is the reverse of removal.
SLIDE MOTOR
1.Disconnect the negative ( - ) battery terminal.
2. Remove the seat cushion (Refer to Body group - front seat).
3. Remove the slide motor (A) after removing the mounting bolt (2EA) and connector.

4.Installation is the reverse of removal.

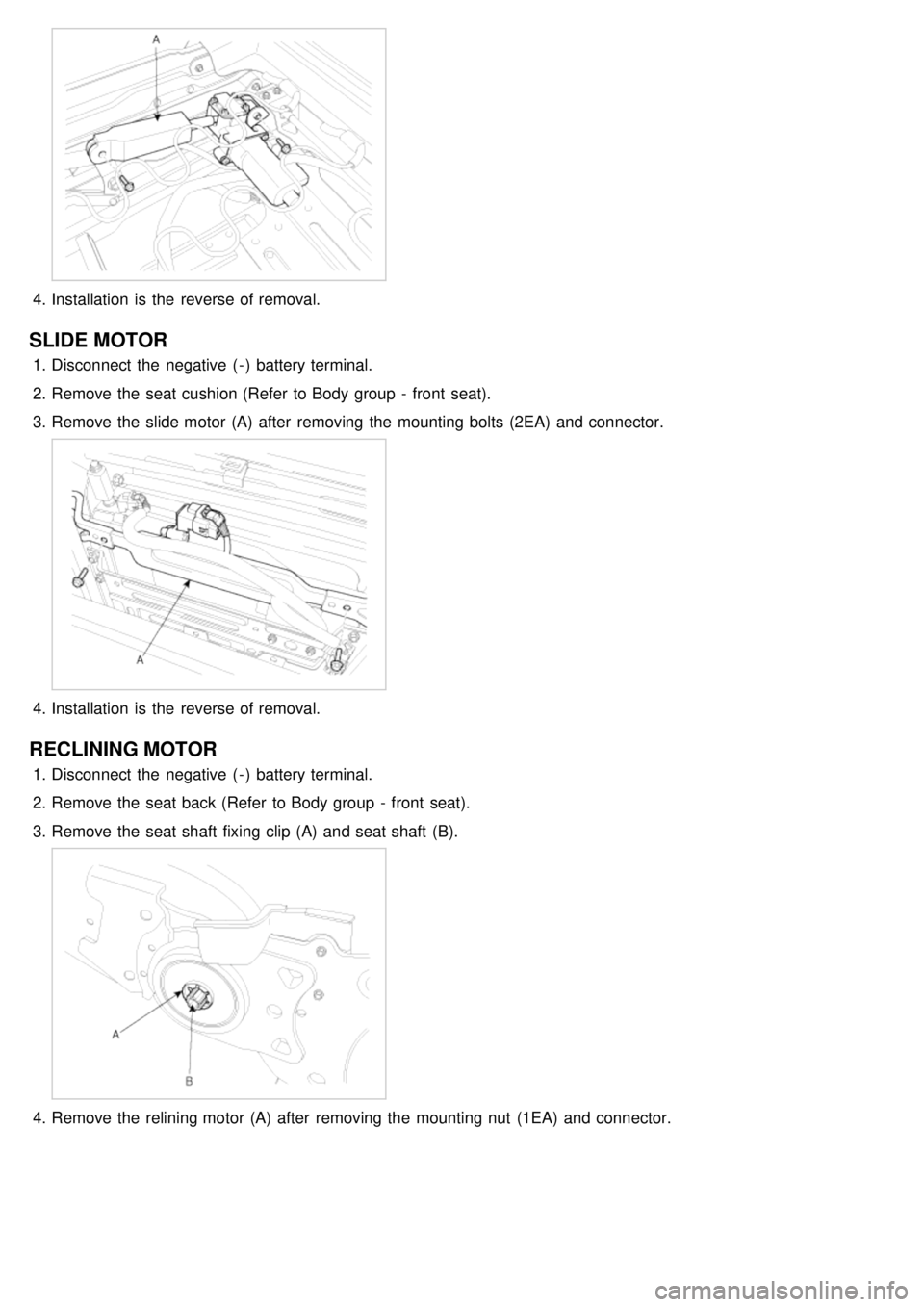

SLIDE MOTOR
1.Disconnect the negative ( - ) battery terminal.
2. Remove the seat cushion (Refer to Body group - front seat).
3. Remove the slide motor (A) after removing the mounting bolts (2EA) and connector.
4.Installation is the reverse of removal.
RECLINING MOTOR
1.Disconnect the negative ( - ) battery terminal.
2. Remove the seat back (Refer to Body group - front seat).
3. Remove the seat shaft fixing clip (A) and seat shaft (B).
4.Remove the relining motor (A) after removing the mounting nut (1EA) and connector.

5.Installation is the reverse of removal.

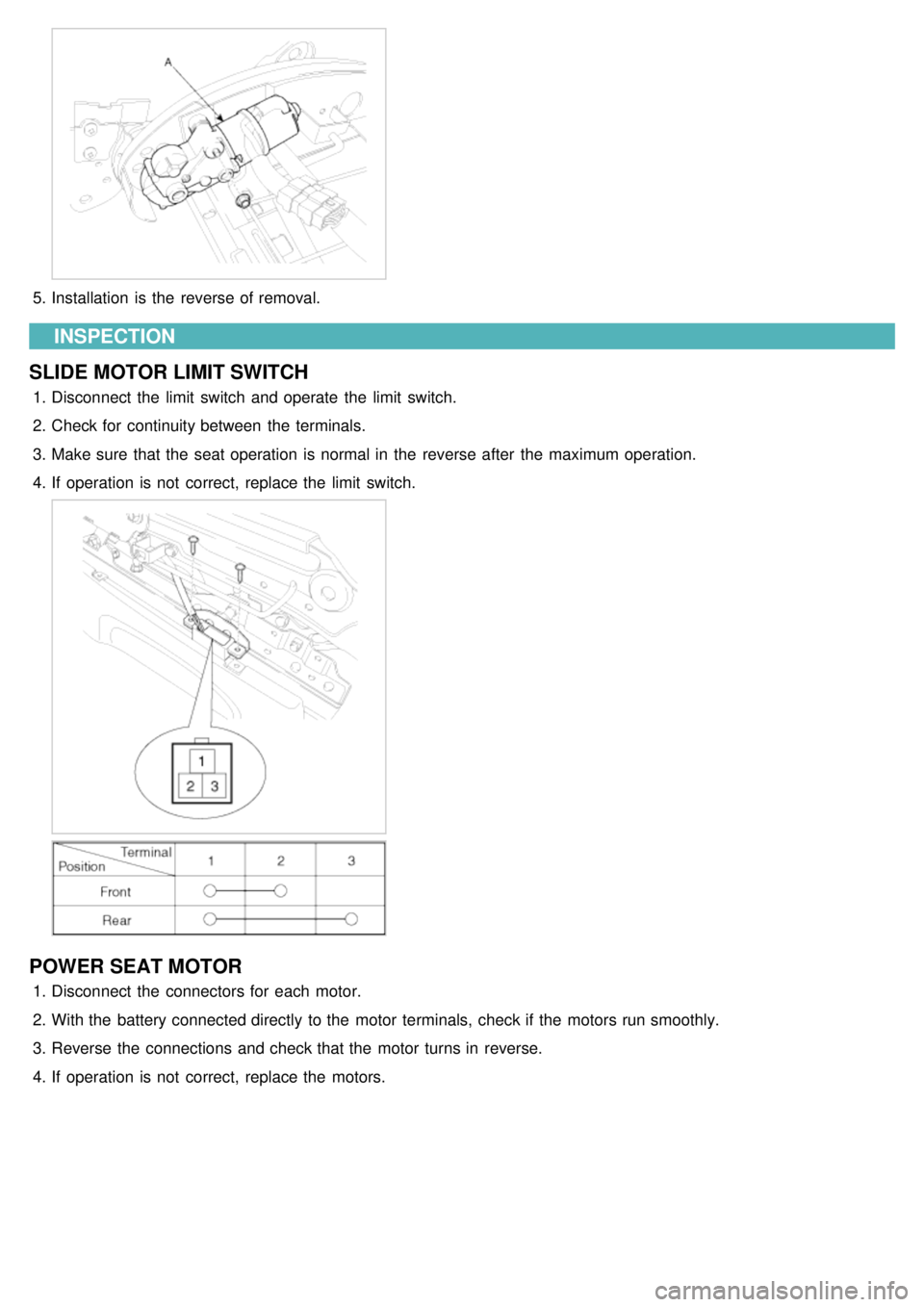

INSPECTION
SLIDE MOTOR LIMIT SWITCH
1. Disconnect the limit switch and operate the limit switch.
2. Check for continuity between the terminals.
3. Make sure that the seat operation is normal in the reverse after the maximum operation.
4. If operation is not correct, replace the limit switch.
POWER SEAT MOTOR
1.Disconnect the connectors for each motor.
2. With the battery connected directly to the motor terminals, check if the motors run smoothly.
3. Reverse the connections and check that the motor turns in reverse.
4. If operation is not correct, replace the motors.

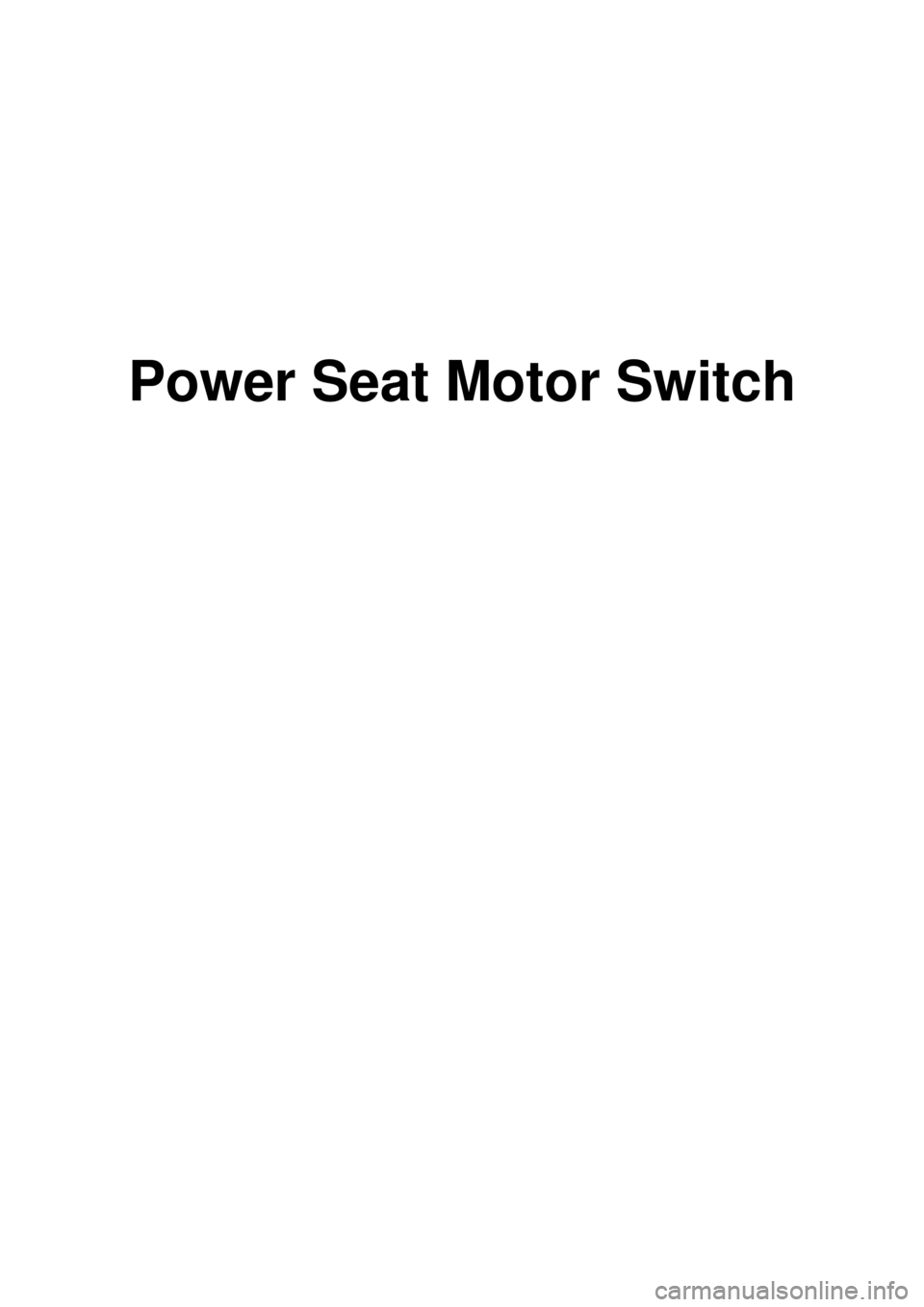

Power Seat Motor Switch

2007 > 2.7L V6 GASOLINE >

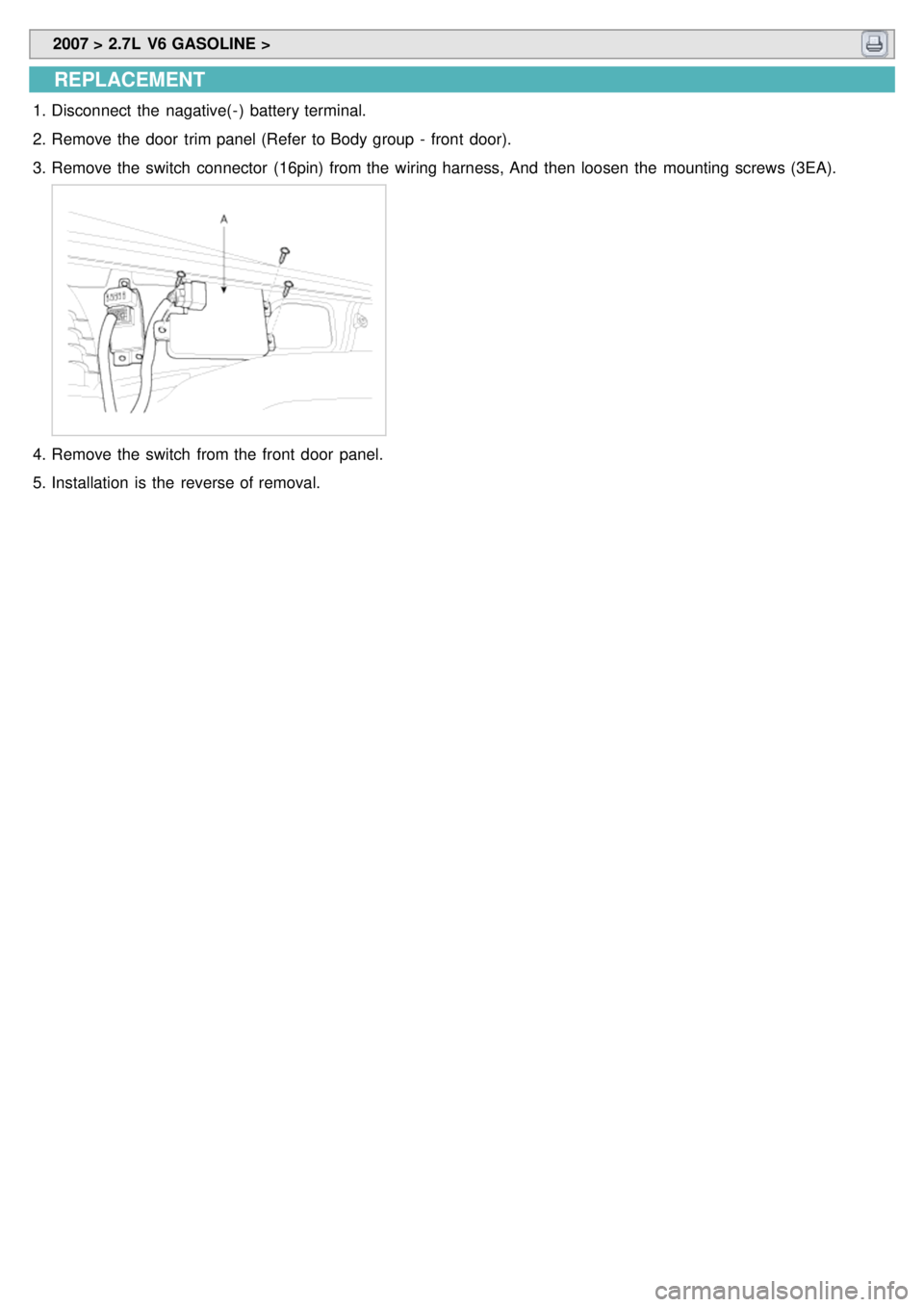

REPLACEMENT
1.Disconnect the nagative(- ) battery terminal.
2. Remove the door trim panel (Refer to Body group - front door).
3. Remove the switch connector (16pin) from the wiring harness, And then loosen the mounting screws (3EA).
4.Remove the switch from the front door panel.
5. Installation is the reverse of removal.
