2007 KIA CARNIVAL Workshop Manual

Automatic Transaxle Control
System

Input Speed Sensor

2007 > 2.7L V6 GASOLINE >
DESCRIPTION
Input shaft speed sensor
- Type: Hall sensor
- Current consumption: 22mA (MAX.)
- Sensor body and sensor connector have been unified as one.
Hall type sensor: specification
Air gap (mm) Input shaft speed sensor 1.3
Coil Resistance Input shaft speed sensor over 1MΩ
Peak- Peak Voltage High
4.8~5.2V
Low 0.8V
Wave Form With High-scan

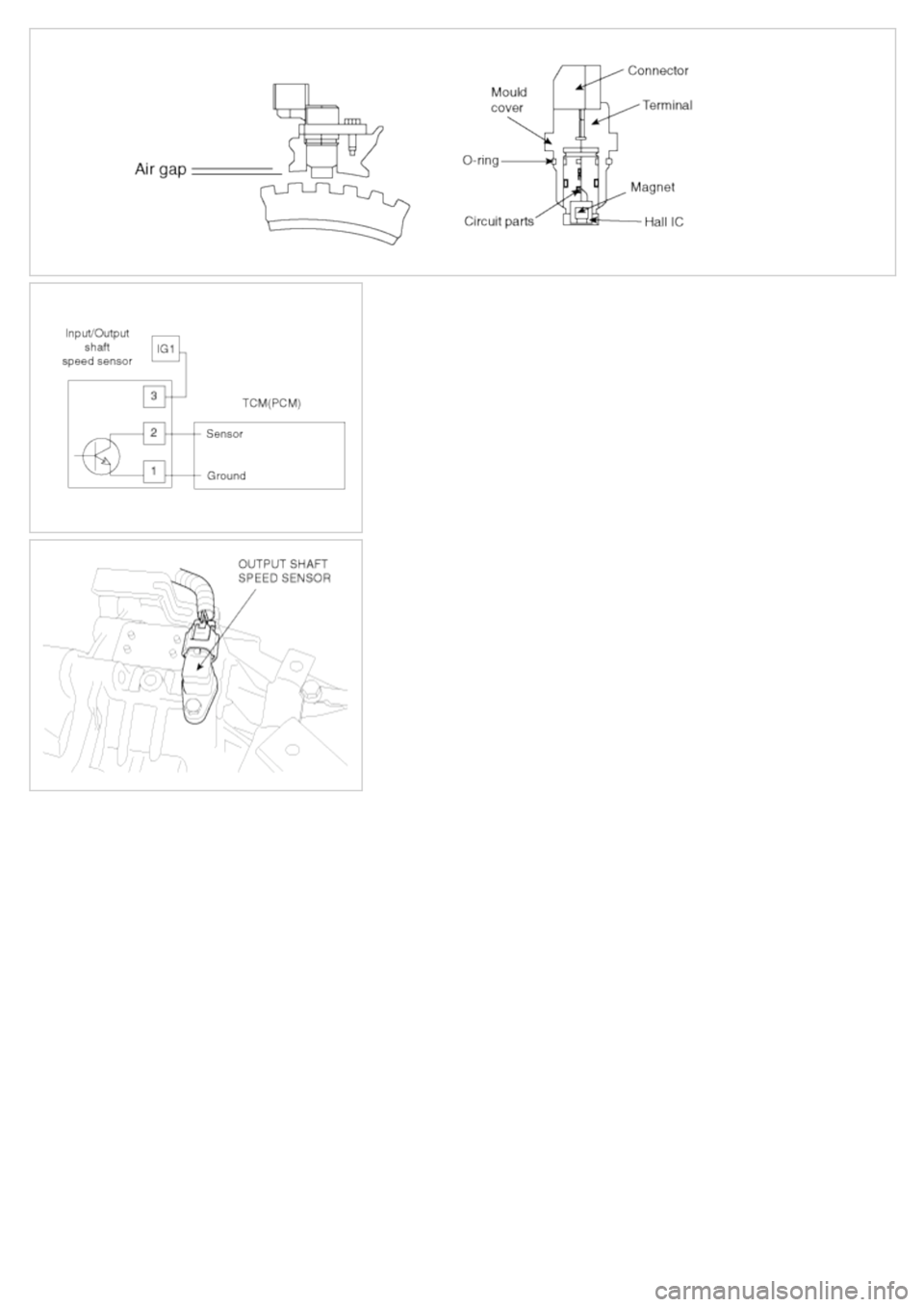

Hall Type Sensor: Structure & Interface

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Remove the battery and air cleaner (see "Transaxle range switch replacement").
2. Remove the transaxle range switch connector.
3. Remove the control cable to transaxle range switch mounting nut.
4. Remove the input shaft speed sensor(A).
(1) Disconnect the input shaft speed sensor connector.
(2) Remove the bolt(B).
(3)Inspect the input shaft speed sensor bore.
5. Apply a light coat of automatic transaxle fluid to the O - ring seal before installation.
6. Install the input shaft speed sensor.
7. Install the control cable mounting bracket.
8. Connect the input shaft speed sensor connector.
9. Install the holder of the control cable.
10. Adjust the control cable to transaxle range switch and tighten the transaxle manual lever to the control cable
mounting nut. (see "Automatic transaxle shift control installation")
11. Installation is the reverse of removal.

Output Speed Sensor

2007 > 2.7L V6 GASOLINE >
DESCRIPTION
Output shaft speed sensor
- Type: Hall sensor
- Current consumption: 22mA (MAX.)
- Sensor body and sensor connector have been unified as one.
Hall type sensor: specification
Air gap (mm) Output shaft speed sensor 0.85
Coil Resistance Output shaft speed sensor over 1MΩ
Peak- Peak Voltage High
4.8~5.2V
Low 0.8V
Wave Form With High-scan
Hall Type Sensor: Structure & Interface
