7.Check for continuity between terminals of harness side connector and antenna grid terminals (AM, FM).
8. Check the grid lines for continuity.
9. When a poor radio reception is not repaired through the above inspection methods, replace the amp.
If the radio reception is still poor, check the radio cable for short and radio head unit for failure.
ANTENNA CABLE

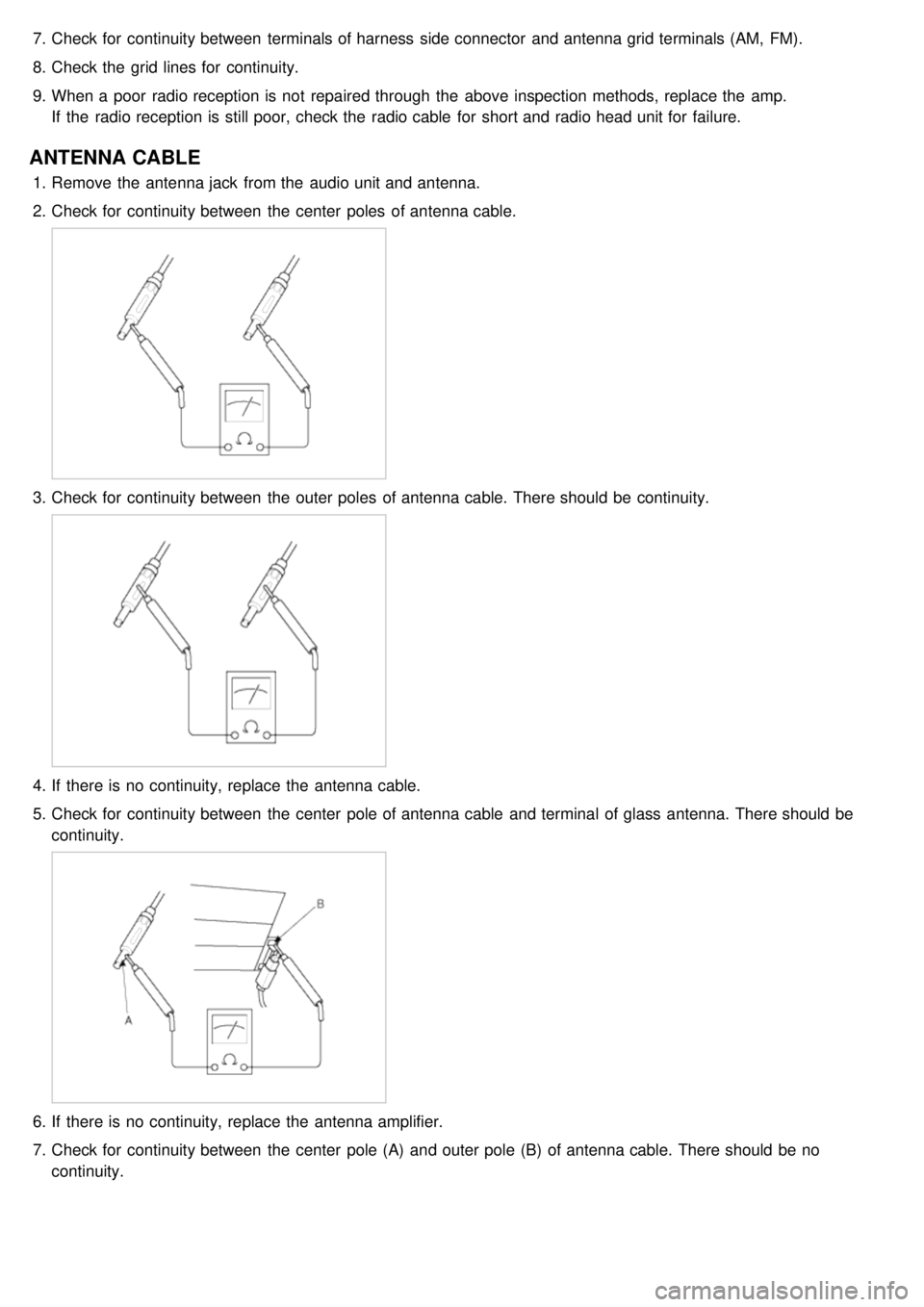

1.Remove the antenna jack from the audio unit and antenna.
2. Check for continuity between the center poles of antenna cable.
3.Check for continuity between the outer poles of antenna cable. There should be continuity.
4.If there is no continuity, replace the antenna cable.
5. Check for continuity between the center pole of antenna cable and terminal of glass antenna. There should be
continuity.
6.If there is no continuity, replace the antenna amplifier.
7. Check for continuity between the center pole (A) and outer pole (B) of antenna cable. There should be no
continuity.
Page 1186 of 1575

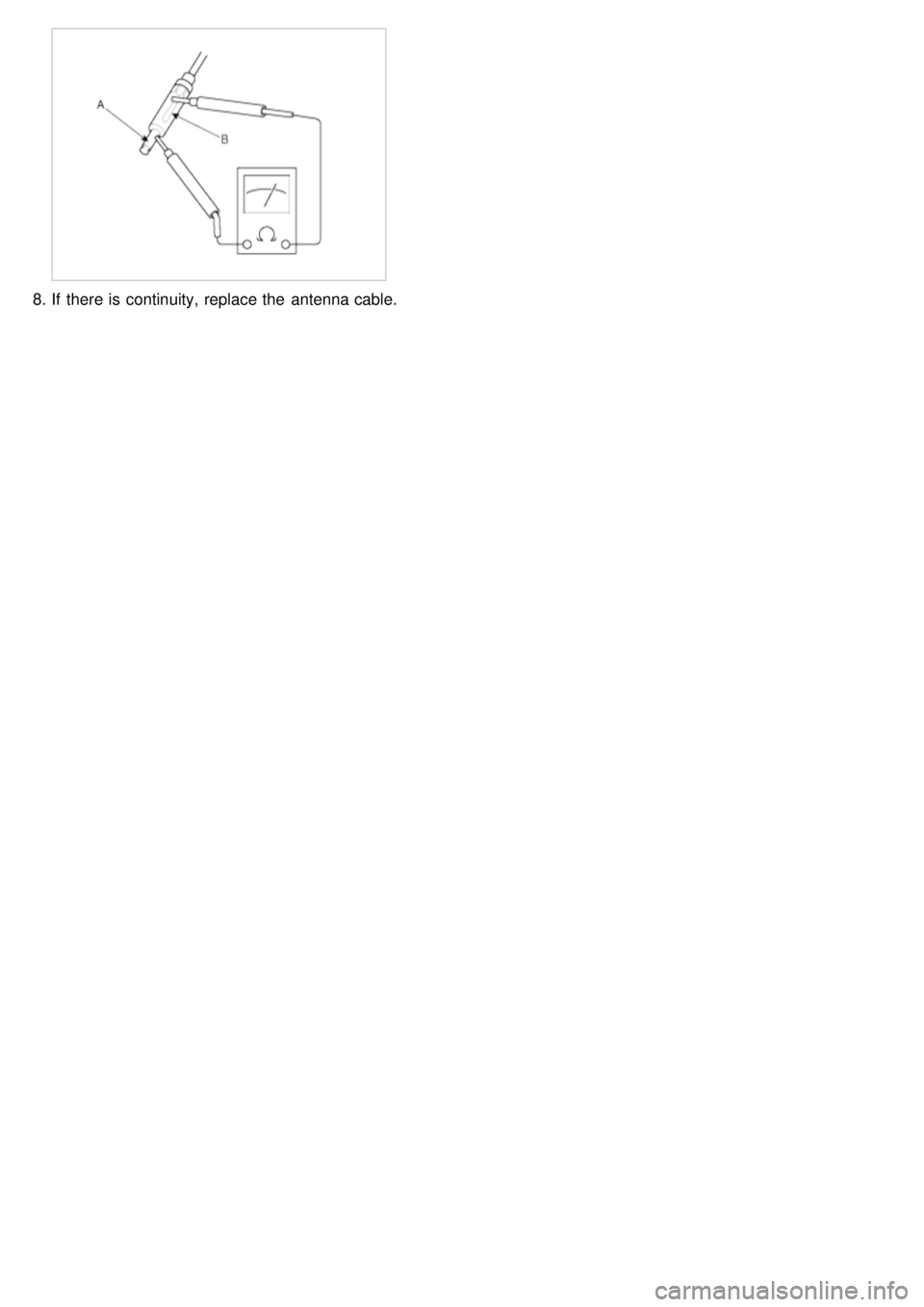

8.If there is continuity, replace the antenna cable.
Page 1187 of 1575
Page 1188 of 1575
2007 > 2.7L V6 GASOLINE >
CIRCUIT DIAGRAM
Page 1189 of 1575
2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the driver airbag module(A). (Refer to the airbag group).
3.Remove the audio remote control switch (A) after removing the steering wheel remote control switch connector and
2 screws.
4.Installation is the reverse of removal.
INSPECTION
1.Check for resistance between No.2 and No.3 terminals in each switch position.
Switch Connector terminal Resistance (±5%)
MODE 2 - 3 (Left) 2.11 kΩ
MUTE 2 - 3 (Left) 3.11 kΩ
VOLUME UP 2 - 3 (Left) 4.61 kΩ
VOLUME DOWN 2 - 3 (Left)5.81 kΩ
Page 1190 of 1575

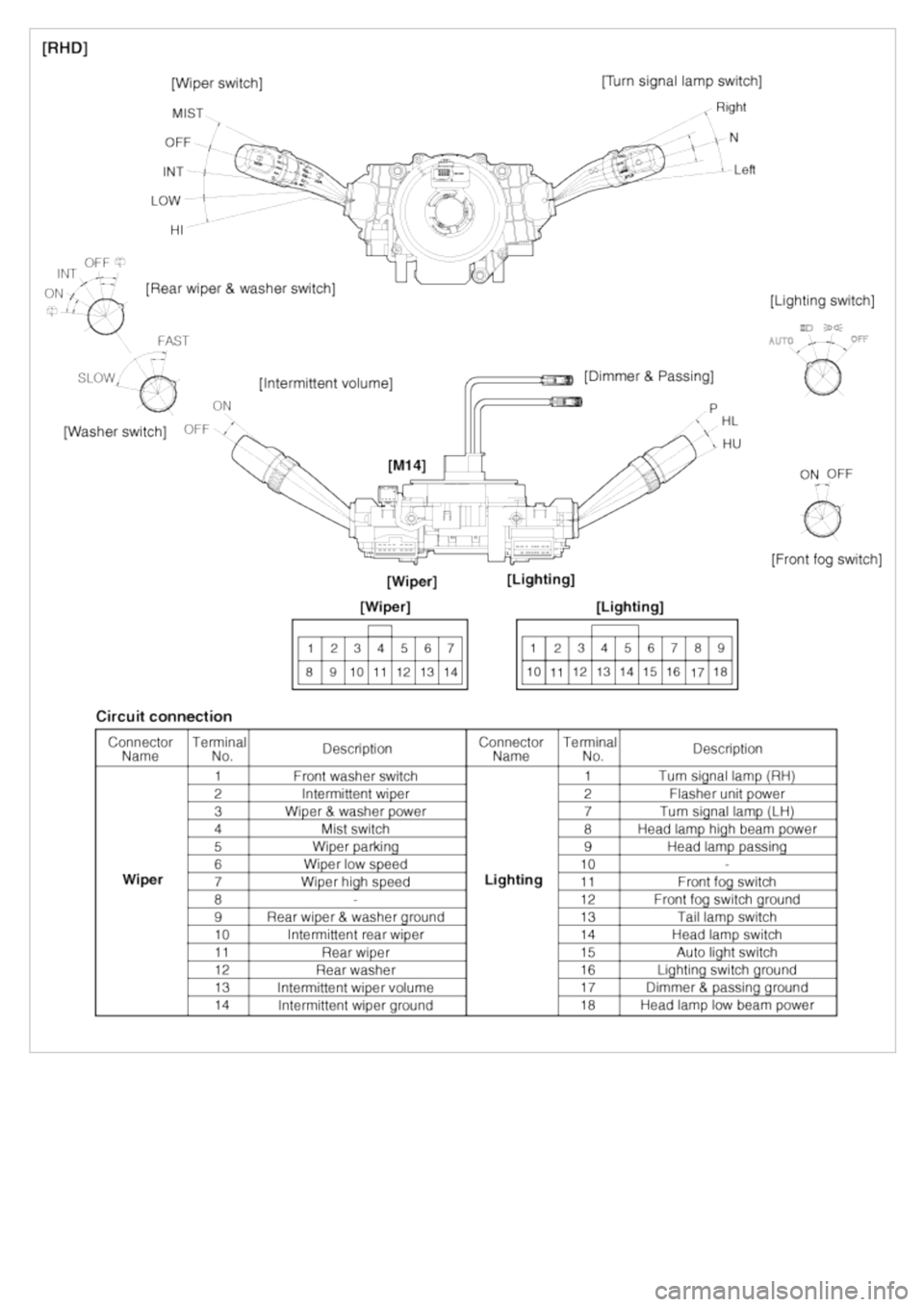

Page 1191 of 1575

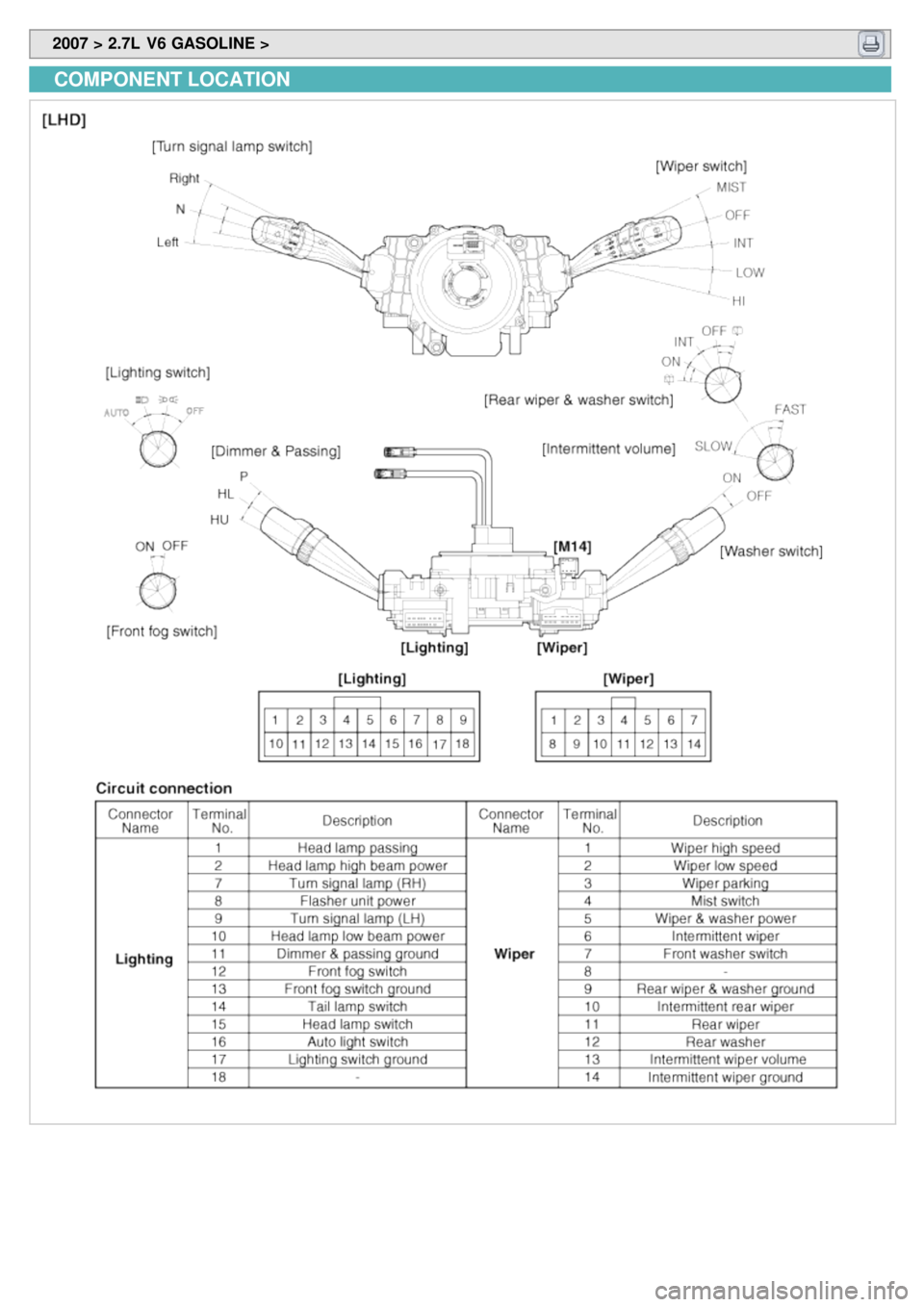

2007 > 2.7L V6 GASOLINE >
COMPONENT LOCATION
Page 1192 of 1575
