2007 KIA CARNIVAL Workshop Manual

Check the vehicle alignmnt.
● Is the alignment within specification ?
→ YES
Go to
→ NO
Adjust the alignment as necessary.
See page SS - 69 (wheel alignment).
BRAKE DRAG DIAGNOSIS Apply the brakes while driving.
● Does drift or pull occur when the brakes are applied ?
→ YES
See BR group - specification.
→ NO
If the steering wheel is in the center, the vehicle is OK.
If the steering wheel is off- center, Go to Detailed Test F.
DETAILED TEST F : STEERING WHEEL OFF- CENTER CONDITIONS DETAILS/RESULTS/ACTIONS
CHECK THE CLEAR VISION Place the vehicle on an alignment rack.
● Is the clear vision within specification ?
→ YES
Go to F2.
→ NO
Adjust the clear vision to specification.
INSPECT THE STEERING COMPONENTS
a.Raise and support the vehicle.
b. Inspect the steering components for excessive wear or damage.
See ST group - specification.
● Are the steering components excessively worn or damaged ?
→ YES
Repair or Install new components as necessary.
→ NO
If it tracks correctly, vehicle is OK.
If it tracks incorrectly, Go to Detailed Test
DETAILED TEST G : TRACKS INCORRECTLY CONDITIONS DETAILS/RESULTS/ACTIONS
CHECK THE CASTER Place the vehicle on an alignment rack.
● Is the caster within specification ?
→ YES
Go to G2.

→NO
Replace bent or damaged parts.
CHECK THE REAR SUSPENSION
a.Measure the vehicle wheel base for LH and RH.
b. Compare the measurements.
● Are the measurements the same ?
→ YES
If the ride is smooth, vehicle is OK.
If the ride is rough, Go to Detailed Test
→ NO
Inspect the rear suspension components for wear or damage.
Repair or Install new components as necessary.
DETAILED TEST H : ROUGH RIDE CONDITIONS DETAILS/RESULTS/ACTIONS
CHECK THE FRONT SHOCK ABSORBER
a.Raise support the vehicle.
b. Inspect the front shock absorber for oil leaks or damage.
● Are the tires excessively worn or damaged ?
→ YES
Install new front shock absorbers.
→ NO
Go to
CHECK THE REAR SHOCK ABSORBERS Inspect the rear shock absorbers for oil leaks or damage.
● Are the rear shock absorbers leaking ?
→ YES
Install new rear shock absorbers.
→ NO
The vehicle is OK. Go to TROUBLESHOOTING.
DETAILED TEST I : EXCESSIVE NOISE CONDITIONS DETAILS/RESULTS/ACTIONS
INSPECT THE SUSPENSION
a.Raise and support the vehicle.
b. Inspect the shock absorber mounting bolts.
● Are the mounting bolts loose or broken ?
→ YES
Tighten or Install new shock absorber mounting bolts.
→ NO
Go to
INSPECT THE SPRING AND TORSION BARS Inspect the springs and stabilizer bars for damage.
● Are the spring or stabilizer bars damaged ?
→ YES
Install new spring and/or stabilizer bars.

Install new spring and/or stabilizer bars.
→ NO
Go toI3.
INSPECT THE FRONT SUSPENSION Inspect the front suspension components for excessive wear or damage.
● Are the front suspension components worn or damaged ?
→ YES
Install new front suspension components.
→ NO
The vehicle is OK. Go to TROUBLESHOOTING.
DETAILED TEST J : INCORRECT TIRE WEAR CONDITIONS DETAILS/RESULTS/ACTIONS
INSPECT THE TIRES
a.Raise and support the vehicle.
b. Inspect the tires for uneven wear on the inner or outer shoulder.
● Is there uneven tire wear ?
→ YES
Align the vehicle. Install new tires if badly worn.
→ NO
Go to
UNEVEN TIRE WEAR Inspect the tires for a feathering pattern.
● Do the tires have a feathering pattern ?
→ YES
Align the vehicle. Install new tires if badly worn.
→ NO
Go to J3.
CHECK FOR CUPPED TIRE Inspect the tires for cupping or dishing.
● Are the tires cupped or dished ?
→ YES
Balance and Rotate the tires.
→ NO
The vehicle is OK. Go to TROUBLESHOOTING.
DETAILED TEST K : VIBRATION CONDITIONS DETAILS/RESULTS/ACTIONS
ROAD TEST Accelerate the vehicle to the speed at which the customer indicated the
vibration occured.

● Is the vibration present ?
→ YES
Go to K2.
→ NO
The vehicle is OK. Go to TROUBLESHOOTING.
INSPECT THE TIRES
a.Raise and support the vehicle with a frame contact hoist.
b. Inspect the tires for extreme wear or damage, cupping, or flat spots.
● Are the tires OK ?
→ YES
Go to
→ NO
Check the suspension components for misalignment, abnormal wear, or
damage that may have contributed to the tire wear.
Correct the suspension concerns and Install new tires.
INSPECT THE WHEEL BEARINGS Spin the tires by hand to check for wheel bearing rougness.
● Is the front wheel bearing OK ?
→ YES
Go to K4.
→ NO
Install new front wheel bearings as necessary.
See Ds group - front axle.
TIRE/WHEEL BALANCE Check the tire/wheel balance.
● Are the tires balanced ?
→ YES
Go to K5.
→ NO
Balance the tires and wheels as necessary.
MEASURE THE RUNOUTS For each wheel position measure, locate and mark the following items.
- High point of the tire/wheel assembly total radial runout
- High point of the wheel radial runout
- High point of the wheel lateral runout
● Are the runouts as specified ?
→ YES
Go to K7.
→ NO
Go to K6.
SUBSTITUTE THE WHEELS AND TIRE

a.Substitute a known good set of wheels and tires.
b. Perform a road test.
c. If the vehicle still exhibits a shake or vibration, note the vehicle speed
and/or engine rpm which it occurs.
● Is the vibration felt ?
→ YES
Engine/transmission imbalance.
See the specification of TR group, EM group, FL group and EC group.
→ NO
Install the original tire/wheel assemblies one by one, Road testing at
each step until the damaged tire(s)/wheel(s) as necessary. Test the
system for normal operation.
Wheel /tire noise, vibration and harshness concerns are directly related to vehicle speed and are not generally affected
by acceleration, coasting or decelerating. Also, out - of- balance wheel and tires can vibrate at more than one speed. A
vibration that is affected by the engine rpm, or is eliminated by placing the transmission in Neutral is not related to the
tire and wheel. As a general rule, tire and wheel vibrations felt in the steering wheel are related to the front tire and
wheel assemblies. Vibrations felt in the seat or floor are related to the rear tire and wheel assemblies. This can initially
isolate a concern to the front or rear.
Careful attention must be paid to the tire and wheels. There are several symptoms that can be caused by damaged or
worn tire and wheels. Perform a careful visual inspection of the tires and wheel assemblies. Spin the tires slowly and
watch for signs of lateral or radial runout. Refer to the tire wear chart to determine the tire wear conditions and actions WHEEL AND TIRE DIAGNOSIS
Rapid wear at the center Rapid wear at both shoulders Wear at one shoulder
a.Center - tread down to fabric due to
excessive over inflated tires
b. Lack of rotation
c. Excessive toe on drive wheels
d. Heavy acceleration on drive a.
Under- inflated tires
b. Worn suspension components
c. Excessive cornering speeds
d. Lack of rotation a.
Toe adjustment out of specification
b. Camber out of specification
c. Damaged strut
d. Damaged lower arm
Partial wear Feathered edge Wear pattern
a.Caused by irregular burrs on
brake drums a.
Toe adjustment out of
specification
b. Damaged or worn tie rods
c. Damaged knuckle a.
Excessive toe on non- drive
wheels
b. Lack of rotation

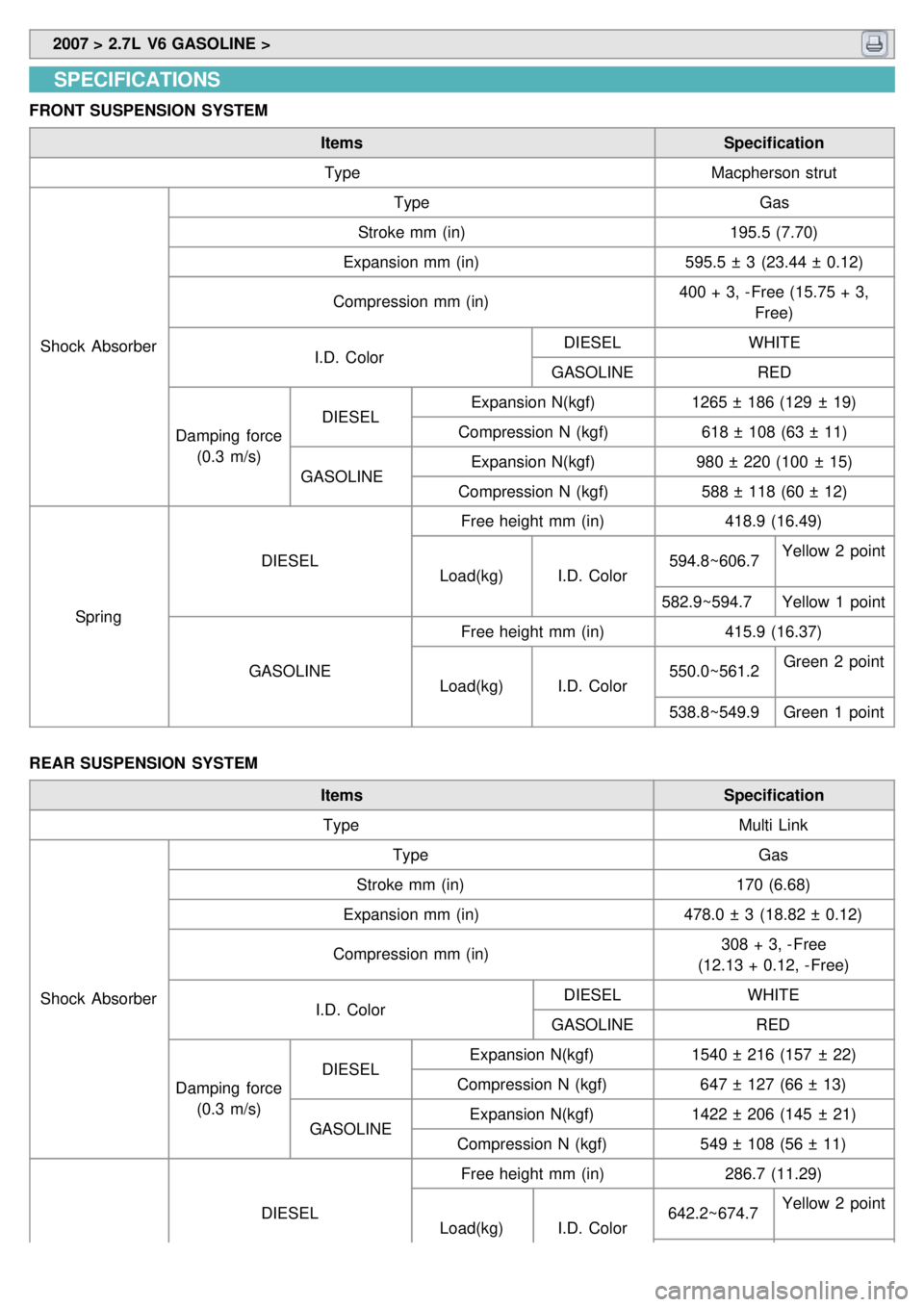

2007 > 2.7L V6 GASOLINE >
SPECIFICATIONS
FRONT SUSPENSION SYSTEM
Items Specification
Type Macpherson strut
Shock Absorber Type
Gas
Stroke mm (in) 195.5 (7.70)
Expansion mm (in) 595.5 ± 3 (23.44 ± 0.12)
Compression mm (in) 400 + 3, - Free (15.75 + 3,
Free)
I.D. Color DIESEL
WHITE
GASOLINE RED
Damping force (0.3 m/s) DIESEL
Expansion N(kgf)
1265 ± 186 (129 ± 19)
Compression N (kgf) 618 ± 108 (63 ± 11)
GASOLINEy Expansion N(kgf)
980 ± 220 (100 ± 15)
Compression N (kgf) 588 ± 118 (60 ± 12)
Spring DIESEL
Free height mm (in)
418.9 (16.49)
Load(kg) I.D. Color594.8~606.7
Yellow 2 point
y
582.9~594.7 yYellow 1 point
GASOLINE Free height mm (in)
415.9 (16.37)
Load(kg) I.D. Color550.0~561.2
Green 2 point
y
538.8~549.9 Green 1 point
REAR SUSPENSION SYSTEM Items Specification
Type Multi Link
Shock Absorber Type
Gas
Stroke mm (in) 170 (6.68)
Expansion mm (in) 478.0 ± 3 (18.82 ± 0.12)
Compression mm (in) 308 + 3, - Free
(12.13 + 0.12, - Free)
I.D. Color DIESEL
WHITE
GASOLINE RED
Damping force (0.3 m/s) DIESEL
Expansion N(kgf)
1540 ± 216 (157 ± 22)
Compression N (kgf) 647 ± 127 (66 ± 13)
GASOLINE Expansion N(kgf)
1422 ± 206 (145 ± 21)
Compression N (kgf) 549 ± 108 (56 ± 11)
DIESEL Free height mm (in)
286.7 (11.29)
Load(kg) I.D. Color642.2~674.7
Yellow 2 point
y

Spring610.0~642.2
Yellow 1 point
GASOLINE Free height mm (in)
291.1(11.46)
Load(kg) I.D. Color623.6~653.0
White 2 point
y
594.2~623.6 White 1 point
WHEELS AND TIRES Items Specification
Tire Size 225/70 R16
235/60 R17
Wheel Size Steel
6.5J×16
Aluminium 6.5J×16
6.5J×17
Tire Pressure KPa (kg/cm², psi) y
Front Rear
225/70 R16 2.4(35)2.4(35)
235/60 R17 2.4(35)2.4(35)
WHEEL ALIGNMENT Items FrontRear
Camber 0° ± 30´- 6´ ± 30´
Caster to Ground
3°46´ ± 30´ -
to Body 4°40´ -
Toe- in mm(in) 0 ± 2(0 ± 0.0787)2.6 ± 2(0.1024 ± 0.0787)
King pin angle 12°27´±30´-
Tread mm(in) 1685(66.34)1685(66.34)
TIGHTENING TORQUE
FRONT SUSPENSION
Items Nmkgf.m lb- ft
Front strut assembly mounting nut(to body) 45 ~ 604.5 ~ 6.032.5 ~ 43.4
Front strut assembly self - locking nut 60 ~ 706 ~ 743.4 ~ 50.6
Front strut assembly mounting bolt(to knuckle) 100 ~ 12010 ~ 1272.3 ~ 86.8
Front lower arm ball joint mounting bolt(to knuckle) 90 ~ 1209 ~ 1265.1 ~ 86.8
Front lower arm bushing(A) mounting bolt(to subframe) 160 ~ 18016 ~ 18115.7 ~ 130.2
Front lower arm bushing(G) mounting bolt(to subframe) 160 ~ 18016 ~ 18115.7 ~ 130.2
Front stabilizer link self - locking nut 100 ~ 12010 ~ 1272.3 ~ 86.8
Front stabilizer bar bracket mounting bolt(to Subframe) 39 ~ 603.9 ~ 6.028.2 ~ 43.4
Wheel nut 90 ~ 1109 ~ 1165.1 ~ 79.5
REAR SUSPENSION Items Nmkgf.m lb- ft

Rear shock absorber bracket mounting bolt(to body)80 ~ 1108 ~ 1157.9 ~ 79.5
Rear shock absorber bracket mounting nut(to body) 90 ~ 1209~ 1265.1 ~ 86.8
Rear shock absorber nut (to rear knuckle) 140 ~ 16014 ~ 16101.2 ~ 115.7
Rear upper arm ball joint nut (to rear knuckle) 90 ~ 1109 ~ 1165.1 ~ 79.5
Rear upper arm self - locking nut (to cross member) 160 ~ 18016 ~ 18115.7 ~ 130.2
Rear lower arm mounting bolt (to rear knuckle) 160 ~ 18016 ~ 18115.7 ~ 130.2
Rear lower arm mounting nut (to cross member) 200 ~ 27020 ~ 27144.7 ~ 195.3
Rear assist arm mounting bolt (to rear knuckle) 90 ~ 1109 ~ 1165.1 ~ 79.5
Rear assist arm mounting nut (to cross member) 90 ~ 1209 ~ 1265.1 ~ 86.8
Trailing arm bracket mounting nut (to body) 80 ~ 1108 ~ 1157.9 ~ 79.5
Trailing arm self - locking nut (to rear knuckle) 80 ~ 1008 ~ 1057.9 ~ 72.3
Trailing arm mounting bolt(to bracket) 160~ 18016 ~ 18115.7 ~ 130.2
Rear stabilizer bar bracket mounting bolt(to cross member) 39 ~ 603.9 ~ 6.028.2 ~ 43.4
Rear stabilizer link self - locking nut(to trailing arm) 50 ~ 655.0 ~ 6.536.2 ~ 47.0
Wheel nut 90 ~ 1109 ~ 1165.1 ~ 79.5
Rear cross member to body 160 ~ 18016 ~ 18115.7~130.2
Replace the self - locking nuts with new ones after removal.
LUBRICANTS
Items The Recommended Quantity
Front lower arm ball joint Boot : CGMS03 (CMS - H006)
Ball seat : CGMS02 (CMS - H006)
As required
Rear upper arm ball joint
Boot : CGMS03 (CMS - H006)
Ball seat : CGMS01 (CMS - H006)
Rear assist arm ball joint
Stabilizer link ball joint(Front Rear)
