SEAT BACK FRAME REPLACEMENT
1.Remove the following items.
a. Recliner cover.
b. Seat back panel.
c. Headrest guide.
d. Seat back cover.
2. Remove the pad (A) from frame (B).
a.Remove the side air bag for replacing side air bag installation seat.
b. Be fore service, be fully aware of precautions and service procedure relevant to air bag (See page RT -
Airbag).
3.Installation is the reverse of removal.
SEAT TRACK REPLACEMENT
1.Remove the recliner cover.
2. Remove the seat cushion cover.
3. Remove the seat track (A).
Page 1122 of 1575
4.Installation is the reverse of removal.

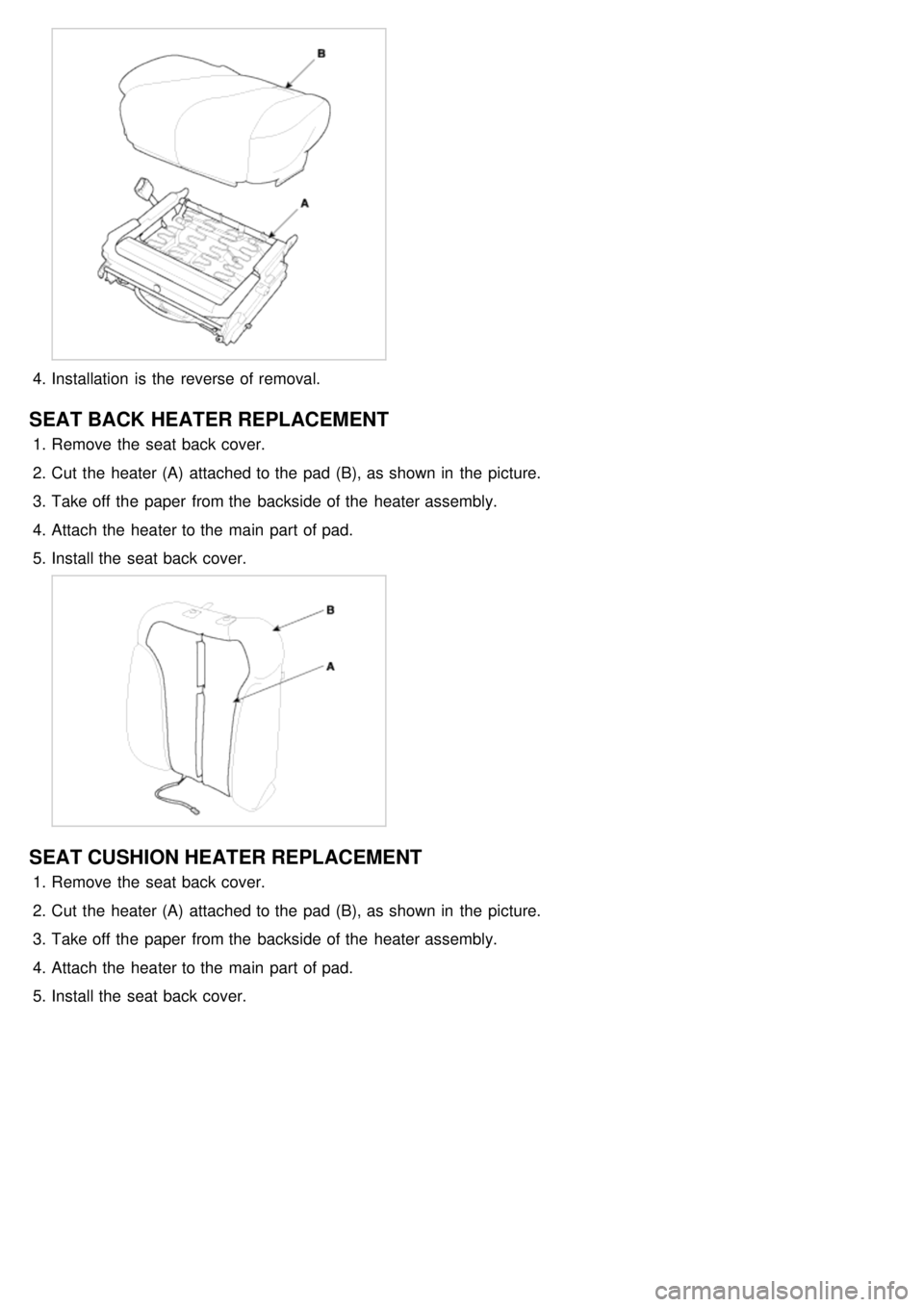

SEAT BACK HEATER REPLACEMENT
1.Remove the seat back cover.
2. Cut the heater (A) attached to the pad (B), as shown in the picture.
3. Take off the paper from the backside of the heater assembly.
4. Attach the heater to the main part of pad.
5. Install the seat back cover.
SEAT CUSHION HEATER REPLACEMENT
1.Remove the seat back cover.
2. Cut the heater (A) attached to the pad (B), as shown in the picture.
3. Take off the paper from the backside of the heater assembly.
4. Attach the heater to the main part of pad.
5. Install the seat back cover.
Page 1123 of 1575
Page 1124 of 1575
2007 > 2.7L V6 GASOLINE >
COMPONENTS

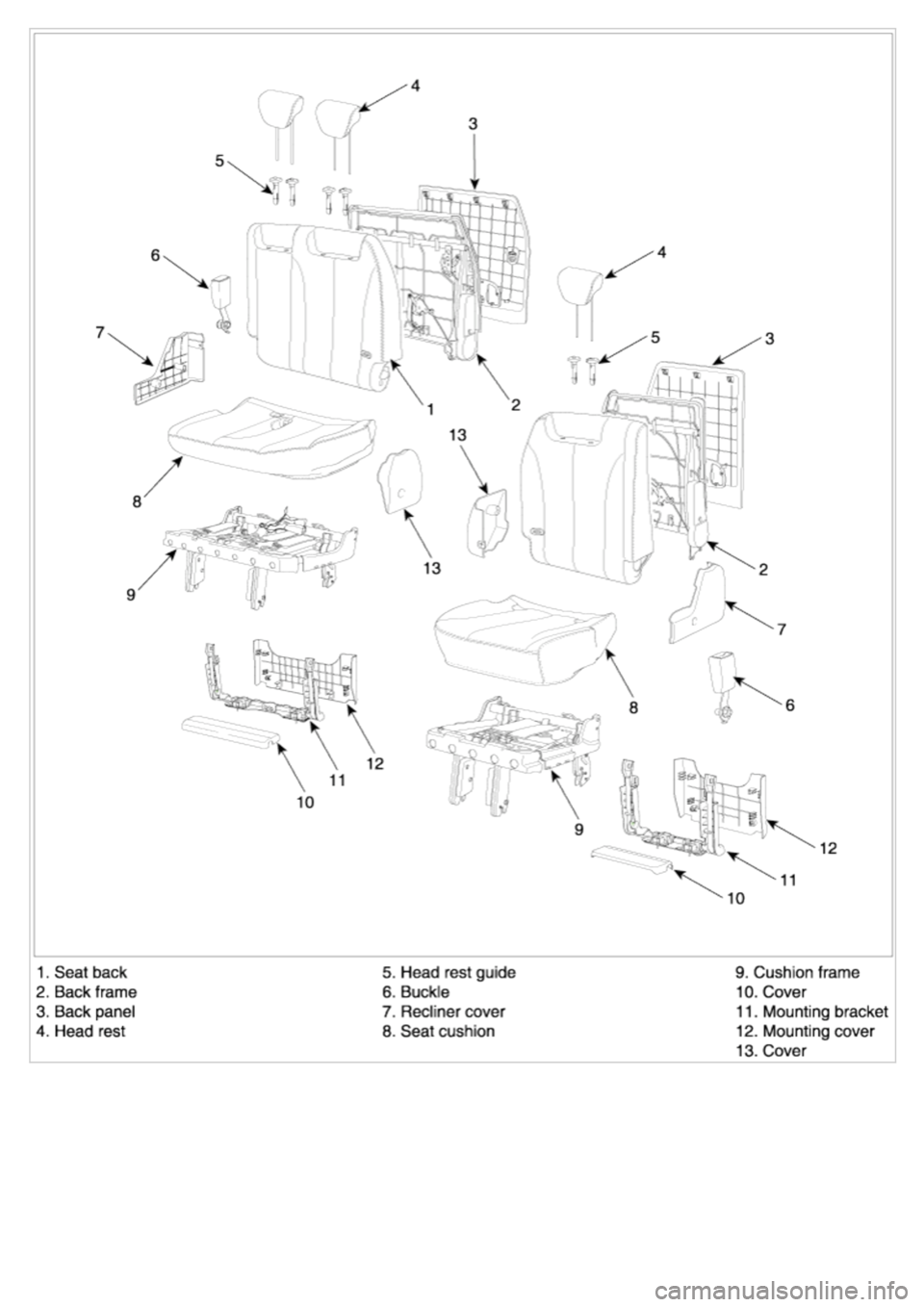

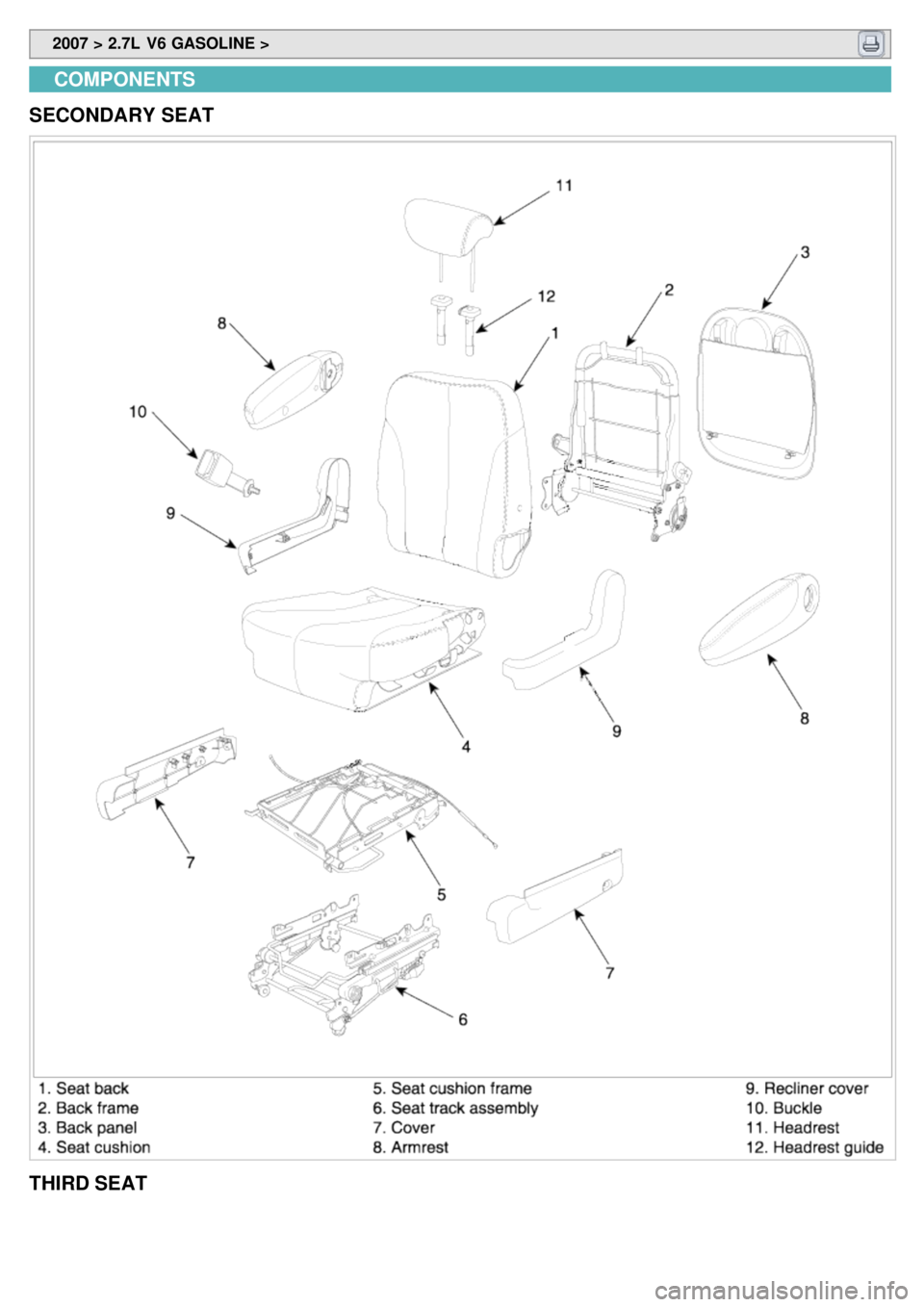

SECONDARY SEAT
THIRD SEAT
Page 1125 of 1575
Page 1126 of 1575
2007 > 2.7L V6 GASOLINE >
REPLACEMENT
SECONDARY SEAT

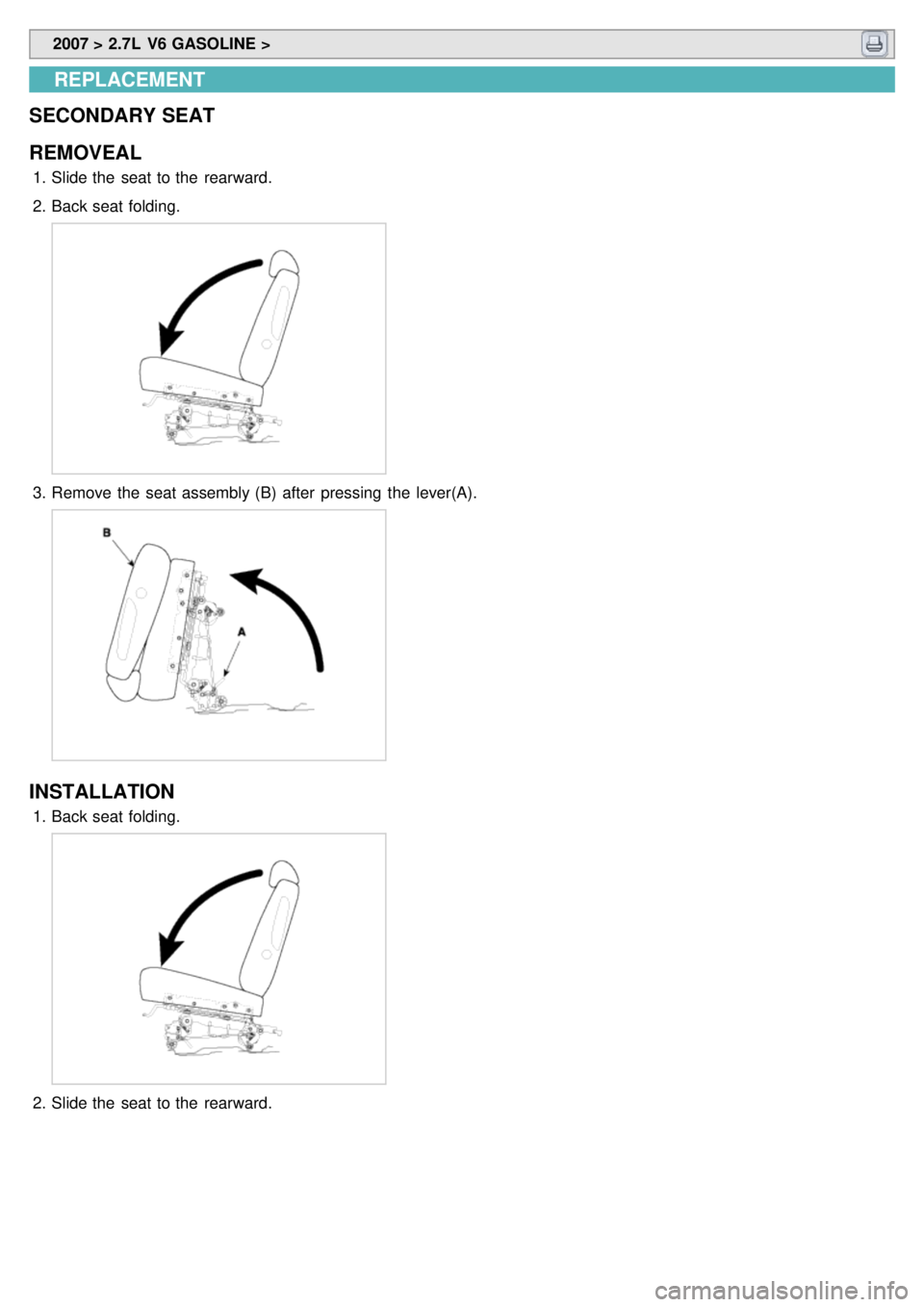

REMOVEAL
1. Slide the seat to the rearward.
2. Back seat folding.
3.Remove the seat assembly (B) after pressing the lever(A).
INSTALLATION
1.Back seat folding.
2.Slide the seat to the rearward.
Page 1127 of 1575

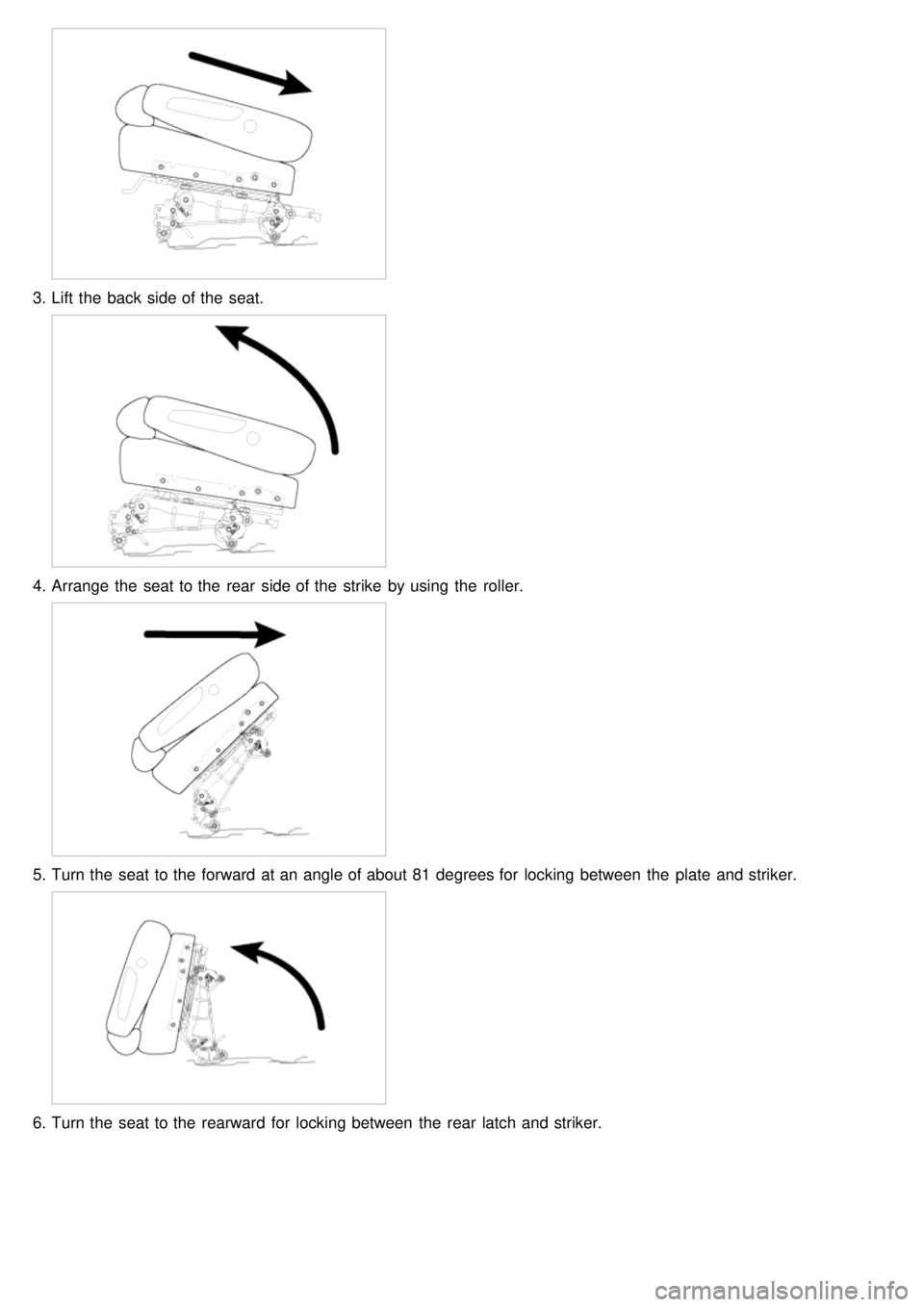

3.Lift the back side of the seat.
4.Arrange the seat to the rear side of the strike by using the roller.
5.Turn the seat to the forward at an angle of about 81 degrees for locking between the plate and striker.
6.Turn the seat to the rearward for locking between the rear latch and striker.
Page 1128 of 1575
7.Uufold the back of the seat.
8.The leg cover hole color must be discolored to green.
RECLINER COVER REPLACEMENT
1.Remove the recliner lever(B) and cover (A).
