2007 KIA CARNIVAL Workshop Manual

Lighting System

2007 > 2.7L V6 GASOLINE >

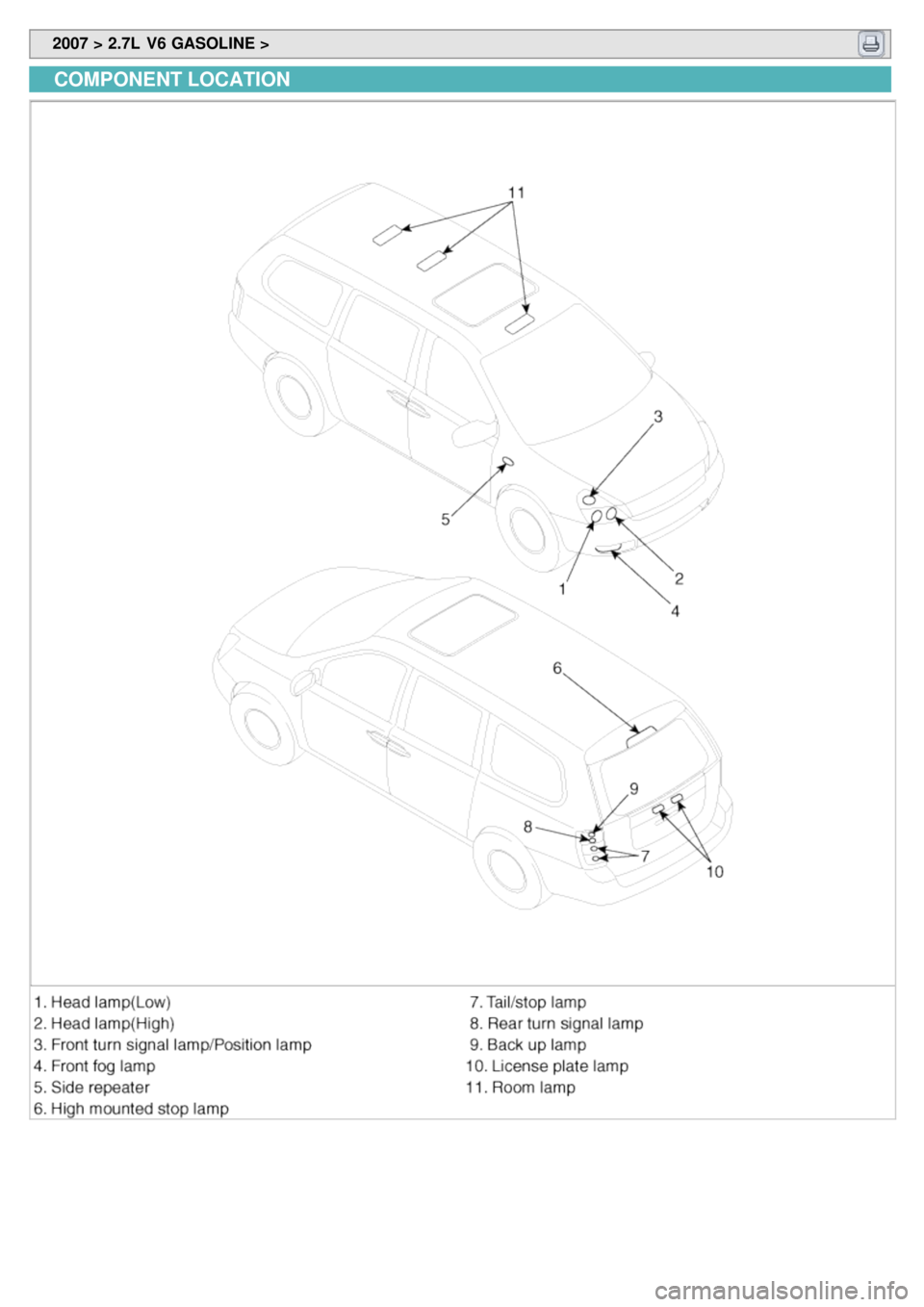

COMPONENT LOCATION

2007 > 2.7L V6 GASOLINE >

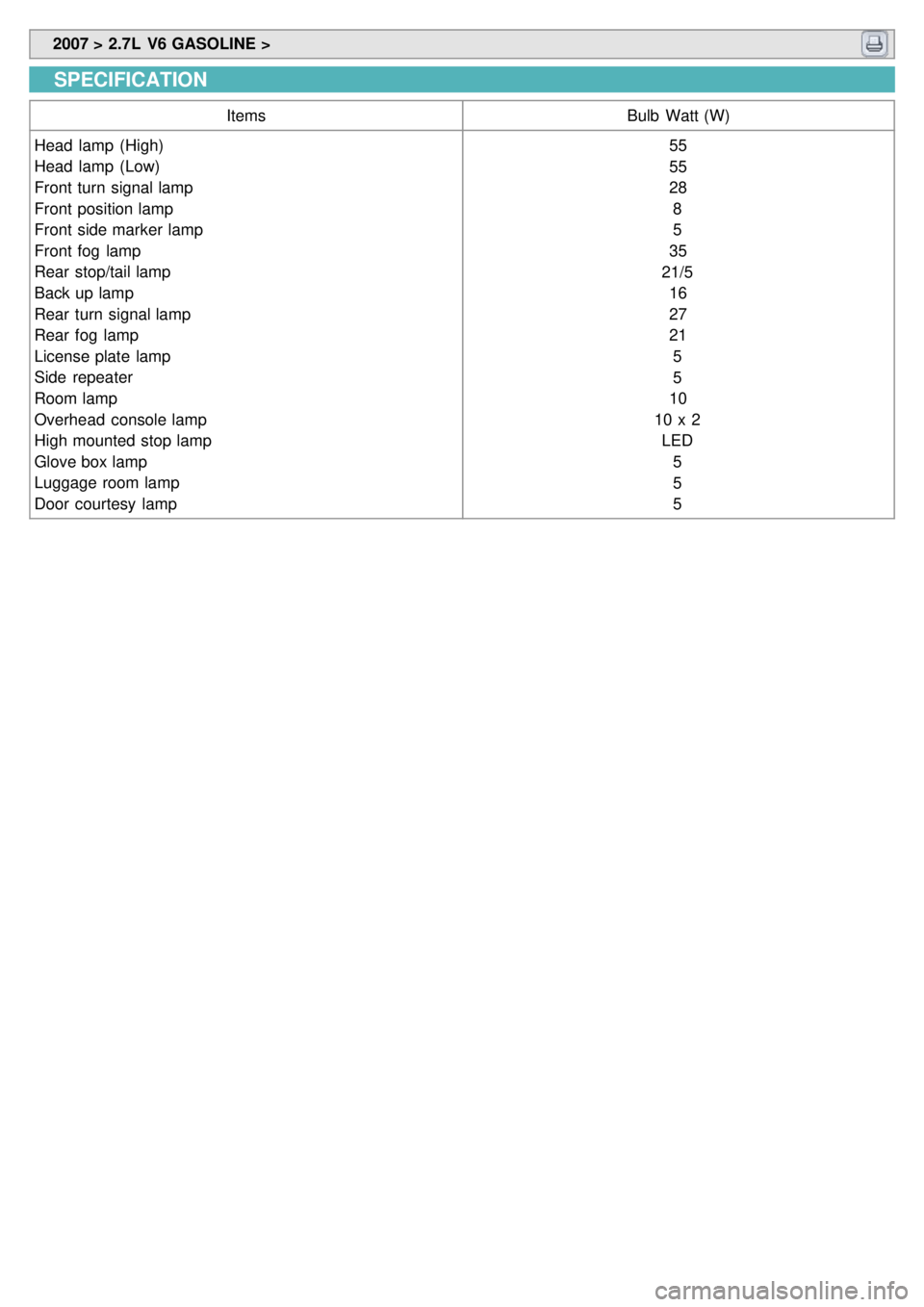

SPECIFICATION
Items Bulb Watt (W)
Head lamp (High)
Head lamp (Low)
Front turn signal lamp
Front position lamp
Front side marker lamp
Front fog lamp
Rear stop/tail lamp
Back up lamp
Rear turn signal lamp
Rear fog lamp
License plate lamp
Side repeater
Room lamp
Overhead console lamp
High mounted stop lamp
Glove box lamp
Luggage room lamp
Door courtesy lamp 55
55
28
8
5
35
21/5 16
27
215
5
10
10 x 2 LED 5
5
5

Head Lamps

2007 > 2.7L V6 GASOLINE >

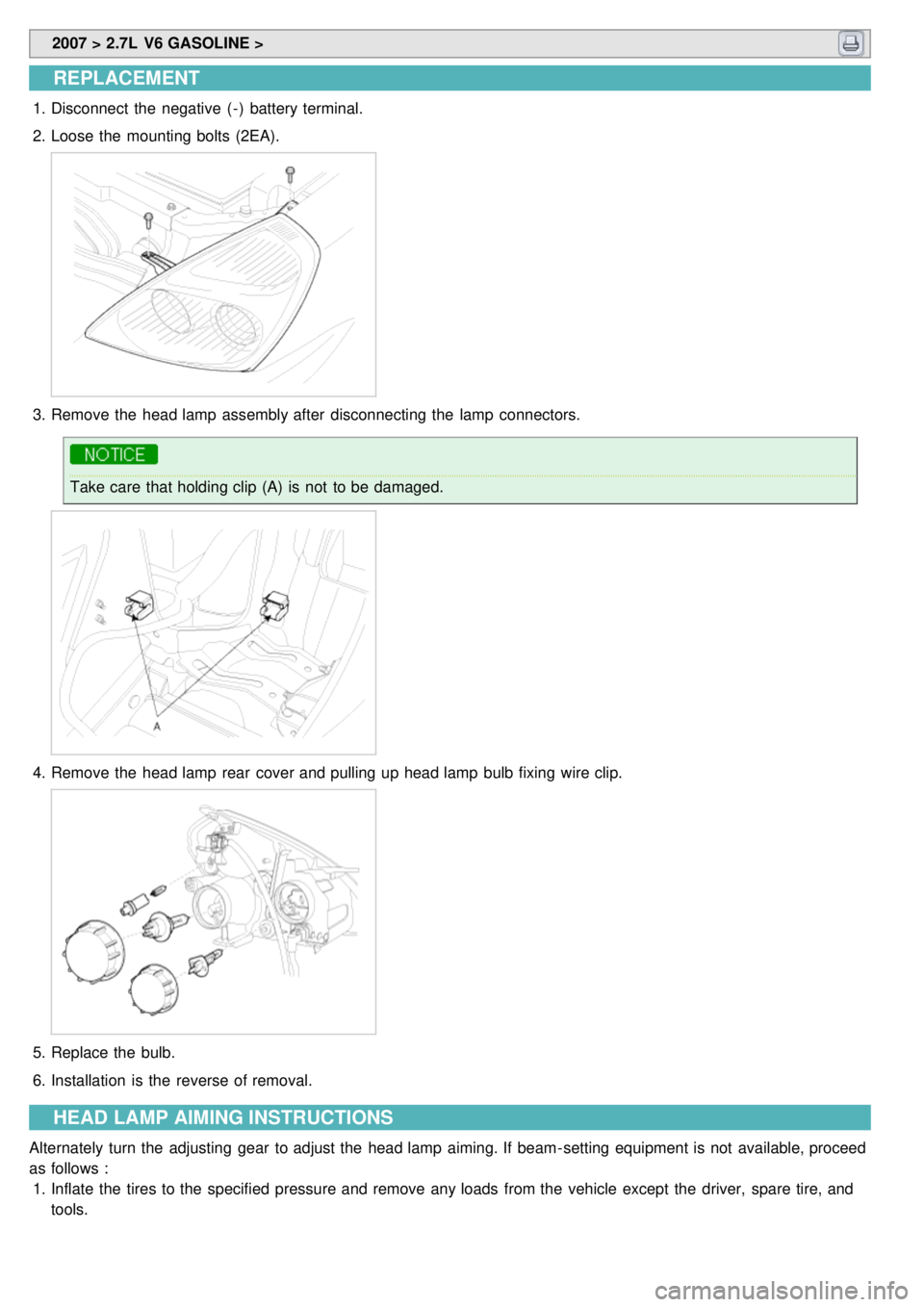

REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Loose the mounting bolts (2EA).
3.Remove the head lamp assembly after disconnecting the lamp connectors.
Take care that holding clip (A) is not to be damaged.
4.Remove the head lamp rear cover and pulling up head lamp bulb fixing wire clip.
5.Replace the bulb.
6. Installation is the reverse of removal.
HEAD LAMP AIMING INSTRUCTIONS
Alternately turn the adjusting gear to adjust the head lamp aiming. If beam- setting equipment is not available, proceed
as follows :
1. Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare tire, and
tools.

2.The vehicle should be placed on a flat floor.
3. Check the suspension spring.

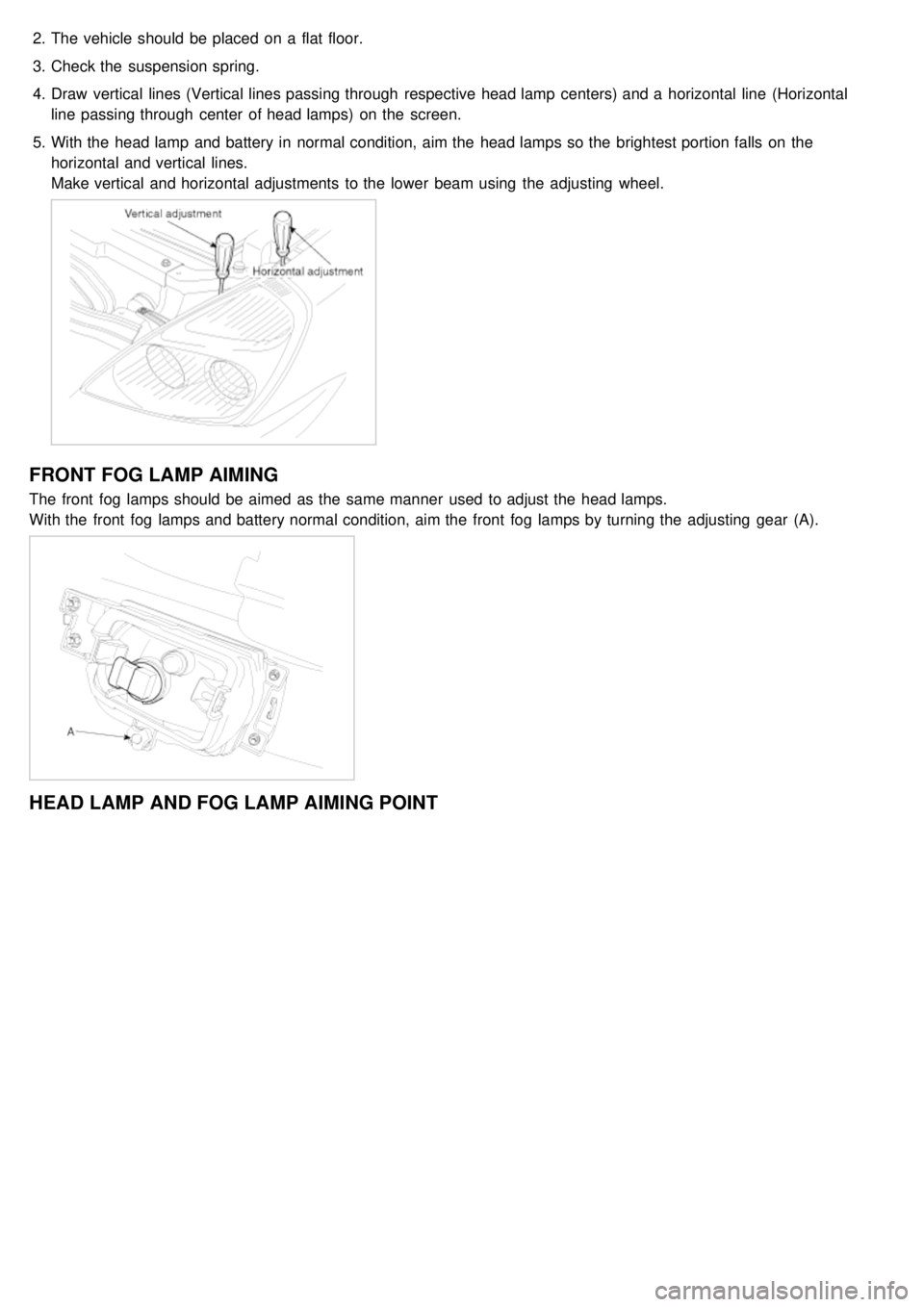

4. Draw vertical lines (Vertical lines passing through respective head lamp centers) and a horizontal line (Horizontal
line passing through center of head lamps) on the screen.
5. With the head lamp and battery in normal condition, aim the head lamps so the brightest portion falls on the
horizontal and vertical lines.
Make vertical and horizontal adjustments to the lower beam using the adjusting wheel.
FRONT FOG LAMP AIMING
The front fog lamps should be aimed as the same manner used to adjust the head lamps.
With the front fog lamps and battery normal condition, aim the front fog lamps by turning the adjusting gear (A).

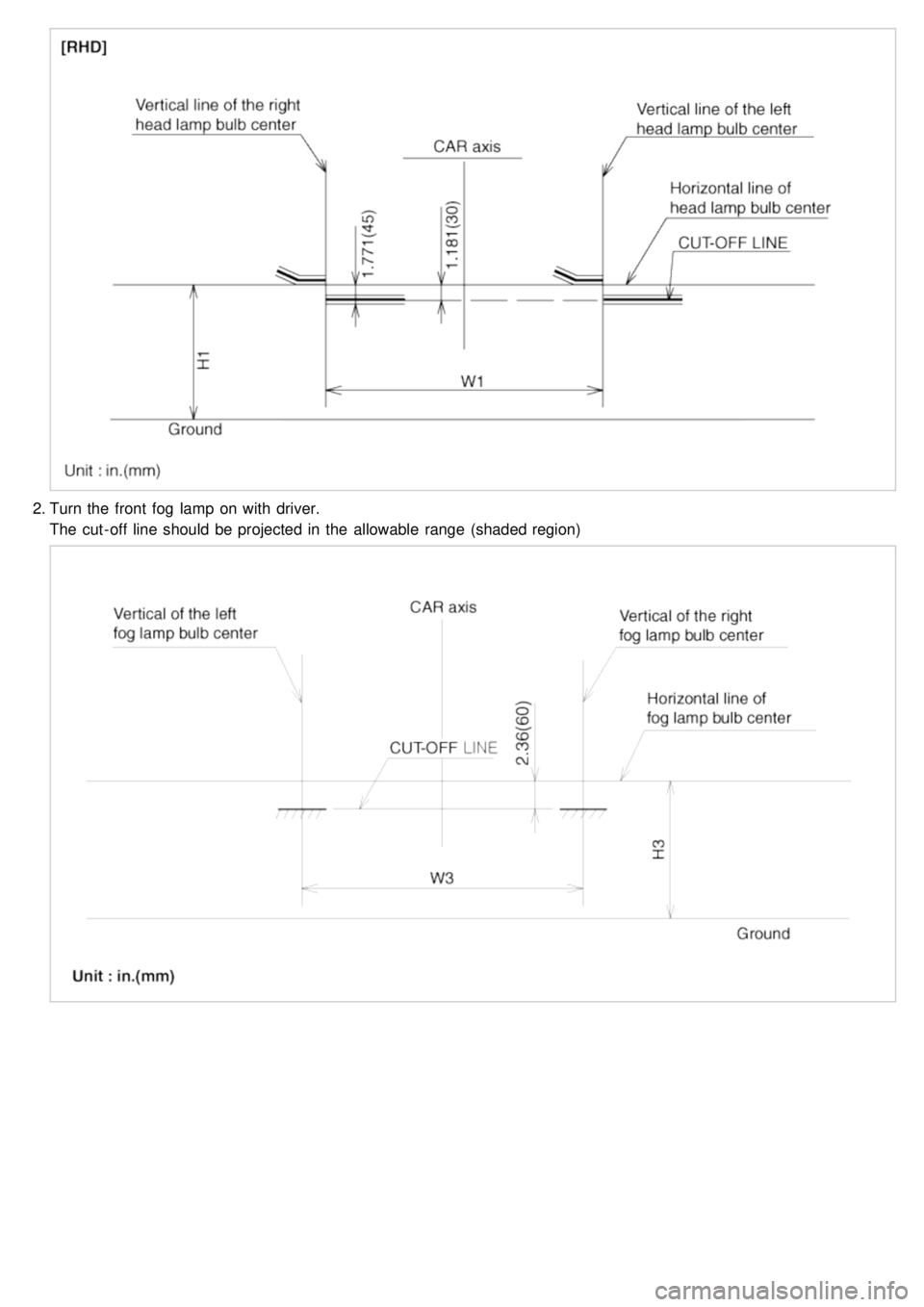

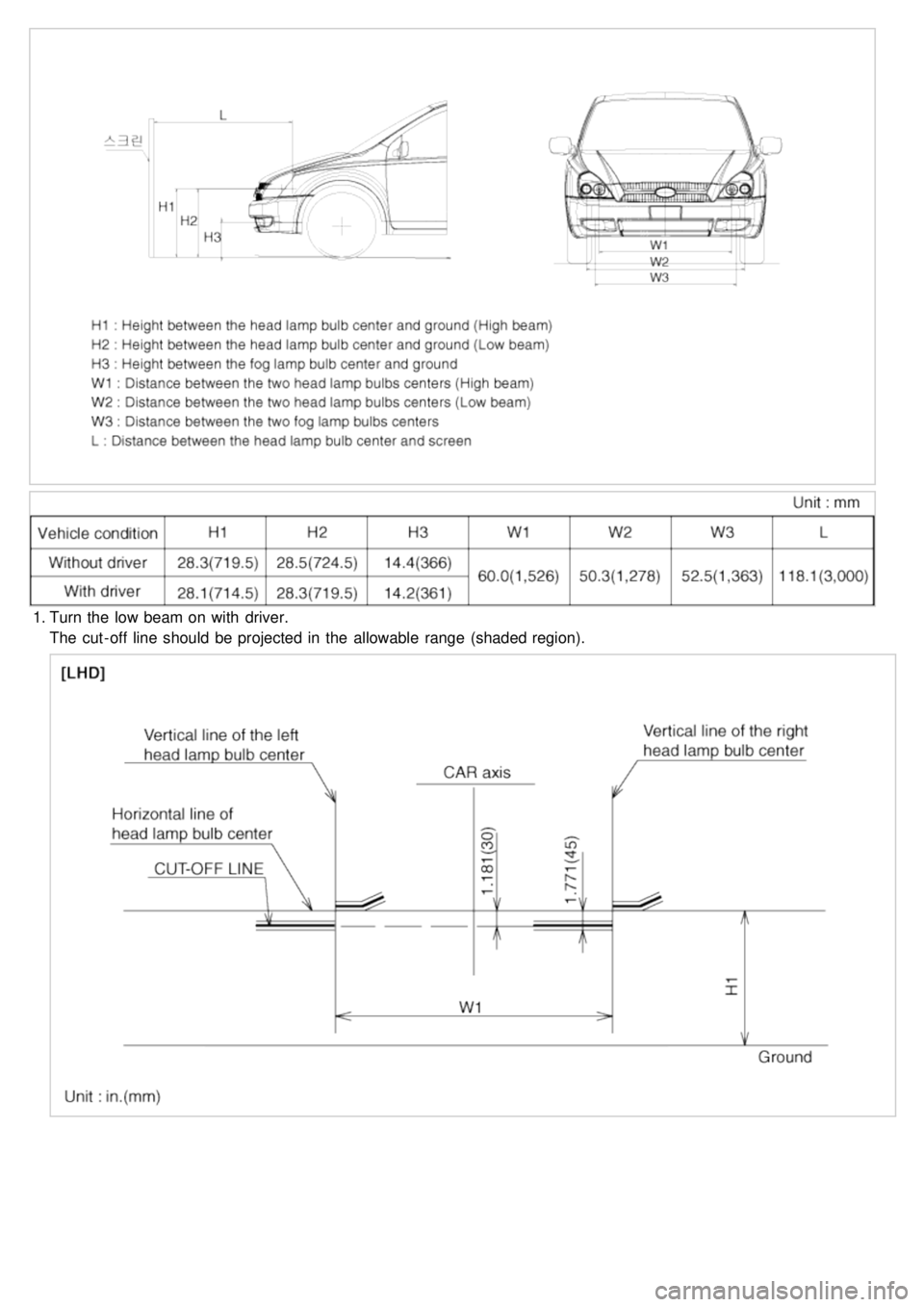

HEAD LAMP AND FOG LAMP AIMING POINT

1.Turn the low beam on with driver.
The cut- off line should be projected in the allowable range (shaded region).

2.Turn the front fog lamp on with driver.
The cut- off line should be projected in the allowable range (shaded region)
