2007 KIA CARNIVAL Workshop Manual

Sun Roof

2007 > 2.7L V6 GASOLINE >

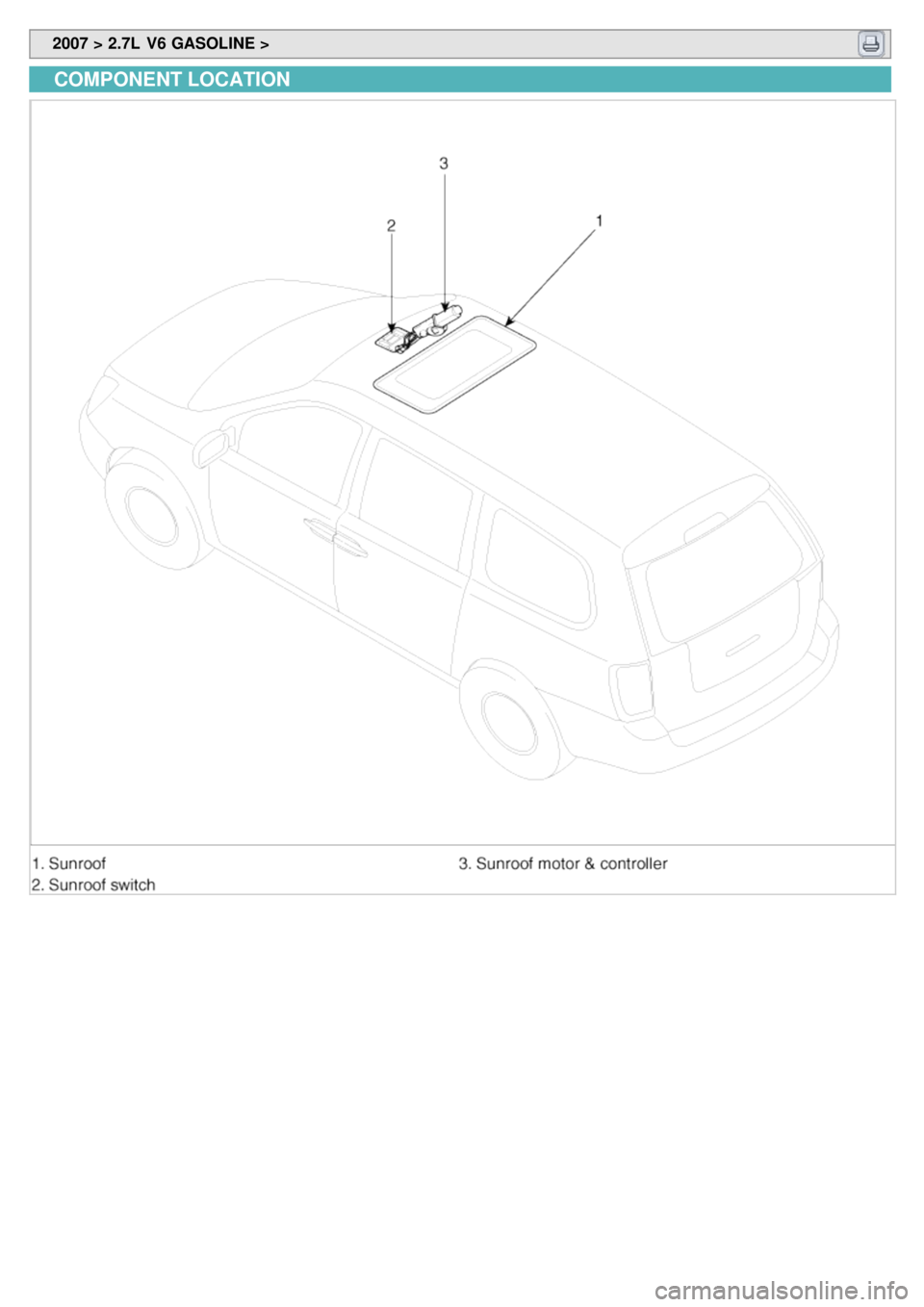

COMPONENT LOCATION

Sun Roof Assembly

2007 > 2.7L V6 GASOLINE >

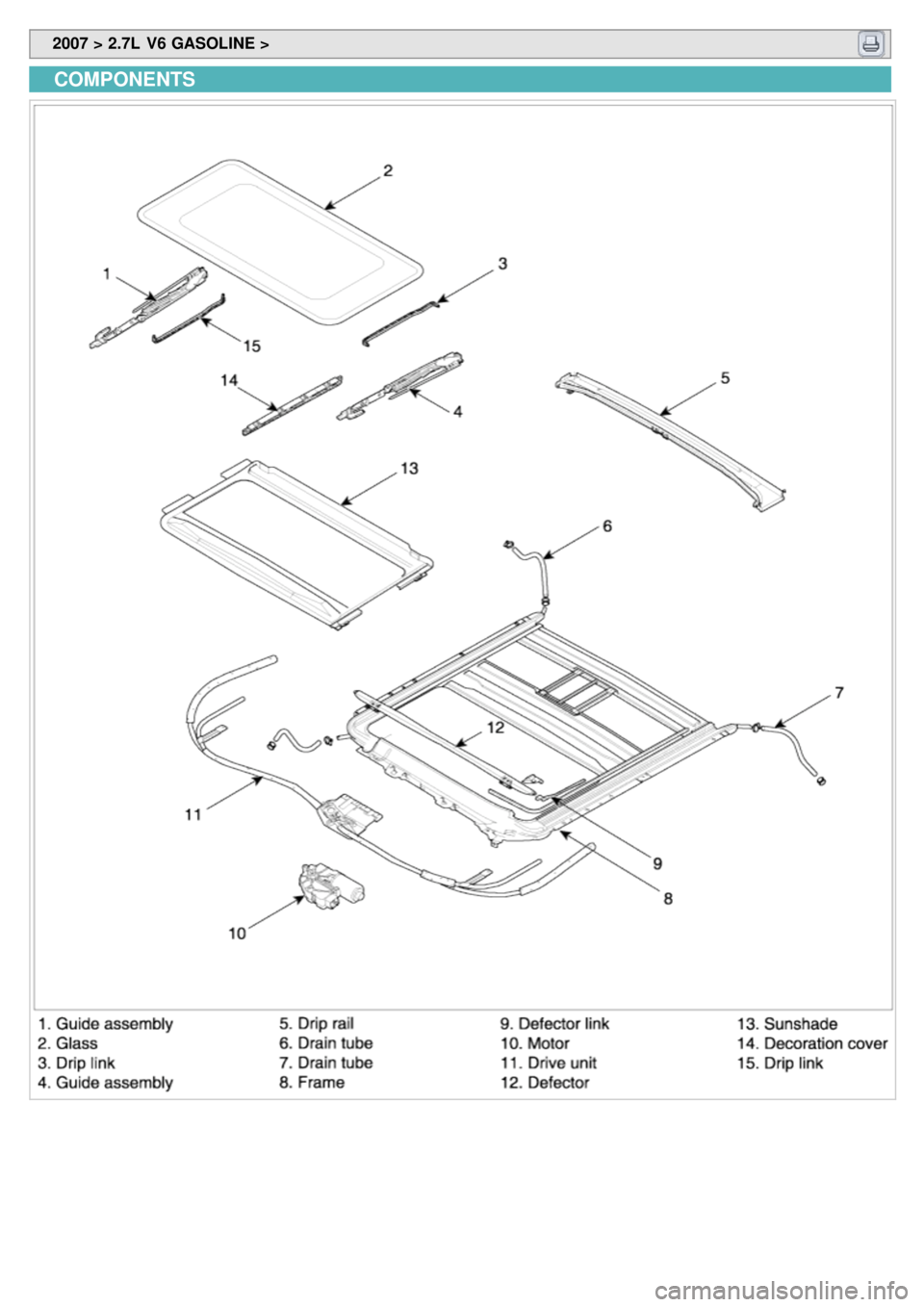

COMPONENTS

2007 > 2.7L V6 GASOLINE >
REPLACEMENT

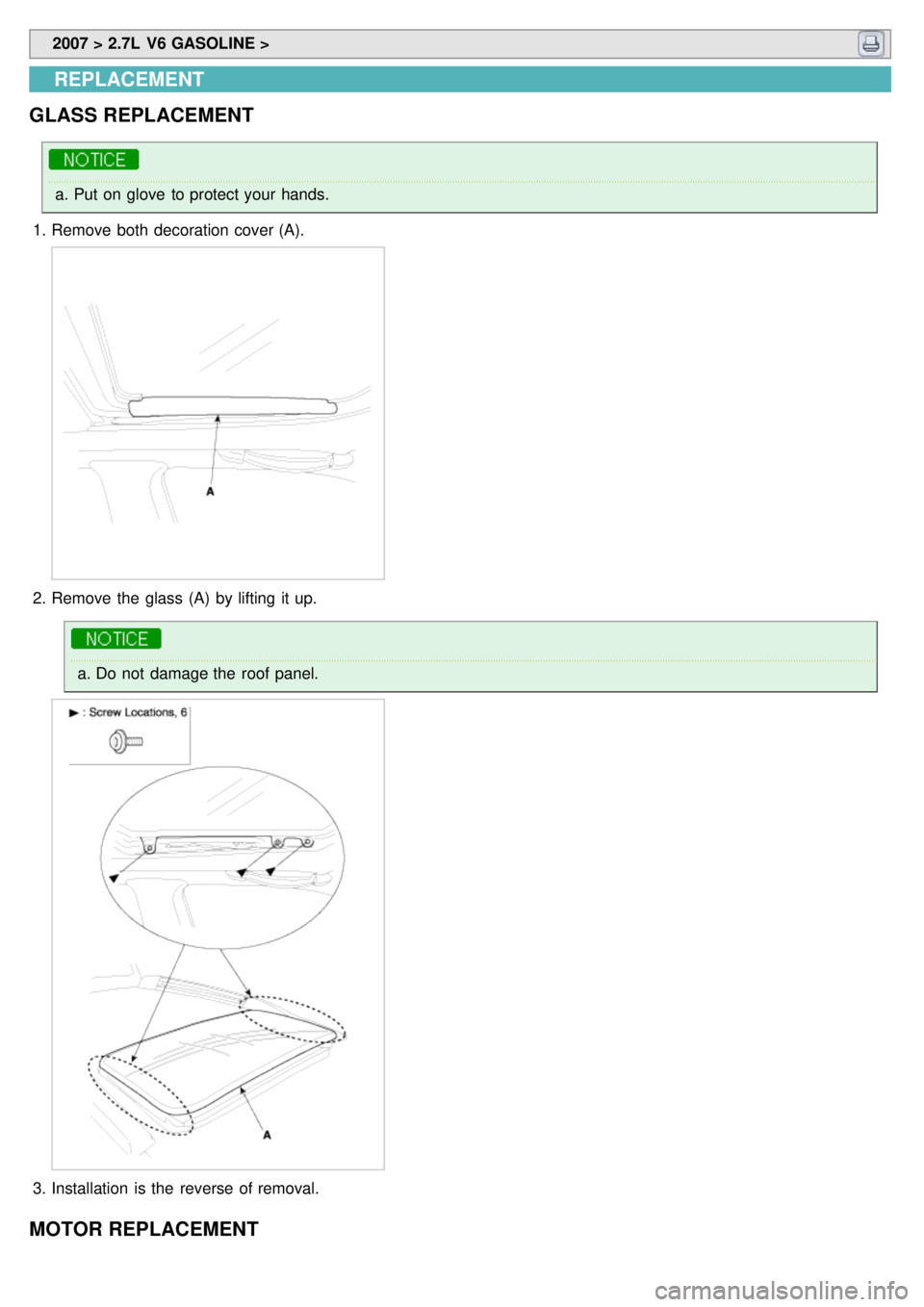

GLASS REPLACEMENT
a. Put on glove to protect your hands.
1. Remove both decoration cover (A).
2.Remove the glass (A) by lifting it up.
a.Do not damage the roof panel.
3.Installation is the reverse of removal.

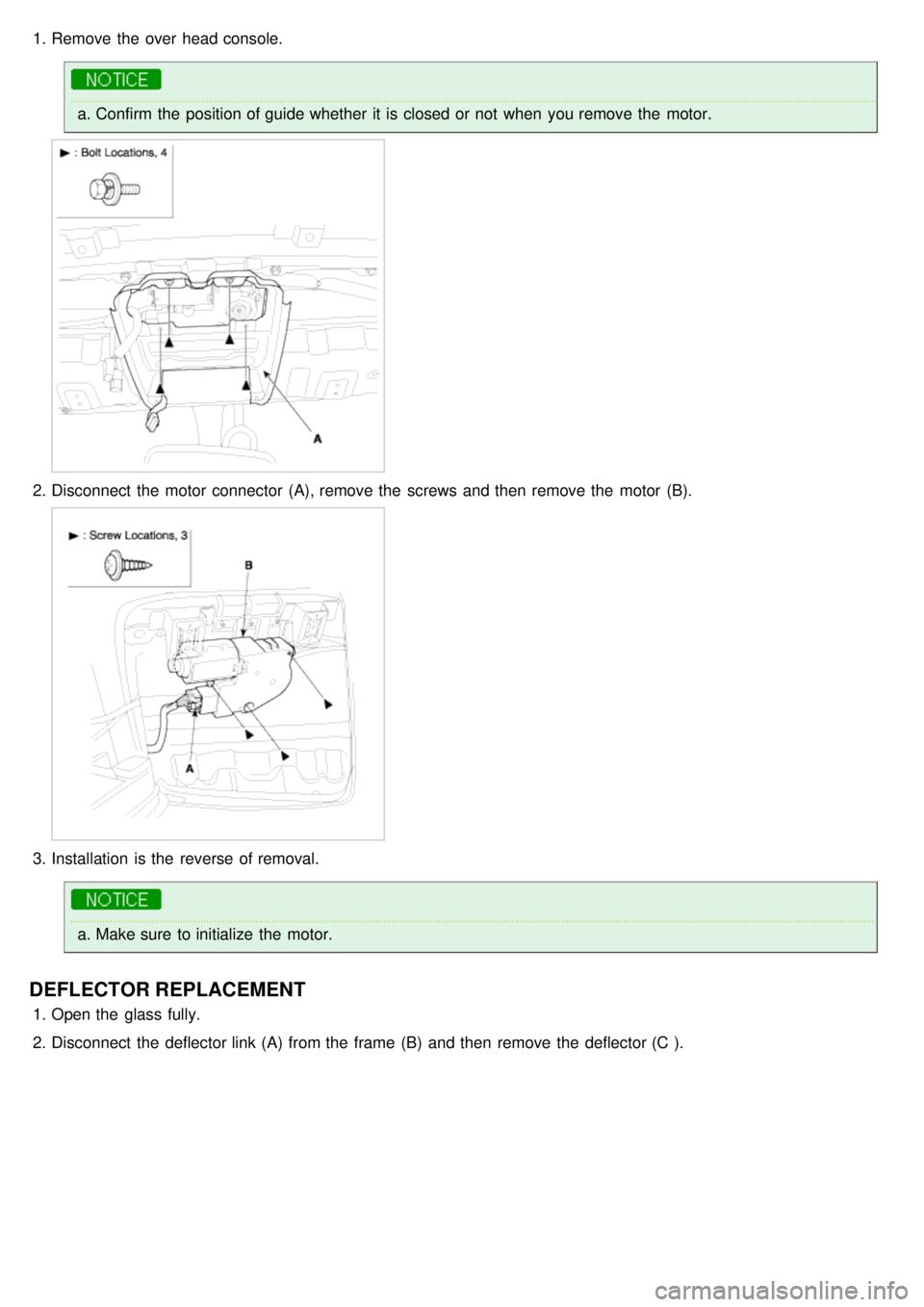

MOTOR REPLACEMENT

1.Remove the over head console.
a.Confirm the position of guide whether it is closed or not when you remove the motor.
2.Disconnect the motor connector (A), remove the screws and then remove the motor (B).
3.Installation is the reverse of removal.
a.Make sure to initialize the motor.
DEFLECTOR REPLACEMENT
1.Open the glass fully.
2. Disconnect the deflector link (A) from the frame (B) and then remove the deflector (C ).

3.Installation is the reverse of removal.

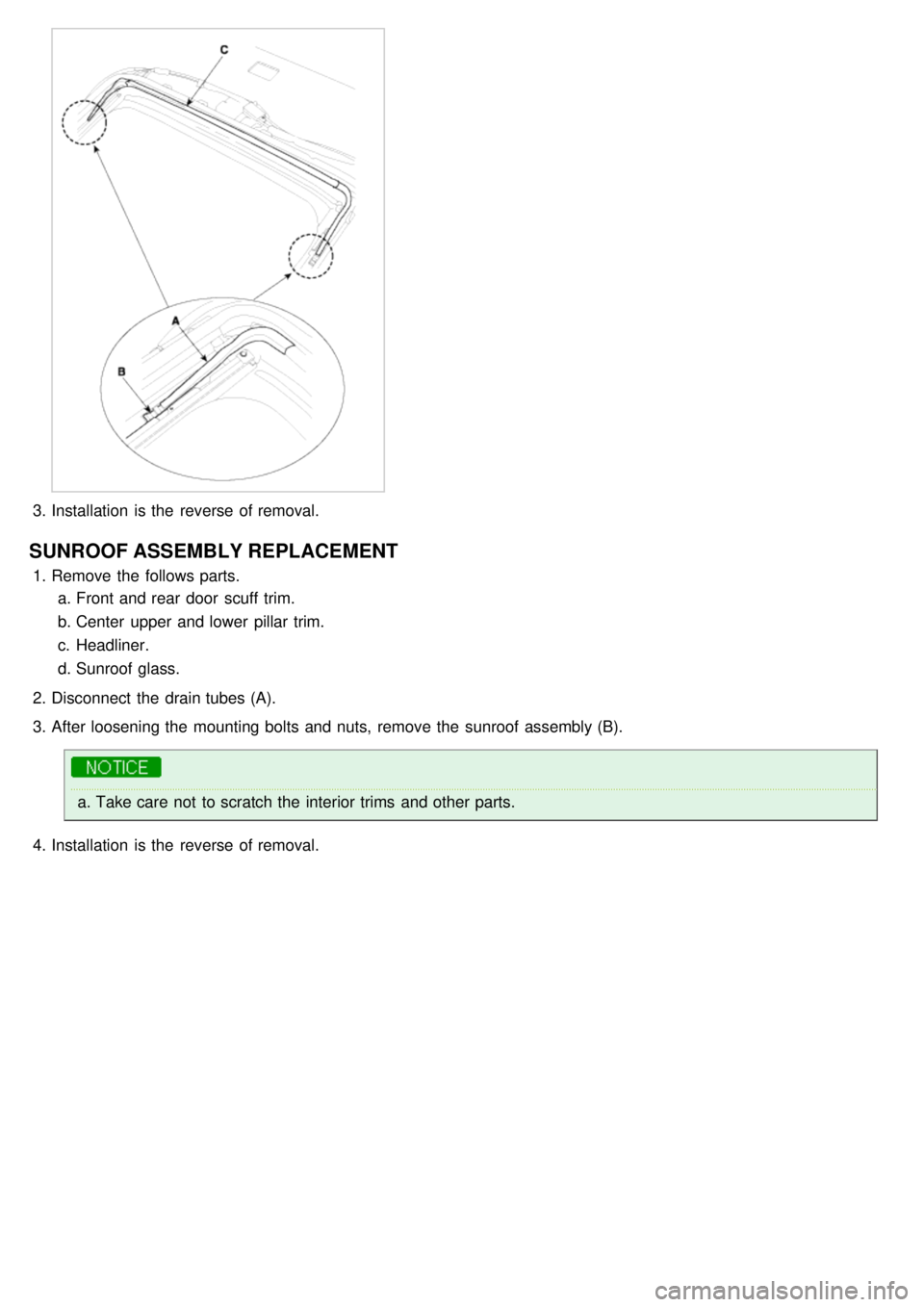

SUNROOF ASSEMBLY REPLACEMENT
1.Remove the follows parts.
a. Front and rear door scuff trim.
b. Center upper and lower pillar trim.
c. Headliner.
d. Sunroof glass.
2. Disconnect the drain tubes (A).
3. After loosening the mounting bolts and nuts, remove the sunroof assembly (B).
a.Take care not to scratch the interior trims and other parts.
4. Installation is the reverse of removal.

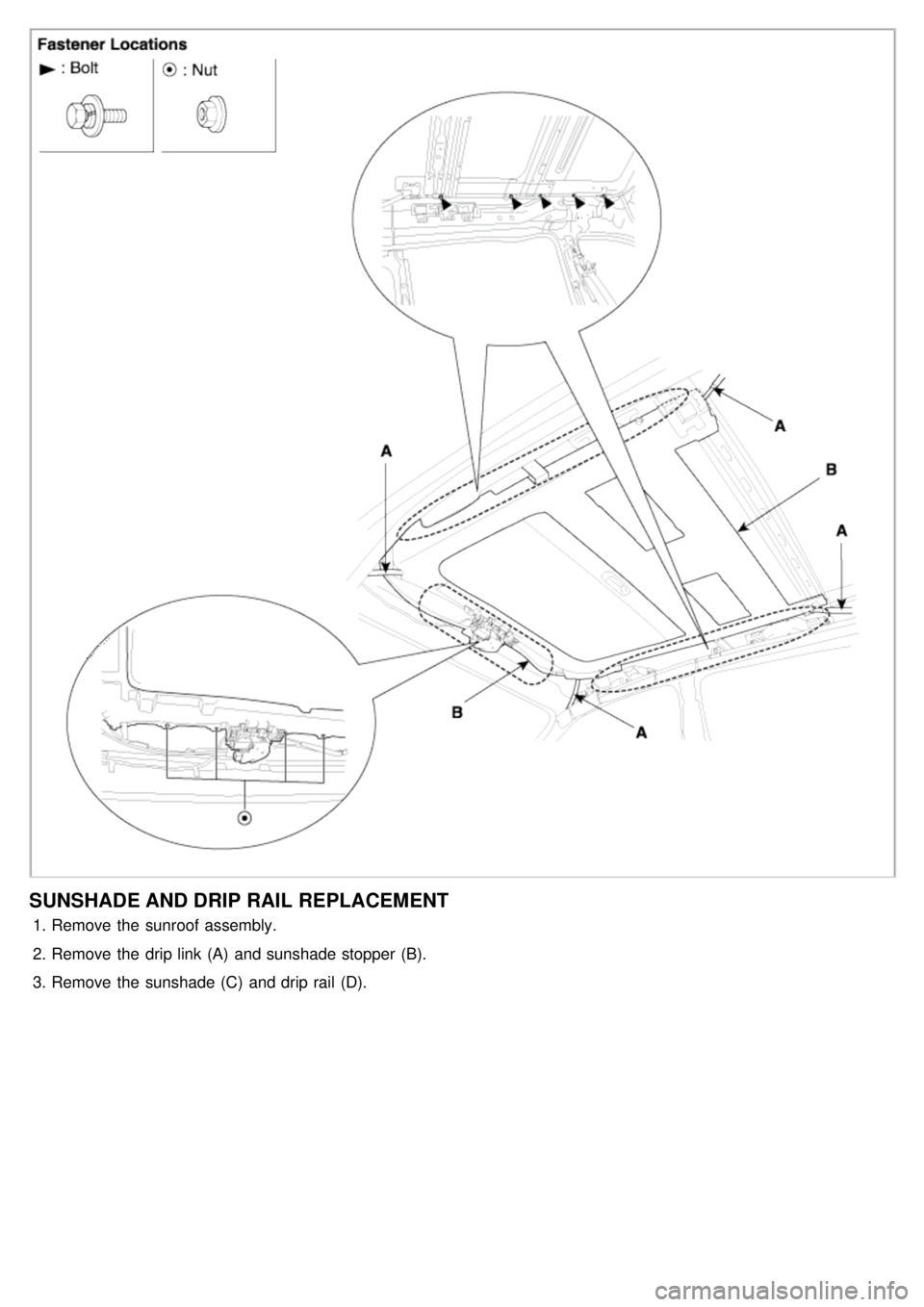

SUNSHADE AND DRIP RAIL REPLACEMENT
1.Remove the sunroof assembly.
2. Remove the drip link (A) and sunshade stopper (B).
3. Remove the sunshade (C) and drip rail (D).
