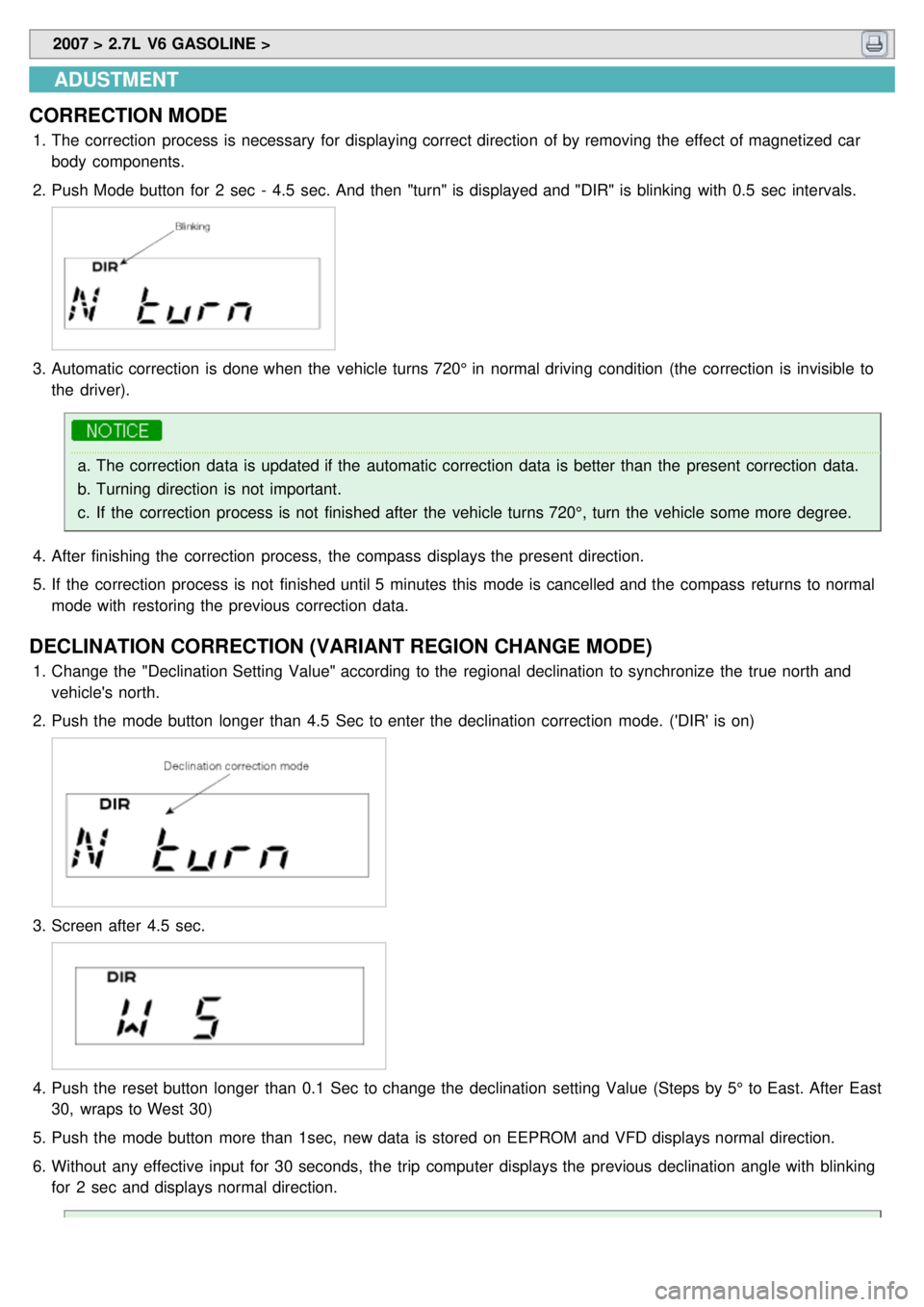

Page 1529 of 1575

2007 > 2.7L V6 GASOLINE >
ADUSTMENT
CORRECTION MODE
1. The correction process is necessary for displaying correct direction of by removing the effect of magnetized car
body components.
2. Push Mode button for 2 sec - 4.5 sec. And then "turn" is displayed and "DIR" is blinking with 0.5 sec intervals.
3.Automatic correction is done when the vehicle turns 720° in normal driving condition (the correction is invisible to
the driver).
a.The correction data is updated if the automatic correction data is better than the present correction data.
b. Turning direction is not important.
c. If the correction process is not finished after the vehicle turns 720°, turn the vehicle some more degree.
4. After finishing the correction process, the compass displays the present direction.
5. If the correction process is not finished until 5 minutes this mode is cancelled and the compass returns to normal
mode with restoring the previous correction data.
DECLINATION CORRECTION (VARIANT REGION CHANGE MODE)
1.Change the "Declination Setting Value" according to the regional declination to synchronize the true north and
vehicle's north.
2. Push the mode button longer than 4.5 Sec to enter the declination correction mode. ('DIR' is on)
3.Screen after 4.5 sec.
4.Push the reset button longer than 0.1 Sec to change the declination setting Value (Steps by 5° to East. After East
30, wraps to West 30)
5. Push the mode button more than 1sec, new data is stored on EEPROM and VFD displays normal direction.
6. Without any effective input for 30 seconds, the trip computer displays the previous declination angle with blinking
for 2 sec and displays normal direction.

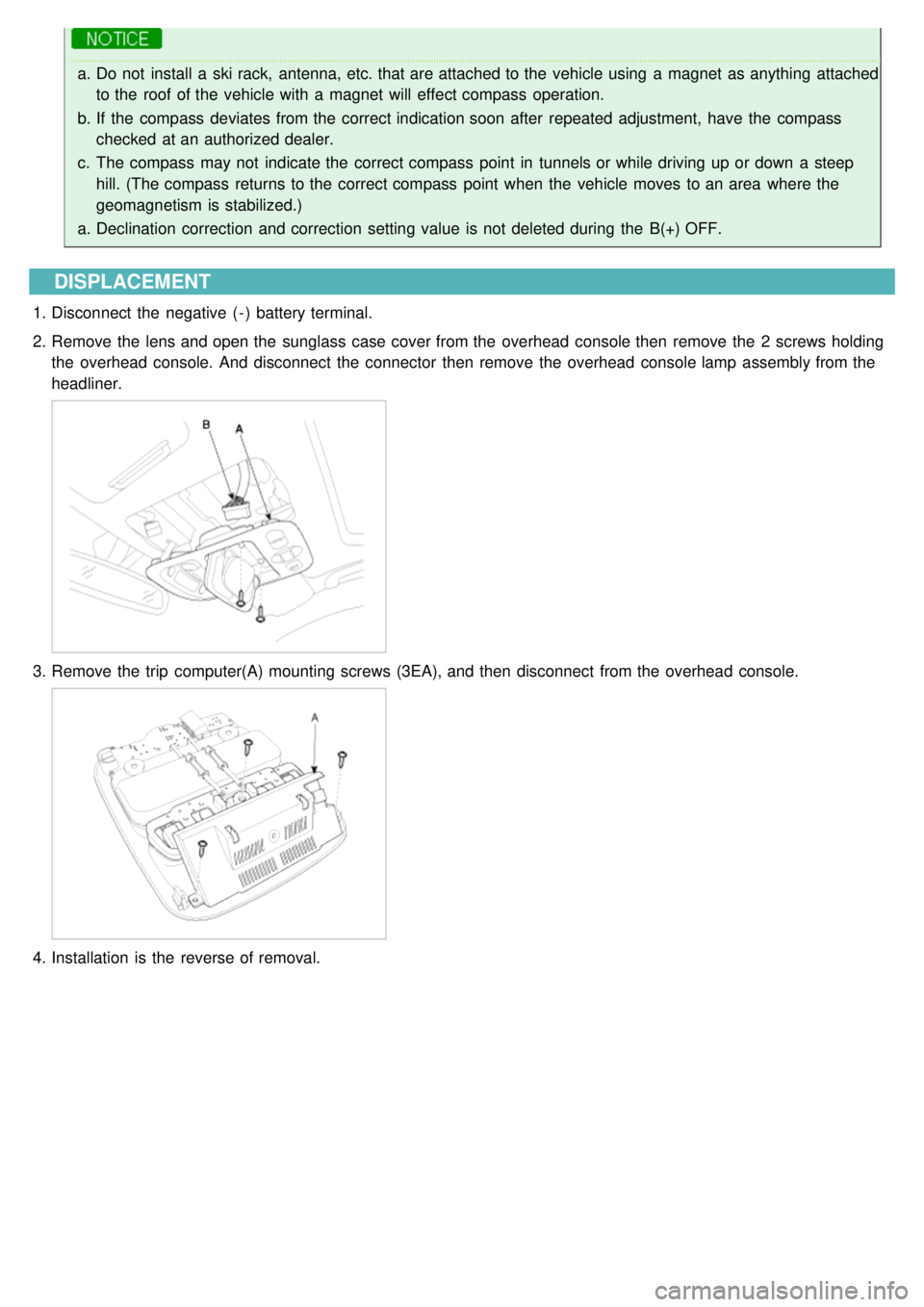

Page 1530 of 1575

a.Do not install a ski rack, antenna, etc. that are attached to the vehicle using a magnet as anything attached
to the roof of the vehicle with a magnet will effect compass operation.
b. If the compass deviates from the correct indication soon after repeated adjustment, have the compass
checked at an authorized dealer.
c. The compass may not indicate the correct compass point in tunnels or while driving up or down a steep
hill. (The compass returns to the correct compass point when the vehicle moves to an area where the
geomagnetism is stabilized.)
a. Declination correction and correction setting value is not deleted during the B(+) OFF.
DISPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the lens and open the sunglass case cover from the overhead console then remove the 2 screws holding
the overhead console. And disconnect the connector then remove the overhead console lamp assembly from the
headliner.
3.Remove the trip computer(A) mounting screws (3EA), and then disconnect from the overhead console.
4.Installation is the reverse of removal.
Page 1531 of 1575

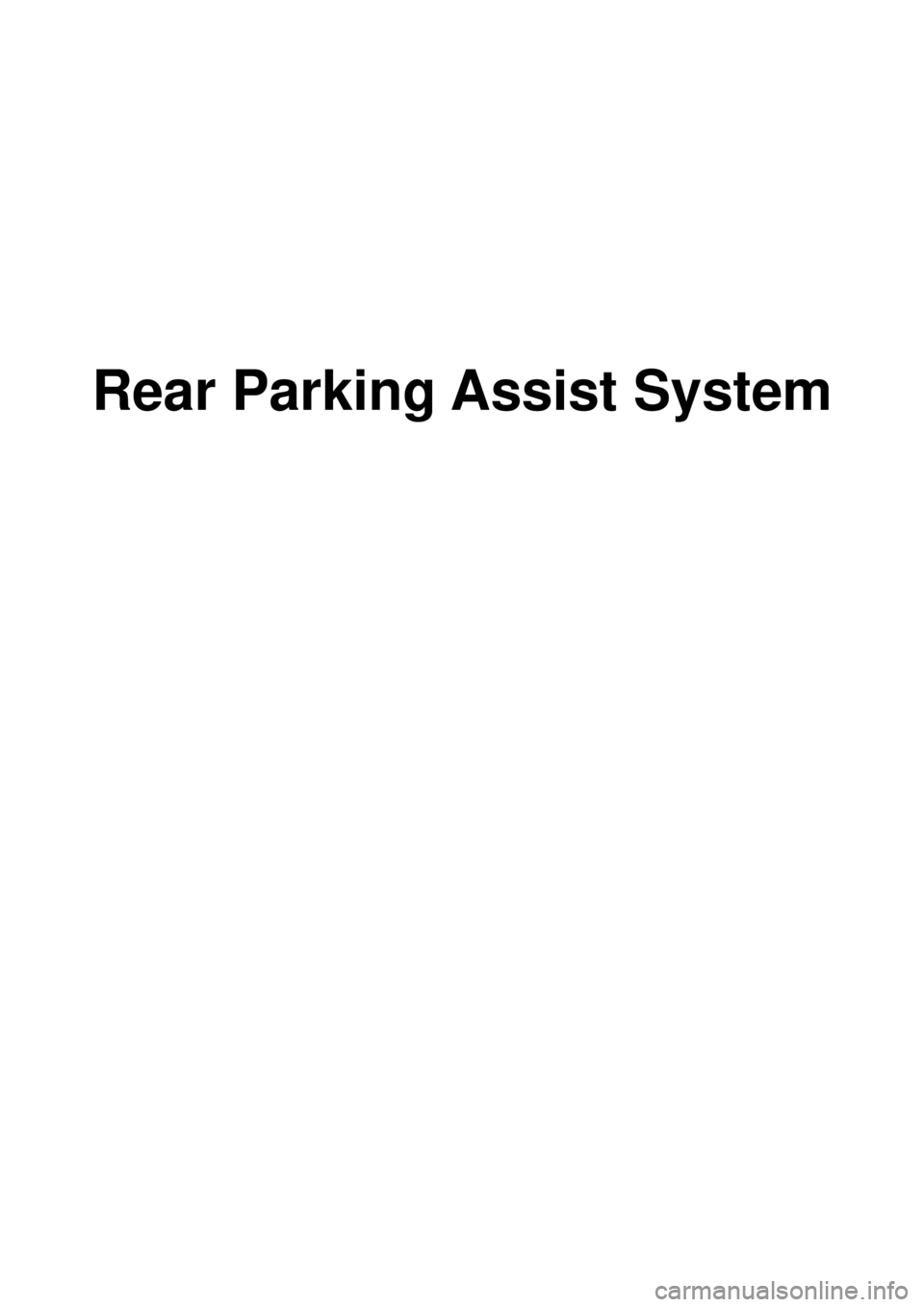

Rear Parking Assist System
Page 1532 of 1575

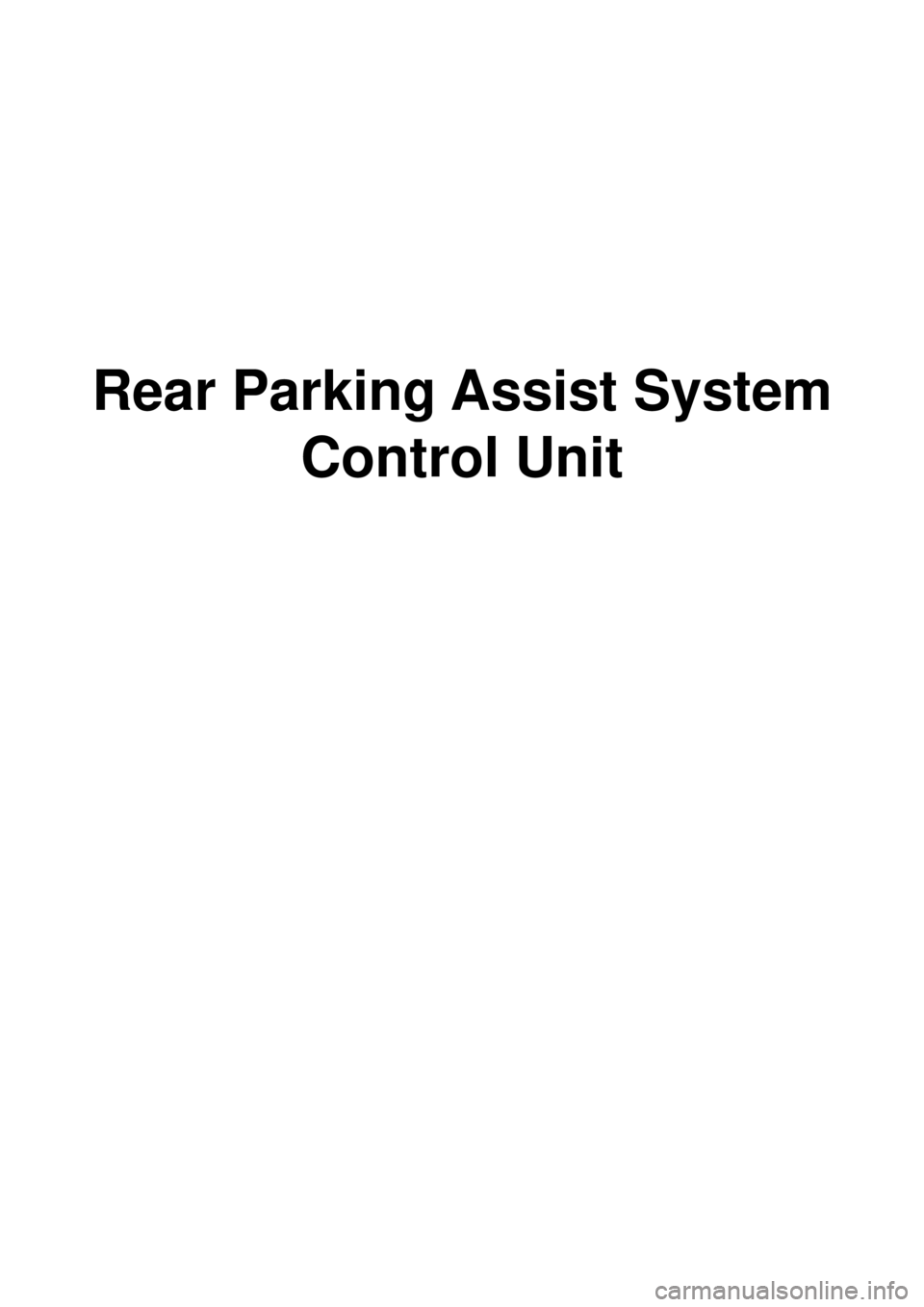

Rear Parking Assist SystemControl Unit
Page 1533 of 1575

2007 > 2.7L V6 GASOLINE >
DESCRIPTION
When reversing, the driver is not easy to find objects in the blind spots and to determine the distance from the object.
In order to provide the driver safety and convenience, back warning system will operate upon shifting to "R" Ultrasonic
sensor will emit ultrasonic wave rearward and detect the reflected wave. Control unit will calculate distance to the
object using the sensor signal input and output buzzer alarm in three steps (first, second and third alarm).
ALARM RANGE
Upon detecting an object at each range out of 3 ranges as stated below within the operation range, it will generate
alarm.
First alarm : Object comes near to the sensor located at the rear of vehicle, within 81- 120cm ± 15cm
Second alarm : Object comes near to the sensor located at the rear of vehicle, within 41- 80cm ± 10cm
Third alarm : Object comes near to the sensor located at the rear of vehicle, within 40cm ± 10cm
a.Time tolerance of the above waveform : Time ± 10%
b. At nearer distance than 40cm, detection may not occur.
c. Alarm will be generated with vehicle reversing speed 10km/h or less.
For moving target, maximum operation speed shall be target approach speed of 10km/h.
d. When the vehicle or the target is moving, sequential alarm generation or effective alarm may be failed.
e. False alarm, or failure of the alarm to trigger may occur in the following conditions.
a. Irregular road surface, gravel road, reversing toward grass.
b. Horn, motor cycle engine noise, large vehicle air brake, or other object generating ultrasonic wave is near.
c. When a wireless transmitter is used near to the sensor.
d. Dirt on the sensor.
e. Sequential alarm may not occur due to the reversing speed or the target shape.
Page 1534 of 1575
2007 > 2.7L V6 GASOLINE >

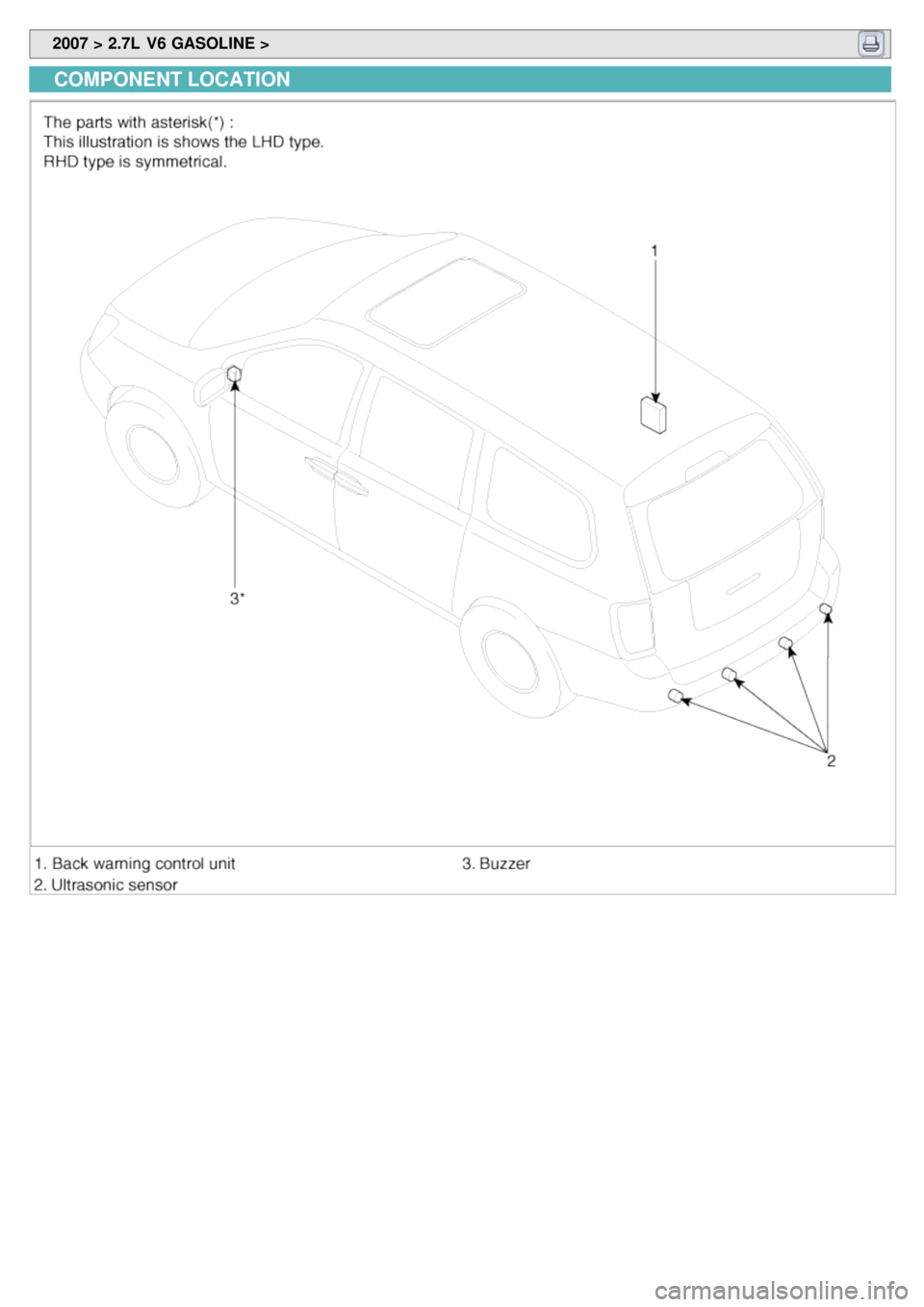

COMPONENT LOCATION
Page 1535 of 1575
2007 > 2.7L V6 GASOLINE >
DIAGNOSIS
1.DIAGNOSIS
Turn the ignition switch ON, then shift the transaxle lever to 'R'. The Back Warning System is then checked.
If no trouble, it generates buzzer alarm sound for 0.3 seconds after 0.5 seconds from power approval. In case of
system failure, buzzer alarm is generated 3 times continuously with the interval of 0.3 seconds.
2.DIAGNOSIS MODE
Switch on diagnosis mode upon system failure.
In case of system failure, then it indicates the failed point as follows.
SENSOR CONNECTION CHECKING
Page 1536 of 1575

Transmit ultrasonic wave to the sensors, boost input signal, and detect wave.
Waveform will be found, oscillating for a certain period of time.1. Waveform for a normal sensor connection
2.Waveform for a failed sensor connection
Sensor connection will be checked for oscillating period of input signal 3V. If oscillating period is more than
0.8ms, it is normal.
a. Left sensor failure : beep- beep- beep
b. Right sensor failure : beep beep- beep beep- beep beep
c. Rear - right sensor failure : beep beep beep- beep beep beep- beep beep beep
d. Right side sensor failure : beep beep beep beep- beep beep beep beep- beep beep beep beep
WARNING
1.Range detected by back sensors is limited.
Watch back before reversing
2. There is a blind spot below the bumper. Low objects (for example boundary barrier) may be detected from minimum
1.5m away unable to detect at nearer.
3. Besides there are some materials unable to be detected even in detection range as follows.
(1) Needles, ropes, rods, or other thin objects.
