4.Installation is the reverse of removal.

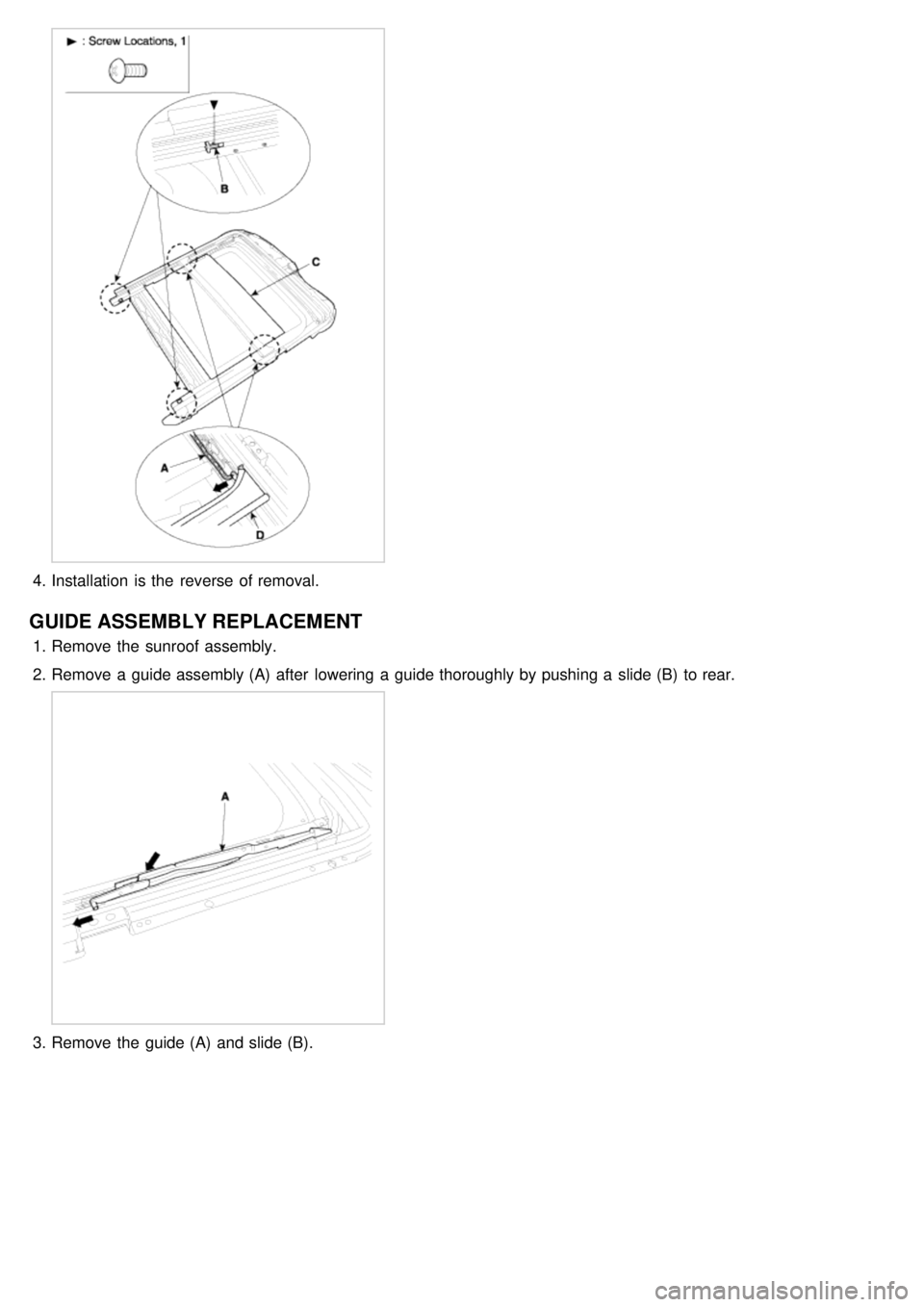

GUIDE ASSEMBLY REPLACEMENT
1.Remove the sunroof assembly.
2. Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide (B) to rear.
3.Remove the guide (A) and slide (B).

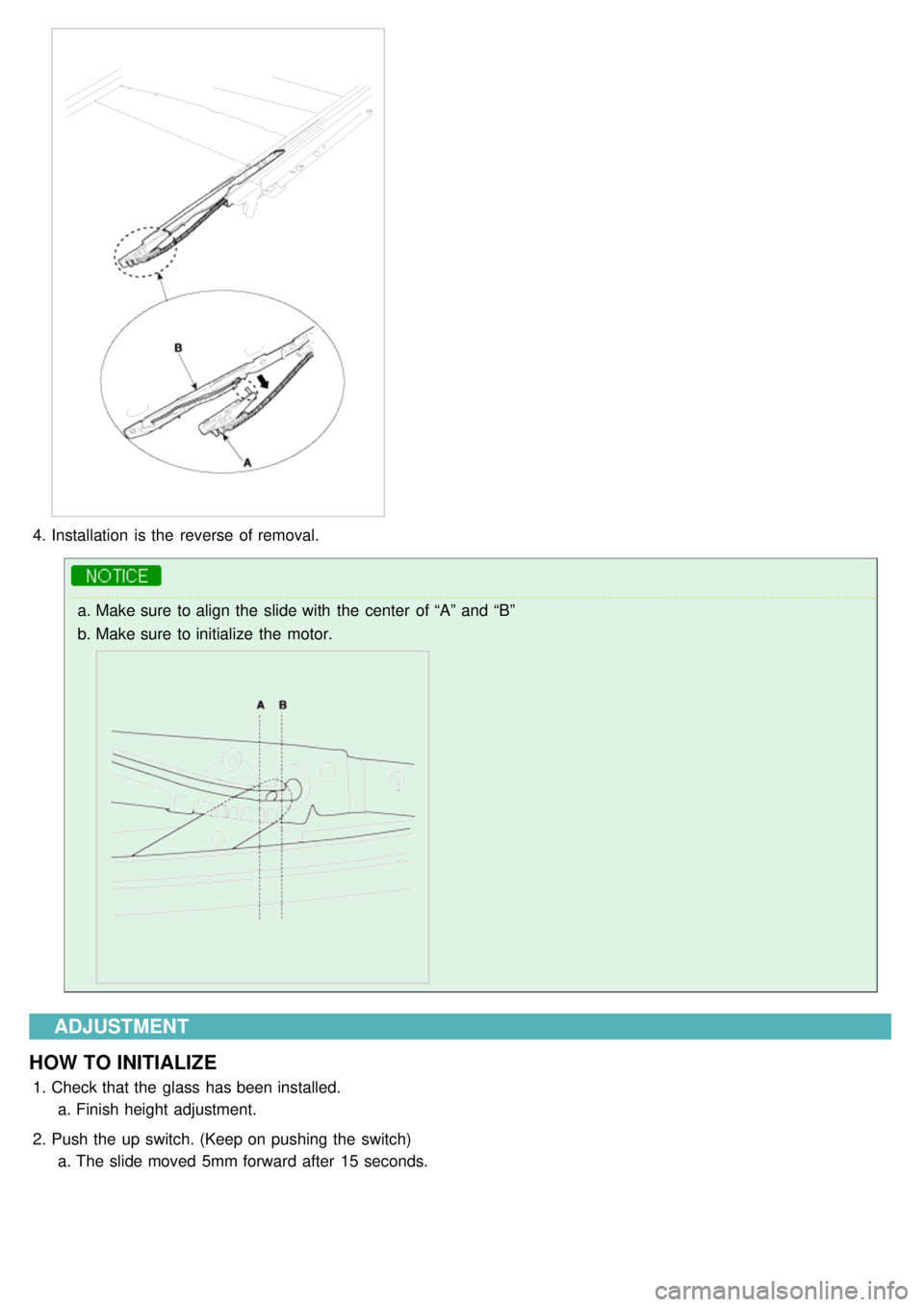

4.Installation is the reverse of removal.
a.Make sure to align the slide with the center of “A” and “B”
b. Make sure to initialize the motor.
ADJUSTMENT
HOW TO INITIALIZE
1. Check that the glass has been installed.
a. Finish height adjustment.
2. Push the up switch. (Keep on pushing the switch)
a. The slide moved 5mm forward after 15 seconds.

3.After moving the slide 5mm forward, release the switch just momentarily.
a. If the operation above is normal condition, the sunroof opens and closes.
4. When the sunroof is closed completely, turn OFF the UP switch initialize the motor completely.
WHEN TO INITIALIZE THE MOTOR
1.First operation the vehicle after manufactured it.
2. Initial value is erased or damaged because of short power electric discharge during operation
3. After using the manual handle.
OPERATING THE SUNROOF EMERGENCY HANDLE
1.Use the sunroof emergency handle to close and open the sunroof manually for the following case only.
a. To close the sunroof before driving a vehicle in a rainy day or on the highway if the sunroof cannot be closed
due to failure of the sunroof motor or controller.
2. Operating method
a. Remove the overhead console

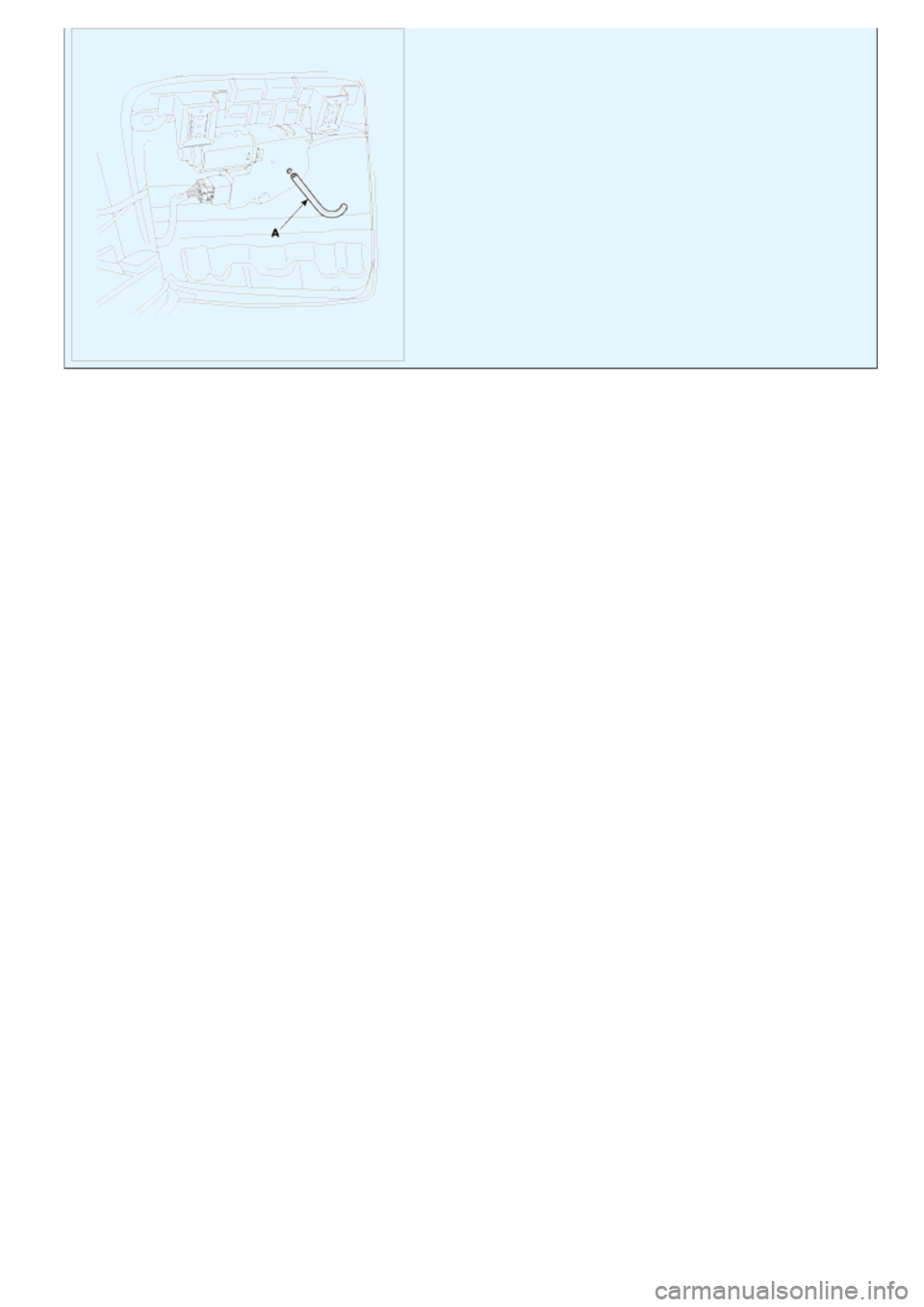

b. Push the emergency handle up into the hexagonal drive (A) of the sunroof motor. You must push hard enough
to disengage the motor clutch; otherwise the emergency handle will slip due to incomplete fit in the motor.
c. Carefully turn the emergency handle clockwise to close the sunroof.
d. After closing the sunroof, wiggle the handle back and forth as you remove the tool from the motor, to ensure the
motor clutch reengages.
e. A 5mm hex socket may be used in place of the emergency handle, with a” Speeder” type handle.
a.Do not use power tools to operate the sunroof.
b. Damage to the components may occur.

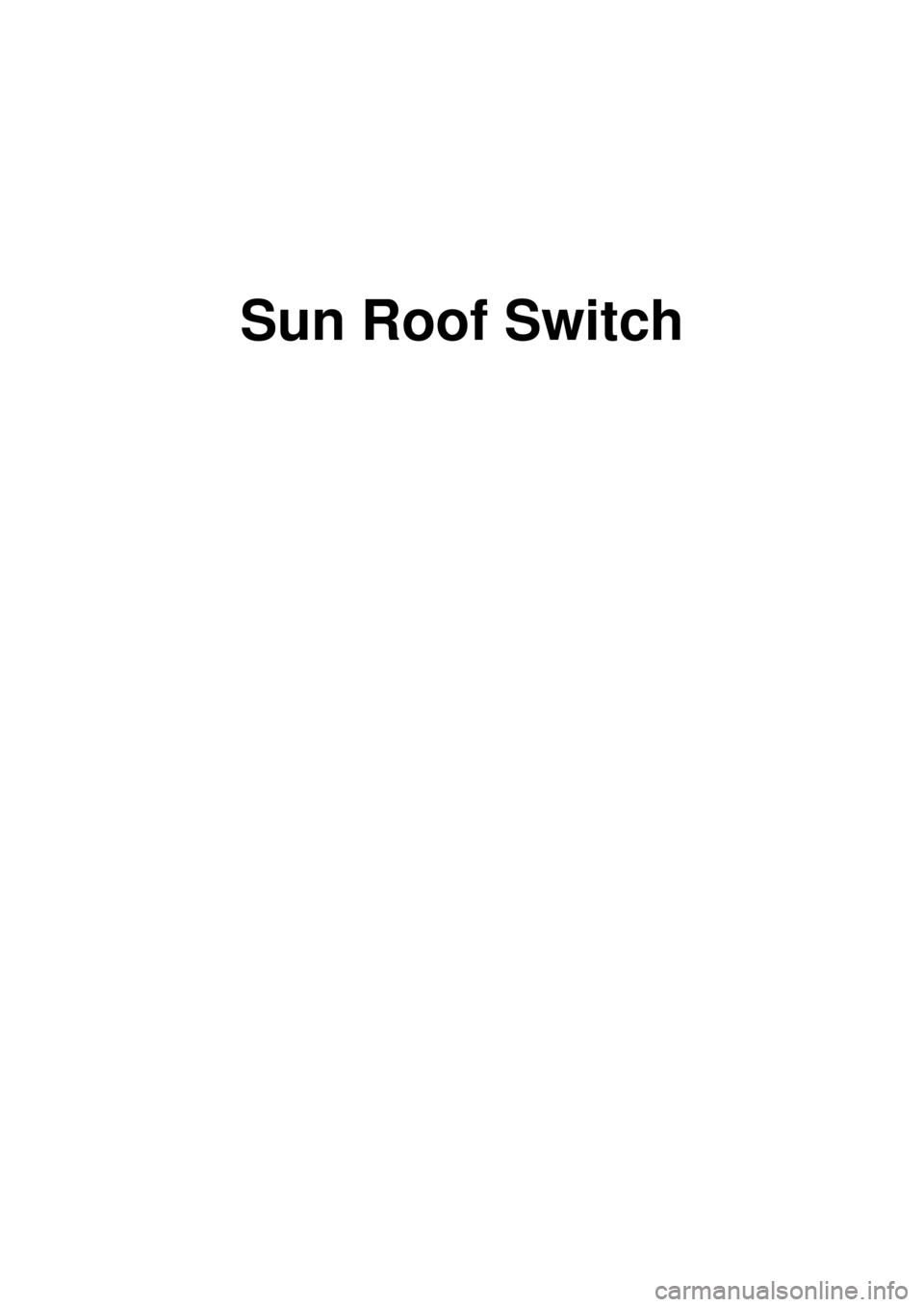

Sun Roof Switch

2007 > 2.7L V6 GASOLINE >

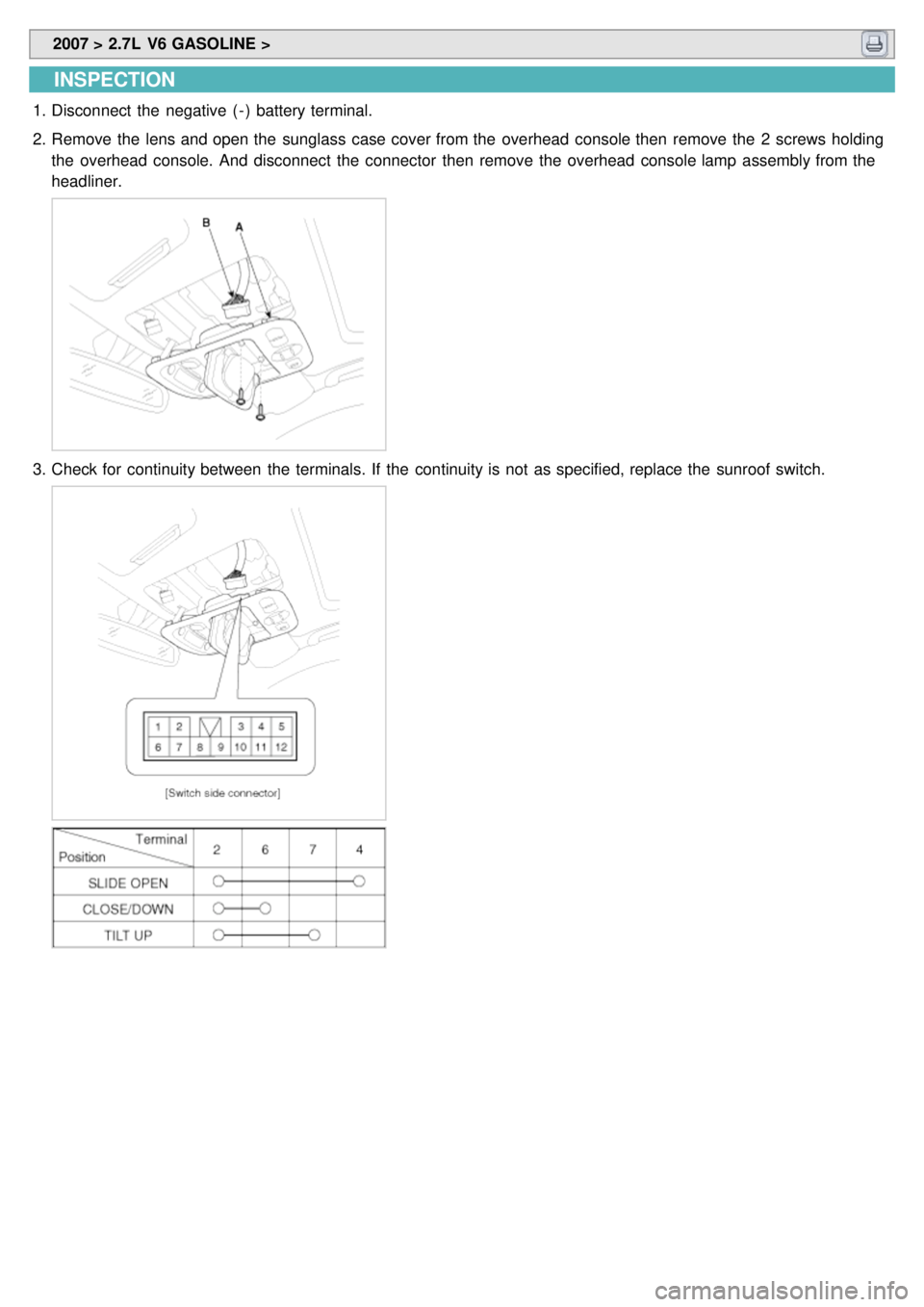

INSPECTION
1.Disconnect the negative ( - ) battery terminal.
2. Remove the lens and open the sunglass case cover from the overhead console then remove the 2 screws holding
the overhead console. And disconnect the connector then remove the overhead console lamp assembly from the
headliner.
3.Check for continuity between the terminals. If the continuity is not as specified, replace the sunroof switch.

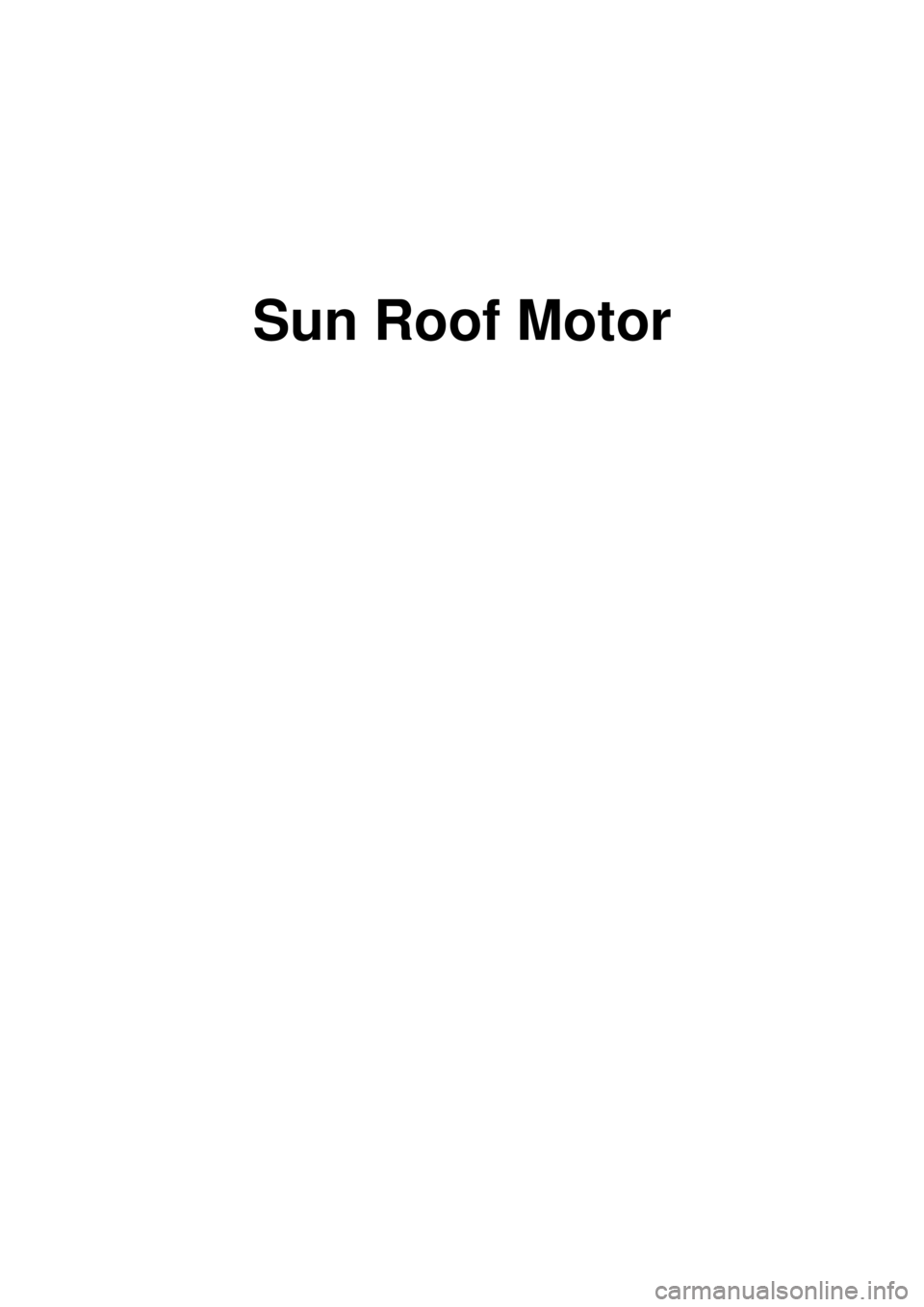

Sun Roof Motor

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the overhead console and loosen sunroof motor bracket (A) mounting bolts (4EA).
3.Remove sunroof motor mounting screw (3EA) and disconnect connector (10pin). And then remove the sun roof
motor.
RESETTING THE SUNROOF
Whenever the vehicle battery is disconnected or discharged, or you use the emergency handle to operate the sunroof,
you have to reset your sunroof system as follows :
1. Turn the ignition key to the ON position. Press and hold the TILT UP button more than 15s until the sunroof has
tilted upward/downward slightly.
2. When this is complete, Press and hold the TILT UP button once again until the sunroof has raised above and
returned to the maximum TILT UP position.
When this is complete, the sunroof system is reset.
