2007 KIA CARNIVAL Workshop Manual

2.Installation is the reverse the removal.
a.Make sure the connector is plugged in properly.
LOWER PANEL REPLACEMENT
1.Remove the crash pad side cover.
2. Remove the fuse box cover (A).
3.After loosening the crash pad lower panel mounting screws, then remove the lower panel (B).
4. Remove the parking brake lever (C).
[LHD]

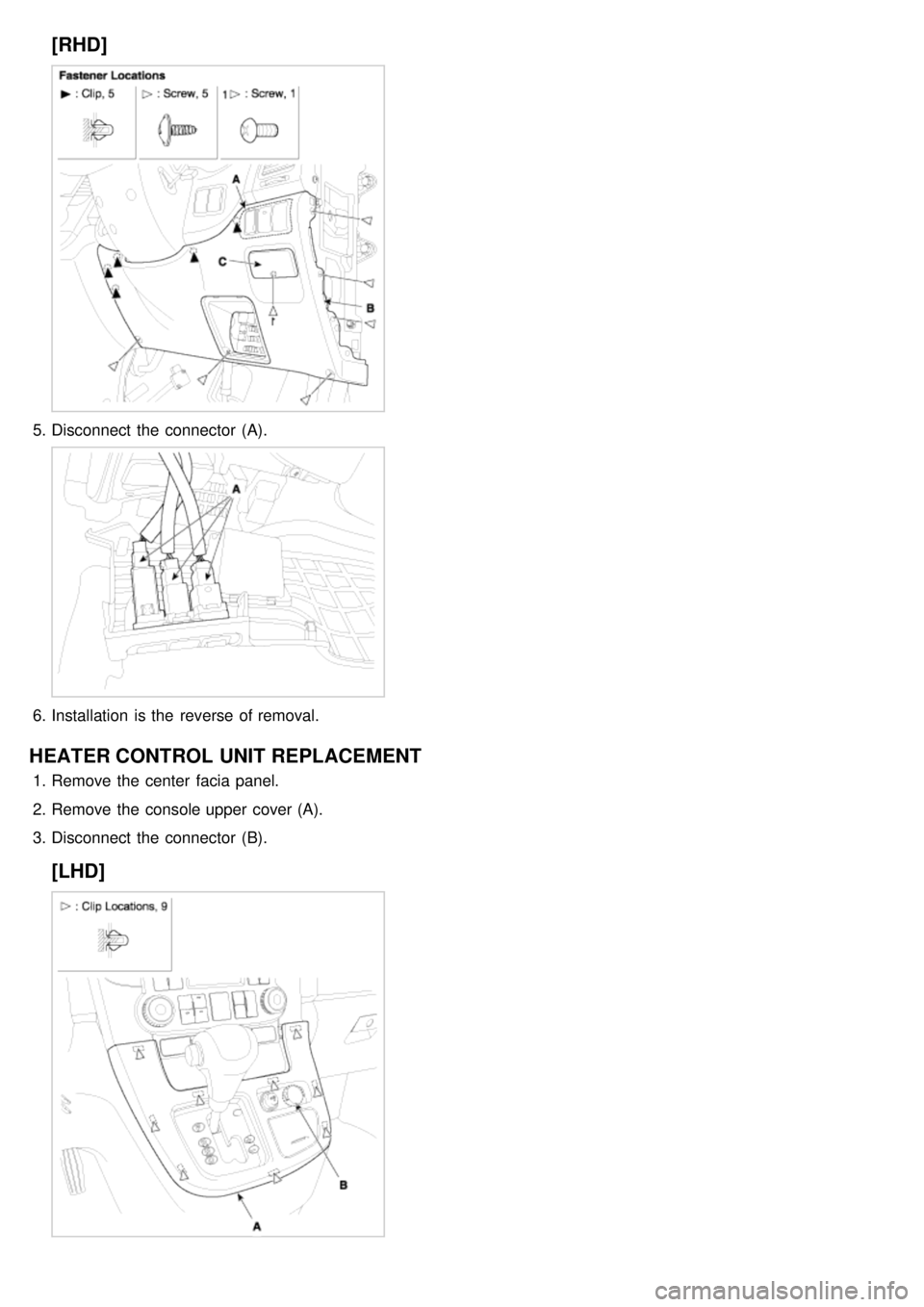

[RHD]
5.Disconnect the connector (A).
6.Installation is the reverse of removal.
HEATER CONTROL UNIT REPLACEMENT
1.Remove the center facia panel.
2. Remove the console upper cover (A).
3. Disconnect the connector (B).
[LHD]

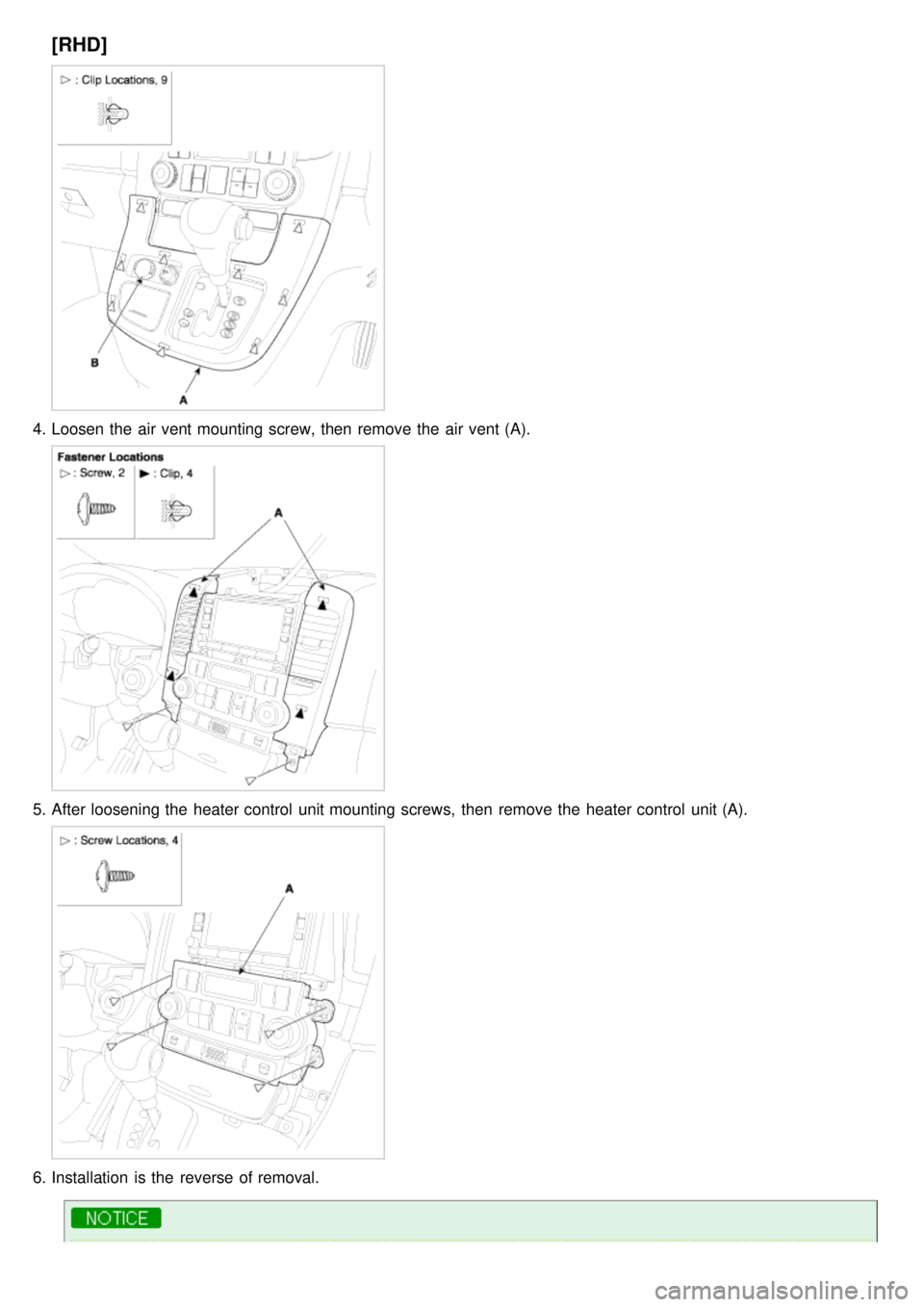

[RHD]
4.Loosen the air vent mounting screw, then remove the air vent (A).
5.After loosening the heater control unit mounting screws, then remove the heater control unit (A).
6.Installation is the reverse of removal.

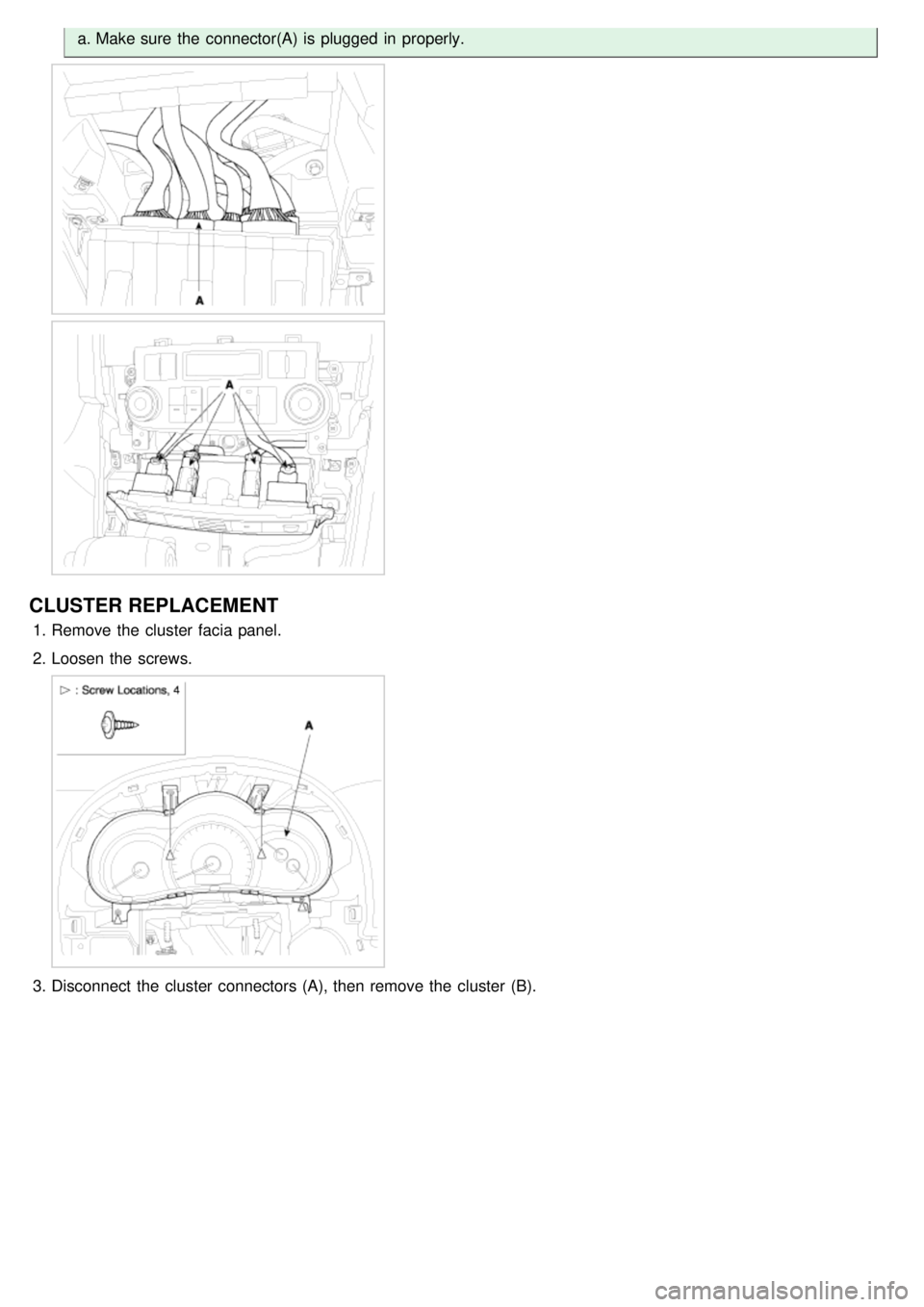

a.Make sure the connector(A) is plugged in properly.
CLUSTER REPLACEMENT
1.Remove the cluster facia panel.
2. Loosen the screws.
3.Disconnect the cluster connectors (A), then remove the cluster (B).

4.Installation is the reverse of removal.
a.Make sure the connector are plugged in properly.
AUDIO ASSEMBLY REPLACEMENT
1.Remove the center facia panel.
2. Loosen the screws.
3.Disconnect the connector (A), then remove the audio assembly (B).
4.Installation is the reverse of removal.
a.Make sure the connector are plugged in properly.

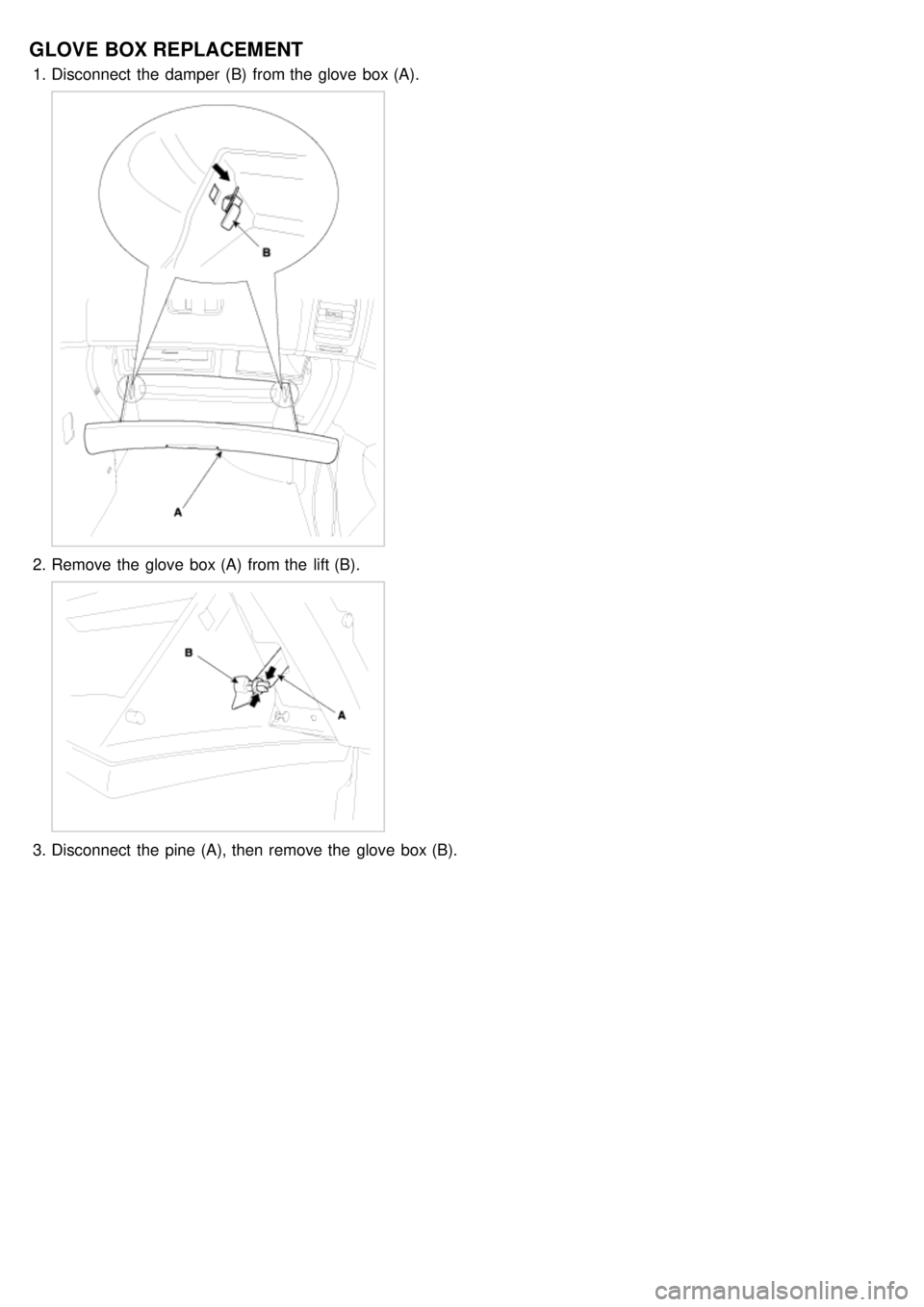

GLOVE BOX REPLACEMENT
1.Disconnect the damper (B) from the glove box (A).
2.Remove the glove box (A) from the lift (B).

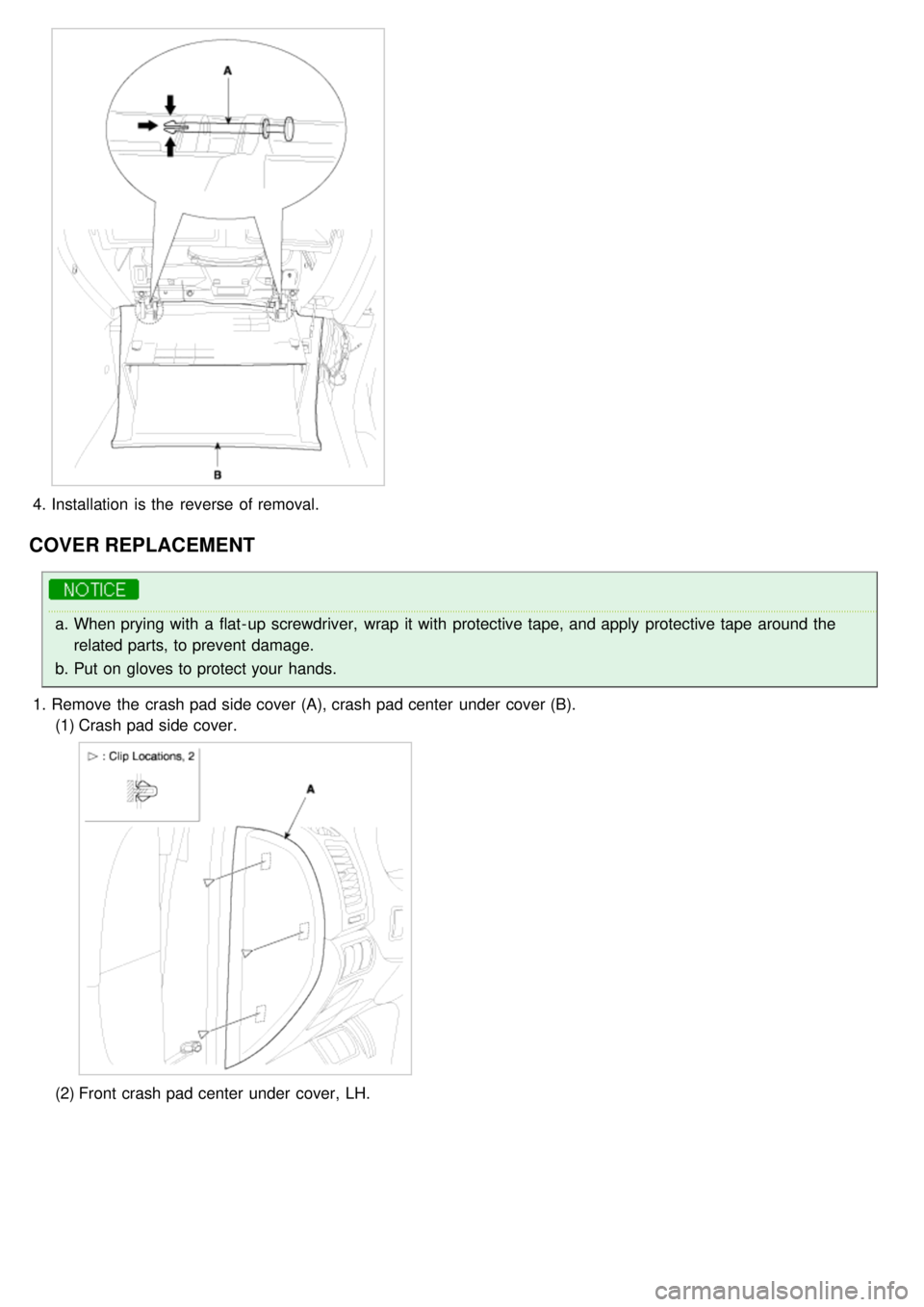

3.Disconnect the pine (A), then remove the glove box (B).

4.Installation is the reverse of removal.
COVER REPLACEMENT
a.When prying with a flat- up screwdriver, wrap it with protective tape, and apply protective tape around the
related parts, to prevent damage.
b. Put on gloves to protect your hands.
1. Remove the crash pad side cover (A), crash pad center under cover (B).
(1) Crash pad side cover.

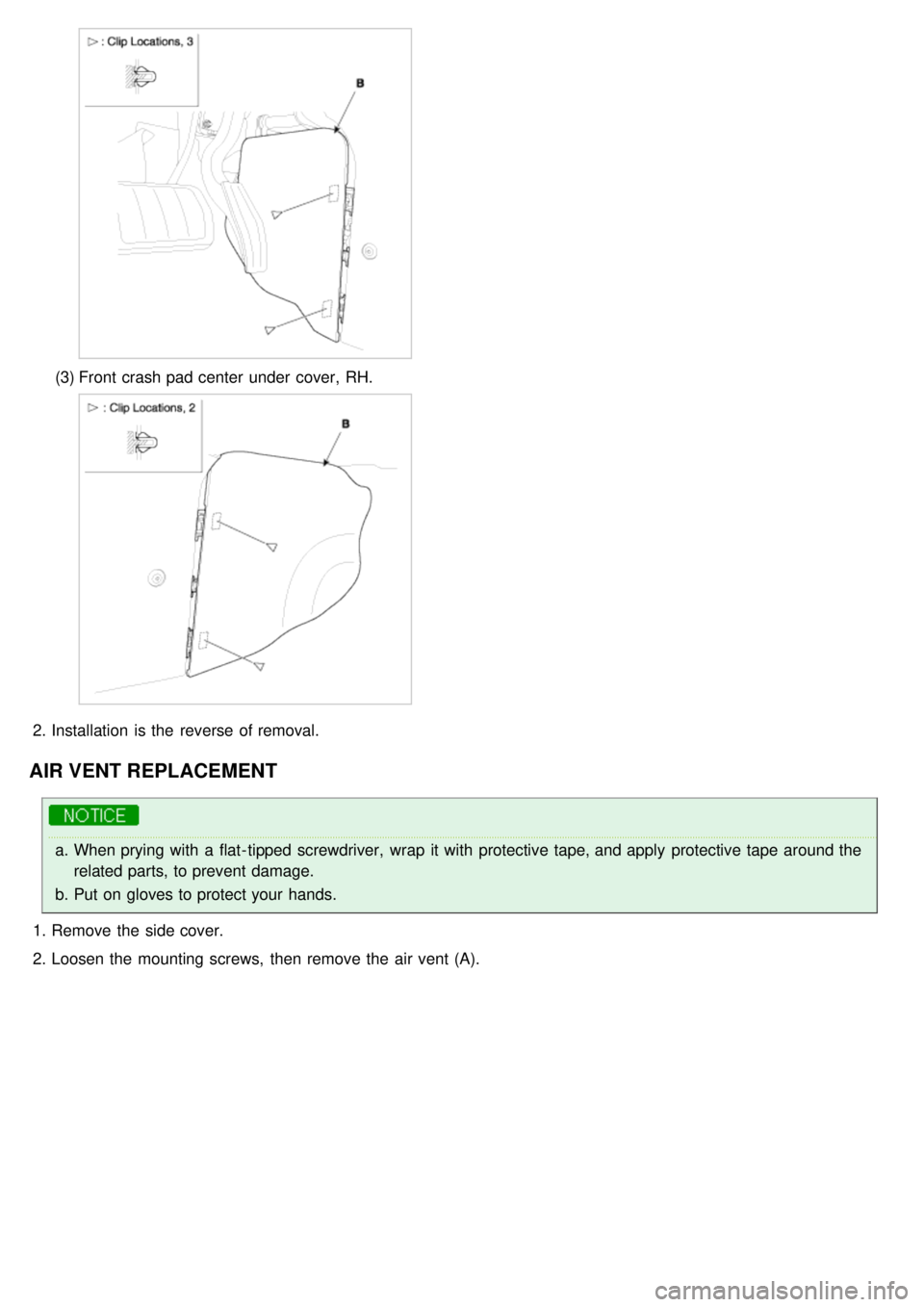

(2)Front crash pad center under cover, LH.

(3)Front crash pad center under cover, RH.
2.Installation is the reverse of removal.
AIR VENT REPLACEMENT
a.When prying with a flat- tipped screwdriver, wrap it with protective tape, and apply protective tape around the
related parts, to prevent damage.
b. Put on gloves to protect your hands.
1. Remove the side cover.
2. Loosen the mounting screws, then remove the air vent (A).
