2007 KIA CARNIVAL Workshop Manual

a.When prying with a flat- tipper screwdriver, wrap it with protective tape, and apply protective tape around the
related parts, to prevent damage.
b. Put on gloves to protect your hands.
c. Take care not to scratch the body surface.
1. Remove all the screw and clips to replace the side garnish and side sill.

Mirror

2007 > 2.7L V6 GASOLINE >

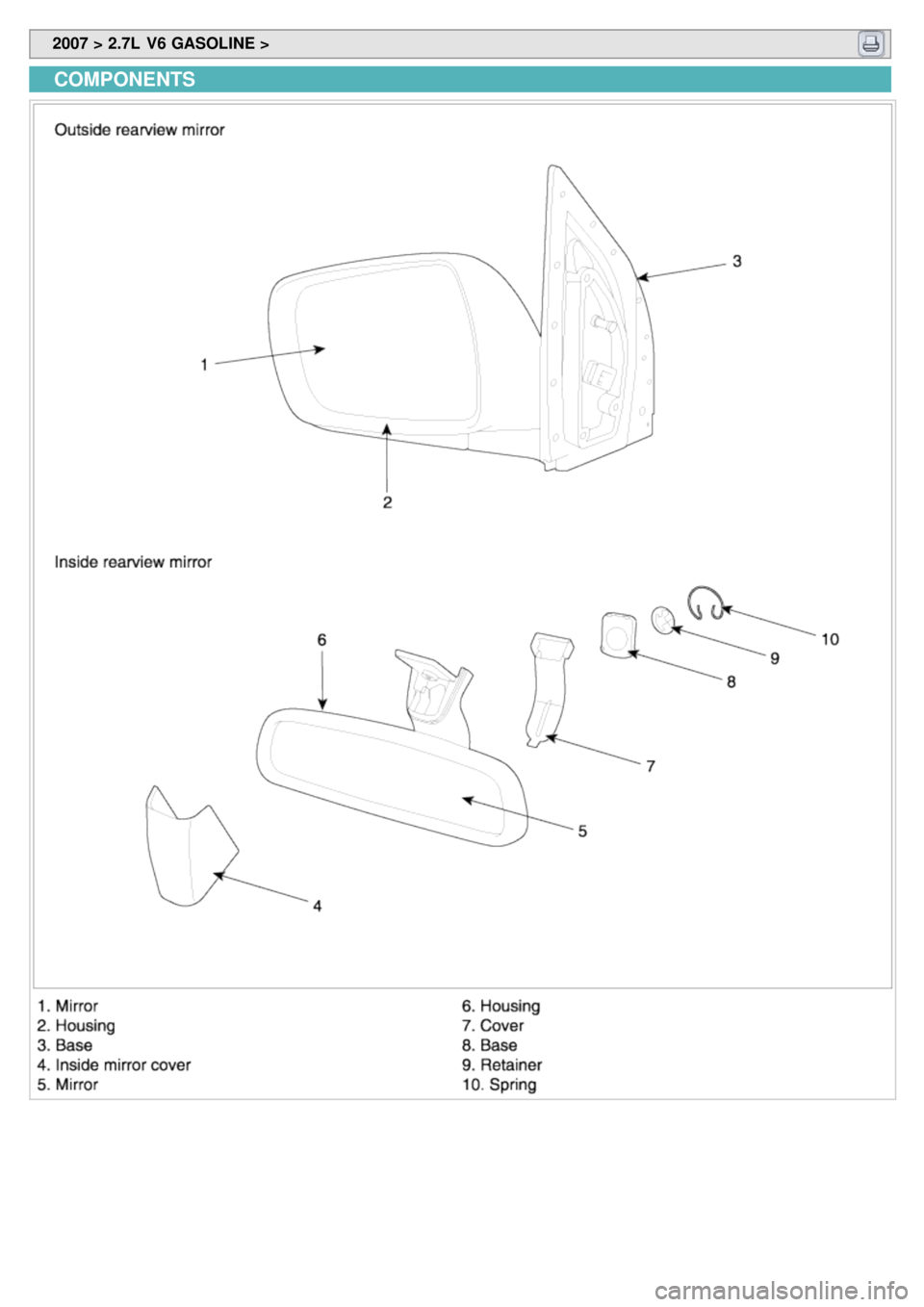

COMPONENTS

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
OUTSIDE REAR VIEW MIRROR RELPLACEMENT
a. When prying with a flat- tipper screwdriver, wrap it with protective tape, and apply protective tape around the
related parts, to prevent damage.
b. Put on gloves to protect your hands.
1. Remove the quadrant inner cover (A).
2.Remove the door trim.
3. After disconnecting the connector (A), remove the outside rear view mirror (B).
4.Installation is the reverse of removal.
INSIDE REAR VIEW MIRROR REPLACEMENT
1.Push the inside rear view mirror base (A) down to remove to inside rear view mirror assembly (B).

2.Installation is the reverse of removal.

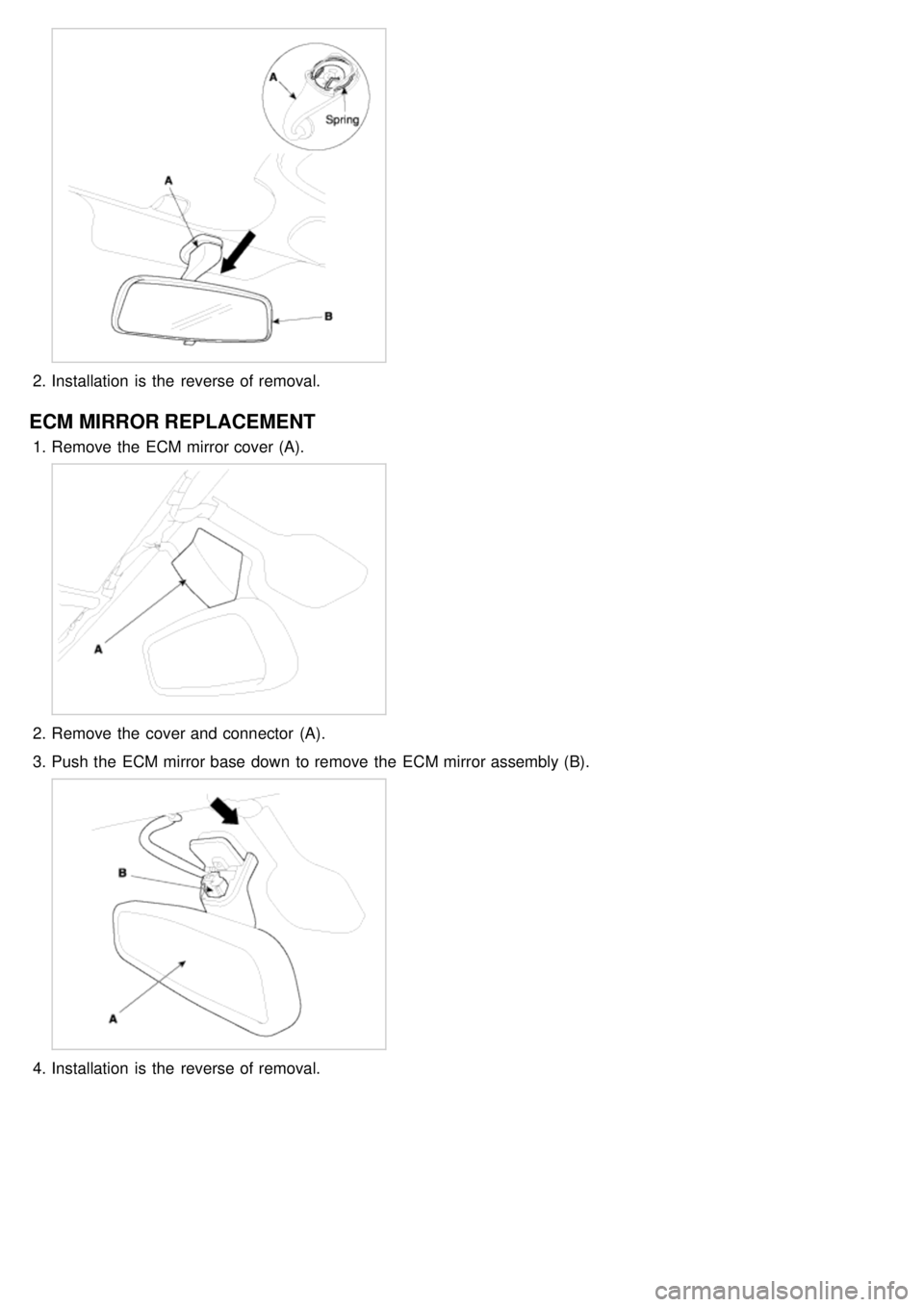

ECM MIRROR REPLACEMENT
1.Remove the ECM mirror cover (A).
2.Remove the cover and connector (A).
3. Push the ECM mirror base down to remove the ECM mirror assembly (B).
4.Installation is the reverse of removal.

Interior

Console

2007 > 2.7L V6 GASOLINE >

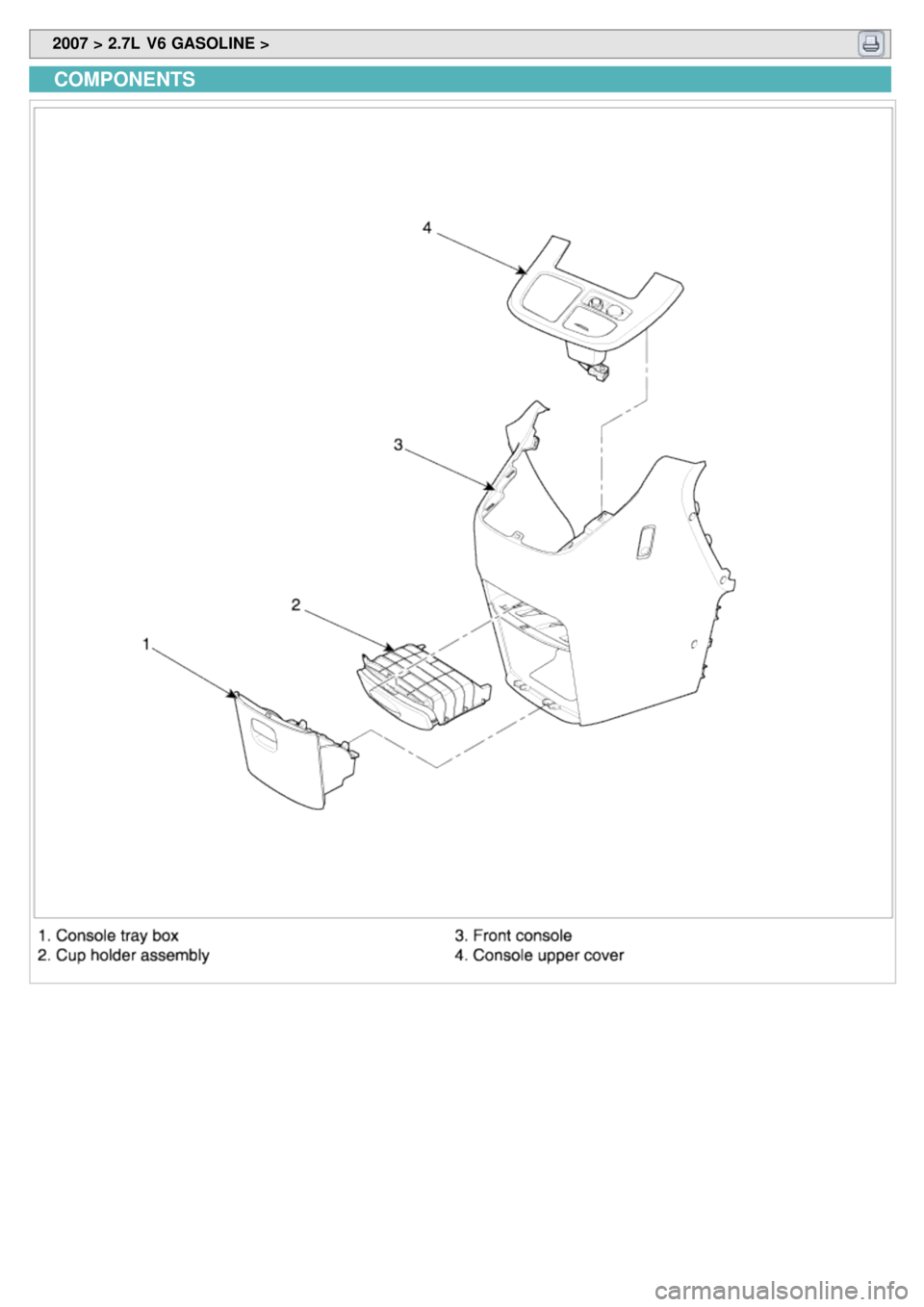

COMPONENTS
