2007 KIA CARNIVAL Workshop Manual

Turn Signal Lamp

2007 > 2.7L V6 GASOLINE >
REPLACEMENT

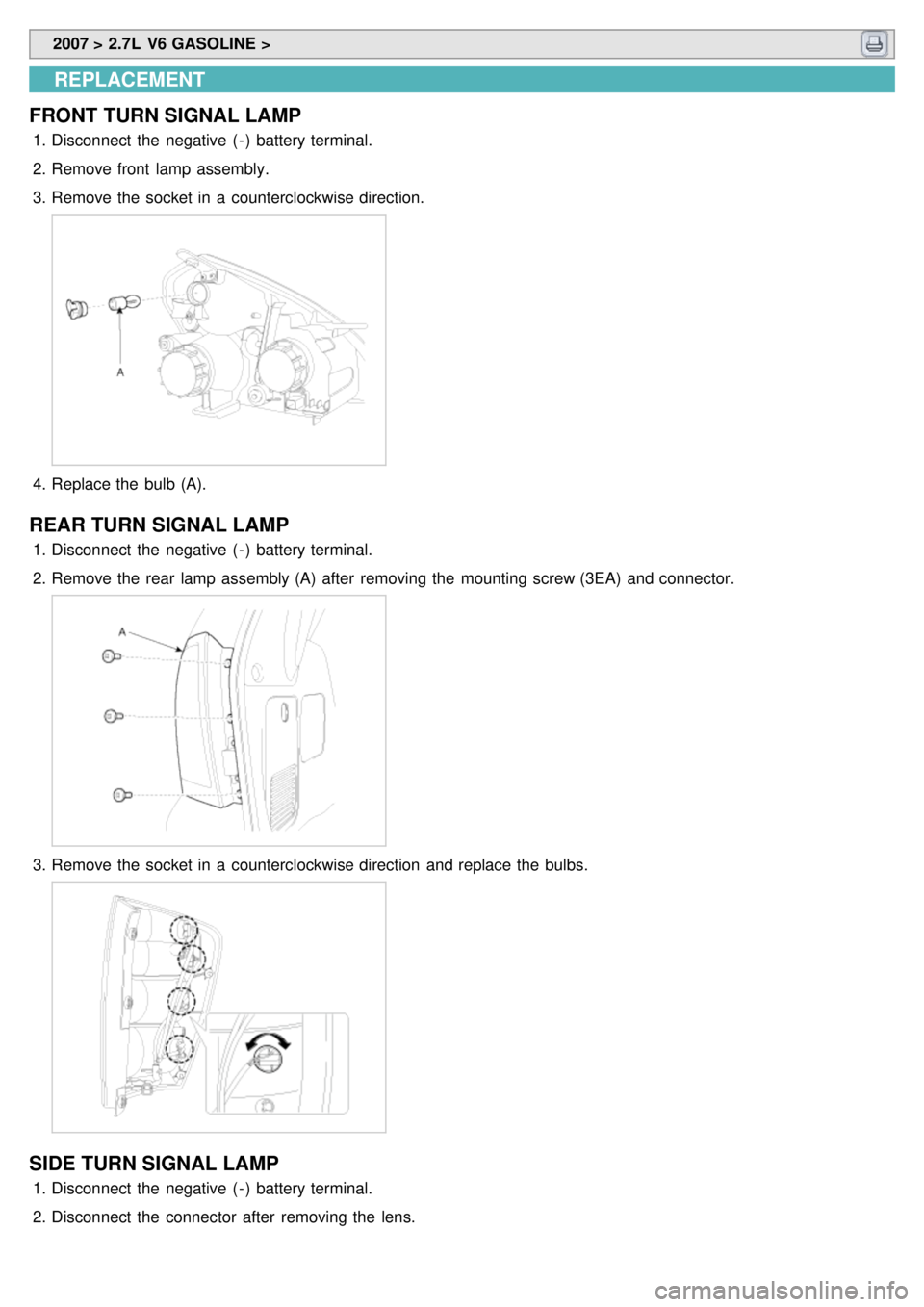

FRONT TURN SIGNAL LAMP
1. Disconnect the negative ( - ) battery terminal.
2. Remove front lamp assembly.
3. Remove the socket in a counterclockwise direction.
4.Replace the bulb (A).
REAR TURN SIGNAL LAMP
1.Disconnect the negative ( - ) battery terminal.
2. Remove the rear lamp assembly (A) after removing the mounting screw (3EA) and connector.
3.Remove the socket in a counterclockwise direction and replace the bulbs.

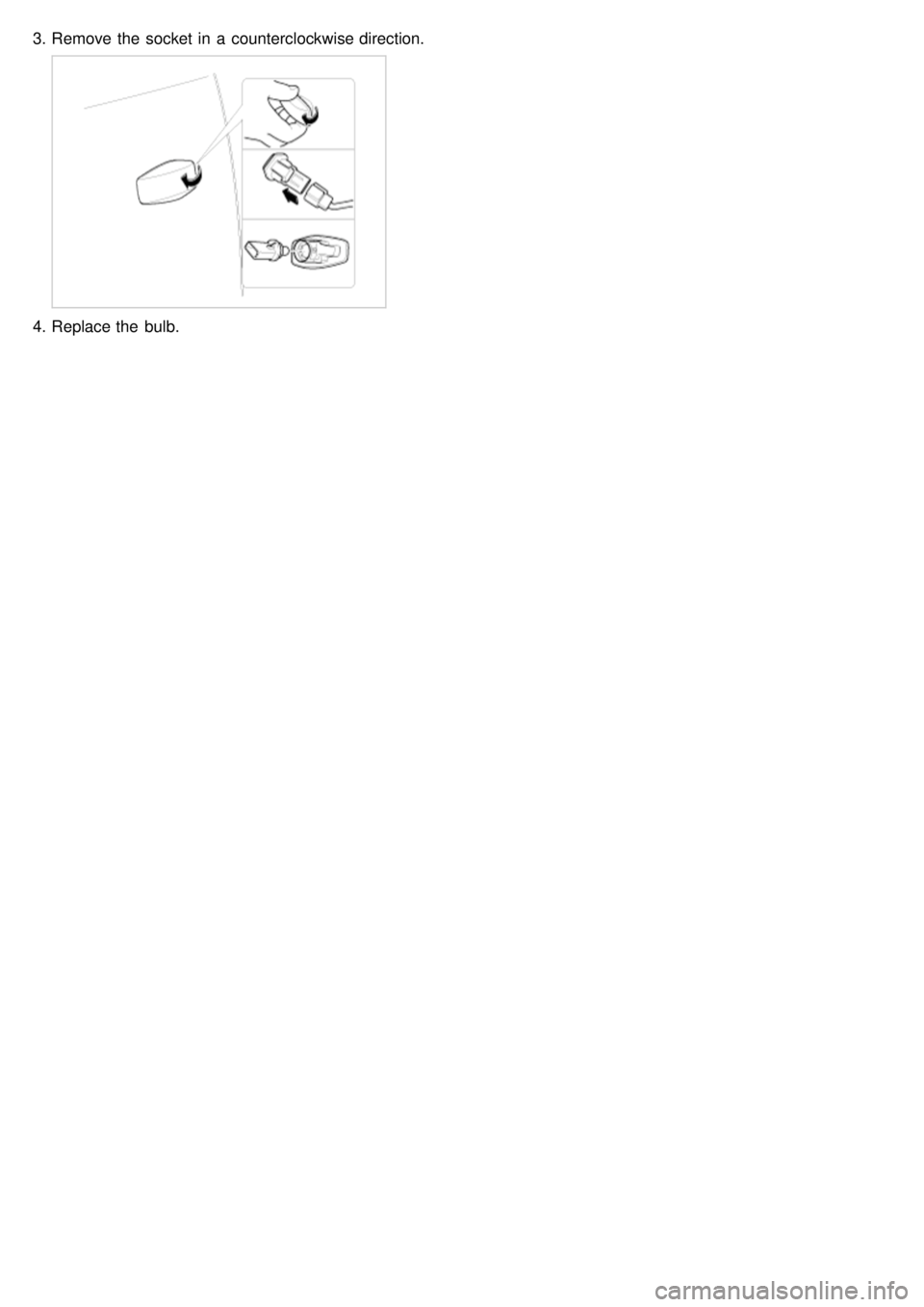

SIDE TURN SIGNAL LAMP
1.Disconnect the negative ( - ) battery terminal.
2. Disconnect the connector after removing the lens.

3.Remove the socket in a counterclockwise direction.
4.Replace the bulb.

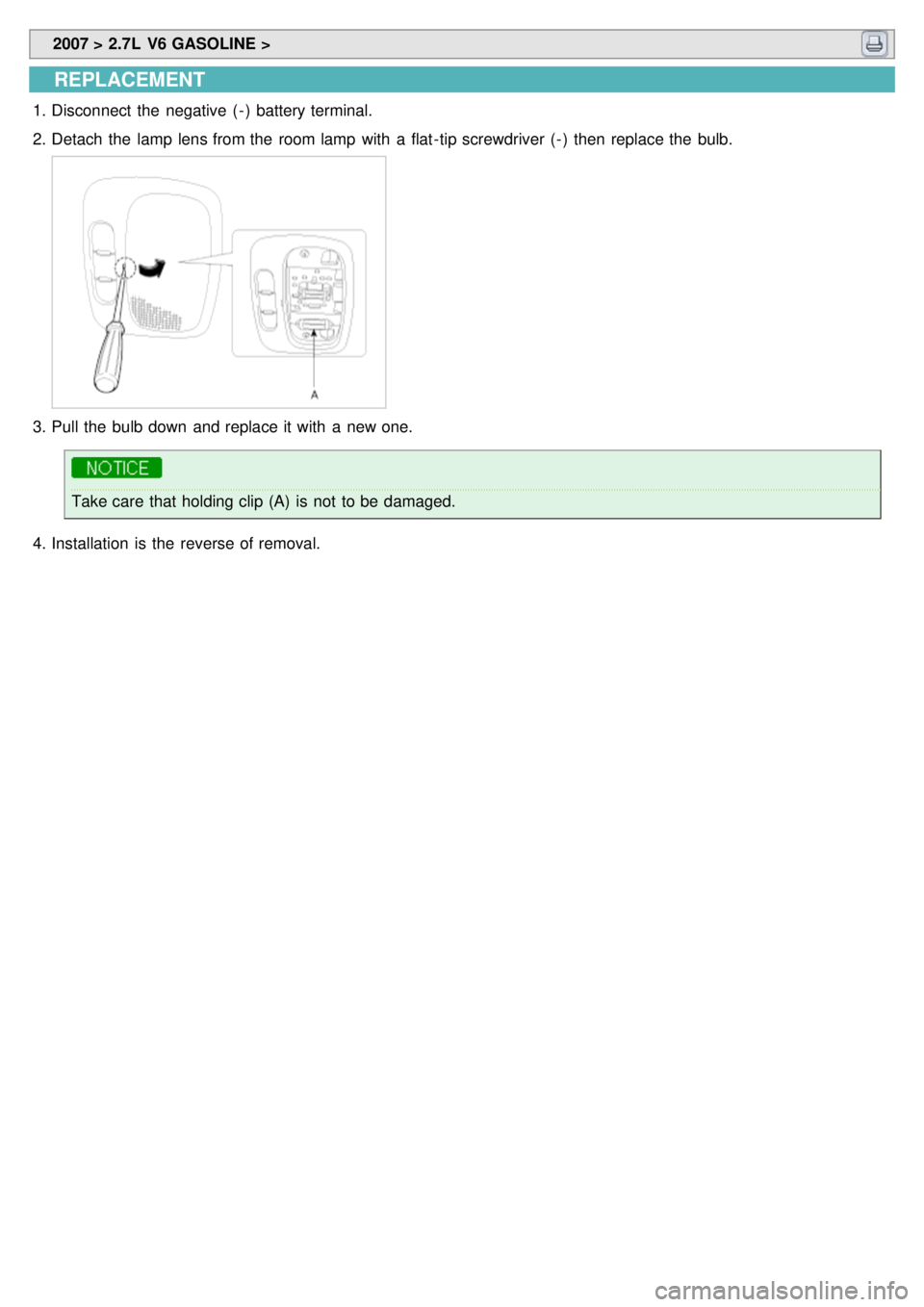

Room Lamp

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Detach the lamp lens from the room lamp with a flat- tip screwdriver ( - ) then replace the bulb.
3.Pull the bulb down and replace it with a new one.
Take care that holding clip (A) is not to be damaged.
4. Installation is the reverse of removal.

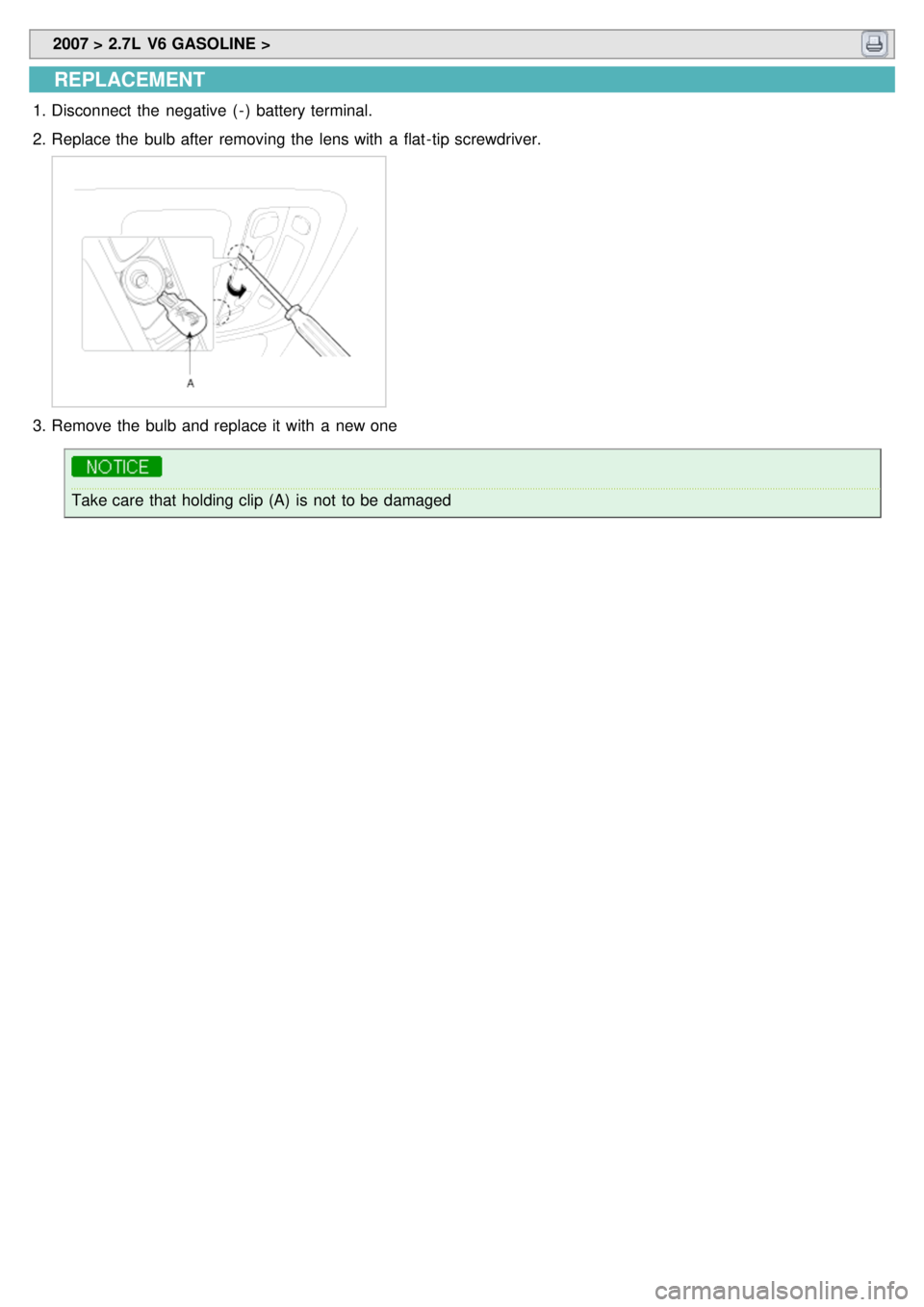

Overhead Console Lamp

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Replace the bulb after removing the lens with a flat- tip screwdriver.
3.Remove the bulb and replace it with a new one
Take care that holding clip (A) is not to be damaged

Courtesy Lamp
