2007 KIA CARNIVAL Workshop Manual

Seat Heater Switch

2007 > 2.7L V6 GASOLINE >
INSPECTION
1.Disconnect the negative ( - ) battery terminal.
2. Remove the seat back (Refer to Body group - front seat).
3.Remove the mounting screw, center facia panel switch and then disconnect connectors.
4.Remove the seat warmer switch (A) from center facia panel switch.
5.Installation is the reverse of removal.

Seat Heater Module

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.

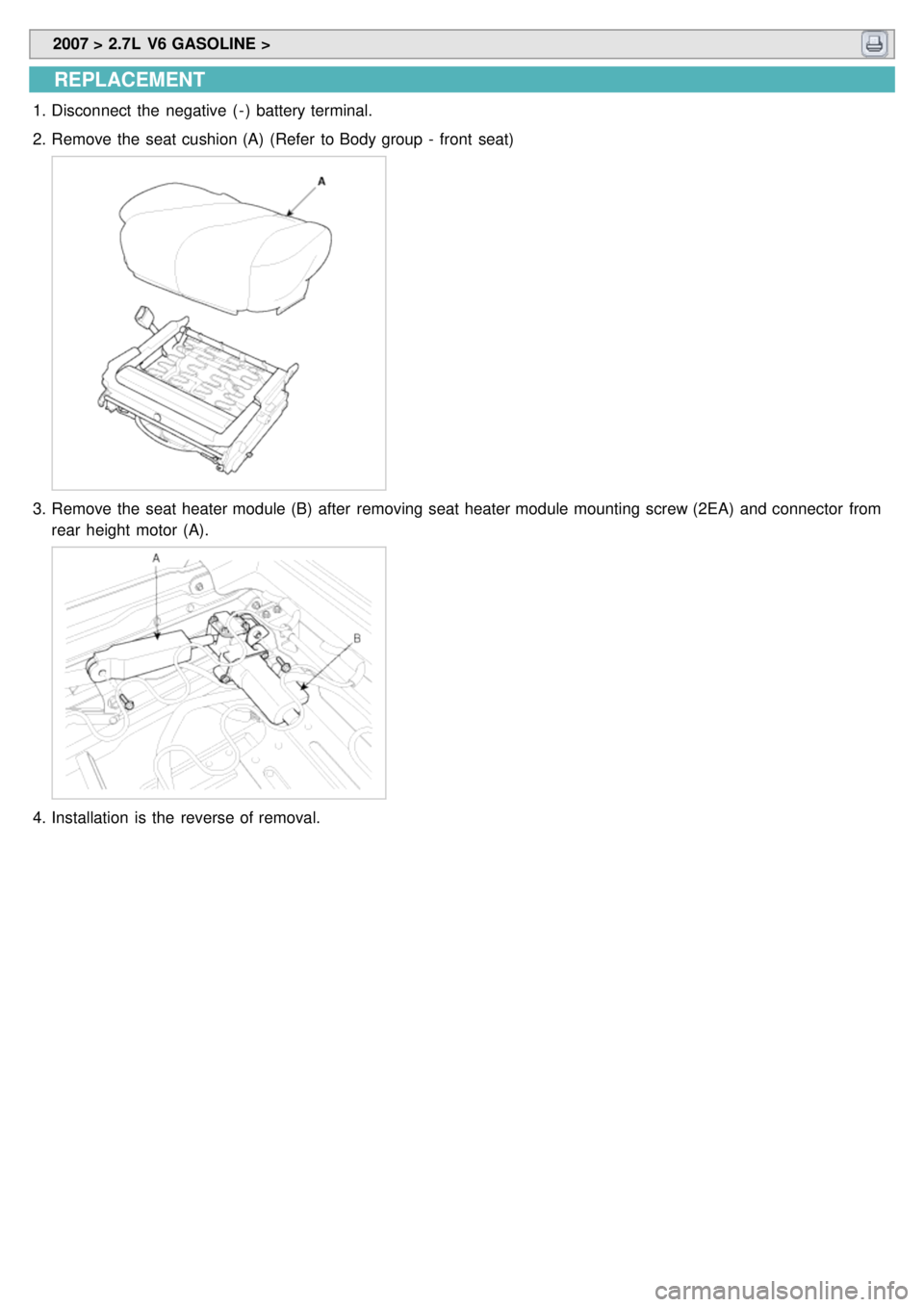

2. Remove the seat cushion (A) (Refer to Body group - front seat)
3.Remove the seat heater module (B) after removing seat heater module mounting screw (2EA) and connector from
rear height motor (A).
4.Installation is the reverse of removal.

Seat Heater

2007 > 2.7L V6 GASOLINE >
INSPECTION
1.Replacement of new part refer to Body group - front seat.

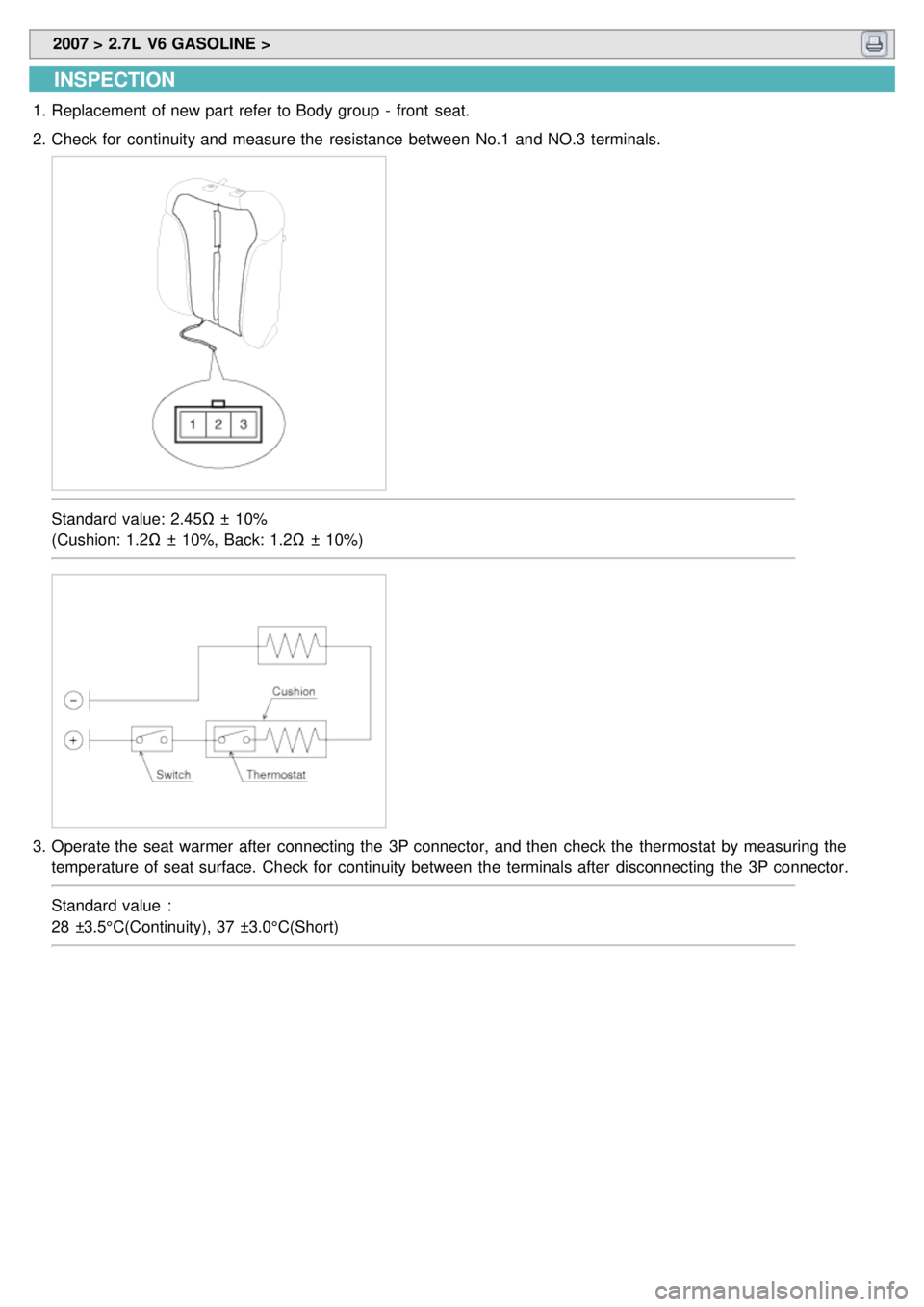

2. Check for continuity and measure the resistance between No.1 and NO.3 terminals.
Standard value: 2.45Ω ± 10%
(Cushion: 1.2Ω ± 10%, Back: 1.2Ω ± 10%)
3.Operate the seat warmer after connecting the 3P connector, and then check the thermostat by measuring the
temperature of seat surface. Check for continuity between the terminals after disconnecting the 3P connector.
Standard value :
28 ±3.5°C(Continuity), 37 ±3.0°C(Short)

Fuel Filler Door

2007 > 2.7L V6 GASOLINE >

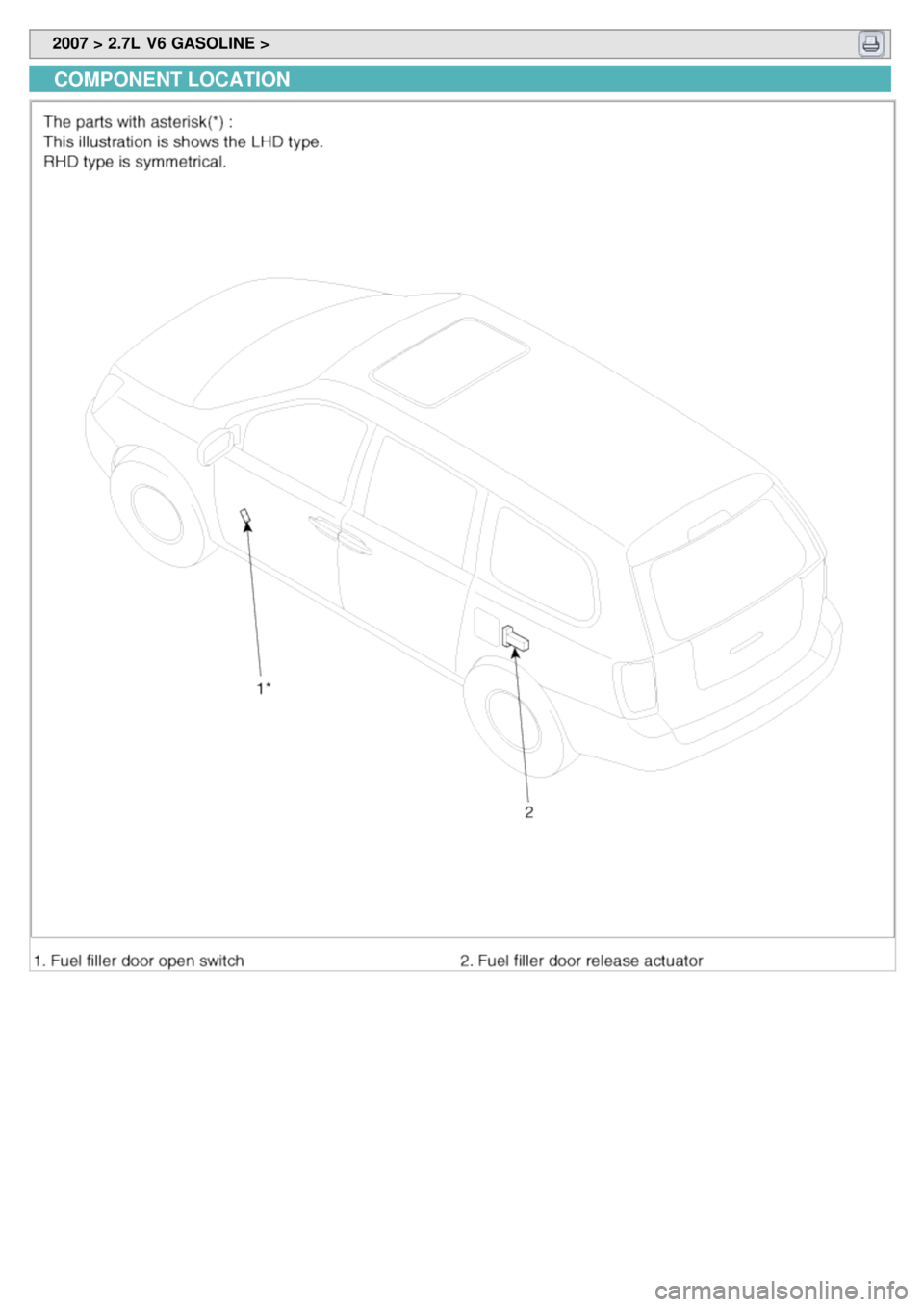

COMPONENT LOCATION
