2007 KIA CARNIVAL Workshop Manual

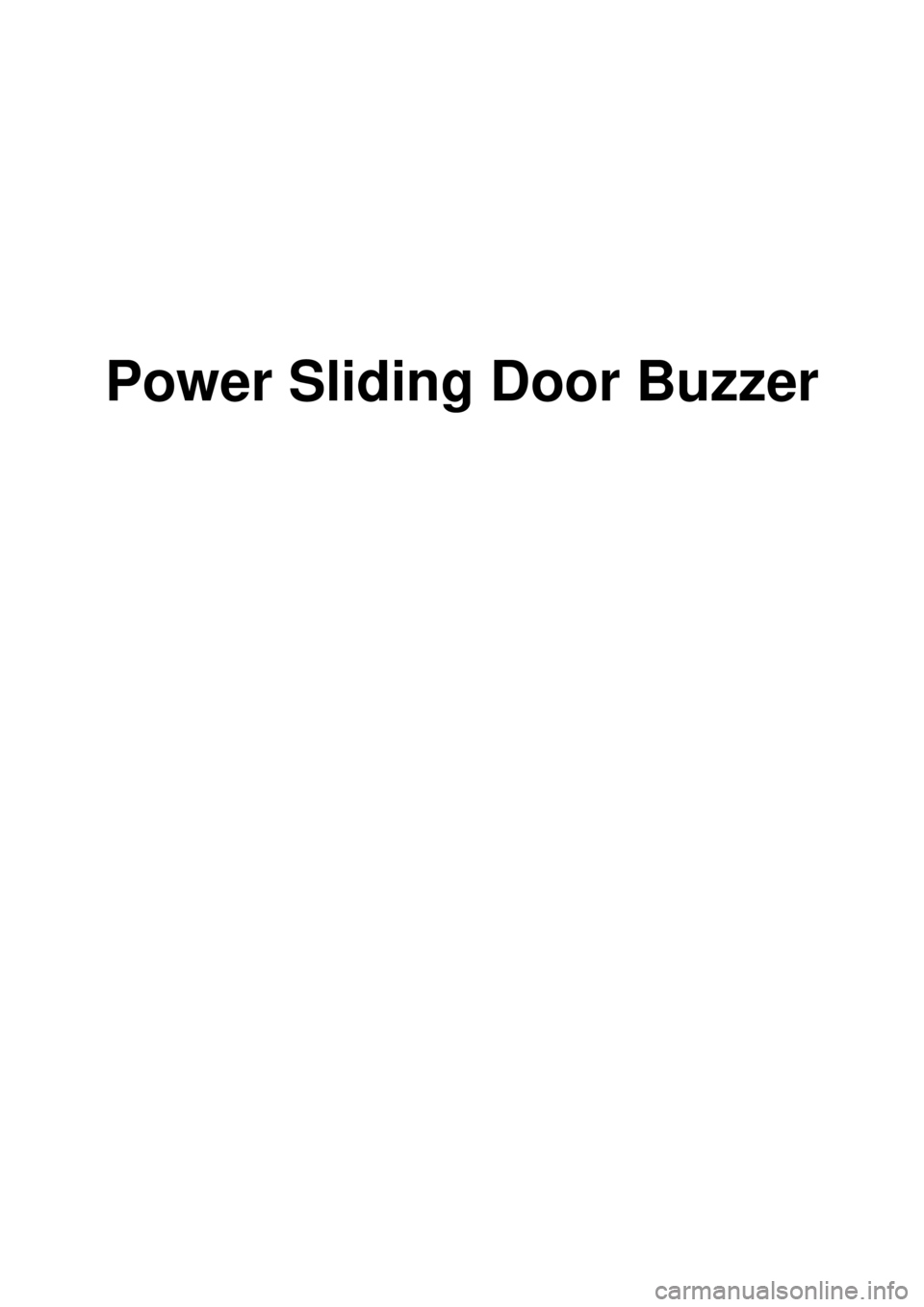

Power Sliding Door Buzzer

2007 > 2.7L V6 GASOLINE >

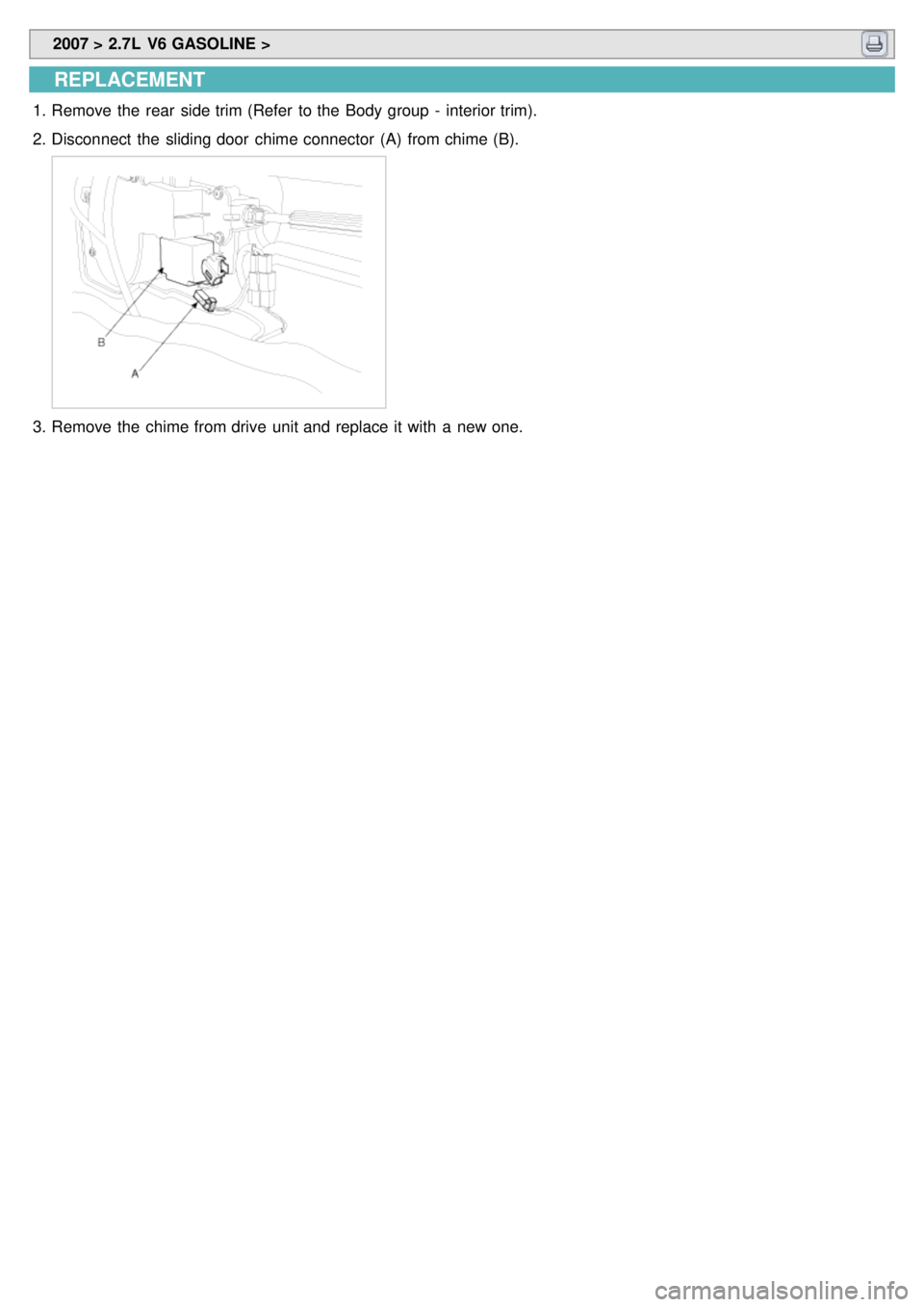

REPLACEMENT
1.Remove the rear side trim (Refer to the Body group - interior trim).
2. Disconnect the sliding door chime connector (A) from chime (B).
3.Remove the chime from drive unit and replace it with a new one.

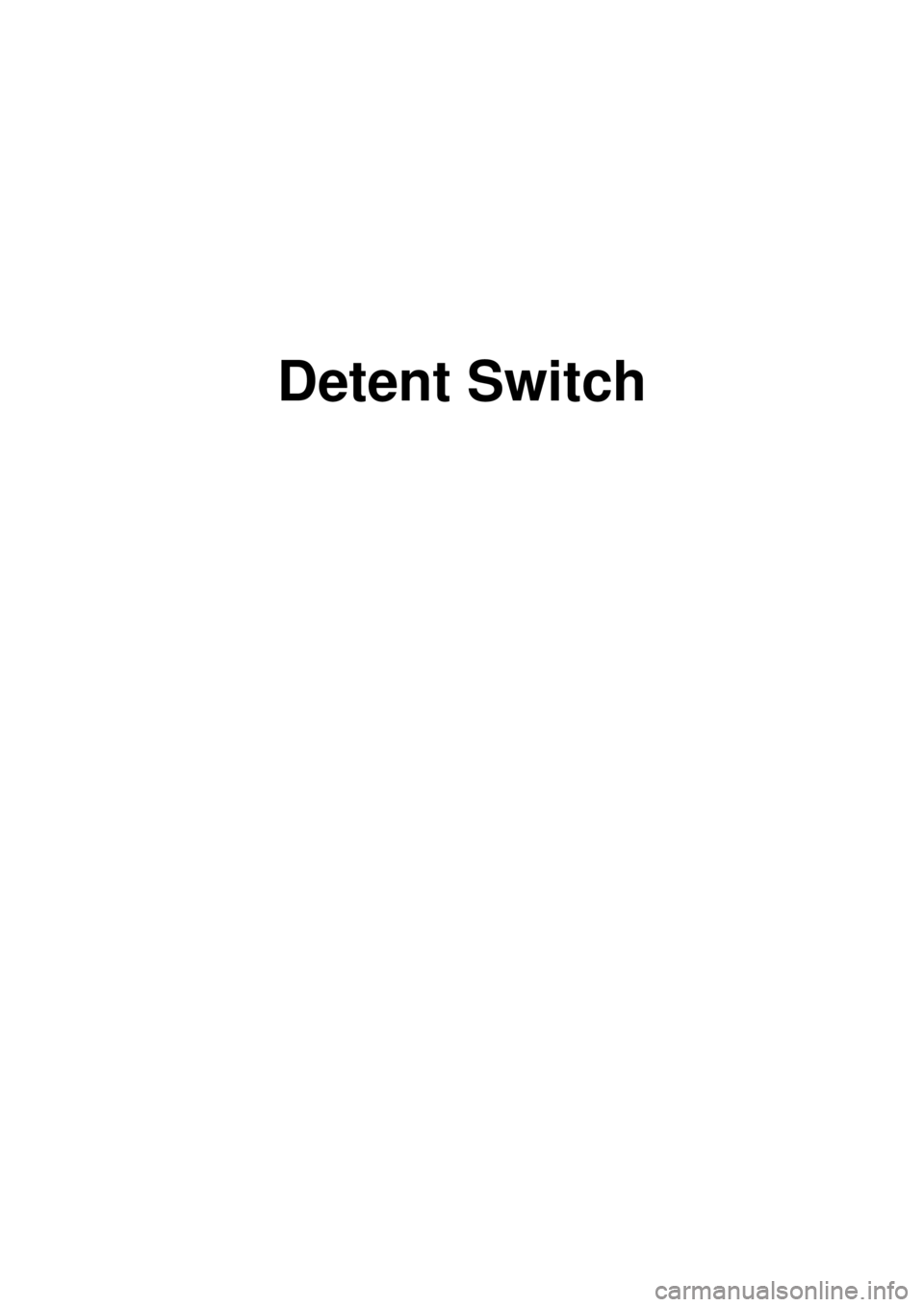

Detent Switch

2007 > 2.7L V6 GASOLINE >
INSPECTION
1.Detent switch detect the latch position within latch assembly.
2.Check the power sliding door control module input/output value by using the diagnostic tool.
3. When checking the detent switch, select a vehicle type and "POWER SLIDING/TAIL GATE" menu.
4.Select the "POWER SLIDING DOOR".

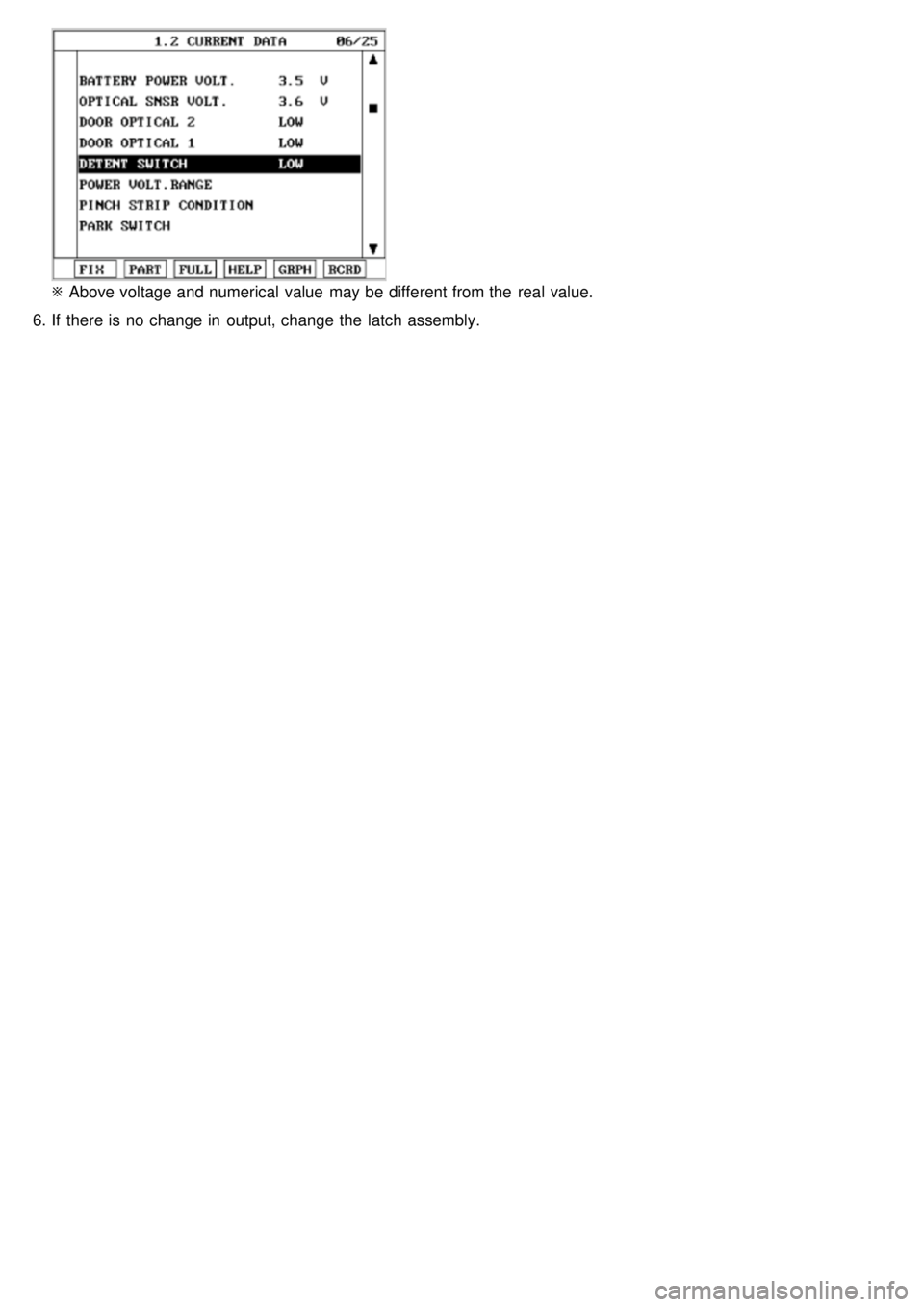

5.Select the detent sensor output. And then check the detent switch output with operating power sliding door.

※ Above voltage and numerical value may be different from the real value.
6. If there is no change in output, change the latch assembly.

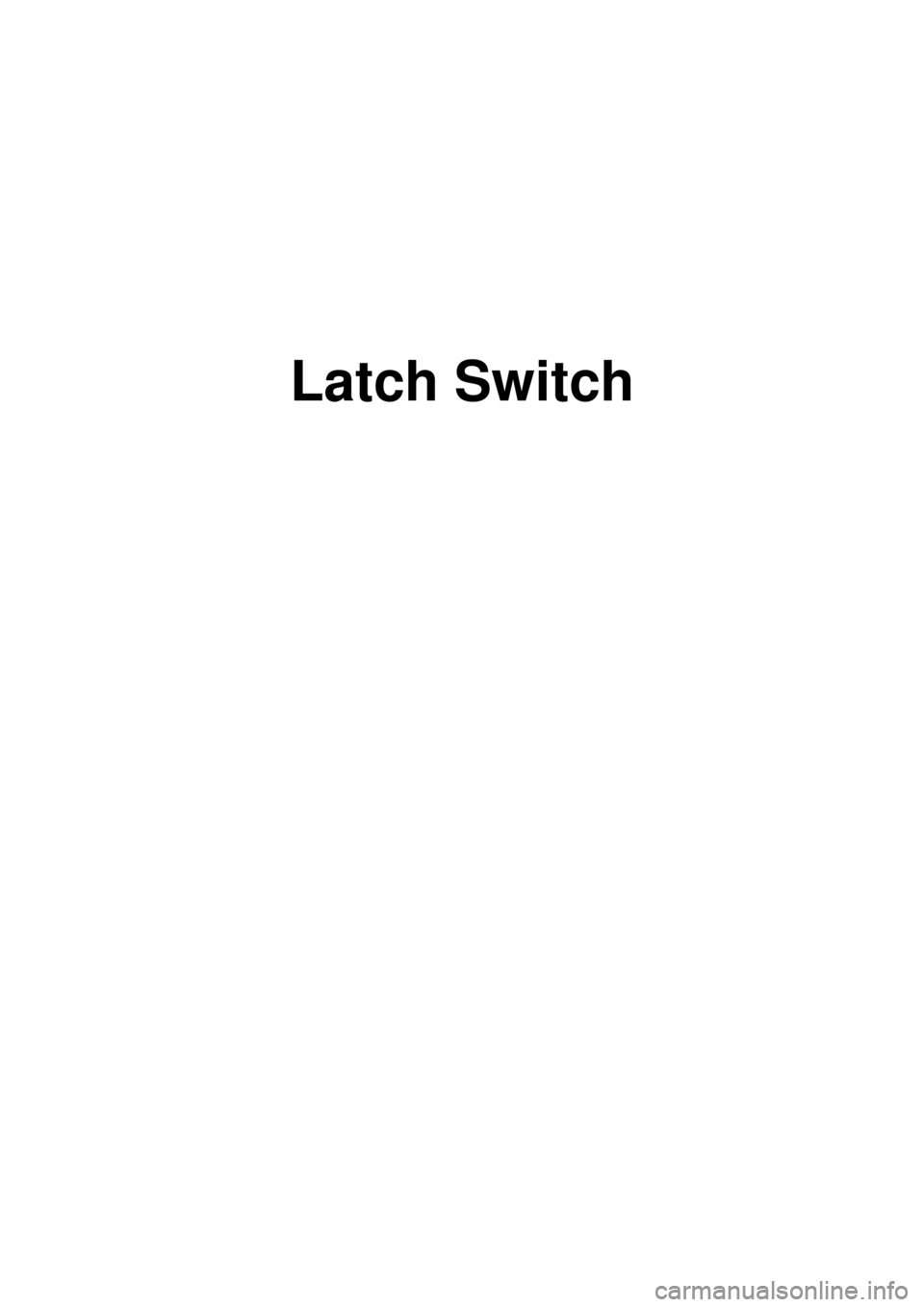

Latch Switch

2007 > 2.7L V6 GASOLINE >
INSPECTION
1.Check the power sliding door control module input/output value by using the diagnostic tool.
2. When checking the latch, select a vehicle type and "POWER SLIDING/TAIL GATE" menu.
3.Select the "POWER SLIDING DOOR".
4.Select the sensor output. And then check the unlatch feedback (Unlocked state) voltage while operating power
sliding door in power mode.
※ Above voltage and numerical value may be different from the real value.
5. If there is no change in voltage, change the latch.
ANTI PINCH STRIP
1.Check the power sliding door control module input/output value by using the diagnostic tool. If the operation of door
control module is abnormal, replace anti pinch strip control module.
2. When checking the anti pinch strip operation, select a vehicle type and "POWER SLIDING/TAIL GATE" menu.

3.Select power sliding door.
4.Select the sensor output. And then check the anti pinch strip sensor output while operating power sliding door in
power mode.
※ Above voltage and numerical value may be different from the real value.
5. Change the anti pinch strip sensor, if there is no change from OFF to ON during operation.
