2007 KIA CARNIVAL Workshop Manual

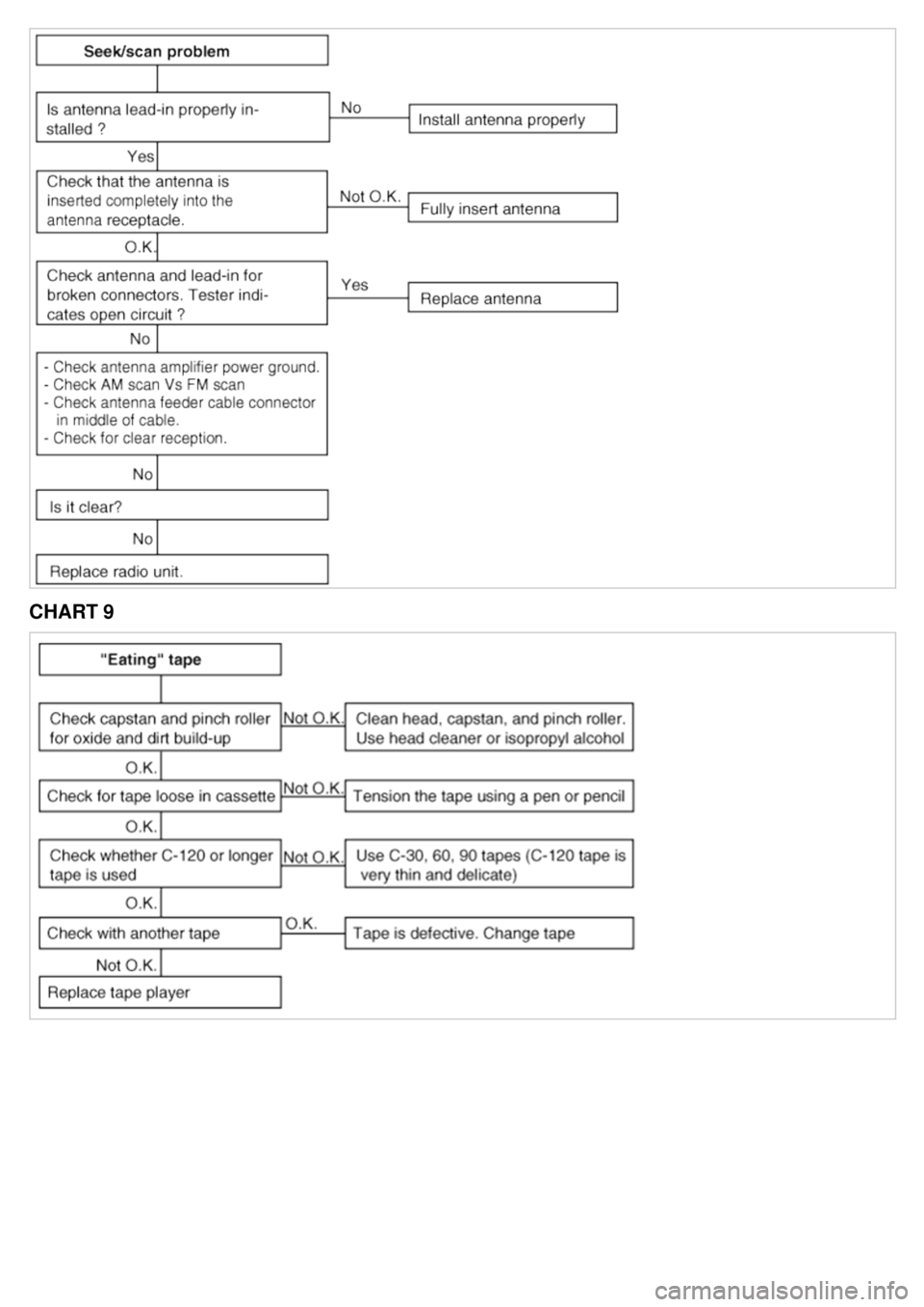

CHART 9

2007 > 2.7L V6 GASOLINE >

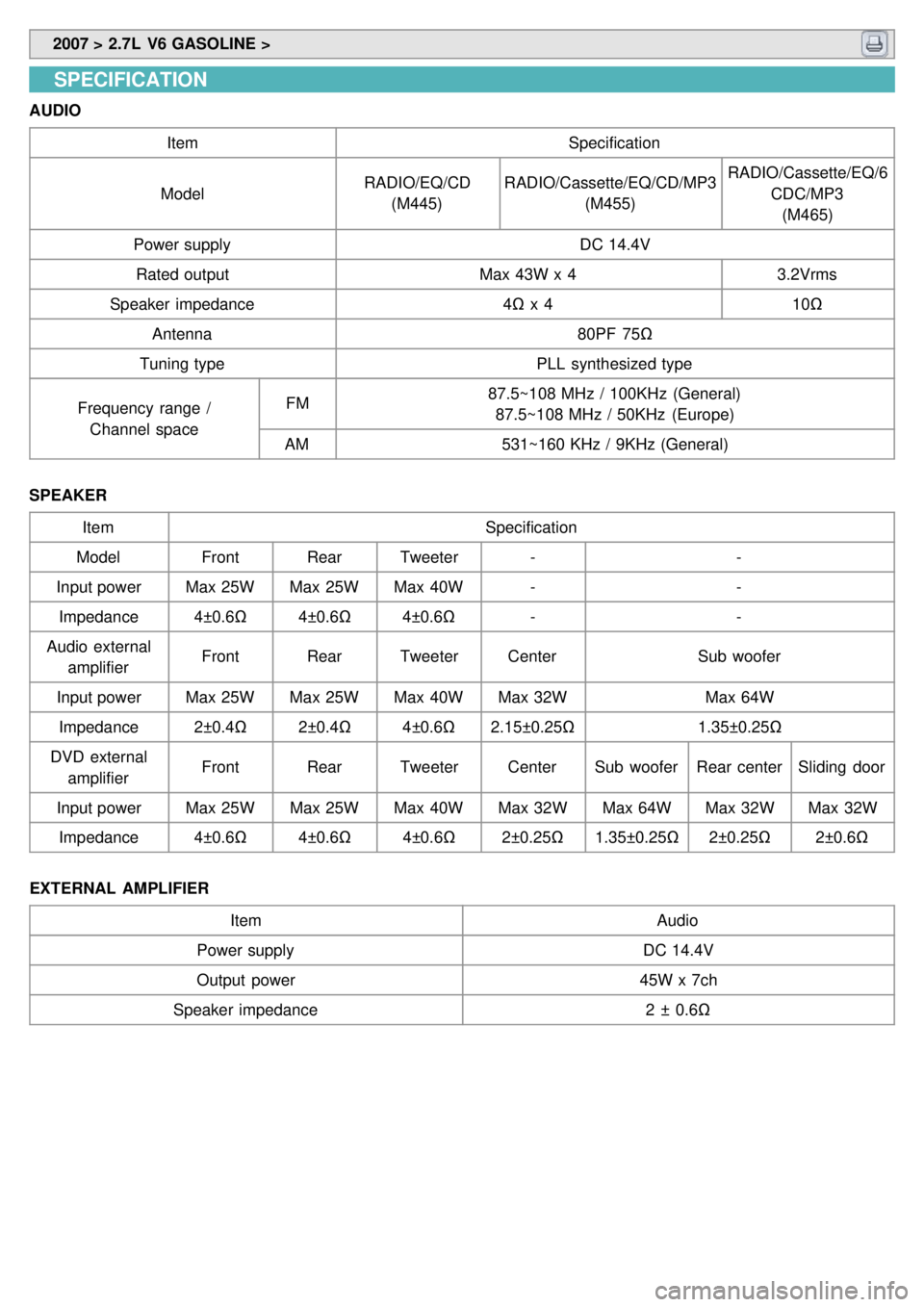

SPECIFICATION
AUDIO
Item Specification
Model RADIO/EQ/CD
(M445) RADIO/Cassette/EQ/CD/MP3
(M455) RADIO/Cassette/EQ/6
CDC/MP3(M465)
Power supply DC 14.4V
Rated output Max 43W x 43.2Vrms
Speaker impedance 4Ω x 4 10Ω
Antenna 80PF 75Ω
Tuning type PLL synthesized type
Frequency range / Channel space FM
87.5~108 MHz / 100KHz (General)
87.5~108 MHz / 50KHz (Europe)
AM 531~160 KHz / 9KHz (General)
SPEAKER Item Specification
Model FrontRearTweeter - -
Input power Max 25WMax 25WMax 40W - -
Impedance 4±0.6Ω4±0.6Ω4±0.6Ω - -
Audio external amplifier Front
RearTweeter Center Sub woofer
Input power Max 25WMax 25WMax 40WMax 32W Max 64W
Impedance 2±0.4Ω2±0.4Ω4±0.6Ω2.15±0.25Ω 1.35±0.25Ω
DVD external amplifier Front
RearTweeter CenterSub woofer Rear centerSliding door
Input power Max 25WMax 25WMax 40WMax 32WMax 64WMax 32WMax 32W
Impedance 4±0.6Ω4±0.6Ω4±0.6Ω2±0.25Ω1.35±0.25Ω 2±0.25Ω2±0.6Ω
EXTERNAL AMPLIFIER Item Audio
Power supply DC 14.4V
Output power 45W x 7ch
Speaker impedance 2 ± 0.6Ω

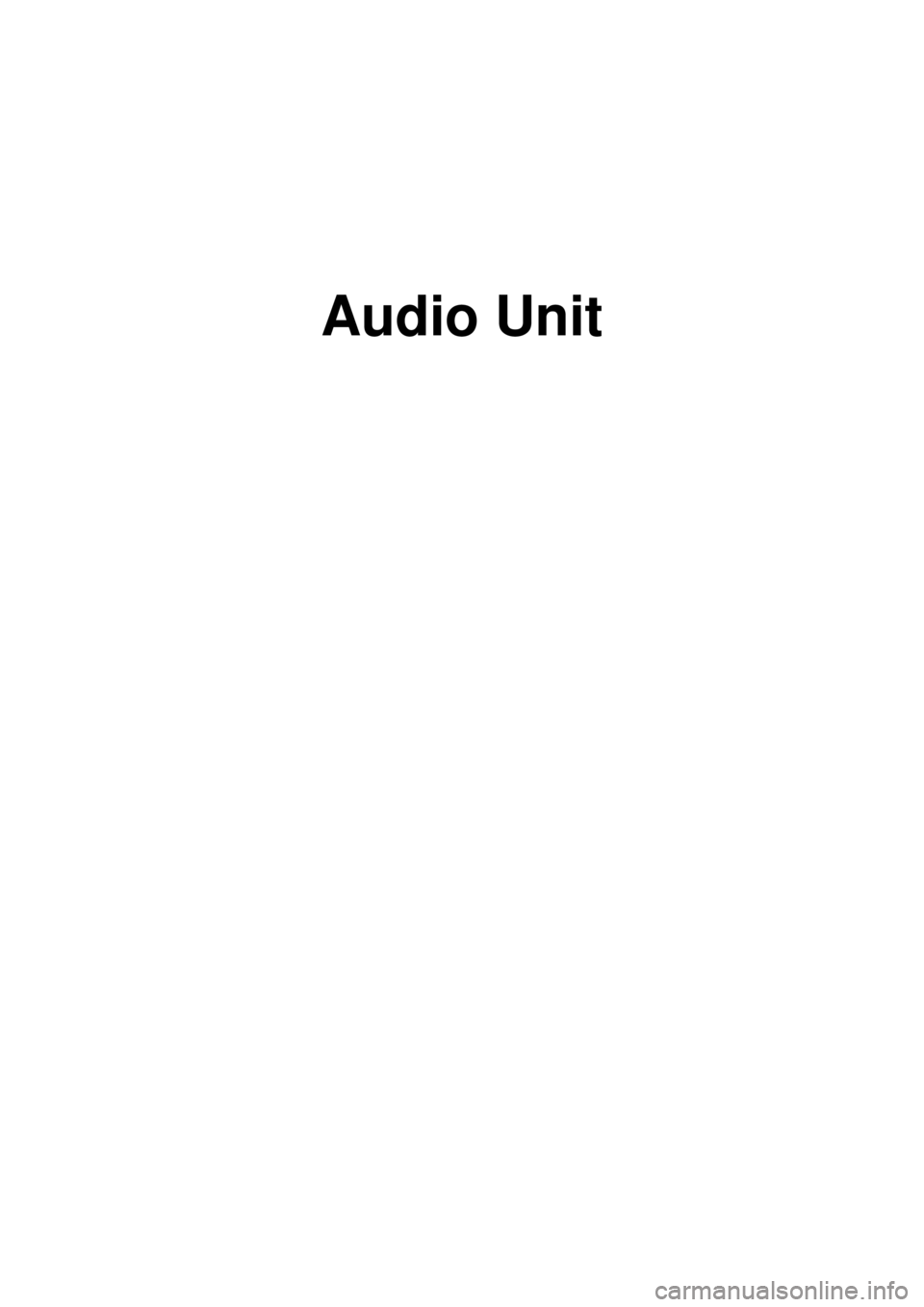

Audio Unit

2007 > 2.7L V6 GASOLINE >

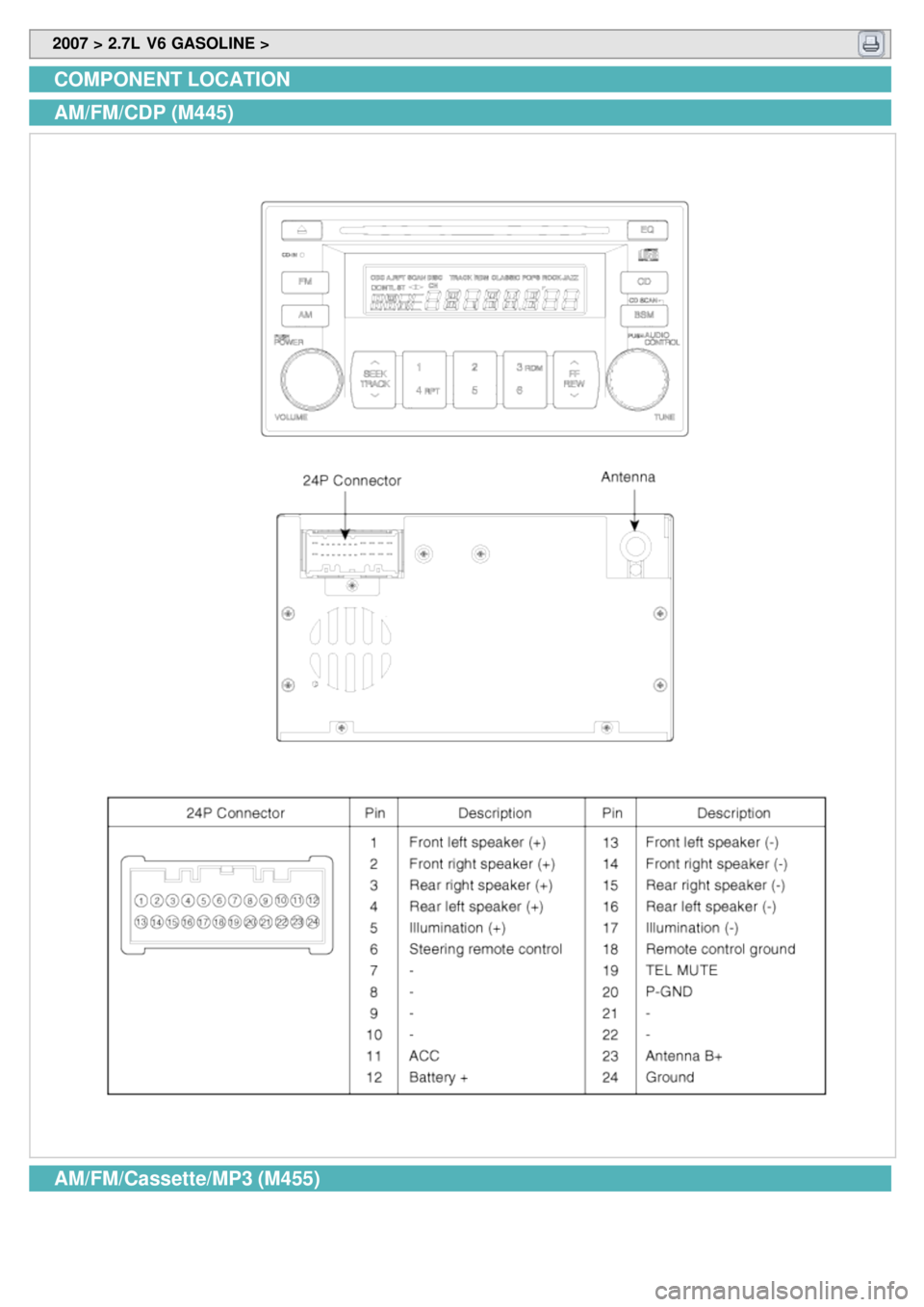

COMPONENT LOCATION
AM/FM/CDP (M445)
AM/FM/Cassette/MP3 (M455)

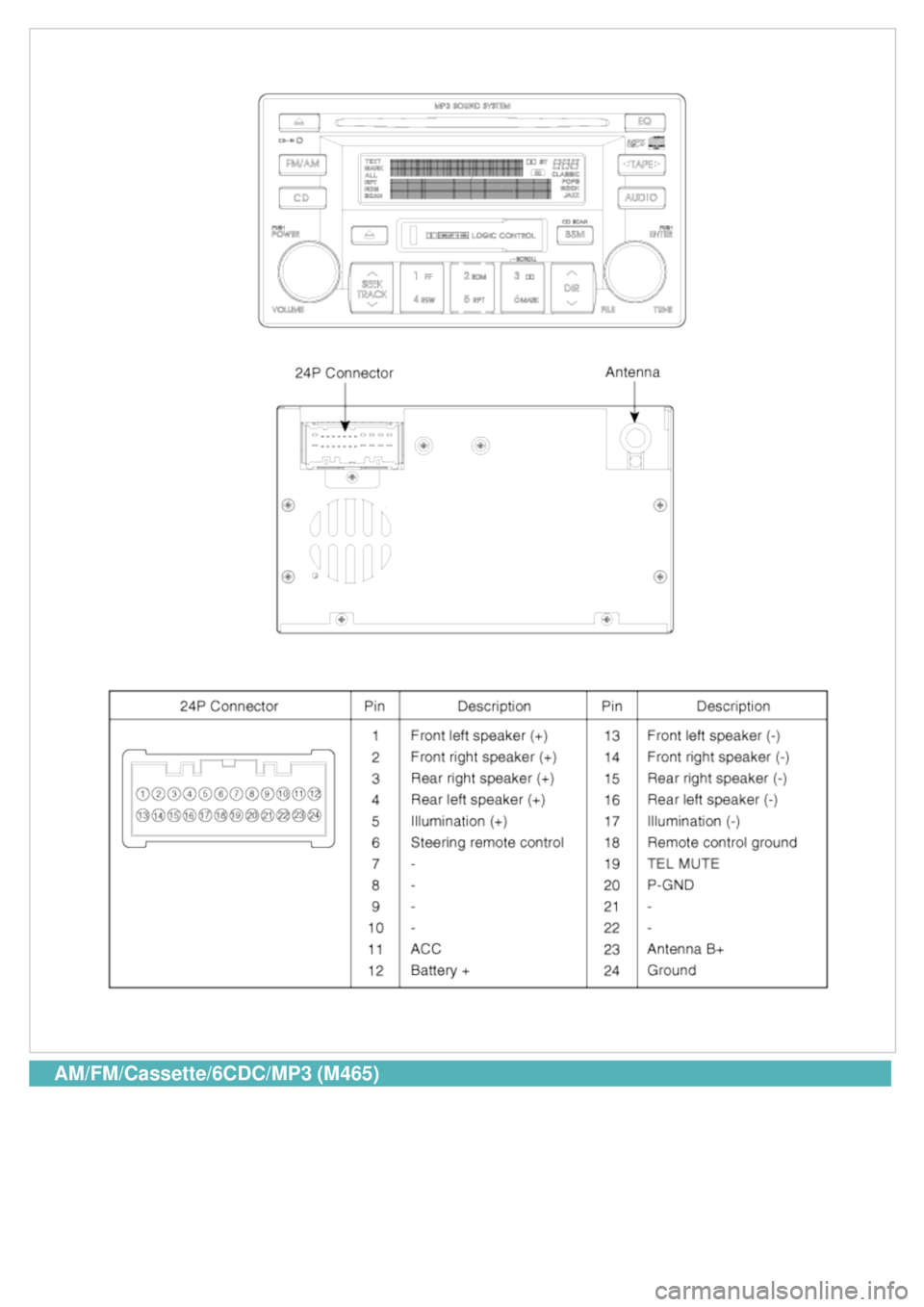

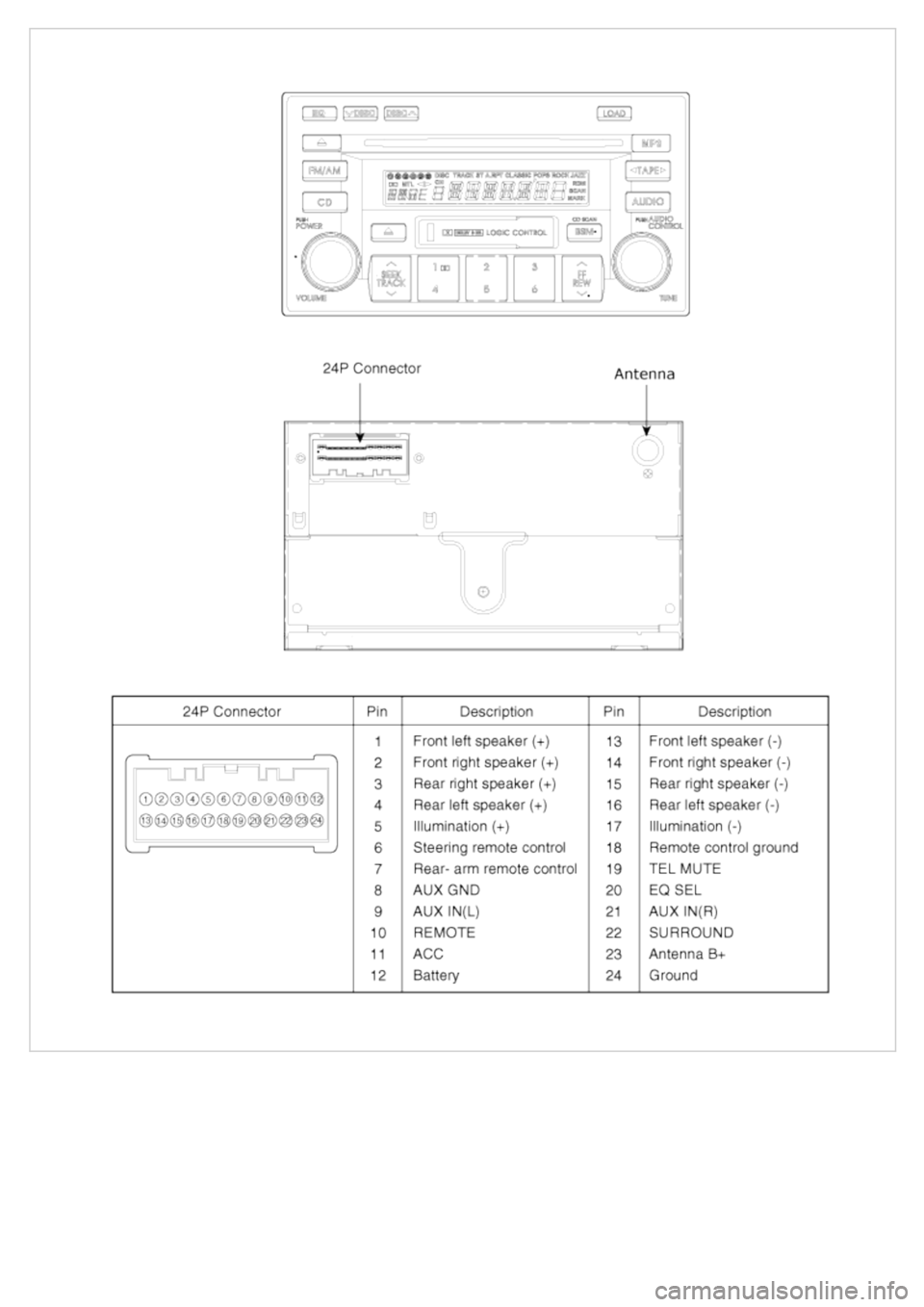

AM/FM/Cassette/6CDC/MP3 (M465)

2007 > 2.7L V6 GASOLINE >

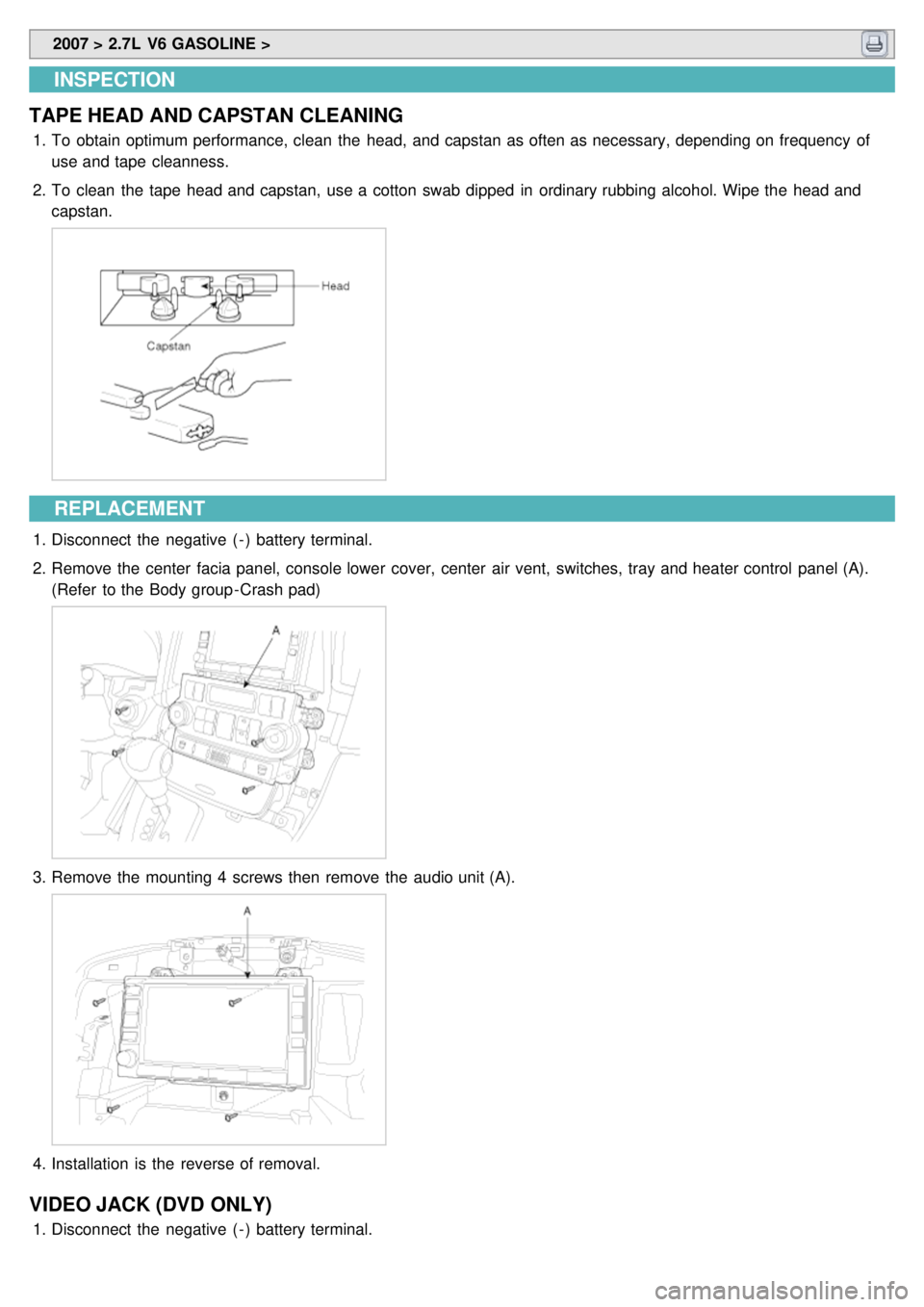

INSPECTION
TAPE HEAD AND CAPSTAN CLEANING
1. To obtain optimum performance, clean the head, and capstan as often as necessary, depending on frequency of
use and tape cleanness.
2. To clean the tape head and capstan, use a cotton swab dipped in ordinary rubbing alcohol. Wipe the head and
capstan.
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the center facia panel, console lower cover, center air vent, switches, tray and heater control panel (A).
(Refer to the Body group - Crash pad)
3.Remove the mounting 4 screws then remove the audio unit (A).
4.Installation is the reverse of removal.
VIDEO JACK (DVD ONLY)
1.Disconnect the negative ( - ) battery terminal.

2.Remove the video jack cover (A). And then remove the video jack (B).
3.Installation is the reverse of removal.
REAR SEAT ENTERTAINMENT (DVD ONLY)
1.Disconnect the negative ( - ) battery terminal.
2. Remove the DVD rear monitor cover (A) and disconnect the interior lamp connector.
3.Remove the DVD rear monitor (A) mounting screws (4EA) and disconnect the DVD rear monitor connector.
4.Installation is the reverse of removal.
