TROUBLESHOOTING
Symptom Suspect area Remedy
Engine misfire with
abnormal internal
lower engine noises. Worn crankshaft bearings.
Loose or impropes engine drive plate.
Replace the crankshaft and bearings as
required.
Repair or replace the drive plate as required.
Worn piston rings.
(Oil consumption may or may not cause the
engine to misfire.) Inspect the cylinder for a loss of compression.
Repair or replace as required.
Worn crankshaft thrust bearings Replace the crankshaft and bearings as
required.
Engine misfire with
abnormal valve train
noise. Stuck valves.
(Carbon buildup on the valve stem)
Repair or replace as required.
Excessive worn or mis - aligned timing chain. Replace the timing chain and sprocket as
required.
Worn camshaft lobes. Replace the camshaft and valve lifters.
Engine misfire with
coolant consumption. a.
Faulty cylinder head gasket and/or
cranking or other damage to the cylinder
head and engine block cooling system.
b. Coolant consumption may or may not
cause the engine to overheat. a.
Inspect the cylinder head and engine
block for damage to the coolant passages
and/or a faulty head gasket.
b. Repair or replace as required.
Engine misfire with
excessive oil
consumption. Worn valves, guides and/or valve stem oil
seals.
Repair or replace as required.
Worn piston rings.
(Oil consumption may or may not cause the
engine to misfire) a.
Inspect the cylinder for a loss of
compression.
b. Repair or replace as required.
Engine noise on start -
up, but only lasting a
few seconds. Incorrect oil viscosity.
a.Drain the oil.
b. Install the correct viscosity oil.
Worn crankshaft thrust bearing. a.Inspect the thrust bearing and crankshaft.
b. Repair or replace as required.
Upper engine
noise,regardless of
engine speed. Low oil pressure.
Repair or replace as required.
Broken valve spring. Replace the valve spring.
Worn or dirty valve lifters. Replace the valve lifters.
Stretched or broken timing chain and/or
damaged sprocket teeth. Replace the timing chain and sprockets.
Worn timing chain tensioner, if applicable. Replace the timing chain tensioner as
required.
Worn camshaft lobes. a.Inspect the camshaft lobes.
b. Replace the timing camshaft and valve
lifters as required.
Worn valve guides or valve stems. Inspect the valves and valve guides,then
repair as required.
Stuck valves. Carbon on the valve stem or
valve seat may cause the valve to stay open. Inspect the valves and valve guides, then
repair as required.
Worn drive belt, idler, tensioner and bearing. Replace as required.
Lower engine
noise,regardless of Low oil pressure.
Repair as required.

Specification
Limit (Engine coolant temperature : 20°C [68°F])
Intake : 0.10 ~ 0.30mm (0.0039 ~ 0.0118in.)
Exhaust : 0.20 ~ 0.40mm (0.0079 ~ 0.0157in.)
(2) Turn the crankshaft pulley one revolution (360°) clockwise and align the groove with the timing mark "T" of the
timing chain cover.
(3) With the piston of the No.4 cylinder positioning at TDC, the valves which can be measured its clearance are as
shown below.
7.Adjust the intake and the exhaust valve clearances.
(1) Set the piston of the No.1 cylinder to the TDC/position.
(2) Remove the timing belt.
(3) Remove the camshaft bearing caps(A, B).
(4)Remove the camshaft assembly.
(5) Remove MLA(Mechanical Lash Adjuster)s.
(6) Measure the thickness of the removed tappet using a micrometer.
(7)Calculate the thickness of a new tappet so that the valve clearance comes within the specified value.
T : Thickness of removed tappet
A : Measured valve clearance

N : Thickness of new tappet
Intake : N = T + [A - 0.20mm(0.0079in.)]
Exhaust : N = T + [A - 0.30mm (0.0118in.)]
(8) Select a new tappet with a thickness as close as possible to the calculated value.
Tappets are available with 41different size increments of 0.015mm (0.0006in.) from 3.00mm (0.118in.) to
3.600mm (0.1417in.)
(9) Place a new tappet on the cylinder head.
Apply engine oil on the periphery surface of the selected tappet.
(10) Install the intake and exhaust camshafts.
(11) Install the bearing caps.
(12) Install the timing belt.
(13) Turn the crankshaft two revolutions in the operating direction(clockwise) and realign crankshaft sprocket and
camshaft sprocket timing marks(A).
(14) Recheck the valve clearance.
Specification (Engine coolant temperature: 20°C[68°F])
Intake : 0.17 ~ 0.23mm (0.0067 ~ 0.0090in.)
Exhaust : 0.27 ~ 0.33mm (0.0106 ~ 0.0129in.)

Vacuum valve opening
pressure0.98 ~ 4.90 kpa(0.01 ~ 0.05 kg/cm², 0.14 ~ 0.71
psi)
Engine coolant temperature sensor
Type Thermister type
Resistance 20°C (68°F) 2.31 ~ 2.59 kΩ
80°C(176°F) 0.3222 kΩ
TIGHTENING TORQUE
Item QuantityNmkgf.m lb- ft
Oil seal case bolt 39.8 ~ 11.8 1.0 ~ 1.27.2 ~ 8.7
Main bearing cap bolt(M10) 829.4 + 90° 3.0 + 90°21.7 + 90°
Main bearing cap bolt(M8) 815.7 + 90° 1.6 + 90°11.6 ~ + 90°
Rear plate bolt 19.8 ~ 11.8 1.0 ~ 1.27.2 ~ 8.7
Oil pump case bolt(8×25) 118.6 ~ 23.5 1.9 ~ 2.413.7 ~ 17.4
Oil pump case bolt(8×35) 118.6 ~ 23.5 1.9 ~ 2.413.7 ~ 17.4
TimingOil pump case bolt(8×65) 118.6 ~ 23.5 1.9 ~ 2.413.7 ~ 17.4
TimiOil relief plug 139.2 ~ 49.0 4.0 ~ 5.028.9 ~ 36.2
Oil filter bracket bolt(8×35) 418.6 ~ 23.5 1.9 ~ 2.413.7 ~ 17.4
Oil filter bracket bolt(8×65) 218.6 ~ 23.5 1.9 ~ 2.413.7 ~ 17.4
Oil filter insert 144.1 ~ 53.9 4.5 ~ 5.532.5 ~ 39.8
Timing chain cover bolt 219.8 ~ 11.8 1.0 ~ 1.27.2 ~ 8.7
Upper oil pan bolt(8×22) 1518.6 ~ 23.5 1.9 ~ 2.413.7 ~ 17.4
Upper oil pan bolt(163.5mm) 14.9 ~ 6.9 0.5 ~ 0.73.6 ~ 5.1
Upper oil pan bolt(154.5mm) 14.9 ~ 6.9 0.5 ~ 0.73.6 ~ 5.1
Lower oil pan bolt 119.8 ~ 11.8 1.0 ~ 1.27.2 ~ 8.7
Oil drain plug 134.3 ~ 44.1 3.5 ~ 4.525.3 ~ 32.5
Engine support bracket bolt(10×94) 258.8 ~ 68.6 6.0 ~ 7.043.4 ~ 50.6
Engine support bracket bolt(10×102.5) 158.8 ~ 68.6 6.0 ~ 7.043.4 ~ 50.6
Camshaft bearing cap bolt(6×38) 2410.8 ~ 12.7 1.1 ~ 1.38.0 ~ 9.4
Camshaft bearing cap bolt(8×38) 1220.6 ~ 25.5 2.1 ~ 2.615.2 ~ 18.8
Cylinder head bolt 1622.6~26.5 + (60°
+2°) + (45°+2°) 2.3~2.7 + (60°
±2°) + (45°±2°) 16.6~19.5 + (60°
+2°) + (45°+2°)
Cylinder head cover bolt 227.8 ~ 9.8 0.8 ~ 1.05.8 ~ 7.2
Crankshaft pulley bolt 1166.7 ~ 176.5 17.0 ~ 18.0123.0 ~ 130.2
Drive plate bolt 871.6 ~ 75.5 7.3 ~ 7.752.8 ~ 55.7
Connecting rod bearing cap bolt 1219.6 ~ 90° 2.0 ~ 90°14.5 ~ 90°
OCV(Oil Control Valve) bolt 27.8 ~ 9.8 0.8 ~ 1.05.8 ~ 7.2
CVVT & exhaust cam sprocket bolt 466.7 ~ 78.5 6.8 ~ 8.049.2 ~ 57.9
Timing chain auto tensioner bolt 410.8 ~ 12.7 1.1 ~ 1.38.0 ~ 9.4
Camshaft sprocket bolt 288.3 ~ 107.9 9.0 ~ 11.065.1 ~ 79.6
Timing belt idler bolt 149.0 ~ 58.8 5.0 ~ 6.036.2 ~ 43.4

Timing belt tensioner bolt219.6 ~ 26.5 2.0 ~ 2.714.5 ~ 19.5
Timing belt tensioner arm bolt 134.3 ~ 53.9 3.5 ~ 5.525.3 ~ 39.8
Water pump bolt(8×20) 314.7 ~ 21.6 1.5 ~ 2.210.8 ~ 15.9
Water pump bolt(8×25) 414.7 ~ 21.6 1.5 ~ 2.210.8 ~ 15.9
Drive belt idler bolt 134.3 ~ 53.9 3.5 ~ 5.525.3 ~ 39.8
Drive belt tensioner bolt 134.3 ~ 53.9 3.5 ~ 5.525.3 ~ 39.8
Water pipe bolt 116.7 ~ 19.6 1.7 ~ 2.012.3 ~ 14.5
Water temp. control assembly nut 429.4 ~ 41.2 3.0 ~ 4.221.7 ~ 30.4
Oil level gauge bolt 118.6 ~ 23.5 1.9 ~ 2.413.7 ~ 17.4
Oil screen bolt 214.7 ~ 21.6 1.5 ~ 2.210.8 ~ 15.9
Water outlet pipe bolt 316.7 ~ 19.6 1.7 ~ 2.012.3 ~ 14.5
Water inlet pipe bolt 216.7 ~ 19.6 1.7 ~ 2.012.3 ~ 14.5
Water inlet pipe nut 116.7 ~ 19.6 1.7 ~ 2.012.3 ~ 14.5
Surge tank bolt(8×28) 318.6 ~ 23.5 1.9 ~ 2.413.7 ~ 17.4
Surge tank bolt(8×80) 218.6 ~ 23.5 1.9 ~ 2.413.7 ~ 17.4
Surge tank nut 218.6 ~ 23.5 1.9 ~ 2.413.7 ~ 17.4
Intake manifold bolt 418.6 ~ 23.5 1.9 ~ 2.413.7 ~ 17.4
Intake manifold nut 418.6 ~ 23.5 1.9 ~ 2.413.7 ~ 17.4
Surge tank bracket bolt 218.6 ~ 23.5 1.9 ~ 2.413.7 ~ 17.4
Exhaust manifold bolt 1429.4 ~ 34.3 3.0 ~ 3.521.7 ~ 25.3
Heat protect bolt 616.7 ~ 21.6 1.7 ~ 2.212.3 ~ 15.9
Front muffler bolt 239.2 ~ 58.8 4.0 ~ 6.028.9 ~ 43.4

Timing systemTiming belt

2007 > 2.7L V6 GASOLINE >

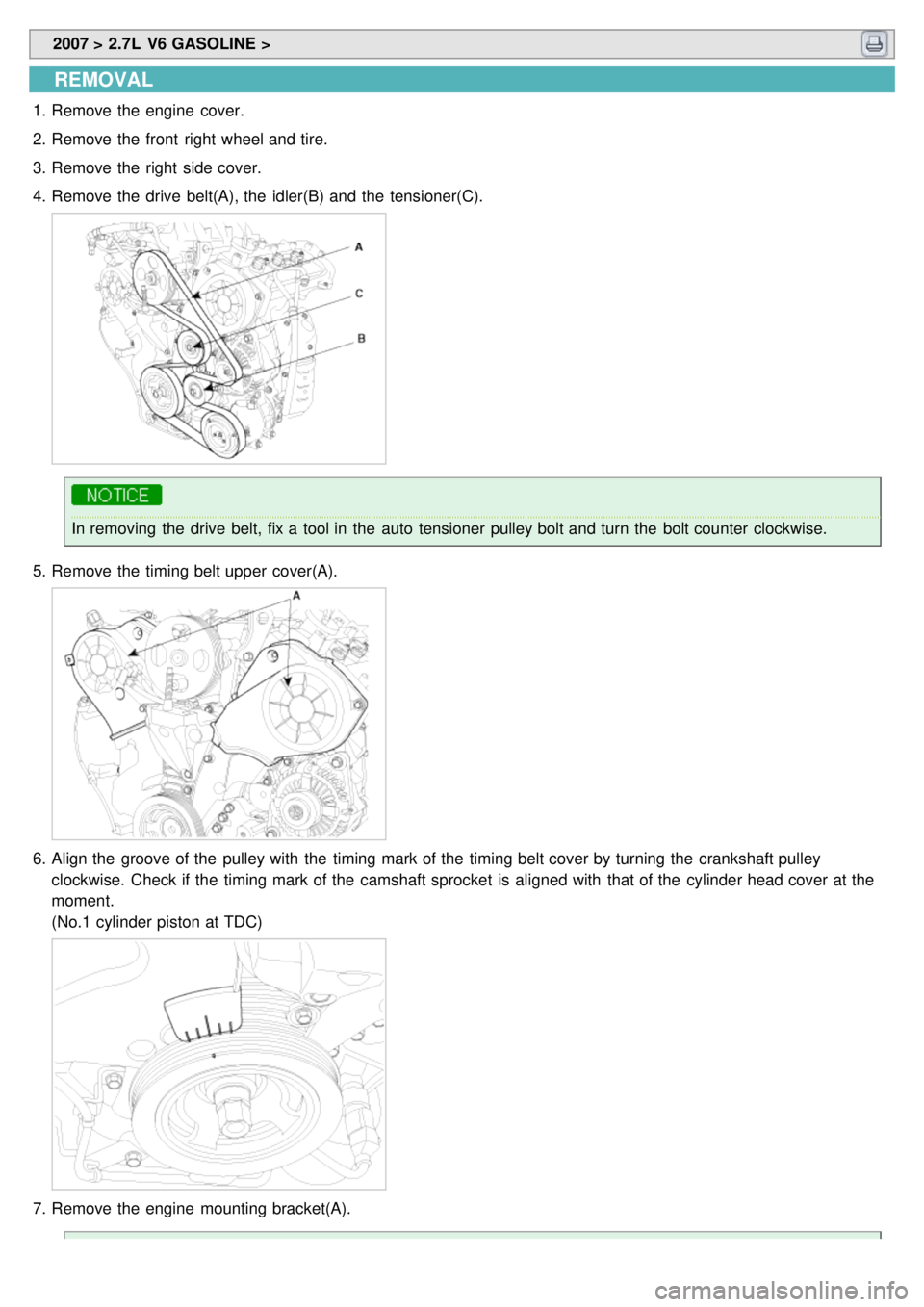

REMOVAL
1.Remove the engine cover.
2. Remove the front right wheel and tire.
3. Remove the right side cover.
4. Remove the drive belt(A), the idler(B) and the tensioner(C).
In removing the drive belt, fix a tool in the auto tensioner pulley bolt and turn the bolt counter clockwise.
5. Remove the timing belt upper cover(A).
6.Align the groove of the pulley with the timing mark of the timing belt cover by turning the crankshaft pulley
clockwise. Check if the timing mark of the camshaft sprocket is aligned with that of the cylinder head cover at the
moment.
(No.1 cylinder piston at TDC)
7.Remove the engine mounting bracket(A).

Sustain the engine oil pan with a jack.
(1)
Put a wooden or rubber block between the jack and the engine oil pan.
8. Remove the crankshaft damper pulley(A).
9.Remove the timing belt lower cover(A).
10. Remove the engine support bracket(A).
