2007 KIA CARNIVAL Workshop Manual

[RHD]

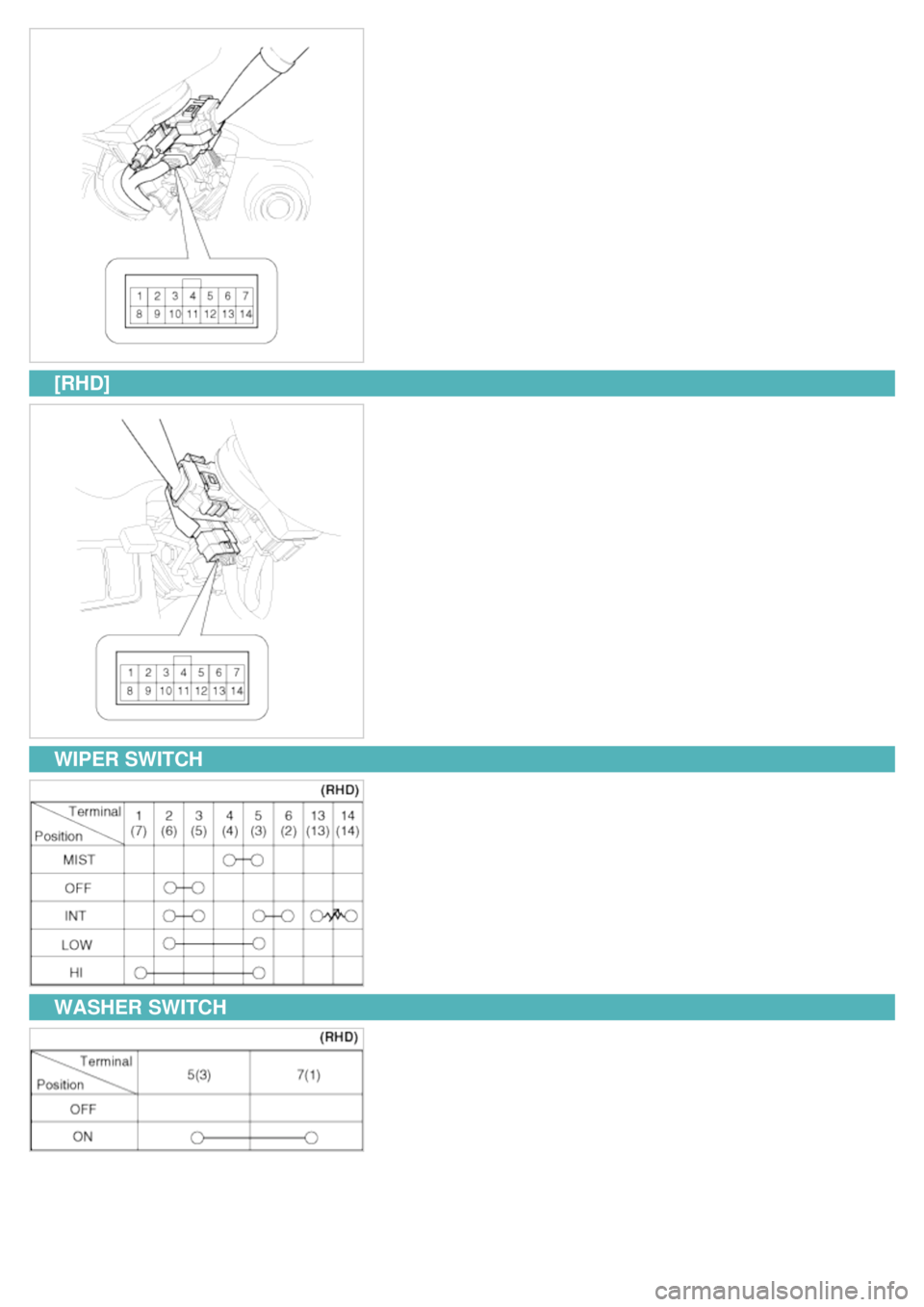

WIPER SWITCH
WASHER SWITCH

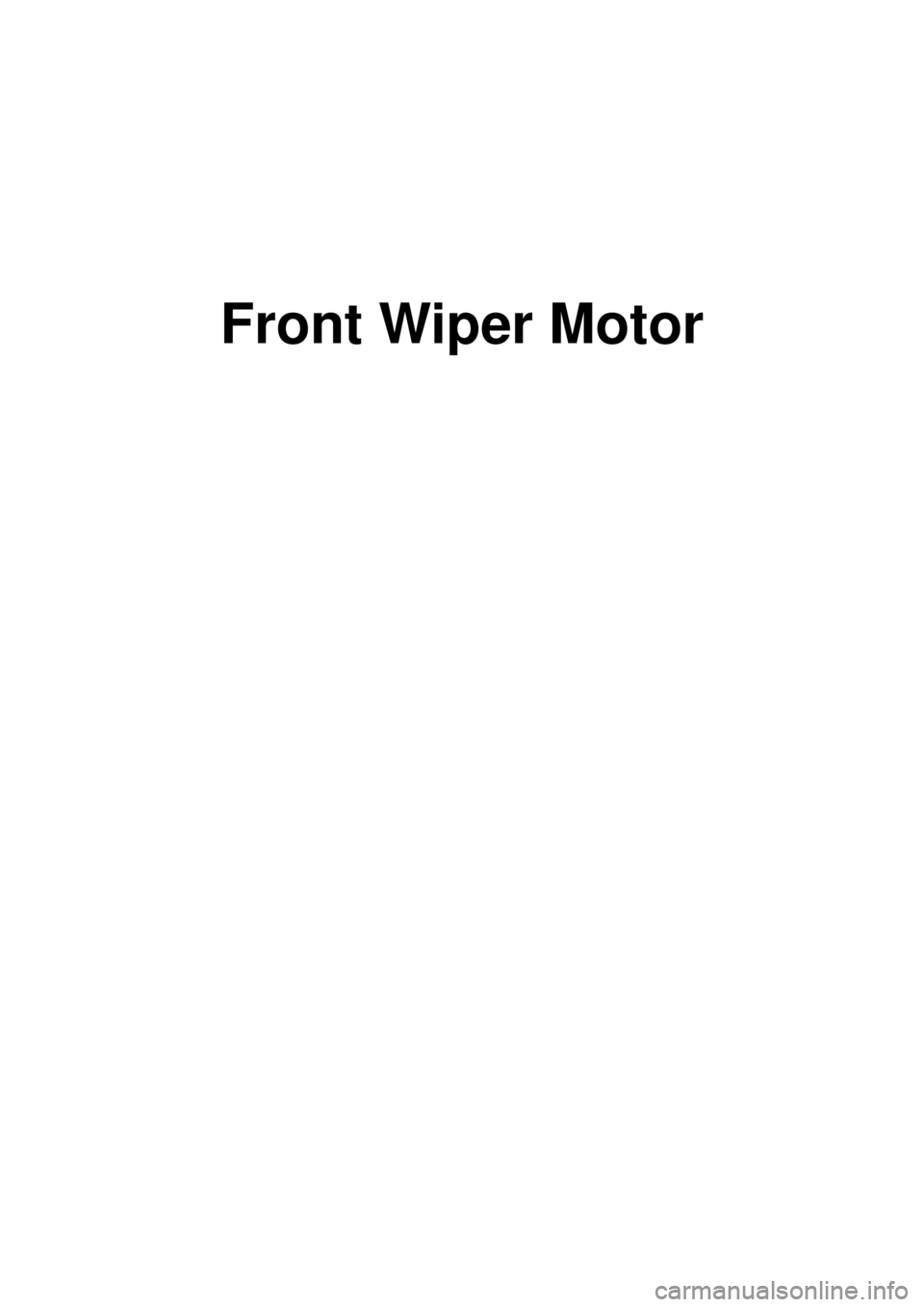

Front Wiper Motor

2007 > 2.7L V6 GASOLINE >

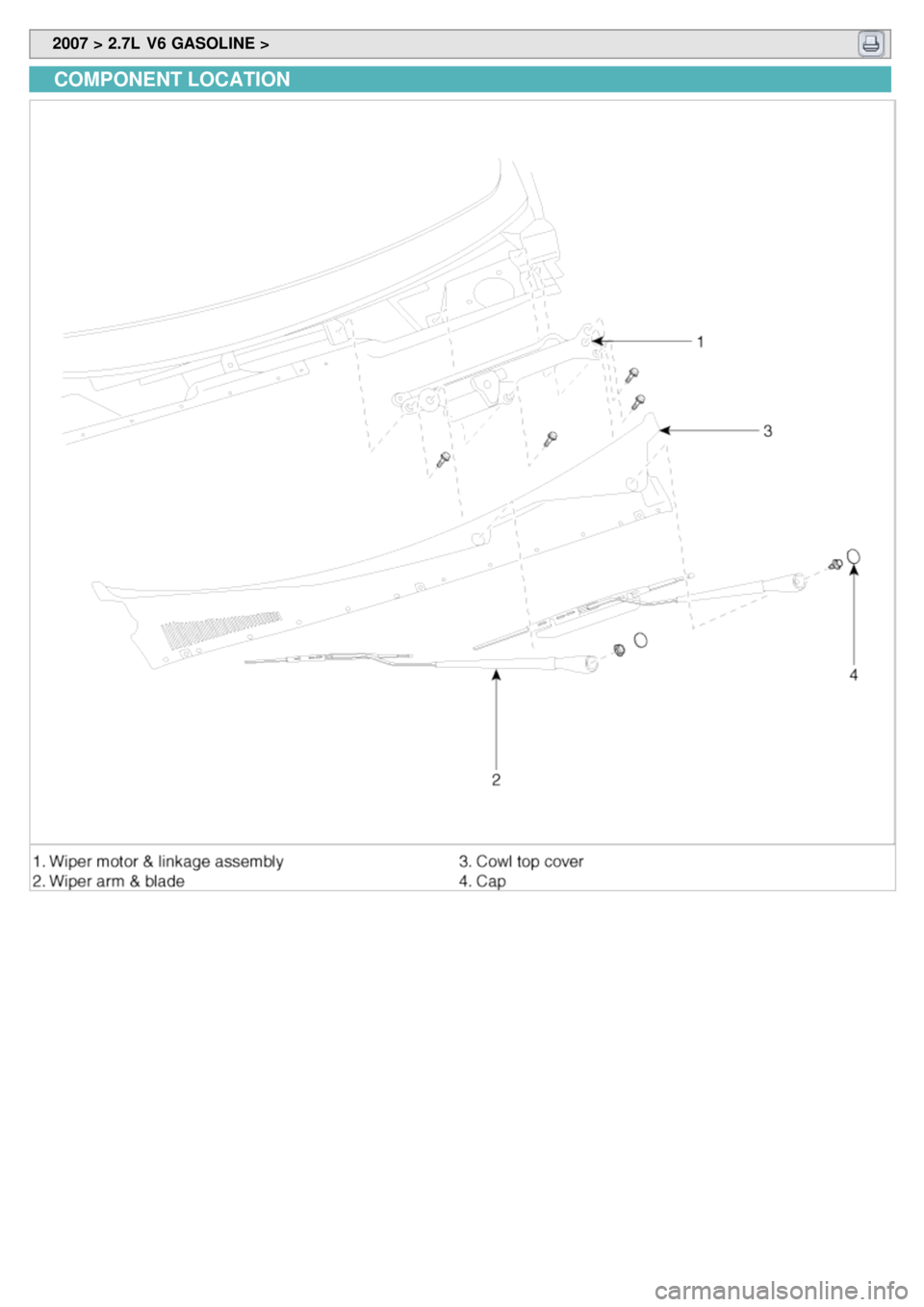

COMPONENT LOCATION

2007 > 2.7L V6 GASOLINE >

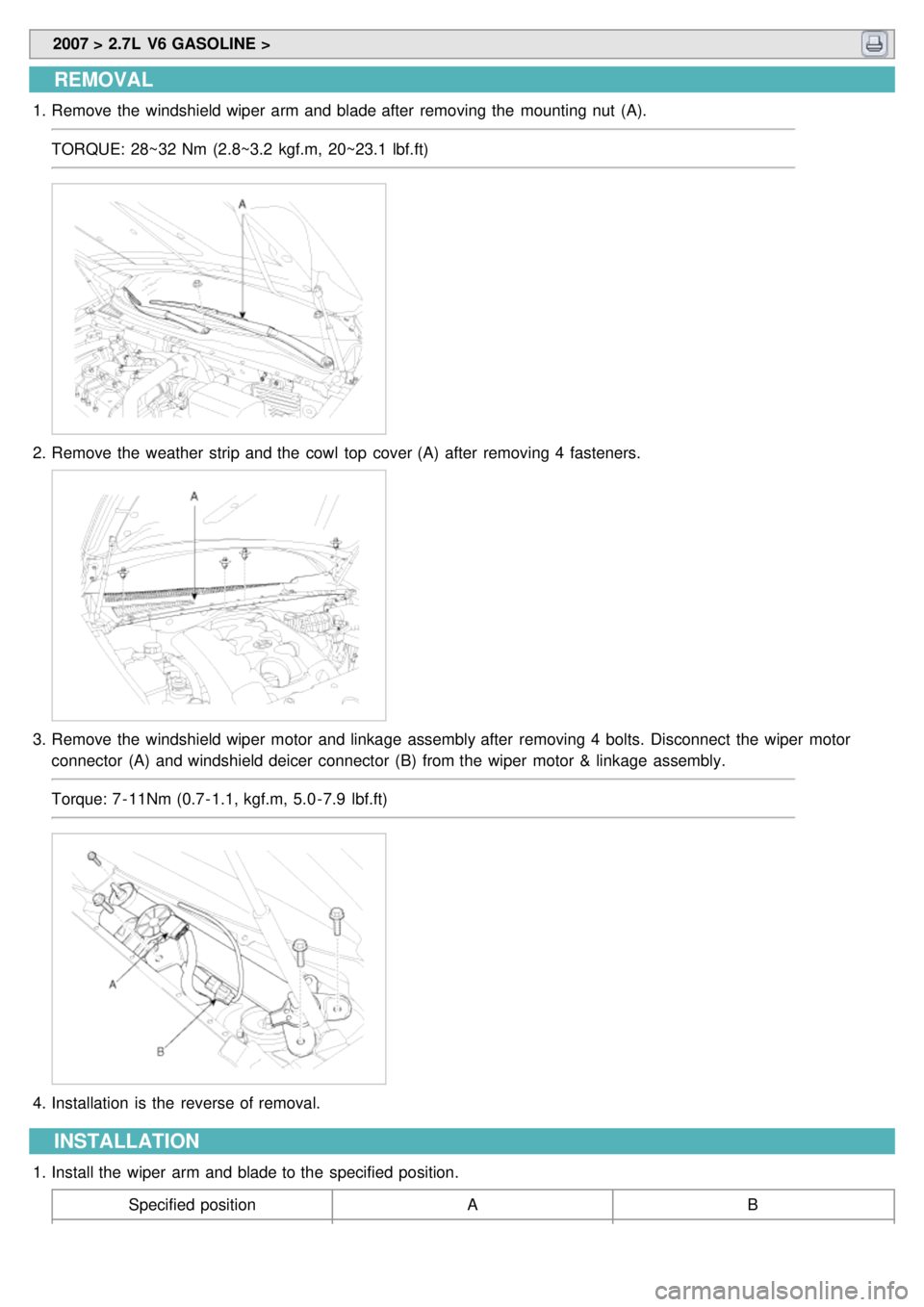

REMOVAL
1.Remove the windshield wiper arm and blade after removing the mounting nut (A).
TORQUE: 28~32 Nm (2.8~3.2 kgf.m, 20~23.1 lbf.ft)
2.Remove the weather strip and the cowl top cover (A) after removing 4 fasteners.
3.Remove the windshield wiper motor and linkage assembly after removing 4 bolts. Disconnect the wiper motor
connector (A) and windshield deicer connector (B) from the wiper motor & linkage assembly.
Torque: 7 - 11Nm (0.7- 1.1, kgf.m, 5.0 - 7.9 lbf.ft)
4.Installation is the reverse of removal.
INSTALLATION

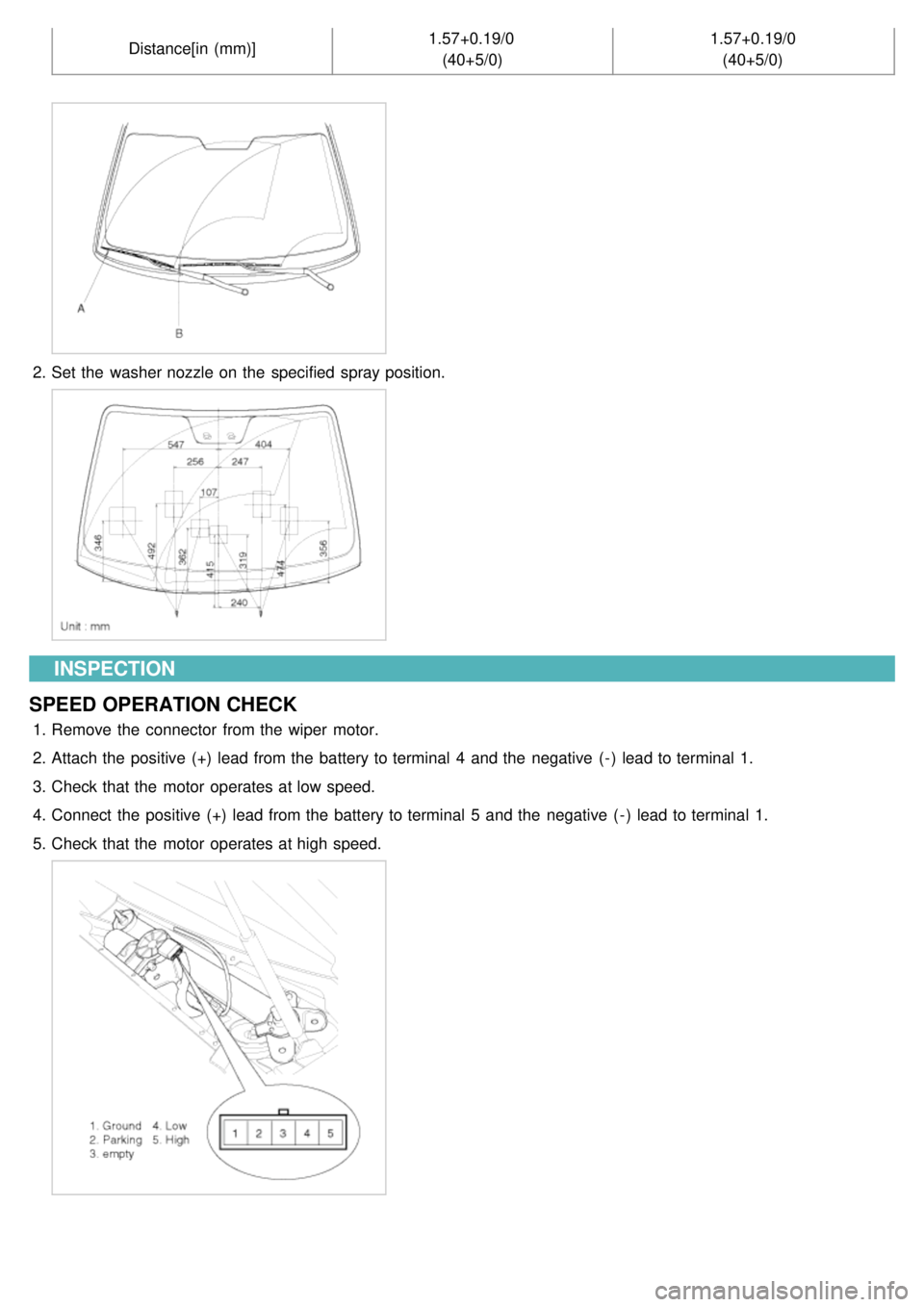

1.Install the wiper arm and blade to the specified position.
Specified position AB

Distance[in (mm)]1.57+0.19/0
(40+5/0) 1.57+0.19/0
(40+5/0)
2. Set the washer nozzle on the specified spray position.
INSPECTION
SPEED OPERATION CHECK
1. Remove the connector from the wiper motor.
2. Attach the positive (+) lead from the battery to terminal 4 and the negative ( - ) lead to terminal 1.
3. Check that the motor operates at low speed.
4. Connect the positive (+) lead from the battery to terminal 5 and the negative ( - ) lead to terminal 1.
5. Check that the motor operates at high speed.

Front Washer Motor

2007 > 2.7L V6 GASOLINE >

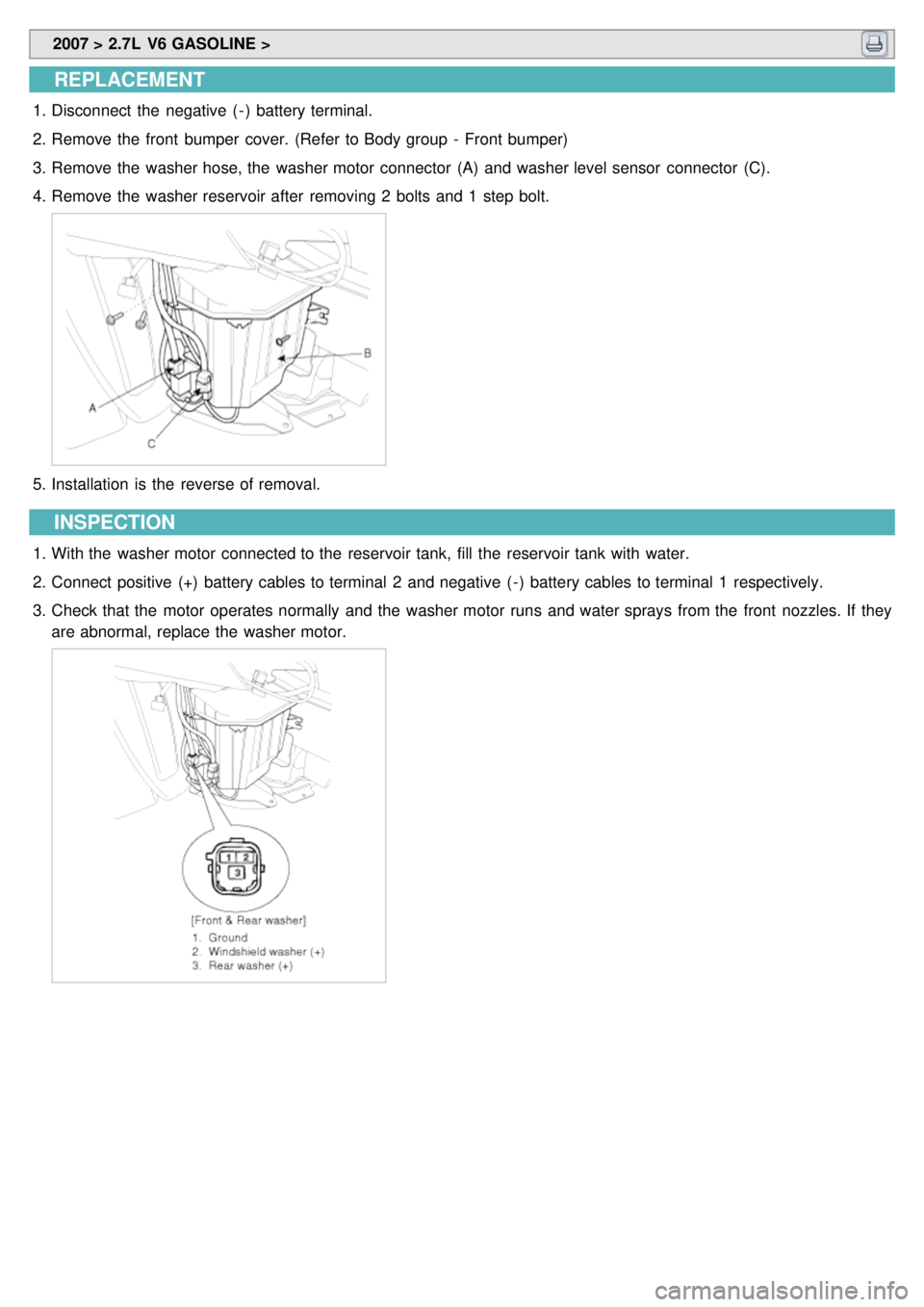

REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the front bumper cover. (Refer to Body group - Front bumper)
3. Remove the washer hose, the washer motor connector (A) and washer level sensor connector (C).
4. Remove the washer reservoir after removing 2 bolts and 1 step bolt.
5.Installation is the reverse of removal.

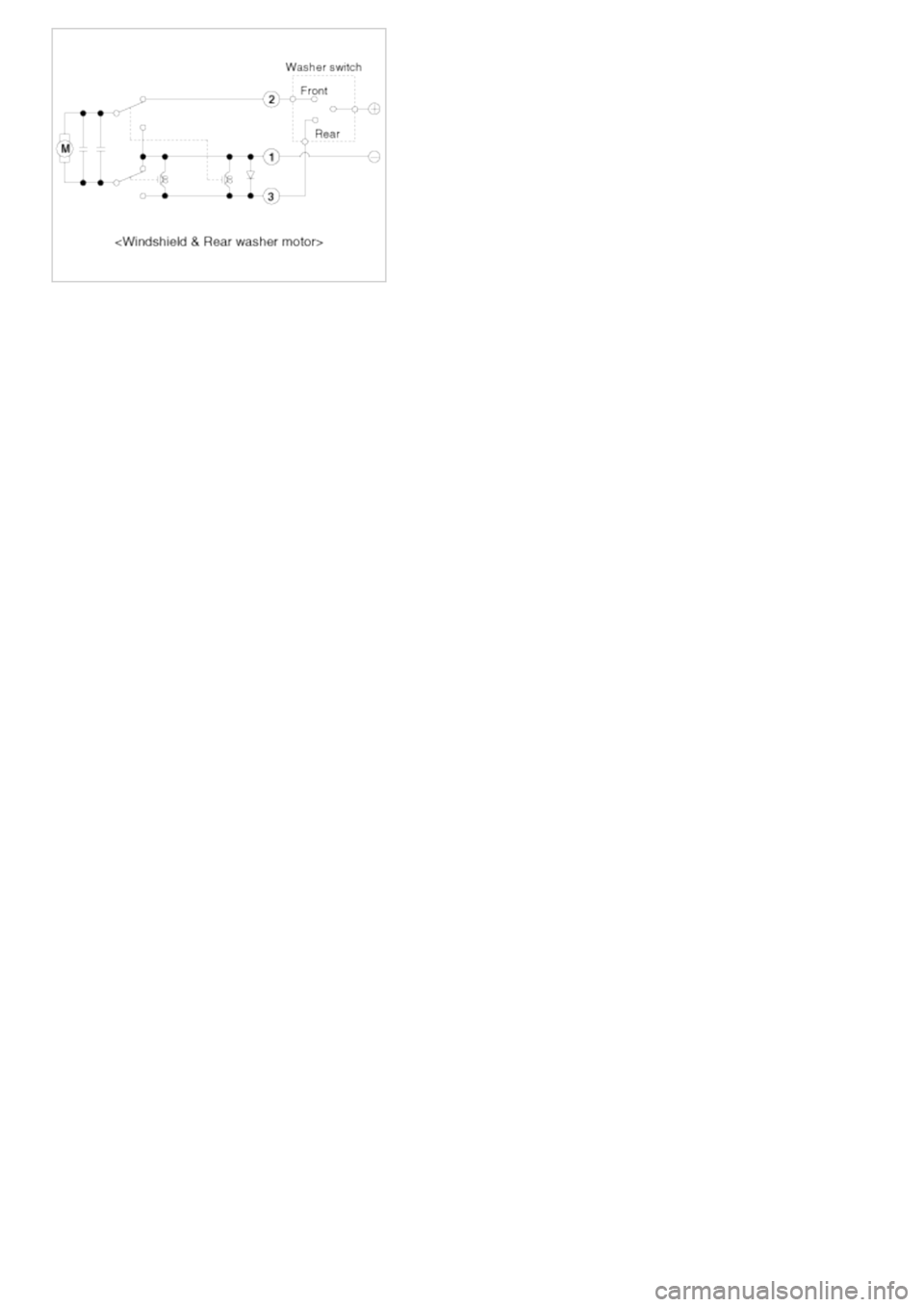

INSPECTION
1.With the washer motor connected to the reservoir tank, fill the reservoir tank with water.
2. Connect positive (+) battery cables to terminal 2 and negative ( - ) battery cables to terminal 1 respectively.
3. Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles. If they
are abnormal, replace the washer motor.
