2007 KIA CARNIVAL glove box

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Open the glove box (B).
Lower the glove box down completely by removing the glove box stopper (A) to the glove box.
2.Remove the filter cover (A) with pushing the knob.
3. Replace the air filter (B), install it after making sure of the direction of air filter.
In case of driving in an air- polluted area or rugged terrain, check and replace the air filter as frequently as
possible.
Replacement period: 15,000 km (9320 mile)

2007 > 2.7L V6 GASOLINE >
INSPECTION
1.Ignition "OFF"
2. Disconnect the intake actuator connector.
3. Verify that the actuator operates to the recirculation position when connecting 12V to the terminal 3 and grounding
terminal 4.
4. Verify that the intake actuator operates to the fresh position when connecting in the reverse.
5.If the intake actuator is not operated well, substitute with a known- good intake actuator and check for proper
operation.
6. If the problem is corrected, replace the intake actuator.
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the glove box (Refer to BD group).
3. Disconnect the intake actuator connector.
4. Loosen the mounting screw and then remove the intake actuator (A) from the blower unit.
5.Installation is the reverse order of removal.

2007 > 2.7L V6 GASOLINE >
AIRBAG DISPOSAL
SPECIAL TOOL REQUIRED
Before scrapping any airbags or side airbags (including those in a whole vehicle to be scrapped), the airbags or side
airbags must be deployed. If the vehicle is still within the warranty period, before deploying the airbags or side airbags,
the Technical Manager must give approval and/or special instruction. Only after the airbags or side airbags have been
deployed (as the result of vehicle collision, for example), can they be scrapped.
If the airbags or side airbags appear intact (not deployed), treat them with extreme caution. Follow this procedure.
DEPLOYING AIRBAGS IN THE VEHICLE
If an SRS equipped vehicle is to be entirely scrapped, its airbags or side airbags should be deployed while still in the
vehicle. The airbags or side airbags should not be considered as salvageable parts and should never be installed in
another vehicle. 1. Turn the ignition switch OFF, and disconnect the battery negative cable and wait at least three minutes.
2. Confirm that each airbag or side airbag is securely mounted.
3. Confirm that the special tool is functioning properly by following the check procedure.
DRIVER'S AIRBAG :
1.Remove the driver's airbag and install the SST(0957A - 38500).
2. Install the driver's airbag on the steering wheel.
FRONT PASSENGER'S AIRBAG :
1.Remove the glove box, then disconnect the 2P connector between the front passenger's airbag and SRS main
harness.
2. Install the SST(0957A - 3F100).
SIDE AIRBAG :
1.Disconnect the 2P connector between the side airbag and side wire harness.
2. Install the SST (0957A- 3F100).
CURTAIN AIRBAG :
1.Disconnect the 2P connector between the curtain airbag and wire harness.
2. Install the SST(0957A - 38500).
SEAT BELT PRETENSIONER :
1.Disconnect the 2P connector from the seat belt pretensioner.
2. Install the SST(0957A - 38500).
3. Place the deployment tool at least thirty feet (10 meters) away from the airbag.
4. Connect a 12 volt battery to the tool.
5. Push the tool's deployment switch. The airbag should deploy (deployment is both highly audible and visible: a loud
noise and rapid inflation of the bag, followed by slow deflection)
6. Dispose of the complete airbag. No part of it can be reused. Place it in a sturdy plastic bag and seal it securely.

2007 > 2.7L V6 GASOLINE >
REMOVAL
1.Disconnect the battery negative cable and wait for at least three minutes before beginning work.
2. Remove the glove box. (Refer to BD group)
3. Disconnect the PAB connector and remove the PAB mounting bolts. (Refer to BD group)
4.Remove the crash pad. (Refer to BD group)
Replace the crash pad which is damaged while PAB is deployed.
5. Remove the heater duct from the crash pad.
6.Remove the mounting nuts from the crash pad. Then remove the passenger airbag.
The removed airbag module should be stored in a clean, dry place with the airbag coushion up.

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
FLOOR CONSOLE REPLACEMENT
a. When prying with a flat- tipper screwdriver, wrap it with protective tape, and apply protective tape around the
related parts, to prevent damage.
b. Put on gloves to protect your hands.
1. After the center cover is removed(A), disconnect the connector (B).
[LHD]
[RHD]
2.Remove the following items.
a. Crash pad lower panel
b. Lower bracket
c. Glove box
d. Console side cover
3. After loosening the console mounting screw, remove the front console (A).

GLOVE BOX REPLACEMENT
1.Disconnect the damper (B) from the glove box (A).
2.Remove the glove box (A) from the lift (B).
3.Disconnect the pine (A), then remove the glove box (B).

3.Installation is the reverse of removal.

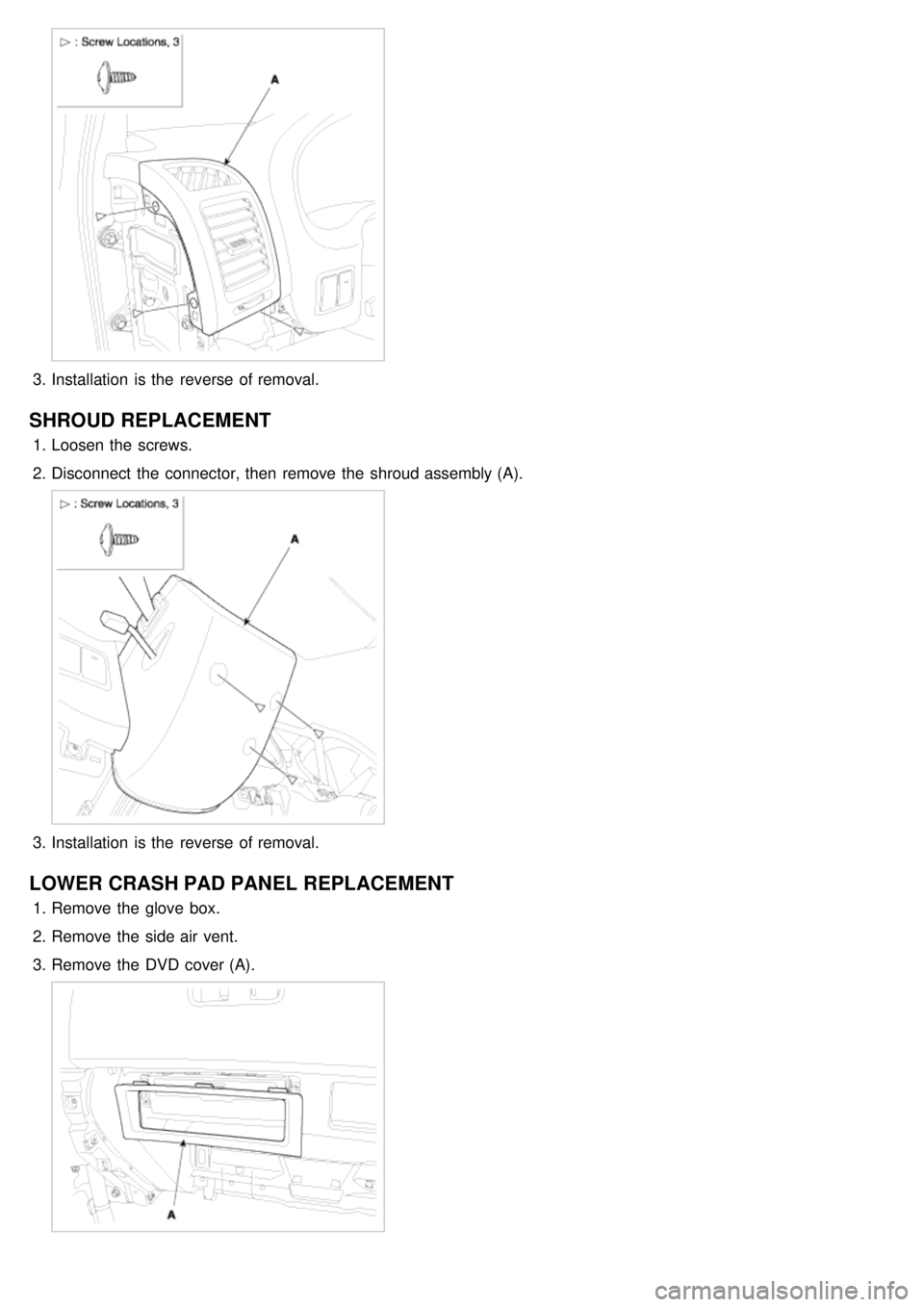

SHROUD REPLACEMENT
1.Loosen the screws.
2. Disconnect the connector, then remove the shroud assembly (A).
3.Installation is the reverse of removal.
LOWER CRASH PAD PANEL REPLACEMENT
1.Remove the glove box.
2. Remove the side air vent.
3. Remove the DVD cover (A).

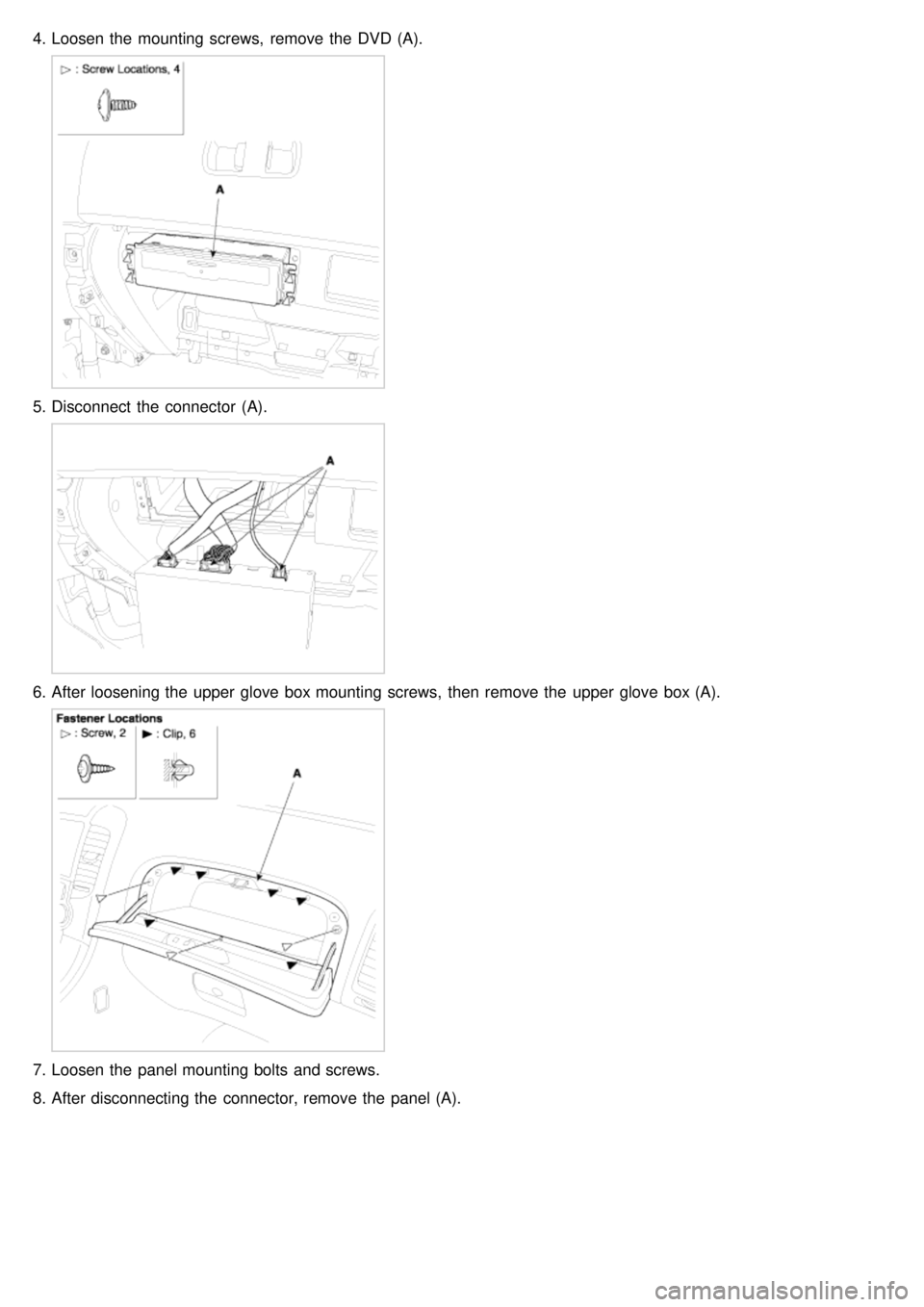

4.Loosen the mounting screws, remove the DVD (A).
5.Disconnect the connector (A).
6.After loosening the upper glove box mounting screws, then remove the upper glove box (A).
7.Loosen the panel mounting bolts and screws.
8. After disconnecting the connector, remove the panel (A).
