2007 KIA CARNIVAL height adjustment

[RHD]
BRAKE PEDAL BRAKE SWITCH ADJUSTMENT
PEDAL HEIGHT1. Disconnect the brake switch connector, loosen the brake switch locknut (A), and brake off the brake switch (B) until
it is no longer touching the brake pedal.
2. Lift up the carpet. At the insulator cutout, measure the pedal height (C) from the middle of the left- side center of
the pedal pad (D).
Standard pedal height( with carpet removed): 192.4 mm(7.57 in.)
3.Loosen the pushrod locknut (A), and screw the pushrod in or out with pliers until the standard pedal height from the
floor is reached. After adjustment, tighten the locknut firmly. Do not adjust the pedal height with the pushrod
depressed.

2007 > 2.7L V6 GASOLINE >
TROUBLESHOOTING
Symptom Suspect AreaRemedy (See page)
Water leaks from sunroof Dirt accumulated in drain tube Clear dirt inside of drain
Clogged drain tube Blow air into drain to remove dirt
Broken or dislocated drain tube, defective
Or cracked clip Check tube installation and
Flange contact
Deteriorated roof lid weatherstrip Replace
Excessive roof lid - to- body clearance and
Improperly fitted weatherstrip Adjust
Wind noise around sunroof Loose or deformed deflector, gaps
In body work Retighten adjust or replace
Sunroof lid makes a noise when
moveing Foreign particles lodged in guide rail
Check drive cable and guide
Rails for foreign particles
Loose guide rails and lid Retighten
Motor runs but sunroof does not
move or moves only partially Foreign particles lodged in guide rail
Check drive cable and guide
Rails for foreign particles
Incorrect engagement of motor pinion
With drive cable Check for loose motor installation
And damaged pinion
Decrease in motor`s clutch slipping force Adjust
Increased sunroof sliding resistance
Or interference of sunroof with drive
cables, weatherstrip, etc. due to
maladjustment of sunroof Adjust or replace
Noise in motor (clutch slipping
Noise from motor when sunroof
Is fully opened or closed is not
An unusual noise Incorrect engagement of motor pinion
With drive cable
Check pinion installation and
Retighten motor
Worn out or damaged motor pinion bearing Replace motor assembly
Worn out or deformed drive cable Replace
Door glass fails to operate
Up and down Incorrect window glass installation
Adjust position
Damaged or faulty regulator arm or regulator Correct or replace
Door does not open or close
completely Incorrect door installation
Adjust position
Defective door check assembly Correct or replace
Door hinge requires grease Apply grease
Hood does not open or close
completely Striker and latch not properly aligned
Adjust
Incorrectly installed hood Adjust
Incorrect hood bumper height Adjust
Water leak through windshield
end rear window Defective seal
Fill with sealant
Defective flange Correct

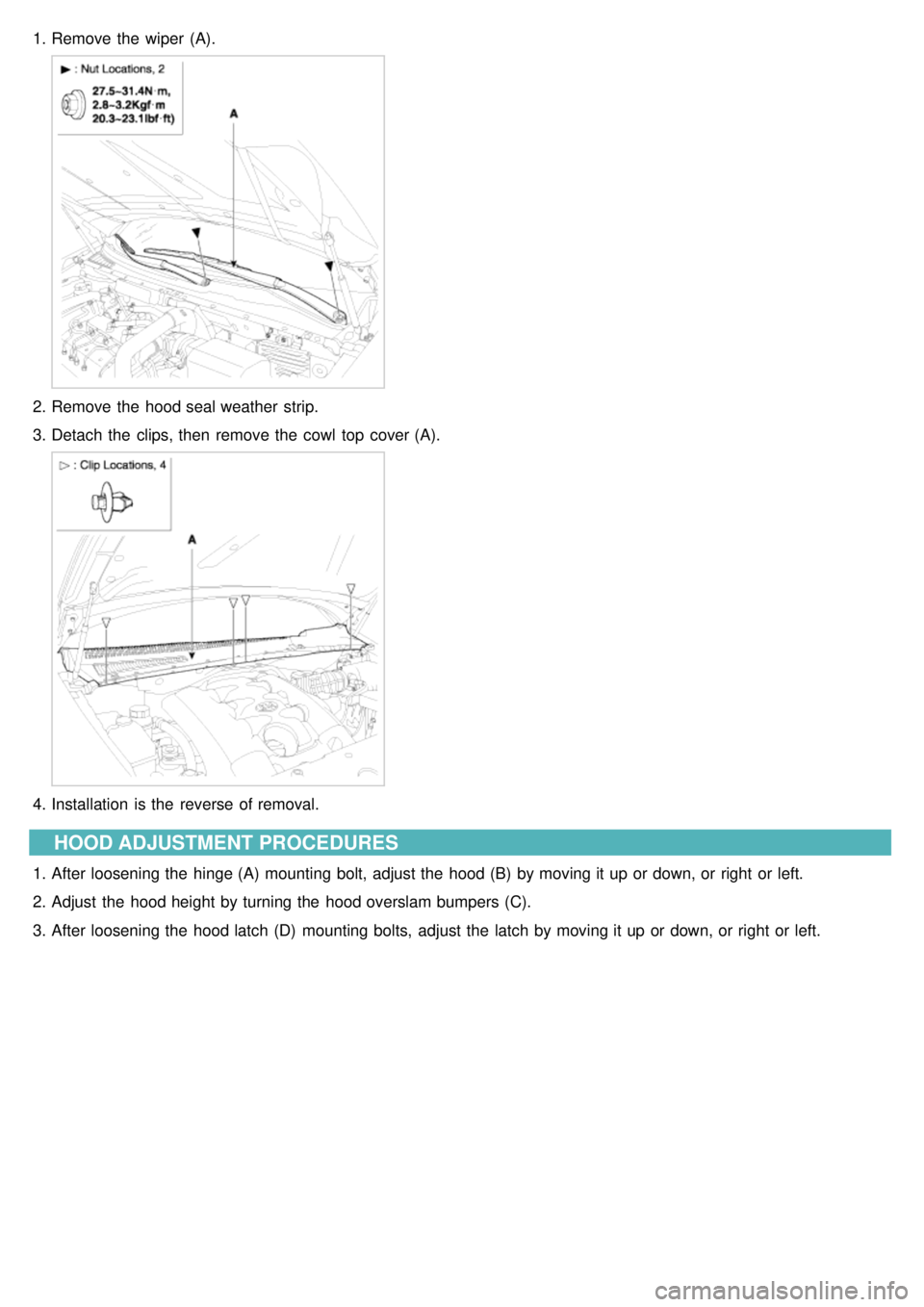

1.Remove the wiper (A).
2.Remove the hood seal weather strip.
3. Detach the clips, then remove the cowl top cover (A).
4.Installation is the reverse of removal.
HOOD ADJUSTMENT PROCEDURES
1.After loosening the hinge (A) mounting bolt, adjust the hood (B) by moving it up or down, or right or left.
2. Adjust the hood height by turning the hood overslam bumpers (C).
3. After loosening the hood latch (D) mounting bolts, adjust the latch by moving it up or down, or right or left.

MEMORY STORAGE OPERATION BY KEYLESS
1.If "ID1" or "ID2" is received during keyless lock operation, record seat and pedal position in keyless code. (there is
no buzzer output during memory storage operation by keyless)
2. Memory storage operation is allowed for a single ID after a change of IG from "on" →"off".
3. Any one of the following conditions will prevent keyless Memory storage operation.
a. When "P" position switch is not on.
b. When Vehicle Speed in CAN BUS data transmitted from CLUSTER is "3km/h" or faster.
c. When seat and pedal is manipulated by CAN BUS and manual switch.
d. When IG transmitted from IPM is other than off.
PRESET RECALL OPERATION BY KEYLESS
1.When IG is off (CAN BUS data IG transmitted from IPM is "off") and a key is removed (CAN BUS data Key
Reminder Switch transmitted from IPM is "off"), and if "ID1" or "ID2" is received during keyless unlock operation, it
automatically adjusts seat and pedal positions as memorized in keyless code (there is no buzzer output during
preset recall operation by keyless). However, seat slide adjustment position is determined as follows, depending on
Auto switch.
a. When auto switch is on ("IMS Auto Switch" is "on") , the position is automatically adjusted to 50 mm farther
back than target position, and if a key is inserted ("Key Reminder Switch" changes from "off" to "on"), it
conducts Get- on gearing operation to a target preset recall position.
b. If auto switch is off ("IMS Auto Switch" is "off"), it moves to the target memory play position.
2. Any one of the following conditions will prevent preset recall operation.
a. When "P" position switch is not on.
b. When Vehicle Speed in CAN BUS data transmitted from cluster is "3km/h" or faster.
c. When seat and pedal is manipulated by CAN BUS and manual switch.
d. When IG Switch transmitted from IPM is other than off.
e. When a key is inserted.
3. Playing will be halted during preset recall operation if any of the following conditions is met.
a. When "P" position switch is not on.
b. When vehicle speed in CAN BUS data transmitted from cluster is "3km/h" or faster.
c. When seat and pedal is manipulated by CAN BUS and manual switch.
SETTING LIMIT
1.A limit switch is installed to prevent the seat from traveling beyond the maximum forward/reward positions.
2. No limit switch is installed for the recline, height, or pedal adjustments. Arbitrary limit positions are used for these
functions.
DETECTING ERRORS FOR SEAT
Take countermeasure against error if the following conditions occur during manual switch operation.
a. Error when pulse is not fed.
SlideReclineFront height Rear height

4.Installation is the reverse of removal.
a.Make sure to align the slide with the center of “A” and “B”
b. Make sure to initialize the motor.
ADJUSTMENT
HOW TO INITIALIZE
1. Check that the glass has been installed.
a. Finish height adjustment.
2. Push the up switch. (Keep on pushing the switch)
a. The slide moved 5mm forward after 15 seconds.
