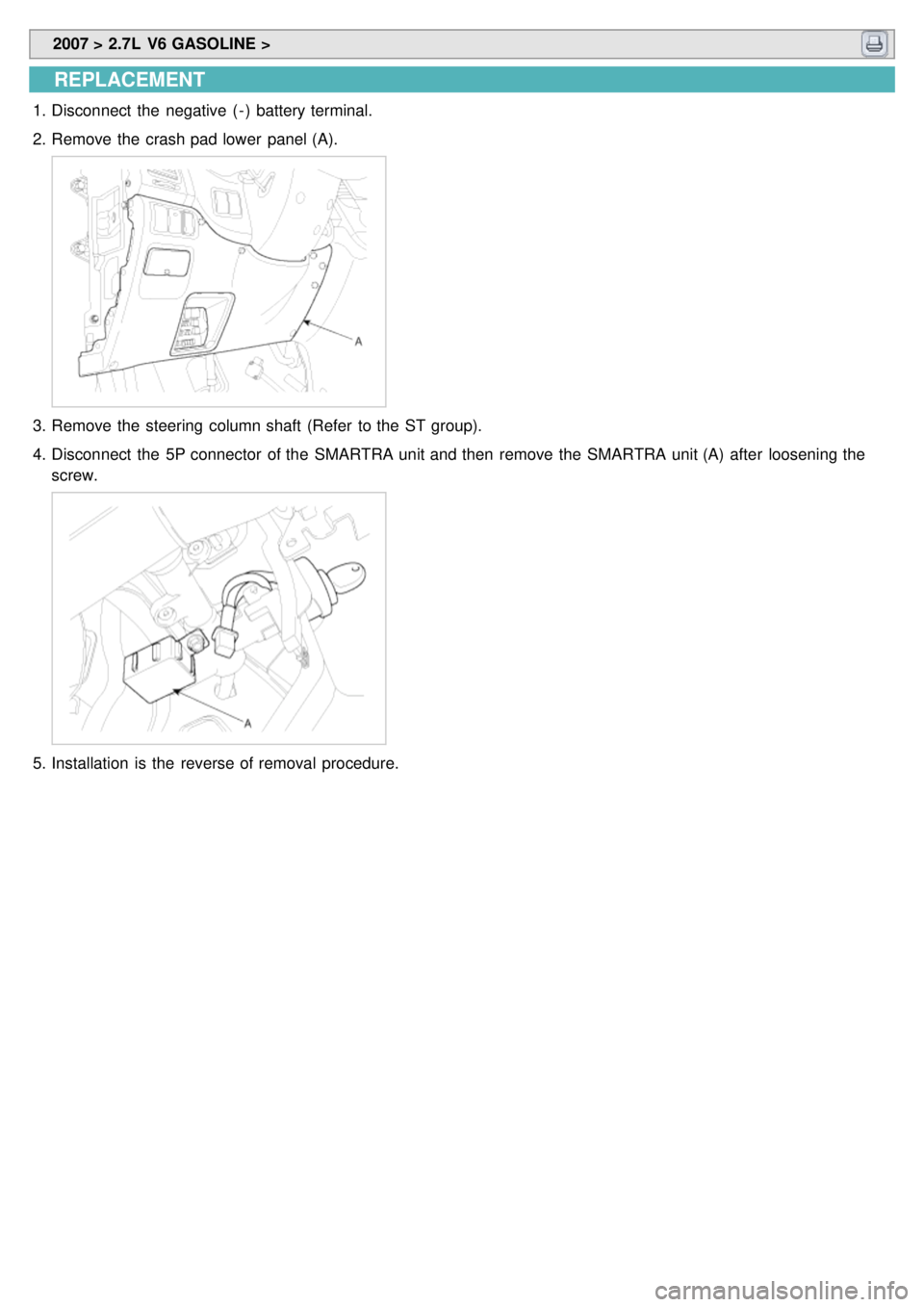

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the crash pad lower panel (A).
3.Remove the steering column shaft (Refer to the ST group).
4. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening the
screw.
5.Installation is the reverse of removal procedure.
Page 1523 of 1575
Page 1524 of 1575

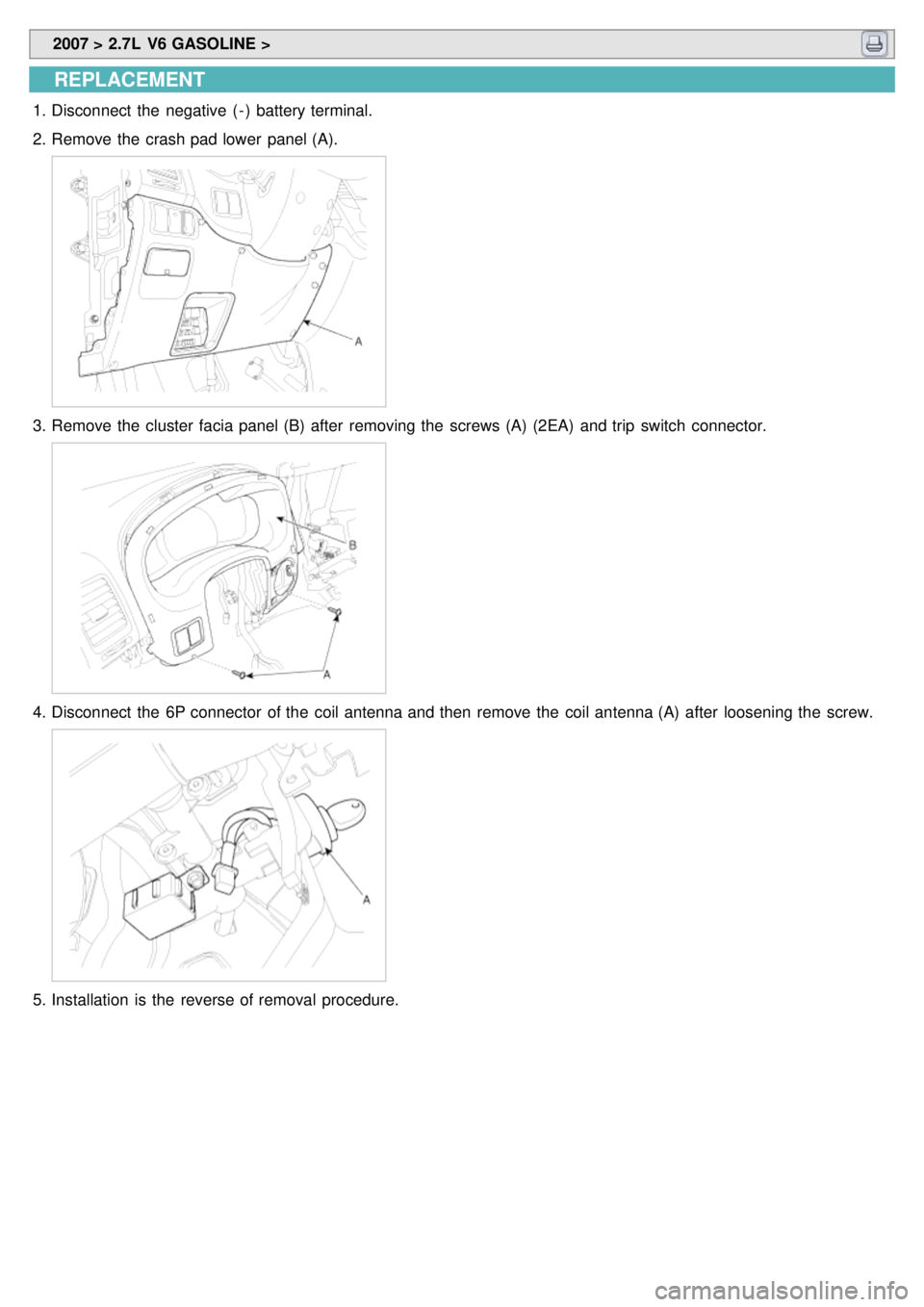

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the crash pad lower panel (A).
3.Remove the cluster facia panel (B) after removing the screws (A) (2EA) and trip switch connector.
4.Disconnect the 6P connector of the coil antenna and then remove the coil antenna (A) after loosening the screw.
5.Installation is the reverse of removal procedure.
Page 1525 of 1575
Page 1526 of 1575

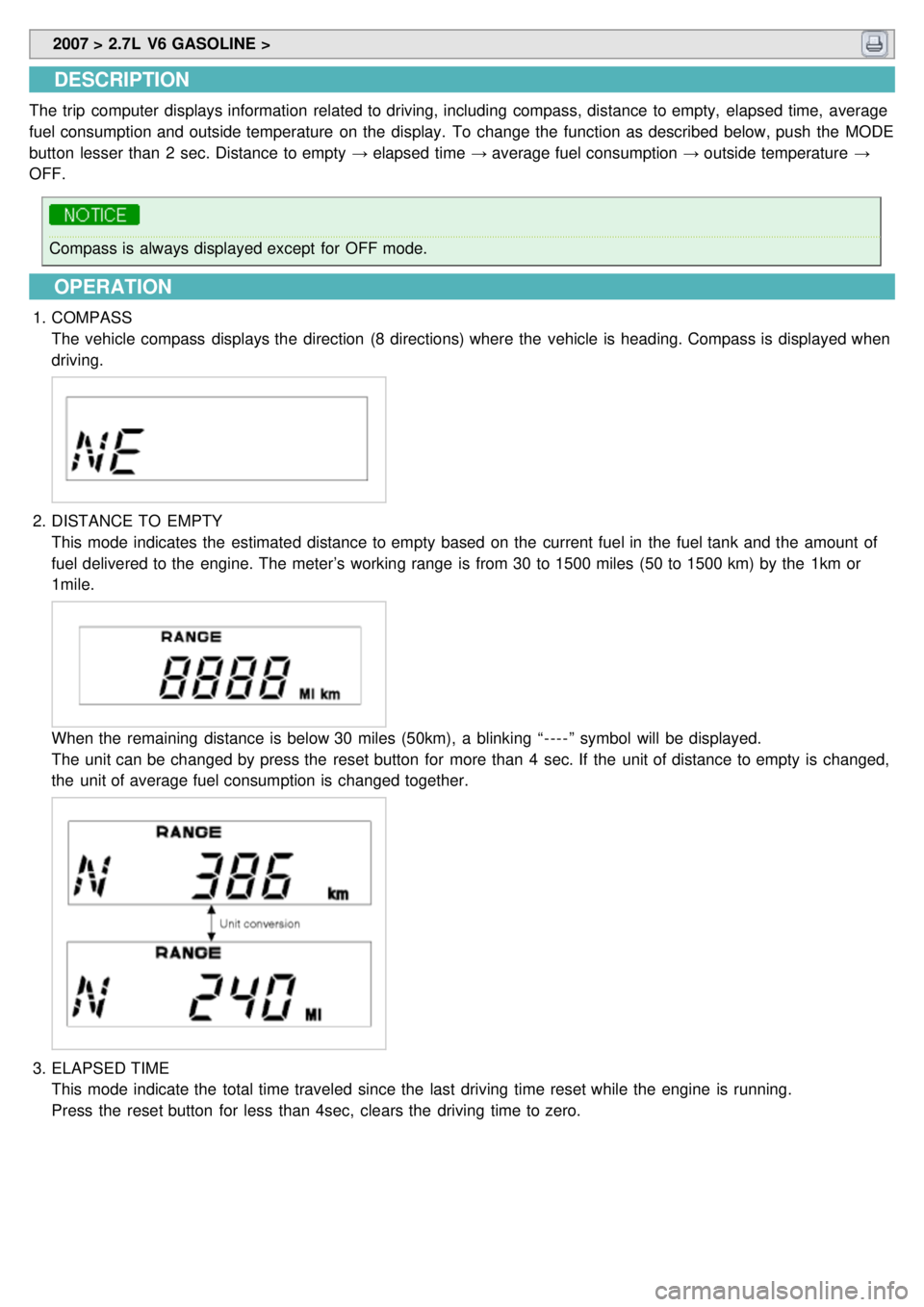

2007 > 2.7L V6 GASOLINE >
DESCRIPTION
The trip computer displays information related to driving, including compass, distance to empty, elapsed time, average
fuel consumption and outside temperature on the display. To change the function as described below, push the MODE
button lesser than 2 sec. Distance to empty → elapsed time → average fuel consumption → outside temperature →
OFF.
Compass is always displayed except for OFF mode.
OPERATION
1. COMPASS
The vehicle compass displays the direction (8 directions) where the vehicle is heading. Compass is displayed when
driving.
2.DISTANCE TO EMPTY
This mode indicates the estimated distance to empty based on the current fuel in the fuel tank and the amount of
fuel delivered to the engine. The meter’s working range is from 30 to 1500 miles (50 to 1500 km) by the 1km or
1mile.
When the remaining distance is below 30 miles (50km), a blinking “ - - - - ” symbol will be displayed.
The unit can be changed by press the reset button for more than 4 sec. If the unit of distance to empty is changed,
the unit of average fuel consumption is changed together.
3.ELAPSED TIME
This mode indicate the total time traveled since the last driving time reset while the engine is running.
Press the reset button for less than 4sec, clears the driving time to zero.
Page 1527 of 1575

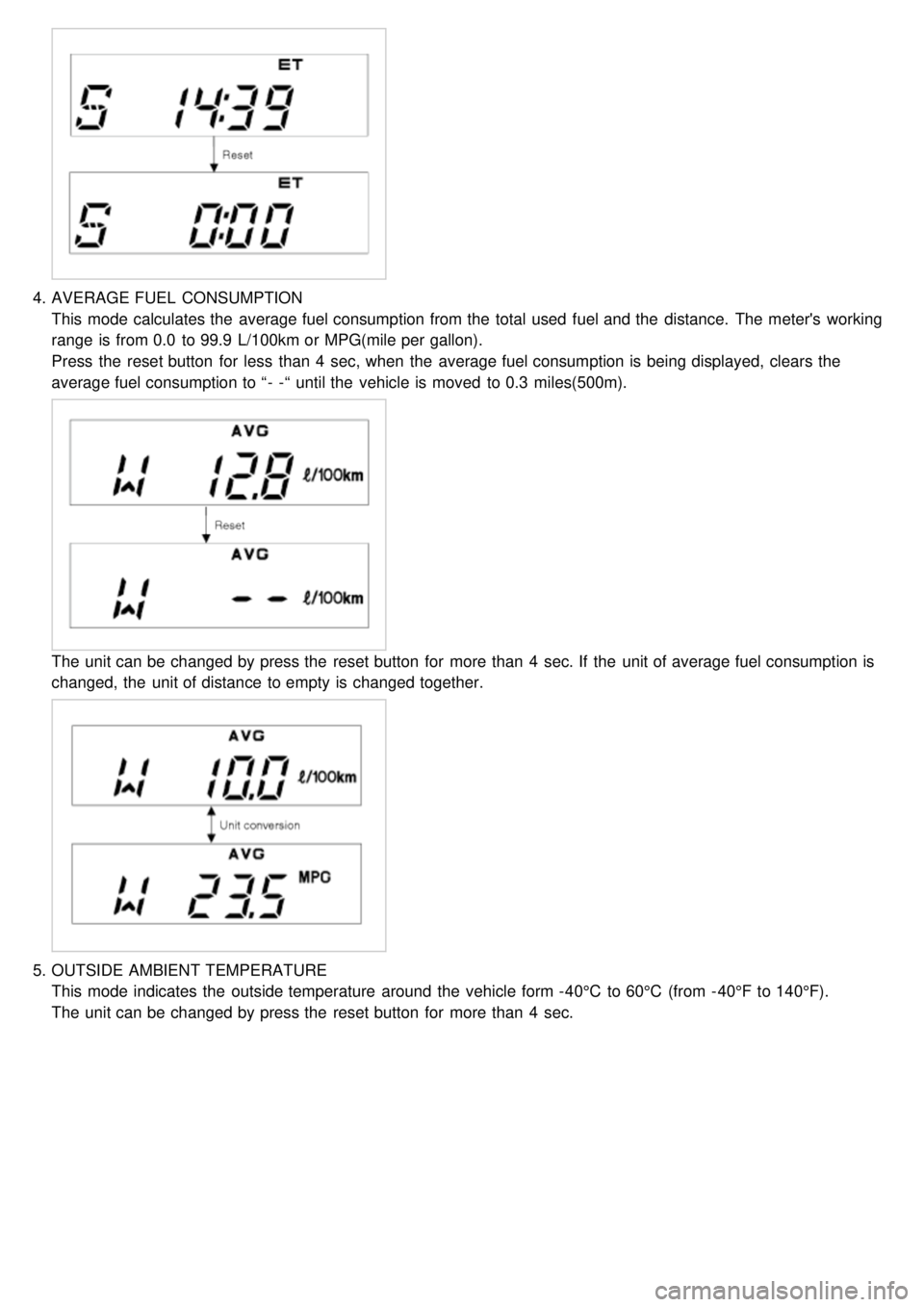

4.AVERAGE FUEL CONSUMPTION
This mode calculates the average fuel consumption from the total used fuel and the distance. The meter's working
range is from 0.0 to 99.9 L/100km or MPG(mile per gallon).
Press the reset button for less than 4 sec, when the average fuel consumption is being displayed, clears the
average fuel consumption to “ - - “ until the vehicle is moved to 0.3 miles(500m).
The unit can be changed by press the reset button for more than 4 sec. If the unit of average fuel consumption is
changed, the unit of distance to empty is changed together.

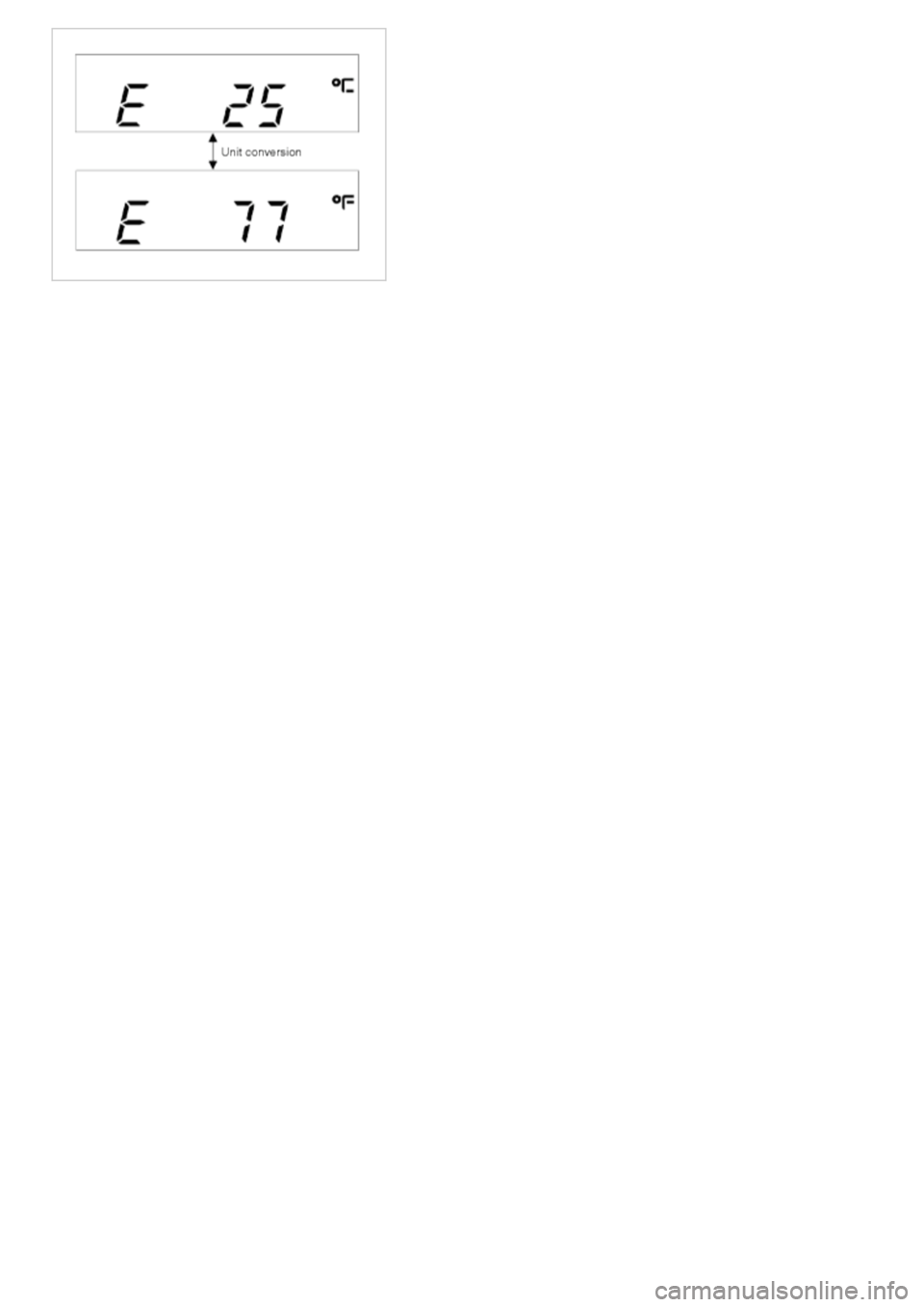

5.OUTSIDE AMBIENT TEMPERATURE
This mode indicates the outside temperature around the vehicle form - 40°C to 60°C (from - 40°F to 140°F).
The unit can be changed by press the reset button for more than 4 sec.
