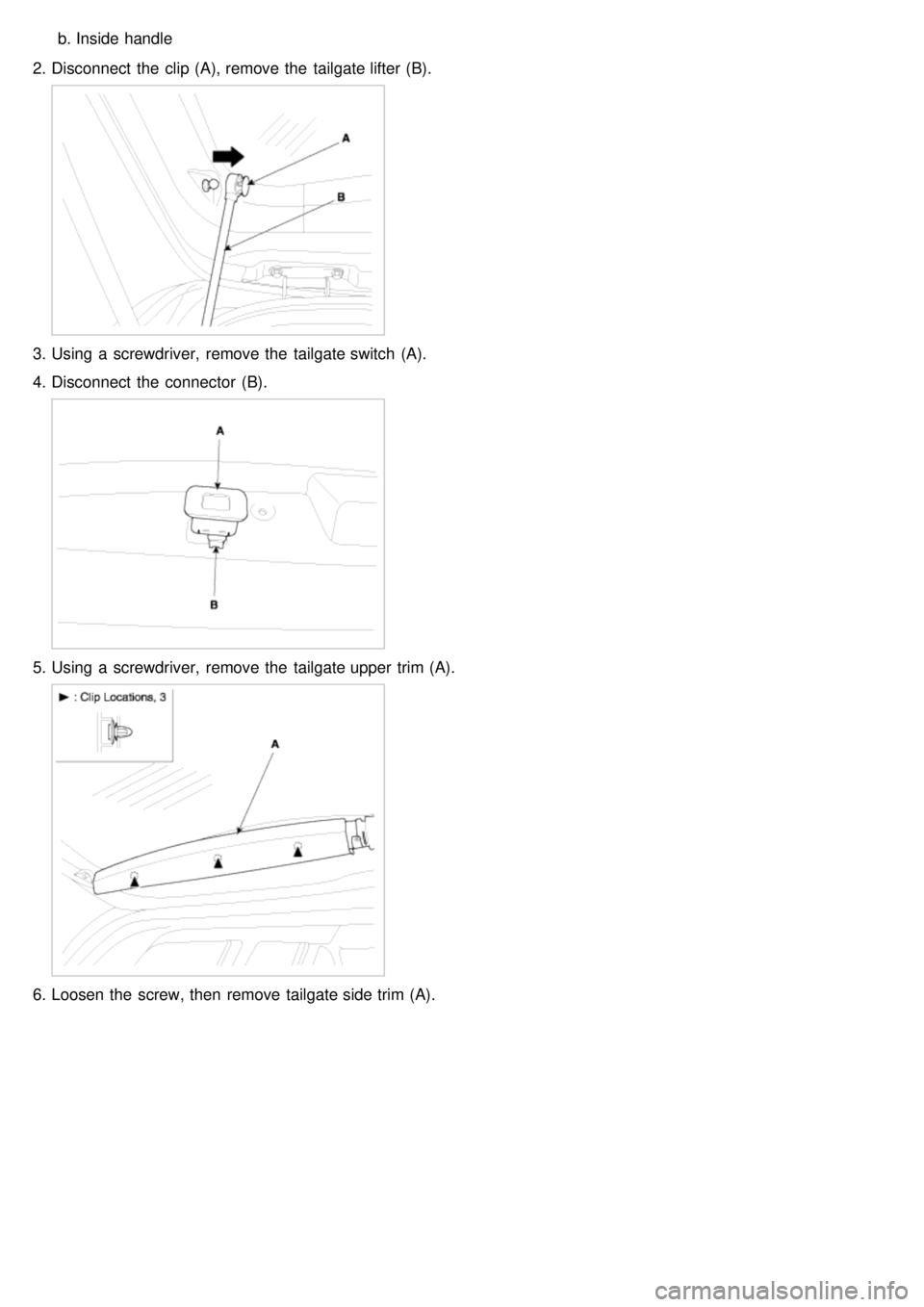

Page 1009 of 1575
b.Inside handle
2. Disconnect the clip (A), remove the tailgate lifter (B).
3.Using a screwdriver, remove the tailgate switch (A).
4. Disconnect the connector (B).
5.Using a screwdriver, remove the tailgate upper trim (A).
6.Loosen the screw, then remove tailgate side trim (A).

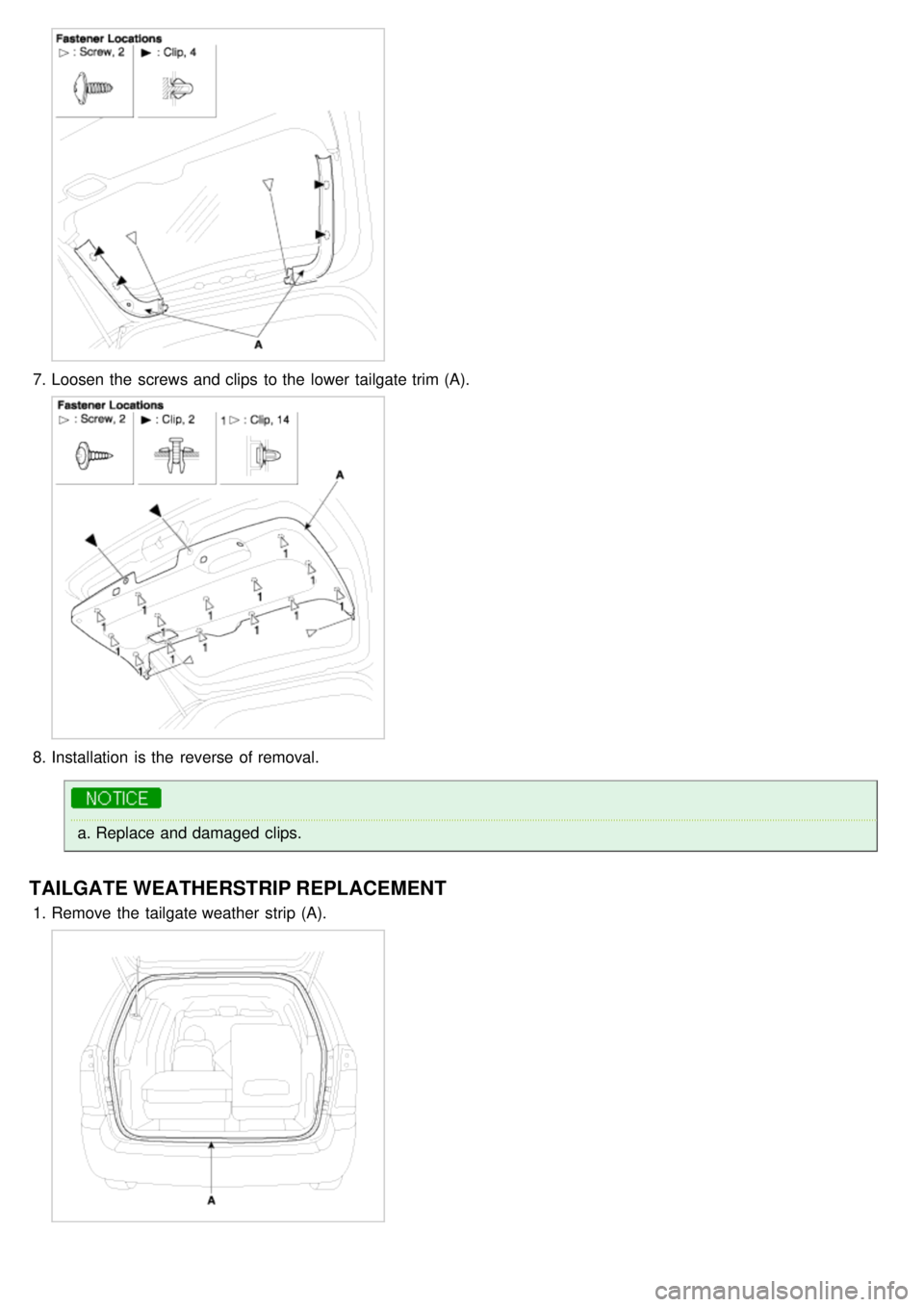

Page 1010 of 1575
7.Loosen the screws and clips to the lower tailgate trim (A).
8.Installation is the reverse of removal.
a.Replace and damaged clips.
TAILGATE WEATHERSTRIP REPLACEMENT
1.Remove the tailgate weather strip (A).

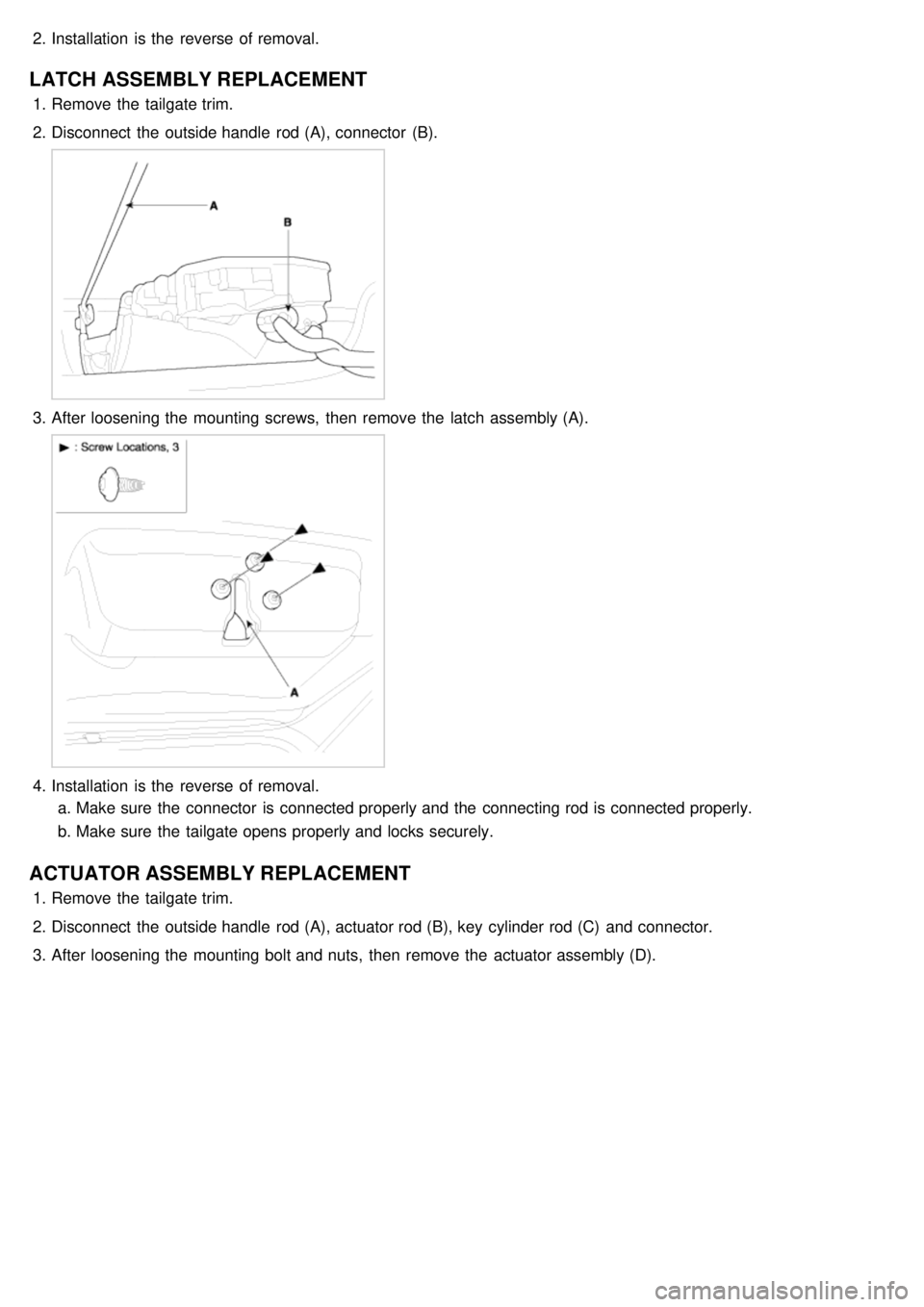

Page 1011 of 1575
2.Installation is the reverse of removal.
LATCH ASSEMBLY REPLACEMENT
1.Remove the tailgate trim.
2. Disconnect the outside handle rod (A), connector (B).
3.After loosening the mounting screws, then remove the latch assembly (A).
4.Installation is the reverse of removal.
a. Make sure the connector is connected properly and the connecting rod is connected properly.
b. Make sure the tailgate opens properly and locks securely.
ACTUATOR ASSEMBLY REPLACEMENT
1.Remove the tailgate trim.
2. Disconnect the outside handle rod (A), actuator rod (B), key cylinder rod (C) and connector.
3. After loosening the mounting bolt and nuts, then remove the actuator assembly (D).

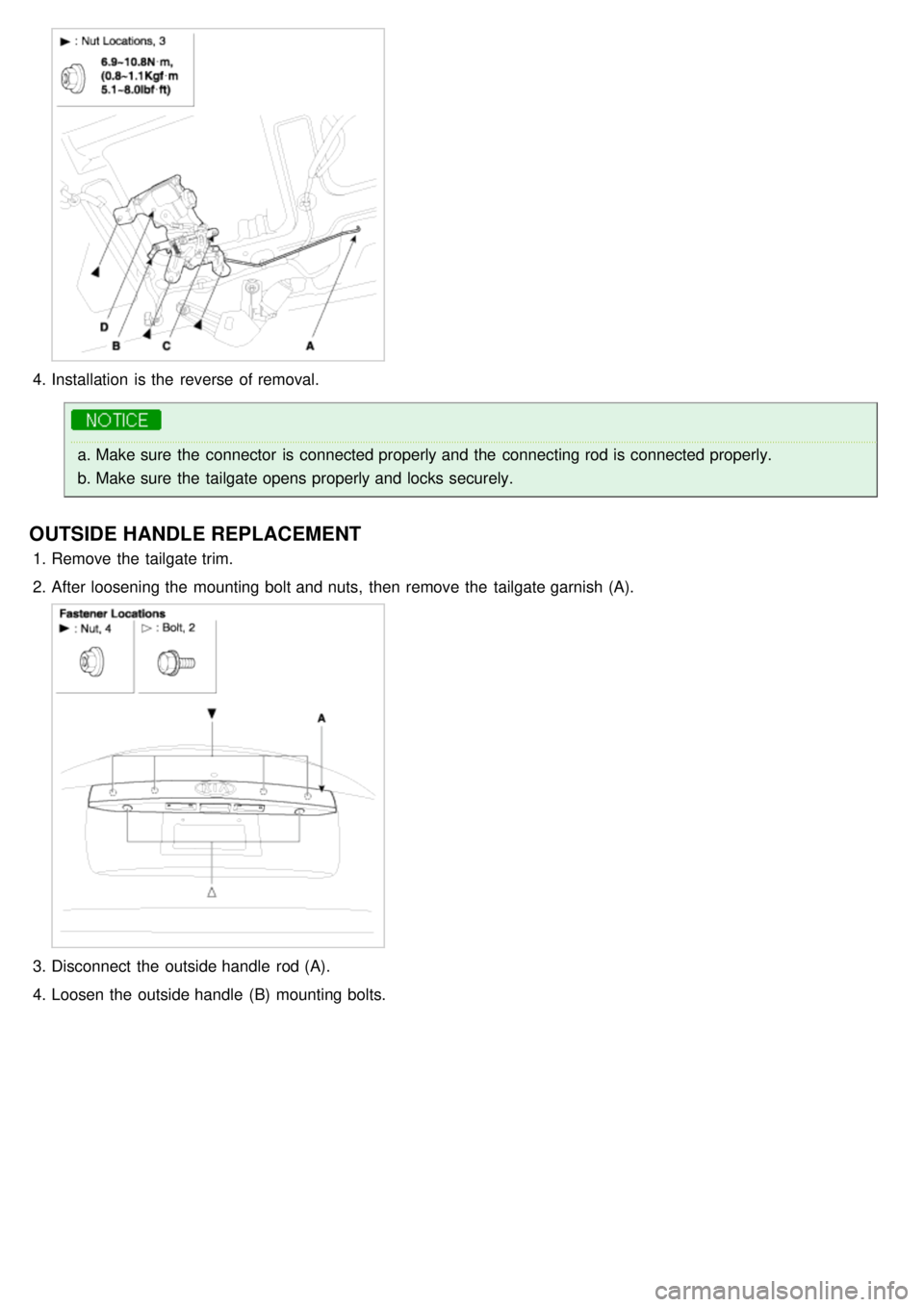

Page 1012 of 1575
4.Installation is the reverse of removal.
a.Make sure the connector is connected properly and the connecting rod is connected properly.
b. Make sure the tailgate opens properly and locks securely.
OUTSIDE HANDLE REPLACEMENT
1.Remove the tailgate trim.
2. After loosening the mounting bolt and nuts, then remove the tailgate garnish (A).
3.Disconnect the outside handle rod (A).
4. Loosen the outside handle (B) mounting bolts.

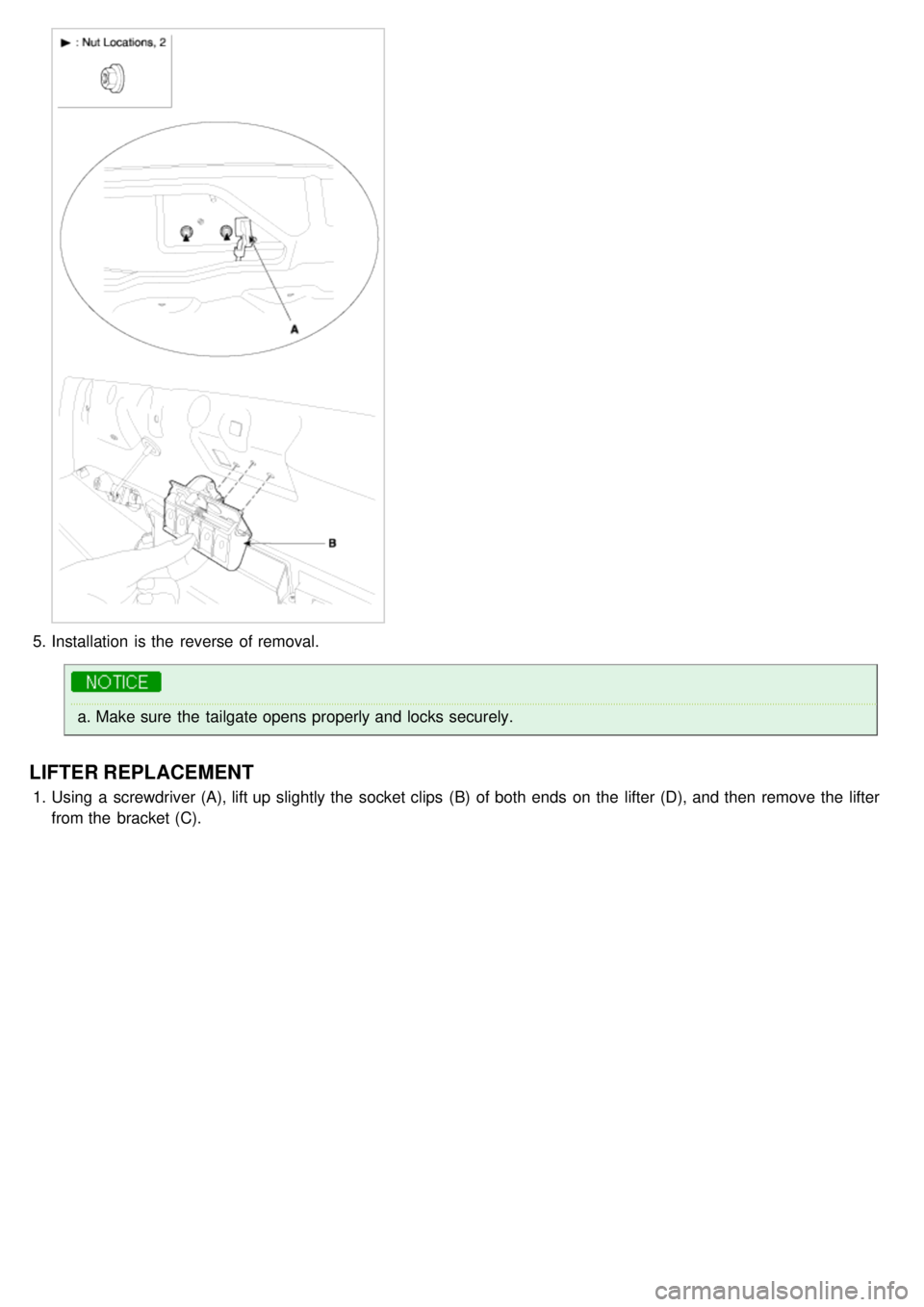

Page 1013 of 1575
5.Installation is the reverse of removal.
a.Make sure the tailgate opens properly and locks securely.
LIFTER REPLACEMENT
1.Using a screwdriver (A), lift up slightly the socket clips (B) of both ends on the lifter (D), and then remove the lifter
from the bracket (C).

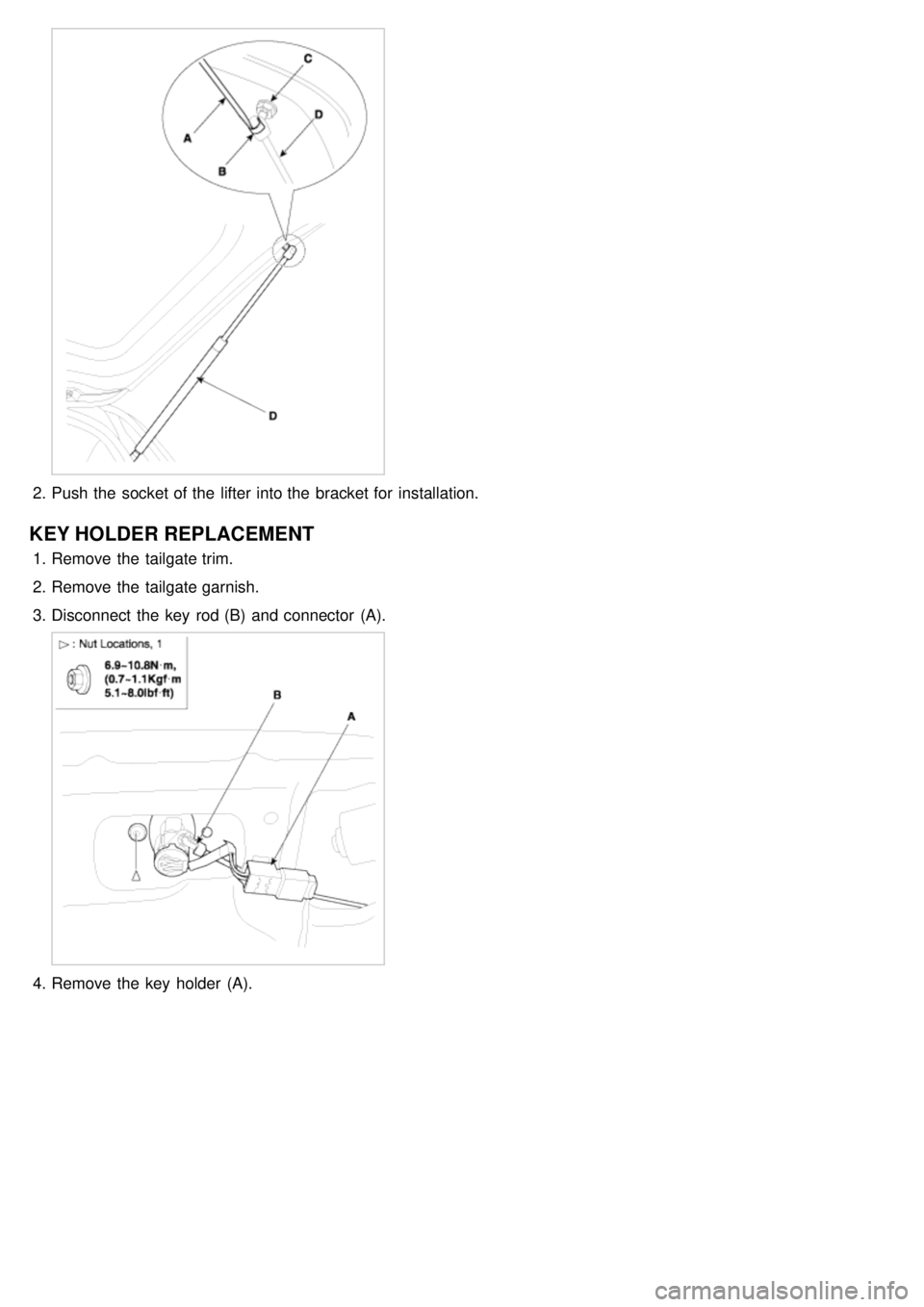

Page 1014 of 1575
2.Push the socket of the lifter into the bracket for installation.
KEY HOLDER REPLACEMENT
1.Remove the tailgate trim.
2. Remove the tailgate garnish.
3. Disconnect the key rod (B) and connector (A).
4.Remove the key holder (A).

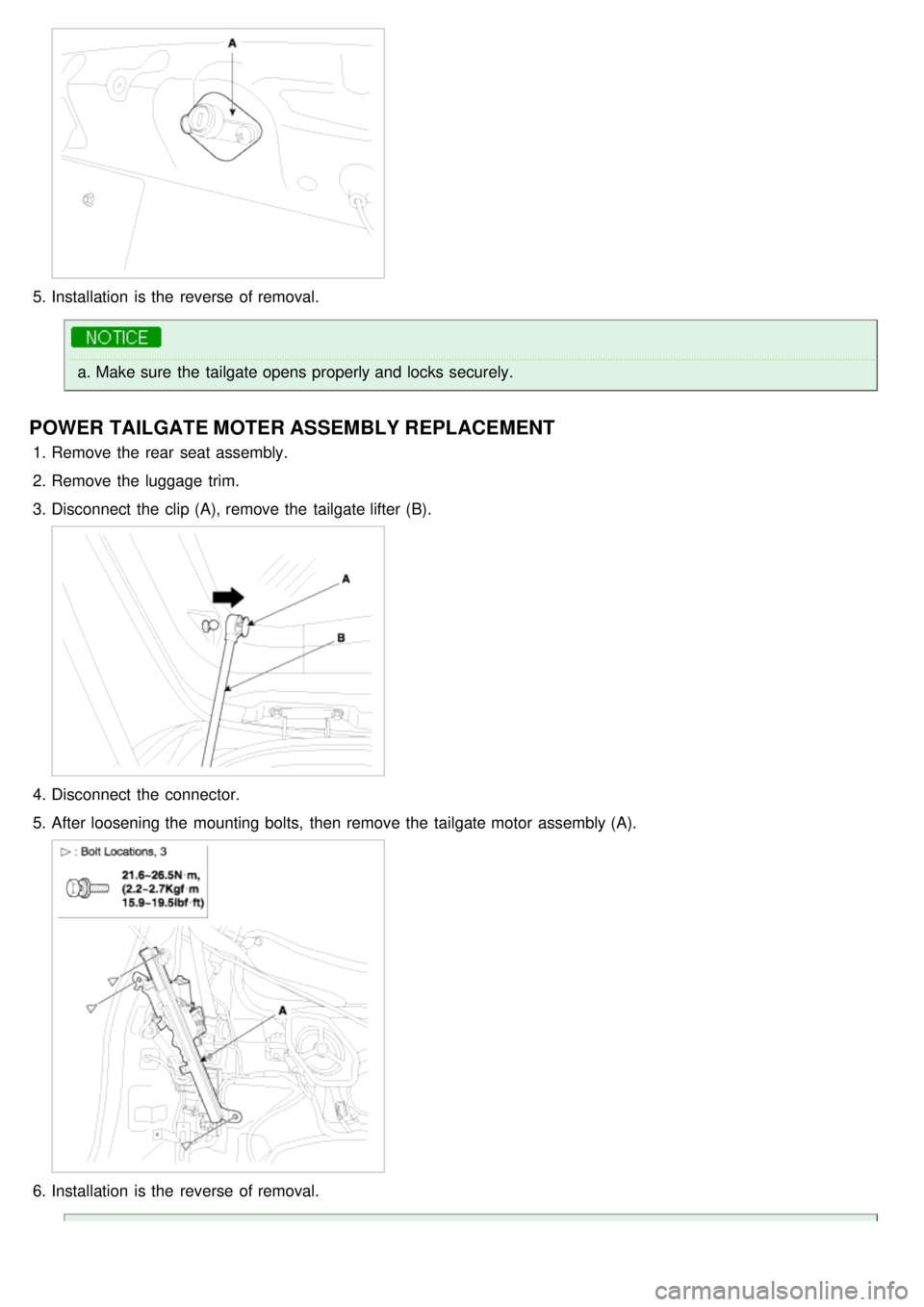

Page 1015 of 1575
5.Installation is the reverse of removal.
a.Make sure the tailgate opens properly and locks securely.
POWER TAILGATE MOTER ASSEMBLY REPLACEMENT
1.Remove the rear seat assembly.
2. Remove the luggage trim.
3. Disconnect the clip (A), remove the tailgate lifter (B).
4.Disconnect the connector.
5. After loosening the mounting bolts, then remove the tailgate motor assembly (A).
6.Installation is the reverse of removal.

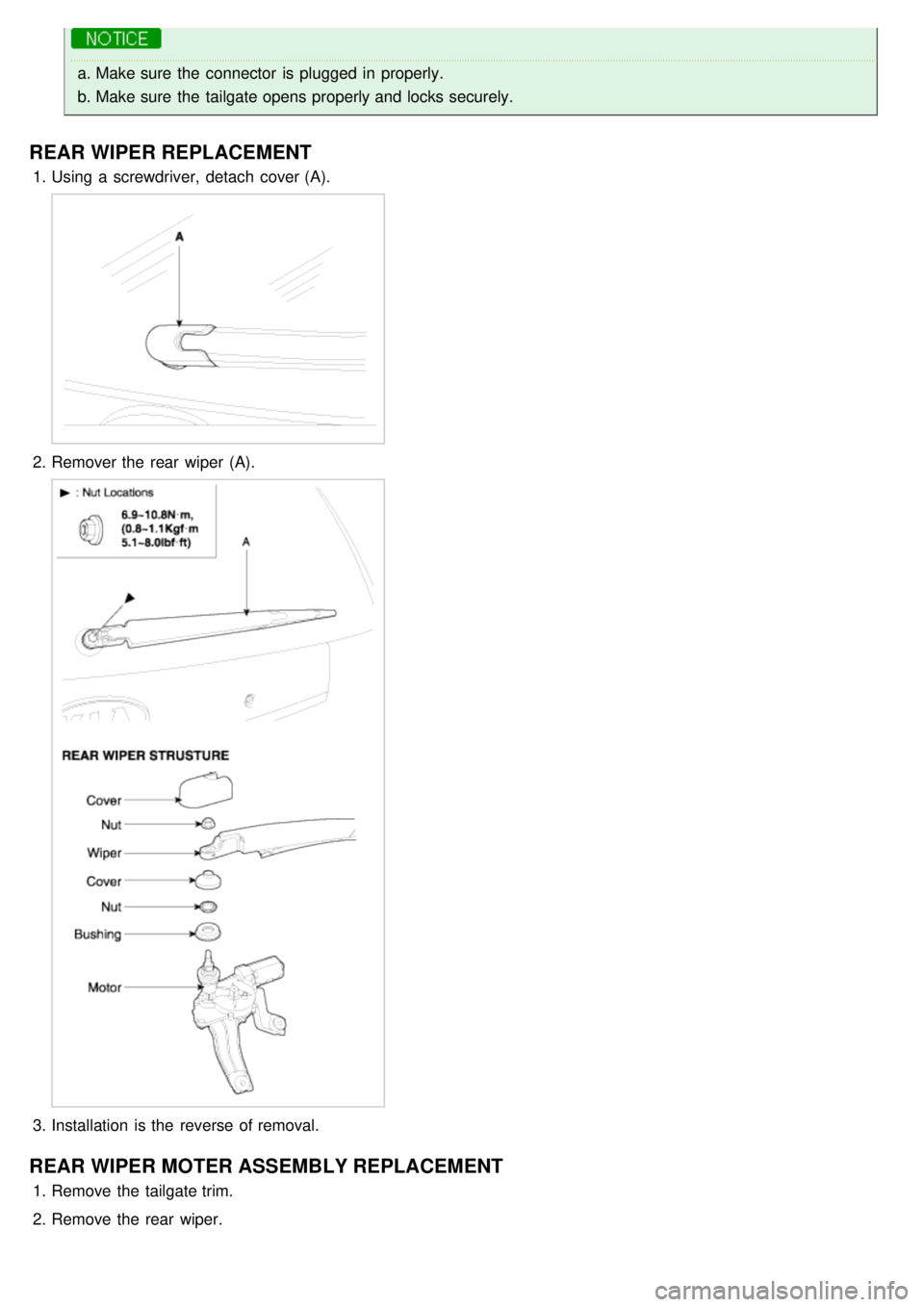

Page 1016 of 1575
a.Make sure the connector is plugged in properly.
b. Make sure the tailgate opens properly and locks securely.
REAR WIPER REPLACEMENT
1.Using a screwdriver, detach cover (A).
2.Remover the rear wiper (A).
3.Installation is the reverse of removal.
REAR WIPER MOTER ASSEMBLY REPLACEMENT
1.Remove the tailgate trim.
2. Remove the rear wiper.
