Page 1193 of 1575
2007 > 2.7L V6 GASOLINE >
INSPECTION

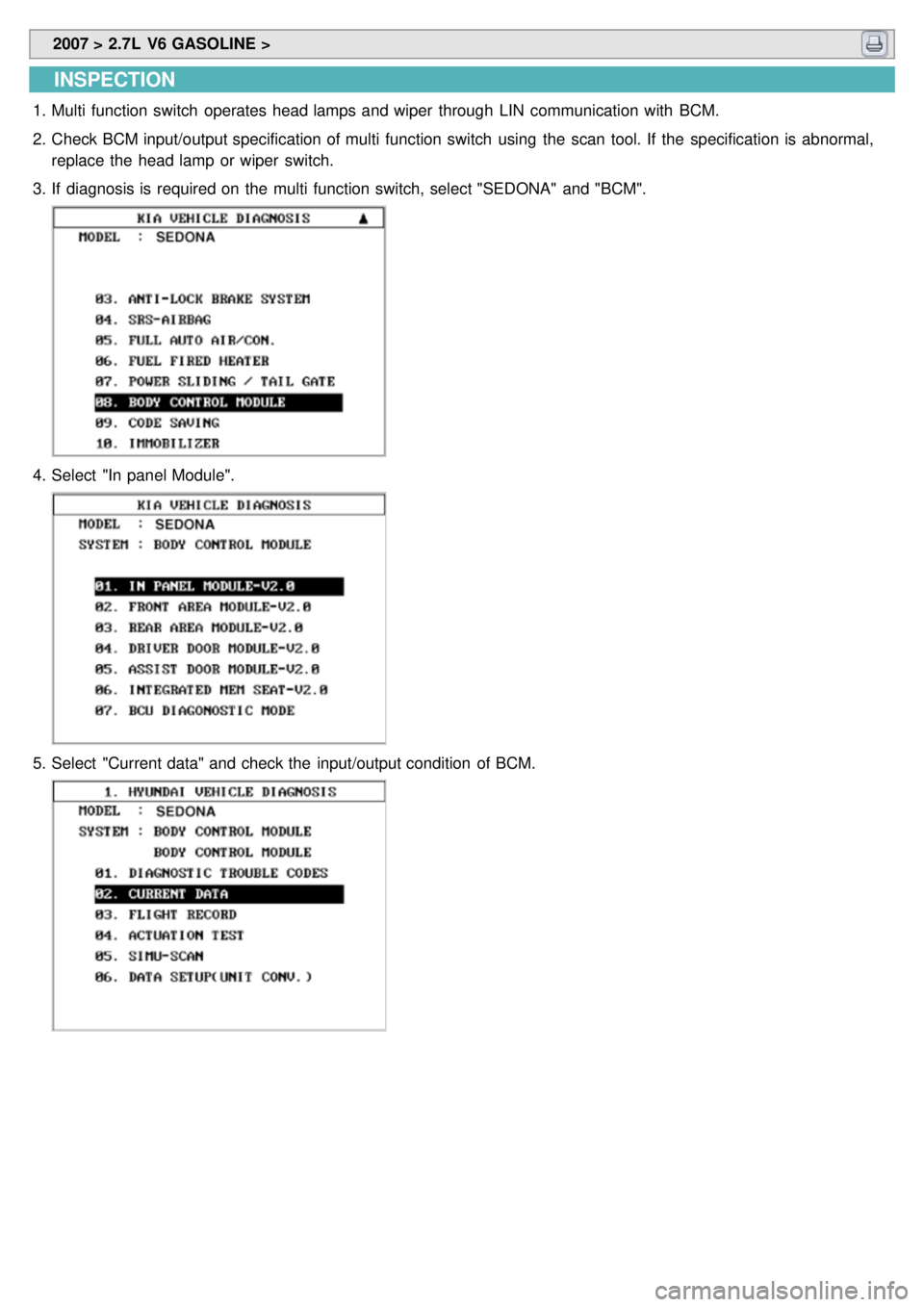

1.Multi function switch operates head lamps and wiper through LIN communication with BCM.
2. Check BCM input/output specification of multi function switch using the scan tool. If the specification is abnormal,
replace the head lamp or wiper switch.
3. If diagnosis is required on the multi function switch, select "SEDONA" and "BCM".
4.Select "In panel Module".
5.Select "Current data" and check the input/output condition of BCM.
Page 1194 of 1575

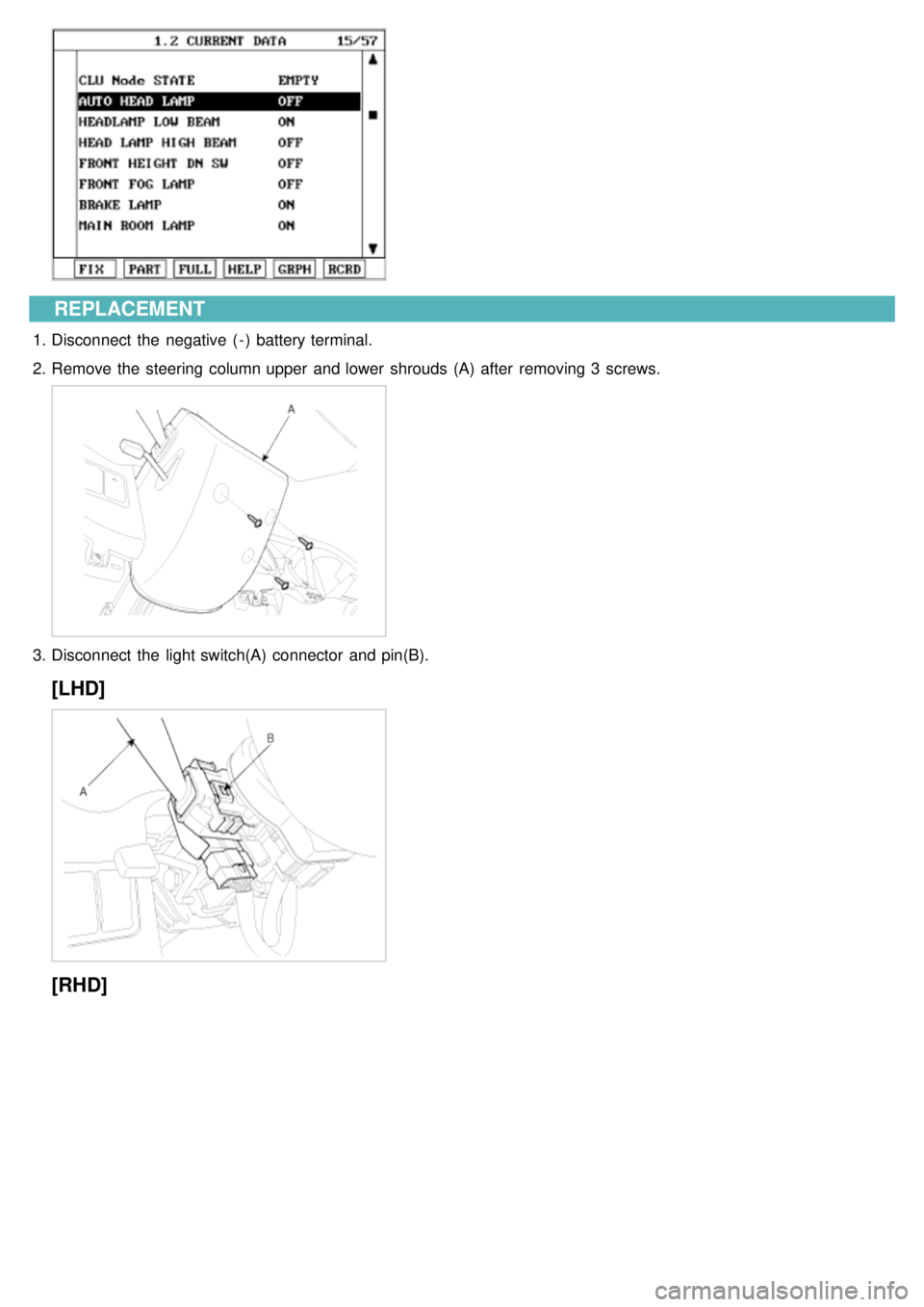

REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the steering column upper and lower shrouds (A) after removing 3 screws.
3.Disconnect the light switch(A) connector and pin(B).
[LHD]
[RHD]
Page 1195 of 1575

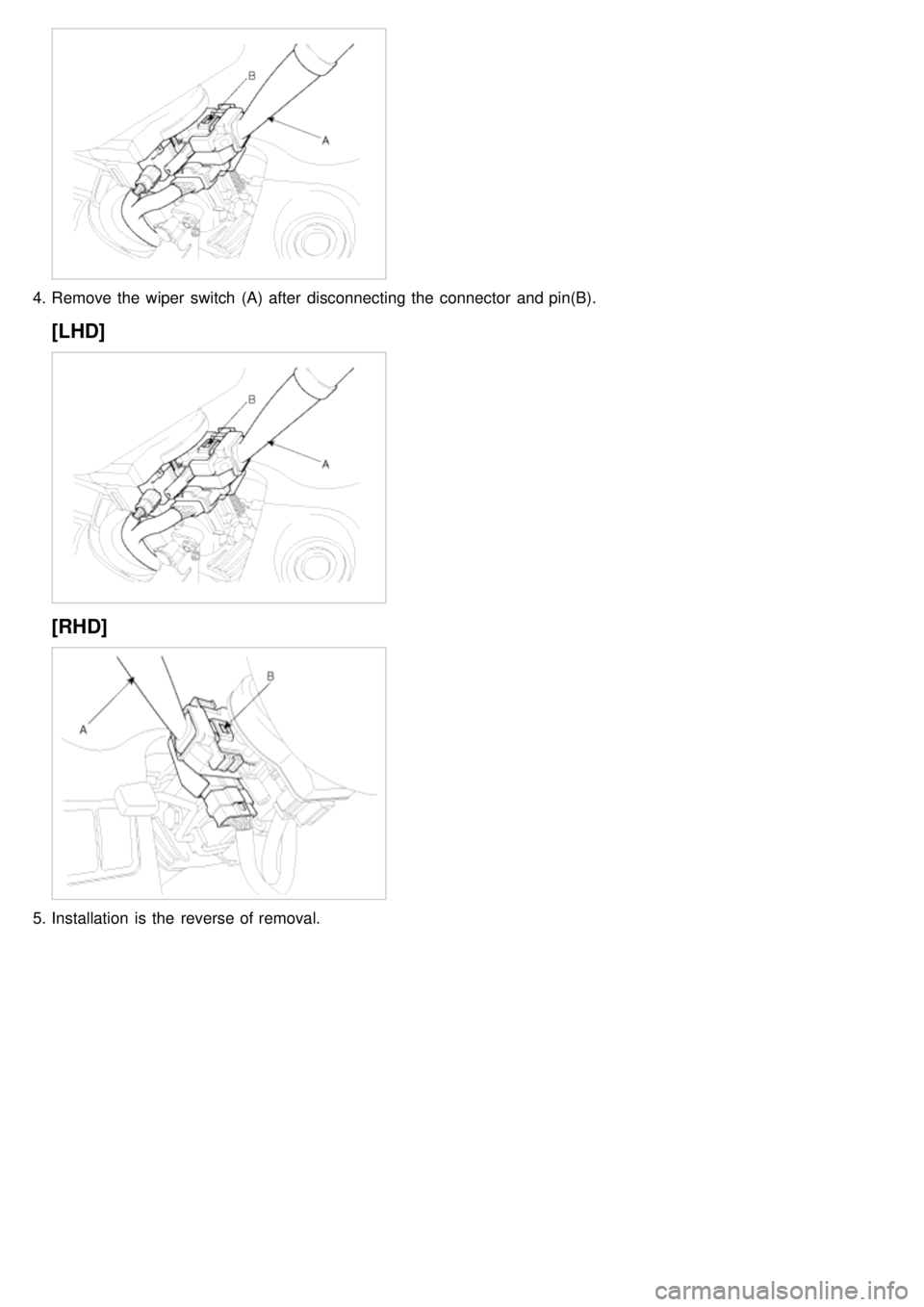

4.Remove the wiper switch (A) after disconnecting the connector and pin(B).
[LHD]
[RHD]
5.Installation is the reverse of removal.
Page 1196 of 1575
Page 1197 of 1575
2007 > 2.7L V6 GASOLINE >

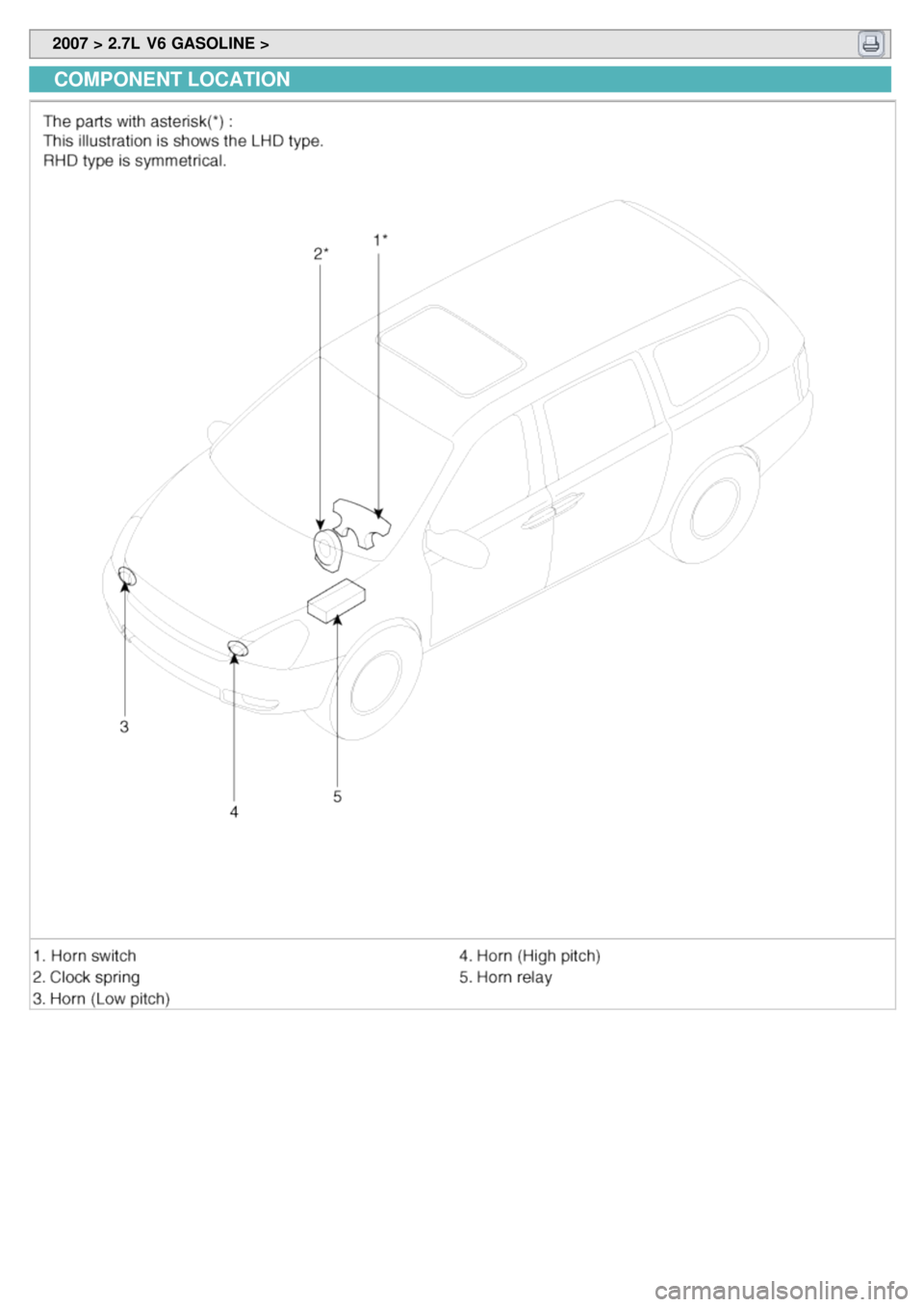

COMPONENT LOCATION
Page 1198 of 1575
2007 > 2.7L V6 GASOLINE >
REPLACEMENT

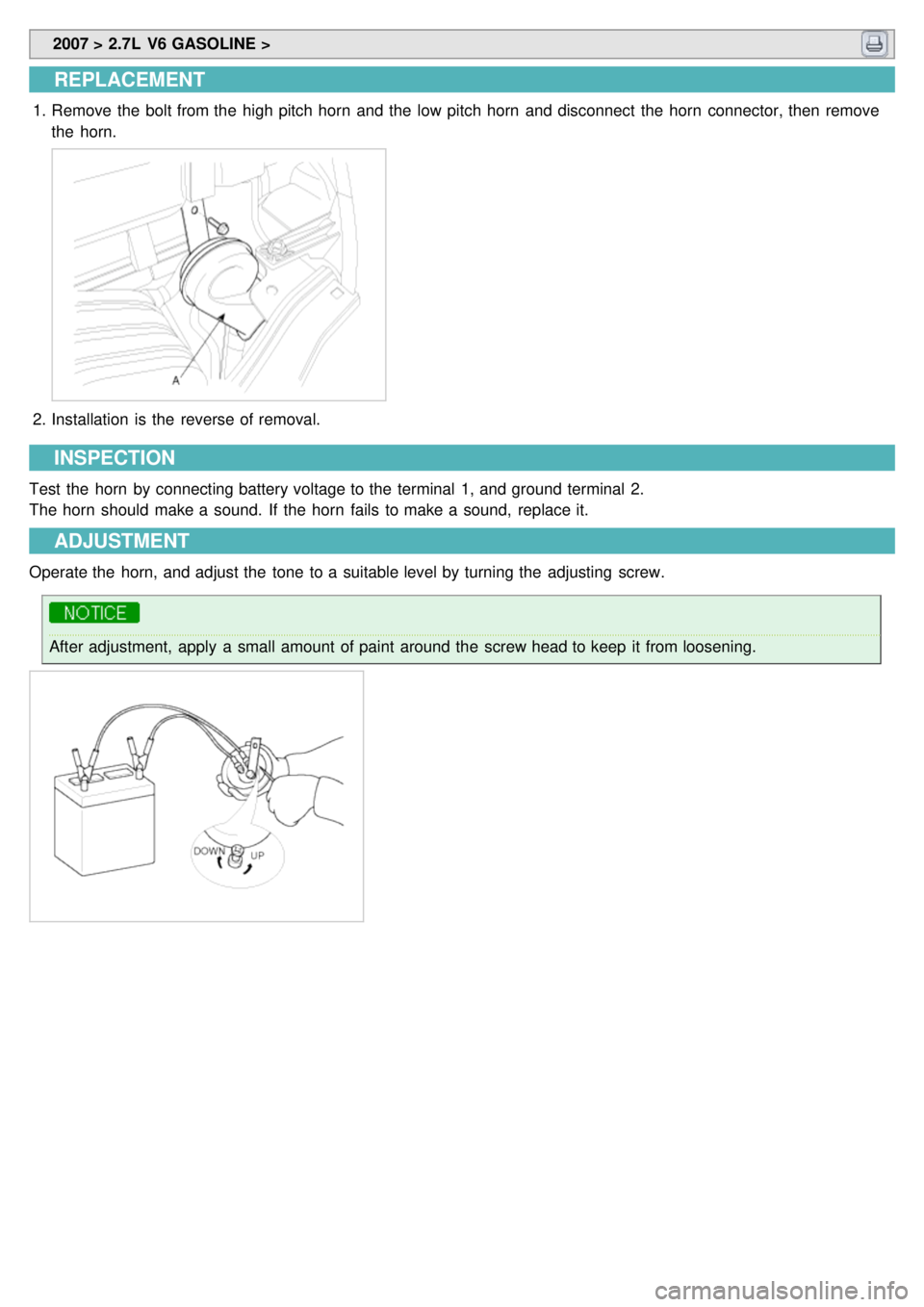

1.Remove the bolt from the high pitch horn and the low pitch horn and disconnect the horn connector, then remove
the horn.
2.Installation is the reverse of removal.
INSPECTION
Test the horn by connecting battery voltage to the terminal 1, and ground terminal 2.
The horn should make a sound. If the horn fails to make a sound, replace it.
ADJUSTMENT
Operate the horn, and adjust the tone to a suitable level by turning the adjusting screw.
After adjustment, apply a small amount of paint around the screw head to keep it from loosening.
Page 1199 of 1575
Keyless Entry And
Burglar Alarm
Page 1200 of 1575
2007 > 2.7L V6 GASOLINE >
DESCRIPTION
KEYLESS ENTRY SYSTEM
The keyless entry system uses a handheld transmitter and IPM - mounted receiver to control door locks, alarm
functions, Power Tail Gate (PTG) and Power Sliding Doors (PSD).
The receiver of the keyless entry system are built- in the IPM(In - Panel Module).
