2007 KIA CARNIVAL Workshop Manual

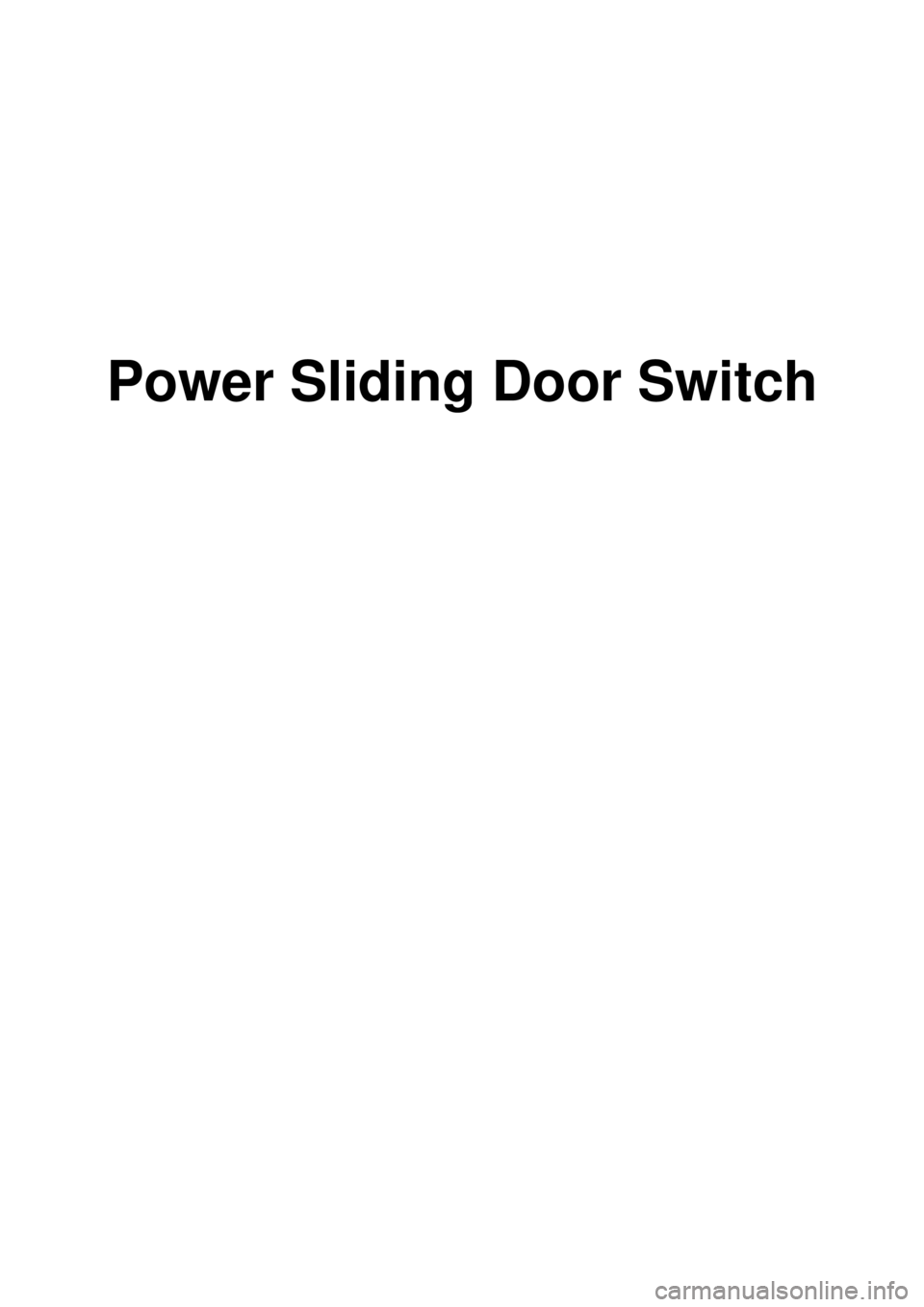

Power Sliding Door Switch

2007 > 2.7L V6 GASOLINE >
INSPECTION
OVERHEAD CONSOLE DOOR SWITCH INSPECTION
1. Check the overhead console door switch input/output value by using the diagnostic tool. If the operation of
overhead console door switch is abnormal, check the IPM and replace.
2. When checking the overhead console switch operation, select a vehicle type and "IPM" menu.
3.Select a in panel module (IPM) and "CURRENT DATA".
4.Check the PSD PTG power control switch and PSD left/right switch.
5.Confirm that output is changed by the controlling ON/OFF of each switch on the overhead console.
DOOR HANDLE SWITCH INSPECTION
1.Check the power sliding door control module input/output value by using the diagnostic tool. If the operation of door
control module is abnormal, replace power sliding door control module.
2. When checking handle switch operation, select a vehicle type and "POWER SLIDING/TAIL GATE" menu.

3.Select the "POWER SLIDING DOOR" menu to check.
4.Select the sensor output. And then check the handle switch output value changed by the controlling PSD or PTG.
5.Check that the handle switch output changed from OFF to ON during PSD or PTG operation.
TRIM SWITCH INSPECTION
1.Check the trim switch input/output value by using the diagnostic tool. If the operation of rear area module (RAM) is
abnormal, replace RAM.
2. When checking the trim switch operation, select a vehicle type and "IPM" menu.

3.Select a rear area module (RAM) and sensor output.
4.Check the value of RSD/LSD, left/right door switch.
5.Confirm that the door switch output is changed by the controlling ON/OFF switch on center pillar trim.
REPLACEMENT
OVERHEAD CONSOLE SWITCH
1. Disconnect the negative ( - ) battery terminal.

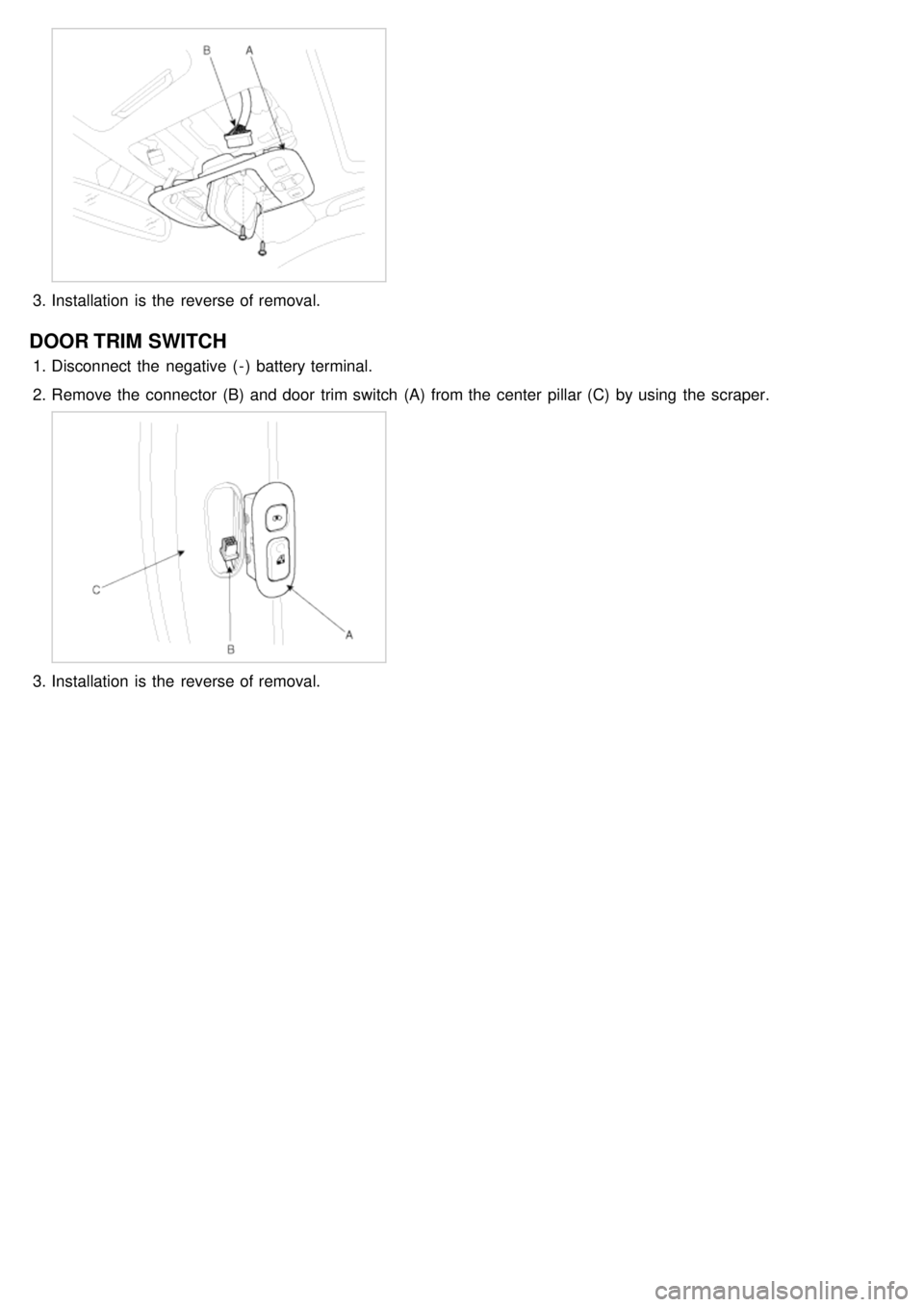

2. Open the sunglass case cover from the overhead console then remove the 2 screws holding the overhead console
(A). And then disconnect the connector (B).

3.Installation is the reverse of removal.
DOOR TRIM SWITCH
1.Disconnect the negative ( - ) battery terminal.
2. Remove the connector (B) and door trim switch (A) from the center pillar (C) by using the scraper.
3.Installation is the reverse of removal.

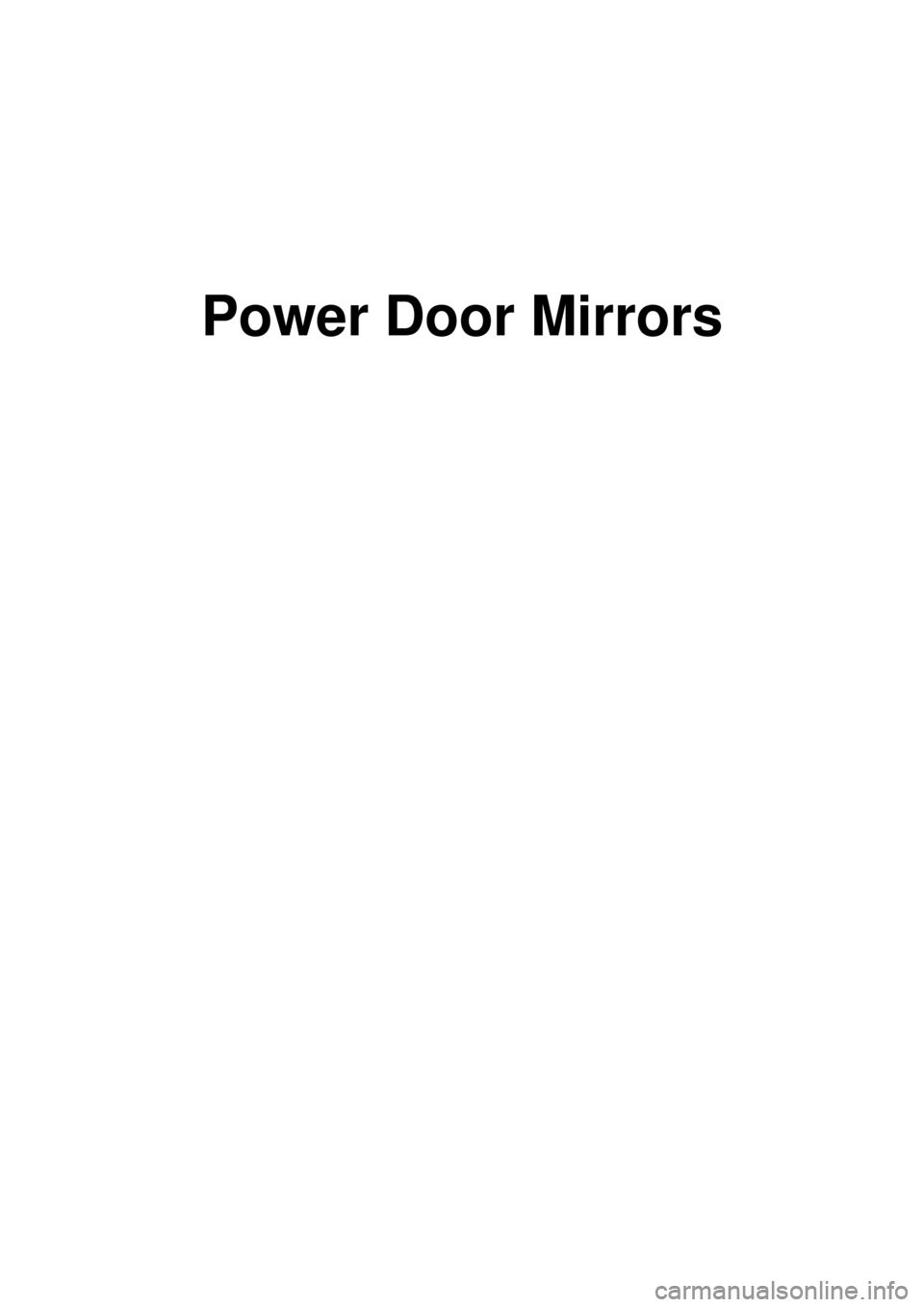

Power Door Mirrors

2007 > 2.7L V6 GASOLINE >

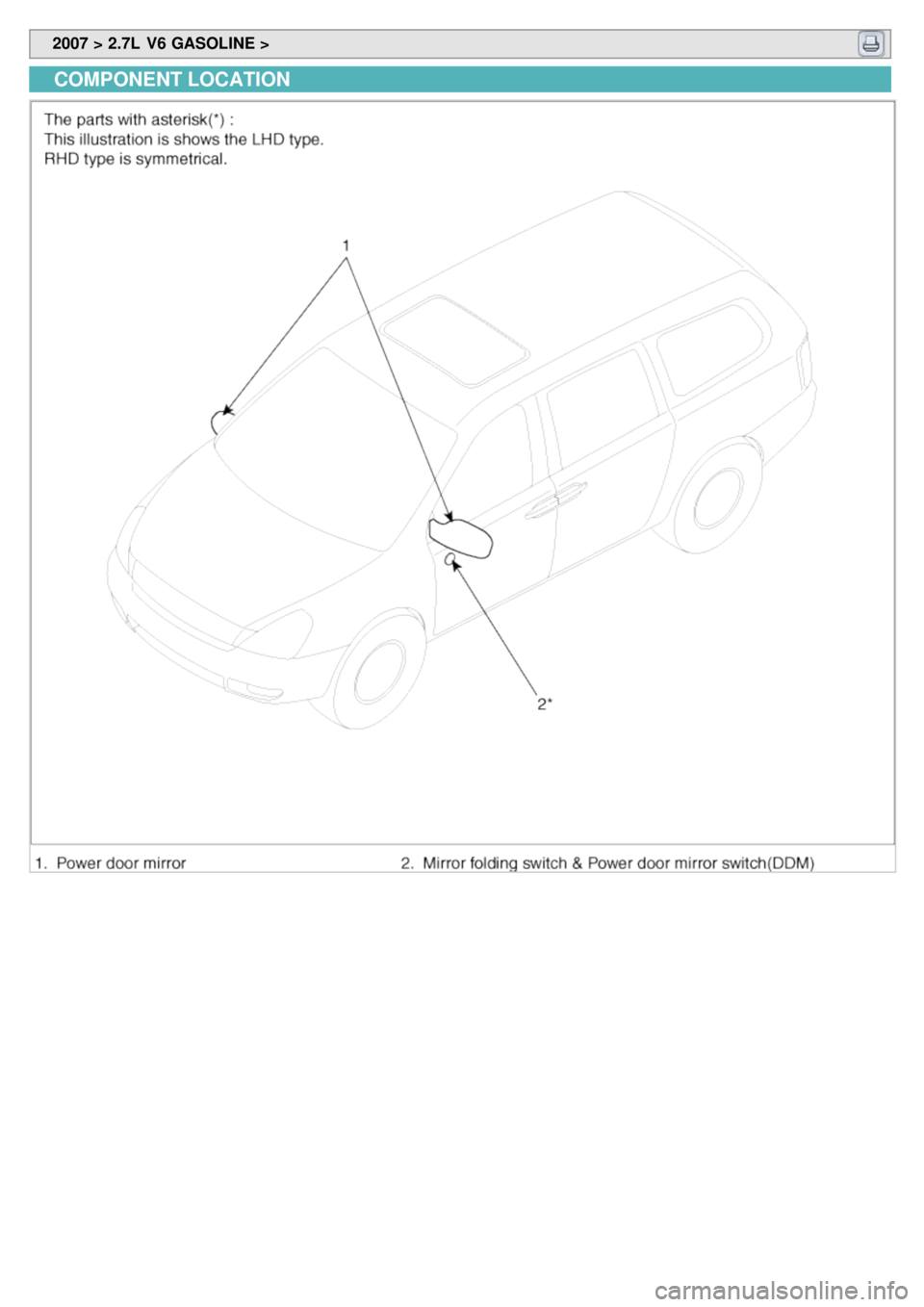

COMPONENT LOCATION

Power Door Mirror Actuator
