2007 KIA CARNIVAL Workshop Manual

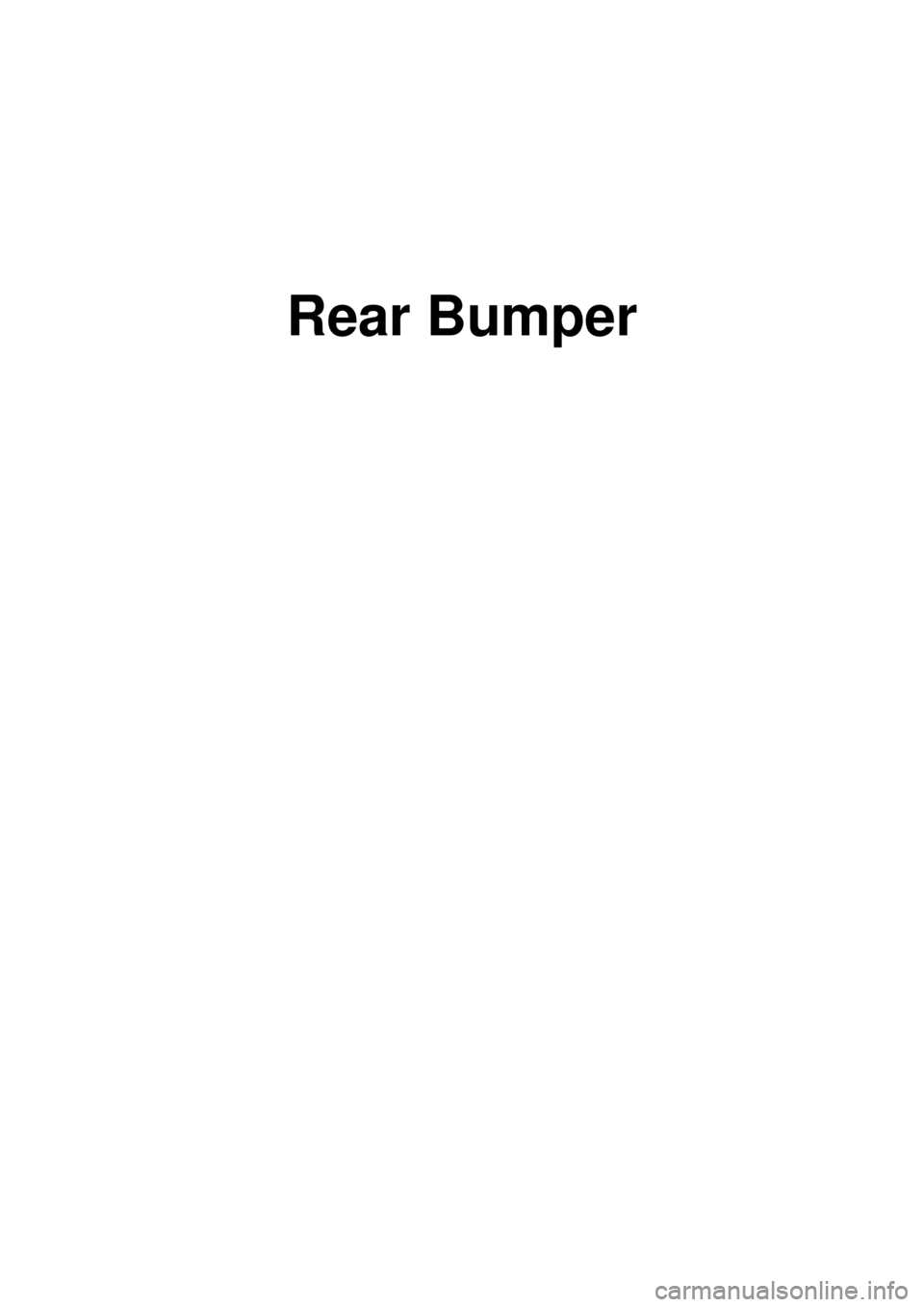

Rear Bumper

2007 > 2.7L V6 GASOLINE >

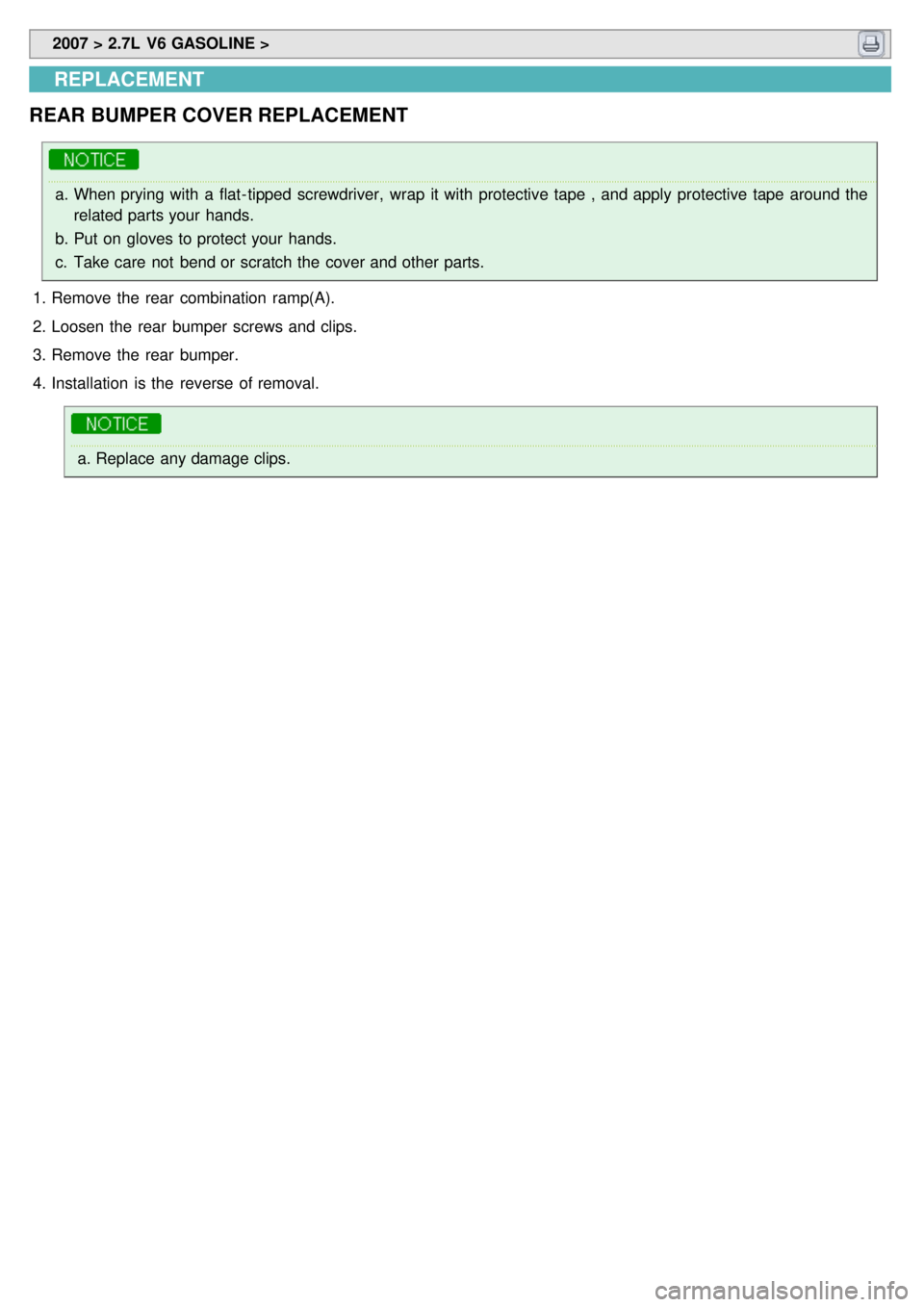

REPLACEMENT

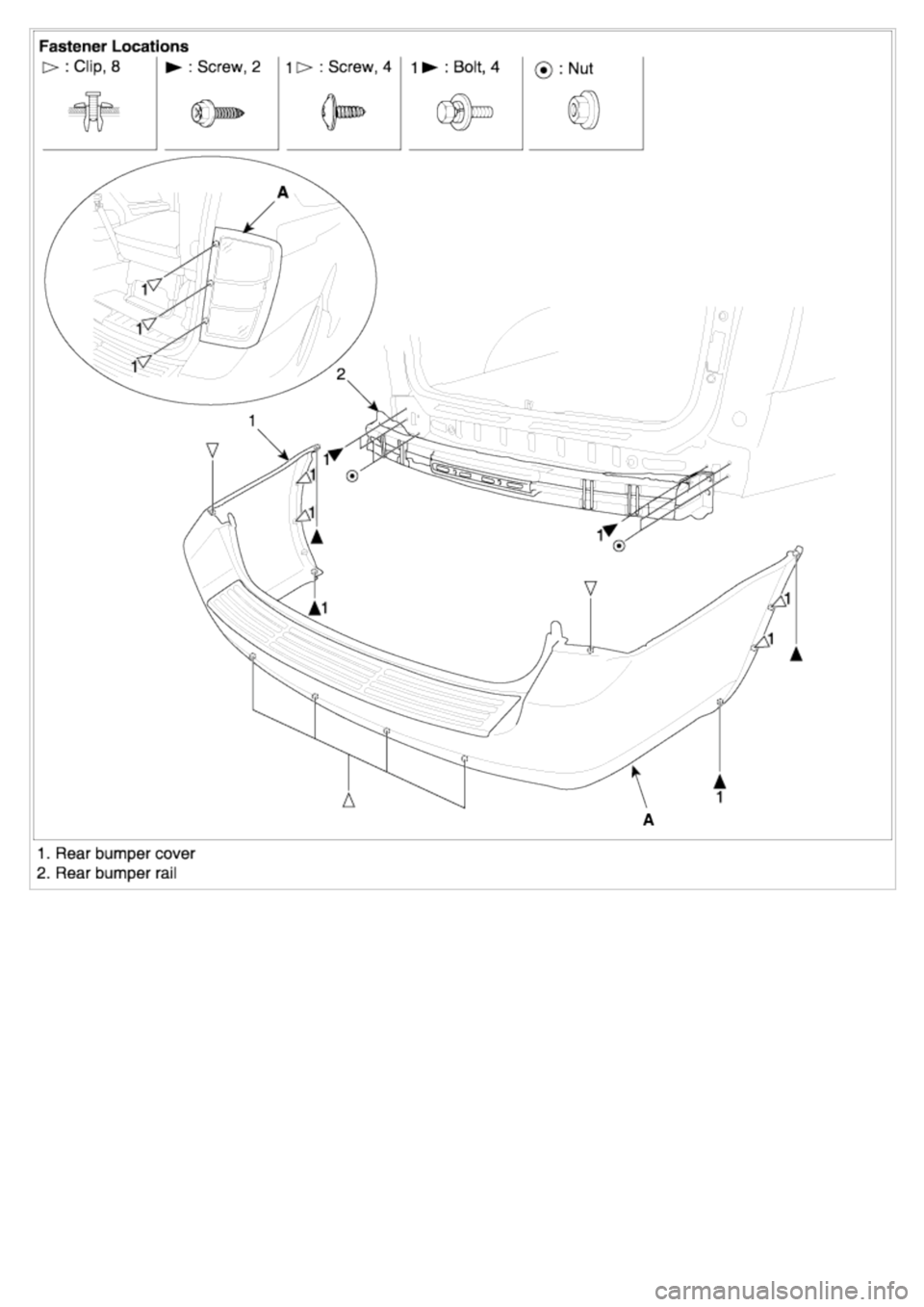

REAR BUMPER COVER REPLACEMENT
a. When prying with a flat- tipped screwdriver, wrap it with protective tape , and apply protective tape around the
related parts your hands.
b. Put on gloves to protect your hands.
c. Take care not bend or scratch the cover and other parts.
1. Remove the rear combination ramp(A).
2. Loosen the rear bumper screws and clips.
3. Remove the rear bumper.
4. Installation is the reverse of removal.
a.Replace any damage clips.

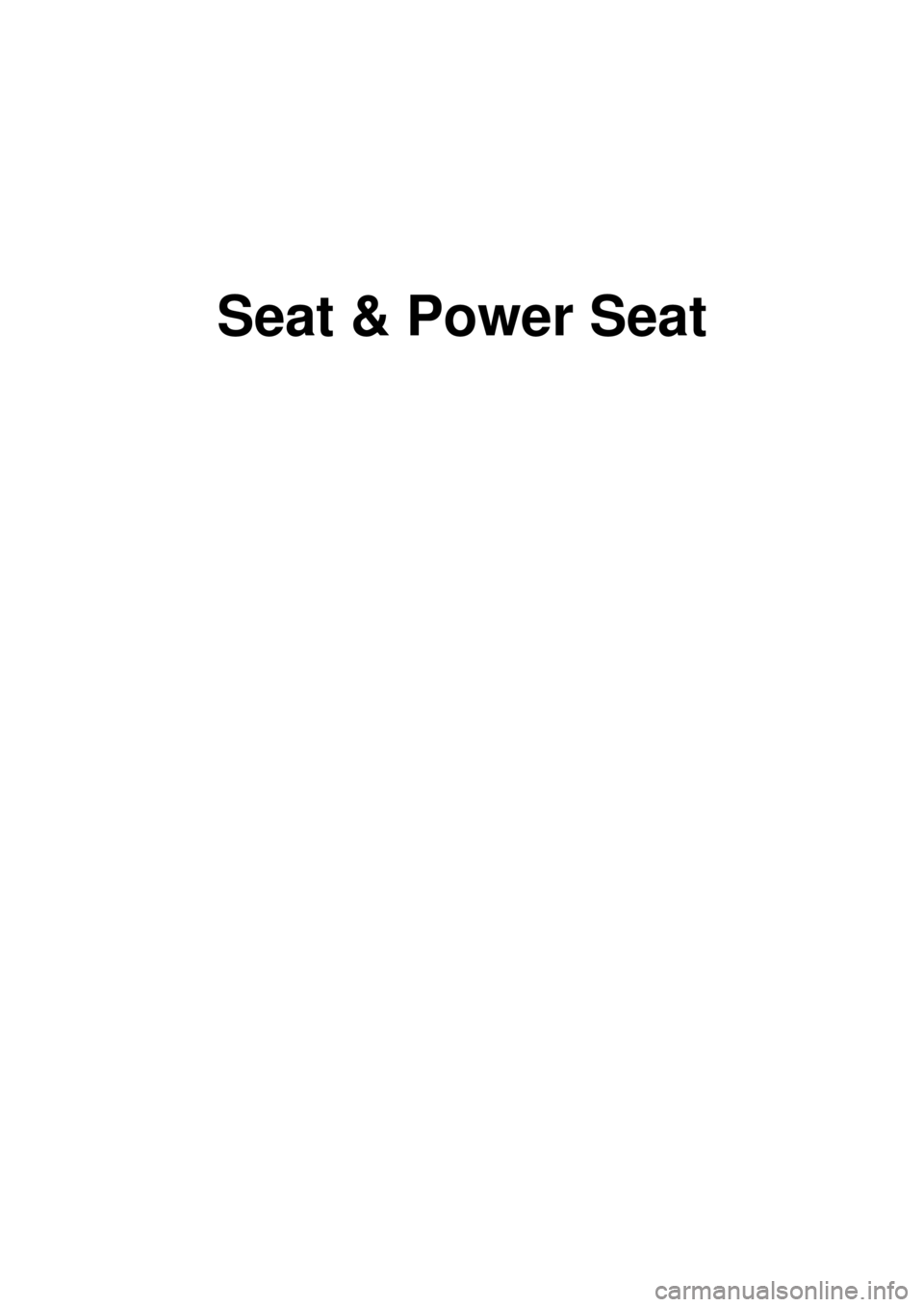

Seat & Power Seat

2007 > 2.7L V6 GASOLINE >

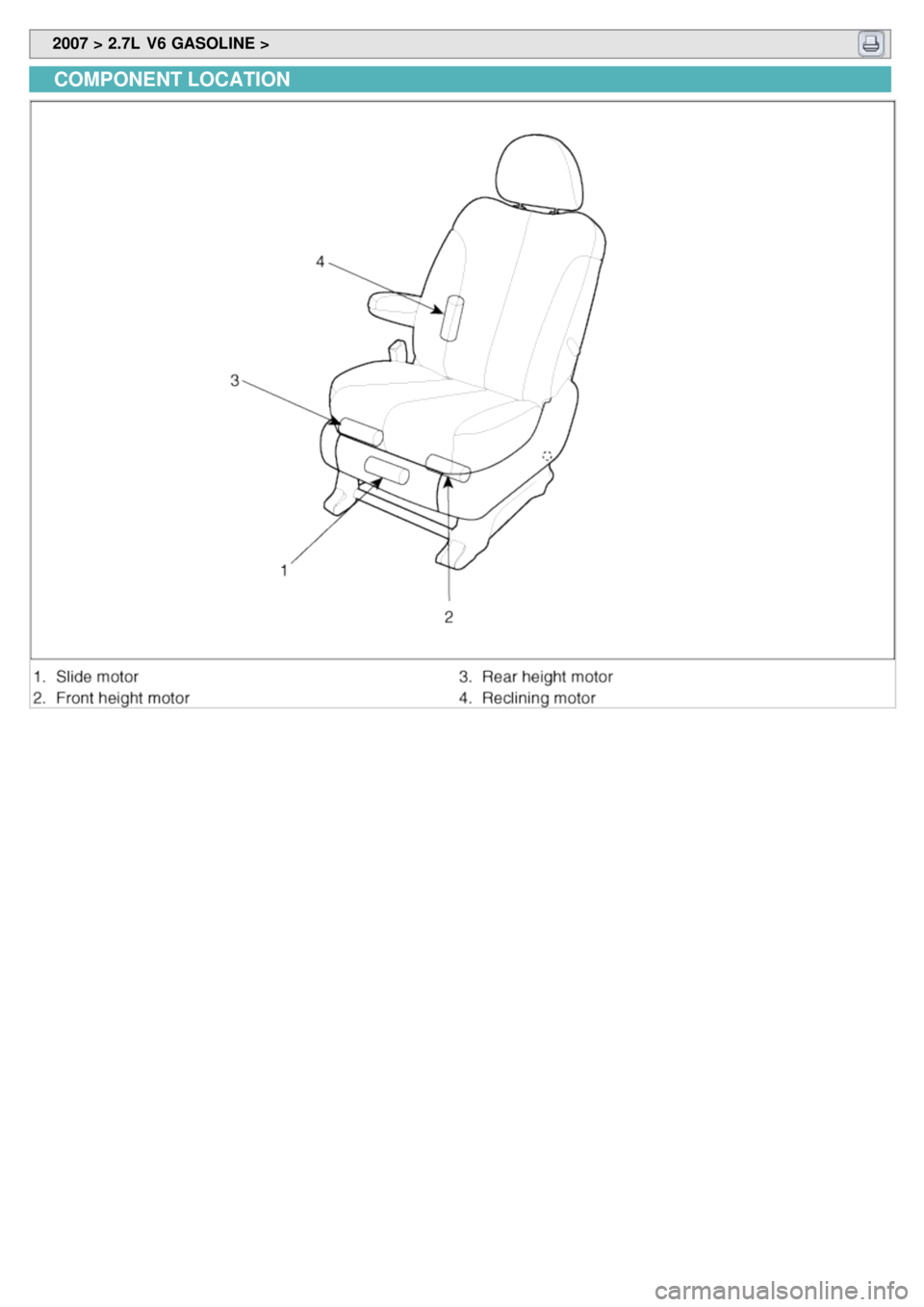

COMPONENT LOCATION

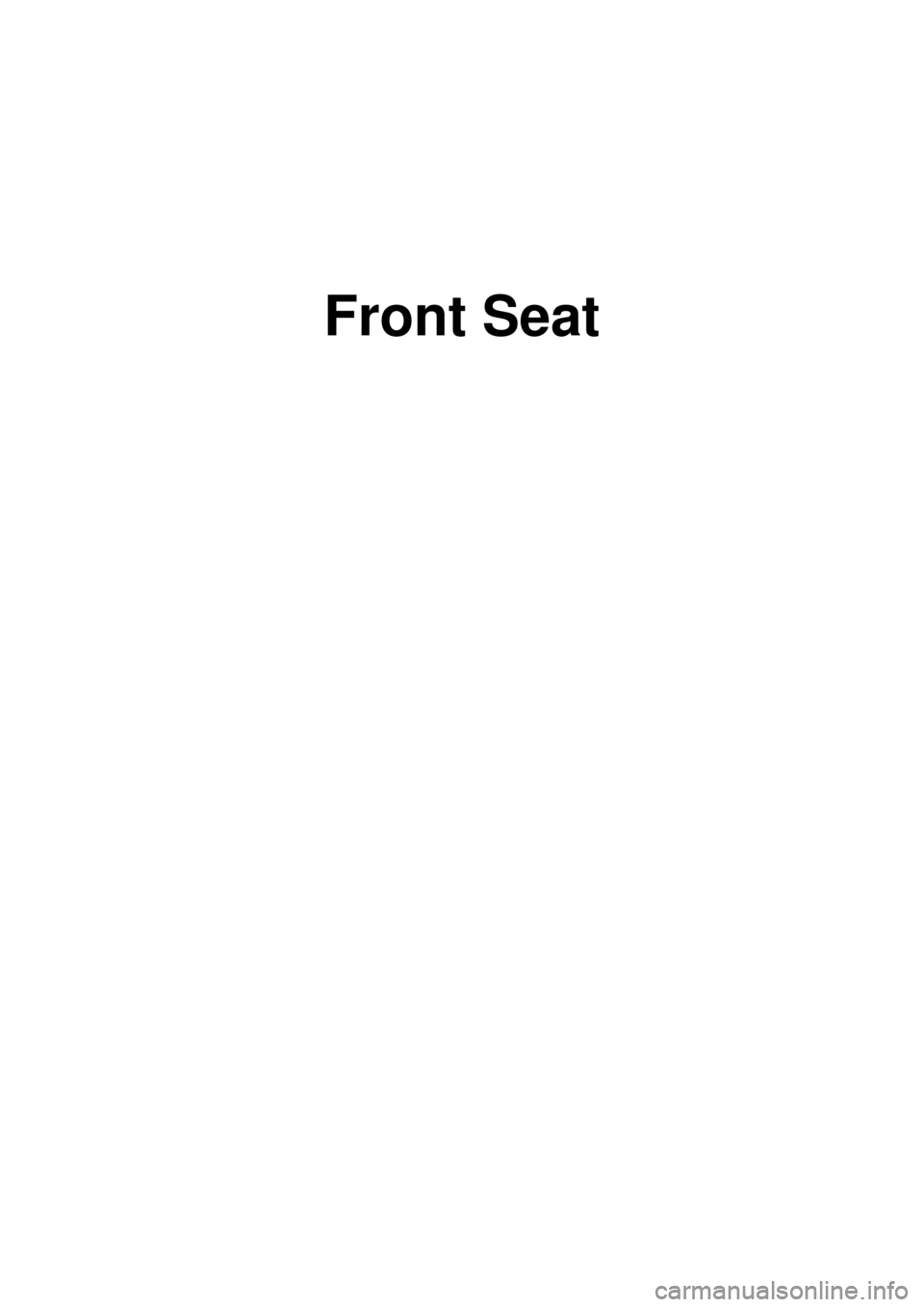

Front Seat

2007 > 2.7L V6 GASOLINE >

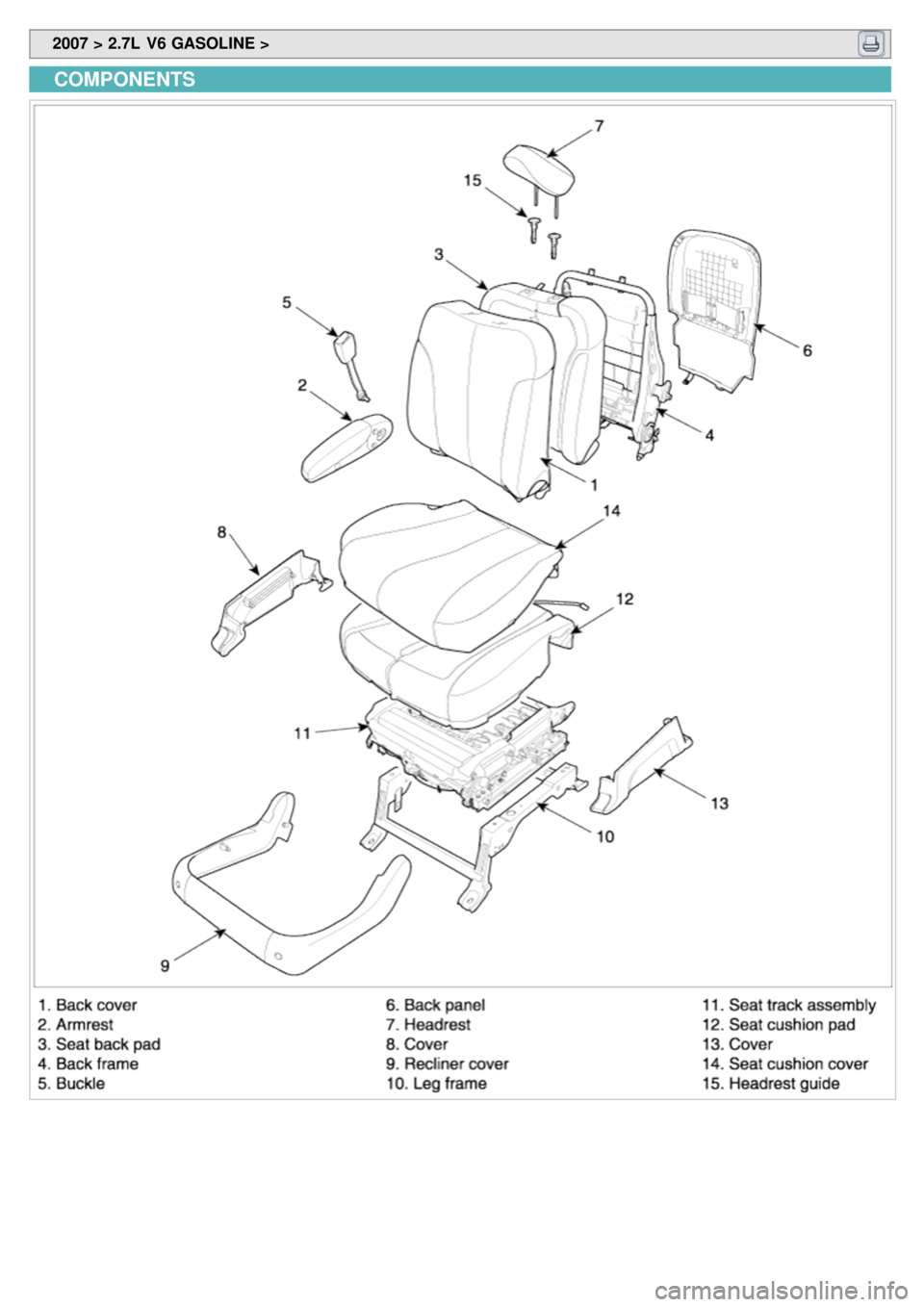

COMPONENTS
