2007 KIA CARNIVAL Workshop Manual

2007 > 2.7L V6 GASOLINE >
REPLACEMENT

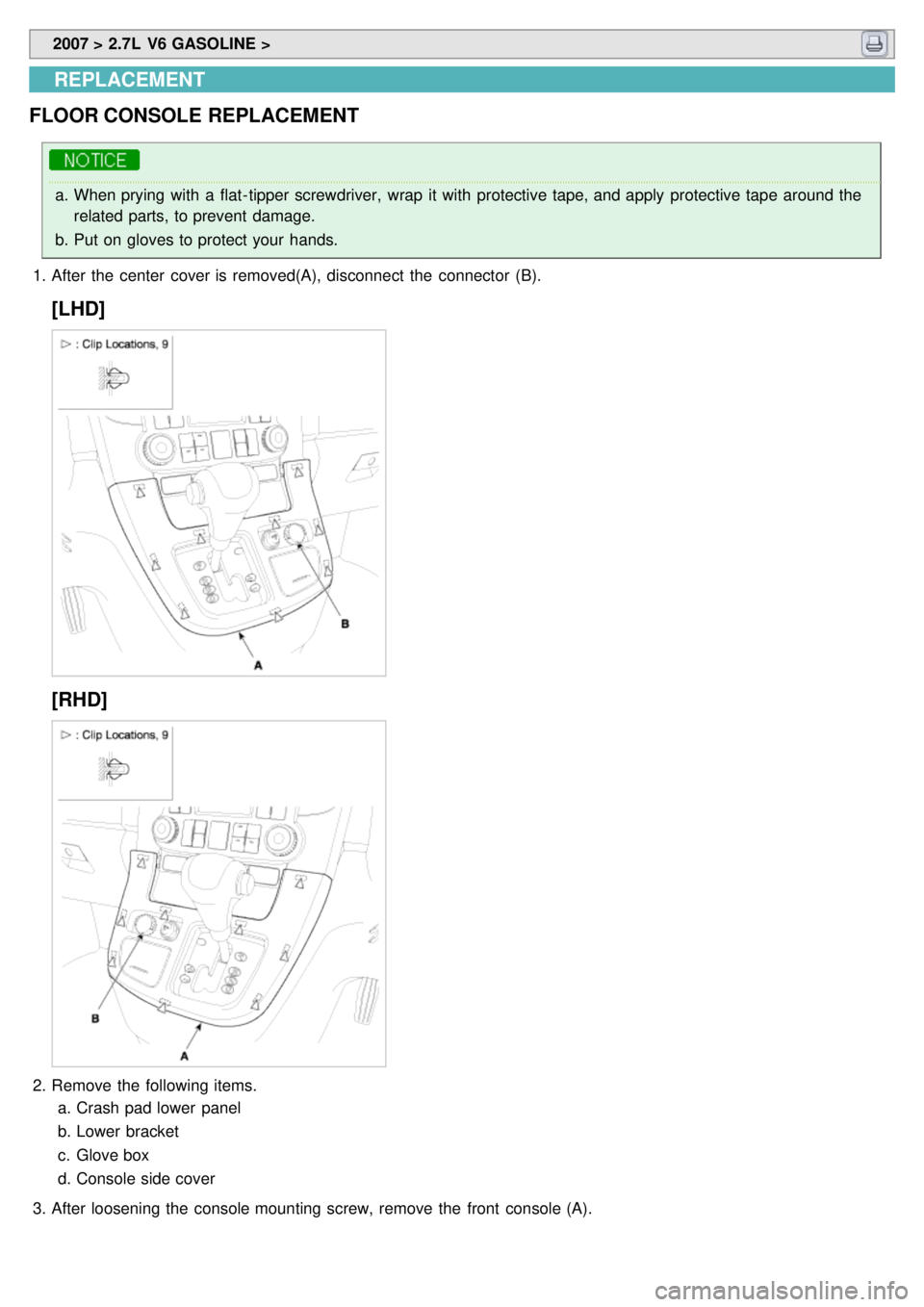

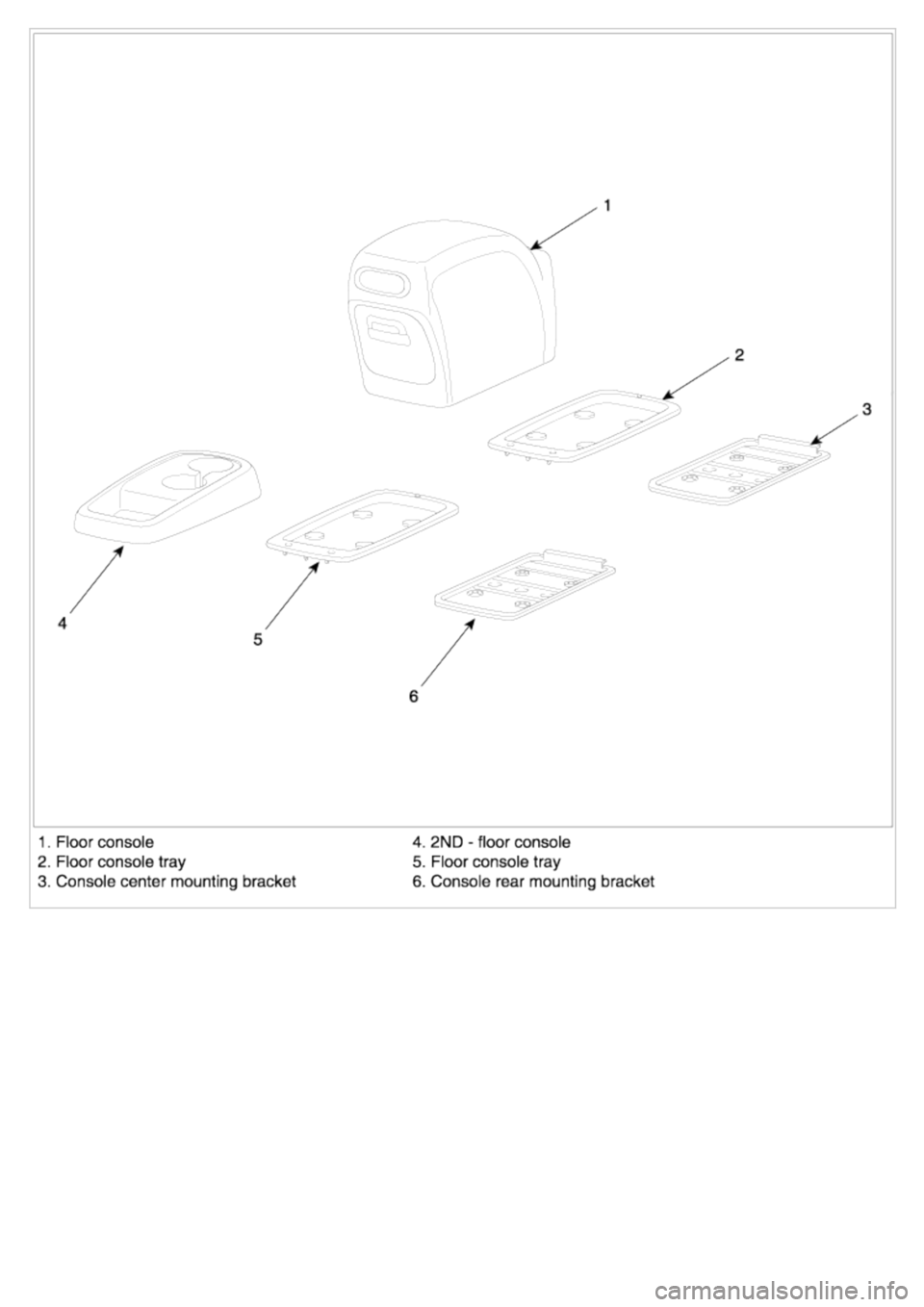

FLOOR CONSOLE REPLACEMENT
a. When prying with a flat- tipper screwdriver, wrap it with protective tape, and apply protective tape around the
related parts, to prevent damage.
b. Put on gloves to protect your hands.
1. After the center cover is removed(A), disconnect the connector (B).
[LHD]
[RHD]
2.Remove the following items.
a. Crash pad lower panel
b. Lower bracket
c. Glove box
d. Console side cover

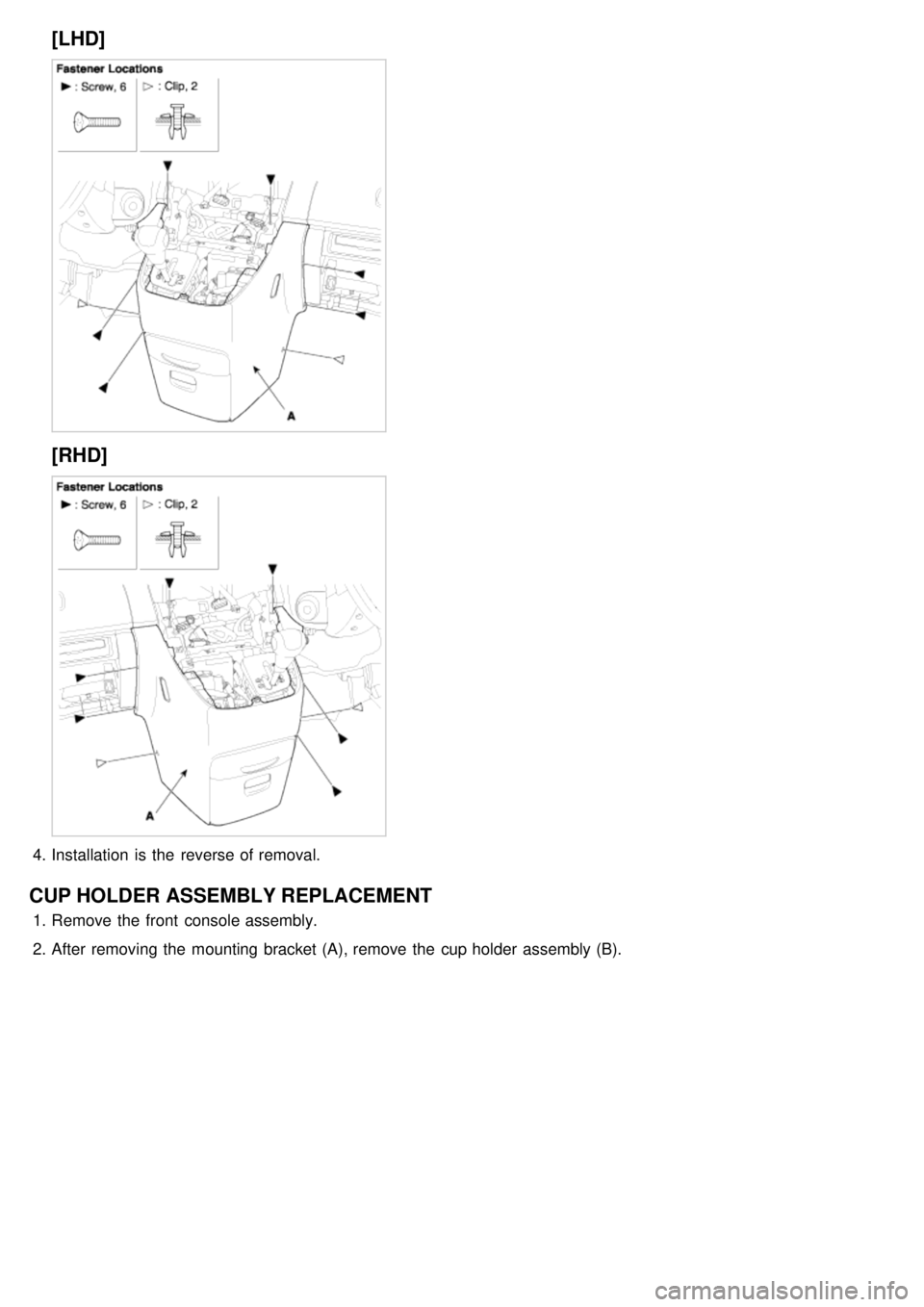

3. After loosening the console mounting screw, remove the front console (A).

[LHD]
[RHD]
4.Installation is the reverse of removal.
CUP HOLDER ASSEMBLY REPLACEMENT
1.Remove the front console assembly.

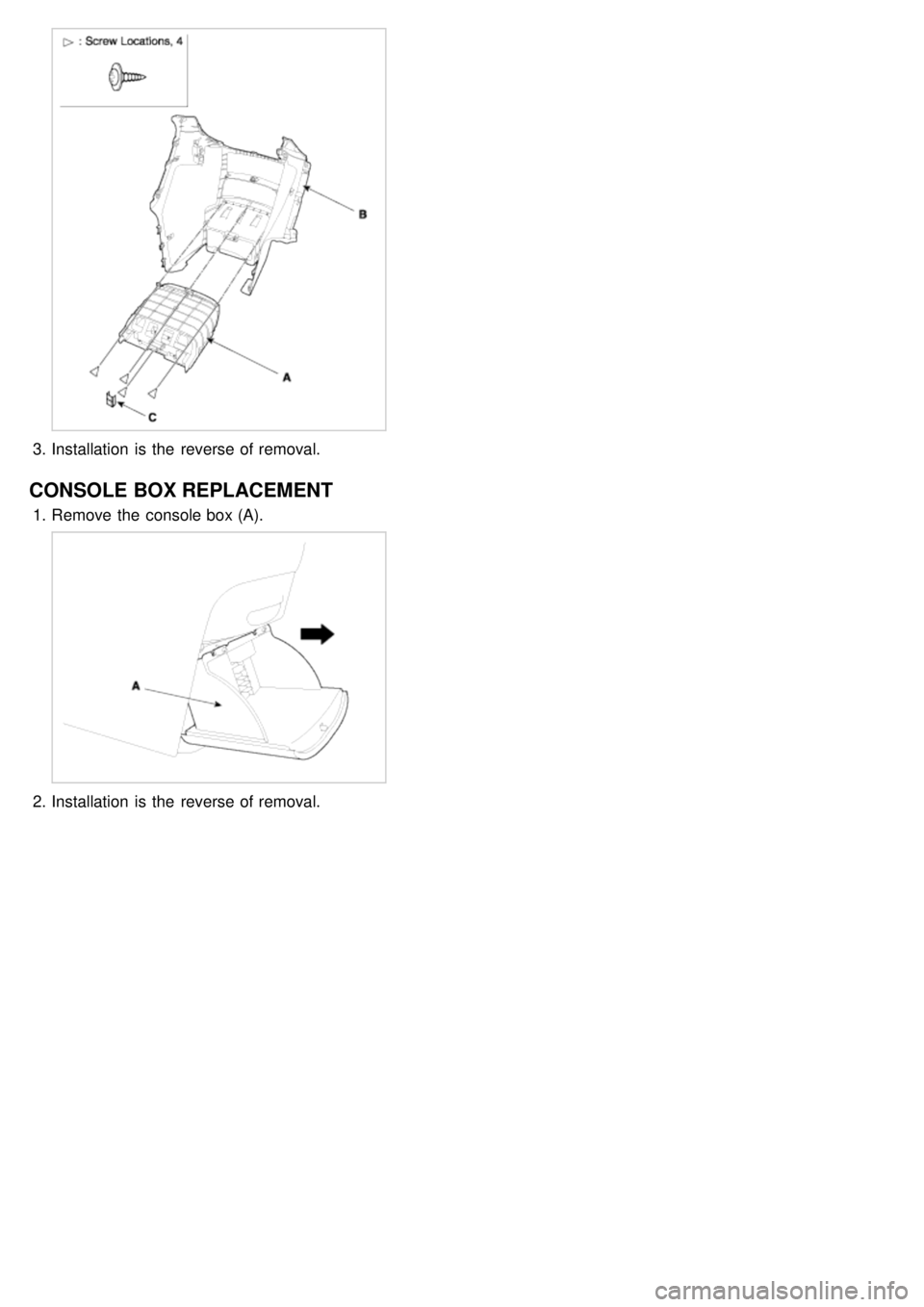

2. After removing the mounting bracket (A), remove the cup holder assembly (B).

3.Installation is the reverse of removal.
CONSOLE BOX REPLACEMENT
1.Remove the console box (A).
2.Installation is the reverse of removal.

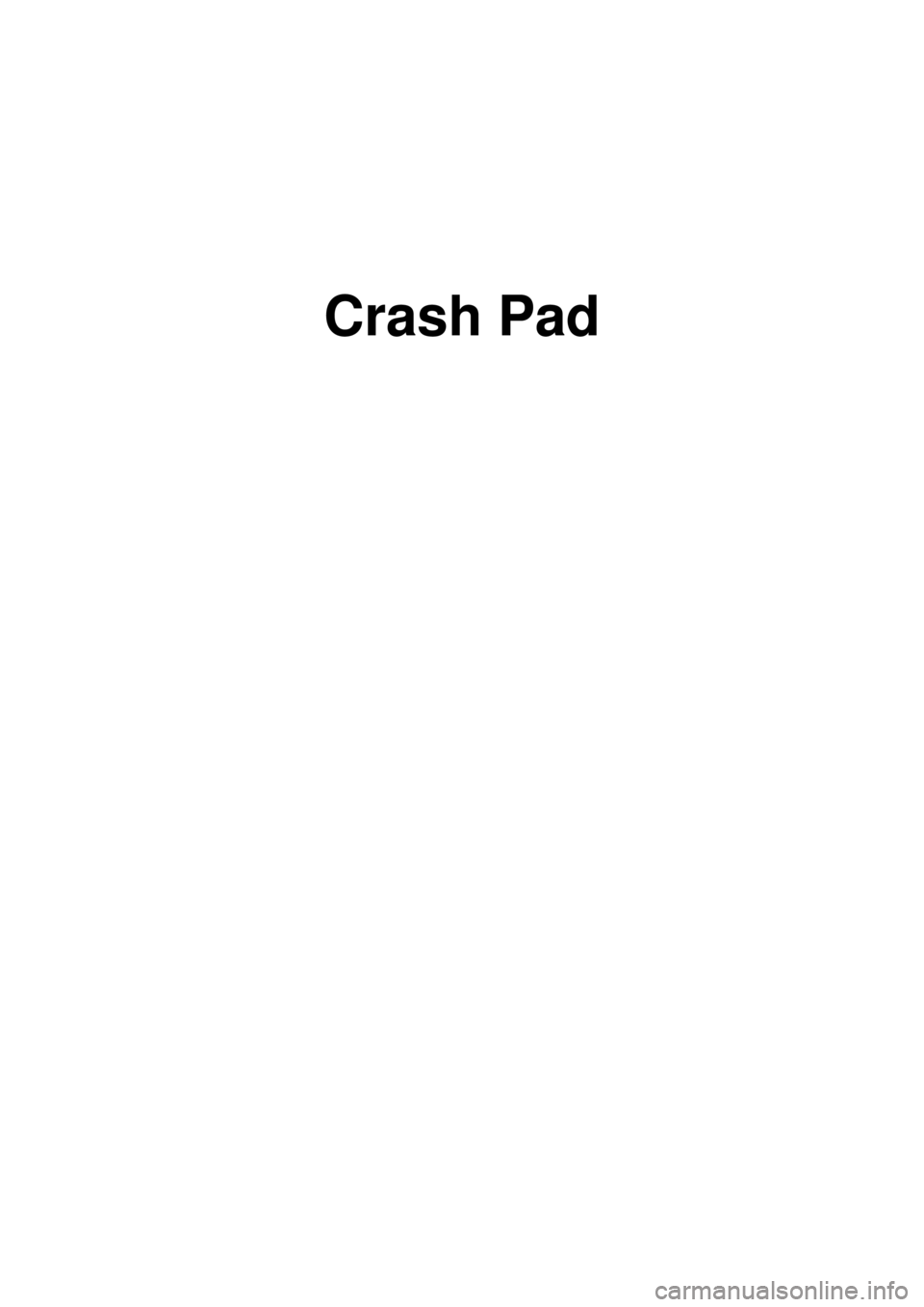

Crash Pad

2007 > 2.7L V6 GASOLINE >

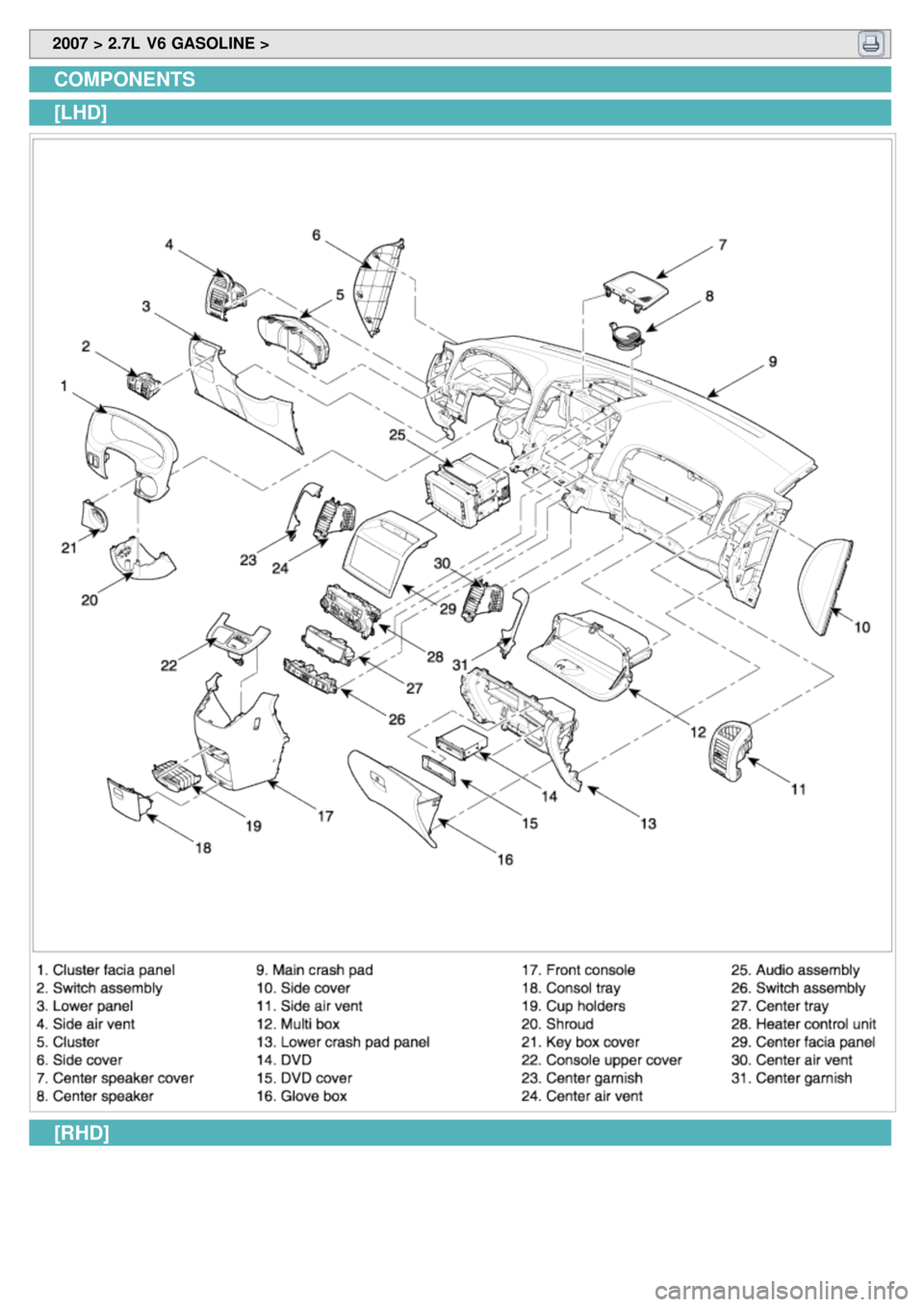

COMPONENTS
[LHD]

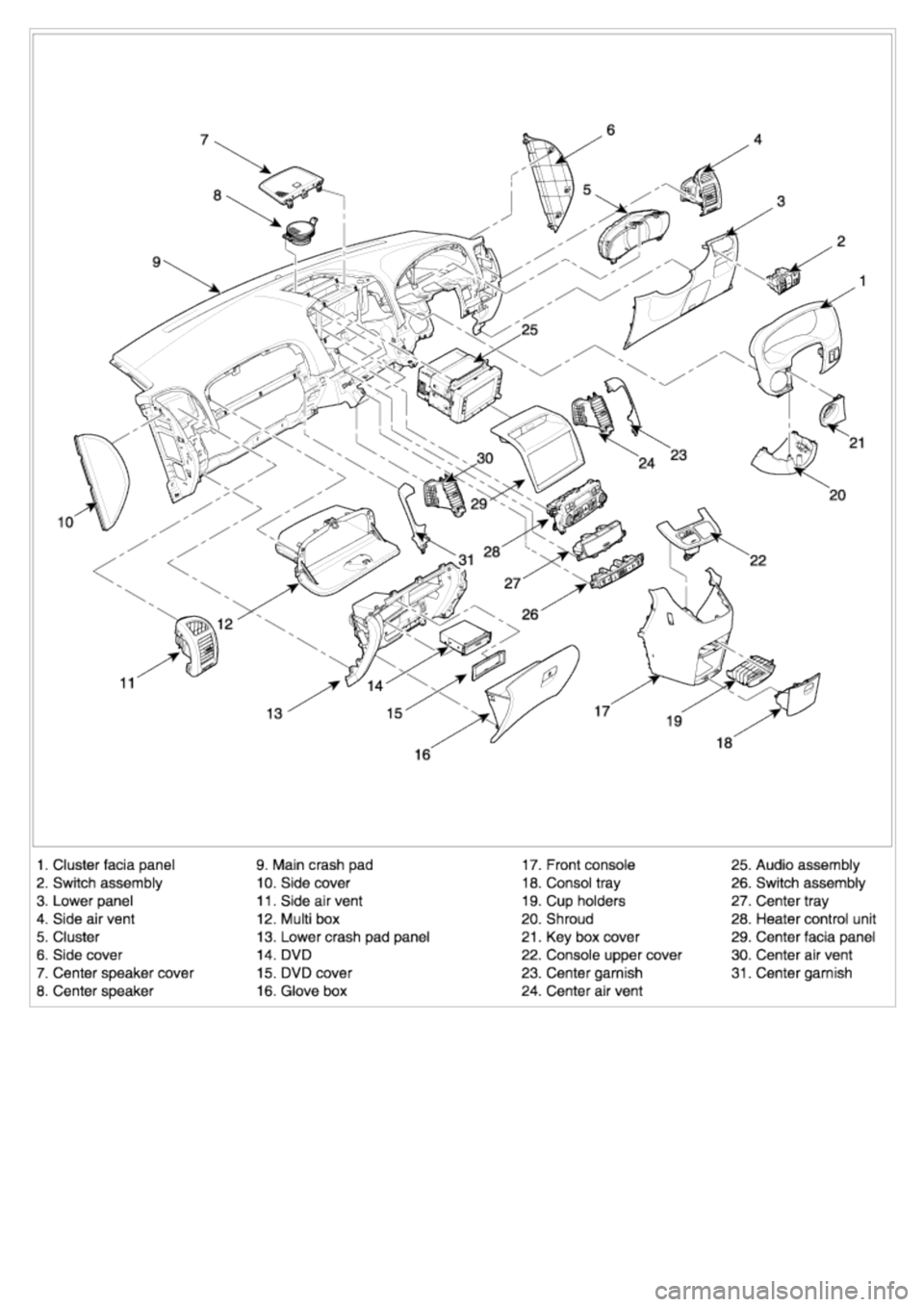

[RHD]

2007 > 2.7L V6 GASOLINE >
REPLACEMENT

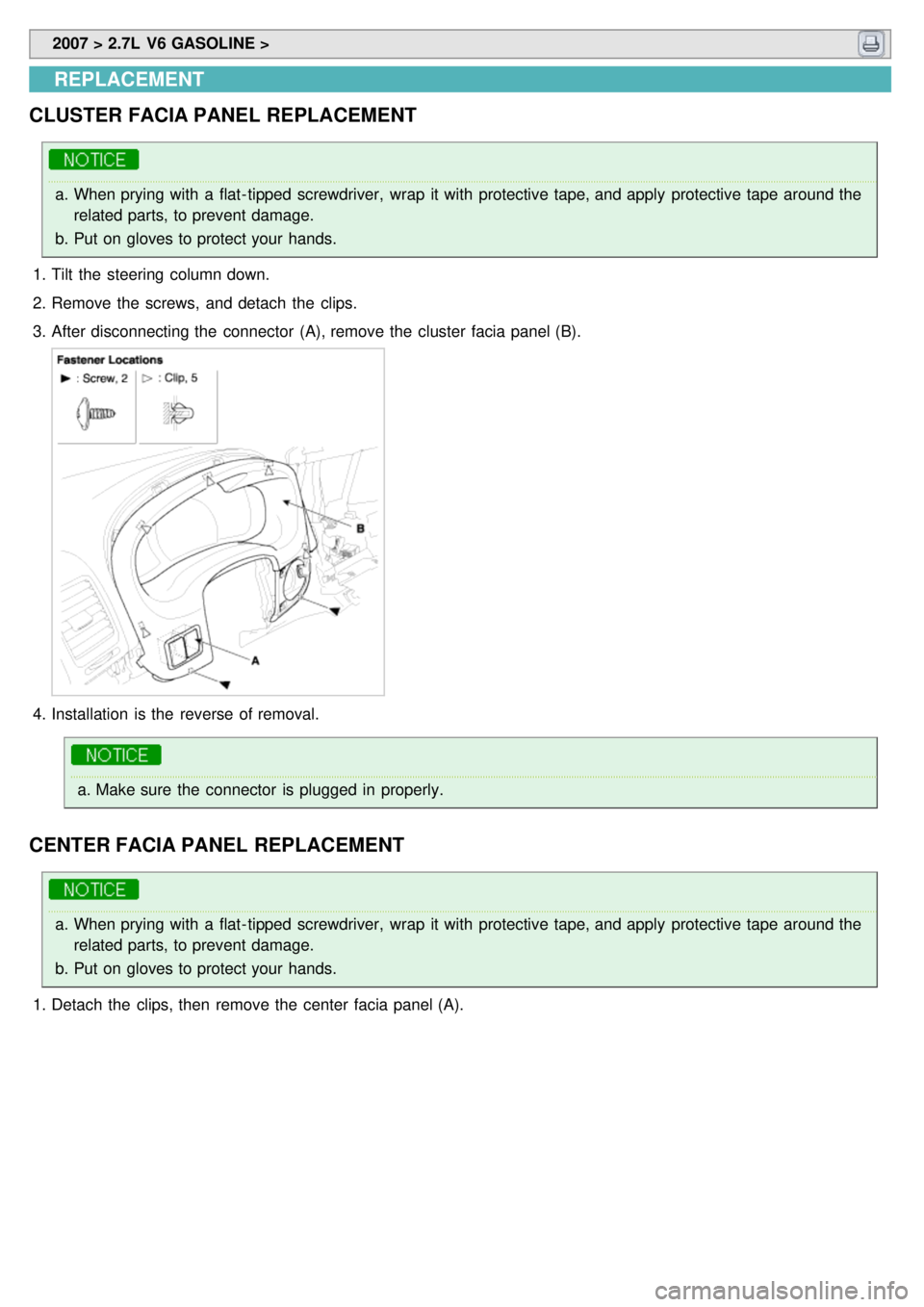

CLUSTER FACIA PANEL REPLACEMENT
a. When prying with a flat- tipped screwdriver, wrap it with protective tape, and apply protective tape around the
related parts, to prevent damage.
b. Put on gloves to protect your hands.
1. Tilt the steering column down.
2. Remove the screws, and detach the clips.
3. After disconnecting the connector (A), remove the cluster facia panel (B).
4.Installation is the reverse of removal.
a.Make sure the connector is plugged in properly.
CENTER FACIA PANEL REPLACEMENT
a.When prying with a flat- tipped screwdriver, wrap it with protective tape, and apply protective tape around the
related parts, to prevent damage.
b. Put on gloves to protect your hands.
1. Detach the clips, then remove the center facia panel (A).
