2007 KIA CARNIVAL Workshop Manual

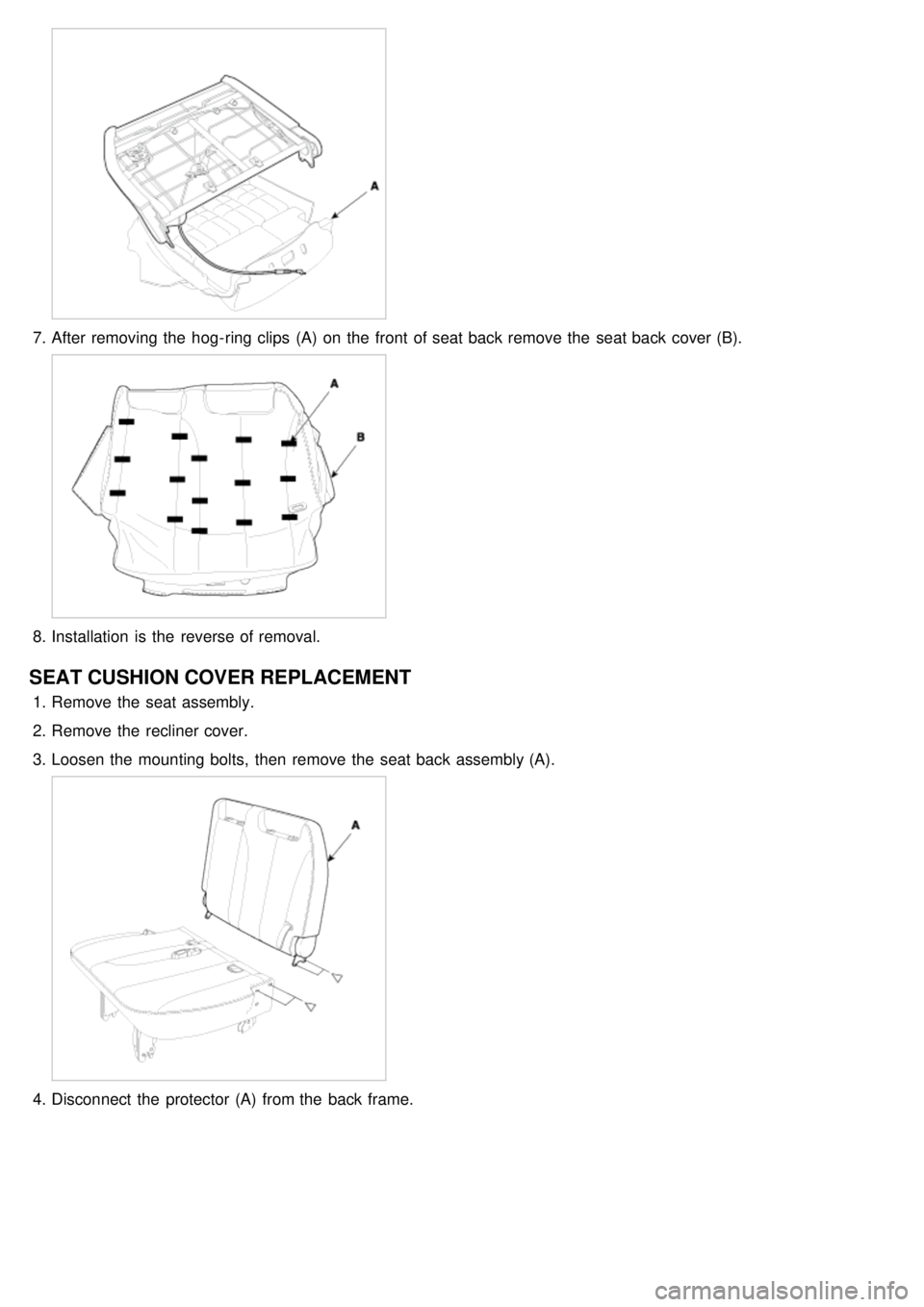

7.After removing the hog- ring clips (A) on the front of seat back remove the seat back cover (B).
8.Installation is the reverse of removal.
SEAT CUSHION COVER REPLACEMENT
1.Remove the seat assembly.
2. Remove the recliner cover.
3. Loosen the mounting bolts, then remove the seat back assembly (A).
4.Disconnect the protector (A) from the back frame.

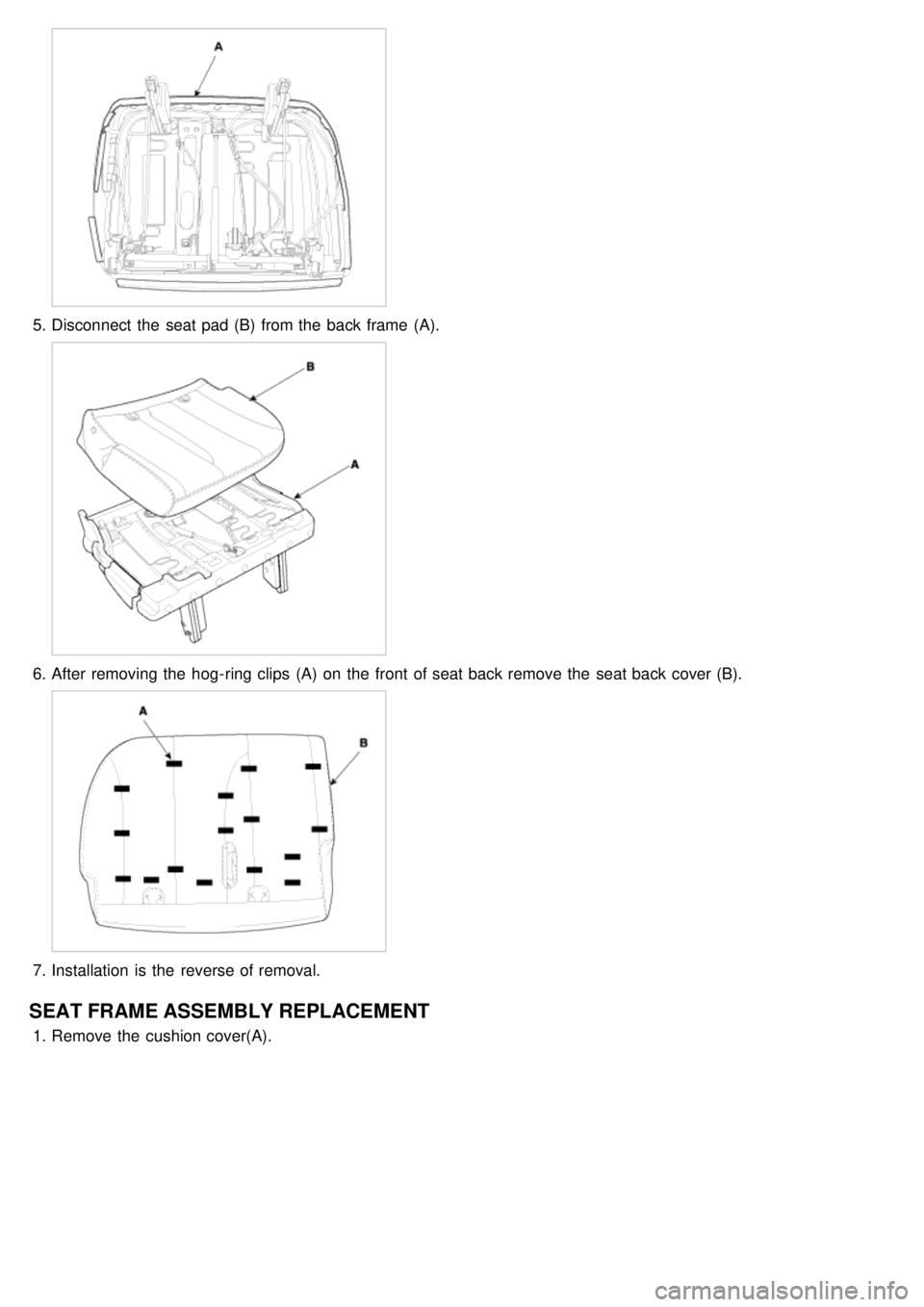

5.Disconnect the seat pad (B) from the back frame (A).
6.After removing the hog- ring clips (A) on the front of seat back remove the seat back cover (B).
7.Installation is the reverse of removal.
SEAT FRAME ASSEMBLY REPLACEMENT
1.Remove the cushion cover(A).

2.Installation is the reverse of removal.
SEAT BACK FRAM REPLACEMENT
1.Remove seat back cover(A).
2.Installation is the reverse of removal.

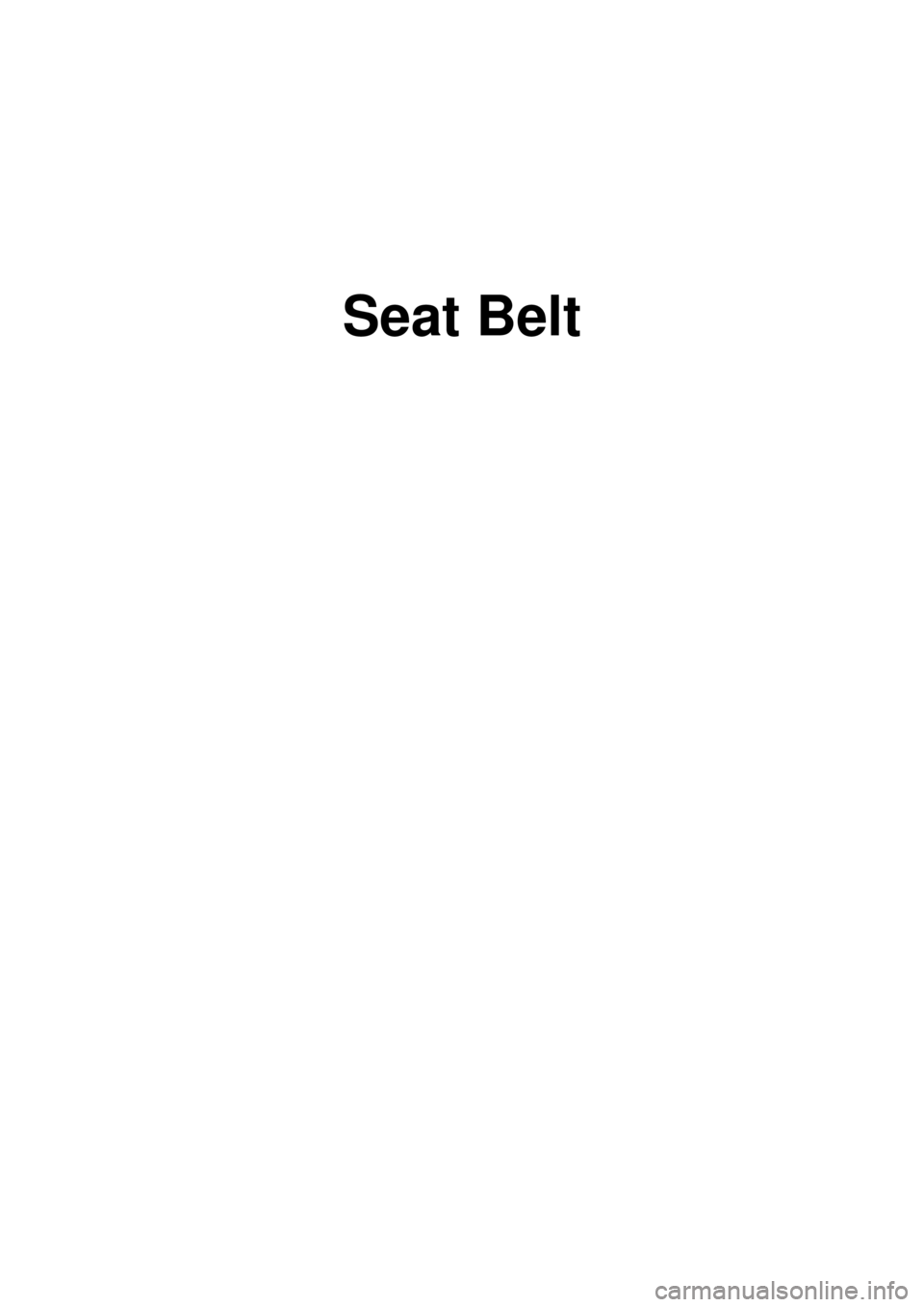

Seat Belt

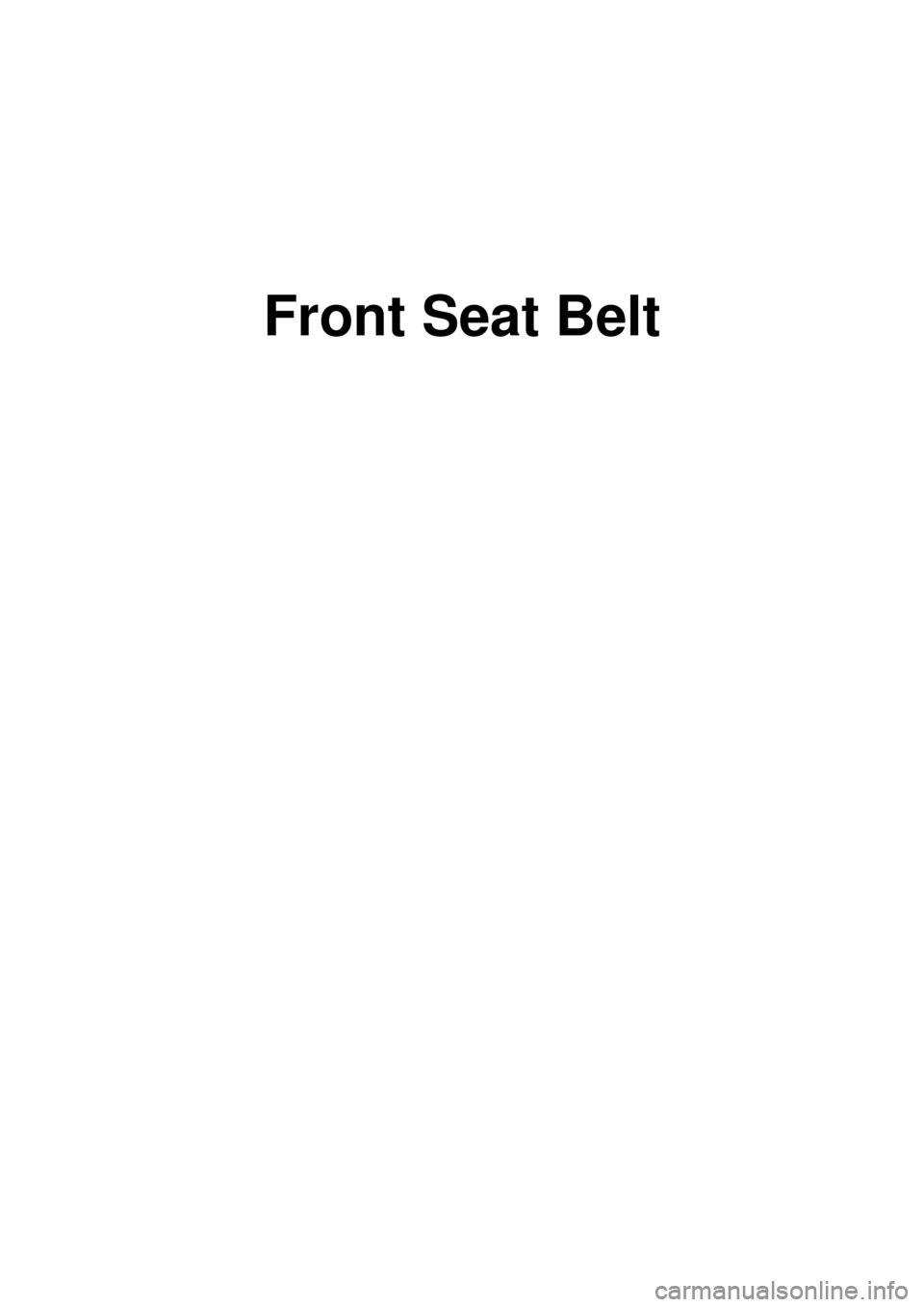

Front Seat Belt

2007 > 2.7L V6 GASOLINE >
REPLACEMENT

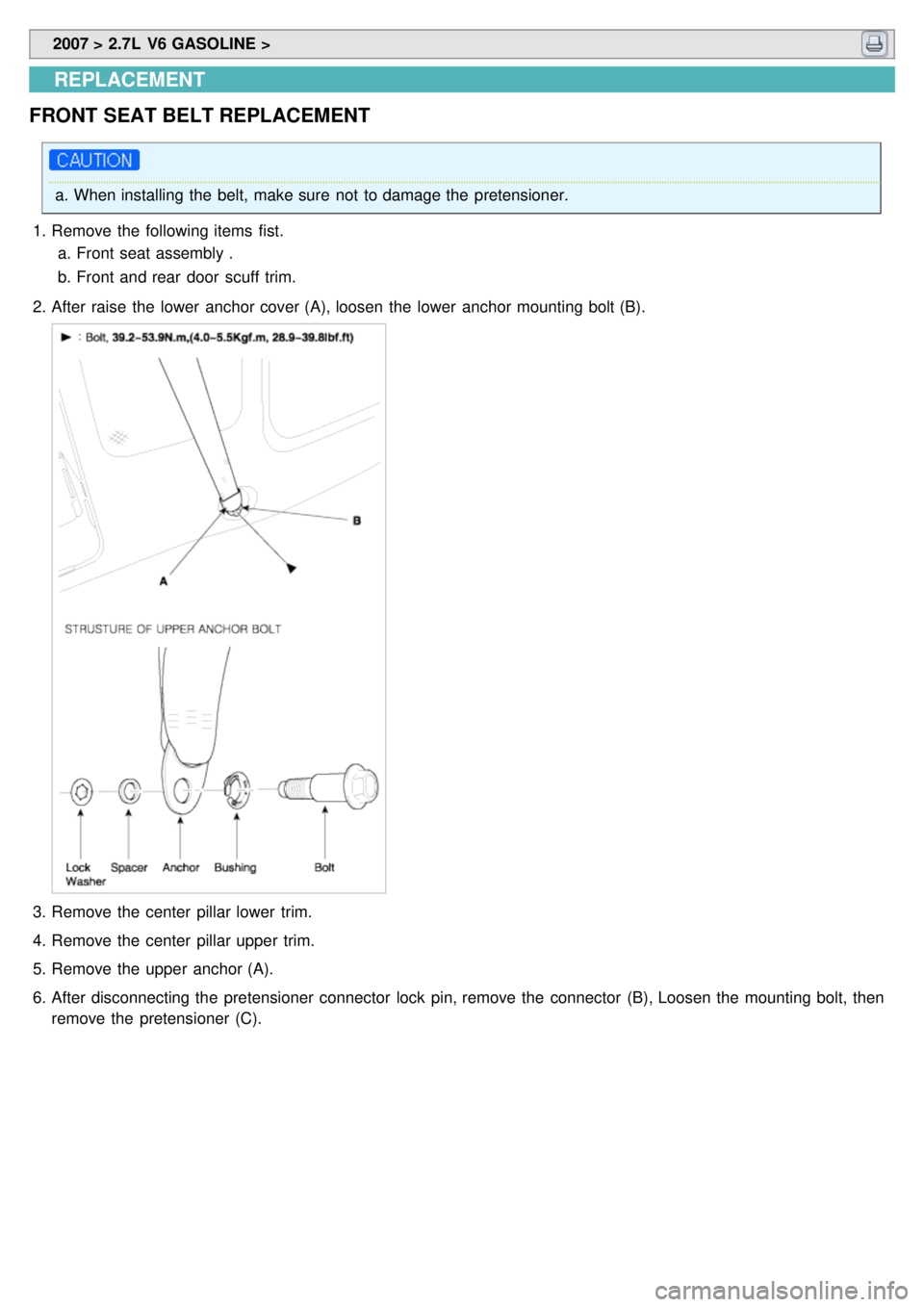

FRONT SEAT BELT REPLACEMENT
a. When installing the belt, make sure not to damage the pretensioner.
1. Remove the following items fist.
a. Front seat assembly .
b. Front and rear door scuff trim.
2. After raise the lower anchor cover (A), loosen the lower anchor mounting bolt (B).
3.Remove the center pillar lower trim.
4. Remove the center pillar upper trim.
5. Remove the upper anchor (A).

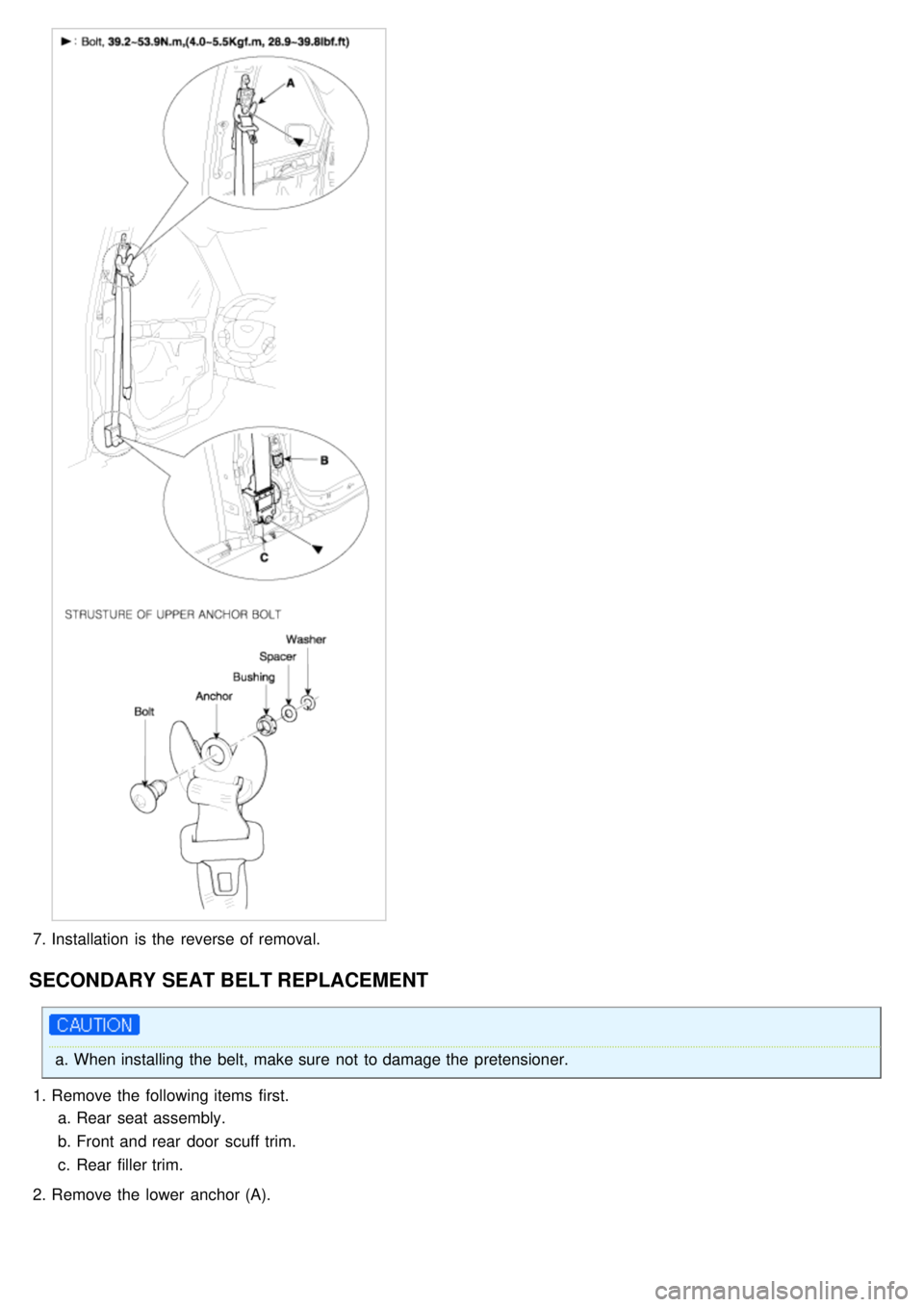

6. After disconnecting the pretensioner connector lock pin, remove the connector (B), Loosen the mounting bolt, then
remove the pretensioner (C).

7.Installation is the reverse of removal.
SECONDARY SEAT BELT REPLACEMENT
a.When installing the belt, make sure not to damage the pretensioner.
1. Remove the following items first.
a. Rear seat assembly.
b. Front and rear door scuff trim.
c. Rear filler trim.
2. Remove the lower anchor (A).

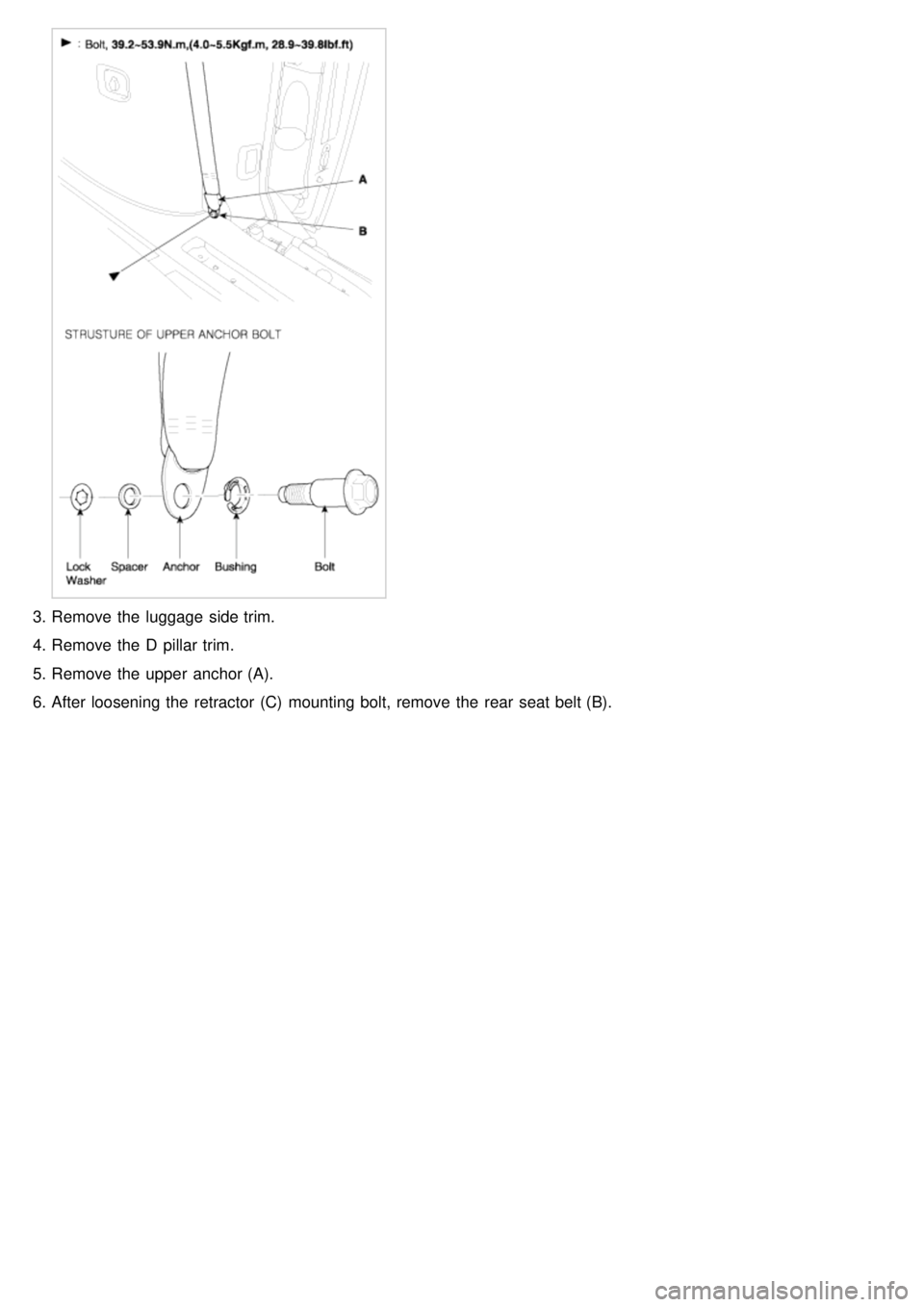

3.Remove the luggage side trim.
4. Remove the D pillar trim.
5. Remove the upper anchor (A).
6. After loosening the retractor (C) mounting bolt, remove the rear seat belt (B).
