2007 KIA CARNIVAL Workshop Manual

activation.
3. Functional diagram
Battery Saver Function
1.Necessary conditions to activate the Battery Saver function:
a. Do not turn off the Park/Tail Lamp when intentionally turned on.
b. If Key reminder switch is ON and Park/Tail Lamp switch is ON, Intentional "ON" should be reset
c. If the driver's door is open and if the key is not in the key hole whereas the Head lamp switch is still in position
'Park and tail lamp' or 'Head lamp Low Beam', the park and tail lamps (and the Front fog lamps if turned on)
are immediately turned off.
2. Necessary conditions to cancel the Battery Saver function:
a. As soon as the Key is input into the IGN Key Cylinder or the Head lamp switch is put to position OFF.
3.Functional diagram
Escort Function
1.If the head lamps low beam are turned on by head lamps low beam switch or by auto light switch when the Ignition
switch is turned from the ON to ACC or OFF positions.
2. The head lamps low beam are turned off:
a. 30s after the driver door is closed

b.When the multifunction switch is not in postion headlamps turned on or autolight
c. 20 mn after the driver door is open
d. 20mn after IGN leaves the positions RUN to ACC or OFF
e. If IPM receives RKE "LOCK" command two times
3. Escort function enables only "Head Lamp Low Beam", so Park/Tail lamp should be turned off when driver door is
opened at key out (Battery Saver function).
4. Functional Diagram
Interior Lighting Functions
Room Lamps
1.The room lamps are can be controlled manually using the 3 - state (ON, DOOR, OFF) switch or by the Rear Area
Module (RAM). A main switch, located to the left of the steering wheel, is used as a master control switch. The
operating logic of the lamps will vary based on the position of the main switch ON, DOOR, or OFF).
2. Working conditions
a. The functioning depends on the key position in the key cylinder (OFF, ACC, RUN or START)
b. When the key goes in RUN or START position while the room lamps are decaying, then the room lamps are
turned off immediately.
c. When the Ignition key position is RUN or START and the last door is closed then the room lamps are OFF.
d. If the room lamps have been activated using the RKE UNLOCK function, and the ignition switch is turned to the
RUN or START position, the room lamps will be immediately turned OFF..
e. If the Ignition sw status is in RUN or START and Unlock information occurs, then the room lamp status is not
changed.
f. When the system enters to ARM WAIT mode by Remote Key or Mechanical cylinder lock switches the Room
lamp should be turned off immediately.
g. If there is RKE Lock signal at any door open, all doors should be locked first and wait for the all door close. No
action is taken while the Open Door status is OPEN and the doors are locked. Then when Open Door status
changes from OPEN to CLOSE, Room lamps will be OFF immediately.
h. The 30sec timer does not depend on the key reminder status.
i. If the main switch is changed to ON from DOOR after 20minute lamp OFF, all the lamps are turned ON.
j. If the Open Door status changes from OPEN to CLOSE (all doors close) when ignition switch is on RUN
position, room lamps and door courtesy lamps should turn off immediately (Do not decay off).
k. After 20minute Room Lamp OFF at door open, Room lamps are turned ON again when:
a. One of the door open switch's status changes. (Open to Close or Close to Open)
b. Ignition key is in RUN or START Position.
c. Receiving an UNLOCK event while a door is open and Main Room Lamp Switch is in the DOOR position.
l. For the room lamps, when the 20m timer is running and any of the side doors is opened the timer is restarted.
3. Functional Diagram

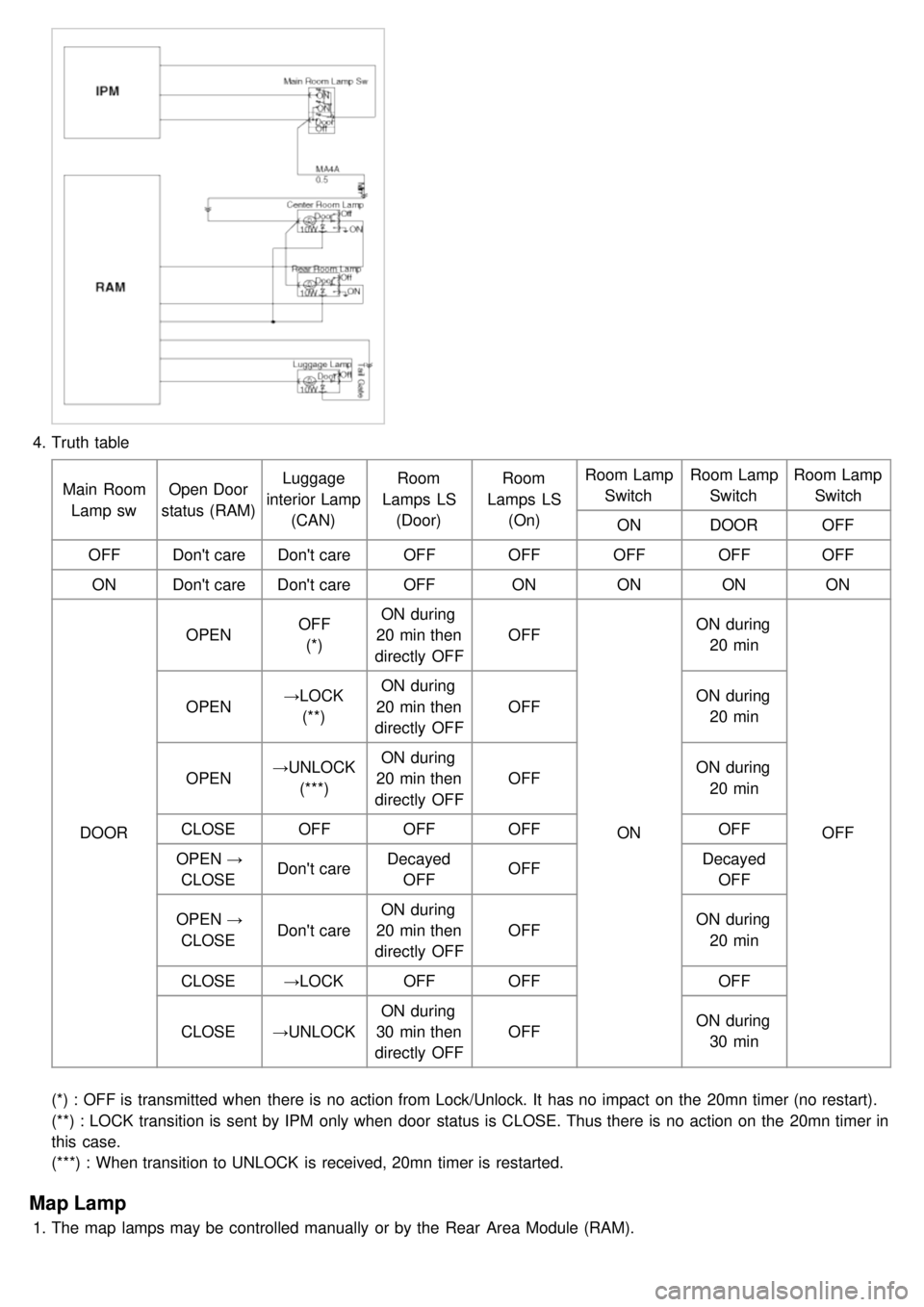

4.Truth table
Main RoomLamp sw Open Door
status (RAM) Luggage
interior Lamp (CAN) Room
Lamps LS (Door) Room
Lamps LS (On) Room Lamp
Switch Room Lamp
Switch Room Lamp
Switch
ON DOOR OFF
OFF Don't care Don't care OFFOFFOFFOFFOFF
ON Don't care Don't care OFFONONONON
DOOR OPEN
OFF
(*) ON during
20 min then
directly OFF OFF
ONON during
20 min
OFF
OPEN
→LOCK
(**) ON during
20 min then
directly OFF OFF
ON during
20 min
OPEN →UNLOCK
(***) ON during
20 min then
directly OFF OFF
ON during
20 min
CLOSE OFFOFFOFF OFF
OPEN →
CLOSE Don't care
Decayed
OFF OFF
Decayed
OFF
OPEN →
CLOSE Don't care ON during
20 min then
directly OFF OFF
ON during
20 min
CLOSE →LOCK OFFOFF OFF
CLOSE →UNLOCK ON during
30 min then
directly OFF OFF
ON during
30 min
(*) : OFF is transmitted when there is no action from Lock/Unlock. It has no impact on the 20mn timer (no restart).
(**) : LOCK transition is sent by IPM only when door status is CLOSE. Thus there is no action on the 20mn timer in
this case.
(***) : When transition to UNLOCK is received, 20mn timer is restarted.
Map Lamp
1. The map lamps may be controlled manually or by the Rear Area Module (RAM).

2.Functional Diagram
3.Truth table
Main Room Lamp sw Open Door status
(RAM) Luggage interior
Lamp (CAN) Map Lamp LSMap Lamp Switch
Map Lamp Switch
ON OFF
OFF Don't care Don't care OFFONOFF
ON Don't care Don't care ONONON
DOOR OPEN
OFF
(*) ON during 20 min
then directly OFF ON
ON during 20 min
OPEN → LOCK
(**) ON during 20 min
then directly OFF ON
ON during 20 min
OPEN → UNLOCK
(***) ON during 20 min
then directly OFF ON
ON during 20 min
CLOSE OFFOFF ONOFF
CLOSE → LOCK OFFONOFF
CLOSE →UNLOCKON during 30 min
then directly OFF ON
ON during 30 min
OPEN → CLOSE Don't care OFf (DECAY) ONOFf (DECAY)
CLOSE → OPEN Don't care ON during 20 min
then directly OFF ON
ON during 20 min
(*) : OFF is transmitted when there is no action from Lock/Unlock. It has no impact on the 20mn timer (no restart).
(**) : LOCK transition is sent by IPM only when door status is CLOSE. Thus there is no action on the 20mn timer in
this case.
(***) : When transition to UNLOCK is received, 20mn timer is restarted.
Luggage Lamp
1. Working Conditions
a. The 20min timer does not depend on the key reminder status.
b. After 20minute Luggage Lamp OFF at tailgate open, luggage lamps are turned ON again when:
a. Tailgate close and then tailgate is opened again
b. Ignition key is in RUN or START position.
2. Truth table
Main Room Lamp sw Tail Gate status
(RAM) Luggage Lamp LS Luggage Lamp
Switch Luggage Lamp
Switch
DOOR OFF
OFF OPEN
ONONOFF
CLOSE OFFOFFOFF

ONDon't care OFFONON
DOOR OPEN
ON during 20 min
then directly OFF ON during 20 min
OFF
CLOSE
OFFOFF
OPEN → CLOSE OFF OFF
CLOSE → OPEN ON during 20 min
then directly OFF ON during 20 min
Door Courtesy Lamps
Key Hole Illumination
1.
Working Conditions
The key cylinder is illuminated when the driver and / or the assist door are open.
2. Key hole extinguish conditions:
a. The key cylinder is turned off 10s after the driver and assist doors are closed.
b. The key cylinder is turned off immediately if the key is inserted in the hole and put to RUN or START position.
c. For vehicles equipped with BurglarAlarm, the key cylinder is turned off immediately when the system goes to
ARM WAIT mode during the 10s after the driver and assist doors are closed.
d. For vehicles not equipped with BurglarAlarm, the key cylinder is turned off immediately when RKE lock signal is
received from keyfob during the 10s after the driver and assist doors are closed (4).
3. Functional Diagram
Panel Lights, Switch Illumination
1.Working Conditions
The MF "high beam" and "flash to pass" switches do not influence the management of the Panel Lights and Trip
Computer illumination, Rear Blower illumination and Rear Monitor illumination.
2. Functional Diagram

Dimmable Backlighting
1.Working Conditions
The Dimmable backlighting is directly managed by the rheostat.
Power Seat Switch Illumination
1.Working Conditions
The IPM sends a CAN message to the DDM so that this module illuminate the power seat switches.
2. Functional Diagram
View Enhancement Function
Front Wiper And Washer
1.Front wiper working conditions
These functions are active when Ign2 switch ON
In the OFF and ACC states, the front wiper is not activated. If IGN2 turns OFF during wiper operation, the wiper
stops at the current position and will move to the park position on the next IGN2 ON. In these states, the front
washer is not active.
2. Front washer working condition
The front washer functionality is directly available to the driver. It consists in activating the front washer pump,
which is located under hood. As long as the driver activates the washer multifunction switch, the front washer is
active.
3. Functional diagram
Rear Wiper And Washer
1.Rear wiper working conditions
a. The rear wiper is available in RUN state.
b. In the START state, all the wiper and washer outputs are halted and then activated again.
c. In the OFF and ACC states, the rear wiper stops its movement at current position. The rear wiper will move to
the park position at the next IGN ON. In these states, the rear washer is not activated.
2. Rear washer working condition
a. If the washer signal is active less than 60ms, the signal is neglected.

b.If the washer signal is active for T1 (between 60ms and 300ms), the rear wiper output is turned on for T2
(2.5~3.8 sec.), T3 (300ms) after the washer has been turned ON.
Rear washer activated for T1 : [60ms;300ms]
T1 : 0.06 ~ 0.3 sec.
T2 : 2.5~3.8sec.
T3 : 0.3 sec.
3. Functional diagram
Defog
This function controls the heating defog grids on windshield, rear glass, and rear view mirrors.
1. Working Conditions
The defog function can be activated only when engine is running and ignition key is in RUN position.
a. When windshield defog switch is pushed, windshield defog is activated for 20 minutes.
b. While windshield defog is on, the windshield defog button is illuminated
c. If the switch is pushed again while defog is already active, defog stops.
d. If the engine stops while defog is on, defog stops and it is NOT automatically turned on when the engine is
started again
e. Rear defog works exactly in the same way as windshield defog using the rear defog switch button as input.
f. When rear defog is active, rear defog switch indicator is ON.
g. Rear defog ctrl output controls rear glass defog as well as rear view mirrors defog.
2. Rear defog pause
a. When IPM receives Tailgate Flasher CAN message, rear defog is inhibited for 30s
b. The 20min rear defog timer is frozen during this pause.
c. If the user turns on rear defog function while this pause is going on, Rear defog ctrl is set to ON only at the end
of the pause.
d. This pause has no impact on rear defog switch illumination.
e. When IPM receives Tailgate open CAN message transition to OPEN value, this 30 s rear defog pause is also
started, it works the same way as described above.

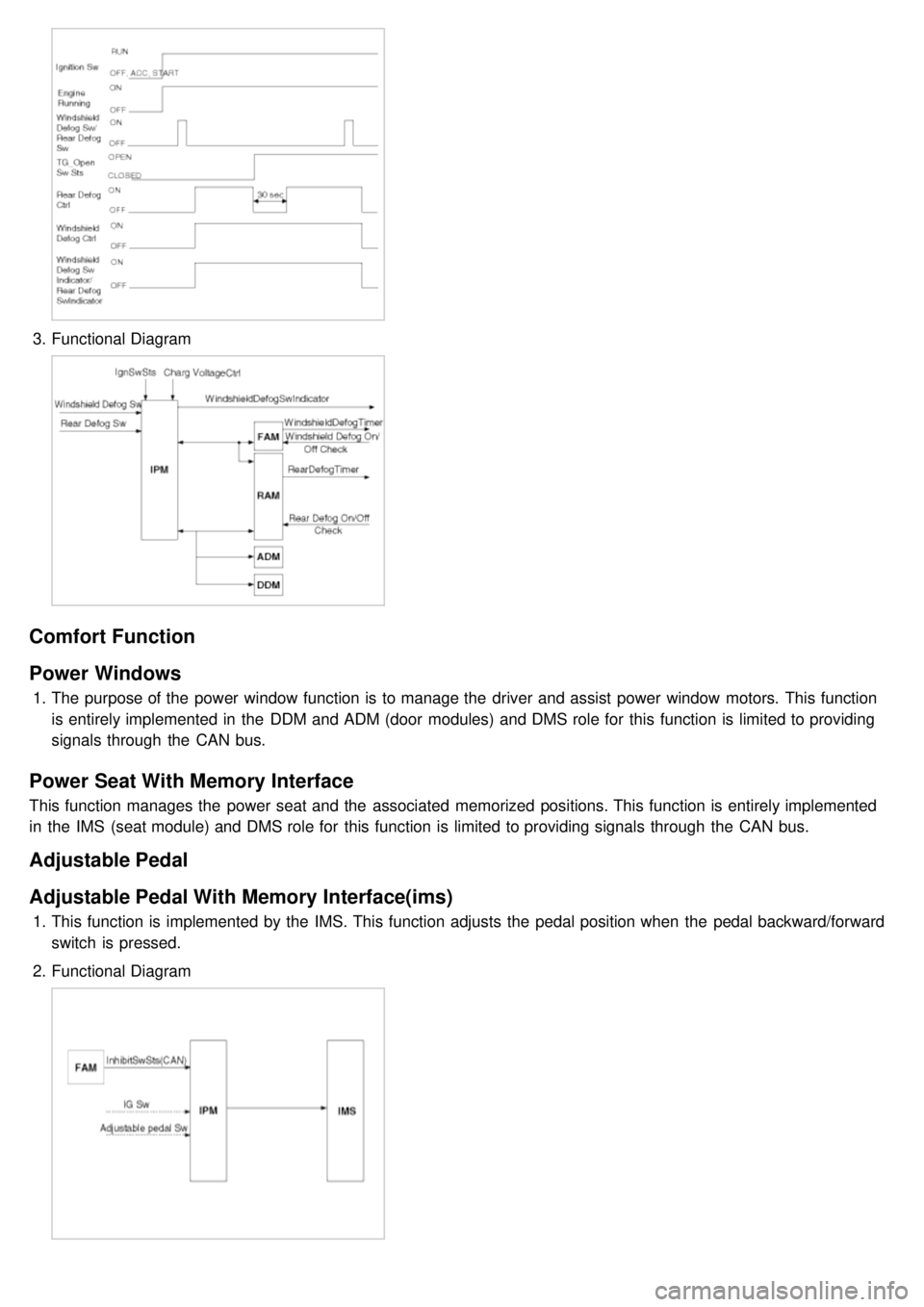

3.Functional Diagram
Comfort Function
Power Windows
1.The purpose of the power window function is to manage the driver and assist power window motors. This function
is entirely implemented in the DDM and ADM (door modules) and DMS role for this function is limited to providing
signals through the CAN bus.
Power Seat With Memory Interface
This function manages the power seat and the associated memorized positions. This function is entirely implemented
in the IMS (seat module) and DMS role for this function is limited to providing signals through the CAN bus.
Adjustable Pedal
Adjustable Pedal With Memory Interface(ims)
1.This function is implemented by the IMS. This function adjusts the pedal position when the pedal backward/forward
switch is pressed.
2. Functional Diagram
