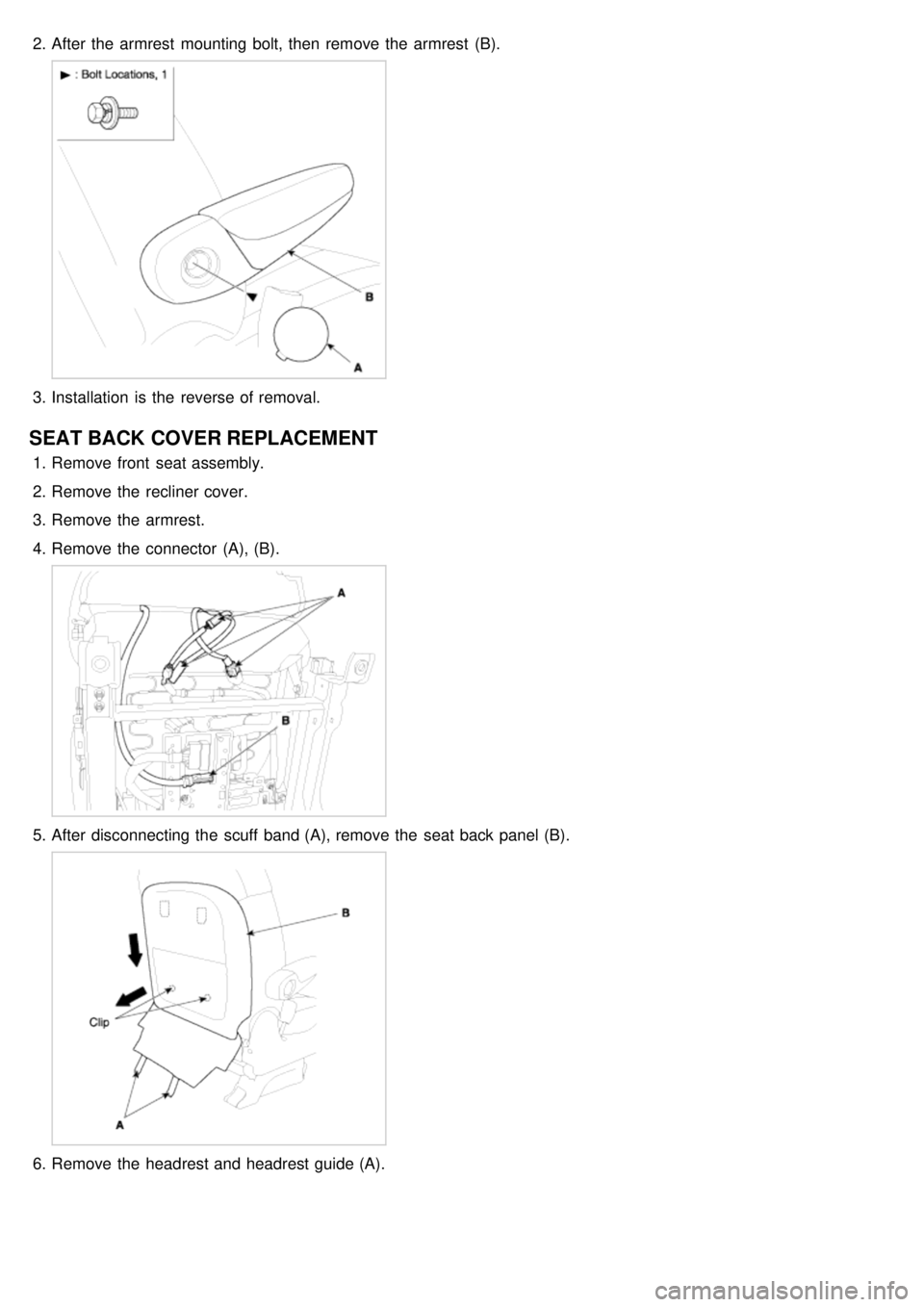

2.After the armrest mounting bolt, then remove the armrest (B).
3.Installation is the reverse of removal.
SEAT BACK COVER REPLACEMENT
1.Remove front seat assembly.
2. Remove the recliner cover.
3. Remove the armrest.
4. Remove the connector (A), (B).
5.After disconnecting the scuff band (A), remove the seat back panel (B).
6.Remove the headrest and headrest guide (A).

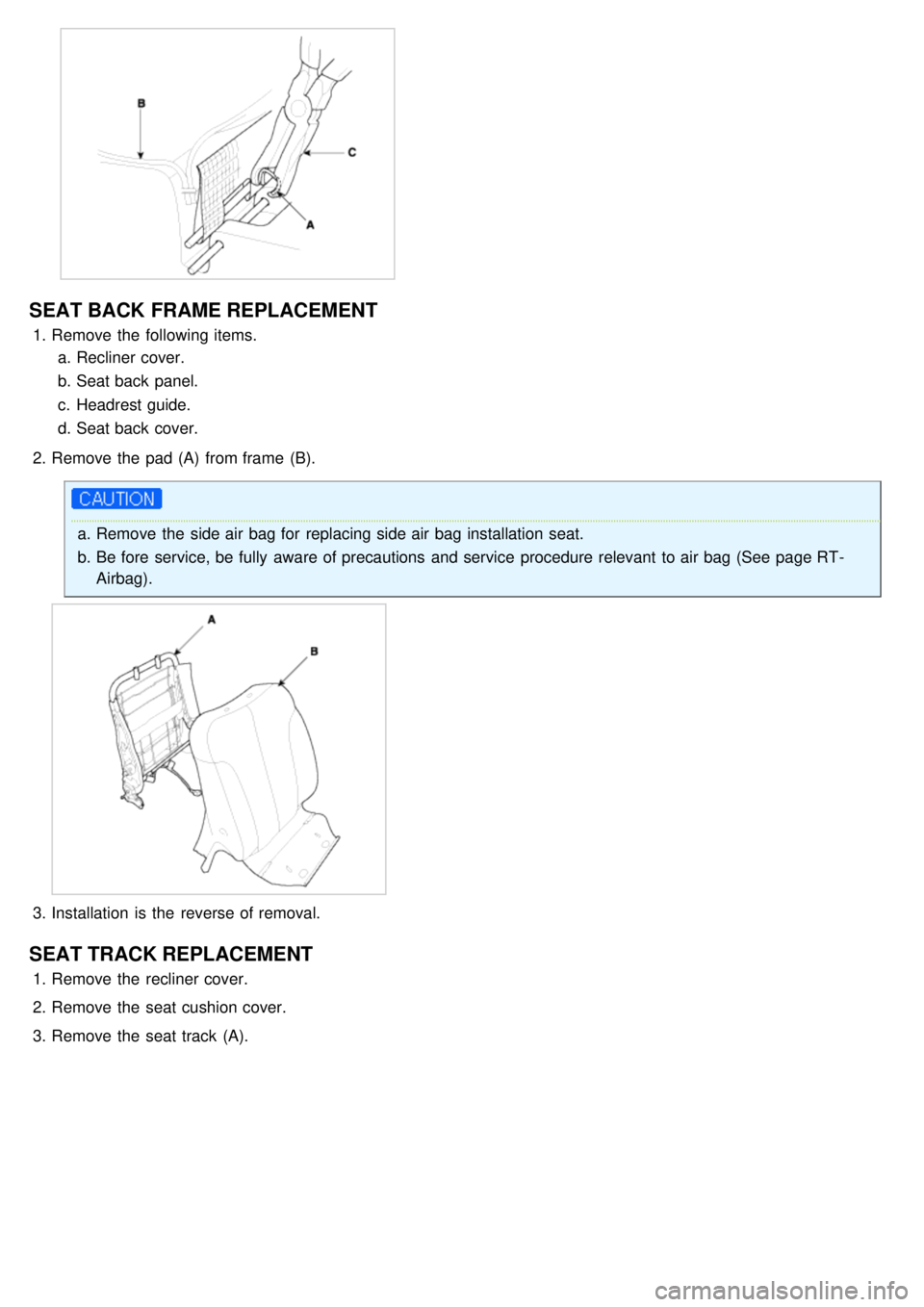

SEAT BACK FRAME REPLACEMENT
1.Remove the following items.
a. Recliner cover.
b. Seat back panel.
c. Headrest guide.
d. Seat back cover.
2. Remove the pad (A) from frame (B).
a.Remove the side air bag for replacing side air bag installation seat.
b. Be fore service, be fully aware of precautions and service procedure relevant to air bag (See page RT -
Airbag).
3.Installation is the reverse of removal.
SEAT TRACK REPLACEMENT
1.Remove the recliner cover.
2. Remove the seat cushion cover.
3. Remove the seat track (A).

5.Remove the hog- ring clips (A).
6.Remove the headrest and headrest guide.
7. After removing the hog- ring clips (A) on the front of seat back remove the seat back cover (B).
8.Installation is the reverse of removal.
a.To prevent wrinkles, make sure the material is stretched evenly over the cover (A) before securing the
hogring clips (B)
b. Replace the hogring clips with new ones using special tool (C).

4.Remove the hogring clips (A).
5.Remove the headrest guide (A).
6.Remove the frame (A).
