2007 KIA CARNIVAL Workshop Manual

VRS Switch

2007 > 2.7L V6 GASOLINE >

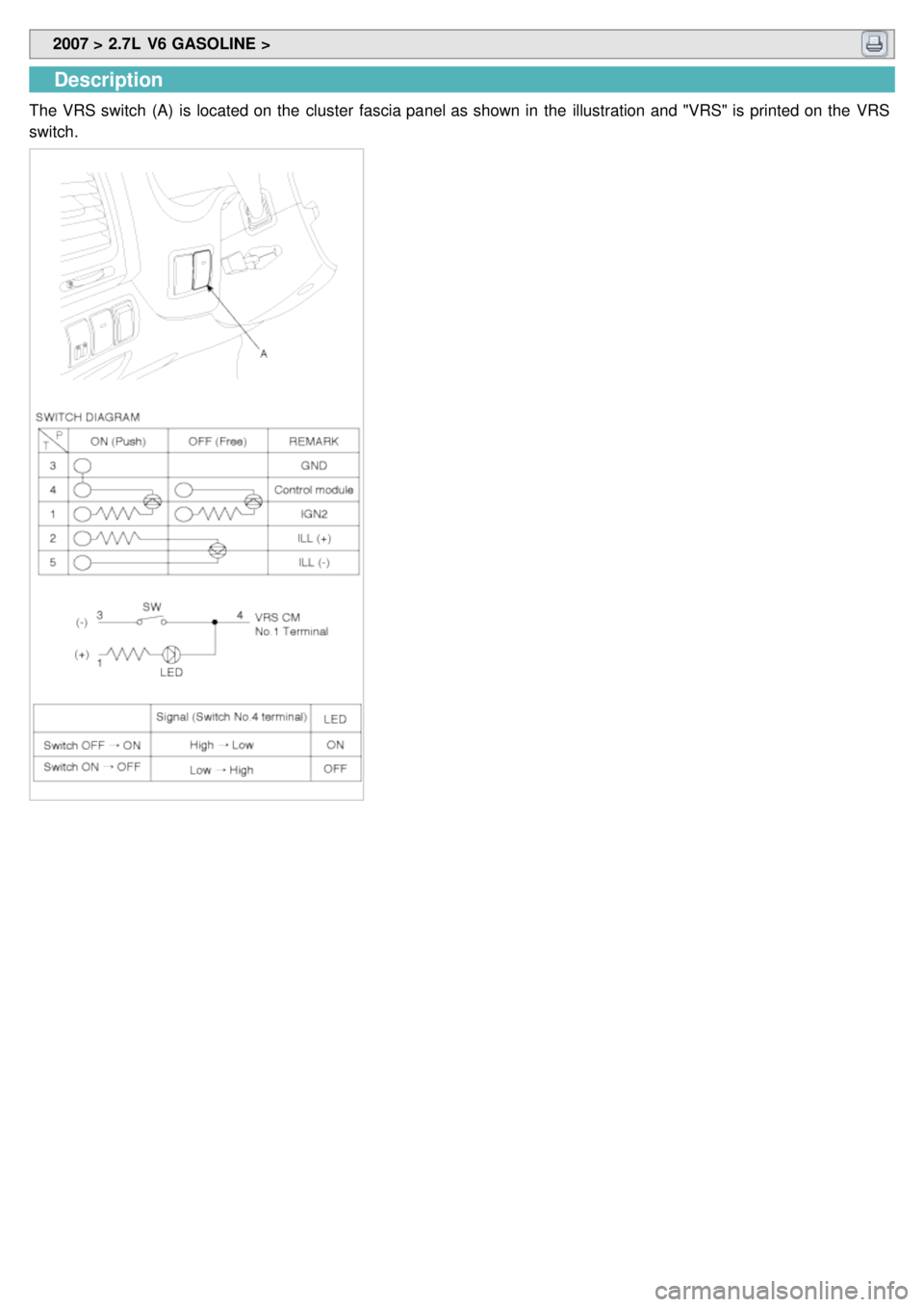

Description
The VRS switch (A) is located on the cluster fascia panel as shown in the illustration and "VRS" is printed on the VRS
switch.

CHAPTER 11:
Heating, Ventilation, Air Conditioning

Air Conditioning System

2007 > 2.7L V6 GASOLINE >
SPECIAL TOOLS
Tool
(Number and name) Illustration
Use
09977 - 29000
Disc & hub assembly bolt
remover
Removal and installation of the
disc & hub assembly bolt

2007 > 2.7L V6 GASOLINE >
TROUBLESHOOTING
PROBLEM SYMPTOMS TABLE
Before replacing or repairing air conditioning components, first determine if the malfunction is due to the refrigerant
charge, air flow or compressor.
Use the table below to help you find the cause of the problem. The numbers indicate the priority of the likely cause of
the problem. Check each part in order. If necessary, replace these parts.
After correcting the malfunction, check the complete system to ensure that performance is satisfactory.
STANDARD:
Symptom Suspect Area See page
No blower operation 1. Blower fuse
2. Blower relay
3. Blower motor
4. Power mosfet
5. Blower speed control switch
6. Wire harness
No air temperature control 1. Engine coolant capacity
2. Heater control assembly
No compressor operation 1. Refrigerant capacity
2. A/C Fuse
3. Magnetic clutch
4. Compressor
5. Dual pressure switch
6. A/C switch
7. Evaporator temperature sensor
8. Wire harness
No cool comes out 1. Refrigerant capacity
2. Refrigerant pressure
3. Drive belt
4. Magnetic clutch
5. Compressor
6. Dual pressure switch
7. Evaporator temperature sensor
8. A/C switch
9. Heater control assembly
10. Wire harness
Insufficient cooling 1. Refrigerant capacity
2. Drive belt
3. Magnetic clutch
4. Compressor
5. Condenser
6. Expansion valve
7. Evaporator
8. Refrigerant lines
9. Dual pressure switch
10. Heater control assembly
No engine idle - up when A/C switch
ON 1. Engine ECM
2. Wire harness
No air inlet control 1. Heater control assembly
No mode control 1. Heater control assembly
2. Mode actuator
No cooling fan operation 1. Cooling fan fuse
2. Fan motor
3. Engine ECM
4. Wire harness

2007 > 2.7L V6 GASOLINE >
SPECIFICATION
Air conditioner
Item Specification
Compressor Type
VS (Variable capacity)
Oil type & Capacity ND- OIL8 (PAG), 120 ± 10cc
Pulley type L5OS - TYPE
Displacement 180cc/rev
Condenser Heat rejection14,000 ± 5% kcal/hr
Dual pressure switch High [psi(kg/cm²)]
ON: 370 ± 2.8 (26.0 ± 0.2)
OFF: 455 ± 2.8 (32.0 ± 0.2)
Low ([psi(kg/cm²)] ON : 28.6 ~ 36.3 (2.00 ~ 2.55)
OFF : 28.4 ± 2.8 (2.0 ± 0.2)
Expansion valve TypeBlock
Refrigerant Type
R- 134a
Capacity [oz.(g)] 28.21 ± 0.88 (800 ± 25)
Blower unit
Item Specification
Fresh and recirculation Operating method Actuator
Blower Type
Sirocco
Speed step Auto + 8 speed (Automatic)
1~8speed (Manual)
Speed control Power mosfet
Air filter TypeParticle filter
Heater and evaporator unit
Item Specification
Heater Type
Pin & Tube type
Heating capacity 4,700 ± 5% kcal/hr
Mode operating method Actuator
Temperature operating method Actuator
Evaporator Temperature control type
Evaporator temperature sensor
A/C ON/OFF [°C(°F)] ON : 2.3 ± 0.5 (36.14 ± 32.9)
OFF: 1.3 ± 0.5 (34.34 ± 32.9)

Air Conditioning System
