2007 KIA CARNIVAL Workshop Manual

Fuel Filler Door Release Actuator

2007 > 2.7L V6 GASOLINE >

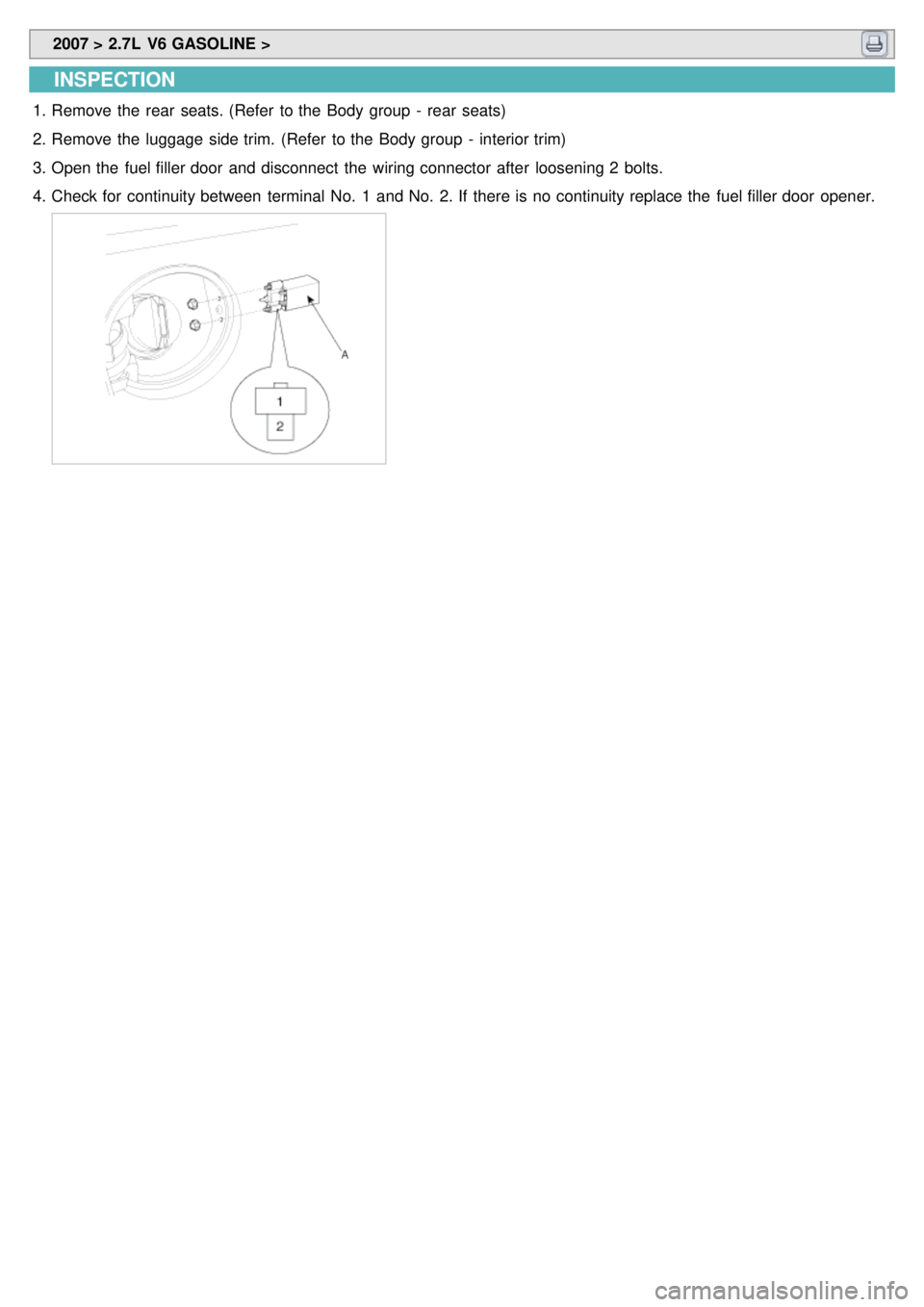

INSPECTION
1.Remove the rear seats. (Refer to the Body group - rear seats)
2. Remove the luggage side trim. (Refer to the Body group - interior trim)
3. Open the fuel filler door and disconnect the wiring connector after loosening 2 bolts.
4. Check for continuity between terminal No. 1 and No. 2. If there is no continuity replace the fuel filler door opener.

Fuel Filler Door Open Switch

2007 > 2.7L V6 GASOLINE >
INSPECTION

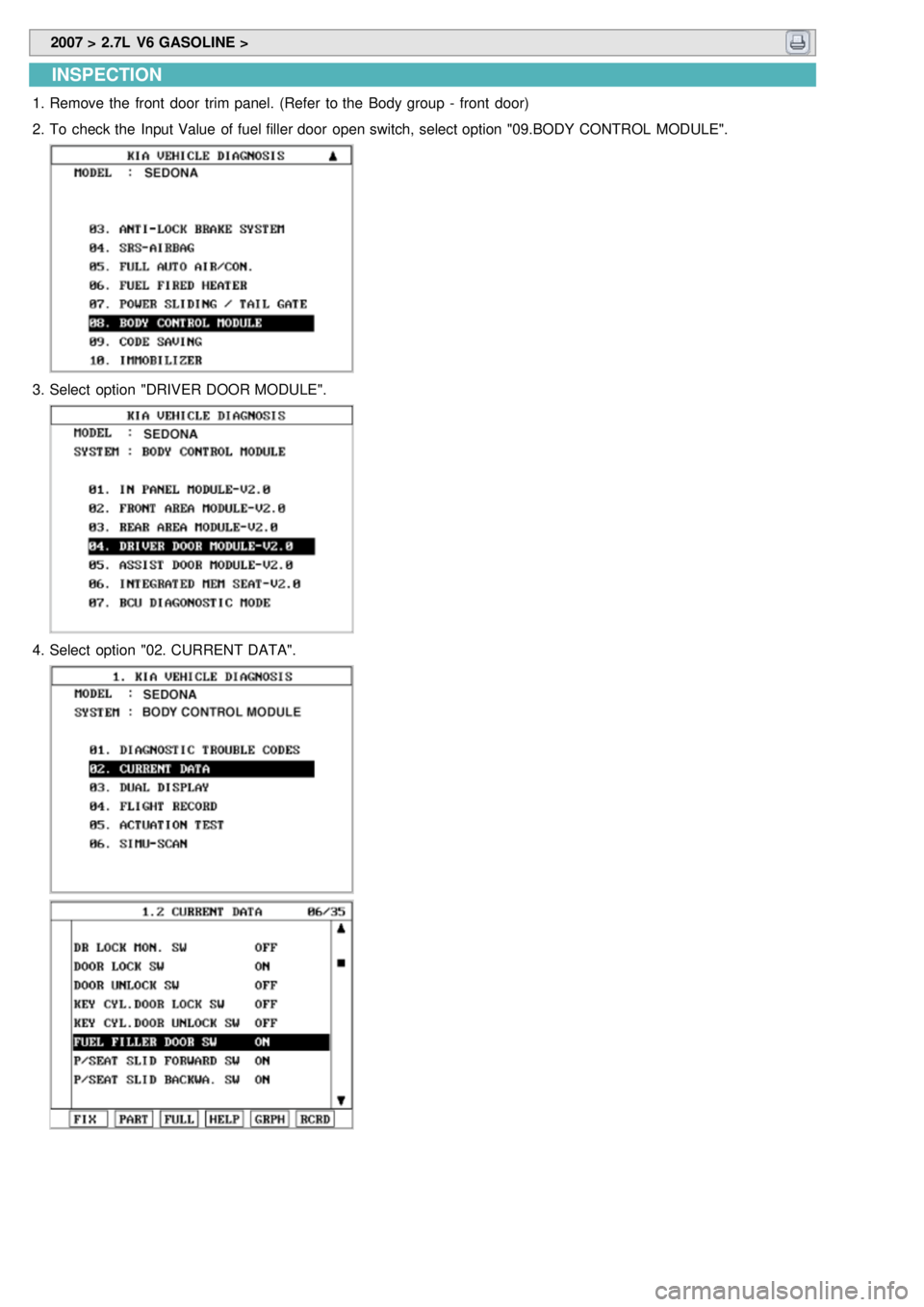

1.Remove the front door trim panel. (Refer to the Body group - front door)
2. To check the Input Value of fuel filler door open switch, select option "09.BODY CONTROL MODULE".
3.Select option "DRIVER DOOR MODULE".
4.Select option "02. CURRENT DATA".

Fuses and Relays

2007 > 2.7L V6 GASOLINE >

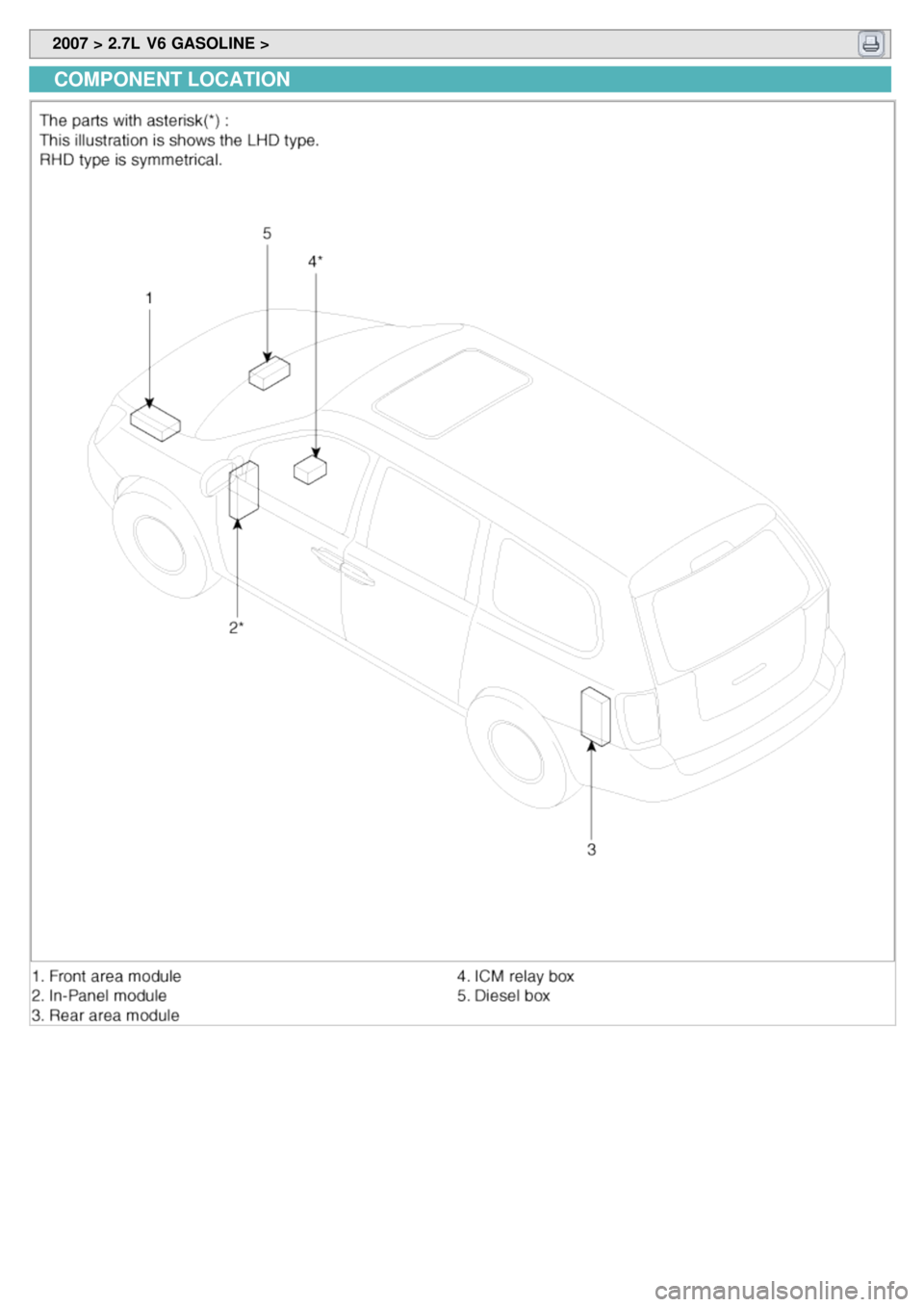

COMPONENT LOCATION

Relay Box
(Engine Compartment)

2007 > 2.7L V6 GASOLINE >

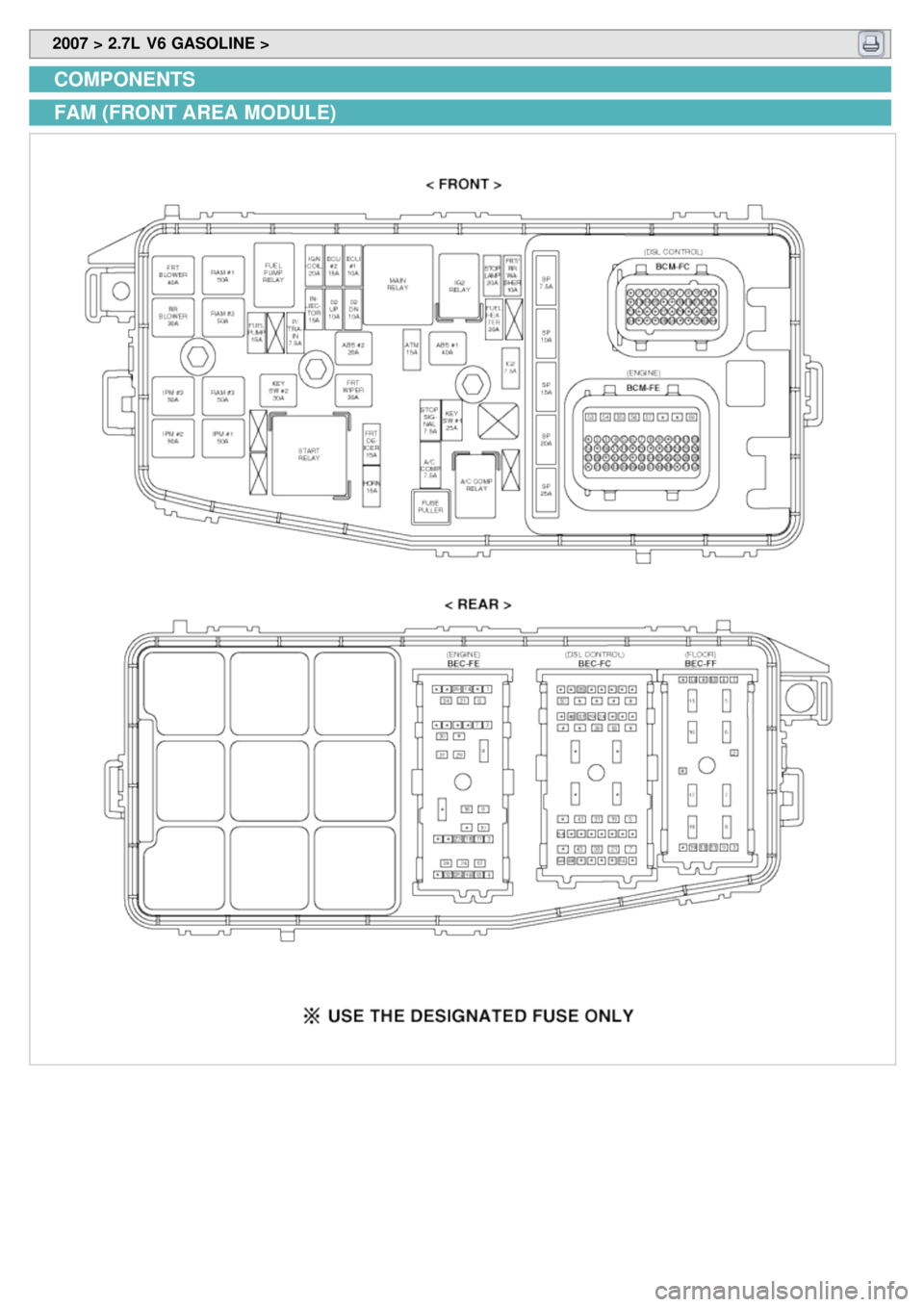

COMPONENTS
FAM (FRONT AREA MODULE)
