2007 KIA CARNIVAL Workshop Manual

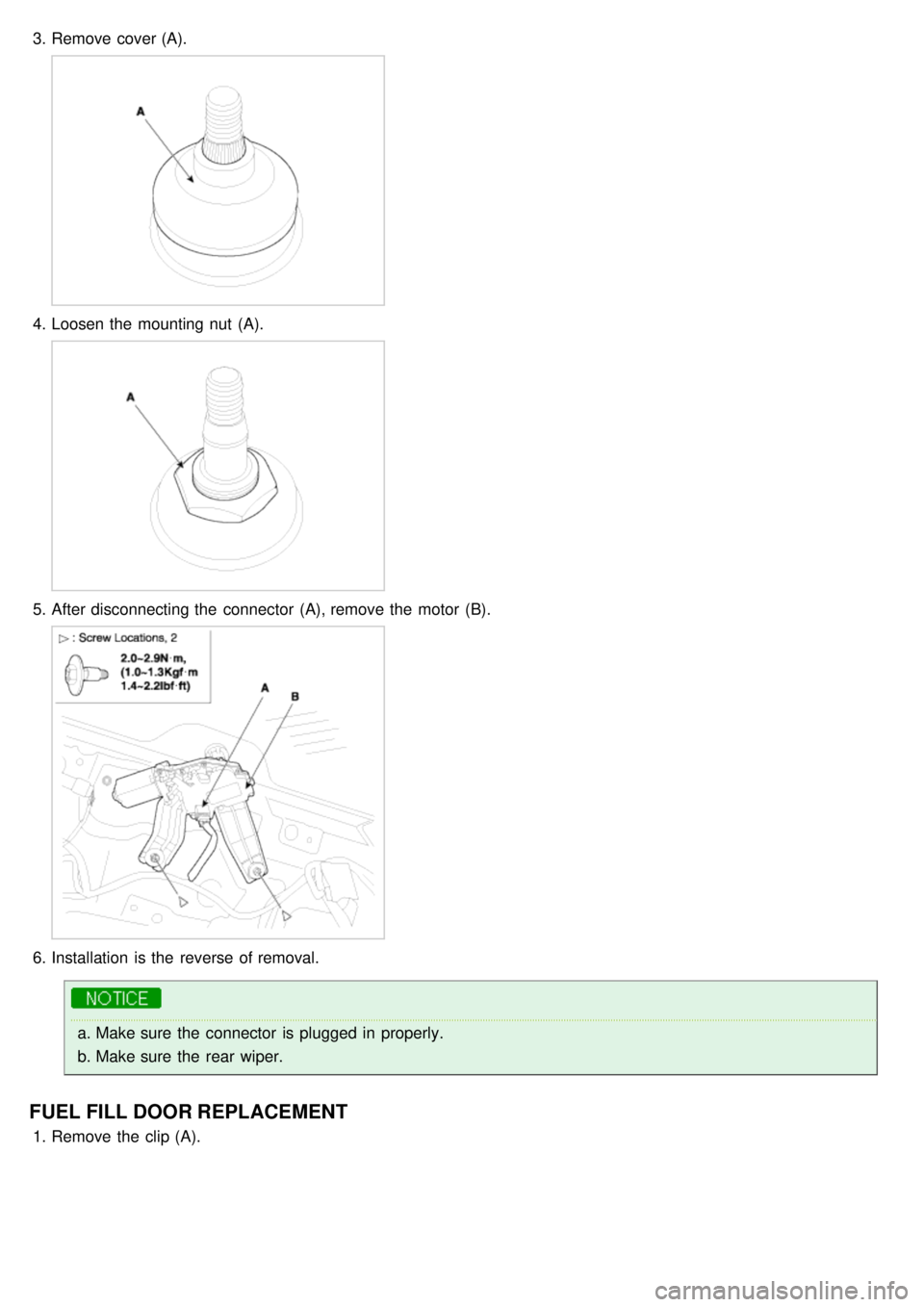

3.Remove cover (A).
4.Loosen the mounting nut (A).
5.After disconnecting the connector (A), remove the motor (B).
6.Installation is the reverse of removal.
a.Make sure the connector is plugged in properly.
b. Make sure the rear wiper.
FUEL FILL DOOR REPLACEMENT
1.Remove the clip (A).

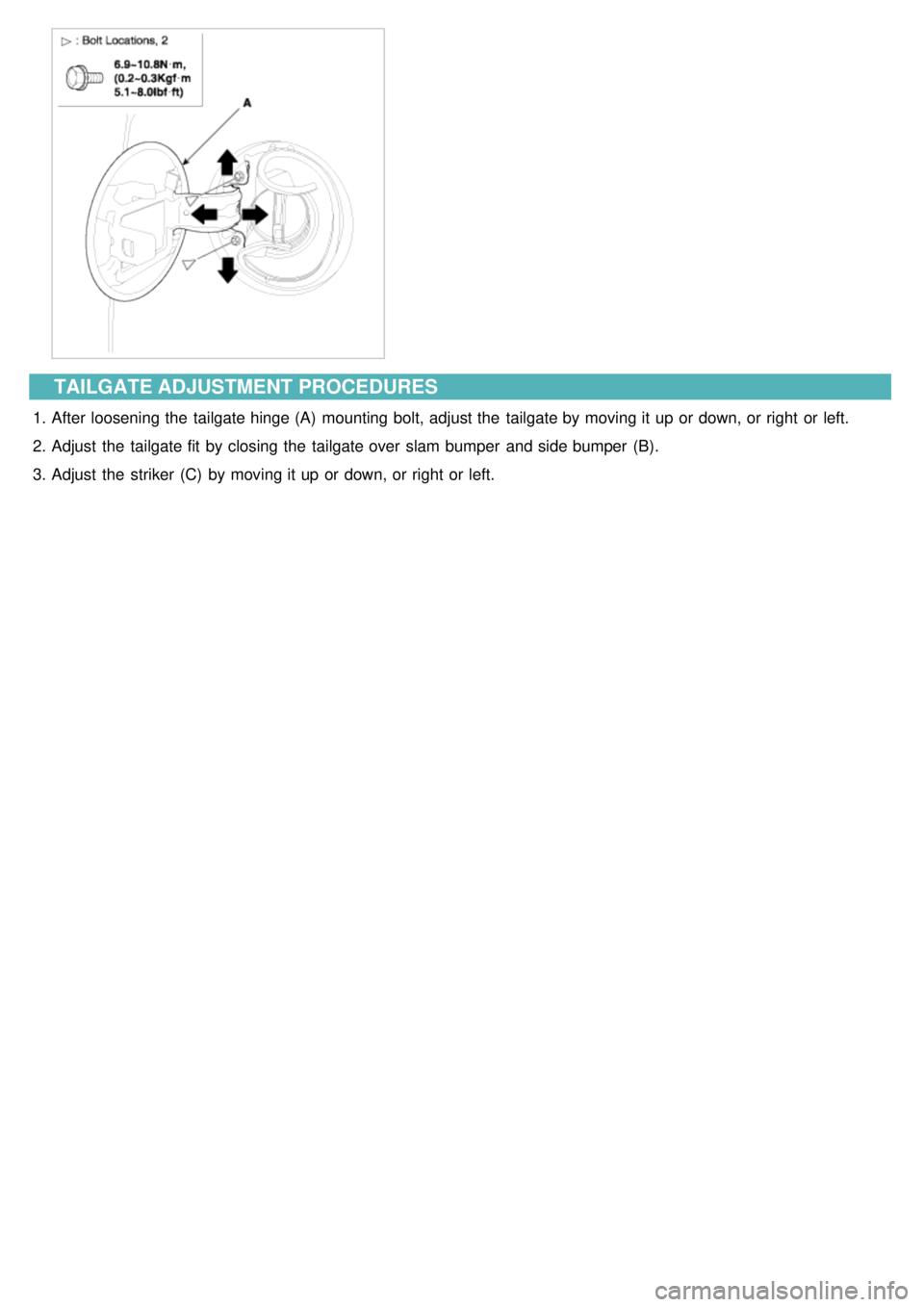

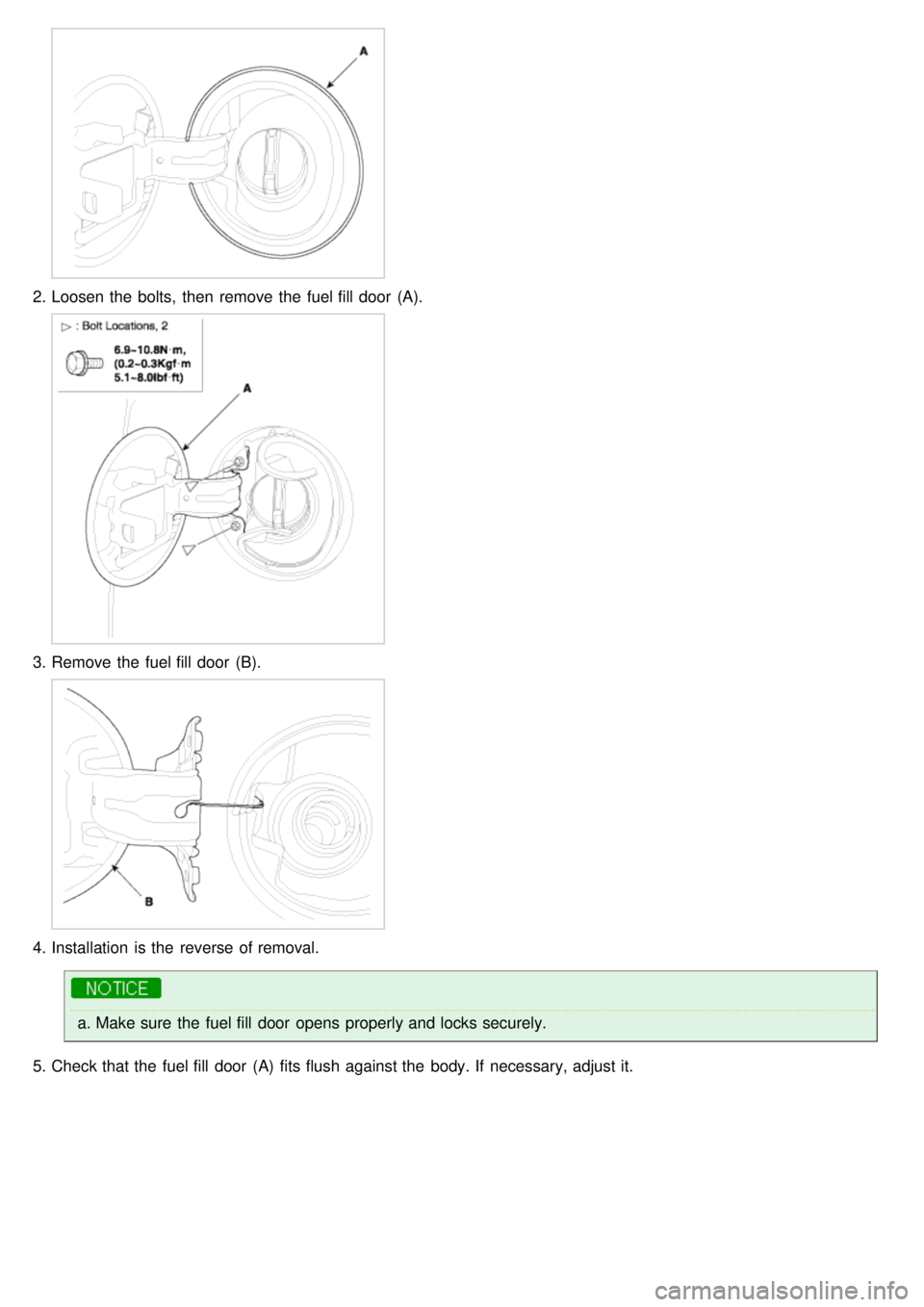

2.Loosen the bolts, then remove the fuel fill door (A).
3.Remove the fuel fill door (B).
4.Installation is the reverse of removal.
a.Make sure the fuel fill door opens properly and locks securely.
5. Check that the fuel fill door (A) fits flush against the body. If necessary, adjust it.

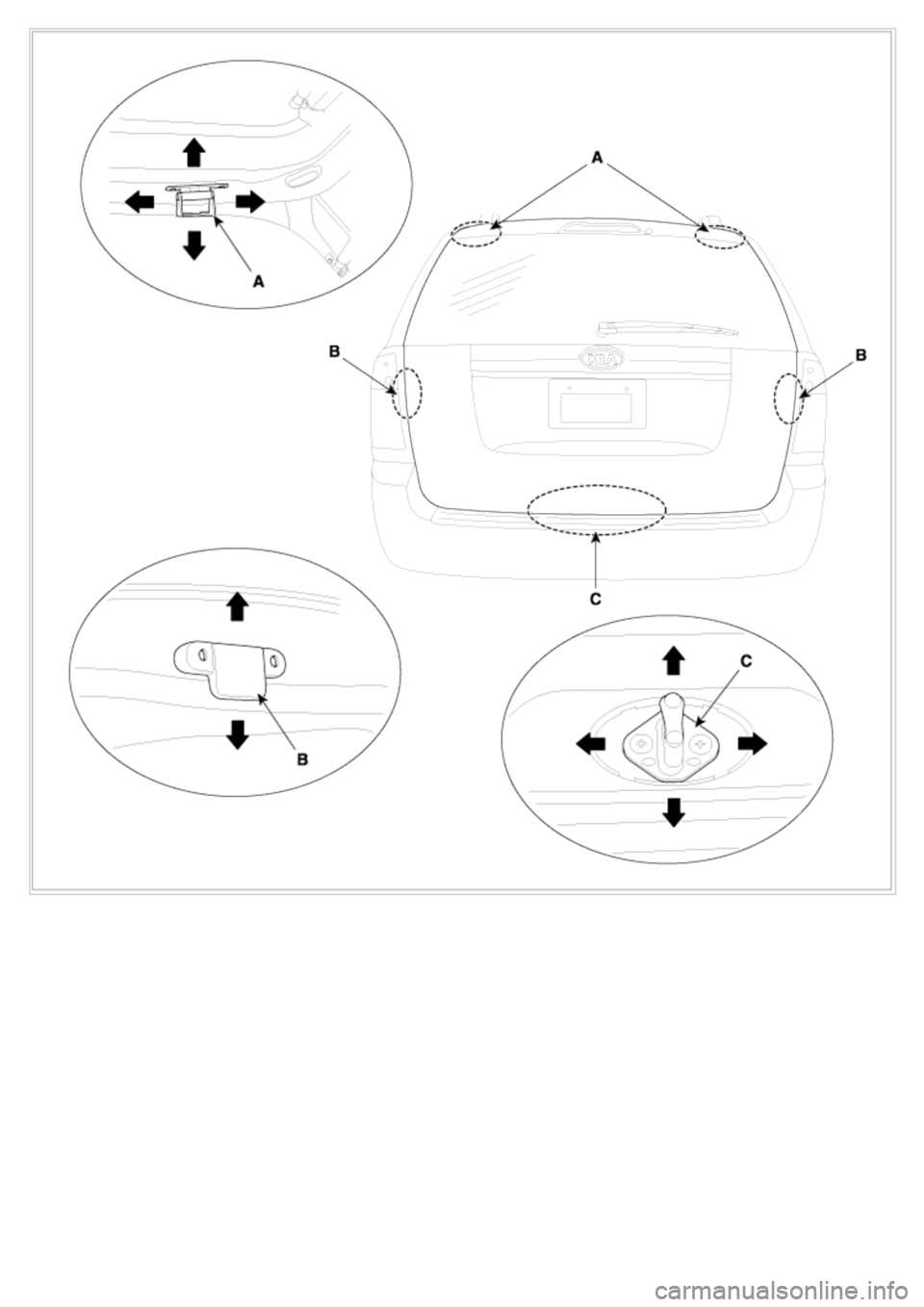

TAILGATE ADJUSTMENT PROCEDURES
1.After loosening the tailgate hinge (A) mounting bolt, adjust the tailgate by moving it up or down, or right or left.
2. Adjust the tailgate fit by closing the tailgate over slam bumper and side bumper (B).
3. Adjust the striker (C) by moving it up or down, or right or left.

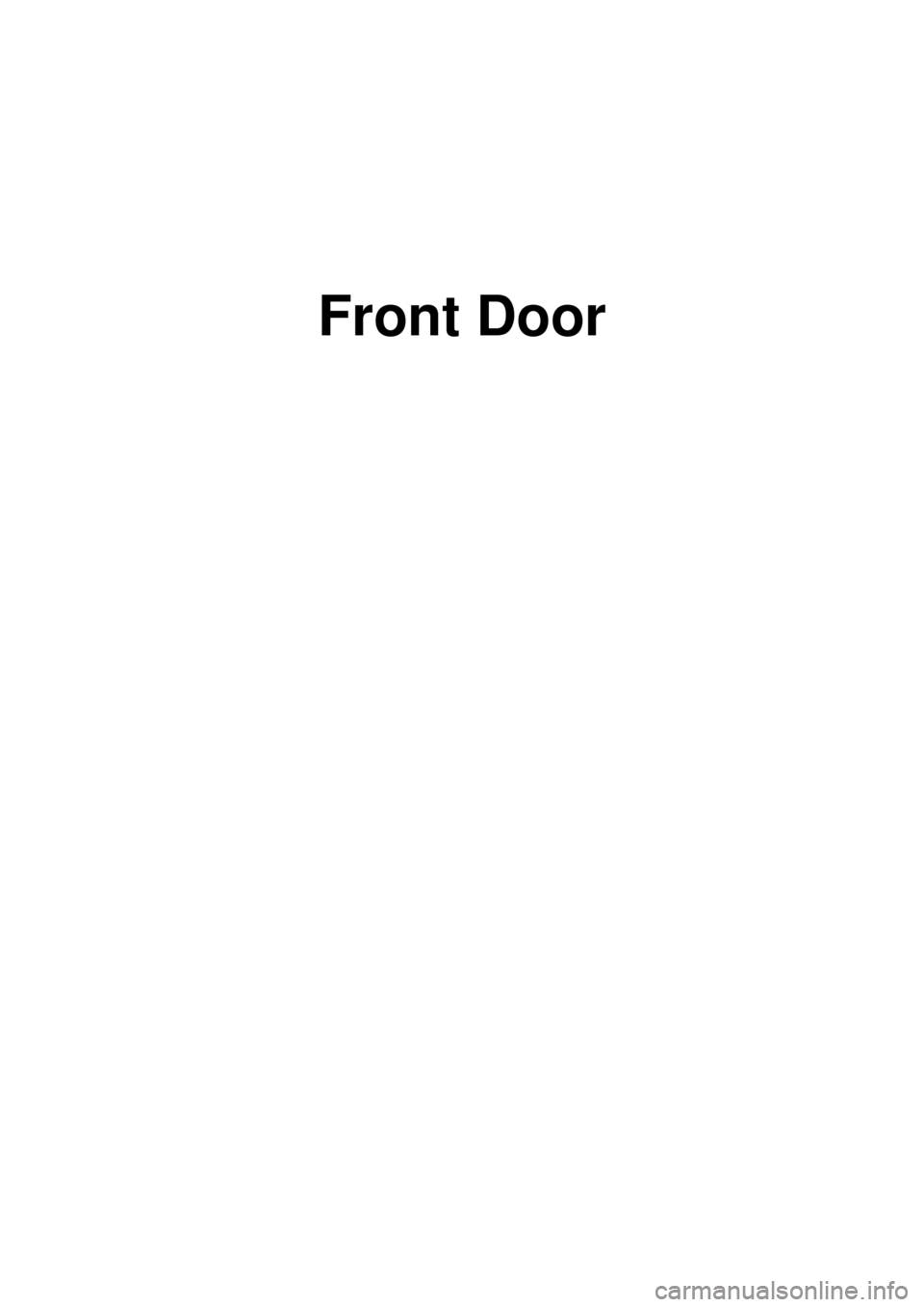

Front Door

2007 > 2.7L V6 GASOLINE >
COMPONENTS

2007 > 2.7L V6 GASOLINE >
REPLACEMENT

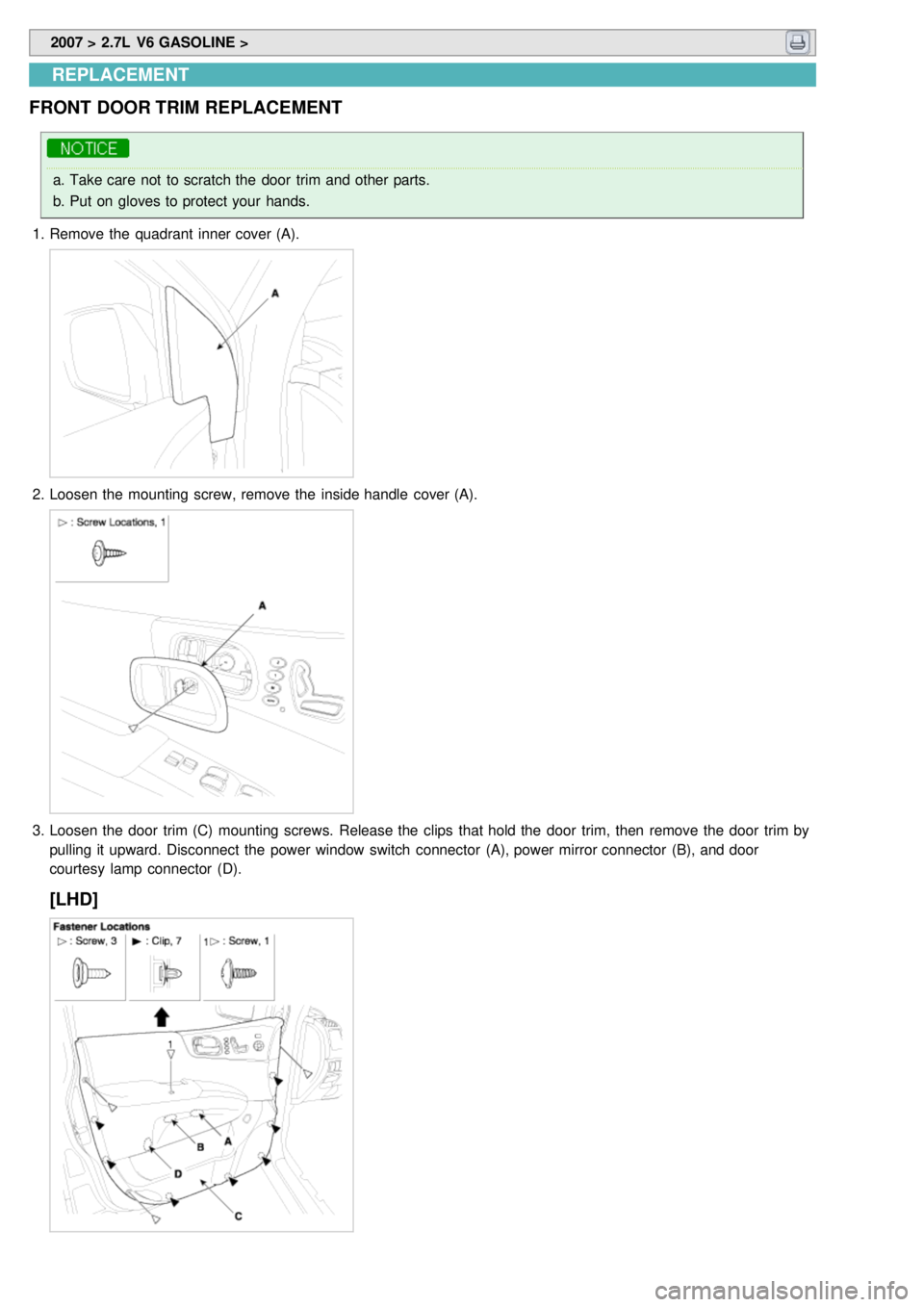

FRONT DOOR TRIM REPLACEMENT
a. Take care not to scratch the door trim and other parts.
b. Put on gloves to protect your hands.
1. Remove the quadrant inner cover (A).
2.Loosen the mounting screw, remove the inside handle cover (A).
3.Loosen the door trim (C) mounting screws. Release the clips that hold the door trim, then remove the door trim by
pulling it upward. Disconnect the power window switch connector (A), power mirror connector (B), and door
courtesy lamp connector (D).
[LHD]

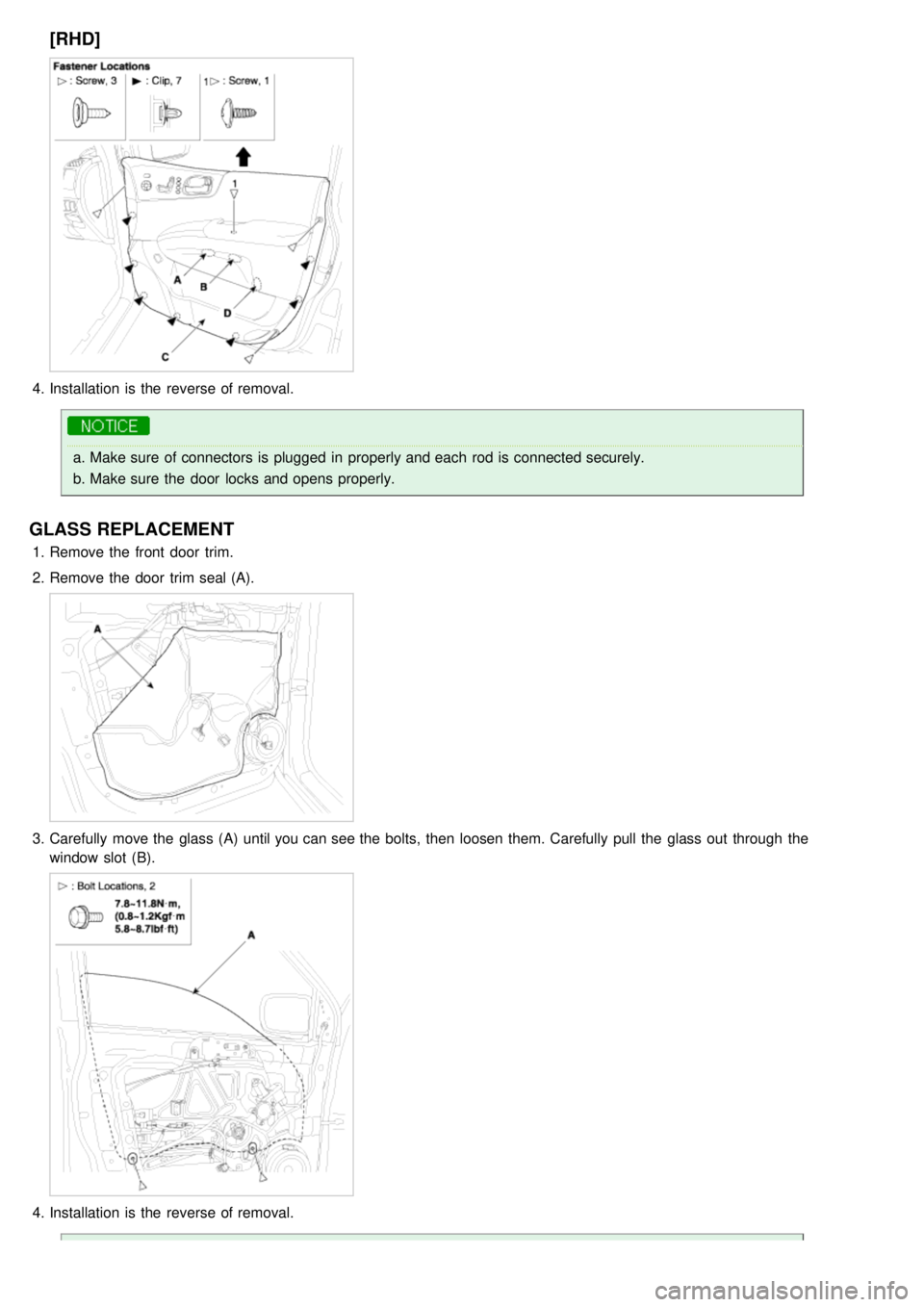

[RHD]
4.Installation is the reverse of removal.
a.Make sure of connectors is plugged in properly and each rod is connected securely.
b. Make sure the door locks and opens properly.
GLASS REPLACEMENT
1.Remove the front door trim.
2. Remove the door trim seal (A).
3.Carefully move the glass (A) until you can see the bolts, then loosen them. Carefully pull the glass out through the
window slot (B).
4.Installation is the reverse of removal.
