2007 KIA CARNIVAL Workshop Manual

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.

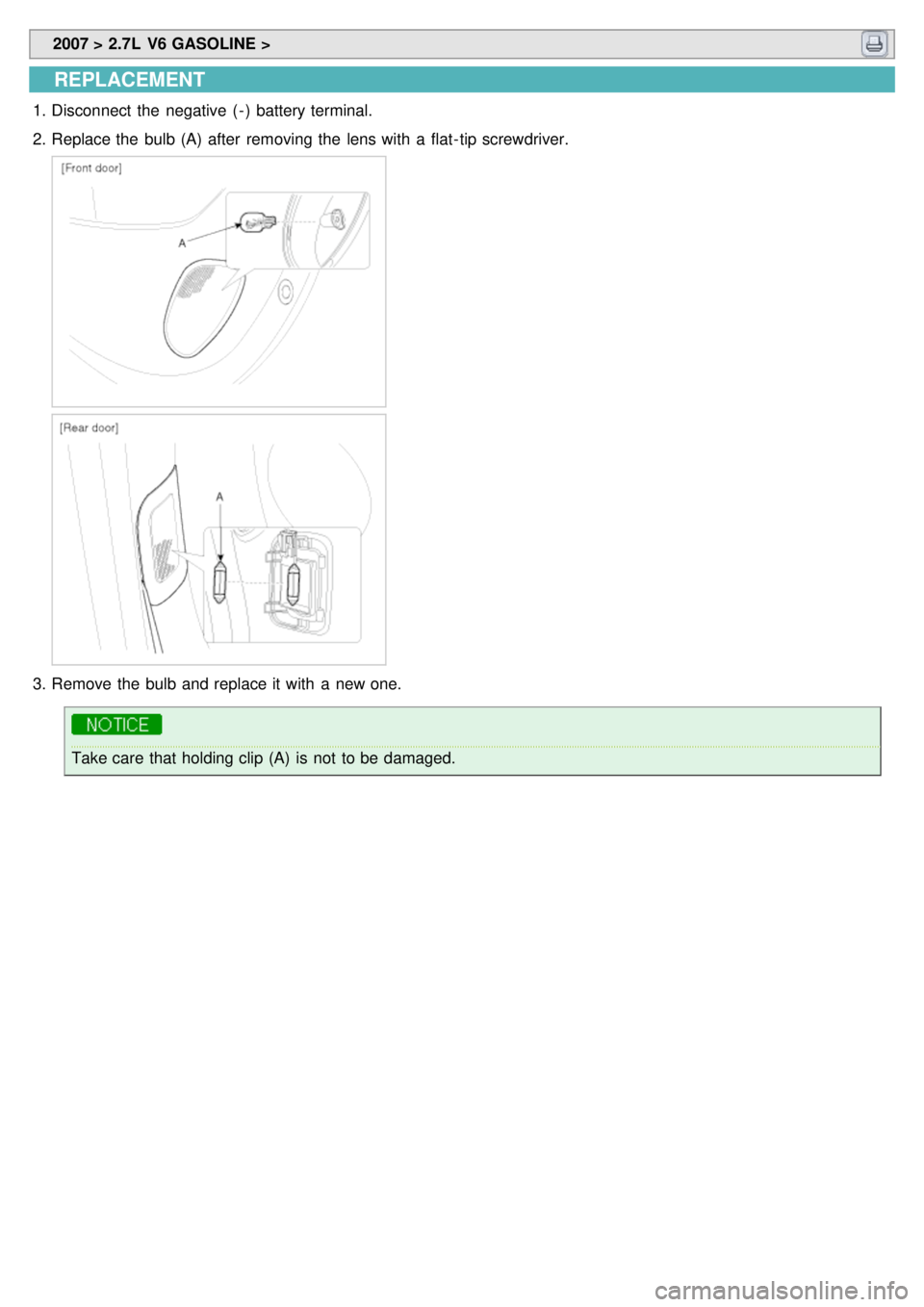

2. Replace the bulb (A) after removing the lens with a flat- tip screwdriver.
3.Remove the bulb and replace it with a new one.
Take care that holding clip (A) is not to be damaged.

Front Fog Lamps

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.

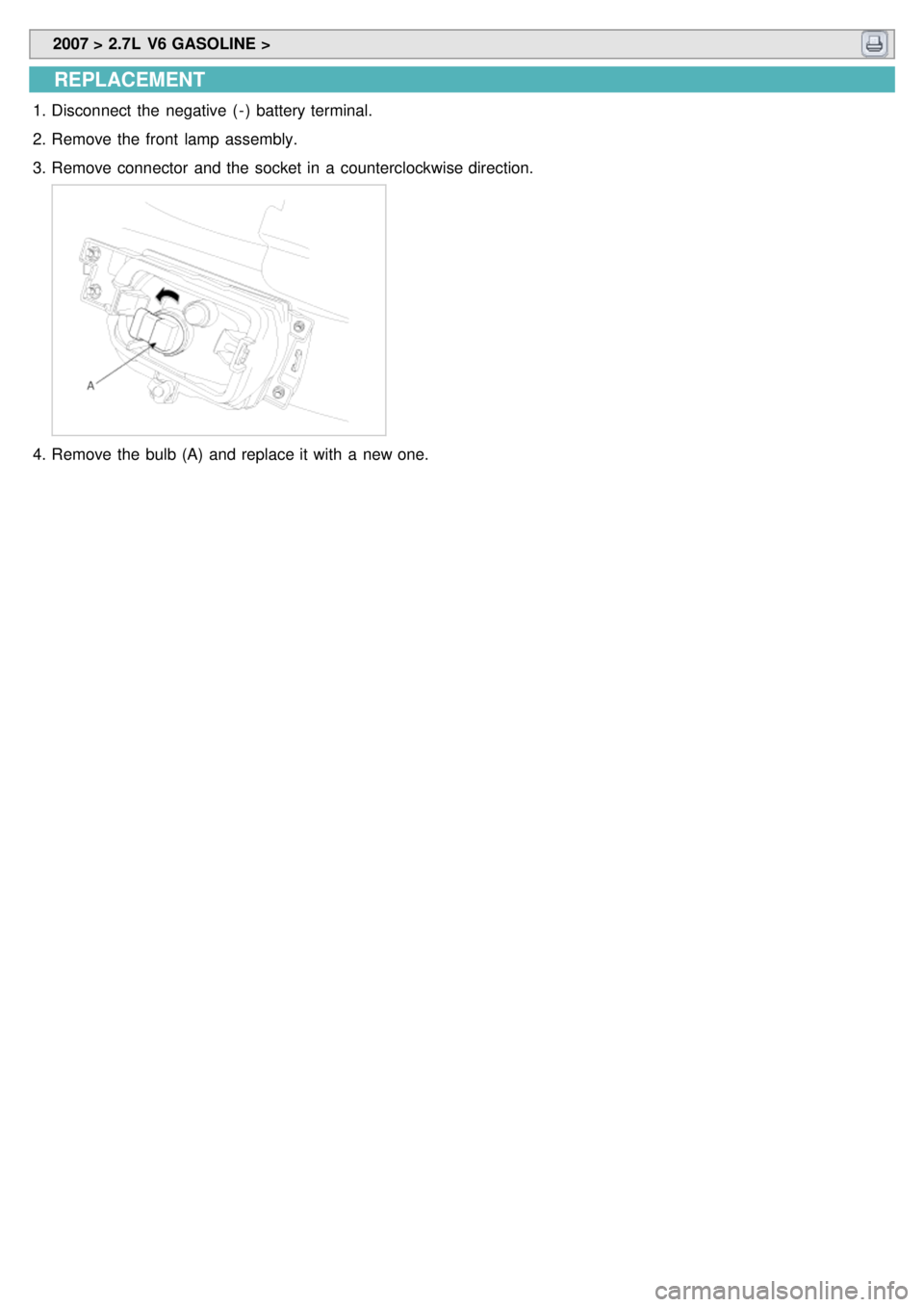

2. Remove the front lamp assembly.
3. Remove connector and the socket in a counterclockwise direction.
4.Remove the bulb (A) and replace it with a new one.

Rear Fog Lamp

2007 > 2.7L V6 GASOLINE >
INSPECTION

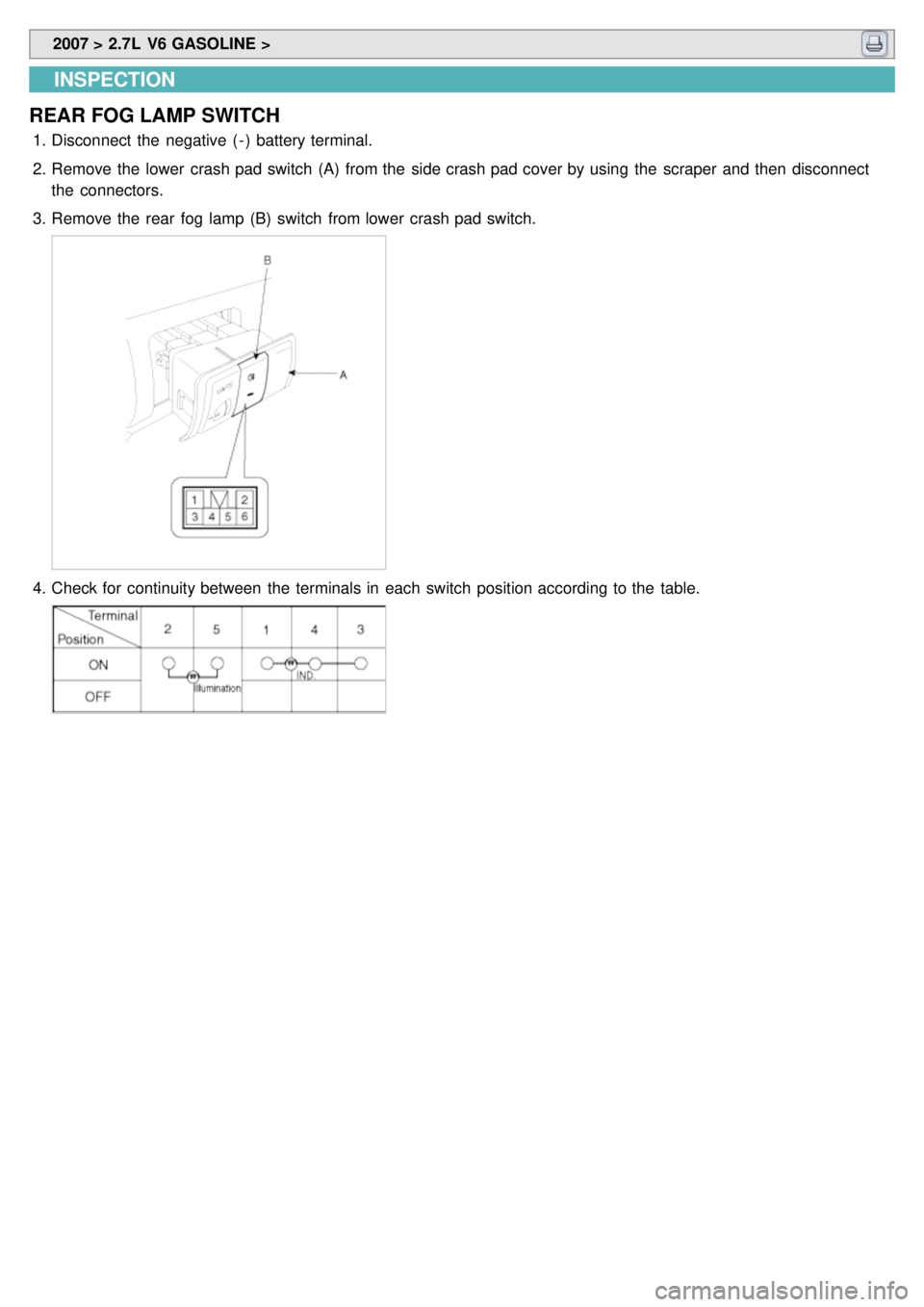

REAR FOG LAMP SWITCH
1. Disconnect the negative ( - ) battery terminal.
2. Remove the lower crash pad switch (A) from the side crash pad cover by using the scraper and then disconnect
the connectors.
3. Remove the rear fog lamp (B) switch from lower crash pad switch.
4.Check for continuity between the terminals in each switch position according to the table.

License Lamps

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.

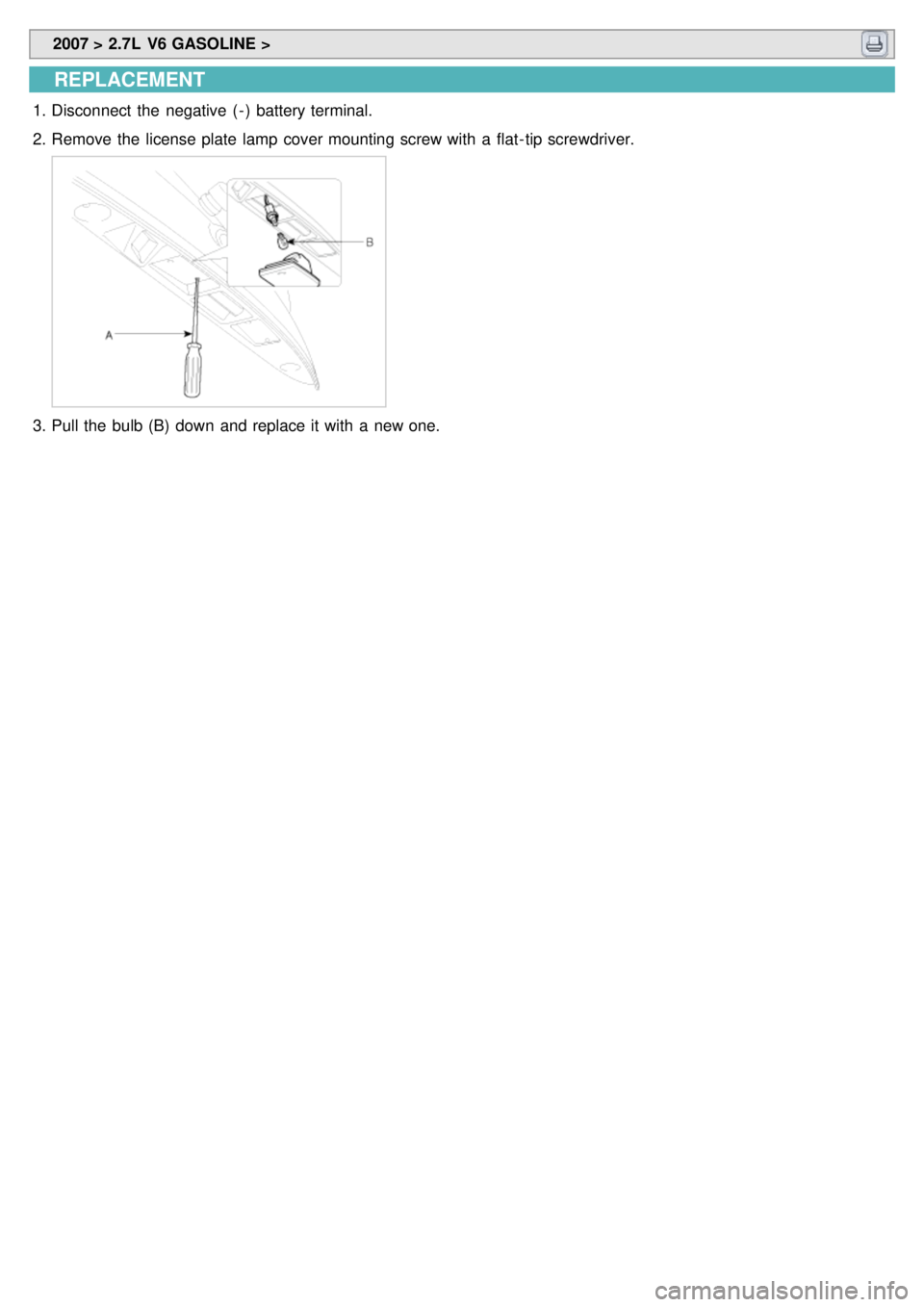

2. Remove the license plate lamp cover mounting screw with a flat- tip screwdriver.
3.Pull the bulb (B) down and replace it with a new one.

High Mounted Stop Lamp
