2007 KIA CARNIVAL Workshop Manual

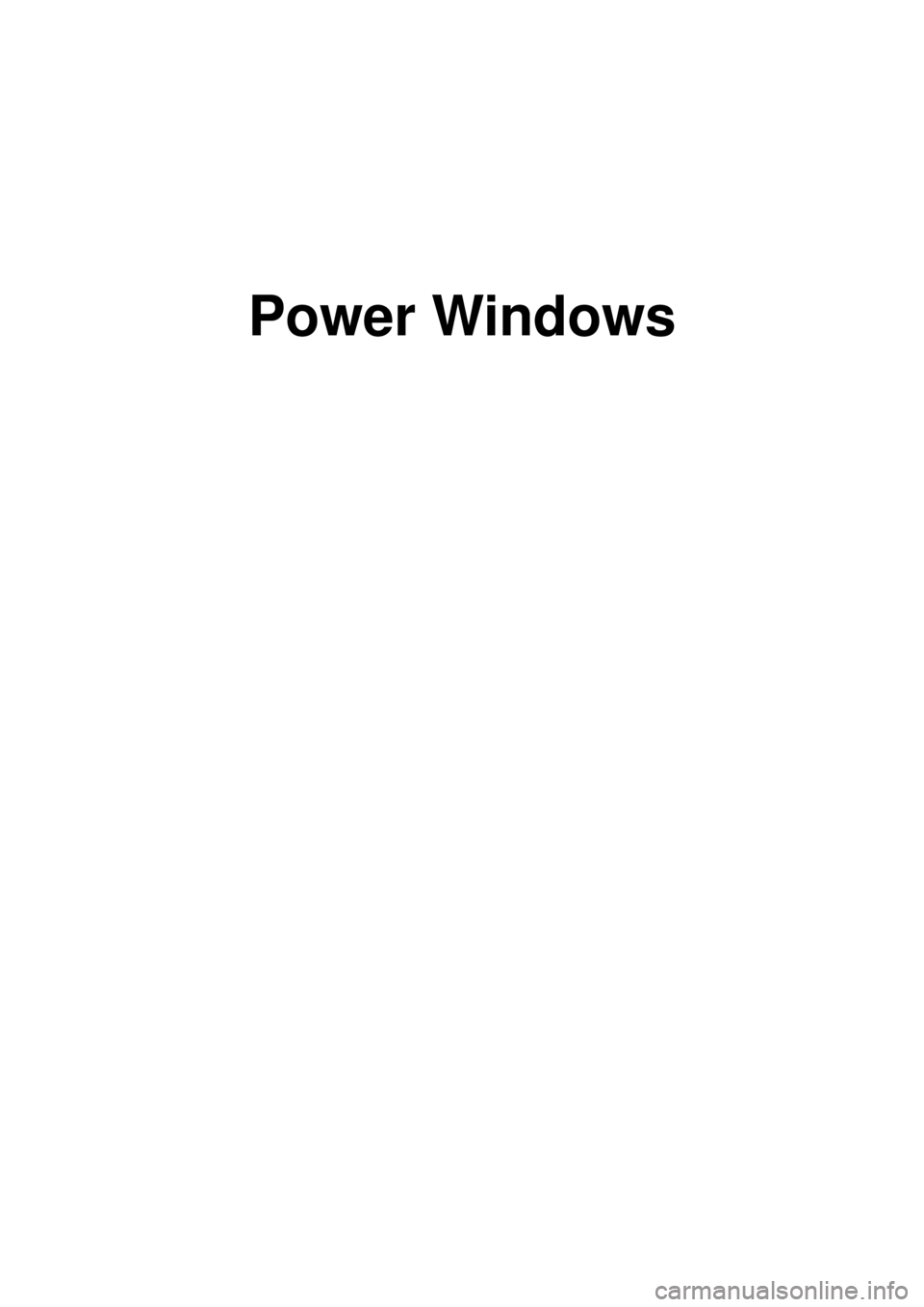

Power Windows

2007 > 2.7L V6 GASOLINE >

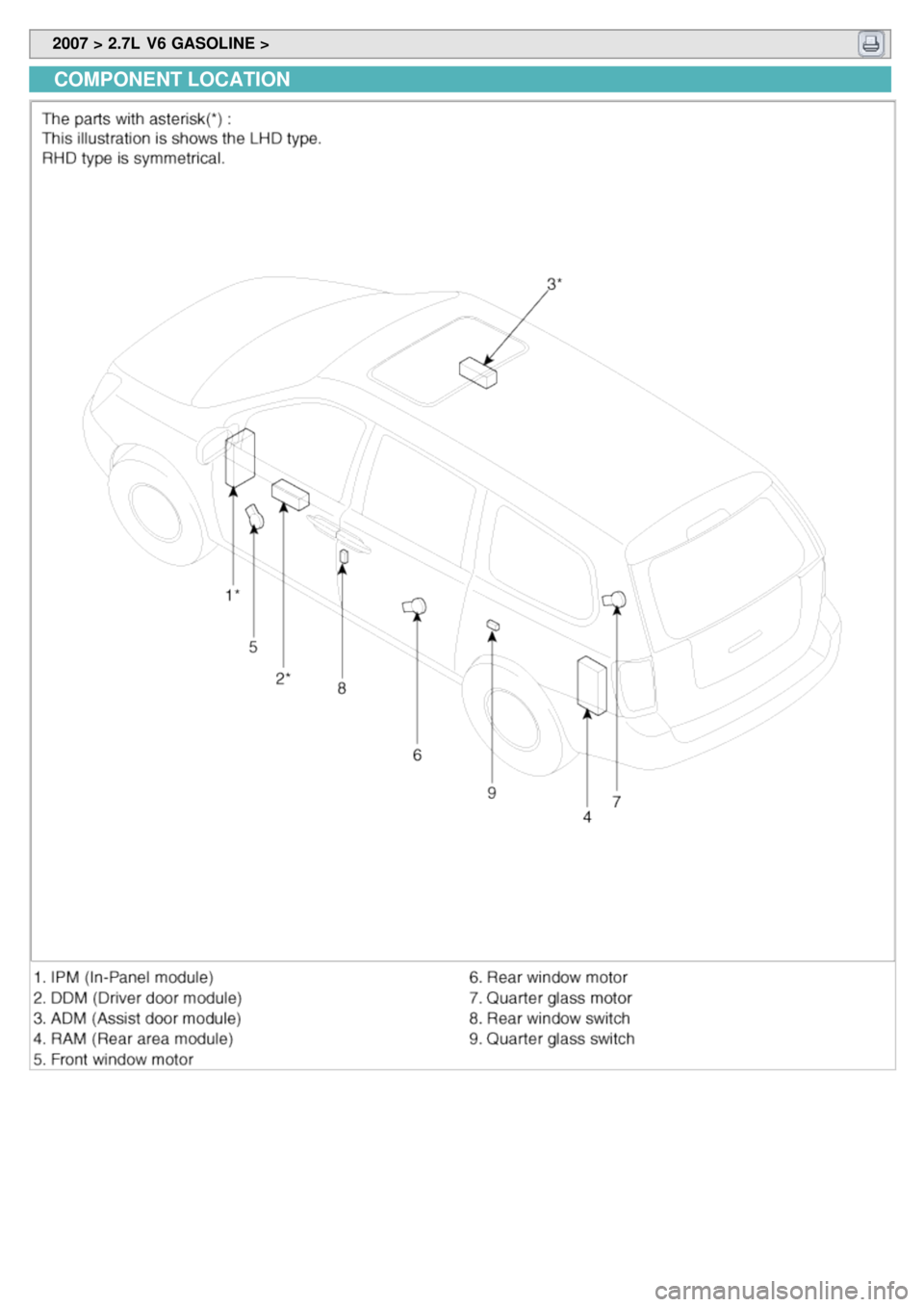

COMPONENT LOCATION

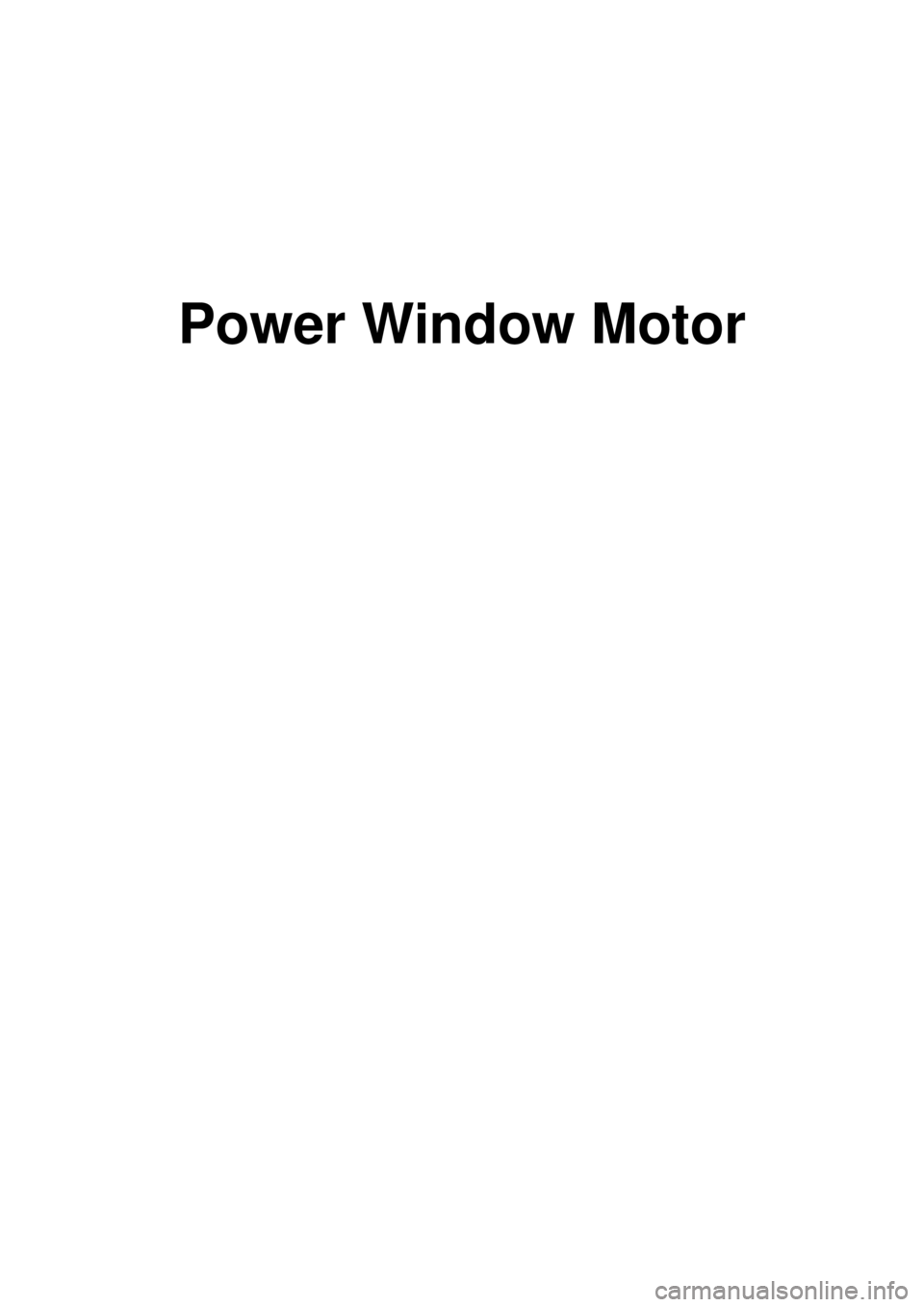

Power Window Motor

2007 > 2.7L V6 GASOLINE >
OPERATION
FUNCTION OF SAFETY POWER WINDOW
When driver door power window auto - up switch is operated, safety function is activated. 1. Safety function condition
When the system detects a force of 100N during the window rising, window is reversed.
2. Length of window reversing (except when holding the auto - up switch)
a. When detect the jamming within 4mm ~ 300mm from top of the door.
→ Window is reversed until 350mm from top of the door.
b.When detect the jamming over the 300mm from top of the door.
→ Window is reversed until 50mm from jamming position.
3.Length of window reversing (holding the auto - up switch)
a. When detect the jamming during holding the auto - up switch.
→ Window is reversed until 20mm from jamming position.
4.Safety function is not available area
Safety function is not available within 4mm from top of the door.

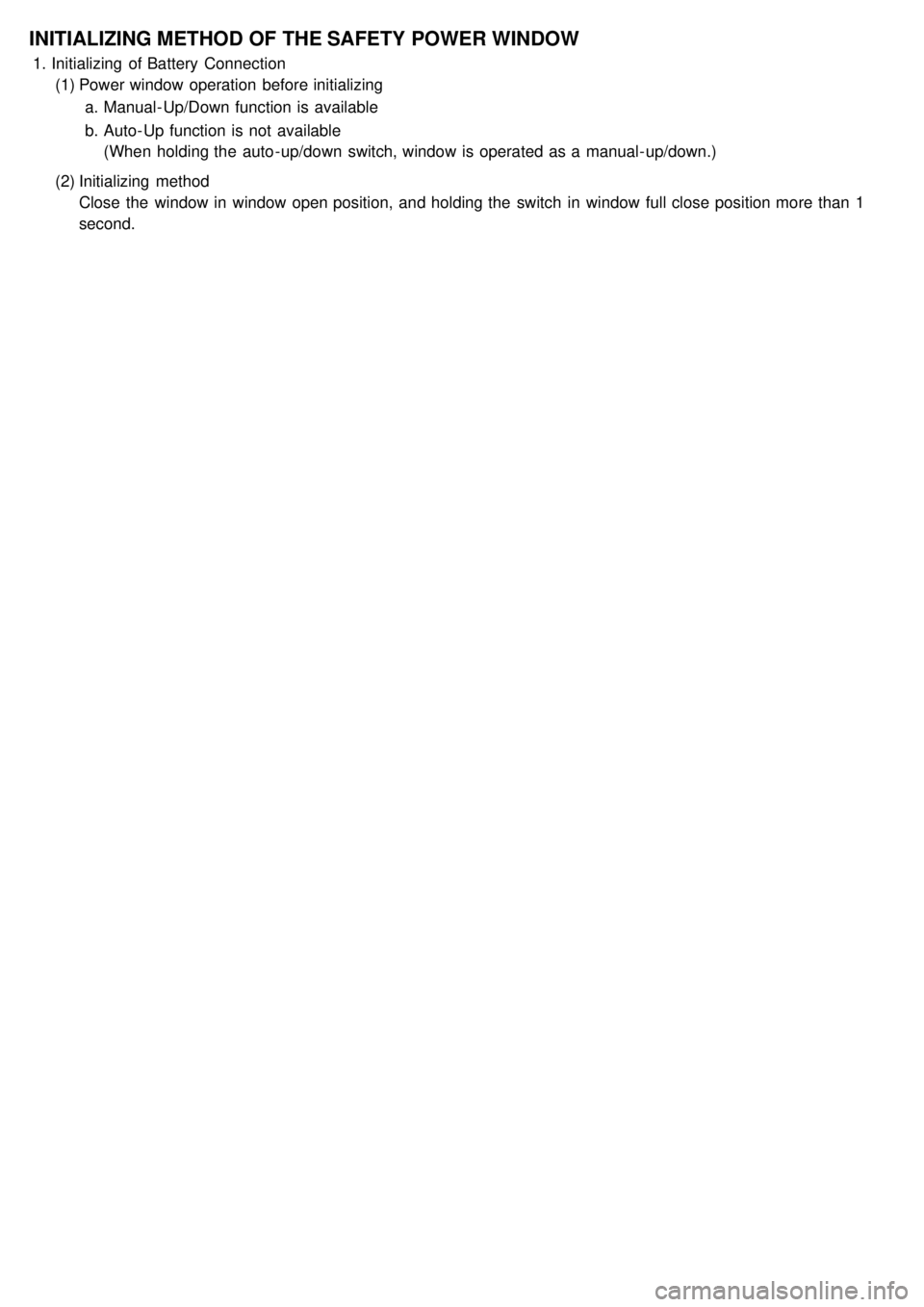

INITIALIZING METHOD OF THE SAFETY POWER WINDOW
1.Initializing of Battery Connection
(1) Power window operation before initializing
a. Manual- Up/Down function is available
b. Auto- Up function is not available
(When holding the auto - up/down switch, window is operated as a manual- up/down.)
(2) Initializing method
Close the window in window open position, and holding the switch in window full close position more than 1
second.

2007 > 2.7L V6 GASOLINE >

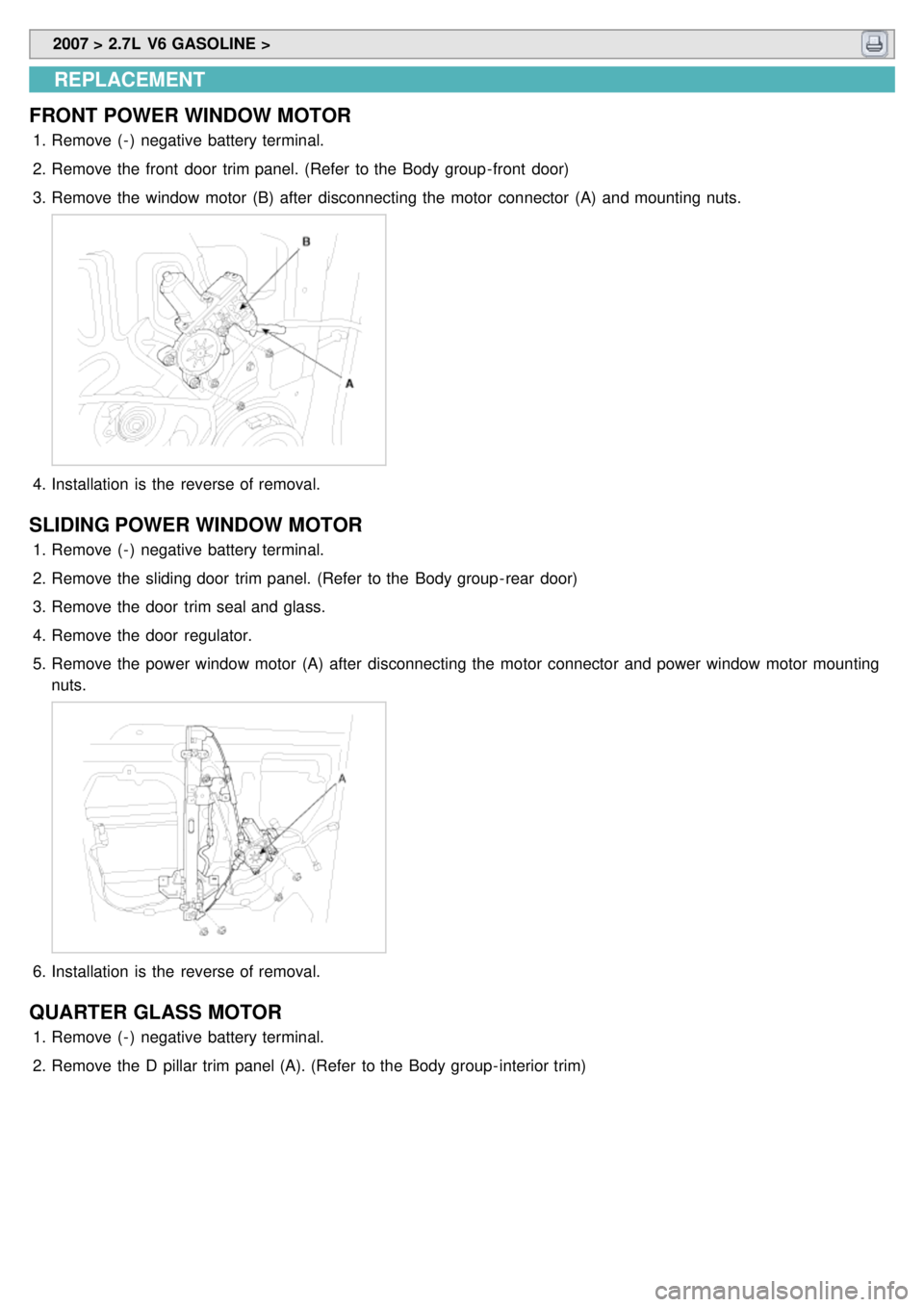

REPLACEMENT
FRONT POWER WINDOW MOTOR
1. Remove ( - ) negative battery terminal.
2. Remove the front door trim panel. (Refer to the Body group - front door)
3. Remove the window motor (B) after disconnecting the motor connector (A) and mounting nuts.
4.Installation is the reverse of removal.
SLIDING POWER WINDOW MOTOR
1.Remove ( - ) negative battery terminal.
2. Remove the sliding door trim panel. (Refer to the Body group - rear door)
3. Remove the door trim seal and glass.
4. Remove the door regulator.
5. Remove the power window motor (A) after disconnecting the motor connector and power window motor mounting
nuts.
6.Installation is the reverse of removal.
QUARTER GLASS MOTOR
1.Remove ( - ) negative battery terminal.
2. Remove the D pillar trim panel (A). (Refer to the Body group - interior trim)

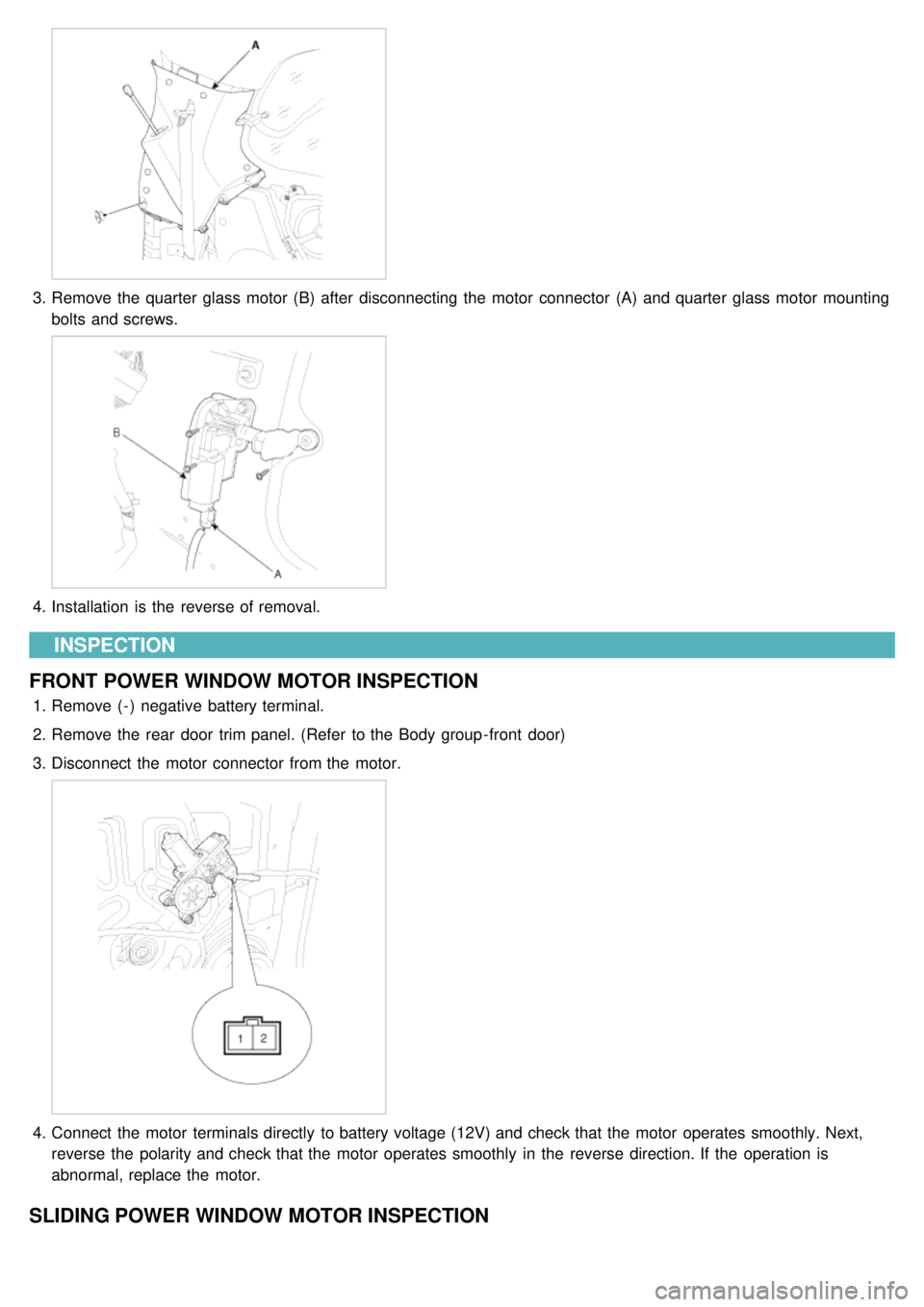

3.Remove the quarter glass motor (B) after disconnecting the motor connector (A) and quarter glass motor mounting
bolts and screws.
4.Installation is the reverse of removal.
INSPECTION
FRONT POWER WINDOW MOTOR INSPECTION
1. Remove ( - ) negative battery terminal.
2. Remove the rear door trim panel. (Refer to the Body group - front door)
3. Disconnect the motor connector from the motor.
4.Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next,
reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is
abnormal, replace the motor.

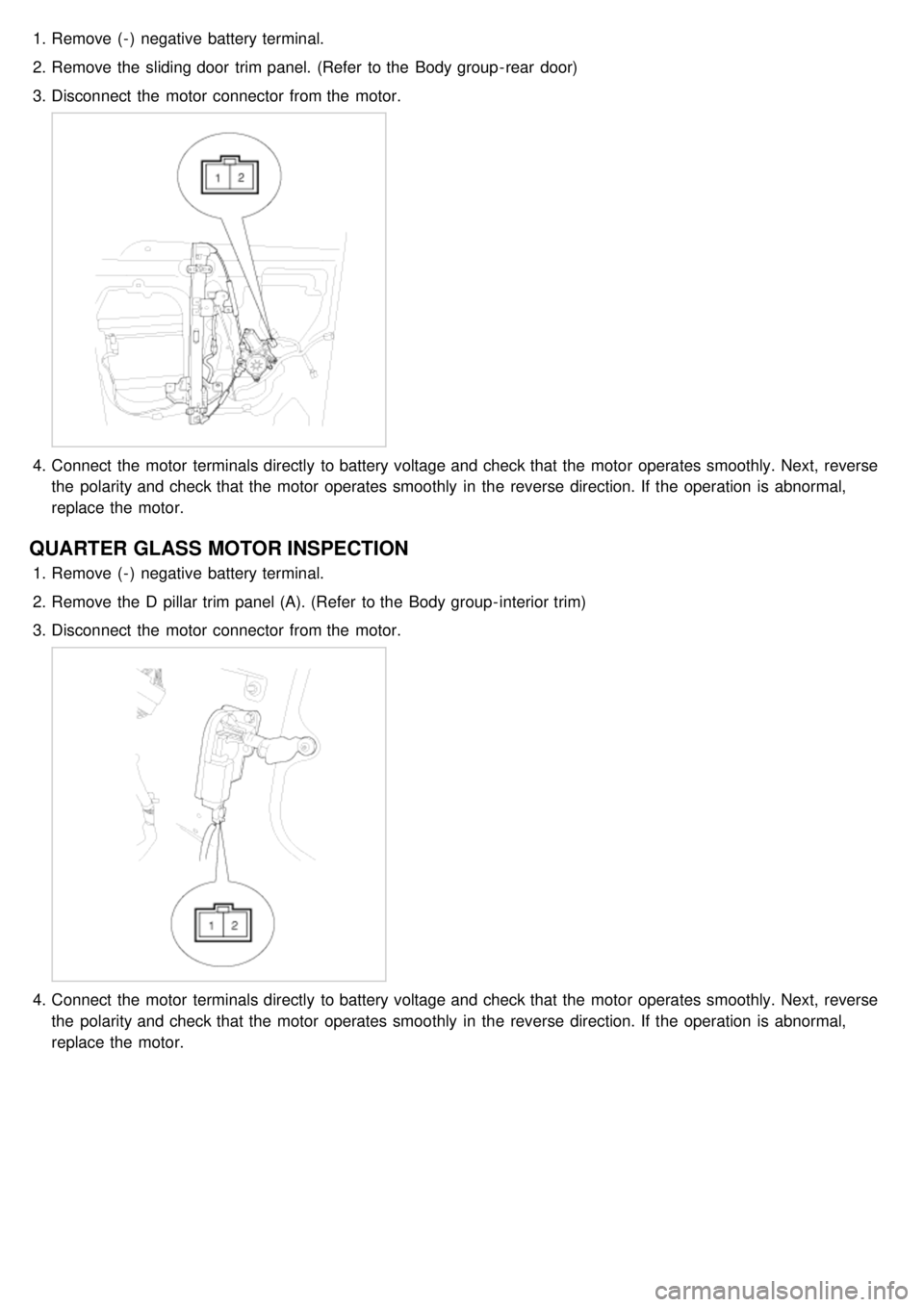

SLIDING POWER WINDOW MOTOR INSPECTION

1.Remove ( - ) negative battery terminal.
2. Remove the sliding door trim panel. (Refer to the Body group - rear door)
3. Disconnect the motor connector from the motor.
4.Connect the motor terminals directly to battery voltage and check that the motor operates smoothly. Next, reverse
the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal,
replace the motor.
QUARTER GLASS MOTOR INSPECTION
1.Remove ( - ) negative battery terminal.
2. Remove the D pillar trim panel (A). (Refer to the Body group - interior trim)
3. Disconnect the motor connector from the motor.
4.Connect the motor terminals directly to battery voltage and check that the motor operates smoothly. Next, reverse
the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal,
replace the motor.
