18Burglar Alarm horn ON/OFFContiuously ON with 60
cycles per minute, Duty:50%
RAM ACTUATOR LIST No. Description ValueControl
1 Room Lamp LS ON/OFFContinuously ON
2 Room Lamp LS Door ON/OFFContinuously ON
3 Luggage Lamp LS ON/OFFContinuously ON
4 LQG Motor Close ON/OFF3 sec ON then OFF (once)
5 LQG Motor Open ON/OFF3 sec ON then OFF (once)
6 RQG Motor Close ON/OFF3 sec ON then OFF (once)
7 RQG Motor Open ON/OFF3 sec ON then OFF (once)
8 RSD Power Window Up ON/OFF3 sec ON then OFF (once)
9 RSD Power Window Down ON/OFF3 sec ON then OFF (once)
10 LSD Power Window Up ON/OFF3 sec ON then OFF (once)
11 LSD Power Window Down ON/OFF3 sec ON then OFF (once)
12 LH PSD Open Close Signal ON/OFF0.5 sec ON then OFF
(once)
13 RH PSD Open Close Signal ON/OFF0.5 sec ON then OFF
(once)
14 PTG Open Close Signal ON/OFF0.5 sec ON then OFF
(once)
15 PSD PTG On Off Signal ON/OFFContinuously ON
16 Park Signal ON/OFFContinuously ON
17 Start Signal ON/OFFContinuously ON
18 Rear Defog ON/OFFContinuously ON
19 Rear Fog Lamps ON/OFFContinuously ON
20 Right Turn Signal Lamp ON/OFFContiuously ON with (80 +/ -
5) cycles per minute, Duty: 50%
21 Left Turn Signal Lamp ON/OFFContiuously ON with (80 +/ -
5) cycles per minute, Duty: 50%
22 Back Up Lamp Back Up Warning System Unit ON/OFFContinuously ON
23 Left/Right Tail Licence Side Marker ON/OFFContinuously ON
24 Door Lock ON/OFF0.5 sec ON then OFF
(once)
25 Door Unlock ON/OFF0.5 sec ON then OFF
(once)
26 Rear Wiper Motor ON/OFF5 sec ON then OFF (once)
27 Rear Blower Switch
& Rear Monitor
illumination ON/OFF
Continuously ON
0.5 sec ON then OFF

28Fuel Filler Door Solenoid ON/OFF0.5 sec ON then OFF
(once)
29 Map Lamp LS ON/OFFContinuously ON
DDM ACTUATOR LIST No. Description ValueControl
1 Door Courtesy Lamp ON/OFFContinuously ON
2 Door Lock Out ON/OFF0.5 sec ON then OFF
(once)
3 Door Unlock Out ON/OFF0.5 sec ON then OFF
(once)
4 OSRVM Up ON/OFF3 sec ON then OFF (once)
5 OSRVM Down ON/OFF3 sec ON then OFF (once)
6 OSRVM Left ON/OFF3 sec ON then OFF (once)
7 OSRVM Right ON/OFF3 sec ON then OFF (once)
8 OSRVM Defog ON/OFFContinuously ON
9 Folding Motor Power Feed ON/OFFContinuously ON
10 Safety Power Window Auto Up Out ON/OFF0.2 sec ON then OFF
(once)
11 Safety Power Window Up Out ON/OFF3 sec ON then OFF (once)
12 Safety Power Window Auto Down Out ON/OFF0.2 sec ON then OFF
(once)
13 Safety Power Window Down Out ON/OFF3 sec ON then OFF (once)
14 Power Window up Out ON/OFF3 sec ON then OFF (once)
15 Power Window Down Out ON/OFF3 sec ON then OFF (once)
16 Illumination Out ON/OFFContinuously ON
ADM ACTUATOR LIST No. Description ValueControl
1 Door Courtesy Lamp ON/OFFContinuously ON
2 Door Lock Out ON/OFF0.5 sec ON then OFF
(once)
3 Door Unlock Out ON/OFF0.5 sec ON then OFF
(once)
4 OSRVM Up ON/OFF3 sec ON then OFF (once)
5 OSRVM Down ON/OFF3 sec ON then OFF (once)
6 OSRVM Left ON/OFF3 sec ON then OFF (once)
7 OSRVM Right ON/OFF3 sec ON then OFF (once)
8 OSRVM Defog ON/OFFContinuously ON
9 Power Window up Out ON/OFF3 sec ON then OFF (once)
10 Power Window Down Out ON/OFF3 sec ON then OFF (once)
11 Illumination Out ON/OFFContinuously ON
IMS ACTUATOR LIST

No.Description ValueControl
1 Power Seat Slide Forward Motor ON/OFFContinuously ON
2 Power Seat Slide Backward Motor ON/OFFContinuously ON
3 Power Seat FR Height Up Motor ON/OFFContinuously ON
4 Power Seat FR Height Down Motor ON/OFFContinuously ON
5 Power Seat RR Height Up Motor ON/OFFContinuously ON
6 Power Seat RR Height Down Motor ON/OFFContinuously ON
7 Power Seat Recline Forward Motor ON/OFFContinuously ON
8 Power Seat Recline Backward Motor ON/OFFContinuously ON
9 Pedal Forward Motor ON/OFFContinuously ON
10 Pedal Backward Motor ON/OFFContinuously ON
REPLACEMENT
IPM (In-Panel Module)
1. Disconnect the negative ( - ) battery terminal.
2. Remove the crash pad lower panel (A).
(Refer to the Body group - crash pad)
[LHD]
[RHD]
3.Remove the keyless antenna cable and IPM(Instrument Panel Module)(A) after loosening 3 nuts and disconnecting
5 connectors.

4.Installation is the reverse of removal.
FAM (Front Area Module)
1.Disconnect the negative ( - ) battery terminal.
2. Remove the FAM cover from the engine room.
3. Remove the 2 FAM connectors(A) and battery terminal nut(B).
4.Remove the IPM(B) from the splesh shield(C) after loosening the 3 IPM mounting bolts(A) and the IPM mounting
clip.
5.Disconnect the connector from the splesh shield.
6. Installation is the reverse of removal.
RAM (Rear Area Module)
1.Disconnect the negative ( - ) battery terminal.
2. Remove the left luggage side trim
(Refer to the Body group - interior trim)
3. Remove the RAM(A) after loosening the 7 connectors and the 3 RAM mounting bolts(A).

4.Installation is the reverse of removal.

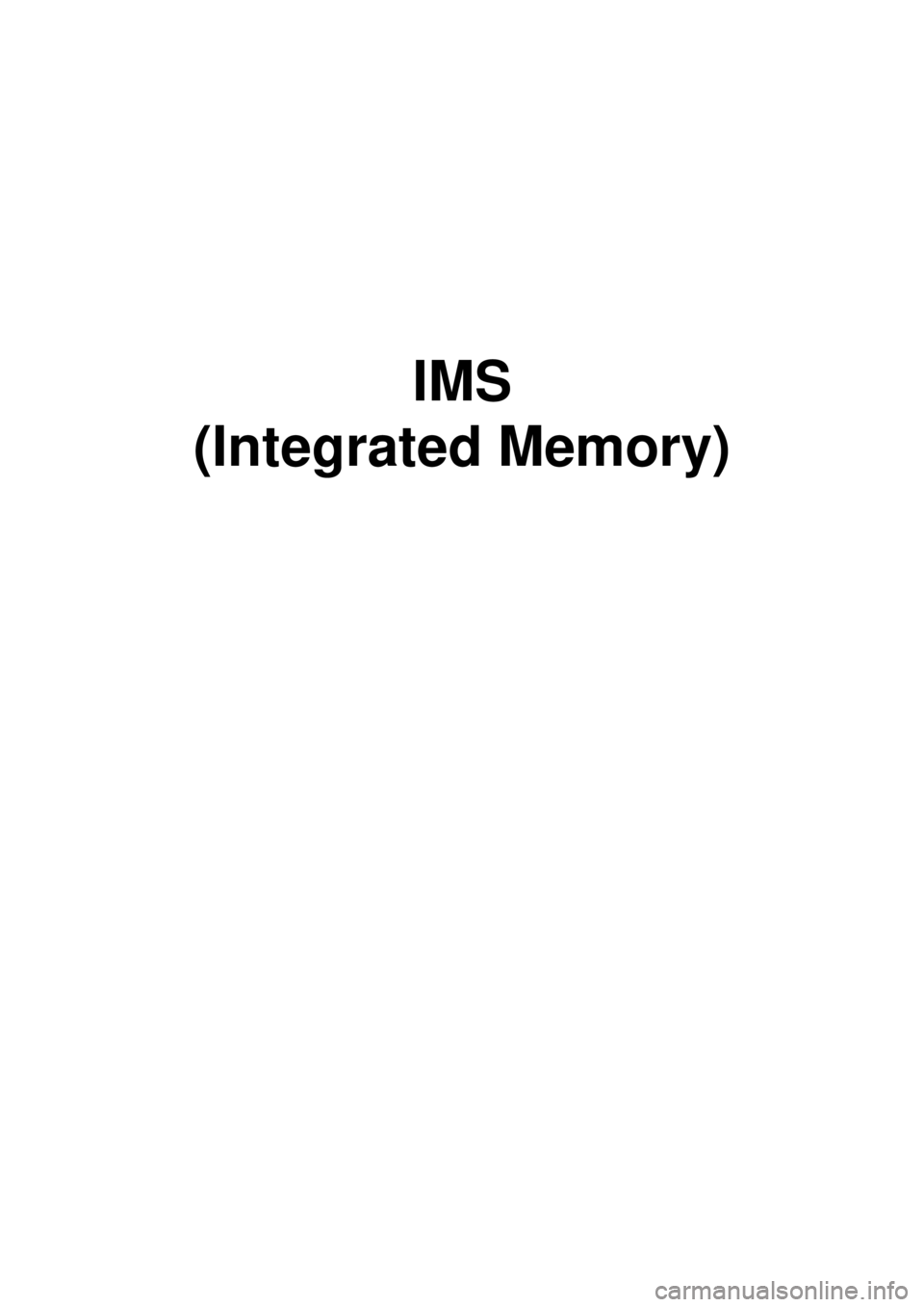

IMS
(Integrated Memory)

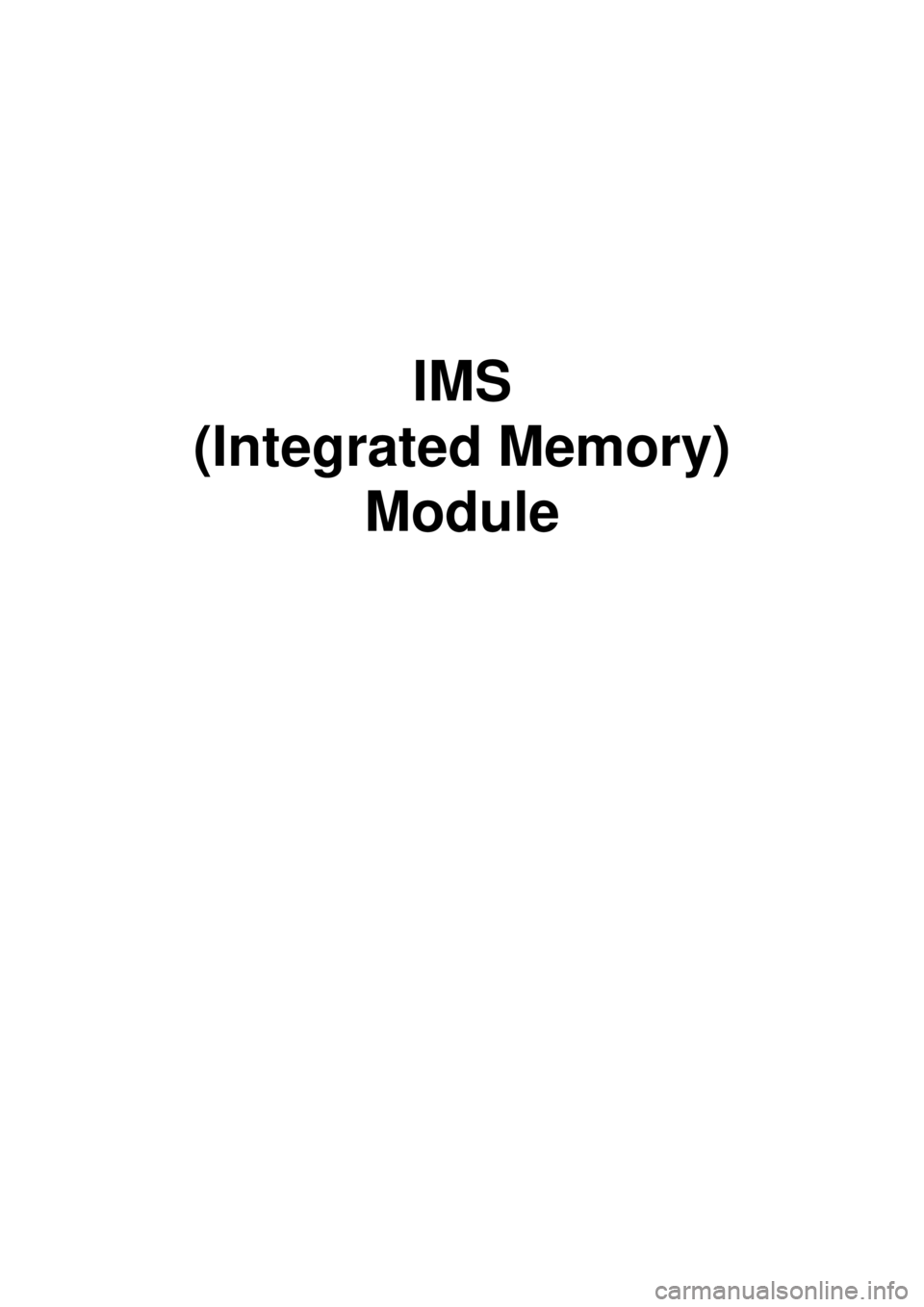

IMS
(Integrated Memory) Module

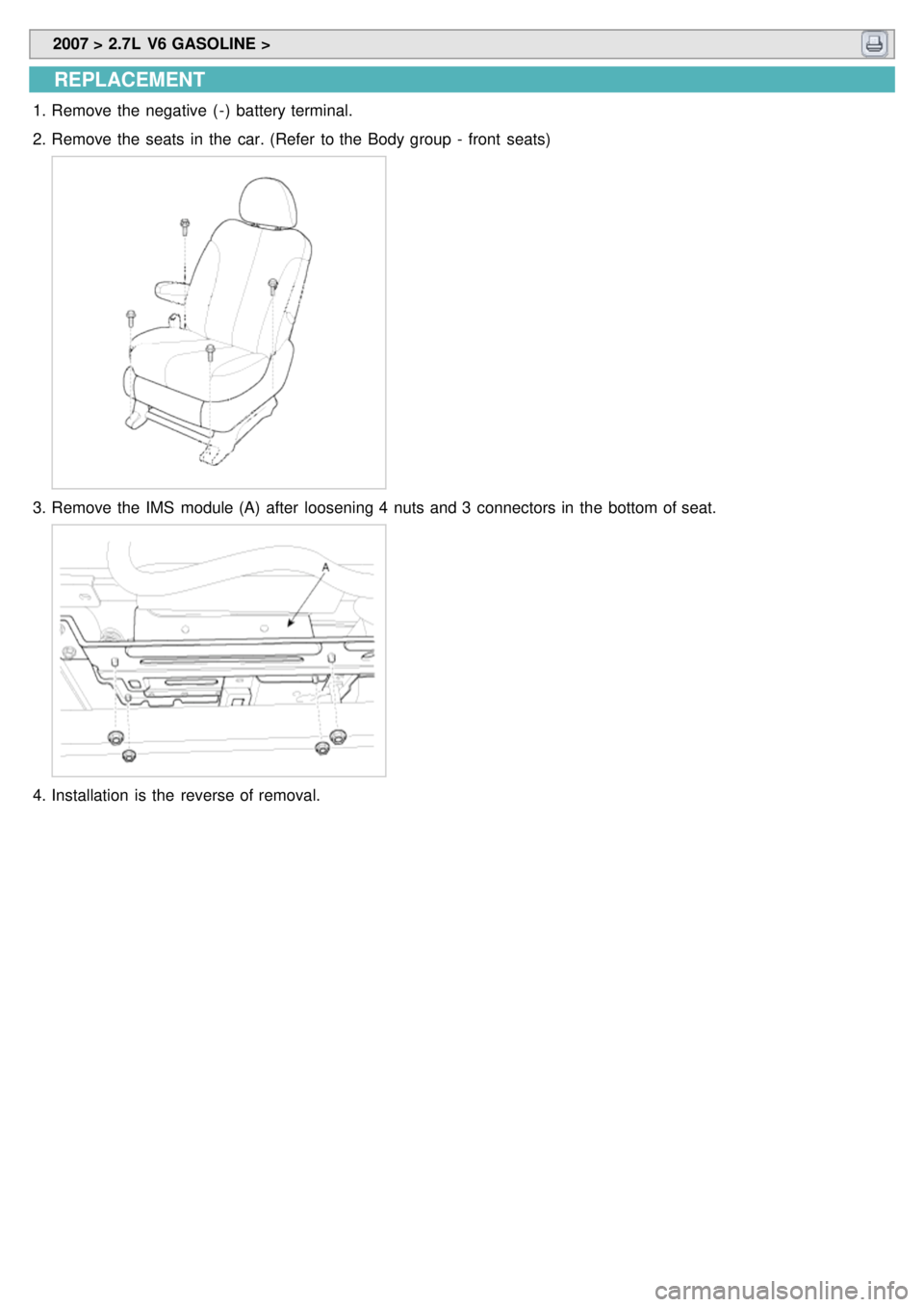

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Remove the negative ( - ) battery terminal.
2. Remove the seats in the car. (Refer to the Body group - front seats)
3.Remove the IMS module (A) after loosening 4 nuts and 3 connectors in the bottom of seat.
4.Installation is the reverse of removal.
