2007 KIA CARNIVAL Workshop Manual

3.Installation is the reverse of removal.
SHROUD REPLACEMENT
1.Loosen the screws.
2. Disconnect the connector, then remove the shroud assembly (A).
3.Installation is the reverse of removal.
LOWER CRASH PAD PANEL REPLACEMENT
1.Remove the glove box.
2. Remove the side air vent.
3. Remove the DVD cover (A).

4.Loosen the mounting screws, remove the DVD (A).
5.Disconnect the connector (A).
6.After loosening the upper glove box mounting screws, then remove the upper glove box (A).
7.Loosen the panel mounting bolts and screws.
8. After disconnecting the connector, remove the panel (A).

9.Installation is the reverse of removal.
CRASH PAD REPLACEMENT
a.When prying with a flat- tipped screwdriver, wrap itwith protective tape, and apply protective tapearound the
related parts, to prevent damage.
b. Put on gloves to protect your hands.
1. Remove the following items.
a. Front seat.
b. Cluster facia panel, cluster.
c. Audio assembly.
d. Glove box.
e. Side cover, center under cover.
f. Front pillar trim.
2. Remove the photo sensor (C), speaker connector (B).
3. Disconnect the passenger`s air bag connector (A).
Loosen the bolt and nut, then remove the crash pad (D).
4. Installation is the reverse of removal.
a.Make sure the crash pad fits onto the guide pins correctly.
b. Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
c. Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
d. Enter the anti- theft code for the radio, then enter.

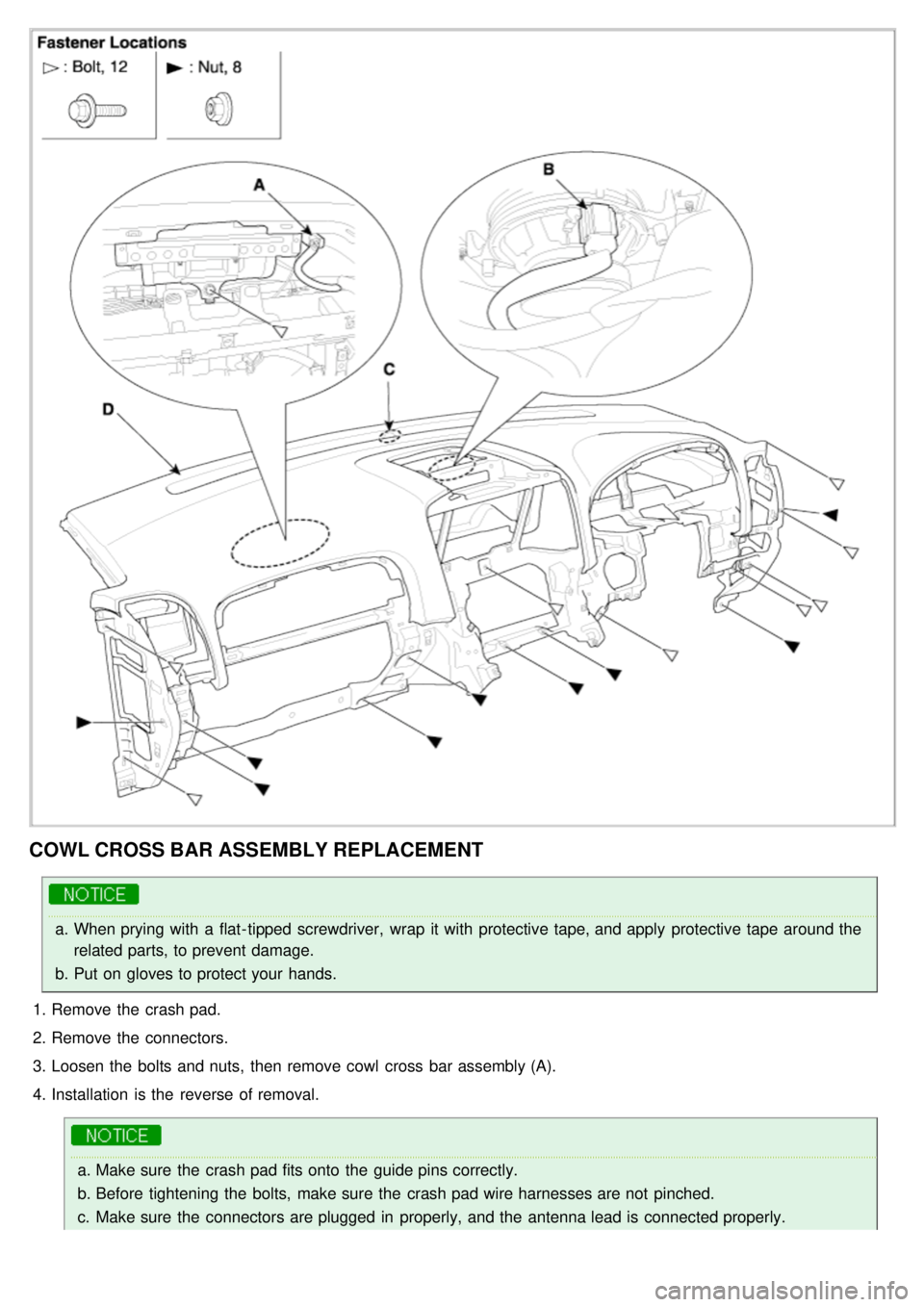

[LHD]

[RHD]

COWL CROSS BAR ASSEMBLY REPLACEMENT
a.When prying with a flat- tipped screwdriver, wrap it with protective tape, and apply protective tape around the
related parts, to prevent damage.
b. Put on gloves to protect your hands.
1. Remove the crash pad.
2. Remove the connectors.
3. Loosen the bolts and nuts, then remove cowl cross bar assembly (A).
4. Installation is the reverse of removal.
a.Make sure the crash pad fits onto the guide pins correctly.
b. Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
c. Make sure the connectors are plugged in properly, and the antenna lead is connected properly.

d.Enter the anti- theft code for the radio, then enter the customer`s radio station presets.

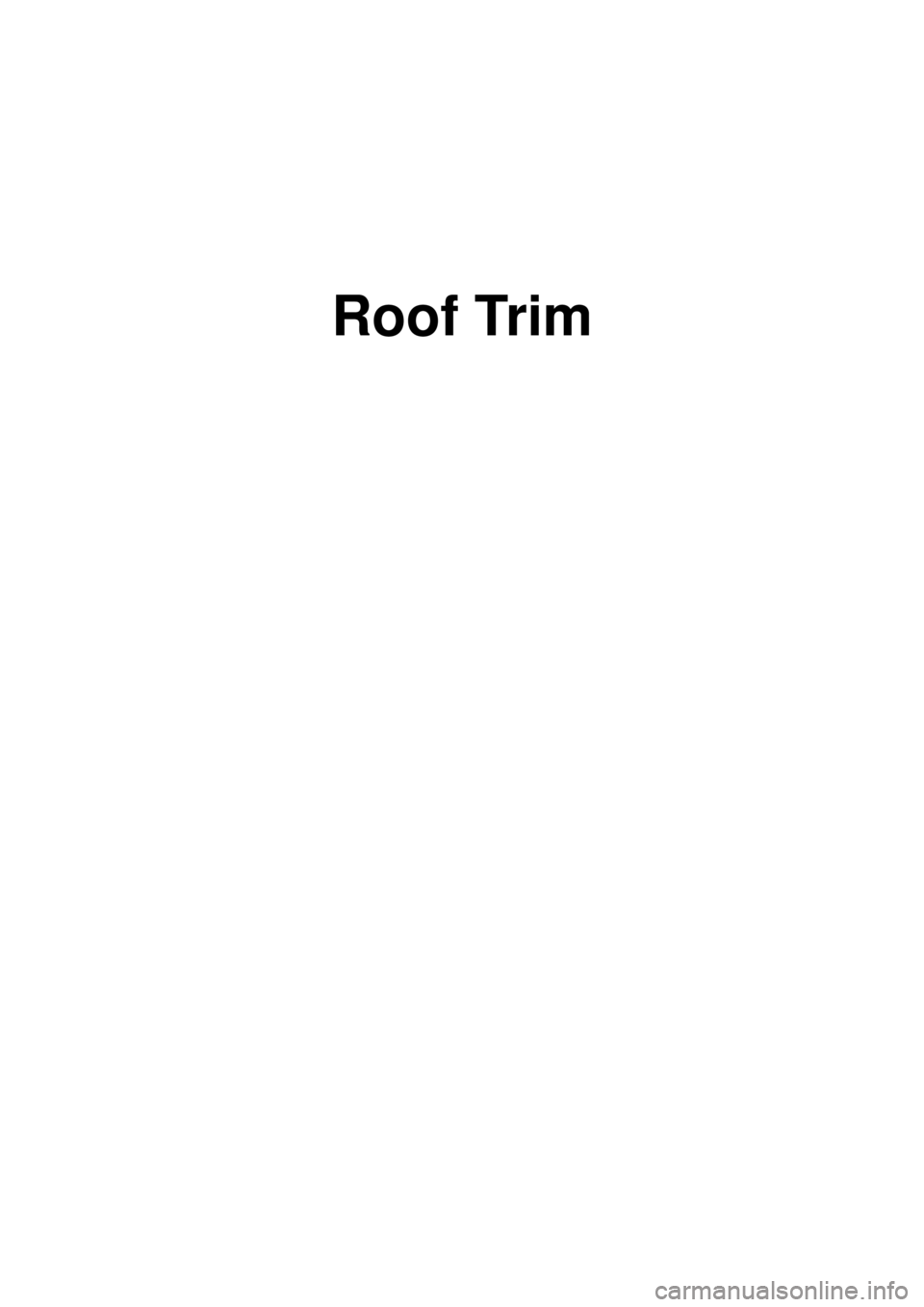

Roof Trim

2007 > 2.7L V6 GASOLINE >

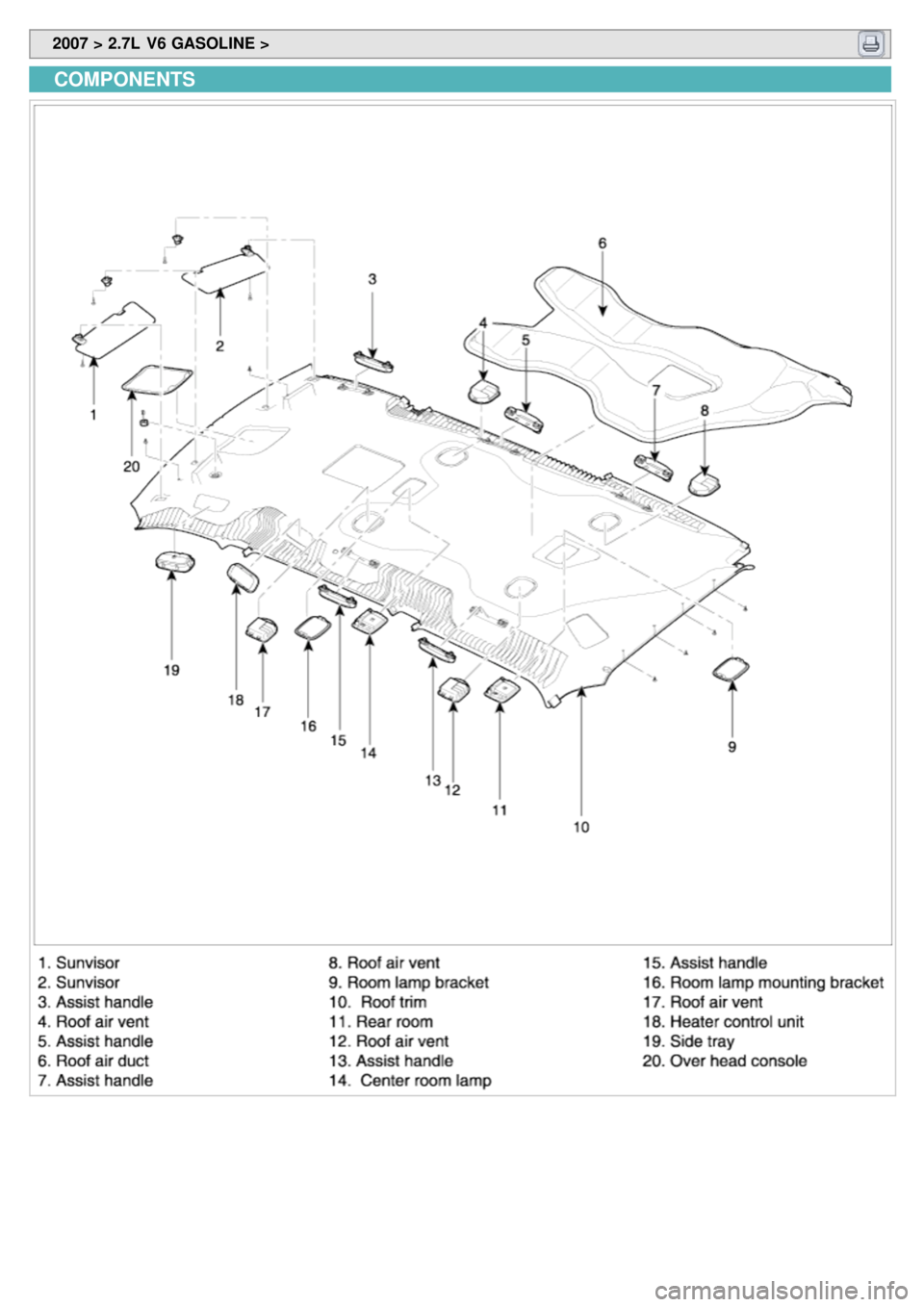

COMPONENTS
