2007 KIA CARNIVAL diagnostic menu

2007 > 2.7L V6 GASOLINE >
INSPECTION
OPERATION TEST
Fuel-fired heater operation test by force using Hi-Scan
1. Start the engine.
2. Connect the Hi - Scan to the vehicle.
3. Select "SORENTO" and then select "FUEL FIRED HEATER".
4. Select "04. ACTUATION TEST" mode.
5. Select "PREFILLING + HEATING" to conduct the performance test after replacing the fuel fired heater system.
Fuel supply and heating will be initiated if the "F1 key STRT" is pressed.
However, a repair or replacement of the components related to the fuel line system in the fuel- fired heater were not
done, operate the component by force after selecting the appropriate item from the menu screen.
Do not operate the system by force with selecting the “ PREFILLING + HEATING ” option if no repair for the
fuel line relating components has been done.
This means the fuel is in the fuel line.If an excessive fuel is supplied, it may cause smoke and abnormal
"Banging" noise when the fuel is burned.
If the "F2 KEY STOP" is pressed, operation test is stopped.
For self - diagnosis test and sensors outputs during compulsory operation test, press "ESC KEY".
When a self - diagnosis test is completed, disconnect the self - diagnosis connector or press "F2 KEY STOP"
from the "PREFILLING + HEATING" menu to stop the compulsory operation.
In case of selecting the individual part (ex. Combustion air fan, water pump, ), press "ESC KEY" to stop the
test.
In case of selecting the "PREFILLING + HEATING" option, about 2 minutes are required to conduct cleaning
process after pressing the "F2 KEY STOP".
It is a normal process to burn the fuel left in the fuel line.
6. To conduct self diagnosis test, press "ESC" and then "01. DIAGNOSTIC TROUBLE CODES" option.
7.Select "02. CURRENT DATA" to view the current status of the components.

2007 > 2.7L V6 GASOLINE >

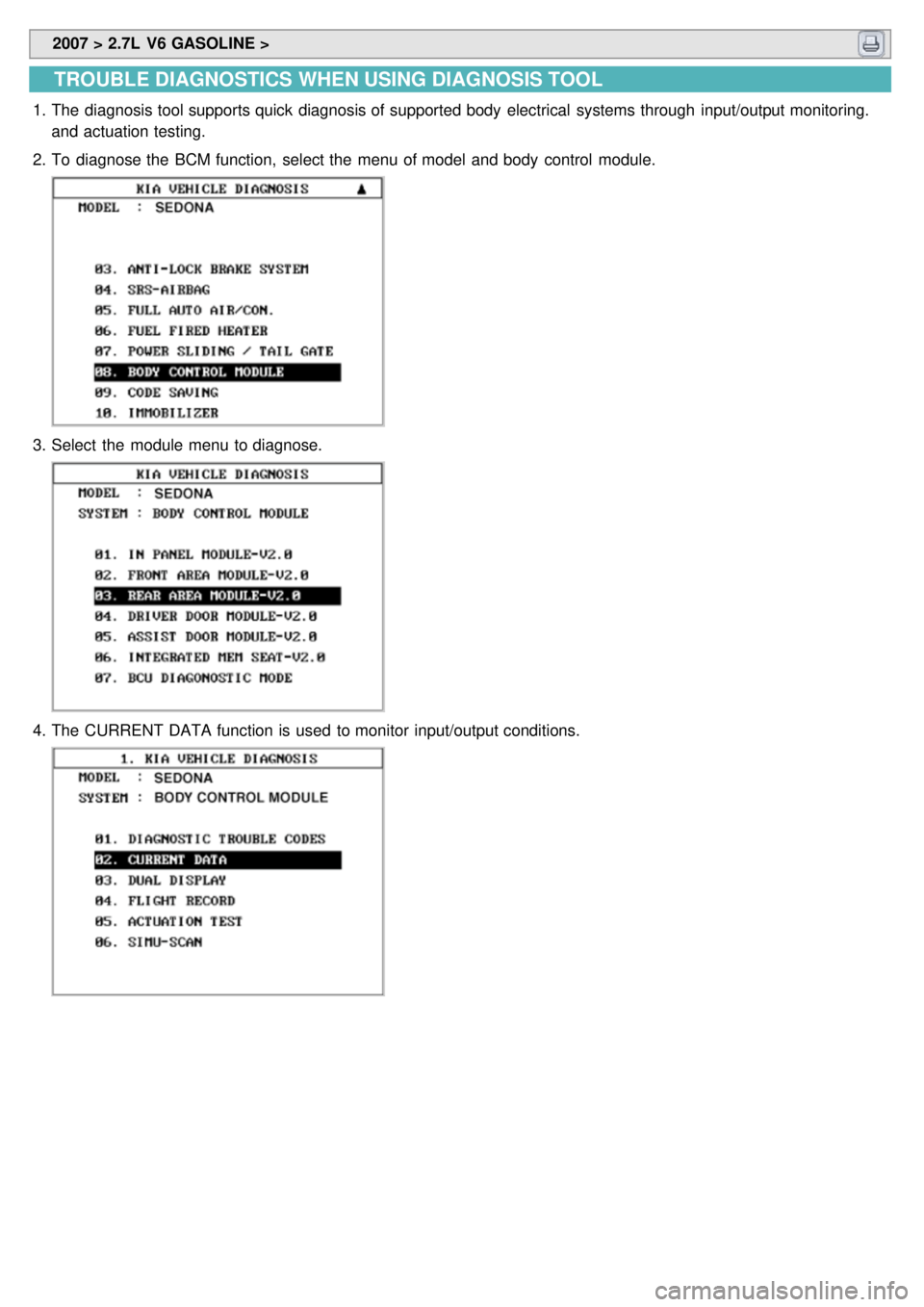

TROUBLE DIAGNOSTICS WHEN USING DIAGNOSIS TOOL
1.The diagnosis tool supports quick diagnosis of supported body electrical systems through input/output monitoring.
and actuation testing.
2. To diagnose the BCM function, select the menu of model and body control module.
3.Select the module menu to diagnose.
4.The CURRENT DATA function is used to monitor input/output conditions.

2007 > 2.7L V6 GASOLINE >
INSPECTION
SLIDING DOOR MOTOR INSPECTION
1. It will be able to diagnose defects of PSD motor with scan tool quickly.
2. Select model and menu(BCM).
3.Select "rear area module(RAM)".
4.Select the "Actuation test" and "PSD open/close" to operate tailgate motor.
5.Replace the drive unit, if actuator operates abnormal.
DRIVE UNIT CLUTCH INSPECTION
1.Check the power sliding door control module input/output value by using the diagnostic tool. If the operation of
power sliding control module is abnormal, replace power sliding door drive unit.
2. When checking the clutch operation, select a vehicle type and "POWER SLIDING/TAILGATE" menu.

3.Select the "POWER SLIDING DOOR" to check.
4.Select the sensor output. And then check the clutch feedback sensor output while operating power sliding door in
power mode.
※ Above voltage and numerical value may be different from the real value.
5. Change the drive unit, if there is no change during operation.
OPTICAL SENSOR INSPECTION
1.Check the power sliding door control module input/output value by using the diagnostic tool.
2. When checking the optical sensor, select a vehicle type and "Power sliding/tailgate" menu.

2007 > 2.7L V6 GASOLINE >
INSPECTION
1.Detent switch detect the latch position within latch assembly.
2.Check the power sliding door control module input/output value by using the diagnostic tool.
3. When checking the detent switch, select a vehicle type and "POWER SLIDING/TAIL GATE" menu.
4.Select the "POWER SLIDING DOOR".
5.Select the detent sensor output. And then check the detent switch output with operating power sliding door.

2007 > 2.7L V6 GASOLINE >
INSPECTION
1.Check the power sliding door control module input/output value by using the diagnostic tool.
2. When checking the latch, select a vehicle type and "POWER SLIDING/TAIL GATE" menu.
3.Select the "POWER SLIDING DOOR".
4.Select the sensor output. And then check the unlatch feedback (Unlocked state) voltage while operating power
sliding door in power mode.
※ Above voltage and numerical value may be different from the real value.
5. If there is no change in voltage, change the latch.
ANTI PINCH STRIP
1.Check the power sliding door control module input/output value by using the diagnostic tool. If the operation of door
control module is abnormal, replace anti pinch strip control module.
2. When checking the anti pinch strip operation, select a vehicle type and "POWER SLIDING/TAIL GATE" menu.

2007 > 2.7L V6 GASOLINE >
INSPECTION

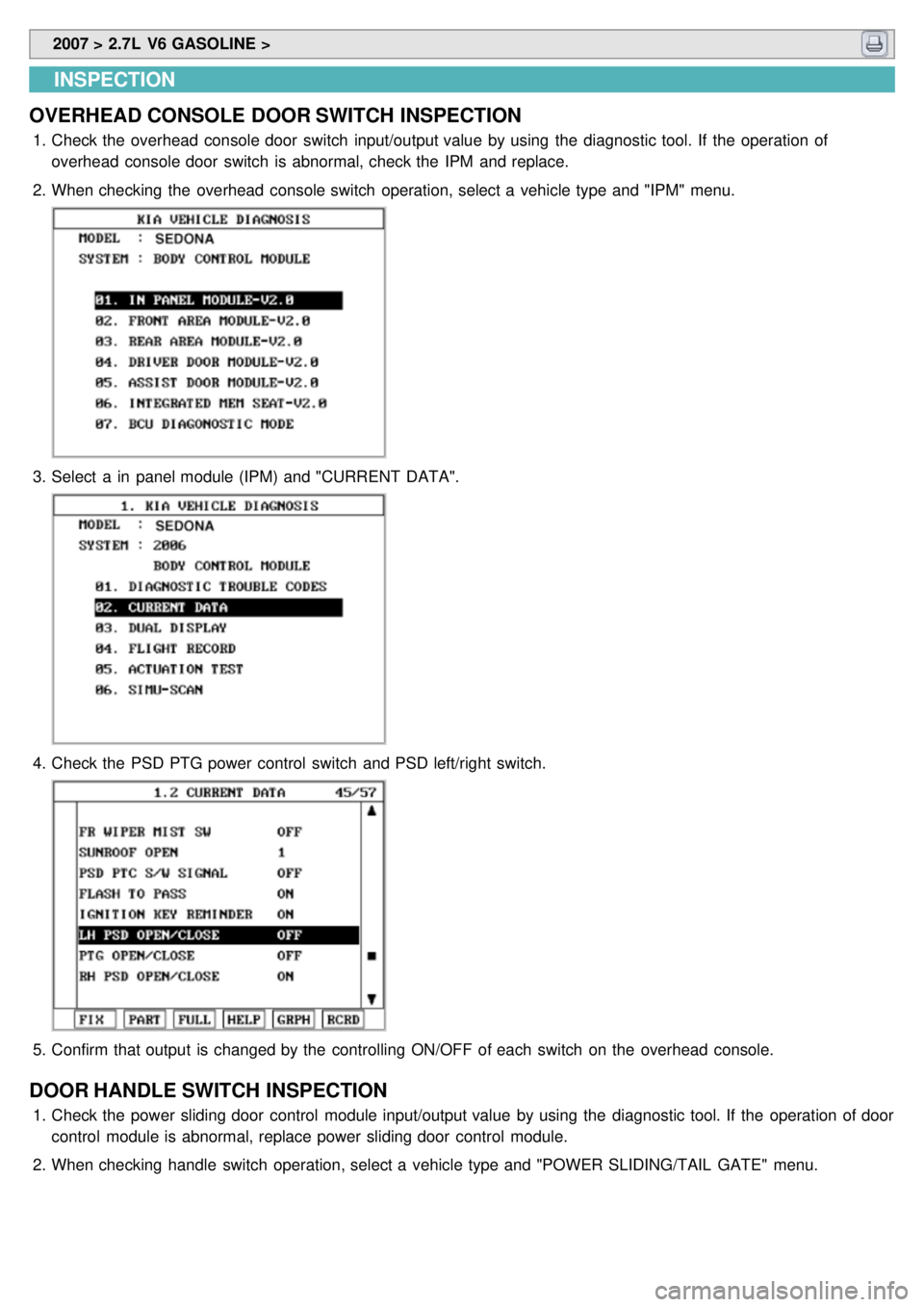

OVERHEAD CONSOLE DOOR SWITCH INSPECTION
1. Check the overhead console door switch input/output value by using the diagnostic tool. If the operation of
overhead console door switch is abnormal, check the IPM and replace.
2. When checking the overhead console switch operation, select a vehicle type and "IPM" menu.
3.Select a in panel module (IPM) and "CURRENT DATA".
4.Check the PSD PTG power control switch and PSD left/right switch.
5.Confirm that output is changed by the controlling ON/OFF of each switch on the overhead console.
DOOR HANDLE SWITCH INSPECTION
1.Check the power sliding door control module input/output value by using the diagnostic tool. If the operation of door
control module is abnormal, replace power sliding door control module.
2. When checking handle switch operation, select a vehicle type and "POWER SLIDING/TAIL GATE" menu.

3.Select the "POWER SLIDING DOOR" menu to check.
4.Select the sensor output. And then check the handle switch output value changed by the controlling PSD or PTG.
5.Check that the handle switch output changed from OFF to ON during PSD or PTG operation.
TRIM SWITCH INSPECTION
1.Check the trim switch input/output value by using the diagnostic tool. If the operation of rear area module (RAM) is
abnormal, replace RAM.
2. When checking the trim switch operation, select a vehicle type and "IPM" menu.
